Direct Answer

PNG to 3D model conversion often fails because PNG images only store flat pixel data without depth, geometry, or structural information. Most errors—such as flat models, broken meshes, or missing edges—happen when the image lacks clear contrast, clean edges, or proper transparency handling. Fixing these issues usually involves preparing the PNG correctly, improving edge clarity, and choosing the right extrusion or mesh generation settings.

Quick Takeaways

1. PNG images contain no depth data, so 3D tools must infer geometry from edges and contrast.
2. Flat models usually occur when the image lacks strong edge separation.
3. Broken meshes often come from noisy pixels or low‑resolution PNG files.
4. Transparent backgrounds can confuse geometry generation if not handled correctly.
5. Clean vector‑like shapes produce far better PNG to 3D conversion results.

Introduction

Over the past decade working on interior visualization and 3D workflows, I’ve seen a surprising number of teams try to convert a PNG to 3D model and run into the same frustrating results: flat objects, messy geometry, or exports that simply refuse to open in other software.

The issue isn’t usually the software. It’s the input image.

A PNG file is fundamentally a 2D raster image. It doesn’t contain height maps, surface data, or topology. When a tool attempts to convert that image into a 3D mesh, it’s basically guessing structure based on brightness, edges, and transparency. If those signals are messy, the resulting model will be messy too.

Before troubleshooting specific errors, it helps to understand the workflow many designers now follow when experimenting with automated modeling or layout generation. For example, tools designed for generating AI driven interior design concepts from simple inputsrely heavily on clean visual signals for geometry creation. The same principle applies when converting PNG graphics into 3D objects.

In this guide I’ll walk through the most common PNG to 3D conversion problems I’ve seen in real production pipelines—and more importantly, how to fix them.

save pin

Why PNG to 3D Conversions Sometimes Fail

Key Insight: Most PNG to 3D conversion failures happen because the image lacks clear geometric information that software can interpret.

When software tries to build a mesh from a PNG, it typically analyzes:

1. Edge contrast
2. Brightness values
3. Alpha transparency
4. Pixel gradients

If the image contains gradients, soft shadows, or compression artifacts, the algorithm can misinterpret those pixels as geometry.

Common failure triggers include:

1. Low resolution images (below 1000px)
2. Blurry edges
3. Complex photographic images instead of clean graphics
4. Multiple overlapping transparency layers

In professional visualization pipelines, artists typically preprocess images first—removing noise, sharpening edges, and simplifying shapes—before converting them into geometry.

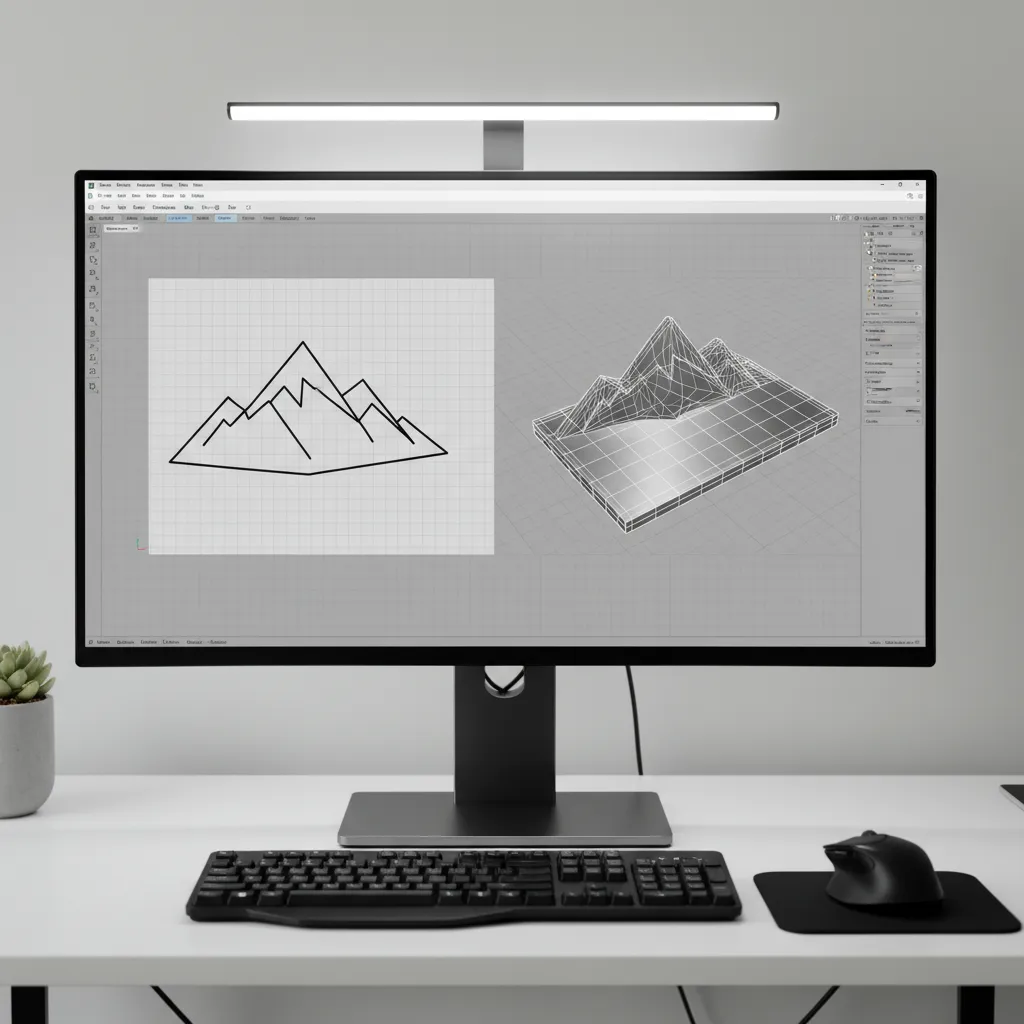

Fixing Flat or Missing Depth in Generated Models

Key Insight: Flat 3D models occur when the software cannot detect strong brightness or edge differences to generate extrusion depth.

This is probably the most common complaint: the model imports successfully, but everything looks completely flat.

Why it happens:

1. The PNG uses uniform color
2. Edges are too soft
3. No height map or depth interpretation exists

Practical fixes I use in projects:

1. Increase edge contrast in Photoshop or similar tools.
2. Convert the PNG to grayscale before processing.
3. Apply a threshold filter to isolate clear shapes.
4. Use extrusion settings manually instead of automatic depth.

In architectural visualization pipelines, designers often generate geometry from simplified silhouettes rather than detailed images. The cleaner the outline, the better the extrusion result.

save pin

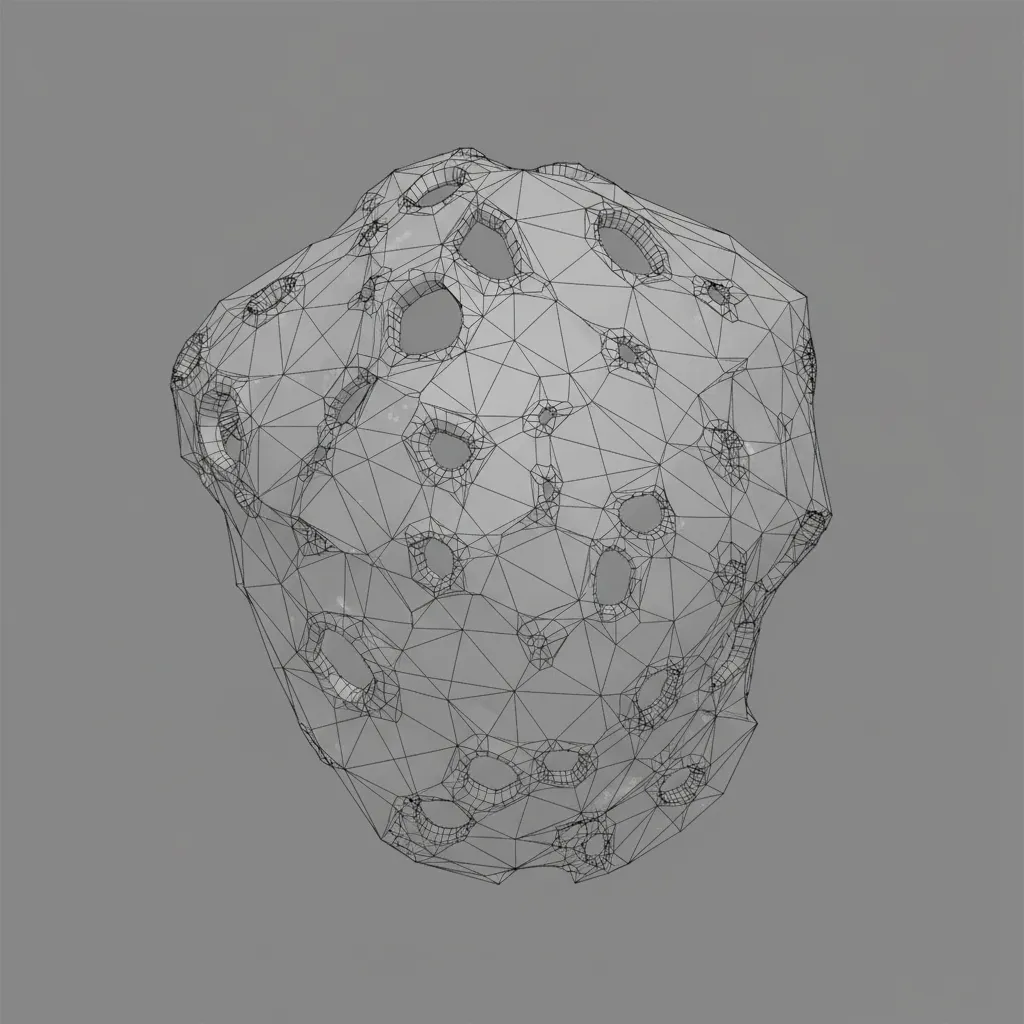

Solving Broken Mesh and Geometry Errors

Key Insight: Broken meshes usually come from noisy edges or overlapping shapes in the PNG file.

A broken mesh often appears as:

1. Holes in the surface
2. Non-manifold geometry
3. Disconnected polygons

These problems often start with pixel-level inconsistencies.

Typical causes:

1. Anti‑aliased edges creating micro‑polygons
2. Image noise or compression artifacts
3. Thin lines that cannot extrude properly

Professional fixes include:

1. Simplifying shapes before conversion
2. Running mesh cleanup tools after generation
3. Increasing polygon tolerance during extrusion

In many visualization studios, geometry generated from images is considered a starting point—not the final mesh. Artists typically run cleanup passes in Blender, Maya, or similar tools.

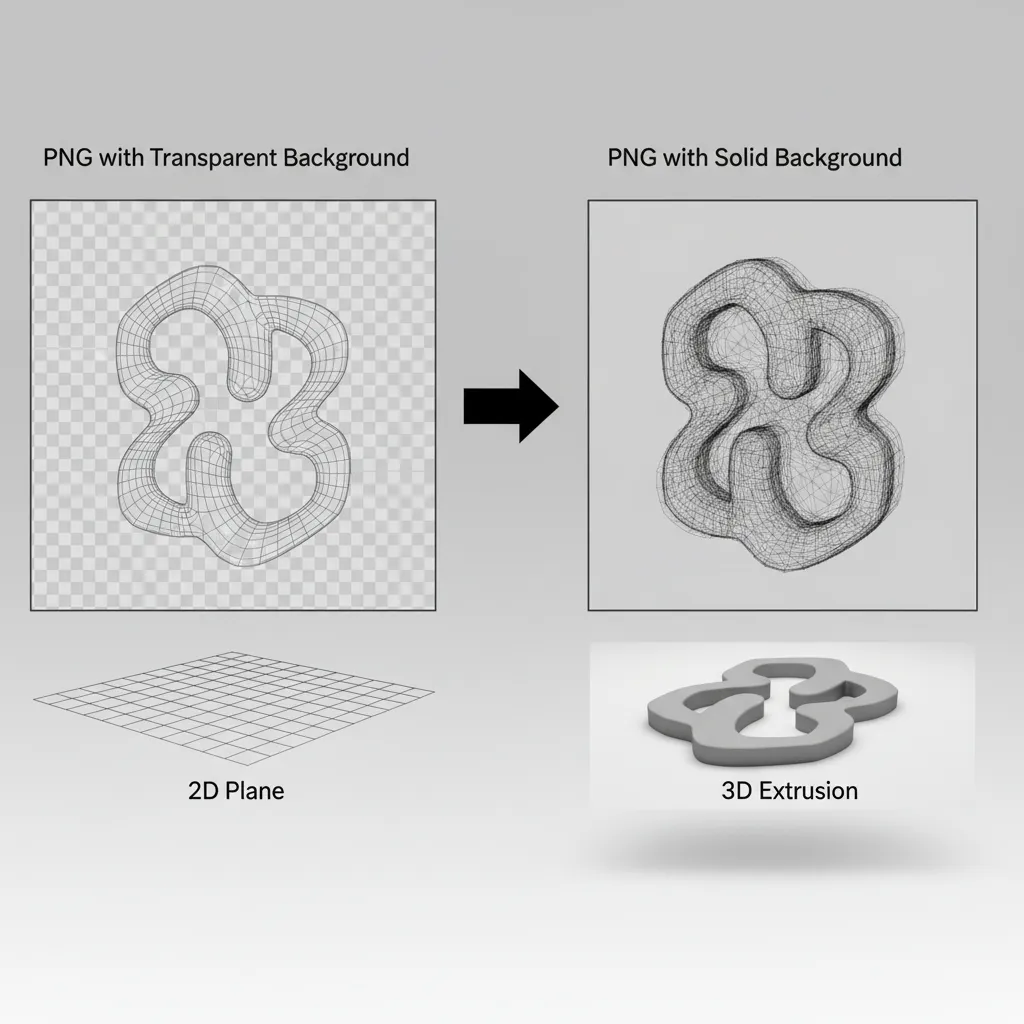

Handling Transparency and Background Issues in PNG Files

Key Insight: Improper transparency handling can create unwanted geometry or missing sections in the generated 3D model.

PNG files often include transparent backgrounds, which seems convenient but can actually confuse geometry generation.

What often goes wrong:

1. The tool interprets transparent pixels as geometry.
2. Soft transparency creates fuzzy edges.
3. Background shadows become part of the mesh.

Best practices I recommend:

1. Use a pure black or white background instead of transparency.
2. Remove drop shadows.
3. Flatten the image before conversion.
4. Ensure the main shape is clearly separated from the background.

In architectural workflows—especially when preparing assets for high quality home interior rendering workflows—clean silhouettes dramatically improve automated modeling results.

save pin

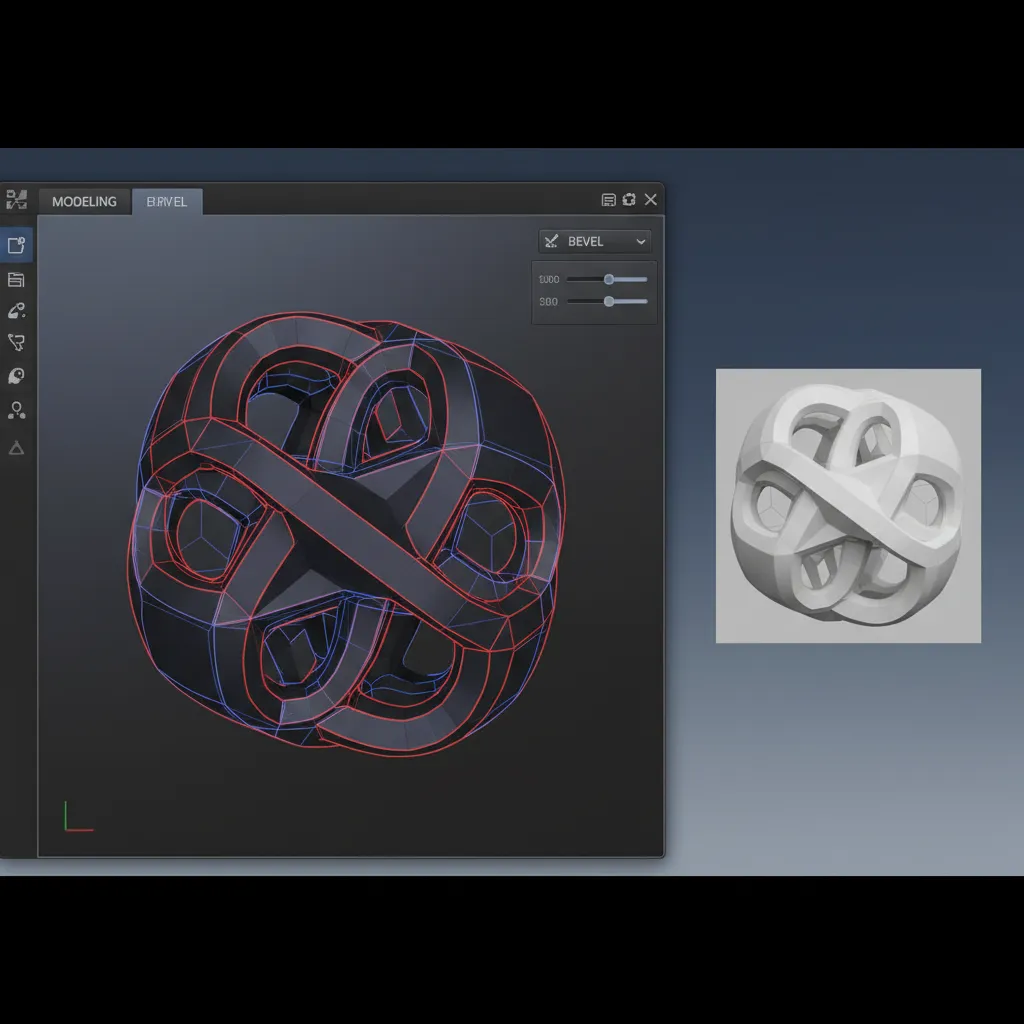

Improving Edge Detection for Better 3D Extrusion

Key Insight: Strong edge detection is the single most important factor for generating accurate 3D extrusion from PNG images.

If edges are unclear, the software has no reliable boundary for generating volume.

Edge optimization techniques:

1. Use high‑contrast shapes
2. Avoid gradients
3. Increase edge sharpness
4. Convert raster shapes to vector outlines first

One counterintuitive tip: simplifying an image often improves the 3D result. Many beginners assume more detail produces better geometry, but in practice, fewer shapes generate cleaner meshes.

That’s why icons, logos, and diagrams convert much more reliably than photos.

save pin

Export and Compatibility Problems in 3D Formats

Key Insight: Export issues usually happen because the generated mesh contains errors or uses an incompatible format.

Even when a PNG converts successfully, the resulting 3D file may fail during export.

Typical compatibility problems include:

1. Unsupported file formats
2. Non‑manifold geometry
3. Missing normals
4. Excessive polygon counts

Reliable export workflow:

1. Clean the mesh.
2. Recalculate normals.
3. Reduce polygon density if necessary.
4. Export in widely supported formats such as OBJ, FBX, or GLTF.

When models are intended for spatial planning or layout simulation—such as in workflows used by interactive floor plan creation and spatial layout planning—keeping geometry lightweight is essential for performance.

Answer Box

The most reliable way to fix PNG to 3D conversion errors is to simplify the image before generating geometry. Clean edges, strong contrast, and minimal noise dramatically improve mesh quality and reduce modeling errors.

Final Summary

1. PNG images lack depth information, so conversion tools must infer geometry.
2. Flat models usually result from weak edge contrast.
3. Broken meshes often originate from noisy or low‑resolution images.
4. Transparent backgrounds can interfere with geometry generation.
5. Clean shapes and simplified graphics produce the best 3D models.

FAQ

Why does my PNG convert to a flat 3D model?

This happens when the image lacks contrast or depth cues. Strong edge definition is necessary for extrusion during PNG to 3D model conversion.

What resolution should a PNG be for 3D conversion?

Images above 1000–2000 pixels generally produce better geometry because edges are clearer and easier for algorithms to detect.

Can photos be converted into 3D models from PNG?

Technically yes, but results are inconsistent. Clean silhouettes and graphic shapes convert far more reliably than photographs.

How do I fix broken mesh after PNG to 3D conversion?

Run mesh cleanup tools, remove duplicate vertices, and repair non‑manifold edges before exporting the model.

Is transparency good for PNG to 3D conversion?

Not always. Transparent edges can confuse geometry generation. Solid backgrounds often work better.

What file formats work best after conversion?

OBJ, FBX, and GLTF are widely compatible formats for most 3D software.

Why do PNG to 3D conversion errors happen so often?

Because PNG files contain only pixel information. The software must guess the geometry, which leads to errors if the image is messy.

Can AI tools improve PNG to 3D modeling?

Yes. Many modern tools use AI edge detection and depth estimation to improve mesh generation from 2D images.
