Common Problems When Creating 3D Floor Plans and How to Fix Them: Practical solutions designers use to correct scale, lighting, and rendering mistakes in 3D floor plan projects

Direct Answer

The most common 3D floor plan problems come from incorrect scaling, unrealistic lighting, poor material settings, and overloaded rendering scenes. Fixing them usually requires correcting room dimensions, simplifying textures, using consistent lighting sources, and optimizing rendering settings. Most issues can be prevented by verifying scale early and using a structured modeling workflow.

Quick Takeaways

1. Most 3D floor plan rendering problems start with incorrect base measurements.
2. Overly complex textures often cause unrealistic results and slow rendering.
3. Lighting consistency matters more than brightness for realistic floor plans.
4. Performance issues usually come from excessive geometry and large textures.
5. A structured pre‑render checklist prevents most architectural visualization mistakes.

Introduction

After working on residential and commercial visualization projects for more than a decade, I can confidently say that creating a good 3D floor plan is less about software and more about workflow discipline. Many designers assume that if a model looks wrong, the rendering engine is the problem. In reality, most 3D floor plan rendering problems start much earlier in the modeling stage.

I see the same issues repeatedly: rooms that feel slightly “off,” furniture that looks oddly large, materials that appear flat, or lighting that makes the plan look like a video game. These mistakes aren’t obvious while modeling, but they become painfully visible once you render the final visualization.

If you're still refining your workflow, it helps to first understand how a professional layout should be structured. This practical walkthrough for designing a complete 3D floor plan from layout to visualizationexplains the base structure many designers skip.

Below, I’ll break down the most common mistakes I’ve seen in real projects, why they happen, and exactly how to fix them.

save pin

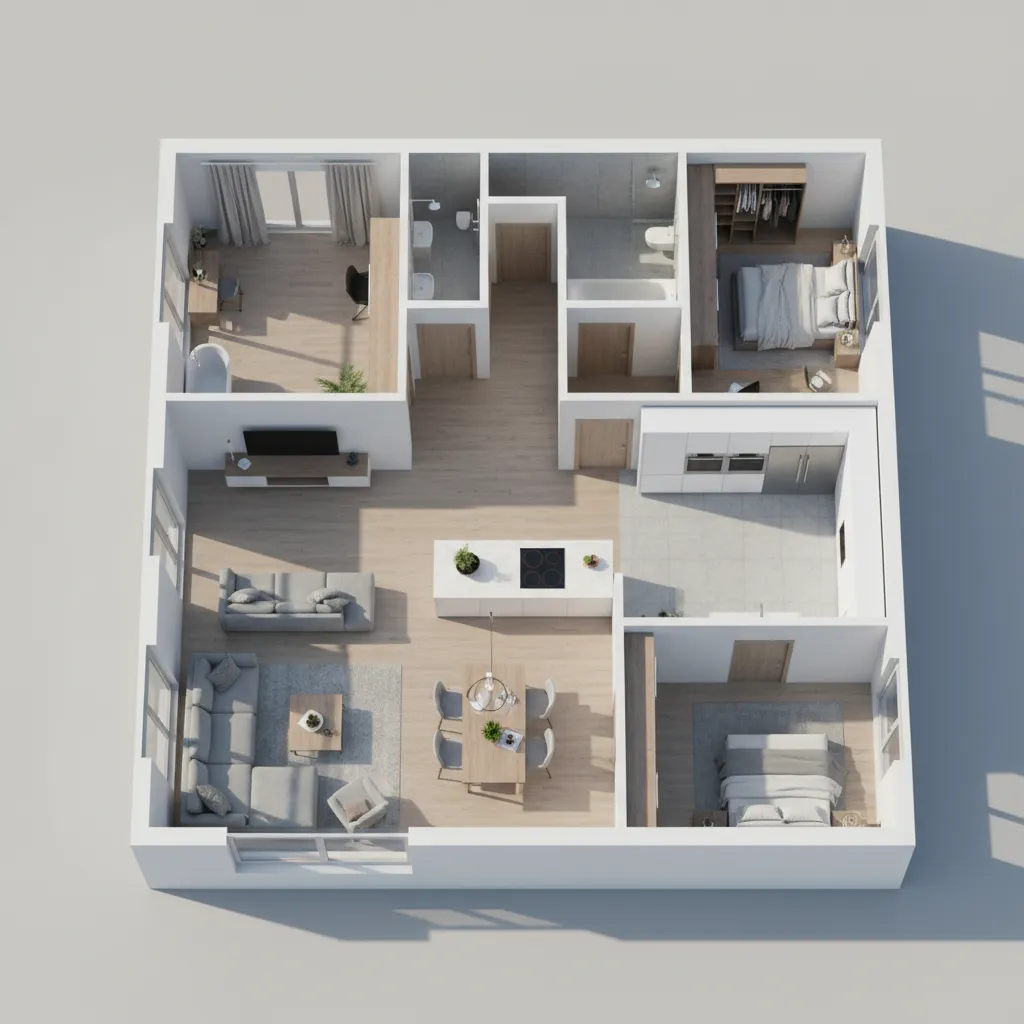

Why 3D Floor Plan Projects Often Go Wrong

Key Insight: Most 3D floor plan failures originate from incorrect assumptions during the early modeling stage.

Many designers jump straight into modeling furniture and finishes before validating the architectural framework. In professional workflows, the architectural shell always comes first. When walls, heights, or proportions are even slightly incorrect, everything that follows becomes harder to fix.

Three issues appear most frequently:

1. Incorrect base scale — importing CAD files without verifying units.
2. Overdecorated scenes — adding too many assets too early.
3. Inconsistent lighting sources — mixing sunlight, HDRI, and artificial lighting randomly.

Industry visualization studios such as Chaos and Autodesk training materials consistently recommend starting with simplified geometry and validating dimensions before adding visual complexity.

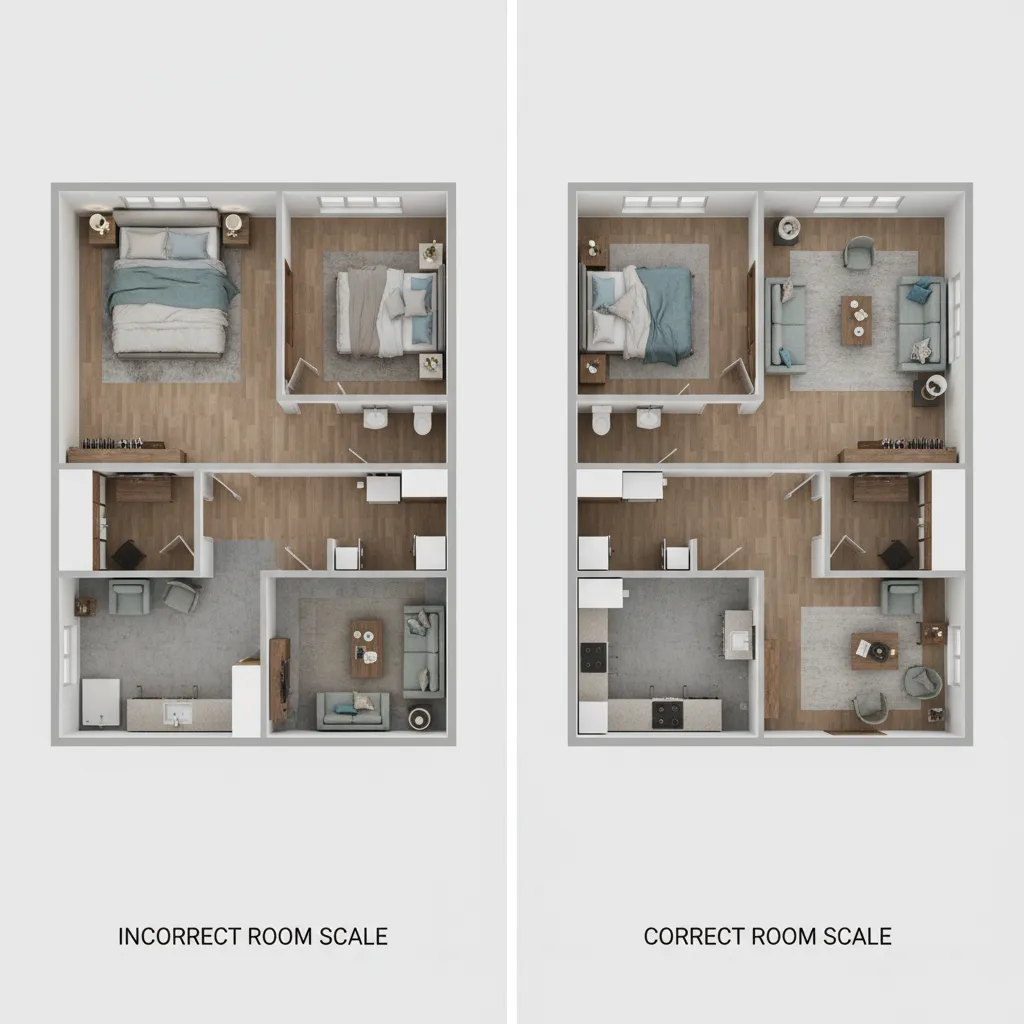

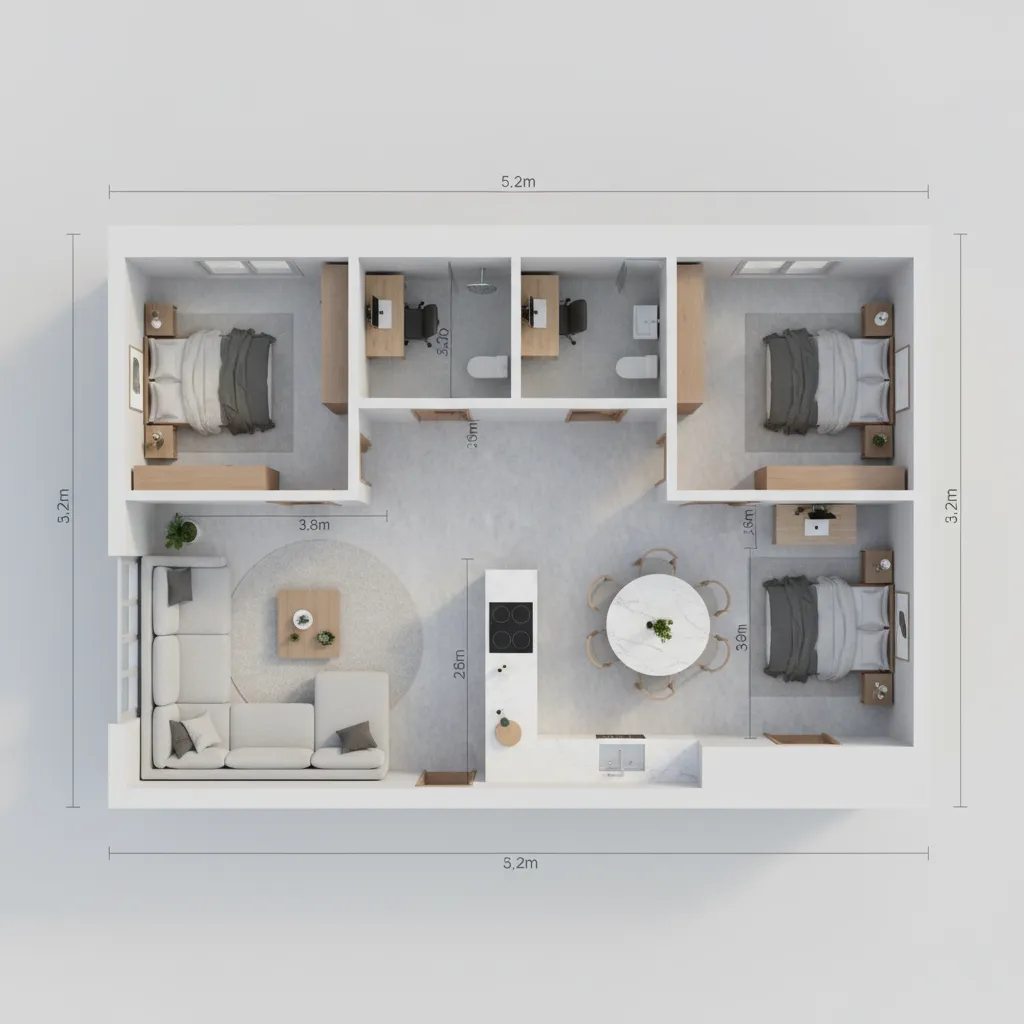

Fixing Incorrect Room Dimensions and Scale Issues

Key Insight: If the scale is wrong, the entire 3D floor plan will feel unrealistic no matter how good the rendering is.

Scale errors are the number one reason designers think their floor plan looks "weird" or "unbalanced." Often the mistake is subtle—walls might be correct, but doors, furniture, or ceiling heights are slightly off.

In real residential projects, common reference dimensions include:

1. Standard door height: 80 inches (203 cm)
2. Typical ceiling height: 8–10 feet
3. Kitchen counter height: 36 inches
4. Dining table height: about 30 inches

Steps to correct scale issues:

1. Verify the project unit settings before importing drawings.
2. Place a known reference object (such as a door).
3. Check ceiling height before adding furniture.
4. Resize imported assets to match real-world dimensions.

One overlooked trick professionals use is placing a human-scale placeholder model in the scene. If a person looks too small or large relative to furniture, you immediately know the scale is off.

save pin

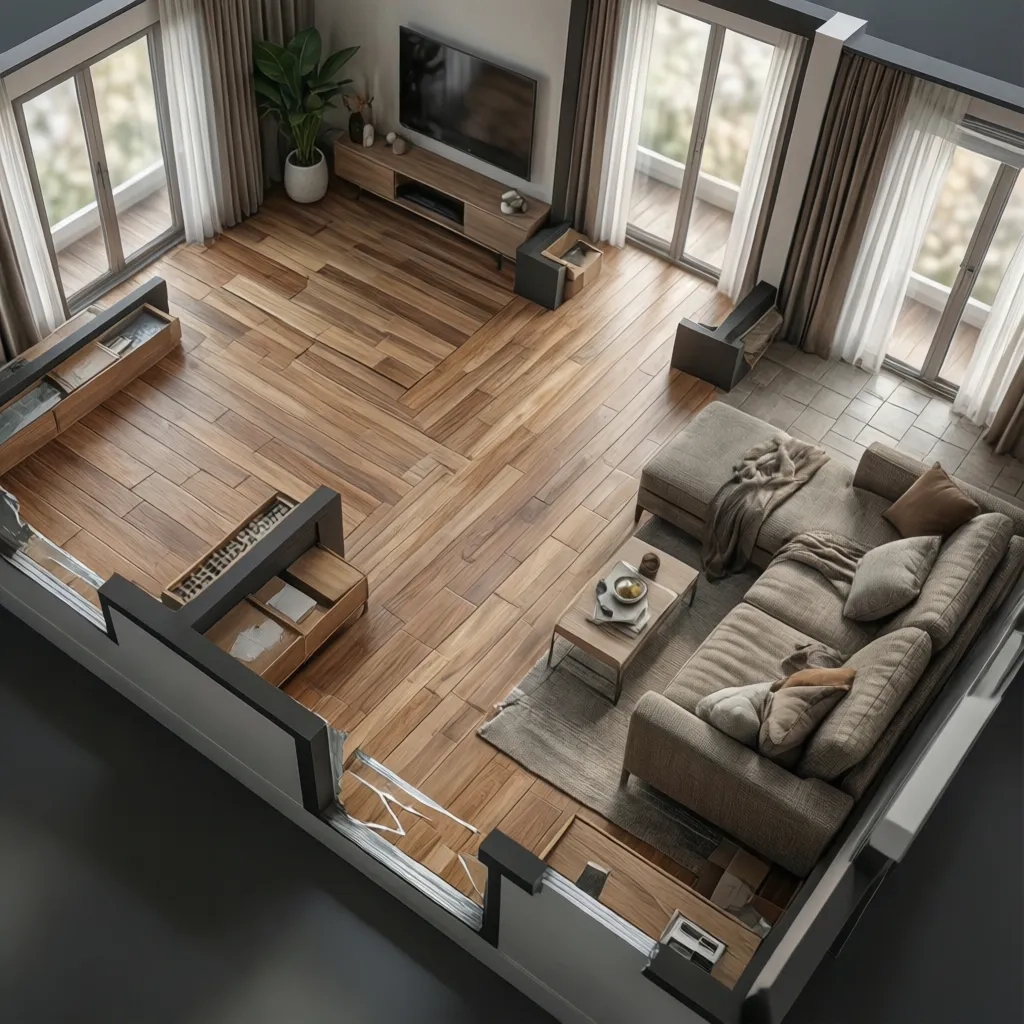

Solving Texture and Material Problems

Key Insight: Realistic materials depend more on correct scale and subtle variation than high-resolution textures.

Many beginners assume better textures automatically produce better results. In reality, textures often look unrealistic because their scale or reflectivity settings are incorrect.

Typical texture problems include:

1. Wood grain appearing oversized
2. Tiles repeating too obviously
3. Materials looking flat due to missing roughness maps
4. Overly glossy surfaces

Quick material correction checklist:

1. Verify texture scale against real measurements.
2. Add roughness maps to remove plastic-like reflections.
3. Use slightly varied textures instead of perfectly repeating patterns.
4. Reduce reflection intensity for most interior materials.

Designers creating layouts for renovation previews often use simplified but correctly scaled materials. This guide to visualizing realistic interior concepts from simple floor plansdemonstrates how subtle materials often outperform heavy textures.

save pin

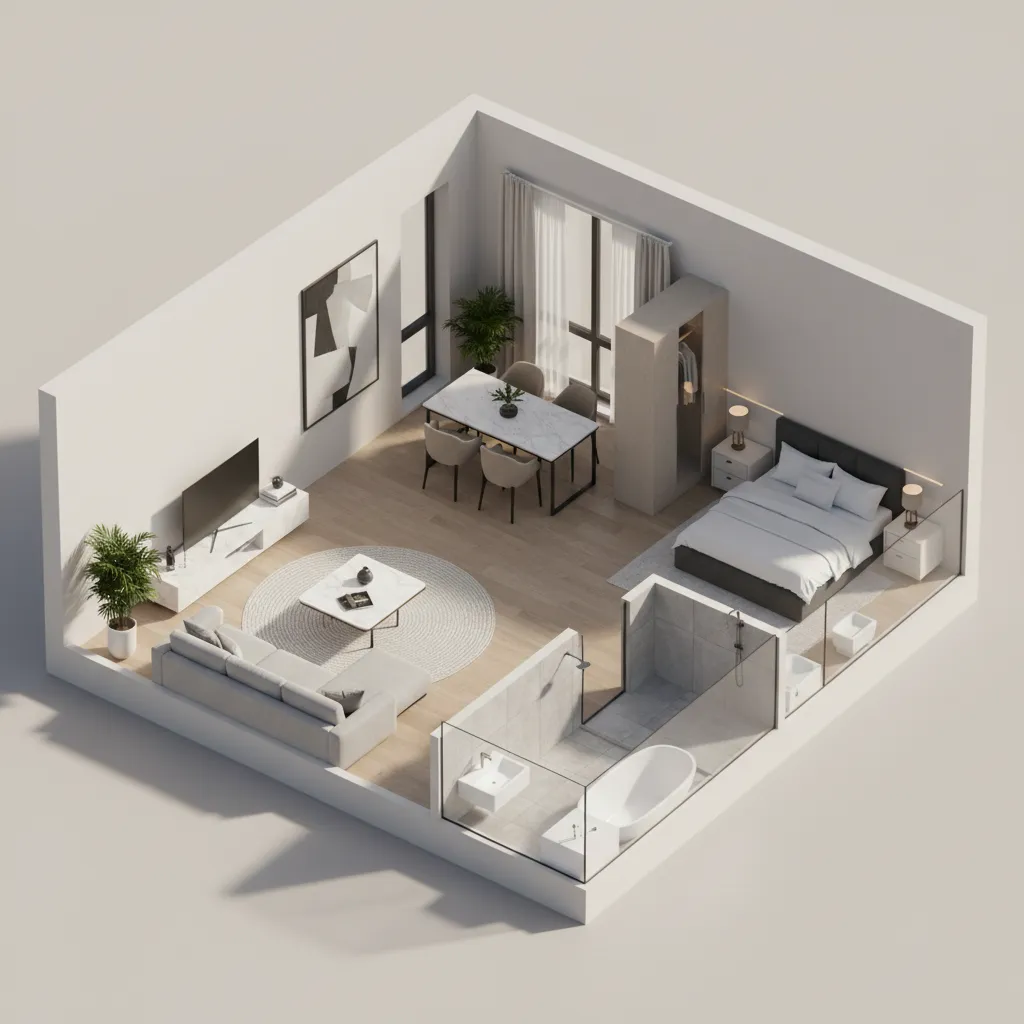

Improving Lighting and Shadow Accuracy

Key Insight: Good lighting is about direction and balance, not brightness.

Lighting mistakes are responsible for many cases where designers say their 3D floor plan “looks fake.” In real interiors, light always has a clear source and direction.

Professional visualization artists usually follow this lighting structure:

1. Primary daylight source (sun or HDRI)
2. Soft ambient fill light
3. Accent lighting for key areas

Common lighting errors include:

1. Using too many artificial lights
2. Overexposing window areas
3. Shadows that are too sharp or completely absent

A helpful rule is to start with daylight only. Once natural lighting looks correct, then add interior fixtures gradually.

Handling Rendering Errors and Performance Issues

Key Insight: Slow rendering usually means the scene is too complex, not that the computer is too slow.

In my experience, performance issues come from excessive geometry and oversized texture files. Many 3D floor plans don’t need ultra-detailed furniture models.

Optimization techniques used by professional studios include:

1. Replacing complex furniture with low‑poly models
2. Reducing texture resolution where details are invisible
3. Removing hidden geometry behind walls
4. Limiting reflective materials

If you're building layouts frequently, it helps to generate the spatial structure first using a structured workflow such as this practical method for building accurate digital floor plans quickly.

save pin

Checklist to Prevent 3D Floor Plan Design Mistakes

Key Insight: A simple validation checklist can eliminate most floor plan visualization errors before rendering even starts.

Before finalizing a 3D floor plan, professional designers typically verify several structural elements.

Pre‑render checklist:

1. Confirm wall thickness and ceiling height.
2. Check door and window proportions.
3. Verify furniture scale against real measurements.
4. Ensure lighting has a clear direction.
5. Review material scale and reflection levels.
6. Remove unnecessary geometry.

Answer Box

The most common 3D floor plan issues are incorrect scale, unrealistic materials, inconsistent lighting, and overly complex scenes. Verifying measurements early and simplifying the model structure prevents most rendering problems.

Final Summary

1. Most floor plan rendering issues start with incorrect dimensions.
2. Material scale matters more than texture resolution.
3. Balanced directional lighting improves realism dramatically.
4. Scene optimization prevents slow rendering.
5. A validation checklist eliminates common visualization errors.

FAQ

Why does my 3D floor plan look unrealistic?

Usually because of incorrect scale, flat materials, or poor lighting direction. Fixing those three factors solves most realism problems.

How do I fix scale issues in 3D floor plan design?

Verify project units, use reference dimensions like door height, and compare furniture sizes to real measurements.

What causes 3D floor plan rendering problems?

Overly complex models, heavy textures, and incorrect lighting settings often cause rendering failures or slow performance.

How can I make textures look more realistic?

Adjust texture scale, add roughness maps, and avoid perfectly repeating patterns.

How many lights should a 3D floor plan use?

Start with one main daylight source, then add minimal interior lighting only where needed.

Do high resolution textures improve floor plans?

Not always. Correctly scaled textures with balanced reflections matter more than resolution.

Why is my rendering slow?

Large models, excessive geometry, and high‑resolution textures usually slow down architectural visualization scenes.

What is the best workflow for troubleshooting architectural visualization floor plans?

Check scale first, verify materials second, correct lighting third, and optimize geometry before rendering.
