Common Problems When Creating 3D Floor Plans in AutoCAD and How to Fix Them: A practical troubleshooting guide from real architectural workflows to resolve common 3D floor plan conversion errors.

Direct Answer

Most AutoCAD 3D floor plan problems happen because 2D drawings are not properly prepared for 3D operations. Open boundaries, incorrect layers, inconsistent scales, and messy geometry often prevent extrusion or cause distorted models. Fixing these issues usually involves cleaning polylines, checking units, and simplifying geometry before converting the floor plan into 3D.

Quick Takeaways

1. Most extrusion failures come from open polylines or broken boundaries.
2. Layer visibility and object isolation often hide geometry during 3D modeling.
3. Incorrect drawing units can distort wall height and scaling.
4. Cleaning complex geometry dramatically improves 3D modeling reliability.
5. Preparing a clean 2D base drawing saves hours during 3D conversion.

Introduction

In more than a decade working with architectural drafting teams, I’ve seen one pattern repeat constantly: the hardest part of building an AutoCAD 3D floor plan is rarely the 3D modeling itself. The real problems almost always come from the 2D drawing underneath.

Architects often assume that a finished 2D floor plan will automatically convert into a clean 3D model. In reality, small technical issues—like open boundaries, duplicated lines, or inconsistent scaling—can completely break extrusion commands or produce strange geometry.

This is especially frustrating when deadlines are tight and the model simply refuses to generate walls or volumes correctly.

In many modern workflows, designers now prototype layouts using visual planning tools before rebuilding them in CAD. For example, many teams quickly test layouts with interactive 3D layout visualization for residential planningbefore committing to detailed drafting.

In this guide, I’ll walk through the most common AutoCAD 3D floor plan errors I encounter in real projects—and the exact fixes that usually solve them.

save pin

Why 2D Floor Plans Fail to Convert Into 3D Models

Key Insight: If a 2D floor plan cannot convert into a 3D model, the underlying geometry is almost always incomplete or fragmented.

AutoCAD's 3D tools depend on clean boundaries. When the drawing contains tiny gaps, overlapping lines, or disconnected segments, extrusion commands cannot generate valid surfaces.

In practice, many floor plans are drafted quickly during early design stages. Over time they accumulate small drafting errors that remain invisible in 2D but break 3D operations.

Common causes include:

1. Lines that look connected but contain microscopic gaps
2. Walls drawn as separate lines instead of closed shapes
3. Overlapping duplicates from copied geometry
4. Imported CAD files with fragmented line segments

Reliable preparation steps:

1. Use PEDIT to convert wall outlines into closed polylines
2. Run OVERKILL to remove duplicate lines
3. Use JOIN to connect fragmented segments
4. Zoom into corners to detect tiny gaps

In large architectural drawings, this cleanup step alone can determine whether the 3D model works at all.

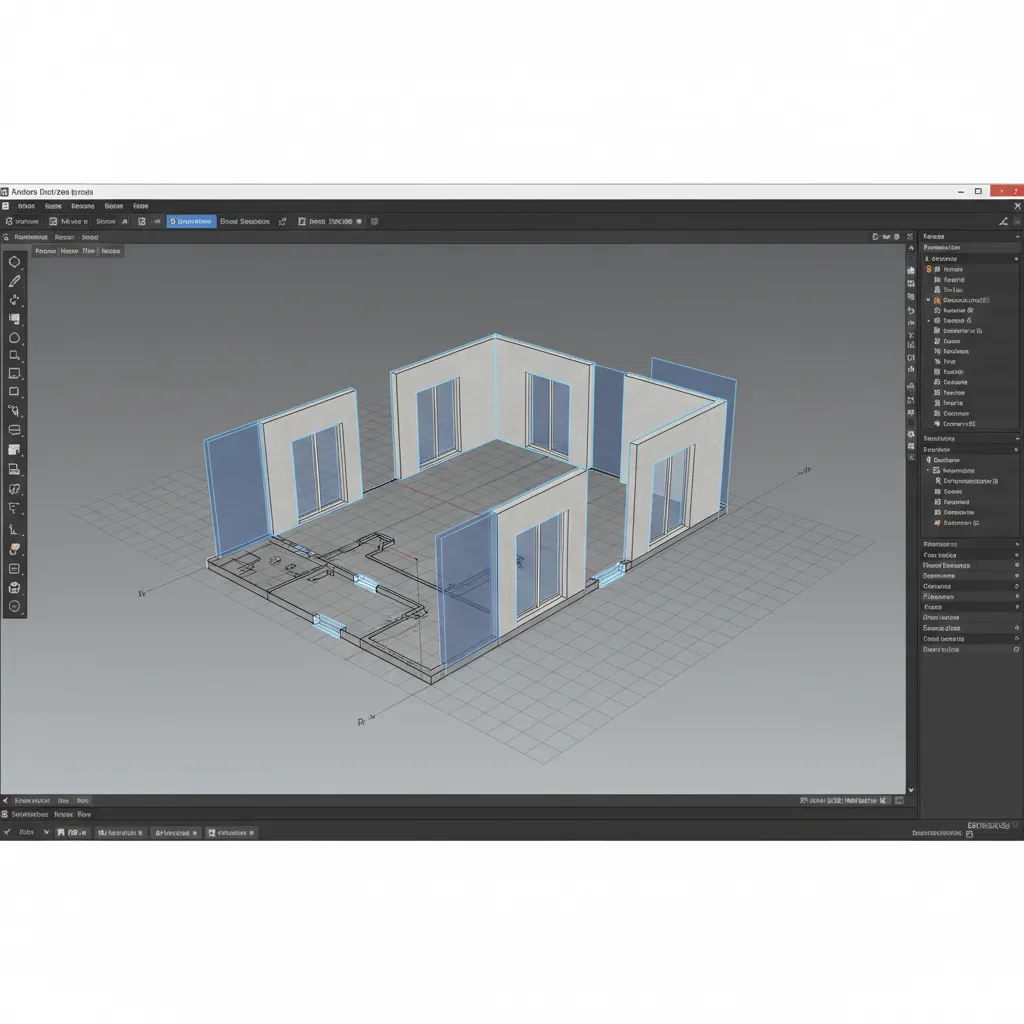

Fixing Extrude Command Errors in AutoCAD

Key Insight: The Extrude command only works on closed and planar geometry.

One of the most searched issues is: "extrude not working." In my experience, the cause is almost always the same—AutoCAD cannot detect a valid boundary.

Typical error symptoms:

1. Extrude command fails entirely
2. Extrusion produces surfaces instead of solids
3. Objects extrude in unexpected directions

Steps that usually fix the issue:

1. Select the object and confirm it is a polyline.
2. Use PEDIT → Close to seal open boundaries.
3. Check that all vertices lie on the same plane.
4. Convert splines or regions into polylines if necessary.

According to Autodesk documentation, extrusion requires planar geometry to generate a solid body. Any deviation—even minor—can prevent the command from working correctly.

save pin

Solving Problems With Closed Polylines and Boundaries

Key Insight: Most "closed polyline" errors come from nearly invisible gaps between endpoints.

Even experienced drafters underestimate how often boundaries fail because endpoints miss each other by fractions of a millimeter.

Signs of boundary issues:

1. Hatch commands fail
2. Region creation does not work
3. Extrusion produces open surfaces

Practical workflow for fixing boundaries:

1. Use the BOUNDARY command to generate clean regions
2. Turn on endpoint object snaps
3. Apply FILLET with zero radius to close corners
4. Run PEDIT JOIN with tolerance

Interestingly, many design teams now validate their layouts in simplified modeling environments before detailed drafting. Tools built for early planning—like systems that allow quickly generating editable house layout diagrams—help reveal structural layout issues earlier in the design pipeline.

save pin

Dealing With Layer and Object Visibility Issues

Key Insight: Missing geometry in 3D models is often caused by layer visibility settings rather than modeling errors.

When objects disappear during 3D modeling, many users assume the geometry is broken. In reality, the objects may simply be hidden or isolated on inactive layers.

Typical visibility problems include:

1. Frozen layers
2. Objects hidden by isolation mode
3. Incorrect viewport layer settings
4. Objects located far from the origin

Quick checks that save time:

1. Use LAYUNISO to restore hidden layers
2. Run ZOOM EXTENTS to locate misplaced objects
3. Turn on all layers temporarily
4. Check UCS orientation

These small diagnostic steps resolve a surprising number of "missing wall" issues.

Fixing Incorrect Wall Heights and Scaling Problems

Key Insight: Incorrect units are one of the most overlooked causes of distorted 3D floor plans.

I often see floor plans drawn in millimeters but extruded using assumptions based on meters or inches. The result is walls that are either microscopic or absurdly tall.

Common scaling problems:

1. Walls extruded to unrealistic heights
2. Furniture appearing massively oversized
3. Imported blocks scaled incorrectly

Best practice workflow:

1. Check UNITS settings before modeling.
2. Confirm the drawing insertion scale.
3. Verify wall height standards (typically 8–10 ft in residential projects).
4. Use reference objects for scale validation.

According to the National CAD Standard guidelines, maintaining consistent units throughout a project is essential for reliable modeling and file exchange.

save pin

Debugging Complex Floor Plan Geometry

Key Insight: Simplifying geometry often fixes modeling failures faster than trying to repair broken shapes.

Large architectural floor plans frequently contain extremely complex geometry—curves, imported PDFs, exploded blocks, or layered linework.

This complexity dramatically increases the chances of modeling errors.

Professional cleanup process:

1. Remove unnecessary linework
2. Replace curves with simplified segments when possible
3. Rebuild walls using fresh polylines
4. Separate architectural elements into logical layers

Some firms even rebuild the structural layout entirely using layout planning systems that generate spatial structure first, then import clean geometry later. Tools designed for rapidly generating structured architectural layouts from room requirements are increasingly used during early design stages for this reason.

Answer Box

The fastest way to fix AutoCAD 3D floor plan problems is to clean the 2D drawing first. Ensure boundaries are closed, geometry is planar, layers are visible, and units are correct before attempting any extrusion or 3D modeling.

Final Summary

1. Clean 2D geometry is essential for reliable 3D floor plan modeling.
2. Extrusion failures usually come from open boundaries.
3. Layer visibility issues frequently hide objects in 3D views.
4. Incorrect units often cause wall height and scale problems.
5. Simplifying complex drawings improves modeling stability.

FAQ

Why can't I extrude my floor plan in AutoCAD?

Extrusion usually fails because the shape is not closed or planar. Convert lines into a closed polyline before extruding.

How do I fix open polylines in a floor plan?

Use PEDIT and the JOIN command to connect segments, or apply FILLET with a zero radius to close corner gaps.

Why does my AutoCAD 3D floor plan look distorted?

The most common cause is incorrect drawing units or scale mismatches between imported objects and the base drawing.

What causes missing walls in 3D view?

Walls may be placed on frozen or hidden layers. Turn on all layers and check object isolation settings.

Why does extrusion create surfaces instead of solids?

This happens when the boundary is open or not planar, preventing AutoCAD from generating a solid volume.

How do I check if a polyline is closed?

Select the polyline and open the properties panel. It will show whether the shape is open or closed.

What is the fastest way to repair messy CAD geometry?

Use OVERKILL to remove duplicates, then rebuild walls using clean polylines.

Can complex geometry break 3D floor plan conversion?

Yes. Excessive curves, exploded blocks, and imported drawings often cause modeling errors during 3D conversion.
