Common Problems When Creating 3D Floor Plans in Autodesk Inventor and How to Fix Them: Practical troubleshooting tips from real design workflows to solve alignment, scaling, extrusion, and performance issues in Inventor floor models.

Direct Answer

Most problems when creating a 3D floor plan in Autodesk Inventor come from sketch alignment errors, incorrect constraints, scaling mismatches in imported drawings, or heavy models that slow performance. Fixing them usually requires cleaning the base sketch, validating constraints, confirming units before import, and simplifying large geometry. Once these fundamentals are corrected, wall extrusions and layout modeling become far more reliable.

Quick Takeaways

1. Most Inventor floor plan errors begin with messy imported sketches.
2. Wall extrusion failures usually come from open or overlapping sketch profiles.
3. Scaling issues occur when DWG units and Inventor document units don’t match.
4. Over‑constrained sketches slow modeling and cause unpredictable geometry behavior.
5. Large architectural layouts need simplified geometry to maintain performance.

Introduction

When designers attempt to build a 3D floor plan in Autodesk Inventor, they often assume the hard part is modeling walls and rooms. In reality, most failures happen much earlier — during sketch setup, CAD imports, or constraint management.

I’ve helped teams troubleshoot Inventor models for residential layouts, exhibition spaces, and office interiors, and the same pattern shows up repeatedly: the base sketch is unstable. Walls refuse to extrude, layouts shift when constraints are added, or imported CAD files scale incorrectly.

Ironically, many of these problems come from using a mechanical CAD workflow for architectural geometry. Inventor is extremely precise, which means it exposes errors that simpler layout tools quietly ignore.

If you're still experimenting with layout concepts before committing to mechanical modeling, it's often easier to prototype space planning first using an interactive browser‑based 3D floor layout tool for early space planning. Once proportions are validated, Inventor becomes much easier to work with.

Below are the most common technical problems I see when teams build architectural layouts in Inventor — and the practical fixes that actually work in production workflows.

save pin

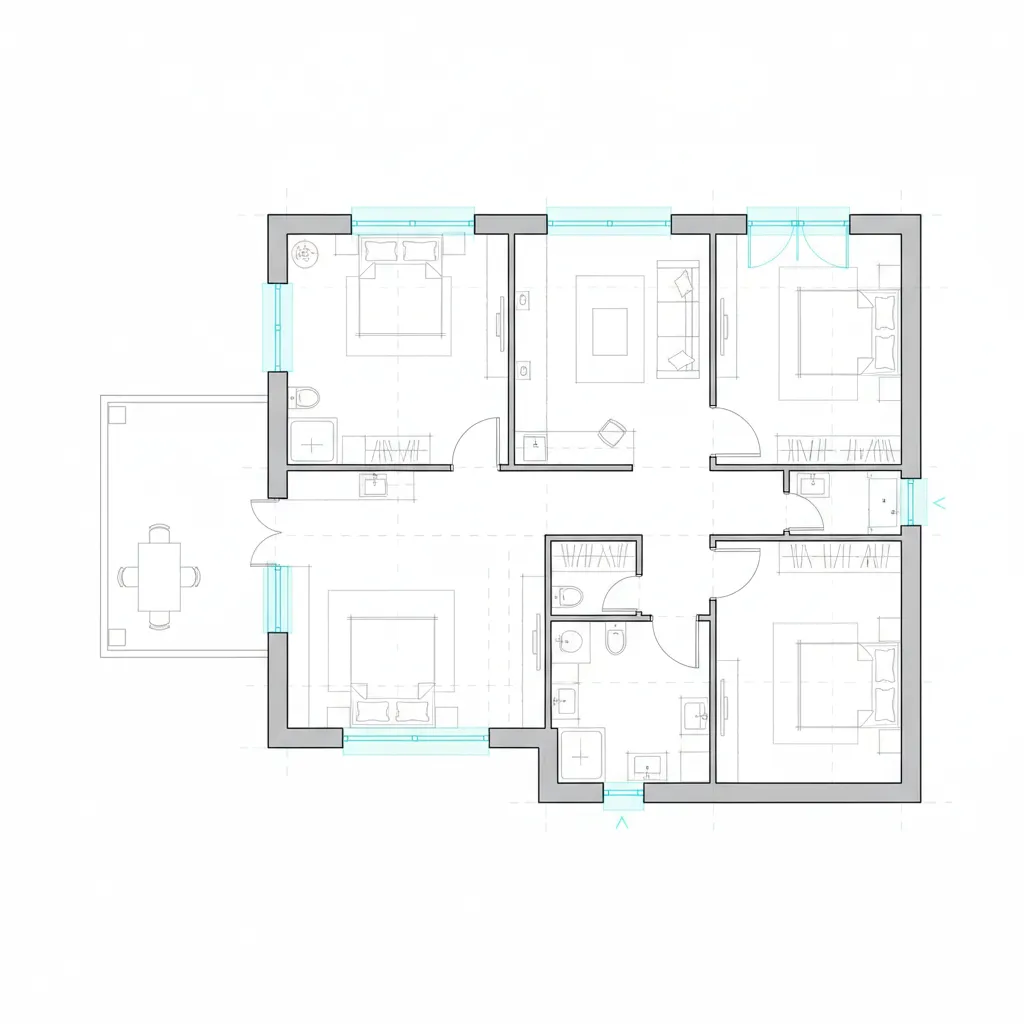

Why Imported Floor Plan Sketches Fail to Align

Key Insight: Alignment failures usually occur because imported DWG or DXF sketches contain fragmented lines, hidden constraints, or slightly offset geometry.

Imported architectural drawings rarely come into Inventor as clean geometry. Even if the plan looks correct visually, the sketch often contains tiny gaps or overlapping lines that break profile recognition.

Inventor requires closed profiles for wall extrusion. If two lines miss each other by even a fraction of a millimeter, the software treats them as separate segments.

Common alignment problems after import:

1. Disconnected wall segments
2. Duplicate overlapping lines
3. Blocks imported as fragmented geometry
4. Sketch entities slightly off axis

How to fix the issue:

1. Run Sketch Doctor immediately after import.
2. Delete duplicate lines and arcs.
3. Use "Project Geometry" instead of copying lines.
4. Apply horizontal and vertical constraints to main walls.

Autodesk documentation notes that most extrusion failures originate from open sketch loops — something that is extremely common in imported architectural drawings.

Fixing Extrusion Errors When Building Walls

Key Insight: If Inventor refuses to extrude a wall profile, the sketch almost always contains an open boundary or intersecting geometry.

Extrusion should be the easiest part of creating a floor model. Yet it's where many users get stuck. When a profile fails to highlight during extrusion, Inventor is telling you the shape isn't mathematically closed.

In large floor layouts this can be surprisingly difficult to locate.

Typical causes of extrusion failure:

1. Tiny gaps between lines
2. Self‑intersecting boundaries
3. Construction lines mistakenly included in the profile
4. Overlapping geometry from CAD imports

Reliable workflow to solve it:

1. Activate "Show Profile" in sketch settings.
2. Zoom into corners where walls intersect.
3. Trim overlapping lines using the Trim tool.
4. Convert helper lines to construction geometry.

For complicated residential layouts, I often extrude walls in sections rather than as one massive profile. Smaller regions make errors easier to isolate.

save pin

Resolving Constraint and Sketch Overdefinition Issues

Key Insight: Over‑constraining sketches is one of the most common mistakes when adapting mechanical CAD habits to architectural layouts.

Inventor encourages precise constraint systems, but architectural plans already contain implied relationships. Adding too many constraints locks geometry and prevents edits later.

I frequently see designers apply:

1. Coincident constraints
2. Horizontal/vertical constraints
3. Equal constraints
4. Dimension constraints

— all on the same wall segment.

This leads to the dreaded "Sketch is over‑constrained" warning.

Better constraint strategy for floor plans:

1. Use dimensions for critical room sizes.
2. Use horizontal/vertical constraints for main walls.
3. Avoid equal constraints unless repeating modules.
4. Leave minor interior partitions under‑defined.

Architectural layouts need flexibility because walls move during design revisions. A lightly constrained sketch edits far faster.

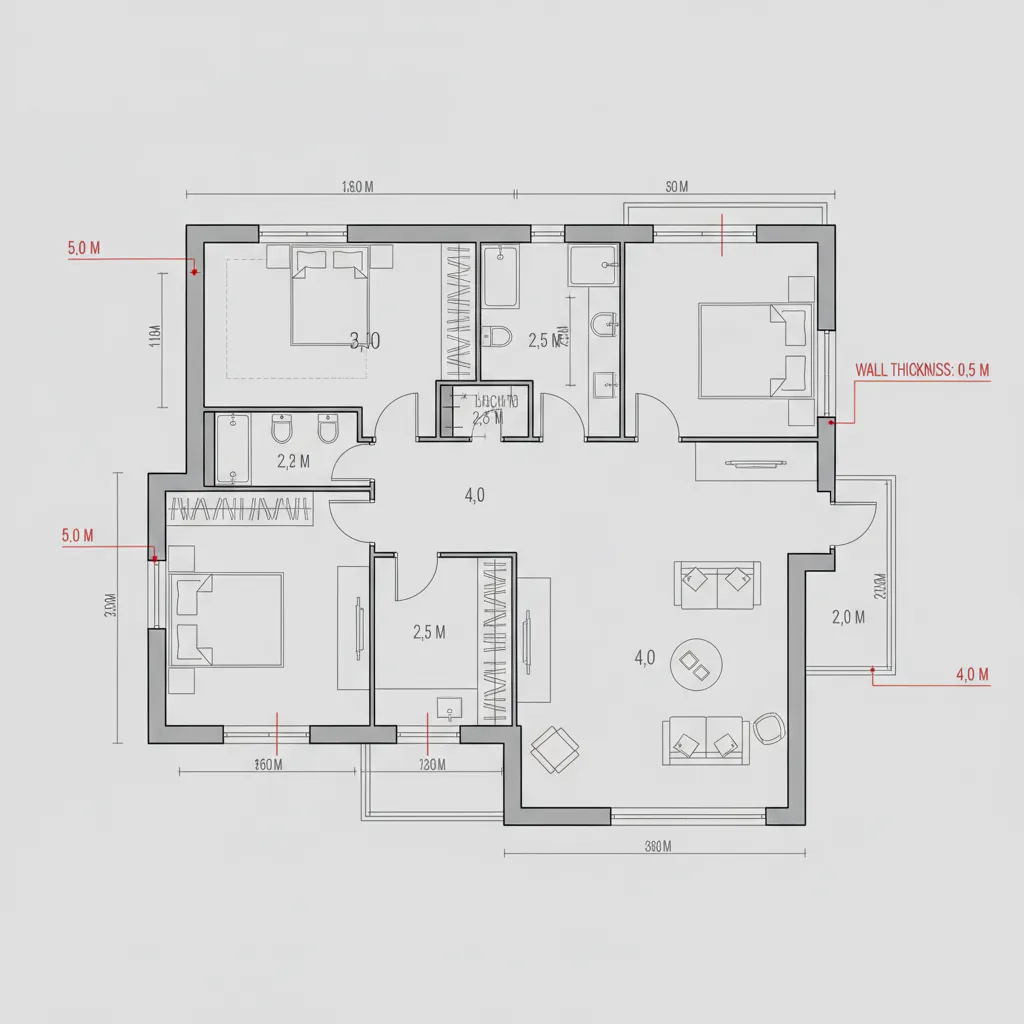

How to Correct Scaling Problems in Imported Layouts

Key Insight: Scaling errors usually occur because the source CAD file uses different units than the Inventor document.

This issue is surprisingly common when importing DWG files exported from AutoCAD, Revit, or SketchUp.

A plan drawn in millimeters might enter an Inventor document set to inches. The geometry technically imports correctly — but the scale becomes completely wrong.

How to identify a scaling mismatch:

1. A door measures 0.9 instead of 900 mm
2. A room appears 12 times larger or smaller
3. Dimensions don’t match architectural standards

Steps to fix the problem:

1. Check document units in Inventor.
2. Verify units in the source DWG file.
3. Use "Scale" in the sketch environment.
4. Re‑import with the correct unit settings if necessary.

For early layout validation, many teams avoid scaling problems entirely by drafting the concept first using a simple floor plan creator for testing room proportionsbefore importing accurate dimensions into Inventor.

save pin

Managing Performance Issues in Large Floor Models

Key Insight: Inventor slows down dramatically when architectural layouts contain unnecessary detail.

Mechanical CAD software isn't optimized for massive 2D architectural sketches with hundreds of edges. Large floor plates with furniture blocks, detailed doors, and window frames can cripple performance.

In one office project I reviewed, a designer imported a full CAD plan containing over 18,000 sketch entities. Inventor became nearly unusable.

Common causes of slow performance:

1. Overly detailed imported CAD blocks
2. Furniture geometry inside wall sketches
3. Large continuous sketches instead of modular ones
4. Excessive constraints

Performance optimization techniques:

1. Simplify CAD blocks before import.
2. Split large sketches into zones.
3. Suppress non‑structural geometry.
4. Model furniture as separate components.

These adjustments dramatically improve regeneration speed when editing large building layouts.

Answer Box

The majority of Autodesk Inventor floor plan errors come from sketch problems, not 3D modeling. Clean imported drawings, verify units before scaling, avoid over‑constraining sketches, and simplify large layouts to keep Inventor stable and responsive.

Best Practices to Prevent Modeling Errors

Key Insight: The most reliable Inventor floor plan workflows start with a simplified layout and gradually add complexity.

Many designers jump straight into detailed architectural modeling. In reality, successful projects build the model in stages.

A proven workflow used in professional studios:

1. Validate room proportions in a planning tool.
2. Import a simplified DWG reference.
3. Create a clean master wall sketch.
4. Extrude structural elements first.
5. Add openings, doors, and windows later.

For concept visualization before committing to mechanical CAD precision, many teams also generate quick interior previews using an AI‑assisted interior visualization workflow for layout concepts.

This hybrid approach — conceptual planning first, precision modeling second — dramatically reduces troubleshooting later in the project.

save pin

Final Summary

1. Most Inventor floor plan problems originate in messy base sketches.
2. Extrusion failures almost always indicate open profiles.
3. Scaling errors come from mismatched unit settings.
4. Over‑constrained sketches make layouts difficult to edit.
5. Simplified geometry improves performance in large models.

FAQ

Why won’t my wall extrude in Autodesk Inventor?

The wall profile likely contains an open boundary or overlapping lines. Use Sketch Doctor or enable profile visibility to locate gaps.

How do I fix scaling issues in an imported floor plan?

Check the units of both the DWG file and the Inventor document. If they differ, apply the sketch scale tool or reimport using correct units.

Why does my sketch say it is over‑constrained?

Too many constraints or dimensions are applied to the same geometry. Remove redundant constraints and rely primarily on dimensions.

Is Autodesk Inventor good for architectural floor plans?

It works for precise structural modeling, but it requires cleaner sketches than typical architectural software.

What causes Inventor to slow down with large floor models?

Large sketches with thousands of entities, complex CAD blocks, and excessive constraints reduce performance.

How can I simplify imported CAD floor plans?

Delete unnecessary layers, explode blocks carefully, and remove furniture or decorative elements before importing.

What is the fastest way to troubleshoot Inventor floor plan errors?

Start by cleaning the sketch: remove duplicates, check constraints, confirm units, and test small extrusions.

Can Inventor handle large building layouts?

Yes, but the model must be optimized. Splitting the layout into smaller sketches and reducing detail helps maintain stability.
