Common Problems When Creating a 3D River System Model and How to Fix Them: Practical fixes for broken river meshes incorrect terrain flow and DEM data issues in 3D river modeling projects

Direct Answer

The most common problems when creating a 3D river system model come from terrain elevation errors, broken river mesh topology, incorrect scale settings, or poorly prepared GIS and DEM data. Fixing these issues usually involves correcting terrain gradients, repairing mesh continuity, aligning units, and validating flow direction using proper hydrological logic.

In most projects I review, the river itself is rarely the real problem. The terrain, scale, or imported data is.

Quick Takeaways

1. Most river modeling failures originate from terrain elevation mistakes rather than the river mesh.
2. Small unit mismatches can distort entire drainage systems.
3. DEM imports often contain hidden artifacts that break natural flow paths.
4. Clean topology and consistent scale dramatically improve water simulation stability.

Introduction

After building terrain for over a decade in environmental visualization and landscape planning, I can tell you this clearly: creating a convincing 3D river system model is rarely about the river itself. It is about the terrain logic behind it.

Most beginners focus on sculpting a river channel or extruding a mesh path. But in real hydrology, rivers are the result of elevation and gravity. If the terrain is even slightly wrong, the river will look fake, flow uphill, or break entirely.

I see the same issues repeatedly when reviewing student projects, studio workflows, and engineering visualizations. Broken river meshes. Water flowing sideways. Drainage networks that split randomly. Or DEM files that produce jagged valleys.

If you are still building your base environment, it helps to first understand the terrain workflow used in professional pipelines. This walkthrough on building spatial layouts and terrain style planning in 3D environmentsshows how structured modeling dramatically reduces downstream errors.

In this guide, I will break down the most common problems I see when troubleshooting a 3D river system model and how to fix them efficiently.

save pin

Why River Systems Break in 3D Modeling Workflows

Key Insight: River systems usually fail because the terrain gradient does not consistently descend toward the outlet.

In natural hydrology, water follows a continuous downhill path. In 3D modeling workflows, however, small elevation inconsistencies create impossible flow patterns.

Typical causes include:

1. Terrain vertices with inconsistent heights
2. Sculpting tools that flatten valleys
3. DEM smoothing that removes drainage channels
4. Manual river paths placed without slope analysis

One hidden mistake many tutorials ignore is valley width. If the valley floor is too flat, the water plane spreads unnaturally instead of forming a defined channel.

Professional terrain designers usually validate slopes before adding rivers using this quick checklist:

1. Confirm elevation drops continuously downstream
2. Avoid flat plateaus inside the river path
3. Ensure tributaries merge at lower elevations
4. Check for accidental terrain bumps blocking flow

Even a 0.5 meter elevation spike can break a simulated flow path.

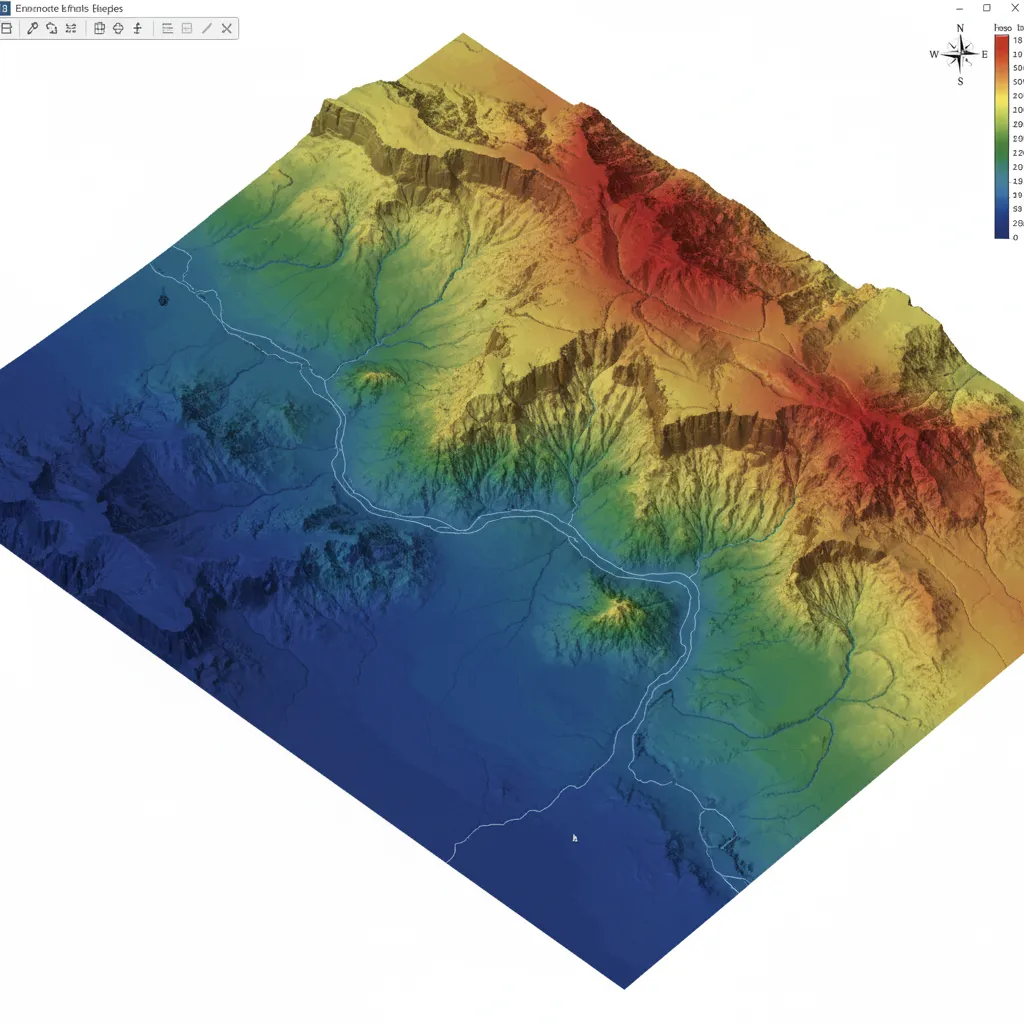

Fixing Terrain Elevation Errors That Disrupt Water Flow

Key Insight: Terrain errors are the number one reason rivers look unrealistic in a terrain model.

When water appears to stall, spread unnaturally, or climb slopes, the terrain data is almost always the culprit.

Here is the practical correction process I use:

1. Run a slope visualization to detect elevation anomalies.
2. Trace the intended river path from source to outlet.
3. Gradually smooth elevation along the flow direction.
4. Re‑carve the river channel after correcting the terrain.

The order matters. Many artists carve the river first and then modify terrain afterward. That usually breaks the hydrology.

In real environmental modeling, engineers always finalize terrain surfaces before defining river geometry.

save pin

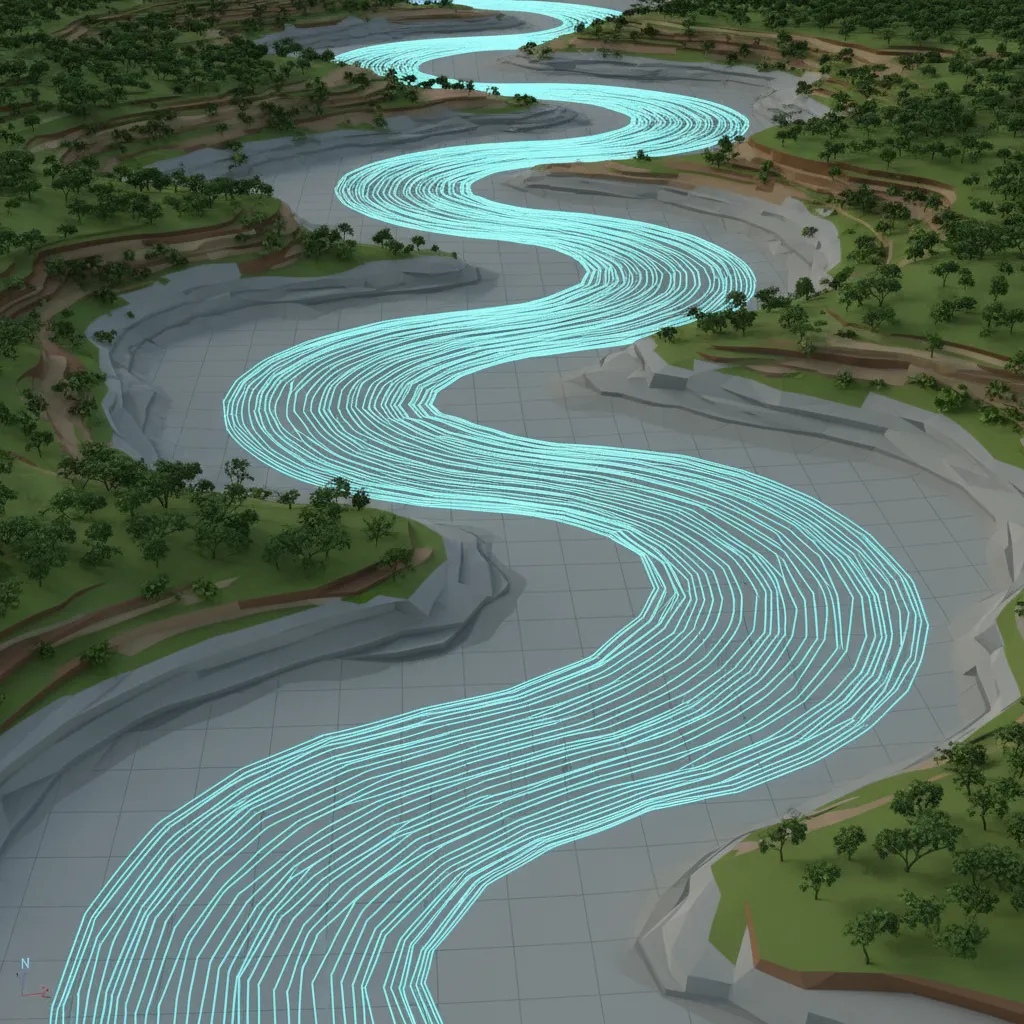

How to Repair River Mesh Gaps and Topology Problems

Key Insight: River meshes must remain continuous surfaces with clean edge flow or water shading and physics will fail.

Broken topology is common when rivers are created from splines, boolean operations, or terrain cuts.

Typical topology issues include:

1. Overlapping polygons
2. Gaps between terrain and water surface
3. Non manifold edges
4. Uneven subdivision along curves

To repair these problems:

1. Retopologize the river mesh with even edge spacing
2. Ensure the river surface intersects terrain cleanly
3. Remove duplicate vertices
4. Add edge loops along bends for smoother curvature

In visualization pipelines, designers often rebuild the river surface entirely rather than patching broken meshes. It is faster and produces cleaner shading.

If you are designing surrounding environments as well, this guide on planning complex spatial layouts with structured modeling workflowsshows a similar principle applied to architectural spaces.

save pin

Resolving Scale and Unit Mismatches in Hydrological Models

Key Insight: Scale mismatches silently distort river behavior and are one of the hardest problems to diagnose.

I have seen rivers appear perfectly modeled but behave incorrectly simply because the terrain was imported in kilometers while the scene units were meters.

Common symptoms include:

1. Extremely slow simulated water flow
2. Overly wide river channels
3. Physics simulations behaving unpredictably

Scale problems usually happen during GIS imports or when combining multiple terrain datasets.

The safest approach:

1. Define project units before importing terrain
2. Verify DEM grid resolution
3. Measure known distances inside the model
4. Check river width against real world averages

For reference, small natural rivers are typically 5–50 meters wide, while major rivers can exceed hundreds of meters.

Correcting Flow Direction and Drainage Path Errors

Key Insight: A river that splits randomly or flows in strange directions usually indicates incorrect drainage logic.

In hydrology modeling, every river network should follow a hierarchy:

1. Small tributaries
2. Secondary streams
3. Main channel

If tributaries appear larger than the main river or connect at higher elevations, the drainage path is reversed.

To fix this:

1. Identify the lowest outlet point in the terrain.
2. Trace upstream branches from that outlet.
3. Adjust tributary elevations to maintain downhill flow.
4. Merge streams gradually rather than abruptly.

save pin

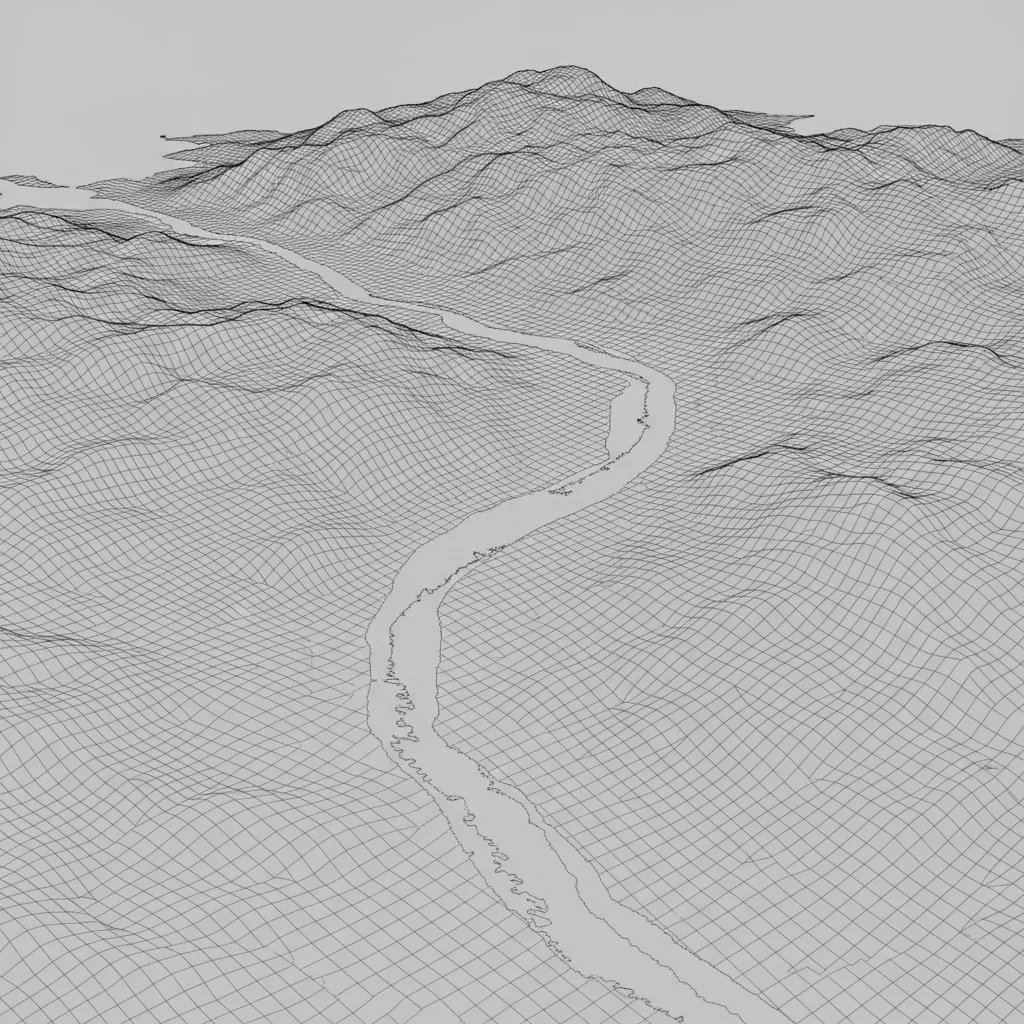

Debugging Imported GIS or DEM Data

Key Insight: Many river modeling errors originate from imperfect DEM data rather than modeling mistakes.

Digital Elevation Models frequently contain artifacts such as spikes, holes, or flattened valleys.

Common DEM problems include:

1. Interpolation errors
2. Resolution mismatch
3. Noise from satellite scanning
4. Missing terrain patches

Before modeling rivers, professionals typically clean DEM data using these steps:

1. Apply spike removal filters
2. Fill elevation gaps
3. Smooth noise without flattening valleys
4. Validate slope consistency

When terrain data is properly prepared, most river problems disappear automatically.

Answer Box

The majority of issues in a 3D river system model come from terrain elevation mistakes, broken mesh topology, or corrupted DEM data. Fixing the terrain and scale first almost always resolves river behavior problems.

Final Summary

1. Terrain elevation errors cause most river modeling failures.
2. Clean mesh topology prevents visual and simulation artifacts.
3. Scale mismatches can silently distort hydrological behavior.
4. DEM preprocessing dramatically improves river realism.
5. Correct drainage hierarchy is essential for believable river networks.

If you want to refine your modeling workflow further, this example on structuring complex spatial environments before modeling details illustrates how planning dramatically reduces technical errors.

FAQ

Why does my river flow uphill in a terrain model?

Even tiny terrain elevation errors can create uphill sections. Check the height values along the river path and ensure the elevation consistently decreases toward the outlet.

What causes broken river meshes in 3D modeling?

Broken topology, duplicate vertices, and poorly generated spline surfaces often create gaps or shading artifacts in river meshes.

How do I fix river mesh problems in 3D modeling?

Rebuild the river surface with clean topology, evenly spaced edge loops, and a continuous mesh that follows the terrain slope.

Why does river flow look wrong in a terrain model?

The terrain may contain flat areas, elevation spikes, or incorrect drainage paths that disrupt natural hydrological behavior.

Can DEM data break a 3D river system model?

Yes. DEM files often contain noise, spikes, or missing elevation values that distort valleys and drainage channels.

What is the best way to debug DEM data for river modeling?

Apply spike removal, fill gaps, smooth noise, and verify slope direction before building river geometry.

Do scale errors affect hydrology simulations?

Absolutely. Incorrect units can distort river width, flow speed, and terrain proportions in a 3D river system model.

What are common mistakes in hydrology 3D models?

Typical mistakes include flat valleys, reversed tributaries, inconsistent scale settings, and ignoring terrain preprocessing.
