Common Problems When Creating ACP Building 3D Models and How to Fix Them: Practical fixes designers use to solve realism, texture, and lighting issues in ACP facade 3D modeling

Direct Answer

Most ACP building 3D modeling problems come from incorrect material settings, poor texture alignment, unrealistic reflections, and inaccurate facade geometry. Fixing these issues usually involves adjusting PBR material properties, aligning panel textures to panel grids, correcting lighting environments, and modeling joints with proper spacing. When these four elements are handled correctly, ACP panels render much closer to real architectural facades.

Quick Takeaways

1. ACP panels often look fake because reflectivity and roughness values are set incorrectly.
2. Texture alignment should follow the panel grid, not the building surface.
3. Lighting environments dramatically affect metal composite panel realism.
4. Accurate panel joints and seams make facades look believable.
5. Clean geometry prevents shading artifacts in architectural renders.

Introduction

ACP building 3D modeling looks simple on paper. Flat panels, repeating patterns, and clean surfaces. But in practice, it's one of the facade elements I see rendered incorrectly the most.

After working on dozens of commercial exterior visualization projects over the past decade, I’ve noticed the same pattern: the building shape might be correct, but the ACP facade still looks "off." The reflections feel plastic, panel seams disappear, or textures stretch across the surface.

These ACP facade 3D modeling problems usually come from small technical decisions that accumulate during the modeling and rendering process.

If you're building architectural visuals, it's also worth studying how full building scenes are assembled in professional pipelines. A good example is this walkthrough showing how designers create photorealistic architectural renders step by step, which highlights how materials and lighting interact at the scene level.

In this guide, I'll break down the most common ACP cladding rendering troubleshooting issues I encounter in real projects and the exact fixes that usually solve them.

save pin

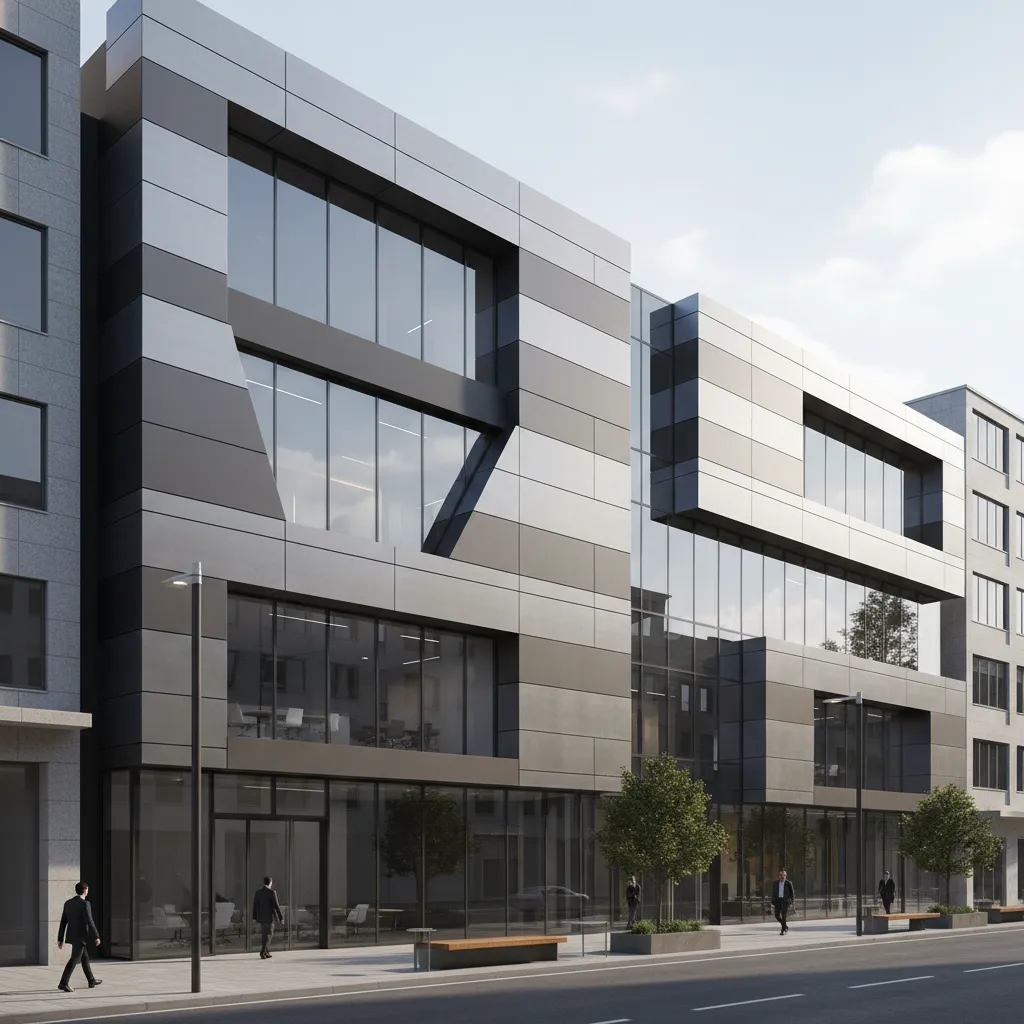

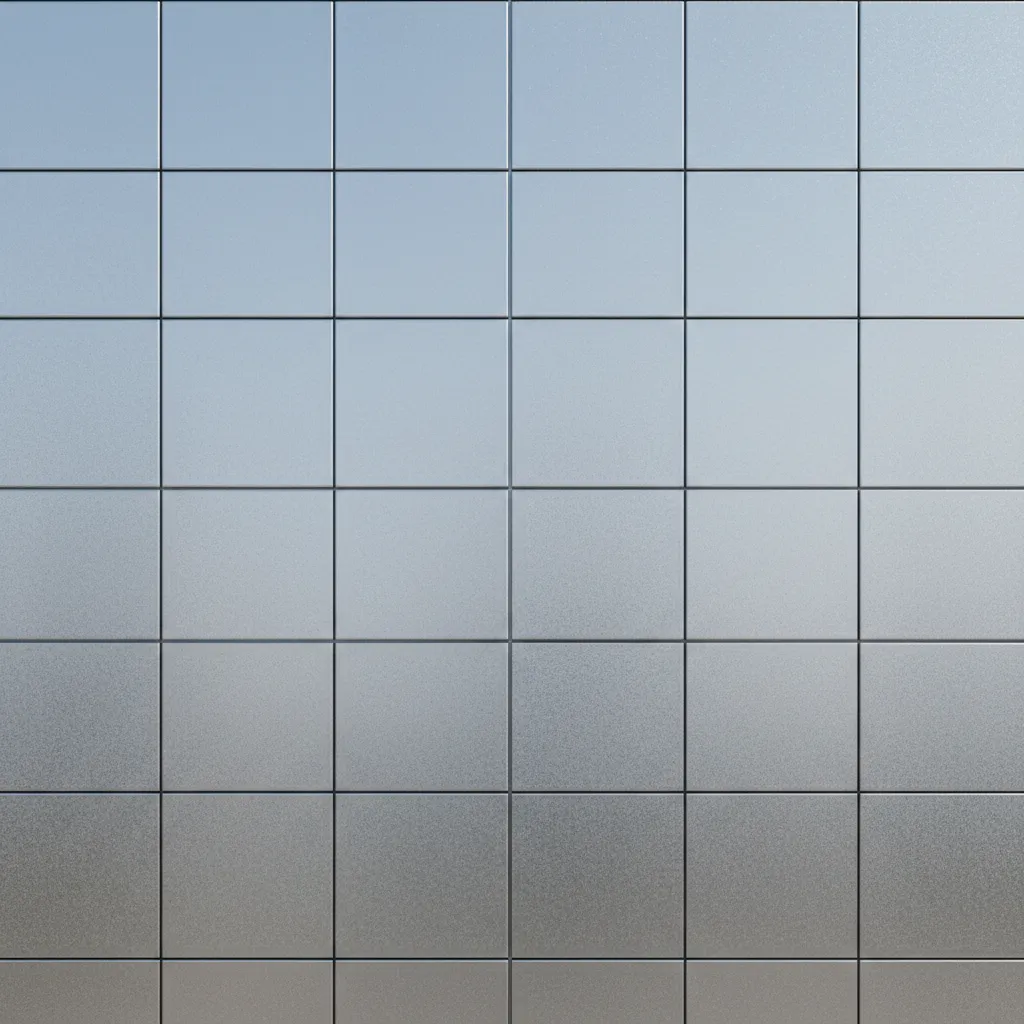

Why ACP Panels Look Unrealistic in 3D Renders

Key Insight: ACP panels look unrealistic when their material behaves like plastic instead of coated aluminum.

The biggest mistake I see is incorrect material physics. Designers often use generic glossy materials instead of metal composite panel properties.

Real ACP panels have three defining characteristics:

1. Controlled reflectivity rather than mirror reflection
2. Subtle surface roughness
3. Slight environmental color pickup

When these are missing, the facade either looks flat or overly shiny.

Typical incorrect settings

1. Reflection value above 0.8
2. Roughness below 0.1
3. No environment map contribution

Recommended starting material setup

1. Metalness: 0.6–0.8
2. Roughness: 0.25–0.35
3. Reflection intensity: moderate
4. High‑resolution brushed or coated texture

According to Autodesk rendering documentation and several V‑Ray material studies, subtle roughness variation is essential for believable metal panels. Without it, surfaces render unnaturally smooth.

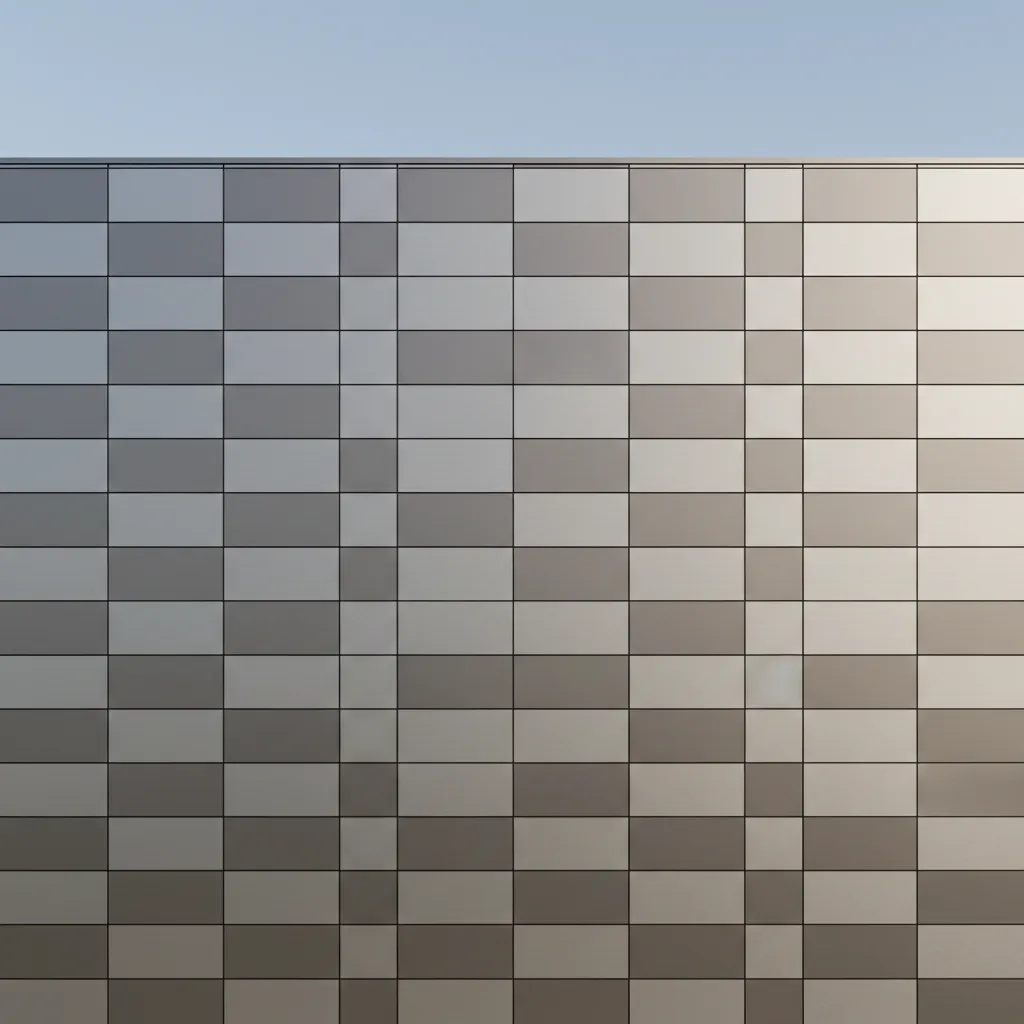

Fixing Texture Alignment Issues on ACP Panels

Key Insight: ACP textures should follow the panel layout grid, not the entire facade surface.

This is a surprisingly common architectural facade modeling error. Designers apply one large texture to the whole building wall. The result is stretched reflections and inconsistent shading.

In real buildings, ACP panels are installed as individual modules.

Typical module sizes include:

1. 1200 × 2400 mm
2. 1250 × 2500 mm
3. 1500 × 3000 mm

Your texture mapping should match these modules.

Better workflow

1. Create a panel grid first.
2. Model or instance individual panels.
3. Apply texture mapping per panel.
4. Use random rotation or subtle variation.

This approach prevents the "wallpaper effect" that instantly reveals a CGI facade.

save pin

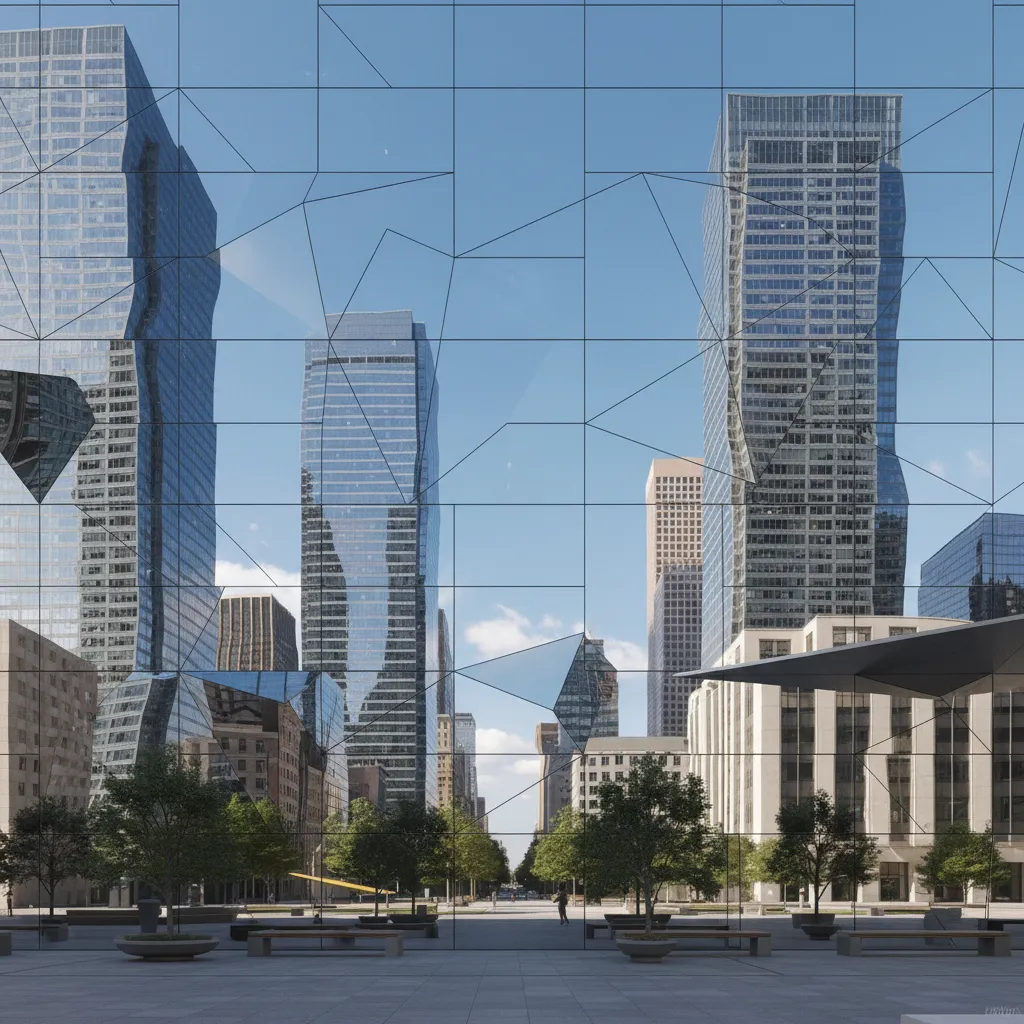

Solving Lighting and Reflection Problems

Key Insight: ACP realism depends more on environment lighting than on the material itself.

Metal composite panels act like controlled mirrors. That means they mostly display reflections from the environment.

If your HDRI or lighting setup is weak, the panels will look flat even if the material is technically correct.

Common lighting mistakes include:

1. Overcast HDRI with no contrast
2. Indoor lighting setups used for exterior renders
3. No surrounding environment geometry

Lighting setup that works better

1. Use outdoor HDRI skies with directional sunlight
2. Add nearby buildings or landscape for reflections
3. Use soft shadow settings
4. Increase dynamic range of reflections

If you want to study how environment context influences architectural visualization, this example explains how AI assisted workflows generate realistic design environments, which is also useful when building exterior render scenes.

save pin

Reducing Geometry Errors in Facade Modeling

Key Insight: Shading artifacts usually come from messy geometry rather than material problems.

Even experienced modelers sometimes rush facade geometry because ACP surfaces appear simple.

But small modeling issues create big rendering artifacts.

Typical geometry mistakes

1. Overlapping panels
2. Non‑planar faces
3. Duplicate polygons
4. Inconsistent normals

These cause:

1. Strange reflections
2. Dark patches
3. Visible shading seams

Cleanup checklist before rendering

1. Reset face normals
2. Merge duplicate vertices
3. Ensure panels remain perfectly planar
4. Keep consistent panel thickness

In my own projects, a quick geometry cleanup pass often fixes "material problems" that actually have nothing to do with materials.

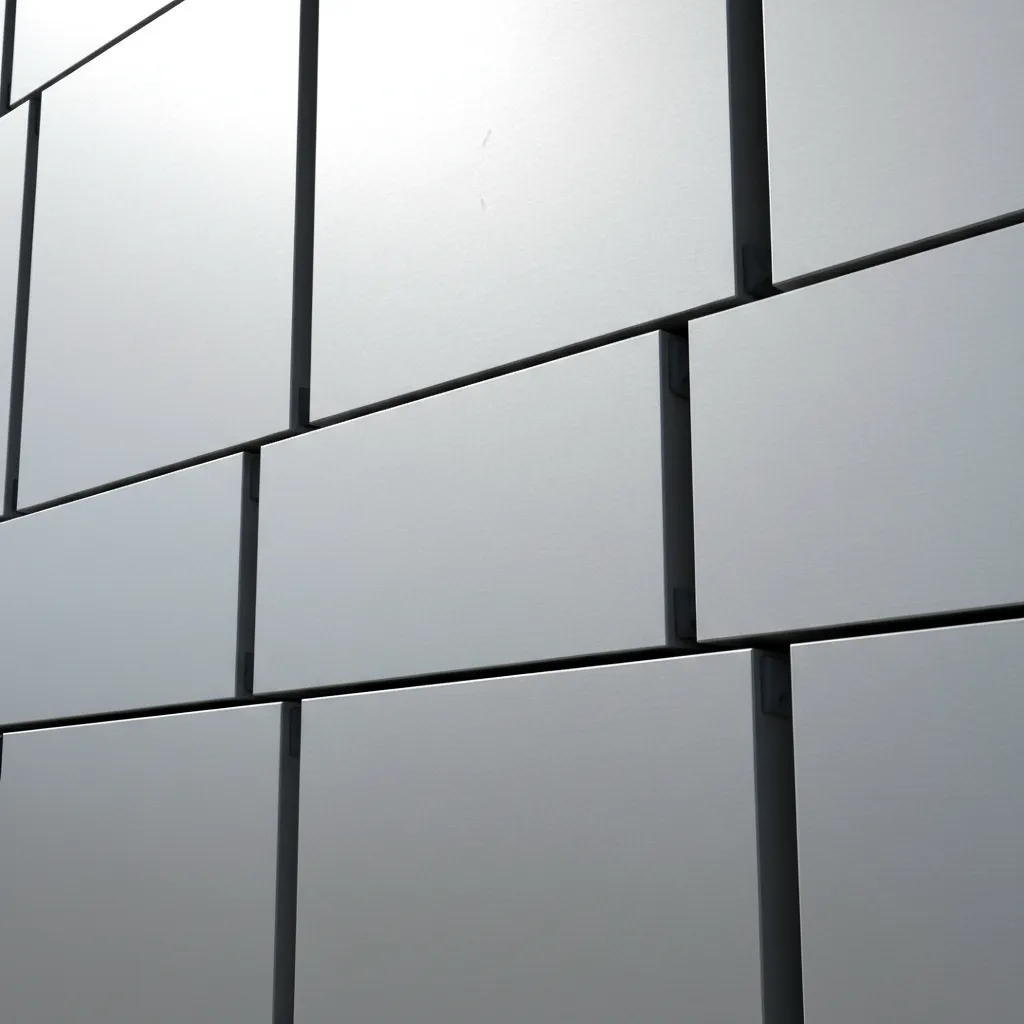

Handling Panel Joints and Gaps Correctly

Key Insight: Realistic ACP facades require visible panel seams with correct spacing.

A major realism mistake is modeling ACP as one continuous surface.

In real construction, panels always include expansion gaps.

Typical ACP joint spacing:

1. 8–15 mm open joint
2. Sealant joints for waterproof systems
3. Aluminum joint trims in some facades

Without these gaps, the building instantly feels unrealistic.

Best modeling approach

1. Create a panel array
2. Inset panels slightly
3. Add shadow gaps
4. Apply darker joint materials

Those small shadow lines are what give architectural facades depth.

save pin

Best Software Settings for ACP Building Rendering

Key Insight: Rendering quality settings must support metallic surfaces or ACP materials will appear flat.

Metal materials need better reflection sampling than standard surfaces.

Recommended rendering adjustments

1. Increase reflection samples
2. Enable global illumination
3. Use high‑quality environment maps
4. Enable physically based materials

If you're planning full architectural visualization scenes, tools that combine layout and visualization workflows can simplify the process. Many designers start with structured planning tools such as a digital floor plan creator for architectural layouts before moving into detailed facade modeling.

Answer Box

The most common ACP facade 3D modeling problems come from incorrect material roughness, poor texture alignment, weak lighting environments, and missing panel joints. Correcting these four factors dramatically improves realism in architectural renders.

Final Summary

1. ACP panels require accurate metal material settings to look realistic.
2. Texture mapping must follow the actual panel grid layout.
3. Lighting environments strongly influence metal facade reflections.
4. Clean geometry prevents shading artifacts in renders.
5. Visible panel seams make ACP facades believable.

FAQ

Why do ACP panels look plastic in my render?

This usually happens when reflection is too strong and roughness is too low. Adjust metalness and roughness values to better simulate coated aluminum.

What causes ACP facade 3D modeling problems most often?

Incorrect material settings, stretched textures, missing panel joints, and weak lighting environments are the most common causes.

What is the correct joint gap for ACP panels?

Most ACP facade systems use 8–15 mm open joints or sealed expansion joints depending on the installation system.

Why does my ACP texture look stretched?

The texture is likely mapped across the entire wall instead of individual panels. Apply UV mapping per panel module.

How do you fix ACP texture issues in 3D rendering?

Use panel‑based UV mapping, ensure texture resolution is high, and avoid applying a single large material across the whole facade.

What lighting works best for ACP building renders?

Outdoor HDRI lighting with directional sunlight works best because ACP panels rely heavily on environmental reflections.

Do ACP panels need thickness in 3D models?

Yes. Even a small thickness like 3–4 mm helps create realistic edge shading and improves render accuracy.

What software is best for ACP cladding rendering troubleshooting?

Most professional render engines like V‑Ray, Corona, and Unreal Engine handle ACP materials well if PBR materials and environment lighting are configured properly.
