Common Problems When Creating Matterport 2D Floor Plans: Understand why Matterport floor plans show wrong layouts, missing rooms, or inaccurate dimensions and how professionals prevent these errors.

Direct Answer

Matterport 2D floor plans can appear incorrect when scans have blind spots, inconsistent alignment, or insufficient coverage. Missing rooms, distorted layouts, and inaccurate measurements usually come from scanning gaps, reflective surfaces, or rushed capture paths. Most issues can be prevented by improving scan density, maintaining consistent camera spacing, and validating the layout before processing.

Quick Takeaways

1. Most Matterport floor plan errors originate from incomplete scan coverage.
2. Missing rooms typically happen when doorways or transitions were not scanned properly.
3. Reflective surfaces and mirrors can distort spatial calculations.
4. Correcting capture workflow often fixes problems without re‑drafting the entire plan.
5. Professional floor plans rely on systematic scan spacing rather than quick walkthrough captures.

Introduction

After working on dozens of residential scanning projects, I've learned that the biggest frustrations with a Matterport 2D floor plan rarely come from the software itself. They almost always come from how the space was captured.

Users often notice strange issues: a room disappears, walls look slightly angled, or the entire layout feels off compared to the real property. When someone searches for why a Matterport 2D floor plan looks incorrect, they're usually dealing with one of a few predictable scanning problems.

Before assuming the model is unusable, it's worth understanding how automated floor plan generation actually works. Matterport reconstructs geometry from spatial data captured during scans. If the scanning pattern is inconsistent, the algorithm fills gaps using its best guess.

In projects where layout precision matters—especially for real estate marketing or renovation planning—I often verify the structure using tools designed for creating detailed layout visualizations from property measurements. Comparing both views quickly reveals whether the issue is a scan gap or a true modeling limitation.

This guide breaks down the most common technical causes behind inaccurate Matterport floor plans and how experienced capture teams prevent them.

save pin

Why Matterport 2D Floor Plans Sometimes Look Incorrect

Key Insight: Incorrect layouts usually occur when the scanning sequence creates misaligned spatial reference points.

Matterport constructs the floor plan by stitching together spatial data from multiple scan positions. When the camera jumps too far between scans or misses connecting areas like hallways, the system struggles to correctly align rooms.

From a workflow standpoint, these are the most common causes:

1. Large gaps between scan positions
2. Skipping transitional spaces like hallways or doorways
3. Reflective surfaces confusing depth sensors
4. Furniture blocking structural edges
5. Scanning in a zigzag pattern instead of logical room progression

In several apartment projects I worked on in Los Angeles, the difference between a perfect plan and a distorted one came down to scan spacing. Keeping each scan about 5–8 feet apart dramatically improved alignment accuracy.

According to Matterport documentation and industry capture guidelines, overlapping scan visibility is critical for spatial stitching accuracy.

Missing Rooms or Incomplete Layouts

Key Insight: Rooms disappear from Matterport floor plans when the system cannot detect a clear navigable connection between scans.

A missing room is almost always a doorway problem. If the scanner never captured the doorway clearly, Matterport may interpret the space as disconnected.

Typical causes include:

1. Scanning only inside the room but not through the doorway
2. Closing doors during capture
3. Furniture blocking the doorway
4. Narrow hallways with limited scan overlap

One trick professionals use is placing a scan directly in the doorway between spaces. This creates a clear spatial bridge between rooms.

When I train real estate photographers, I recommend this simple doorway rule:

save pin

1. Scan inside the room
2. Scan in the doorway
3. Scan in the connecting hallway

That three‑scan transition almost eliminates missing room problems.

Dimension and Scale Issues

Key Insight: Measurement inaccuracies typically come from environmental interference rather than algorithmic errors.

Many users assume Matterport calculates exact architectural dimensions. In reality, automated floor plans are approximations derived from spatial reconstruction.

Several environmental factors can affect measurement quality:

1. Large mirrors
2. Glass walls
3. Bright windows with direct sunlight
4. Reflective flooring
5. Objects moving during scanning

In modern homes with large glass partitions, I've seen floor plan walls shift by several inches because the camera interpreted reflections as depth.

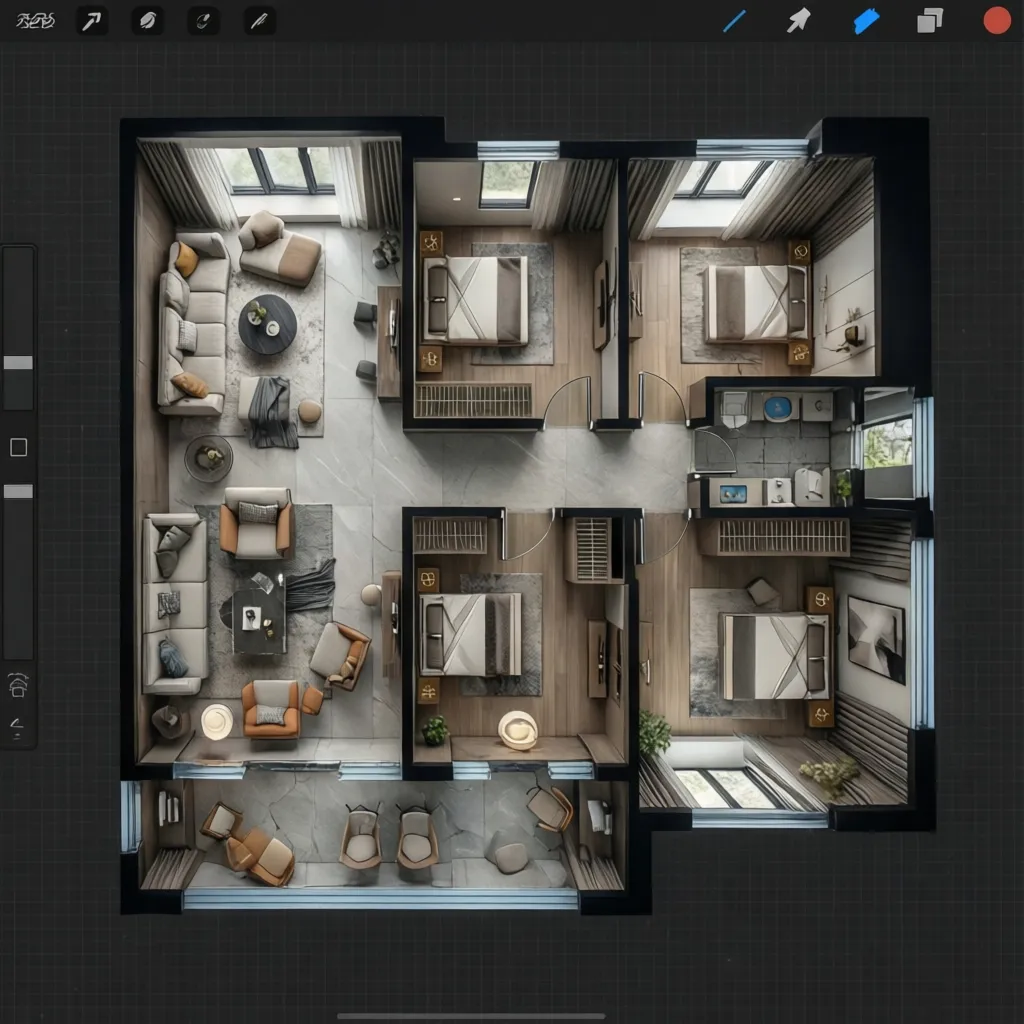

When accuracy is critical—for example during renovation planning—designers often recreate the layout using platforms meant for rebuilding accurate architectural floor plans from reference layouts. This step allows manual correction of walls and dimensions.

save pin

Problems Caused by Poor Scanning Coverage

Key Insight: Sparse scans create geometry gaps that force the system to estimate missing wall positions.

Coverage density matters more than most people expect. A quick walkthrough capture may work for a 3D tour but fail for floor plan extraction.

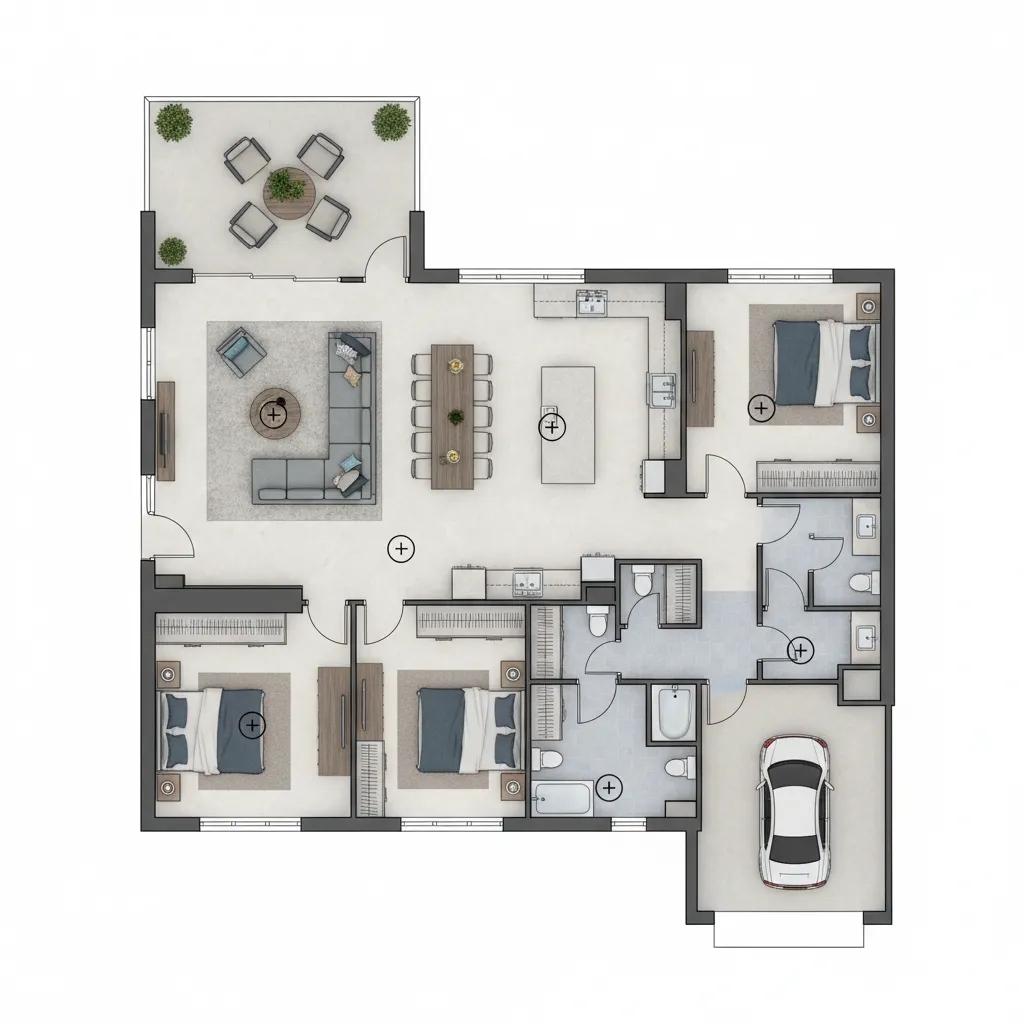

Professional capture guidelines usually follow this structure:

1. 5–8 feet between scans in open rooms
2. Extra scans near corners
3. Dedicated scans in hallways
4. Doorway transition scans
5. Coverage on both sides of large furniture

One hidden mistake I often see is scanning around the perimeter of a room only. When the center area lacks scans, wall reconstruction becomes less reliable.

save pin

How to Fix or Prevent Floor Plan Errors

Key Insight: Prevention during capture is far easier than correcting errors after processing.

Experienced scanning teams follow a predictable capture workflow to avoid most layout issues.

Recommended process:

1. Start scanning at the main entrance
2. Move room by room in a logical path
3. Maintain consistent scan spacing
4. Add doorway transition scans
5. Review alignment before finishing the capture

Another helpful practice is recreating the layout digitally after scanning. Tools used for visualizing room layouts and verifying interior space proportions can reveal structural inconsistencies before the floor plan is published.

Answer Box

The majority of Matterport 2D floor plan problems come from incomplete scanning coverage and poor scan alignment. Adding doorway scans, reducing scan spacing, and ensuring full room coverage dramatically improves layout accuracy.

When to Re-scan a Property for Better Results

Key Insight: If multiple rooms are distorted or missing, a rescan is usually faster than trying to repair the layout.

Consider rescanning when:

1. Entire sections of the property are missing
2. Rooms appear rotated or skewed
3. Hallways connect incorrectly
4. Measurements differ significantly from reality

In my experience, properties larger than 2,000 square feet benefit from a slower, more methodical scanning approach. Adding 10–15 extra scan positions can dramatically improve floor plan reliability.

Final Summary

1. Most Matterport floor plan errors originate from scanning gaps.
2. Doorway scans are essential for connecting rooms correctly.
3. Reflective surfaces can distort measurements.
4. Dense scan coverage produces more reliable layouts.
5. Rescanning is often faster than fixing heavily distorted plans.

FAQ

Why does my Matterport 2D floor plan show the wrong layout?

Incorrect layouts usually happen when scans are too far apart or hallways and doorways were skipped during capture.

Why is a room missing from my Matterport floor plan?

A room may be missing if the scanner never captured a clear connection between the room and surrounding areas.

Are Matterport floor plan measurements exact?

No. A Matterport 2D floor plan provides estimated dimensions suitable for visualization but not precise architectural measurements.

Can mirrors affect Matterport scans?

Yes. Mirrors and glass surfaces can confuse depth sensors and cause incorrect wall placement.

How many scans should a typical room have?

Most standard rooms require 3–6 scan positions to ensure proper spatial alignment.

How do I fix a Matterport floor plan missing a room?

Usually the property must be rescanned with a dedicated scan placed in the doorway connecting that room.

Why does my Matterport floor plan look stretched?

Stretching often occurs when scan spacing is too large, forcing the system to estimate wall positions.

Can I edit a Matterport 2D floor plan after it is generated?

Direct editing options are limited. Most corrections require rescanning or recreating the layout in another floor planning tool.
