Common Problems When Designing Cubic Buildings and How to Fix Them: Practical solutions architects use to solve lighting, structural, and facade issues in cube‑shaped buildings.

Direct Answer

Cubic buildings often look simple, but they introduce several hidden design challenges. The most common problems include structural load concentration, poor natural lighting depth, facade monotony, and ventilation inefficiency. Architects solve these issues through structural grid adjustments, facade articulation, daylight strategies, and smarter internal layouts.

Quick Takeaways

1. Cubic buildings concentrate structural loads at corners and slabs.
2. Deep square floor plates often reduce natural daylight penetration.
3. Flat cube facades easily appear monotonous without articulation.
4. Poor airflow planning can create stagnant interior zones.
5. Strategic setbacks, courtyards, and facade layering fix most cubic design problems.

Introduction

At first glance, cubic architecture feels straightforward. A simple geometric form, equal dimensions, clean edges. But after working on dozens of residential and mixed‑use projects over the past decade, I can tell you that cube-shaped buildings are deceptively difficult to execute well.

The problems rarely show up in early sketches. They emerge later—when engineers review structural loads, when daylight simulations reveal dark interiors, or when a perfectly minimalist facade suddenly feels flat and lifeless.

Many architects underestimate the technical constraints of cubic forms. Square footprints create deep interior zones. Flat facades reduce natural articulation. And when everything aligns perfectly, airflow and thermal performance can actually suffer.

Before exploring solutions, it helps to understand how cube-based layouts behave spatially. Tools like a visual floor layout planning workflow used by architects to test cubic building proportionsmake these problems visible long before construction drawings begin.

In this guide, I'll walk through the most common cubic architecture problems I see in real projects—and the practical design fixes that actually work.

save pin

Why Cubic Architecture Can Be Difficult to Execute

Key Insight: The simplicity of cubic architecture hides complex spatial and environmental constraints.

Architects love cubic forms because they feel rational and modern. But the cube is not naturally forgiving in architectural design. Unlike elongated or courtyard-based buildings, cubes compress structure, circulation, daylight, and ventilation into a tight geometric envelope.

From a design perspective, three issues typically emerge early:

1. Uniform facade planes reduce architectural depth.
2. Square floor plates create dark interior zones.
3. Structural loads concentrate symmetrically.

In practice, this means a cube often requires more refinement—not less—than irregular building forms.

According to architectural analysis published by the Council on Tall Buildings and Urban Habitat, compact building geometries reduce envelope area but increase internal environmental control challenges, particularly daylight and airflow distribution.

The paradox is simple: cubes look minimal, but they require sophisticated design thinking.

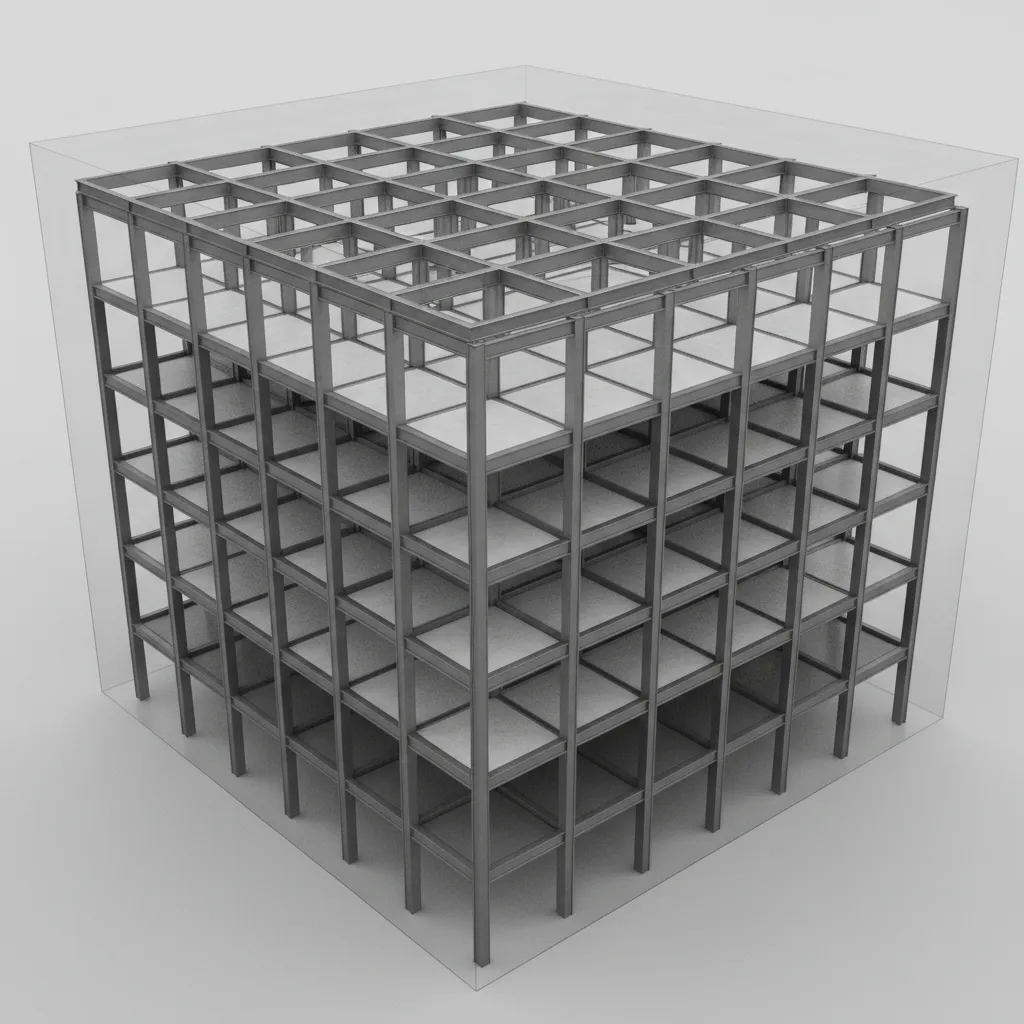

Structural Stability Issues in Cube-Based Designs

Key Insight: Cube-shaped buildings concentrate loads at corners and slab intersections, which can create structural inefficiencies if not carefully distributed.

Because cubic buildings rely heavily on symmetrical geometry, structural loads often converge along identical vertical axes. When floor spans become too wide, slab deflection and column loads increase rapidly.

Typical structural issues include:

1. Large unsupported floor plates
2. Corner stress concentration
3. Wind load resistance in tall cubes

Common structural fixes used in real projects:

1. Introduce interior structural cores
2. Use perimeter moment frames
3. Add internal shear walls
4. Break the cube vertically with setbacks

In high‑rise cubic buildings, engineers often combine a reinforced concrete core with perimeter steel framing to stabilize wind loads.

I've also seen many projects benefit from slightly shifting column grids—something designers often visualize early using spatial planning tools like an AI-assisted interior layout concept workflow used during early architectural studies.

save pin

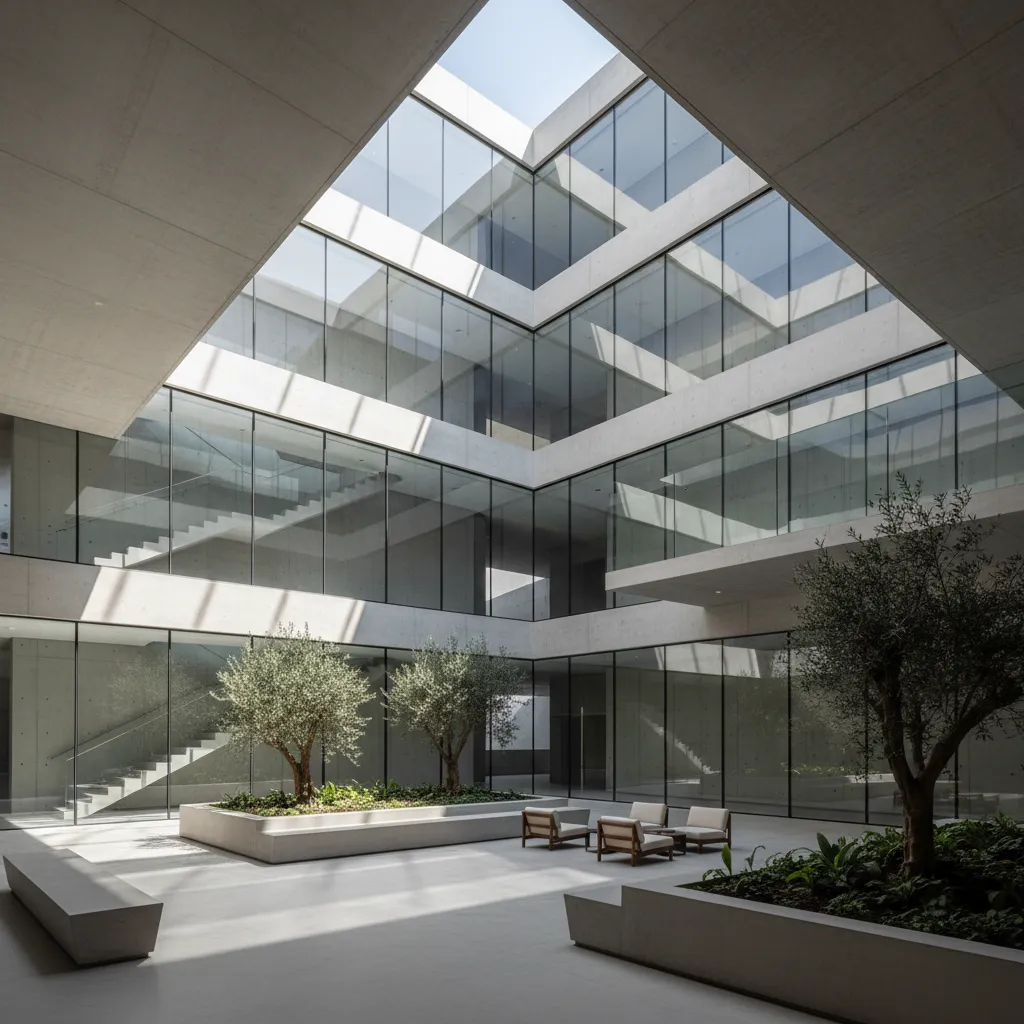

Lighting and Interior Depth Problems in Cubic Layouts

Key Insight: Square floor plates make it harder for daylight to reach interior spaces.

This is one of the most underestimated issues in cubic architecture.

Natural daylight typically penetrates about 20–30 feet from a window depending on glazing and reflectivity. In large cube buildings, the distance between exterior walls can exceed 60–80 feet, leaving the center of the building dim.

Typical daylight problems:

1. Dark corridors
2. Artificial lighting dependency
3. Uneven daylight distribution

Design solutions that work well:

1. Introduce interior courtyards
2. Add light wells or atriums
3. Use double‑height spaces
4. Shift circulation toward darker zones

One of my favorite solutions is a "punctured cube" approach—where small voids or terraces are carved into the building mass to pull daylight deeper into the interior.

save pin

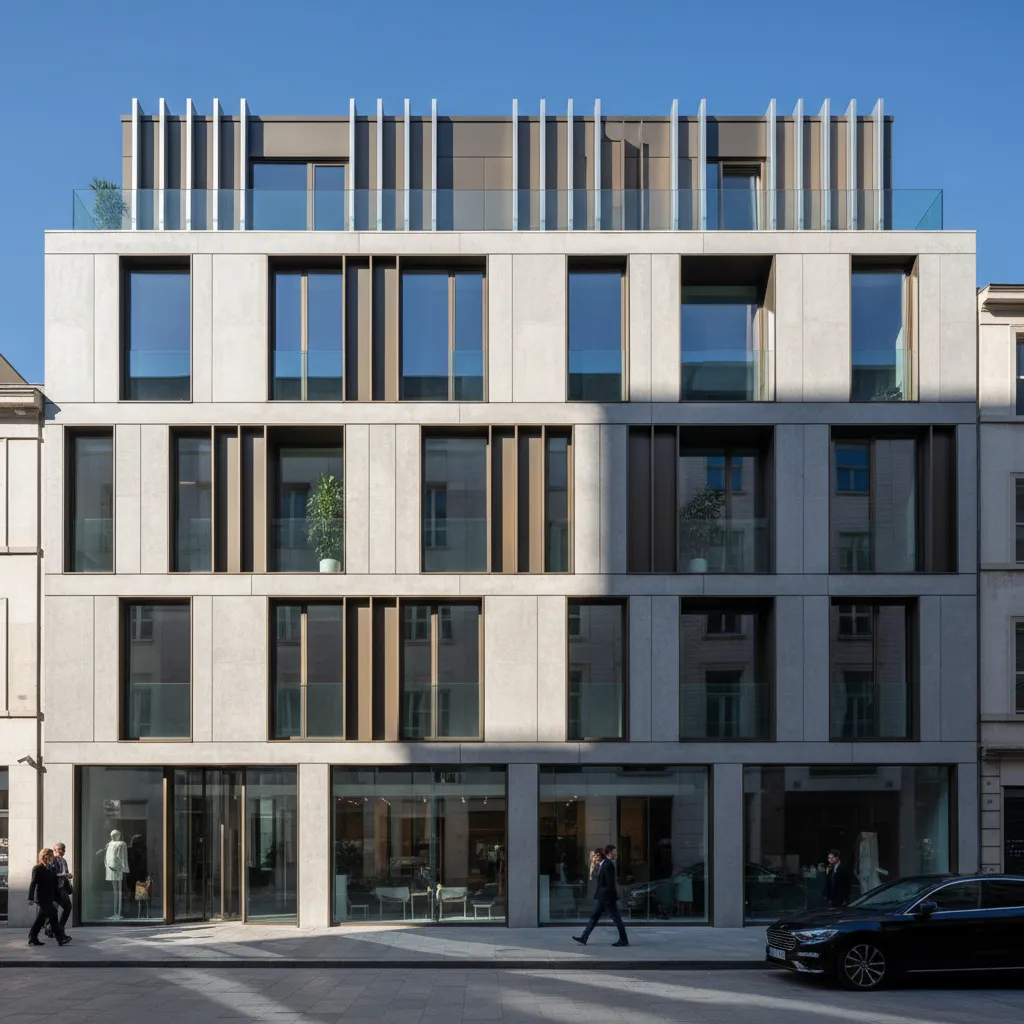

Facade Monotony and Visual Balance Challenges

Key Insight: Perfectly flat cube facades often look lifeless unless depth and rhythm are introduced.

Minimalism is powerful, but without variation, cubic facades quickly become monotonous.

Common visual problems include:

1. Flat window grids
2. Lack of shadow depth
3. Repetitive facade rhythm

Architects typically solve this with facade articulation strategies:

1. Recessed windows
2. Balcony cutouts
3. Material layering
4. Vertical fins or shading panels

Even subtle depth—just 6–12 inches of facade setback—can dramatically improve visual texture because it creates shadows that change throughout the day.

Before construction, many studios evaluate facade impact through high‑quality visualization such as a photorealistic architectural rendering used to preview exterior massing.

save pin

Thermal and Ventilation Issues in Cube-Shaped Buildings

Key Insight: Cubic forms often trap air internally and require deliberate ventilation planning.

Because cubes maximize internal volume relative to openings, air circulation can become uneven.

Typical ventilation issues include:

1. Stagnant air pockets in central zones
2. Overheated upper floors
3. Limited cross‑ventilation

Effective solutions include:

1. Cross‑ventilation corridors
2. Operable facade panels
3. Central atrium ventilation stacks
4. Mixed-mode mechanical systems

In warm climates, architects sometimes rotate cubic buildings slightly off axis to capture prevailing winds—something that can improve airflow dramatically.

Answer Box

The biggest problems in cubic architecture come from deep floor plates, structural load concentration, and visually flat facades. Most successful designs solve these issues with courtyards, articulated facades, and distributed structural systems.

Practical Design Fixes for Common Cubic Architecture Problems

Key Insight: The best cubic buildings are rarely perfect cubes—they are subtly modified.

After years of working with cube-based forms, I rarely leave the geometry untouched.

Small adjustments dramatically improve performance:

1. Cut courtyards into the mass
2. Add facade depth
3. Shift internal cores
4. Break the roofline
5. Introduce terraces

The goal is not to abandon the cube—but to refine it until the building works environmentally, structurally, and visually.

Final Summary

1. Cubic buildings hide complex structural and environmental challenges.
2. Deep square floor plates reduce natural daylight.
3. Flat facades require articulation for visual depth.
4. Ventilation planning is essential in cube-shaped structures.
5. Subtle modifications often transform a rigid cube into great architecture.

FAQ

Why do cubic buildings often have lighting problems?

Square floor plates create deep interior zones where daylight cannot reach effectively.

Are cube-shaped buildings structurally stable?

Yes, but structural systems must carefully distribute loads through cores, columns, and shear walls.

What are common cubic building design mistakes?

Ignoring daylight penetration, flat facade repetition, and poor ventilation planning.

How do architects fix cubic architecture facade design?

They introduce facade depth, varied materials, recessed windows, and balcony cutouts.

Can cubic architecture be energy efficient?

Yes. Compact geometry reduces envelope area, but ventilation and daylight strategies must be optimized.

What causes ventilation issues in cube architecture?

Large interior volumes and limited facade openings restrict airflow circulation.

Are cubic buildings more expensive to build?

Not necessarily, but facade articulation and structural adjustments may increase costs.

What is the biggest problem with cubic architecture design?

The biggest issue is balancing simplicity with environmental performance and visual depth.
