Direct Answer

Most problems with free tree CAD blocks come from corrupted DWG files, incompatible AutoCAD versions, missing layers, or incorrect block scaling. These issues can usually be fixed by auditing the DWG file, exploding and rebuilding blocks, adjusting units, or cleaning the drawing with AutoCAD repair commands.

In real projects, I’ve found that more than half of "broken" vegetation blocks simply need cleaning and proper unit alignment before they work correctly.

Quick Takeaways

1. Many tree CAD block errors are caused by version incompatibility between DWG files and AutoCAD.
2. Missing layers often occur when blocks rely on external references or improperly saved block definitions.
3. Scaling problems usually come from mismatched drawing units during import.
4. Running AUDIT and PURGE can fix many corrupted or bloated CAD blocks instantly.
5. Downloading from curated CAD libraries dramatically reduces troubleshooting time.

Introduction

If you work in landscape or site planning, you’ve probably downloaded a tree CAD block at some point only to discover it doesn’t open, appears distorted, or arrives with missing layers. I’ve run into this countless times across residential and commercial projects. The reality is that free resources can be incredibly useful, but they also come with technical inconsistencies.

Over the past decade working with architectural drawings, I’ve learned that most problems with tree CAD blocks aren’t actually design issues. They’re file structure issues. The good news is they’re almost always fixable with a few quick steps.

When teams build vegetation layouts using tools like a 3D floor planner that visualizes landscaping layouts, they usually rely on external CAD assets for trees and planting symbols. That’s where compatibility problems start showing up.

This guide walks through the most common download problems I see with tree CAD blocks and the exact fixes professionals use to repair them quickly.

save pin

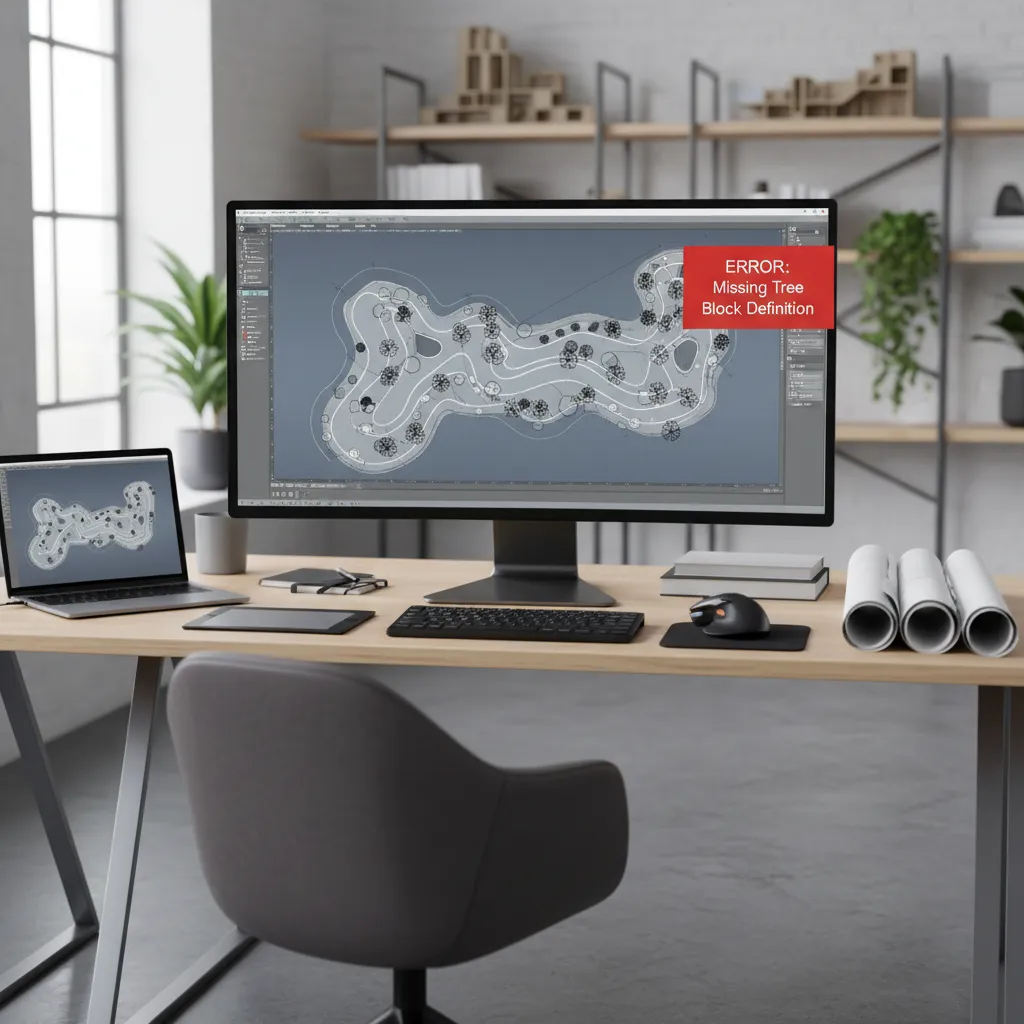

Why Some Free Tree CAD Blocks Do Not Open Correctly

Key Insight: Tree CAD blocks often fail to open because they were saved in a newer DWG version or contain proxy objects unsupported by older CAD software.

In many cases the block itself is fine. The issue is compatibility. AutoCAD’s DWG format changes frequently, and files created in newer versions can break when opened in older ones.

Typical causes include:

1. DWG version mismatch (for example 2024 file opened in 2016)
2. Proxy objects from specialized plugins
3. Corrupted block definitions during export
4. Missing referenced files

Quick Fix Steps:

1. Open the file using the DWG TrueView converter
2. Save the drawing to an older DWG format
3. Run the AUDIT command
4. Explode and redefine the block

Autodesk documentation consistently recommends version conversion as the first troubleshooting step when a DWG fails to load correctly.

Fixing Corrupted or Incomplete DWG Files

Key Insight: Most corrupted DWG tree blocks can be repaired using built‑in AutoCAD recovery tools.

Corruption often happens when files are compressed, reuploaded, or exported from another CAD platform. I’ve seen blocks lose geometry or layer information simply because the original author saved them from a third‑party CAD program.

Repair Workflow I Use in Practice:

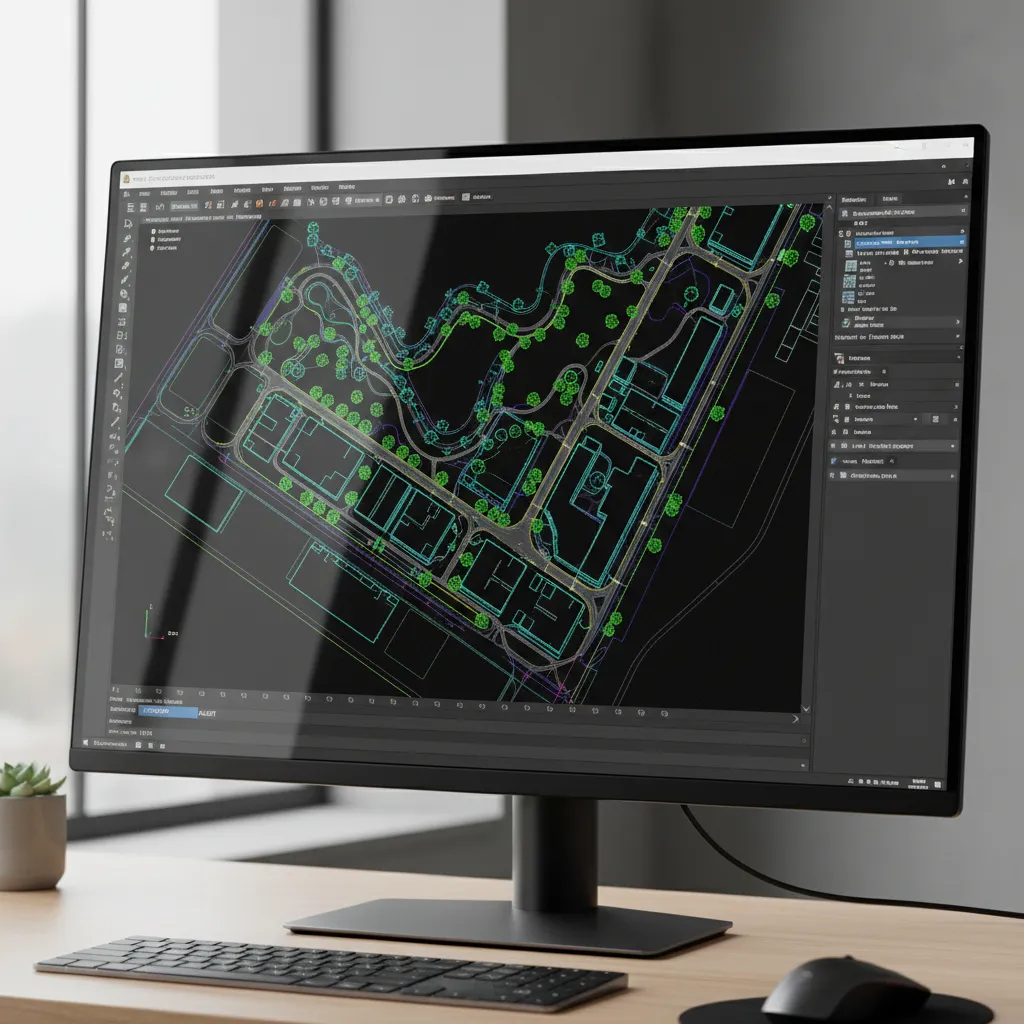

1. Open AutoCAD with the RECOVER command
2. Select the damaged DWG
3. Run AUDIT to detect errors
4. Use PURGE to remove unused elements
5. Save the file as a new clean DWG

This simple process repairs a surprising number of vegetation blocks. In large landscape drawings, cleaning files can also reduce DWG size by 20–40%.

save pin

Resolving Missing Layers and Broken Block References

Key Insight: Missing layers usually indicate the block relies on external references or nested block structures that weren’t included in the download.

One of the most frustrating situations is opening a tree CAD block and seeing only partial geometry. This usually happens because the block references other elements that weren’t packaged with the file.

Common Layer Problems:

1. External reference files (XREF) not included
2. Nested blocks missing
3. Layer filters hiding objects
4. Layer states incorrectly applied

How to Fix It:

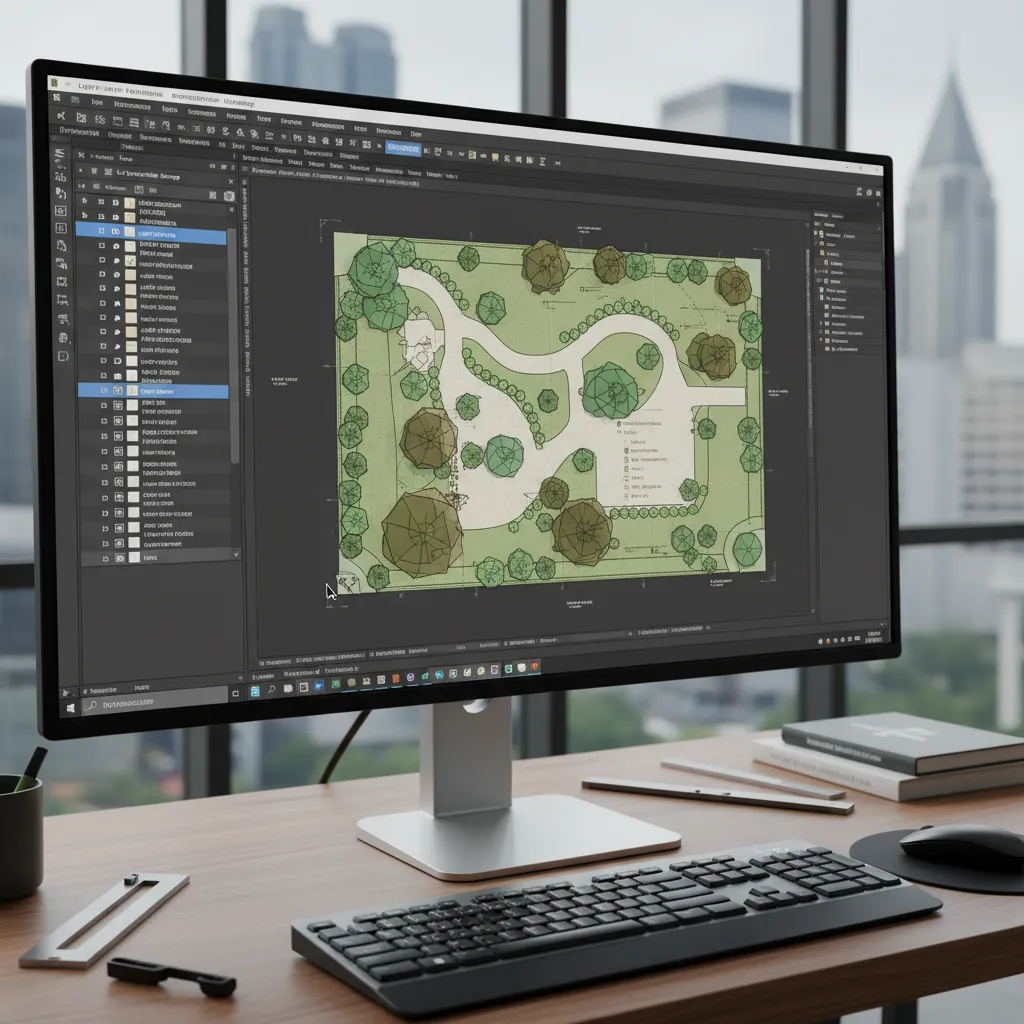

1. Open the Layer Manager and turn on all layers
2. Use XREF Manager to check for missing references
3. Explode nested blocks and rebuild them
4. Reassign objects to standard layers

When teams plan landscape layouts using a room planner that supports outdoor spatial layouts, clean layer organization becomes essential for keeping vegetation symbols readable across drawings.

save pin

Scaling Issues with Imported Tree CAD Blocks

Key Insight: Tree blocks often appear gigantic or microscopic because their source file uses different drawing units.

This is probably the most common problem I encounter when importing vegetation symbols into architectural plans.

A block drawn in millimeters imported into a drawing set in meters will appear 1000 times smaller.

How to Fix Tree Block Scaling:

1. Run the UNITS command in both drawings
2. Check insertion scale settings
3. Use SCALE with a reference measurement
4. Save corrected blocks to a personal library

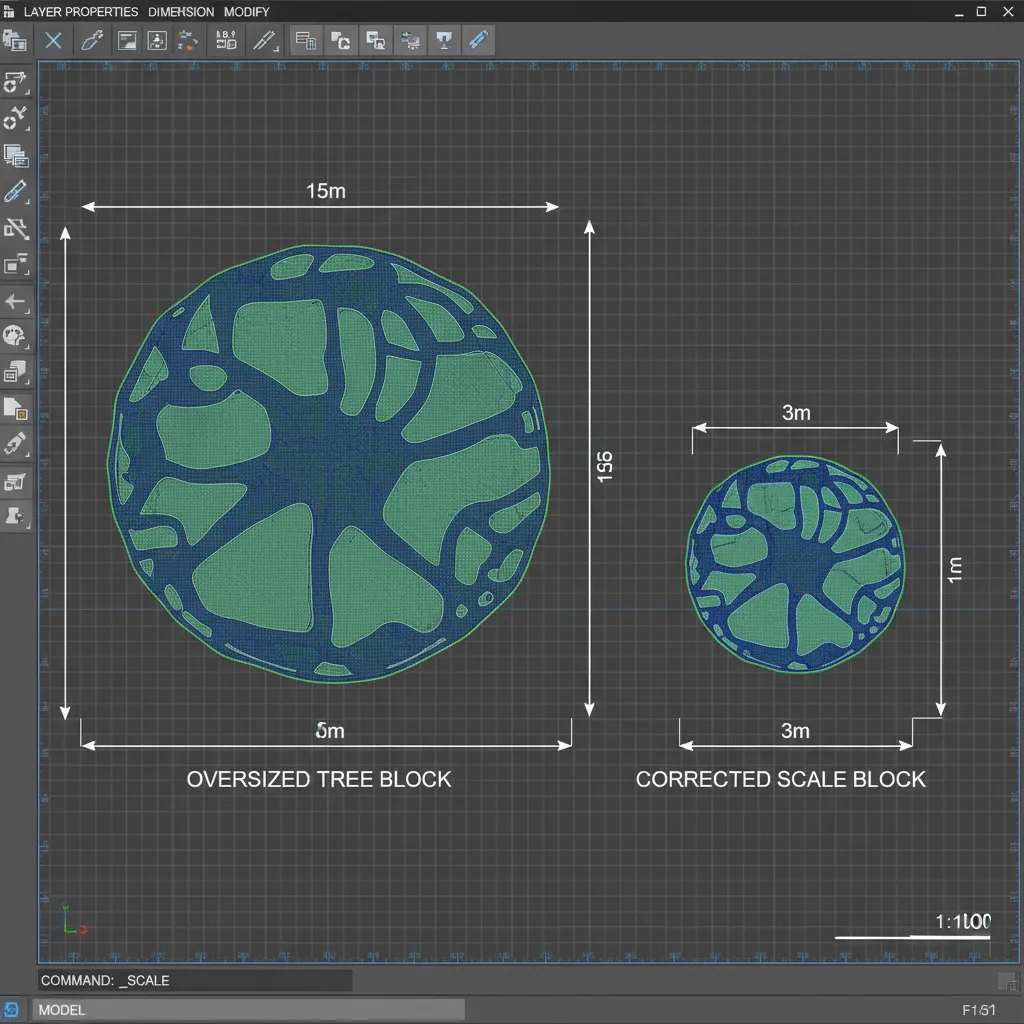

Typical Tree Block Sizes:

1. Small ornamental tree: 2–4 meter canopy
2. Medium landscape tree: 5–8 meter canopy
3. Large mature tree: 10–15 meter canopy

Using realistic canopy diameters is important when evaluating spacing and shading in site plans.

How to Clean and Repair CAD Files Before Use

Key Insight: Cleaning CAD blocks before adding them to your library prevents performance issues later in large projects.

Professionals rarely use downloaded CAD assets directly. We almost always clean them first.

My Standard CAD Cleanup Checklist:

1. PURGE unused layers
2. OVERKILL duplicate geometry
3. AUDIT for file errors
4. Reset block base points
5. Standardize layer naming

When rendering planting plans or landscape perspectives using a workflow that converts CAD layouts into realistic home visualizations, lightweight and well‑organized CAD blocks make the process dramatically smoother.

save pin

Answer Box

The fastest way to fix a broken tree CAD block is to recover the DWG file, audit it for errors, purge unused elements, and correct drawing units. Most downloaded CAD block problems stem from version mismatch, scaling units, or missing references.

Best Practices to Avoid Bad CAD Downloads

Key Insight: The easiest way to avoid CAD block issues is to build a vetted personal block library instead of downloading new files every time.

After working on dozens of projects, one thing becomes clear: constantly downloading random blocks slows teams down.

Smart CAD Resource Habits:

1. Download from trusted CAD libraries
2. Standardize file units before saving
3. Rename blocks with clear categories
4. Store vegetation blocks in a master library
5. Test new blocks in a blank file first

This approach prevents the most common workflow disruptions caused by unreliable CAD downloads.

Final Summary

1. Most tree CAD block errors come from DWG version conflicts or file corruption.
2. Running AUDIT, PURGE, and RECOVER solves many broken block problems.
3. Missing layers often indicate external references or nested blocks.
4. Scaling problems typically result from mismatched drawing units.
5. Building a personal cleaned CAD library prevents future issues.

FAQ

Why is my tree CAD block not opening in AutoCAD?

The file may be saved in a newer DWG format or contain unsupported proxy objects. Convert the file to an older DWG version using a DWG converter.

How do I fix a corrupted DWG tree block?

Open the file with the RECOVER command, run AUDIT to detect errors, then use PURGE to remove corrupted elements before saving a new version.

Why are CAD blocks missing layers?

This usually happens when external references or nested blocks were not included in the download package.

Why is my tree CAD block extremely large?

The drawing units are likely mismatched. Check the UNITS command and rescale the block to match your project scale.

How do I repair DWG vegetation blocks before using them?

Run AUDIT, PURGE, and OVERKILL commands to remove errors, unused layers, and duplicate geometry.

What causes the AutoCAD tree block scaling problem?

The AutoCAD tree block scaling problem usually occurs when the source block was drawn in millimeters but inserted into a meter‑based drawing.

Can corrupted CAD blocks slow down my drawing?

Yes. Bloated or corrupted blocks increase file size and regeneration time, especially in large landscape drawings.

What is the safest way to download tree CAD blocks?

Use curated CAD resource libraries and test each downloaded block in a blank drawing before adding it to your project library.
