Common Problems When Extruding CAD Floor Plans and How to Fix Them: A practical troubleshooting guide to repair geometry, fix extrusion errors, and turn 2D CAD floor plans into clean 3D models.

Direct Answer

Most CAD floor plans fail to extrude into 3D because the geometry is not fully closed, contains self‑intersections, or includes incorrect layer selections. Fixing open polylines, removing overlapping segments, and ensuring clean wall boundaries typically resolves extrusion failures. Once the linework forms a clean, closed profile, CAD software can generate a solid without errors.

Quick Takeaways

1. Extrusion usually fails because wall outlines are not closed polylines.
2. Self‑intersecting shapes prevent CAD from generating solid geometry.
3. Layer selection mistakes often cause partial or missing extrusions.
4. Incorrect extrusion direction or height settings create invisible or inverted models.
5. Cleaning CAD geometry before modeling saves hours of troubleshooting.

Introduction

In more than a decade of working with architectural CAD models, I have learned that extruding a floor plan should be the easiest step in the workflow—yet it often becomes the most frustrating one. A clean 2D drawing should turn into a 3D mass in seconds, but many designers run into errors where walls refuse to extrude, solids fail to form, or the model simply disappears.

These issues usually come down to hidden problems in the drawing itself. I have seen perfectly good‑looking plans fail because of a 0.2 mm gap in a polyline or because two walls overlapped just enough to confuse the geometry engine.

If you are building a model from a plan or testing layouts using a visual workflow for converting 2D floor plans into editable layouts, resolving these geometry issues early will save a surprising amount of time.

Below are the most common CAD extrusion problems I encounter in real projects—and the exact fixes that consistently work.

save pin

Why CAD Floor Plans Fail to Extrude into 3D

Key Insight: If a floor plan cannot extrude, the geometry almost always contains gaps, overlaps, or non‑planar segments.

CAD software requires a perfectly closed profile to generate a solid. The program must be able to interpret the boundary as a single continuous loop. Even tiny inconsistencies can prevent extrusion.

In practice, I see three recurring causes:

1. Disconnected line endpoints
2. Overlapping wall segments
3. Mixed object types such as lines, arcs, and splines

Many architectural plans are drafted quickly for documentation, not modeling. That means the geometry might look correct visually but still contain structural problems.

Typical symptoms include:

1. Extrusion command fails or returns an error
2. Extrusion creates surfaces instead of solids
3. Only part of the plan extrudes
4. Walls extrude individually instead of forming a unified volume

Cleaning geometry before modeling is a standard workflow in professional studios because of these issues.

Fixing Open Polylines and Broken Wall Boundaries

Key Insight:The most common extrusion failure happens when the floor plan boundary is not a closed polyline.

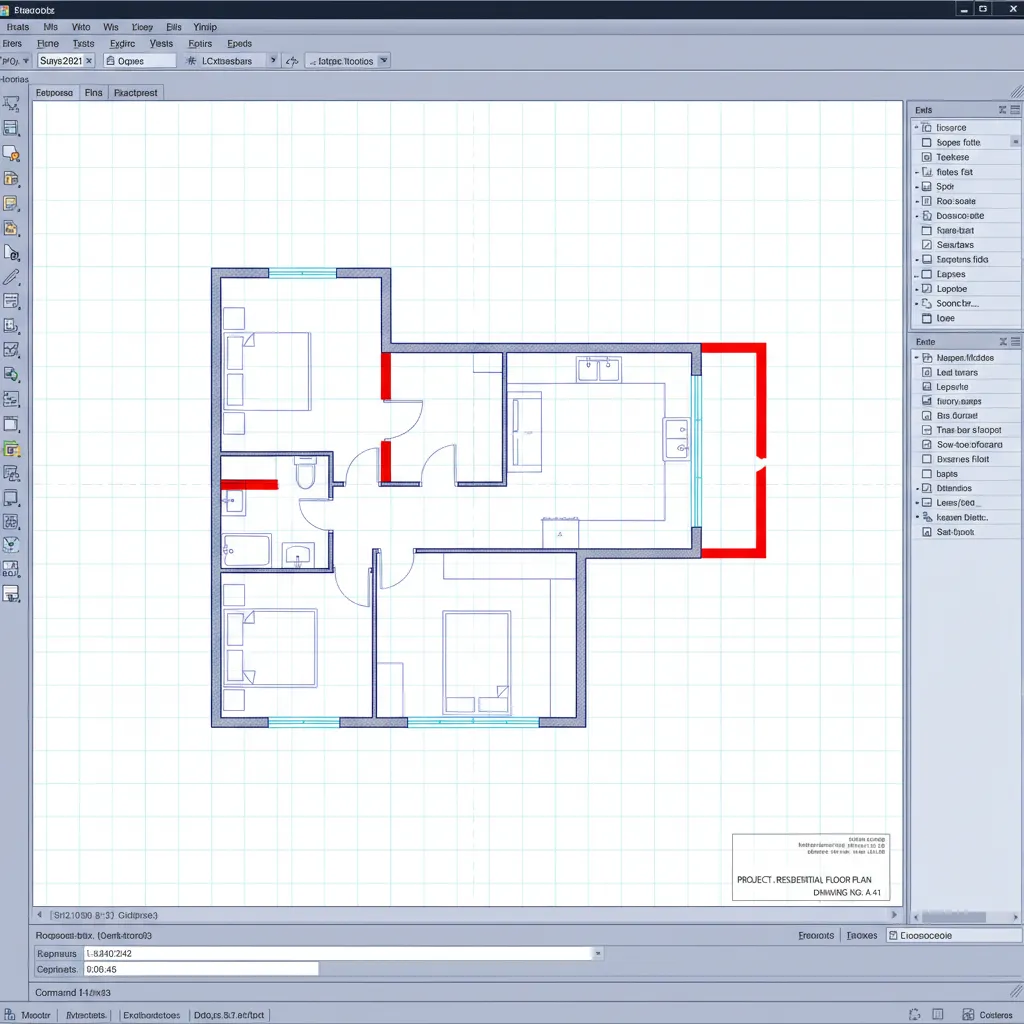

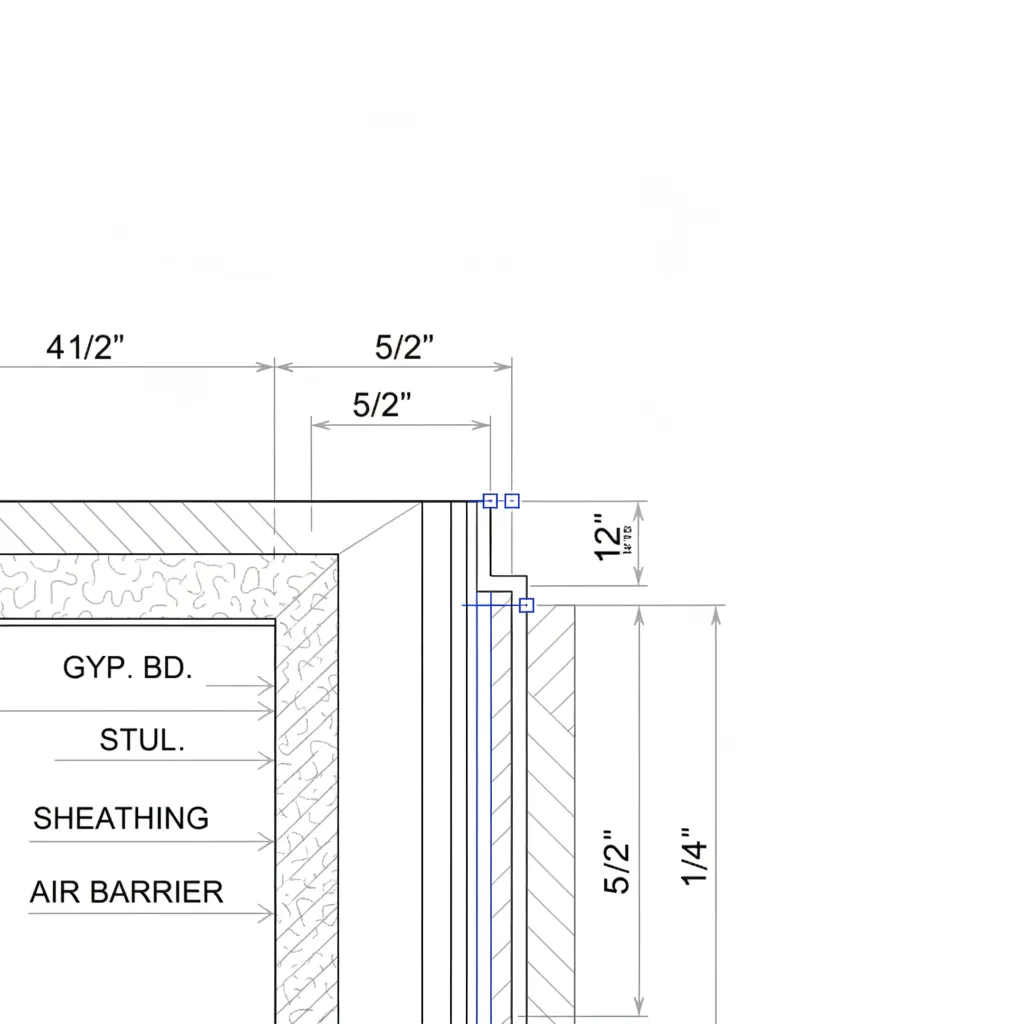

A gap as small as a fraction of a millimeter can break the extrusion. CAD systems treat that gap as an open profile, which cannot generate a solid.

save pin

How to repair open polylines:

1. Use the JOIN command to combine connected segments.
2. Run a boundary detection or region creation command.
3. Zoom closely to identify micro‑gaps between endpoints.
4. Use the CLOSE option in polyline editing tools.

A hidden mistake many designers miss:

Walls drawn as double lines often create tiny mismatched corners. When these are offset manually, the endpoints may not actually intersect.

One reliable technique is to convert the wall outlines into a region first. If the region command fails, the boundary is not closed—giving you a clear signal of where the problem lies.

Resolving Self Intersecting Geometry Errors

Key Insight:Self‑intersecting shapes break solid generation because the CAD engine cannot determine interior and exterior regions.

This problem typically appears when offset walls overlap or when curves intersect themselves.

save pin

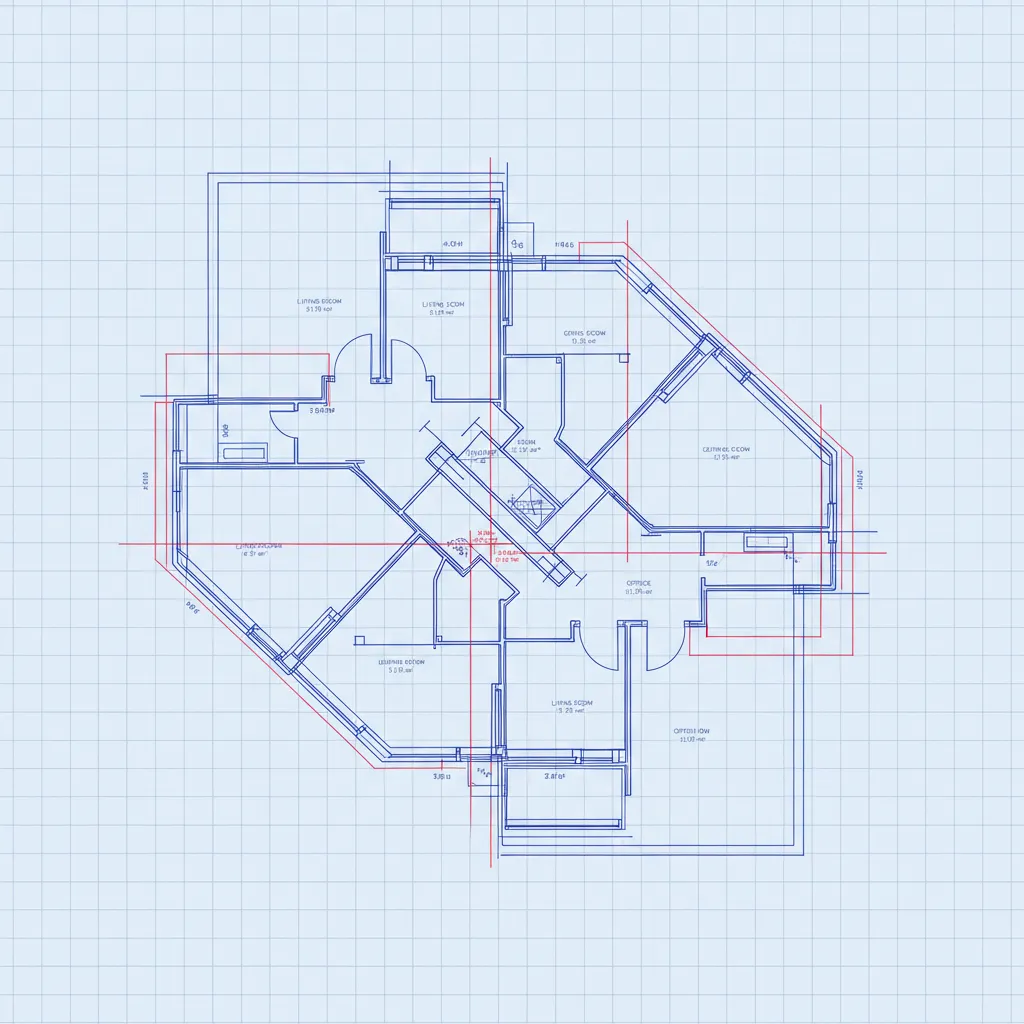

Common causes of self‑intersection:

1. Wall offsets overlapping at tight corners
2. Imported DXF or DWG files with duplicated edges
3. Improper trimming at intersections

Fix workflow used in many studios:

1. Explode complex polylines.
2. Delete duplicate segments.
3. Trim overlaps at intersections.
4. Rebuild the boundary as a clean polyline.

In my experience, imported drawings from consultants are especially prone to this problem. Cleaning them early prevents compounding errors later in the modeling process.

Answer Box

The majority of CAD extrusion failures come from open boundaries, overlapping geometry, or incorrect object selection. Repairing polylines, removing intersections, and selecting only closed regions almost always fixes the issue.

Handling Layer and Object Selection Issues

Key Insight: Extrusion often fails because the wrong objects are selected or because geometry exists on hidden layers.

In complex architectural drawings, walls, annotations, dimensions, and furniture often sit on separate layers. If those elements are accidentally included during extrusion, the command may fail or generate unexpected results.

Layer management checklist:

1. Freeze annotation layers
2. Hide furniture and fixtures
3. Lock structural reference layers
4. Select only the wall boundary objects

When designers build early spatial concepts using a step by step workflow for creating a 3D floor plan from layout sketches, separating layers early dramatically reduces extrusion errors.

Correcting Extrusion Height and Direction Problems

Key Insight:Sometimes the extrusion actually succeeds—but the model appears missing because it extrudes in the wrong direction or at the wrong scale.

This happens frequently when working with imported CAD files or inconsistent units.

save pin

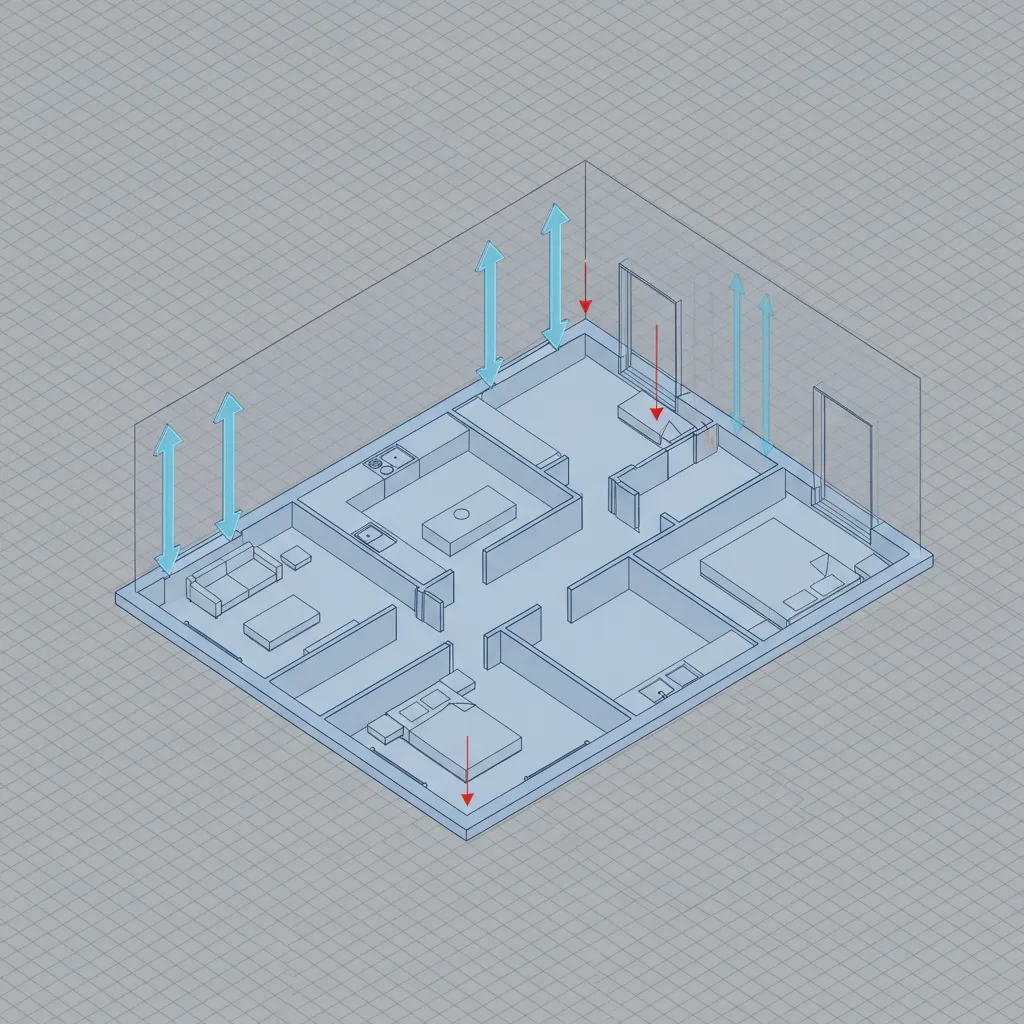

Common extrusion configuration issues:

1. Negative extrusion height
2. Incorrect unit scale
3. Extrusion normal pointing downward
4. Extruding from an elevated base plane

Quick diagnostic test:

1. Check current UCS orientation.
2. Set extrusion height to a simple value like 3000 mm.
3. Switch to an isometric view.
4. Confirm the object actually exists in 3D space.

Many “missing model” problems turn out to be view or direction issues rather than geometry failures.

Preventing Future Extrusion Errors in Floor Plans

Key Insight: Prevention is far faster than troubleshooting—clean drafting habits eliminate most extrusion errors.

Professional studios rarely extrude raw drafting files. Instead, they prepare a simplified modeling layer.

A reliable preparation workflow:

1. Duplicate the floor plan into a modeling file.
2. Delete annotations, text, and dimensions.
3. Convert walls into closed polylines.
4. Run geometry cleanup tools.
5. Test with a small extrusion.

If you frequently work with early design layouts, starting with a simple workflow for building clean floor plan geometry before modeling makes extrusion almost effortless.

Final Summary

1. Open polylines are the most common reason CAD extrusion fails.
2. Self‑intersections prevent the creation of solid geometry.
3. Layer selection mistakes often cause partial or broken extrusions.
4. Extrusion direction and units can make models appear missing.
5. Clean drafting practices prevent most extrusion problems.

FAQ

Why does my CAD floor plan not extrude into a solid?

The boundary is likely open or contains overlapping segments. CAD requires a fully closed polyline to generate a solid extrusion.

How do I fix an open polyline extrusion problem?

Use JOIN or PEDIT commands to connect segments, then close the polyline. Zoom closely to detect small endpoint gaps.

Why do walls extrude separately instead of forming one solid?

Each wall outline may be a separate polyline. Combine them into a single closed boundary or create regions before extruding.

What causes self intersecting geometry errors?

Overlapping offsets, duplicated lines, or poorly trimmed corners often create intersections that block solid creation.

Can imported DWG files cause extrusion problems?

Yes. Imported CAD drawings often contain duplicate edges or broken segments that must be cleaned before extrusion.

Why does the extrusion command create a surface instead of a solid?

The profile is open. Surfaces can form from open boundaries, but solids require closed geometry.

How do I troubleshoot a CAD extrusion failed floor plan fix quickly?

Check for open polylines, remove duplicate edges, verify layer selection, and test extrusion with a simple height.

What is the fastest way to repair CAD geometry before extrusion?

Use boundary or region tools. If the command fails, the geometry still contains gaps or intersections.
