Common Problems When Implementing Concentric Circle Classrooms: Real design issues instructors face with circular seating and practical fixes from studio layout experience

Direct Answer

Concentric circle classrooms often fail because real teaching spaces rarely match the ideal geometry shown in diagrams. Limited room size, poor sightlines between circles, circulation bottlenecks, and acoustic overlap are the most common problems. With thoughtful spacing, staggered seating, and better circulation paths, most of these issues can be corrected without rebuilding the room.

Quick Takeaways

1. Most concentric classroom layout problems come from ignoring circulation space.
2. Outer circle visibility often fails when floor elevation stays flat.
3. Circular seating increases discussion energy but amplifies acoustic overlap.
4. Small studios should rarely use more than two rings of seating.
5. Staggered seating solves more visibility problems than larger circles.

Introduction

After working on multiple architecture studios and planning classrooms, I’ve noticed a pattern: concentric circle seating looks brilliant in diagrams but behaves very differently in real rooms. The idea is attractive because it promotes discussion, eye contact, and collaborative critique. In theory, everyone becomes part of the conversation.

In practice, however, instructors quickly run into concentric classroom layout problems. Students in the outer ring cannot see presentation boards. Circulation paths disappear once bags and laptops hit the floor. And in smaller planning studios, a circular layout can actually reduce usable seating.

I’ve redesigned several studio classrooms where the original circular concept looked great during planning but struggled during real teaching sessions. The key issue was almost always spatial assumptions made during early planning. Before testing a layout, I often recommend experimenting with a simple interactive room layout planning workflowso instructors can see circulation and sightlines before furniture arrives.

This article breaks down the most common circular classroom design challenges I’ve encountered and, more importantly, how to fix them without abandoning the concept entirely.

save pin

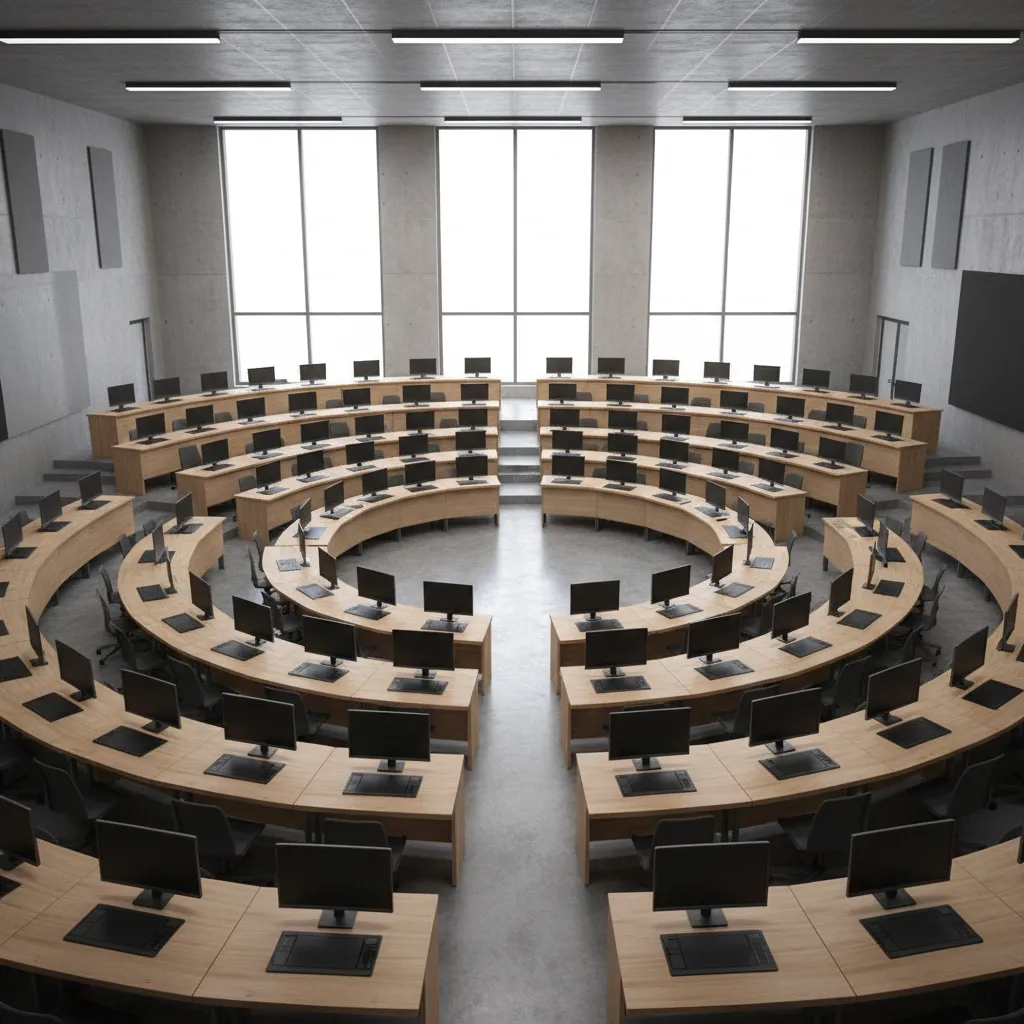

Why Concentric Circle Layouts Sometimes Fail

Key Insight: Concentric seating fails when designers prioritize symmetry over teaching function.

Most diagrams of circular classrooms assume a perfectly square room, evenly spaced seating, and minimal equipment. Real architecture studios rarely behave that way. Walls are irregular, pin-up boards occupy one side, and instructors need clear movement paths.

In several studio redesigns I’ve audited, the circular layout reduced functional teaching space by nearly 20 percent because circulation was never considered.

Common hidden mistakes include:

1. Overcrowded outer circles that block entry paths
2. Too many seating rings for the available floor area
3. No dedicated instructor circulation path
4. Ignoring laptop tables and backpacks

Educational design guidelines from organizations like EDUCAUSE emphasize flexible circulation zones around collaborative seating. When circles become too dense, discussion may increase, but movement becomes difficult.

Space Constraints in Small Planning Classrooms

Key Insight: Small classrooms should rarely use more than two seating rings.

The most common architecture studio seating troubleshooting request I receive involves rooms under 700 square feet trying to fit three or four concentric circles.

That usually fails for a simple reason: each ring increases required clearance.

Typical space requirements look like this:

1. Chair depth and student posture: 30–36 inches
2. Comfortable circulation clearance: 36–48 inches
3. Instructor movement zone: 48 inches minimum

When these numbers stack up, the geometry of circular seating quickly eats the room.

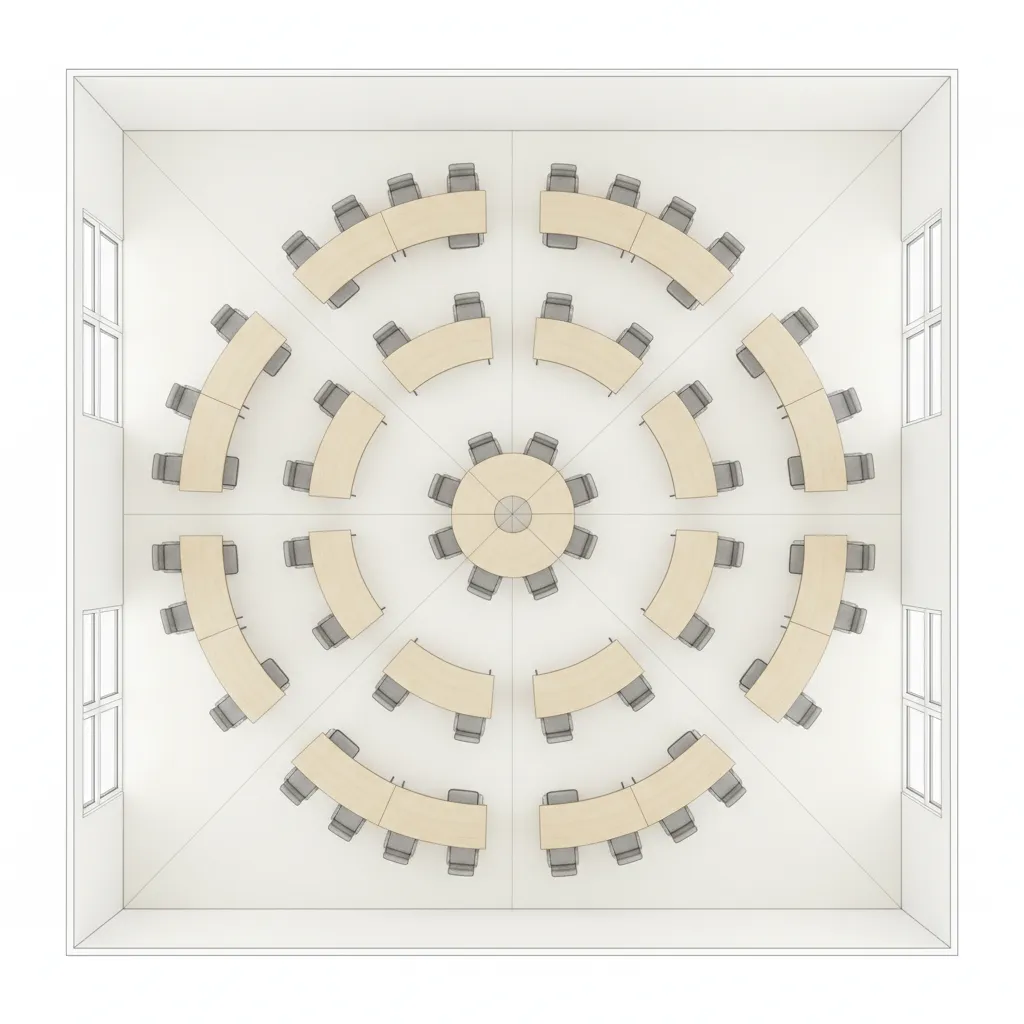

A practical alternative I often recommend is testing circular layouts using a

save pin

visual 3D classroom floor plan simulation. Seeing the rings in three dimensions immediately reveals how quickly circulation space disappears.

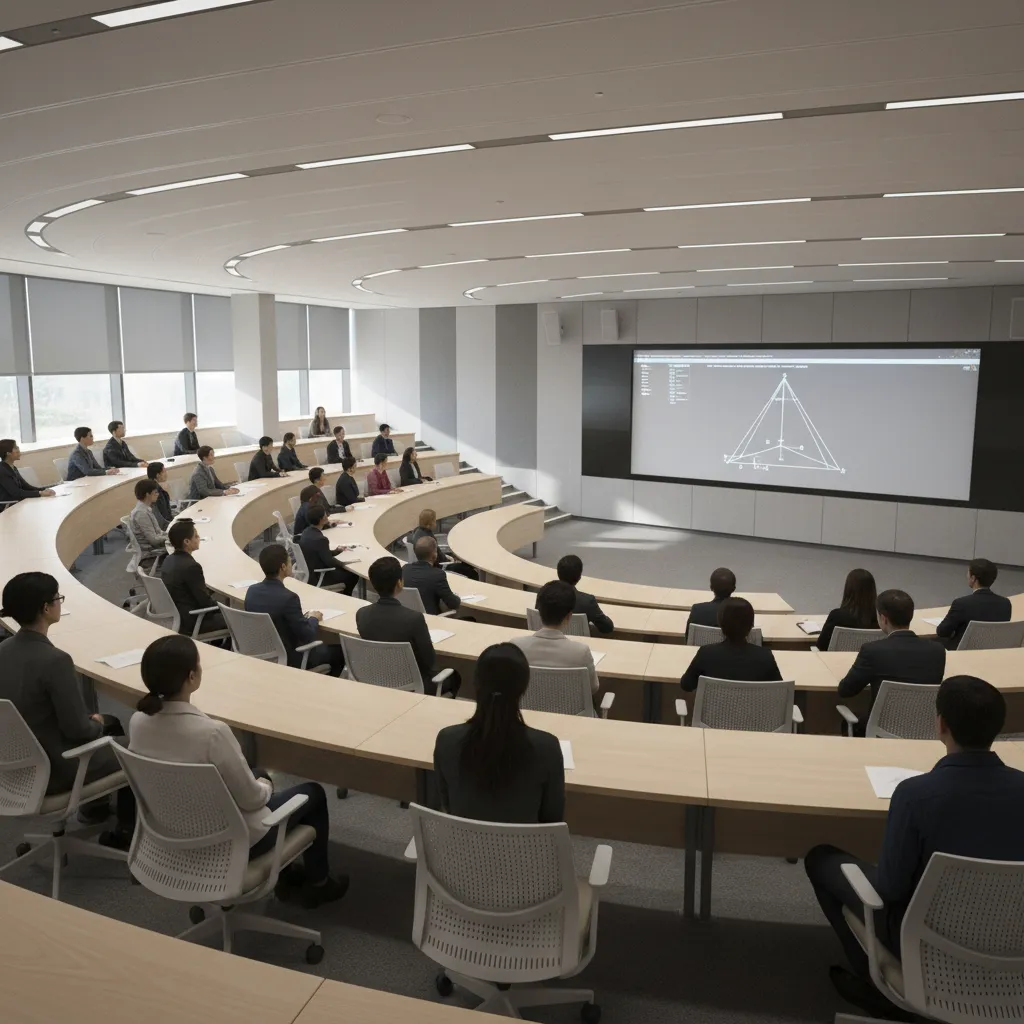

Visibility Problems Between Inner and Outer Circles

Key Insight: Visibility problems in circular classroom layouts usually come from equal-height seating.

When all chairs sit on the same floor plane, the inner circle becomes a visual barrier for the outer ring. Students end up leaning sideways just to see boards or screens.

This issue appears frequently during studio critiques where presentations occur at one side of the room.

Design strategies that work better include:

1. Staggering chairs instead of aligning them radially
2. Slightly widening the inner ring spacing
3. Using angled seating rather than strict circular alignment
4. Raising the outer ring by even 4–6 inches when possible

One architecture school I worked with solved their visibility issues simply by rotating outer chairs five degrees toward the presentation wall. The geometry was no longer perfectly circular, but sightlines improved dramatically.

save pin

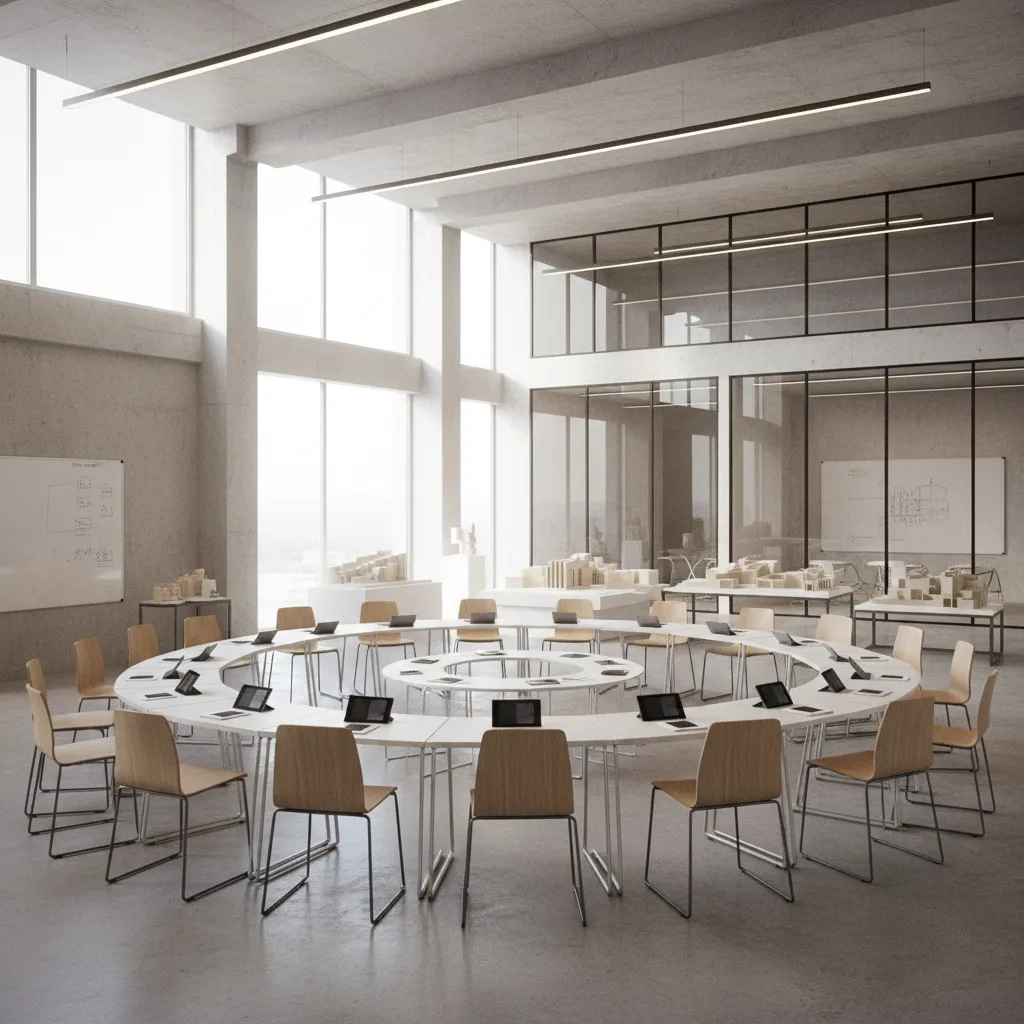

Managing Student Movement and Access Paths

Key Insight: Circular seating collapses if students cannot enter and exit without disrupting the discussion.

Movement planning is where most circular classroom design challenges appear.

If access paths only exist between circles, students must interrupt others every time they arrive late, retrieve materials, or move for critiques.

Better circulation planning includes:

1. Two radial access aisles cutting through circles
2. Outer perimeter circulation paths
3. Dedicated instructor circulation loop
4. Open access point toward presentation wall

In design studios where students constantly shift between desks and critique areas, these circulation routes make the difference between fluid interaction and chaos.

Answer Box

The biggest implementation mistake with concentric circle classrooms is treating them as perfect geometry instead of functional teaching environments. Reducing rings, improving circulation, and staggering seats typically solve most layout failures.

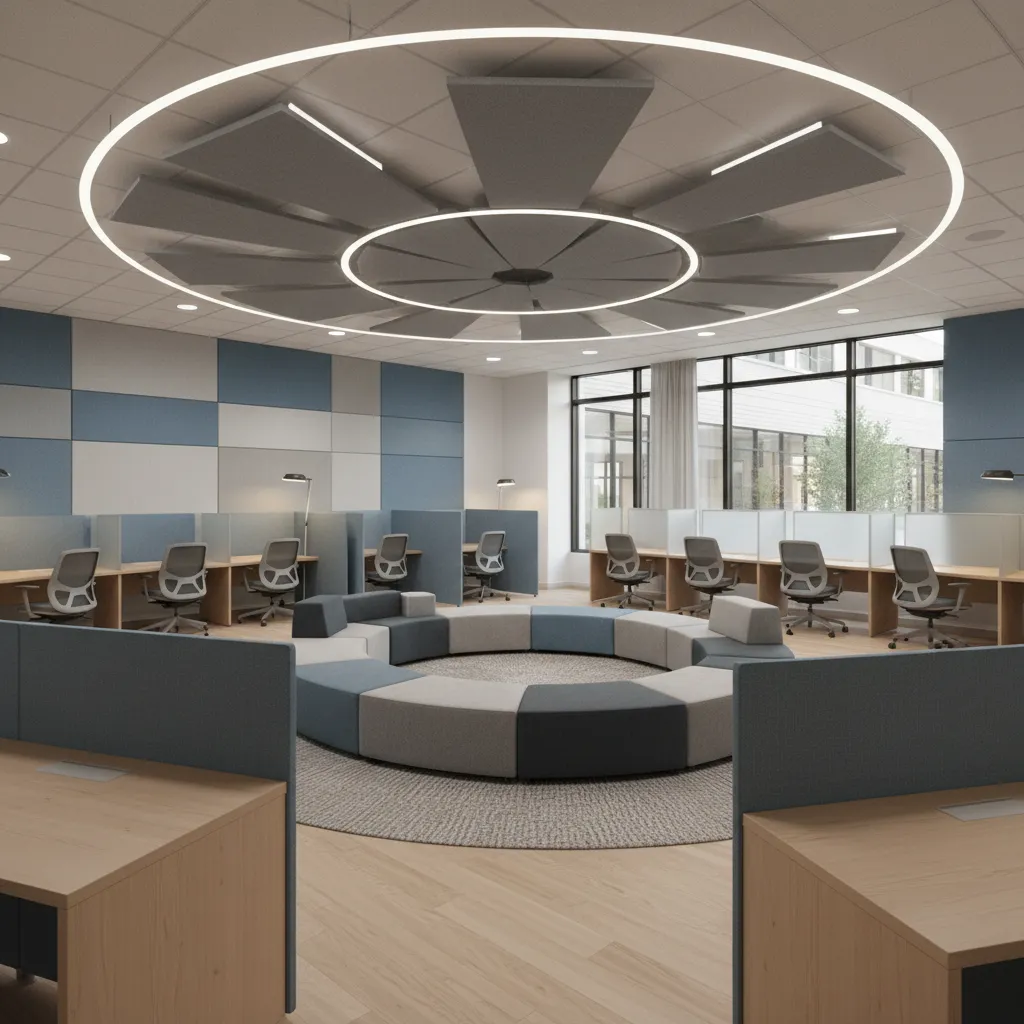

Acoustic Issues in Circular Seating Arrangements

Key Insight: Circular seating amplifies overlapping conversation unless acoustic control is considered.

One surprising issue with circular classrooms is sound reflection. Because students face inward, voices bounce across the room rather than projecting forward like in traditional layouts.

Research in active learning environments shows that circular discussion spaces increase participation but also increase overlapping speech.

Practical acoustic improvements include:

1. Acoustic ceiling panels above the center
2. Fabric-backed pin-up boards
3. Carpet or acoustic flooring
4. Soft seating materials

These treatments absorb reflected sound waves that otherwise bounce around the circular seating arrangement.

save pin

Practical Fixes for Layout and Circulation Problems

Key Insight: Most circular classroom issues can be solved with minor layout adjustments rather than abandoning the concept.

When schools ask how to fix concentric circle seating issues, I usually recommend small structural tweaks instead of full redesigns.

My go-to improvement checklist:

1. Limit layouts to two seating rings
2. Create at least two radial aisles
3. Stagger outer seating positions
4. Keep the presentation wall outside the circle
5. Leave a central flexible zone

If you're experimenting with circular classroom concepts, using an AI assisted classroom interior layout generator can help test multiple seating configurations before moving furniture in the real space.

Final Summary

1. Most circular classroom problems come from ignoring circulation space.
2. Outer circle visibility improves with staggered seating.
3. Two seating rings usually outperform larger circular layouts.
4. Acoustic treatment is essential in discussion-heavy classrooms.
5. Small layout adjustments can rescue most failing circle designs.

FAQ

What are the biggest concentric classroom layout problems?

The most common issues are poor sightlines, overcrowded outer circles, limited circulation paths, and overlapping acoustics during discussions.

Do concentric circle classrooms work in small rooms?

They can work, but only with two seating rings. Adding more rings in small studios usually eliminates circulation space.

Why do students in the outer circle struggle to see presentations?

Because the inner circle blocks sightlines. Staggered seating or slightly angled chairs usually solves this visibility problem.

How do you fix visibility problems in circular classroom layouts?

Widen the inner ring, stagger chairs, or rotate seating toward the presentation wall.

Are circular classrooms good for studio critiques?

Yes, they encourage discussion, but instructors must maintain clear sightlines toward presentation boards.

Do circular classrooms create acoustic problems?

Yes. Inward-facing seating reflects sound across the room, which can increase overlapping conversations.

What is the best number of rings in concentric classroom seating?

Most successful classrooms use two rings. Larger setups often create circulation and visibility problems.

Can software help solve circular classroom design challenges?

Yes. Layout planning tools allow instructors to test spacing, visibility, and circulation before implementing furniture.
