Common Problems When Importing Electrical CAD Blocks and How to Fix Them: Practical troubleshooting tips from real design workflows to quickly fix broken electrical symbols and DWG import errors

Direct Answer

Most electrical CAD blocks fail to import correctly because of unit mismatches, missing layers, corrupted DWG versions, or orientation issues inside the block definition. Fixing these problems usually requires checking drawing units, auditing the file, redefining attributes, and aligning insertion points before importing.

In real-world drafting workflows, these issues appear frequently when symbols are downloaded from different libraries or created in different CAD standards.

Quick Takeaways

1. Unit mismatches are the most common reason electrical CAD blocks appear extremely large or small.
2. Missing attributes or layers can cause symbols to appear incomplete after import.
3. Older DWG versions sometimes break modern block definitions.
4. Incorrect insertion points often cause rotation and alignment problems.
5. Cleaning a file with AUDIT and PURGE resolves many import errors.

Introduction

Electrical CAD blocks are supposed to make drafting faster. In theory, you drag a symbol into your drawing and move on. In practice, that rarely happens.

After working on dozens of architectural and technical drafting projects alongside MEP teams, I have seen the same issues repeat over and over again when importing electrical CAD blocks. Symbols show up ten times larger than expected. Attributes disappear. Entire blocks refuse to load. Sometimes the DWG file simply crashes the import process.

Many designers assume the block itself is broken. Often it isn't. The problem usually comes from compatibility issues between the drawing environment and the block definition.

If you're troubleshooting symbols you downloaded online, it helps to first verify whether they were built with compatible standards. Many designers start by reviewing properly structured libraries like those found in guides for creating accurate floor plan drawings for technical layouts, where scale and object hierarchy are handled correctly.

Below I’ll walk through the most common electrical CAD block import problems and how professionals typically fix them in real drafting environments.

save pin

Why Electrical CAD Blocks Sometimes Fail to Import

Key Insight: Most import failures happen because the block was created under a different CAD environment or unit system.

Electrical symbols are often shared across teams, contractors, and online libraries. The issue is that each team may use different:

1. Drawing units
2. Layer naming systems
3. Attribute definitions
4. DWG version standards

When those definitions conflict with your current drawing, the block may fail to import or appear broken.

Typical failure scenarios include:

1. Blocks created in metric inserted into imperial drawings
2. Blocks referencing layers that do not exist in the target file
3. Proxy objects created in specialized CAD plugins
4. DWG files saved in incompatible versions

According to Autodesk documentation, version conflicts and proxy objects are among the most common causes of DWG import issues.

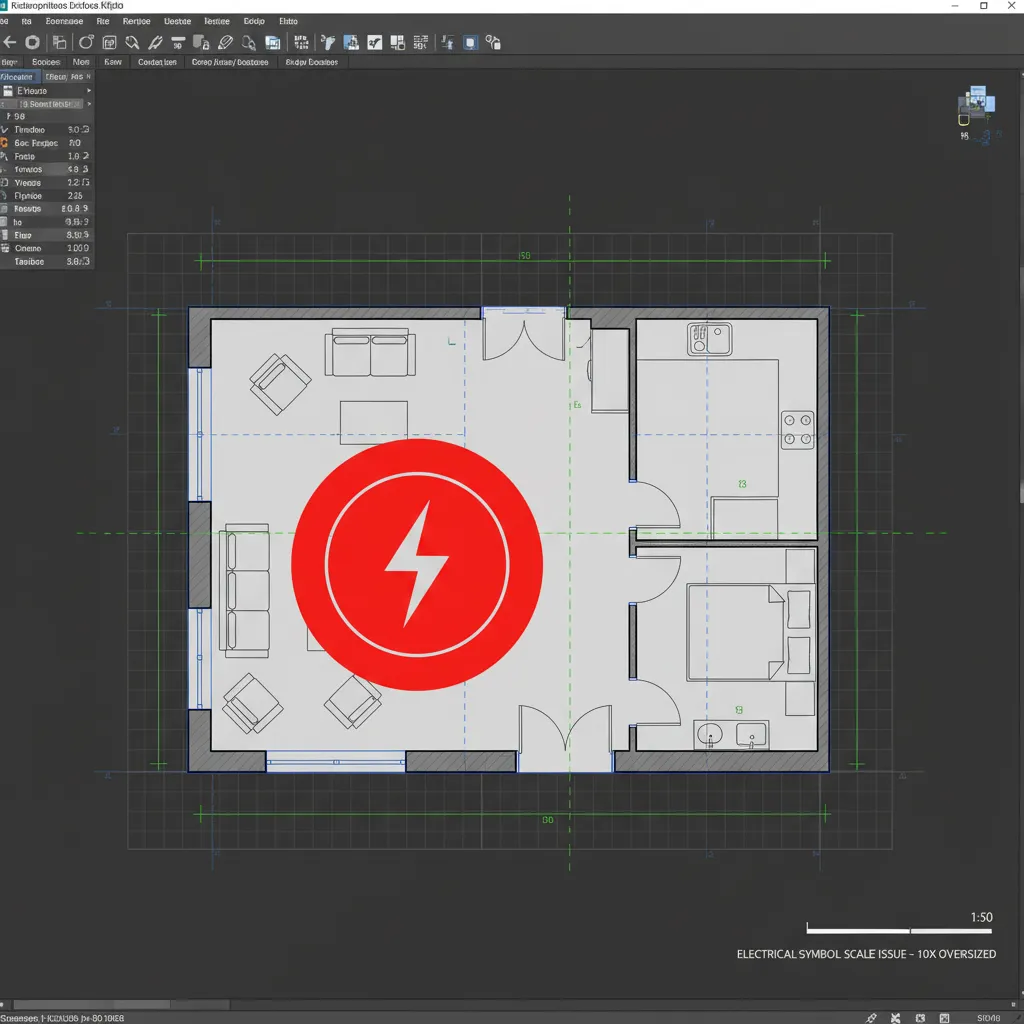

Fixing Scale and Unit Mismatch in CAD Symbols

Key Insight: If a symbol appears extremely large or tiny, the drawing units between the block file and the host file are different.

This is easily the most common troubleshooting issue.

For example, a block created in millimeters inserted into a drawing set to inches will appear 25.4 times larger than expected.

Steps to fix scale mismatch:

1. Run the UNITS command in your drawing.
2. Check whether the file uses inches, millimeters, or meters.
3. Open the block file separately.
4. Verify its unit settings.
5. Use SCALE with the correct conversion factor if needed.

Common conversion factors:

1. Millimeters → Inches: 0.03937
2. Inches → Millimeters: 25.4
3. Meters → Millimeters: 1000

Many professional drafting teams now standardize symbol libraries alongside spatial planning tools used in projects such as building coordinated technical floor layouts for architectural projects, which helps prevent scale inconsistencies early.

save pin

Resolving Missing Layers or Attributes

Key Insight: Electrical CAD blocks often rely on predefined layers and attributes that may not exist in your drawing.

If layers are missing, the block might appear partially invisible or lose annotation data.

Typical attribute problems include:

1. Circuit labels disappearing
2. Equipment IDs not displaying
3. Tag attributes becoming plain text

Fix process:

1. Use the LAYER command and check if required layers exist.
2. Run ATTSYNC to synchronize block attributes.
3. Open Block Editor to verify attribute definitions.
4. Recreate missing layers with correct colors and line types.

One hidden issue many people overlook is layer filters. If a filter hides the block's layer, the symbol appears missing even though it actually exists.

save pin

How to Fix Corrupted or Incompatible DWG Files

Key Insight: Corrupted DWG files often import partially or cause unexplained block errors.

This tends to happen with files that have passed through multiple software platforms or older CAD versions.

Common symptoms include:

1. Blocks that refuse to explode
2. Symbols missing geometry
3. Import commands freezing

Repair workflow professionals use:

1. Open the DWG separately.
2. Run AUDIT and fix detected errors.
3. Run PURGE to remove unused definitions.
4. Save the file in a modern DWG version.
5. Reinsert the cleaned block.

Industry CAD managers routinely recommend this clean-file workflow before adding third‑party blocks to production drawings.

Troubleshooting Symbol Orientation and Alignment

Key Insight: Misaligned symbols usually come from incorrect insertion points or rotated block definitions.

Electrical CAD blocks often include an insertion base point that defines how the symbol snaps to wires or walls.

If the insertion point is incorrect, the block may:

1. Snap away from the wire
2. Rotate incorrectly
3. Insert offset from expected locations

How to correct it:

1. Open the block in Block Editor.
2. Check the base point using BASE command.
3. Move geometry relative to the correct insertion point.
4. Save and redefine the block.

In complex planning projects where electrical layouts integrate with architectural models, many teams visualize placements early using workflows similar to mapping room layouts before placing technical fixtures. That approach dramatically reduces alignment issues later.

save pin

Best Practices to Prevent CAD Block Import Errors

Key Insight: The easiest way to fix import problems is preventing them with standardized symbol libraries.

After years of coordinating with electrical engineers and architects, I’ve found a few practices dramatically reduce CAD block issues.

Recommended workflow:

1. Maintain a centralized symbol library.
2. Standardize drawing units across projects.
3. Save symbols in the same DWG version.
4. Test new blocks in a sandbox file first.
5. Document layer naming standards.

The hidden cost of ignoring these standards is time. Teams often lose hours troubleshooting blocks that could have been prevented with consistent library management.

Answer Box

The most common electrical CAD block import problems involve scale mismatches, missing layers, corrupted DWG files, or incorrect insertion points. Checking units, running AUDIT and PURGE, and verifying block attributes usually resolves the issue quickly.

Final Summary

1. Unit mismatches cause most electrical CAD block scaling errors.
2. Missing layers or attributes can hide symbol elements.
3. Running AUDIT and PURGE often fixes corrupted DWG files.
4. Correct insertion points prevent alignment issues.
5. Standardized symbol libraries dramatically reduce import errors.

FAQ

Why are my electrical CAD blocks importing at the wrong scale?

Your drawing units likely differ from the block's original units. Check both files using the UNITS command and apply the correct scale conversion.

Why does my CAD block appear extremely large or small?

This usually indicates a millimeter-to-inch conversion issue when importing electrical CAD blocks from external libraries.

Why are parts of my electrical symbol missing after import?

The block may reference layers that are hidden, frozen, or missing in your current drawing.

How do I fix corrupted DWG electrical blocks?

Open the DWG file separately and run AUDIT and PURGE to repair and clean unused elements before reinserting.

Why won't my CAD block explode?

Some blocks are created as non-explodable or contain proxy objects from other CAD software.

What causes AutoCAD block import errors?

Version incompatibility, proxy objects, missing fonts, or corrupted geometry are common causes.

How do I troubleshoot electrical symbol blocks quickly?

Check drawing units, run AUDIT, confirm layers exist, and verify the insertion point inside the block definition.

Are older DWG files compatible with modern CAD versions?

Usually yes, but resaving them in a newer DWG format helps avoid compatibility problems.
