Common Problems When Importing or Editing Floor Plans in AutoCAD: A practical troubleshooting guide for fixing scale issues, broken layers, and messy DWG floor plans in AutoCAD

Direct Answer

The most common problems when importing floor plans into AutoCAD are incorrect units, broken layers, missing line types, and messy geometry created by third‑party exports. These issues usually happen because different software handles scaling, object grouping, and layer mapping differently. Cleaning the file, fixing units, and reorganizing layers typically resolves most AutoCAD floor plan import problems.

Quick Takeaways

1. Most AutoCAD floor plan import problems are caused by unit mismatches between the original design software and AutoCAD.
2. Exploding grouped objects and running cleanup commands often fixes messy imported geometry.
3. Missing layers usually come from incompatible export settings or unsupported line types.
4. Checking scale before editing prevents incorrect dimensions later.
5. Using clean source files dramatically reduces AutoCAD troubleshooting time.

Introduction

After more than a decade working on residential design projects, I can tell you that AutoCAD floor plan import problems happen far more often than people expect. A client sends a DWG. You open it. Walls look disconnected, dimensions are wrong, and half the layers are missing.

The frustrating part is that the drawing usually looked perfectly fine in the original software.

Most of the time, the issue isn’t AutoCAD itself. It’s the translation between tools. Different floor‑planning software handles units, blocks, and layers in ways that AutoCAD doesn’t always interpret cleanly.

I’ve seen this repeatedly when teams generate layouts using external planning tools and then move them into AutoCAD for documentation. If you're creating early layouts elsewhere, it's worth understanding how digital planners structure geometry before exporting—something you can see in this walkthrough of how designers generate editable floor layouts before CAD drafting begins.

In this guide, I’ll walk through the most common AutoCAD troubleshooting scenarios I encounter when repairing imported floor plan drawings—and the practical fixes that save hours of cleanup.

save pin

Why Floor Plan Files Break When Imported into AutoCAD

Key Insight: Floor plans usually break during import because different software uses incompatible object structures, units, and layer conventions.

Many floor planning tools export DWG files that technically open in AutoCAD but aren't optimized for editing. Instead of clean linework, you often get grouped polylines, blocks, or thousands of tiny segments.

In real projects, I’ve noticed three typical causes:

1. Different unit systems (meters vs inches)
2. Grouped geometry exported as blocks
3. Unsupported line types or layer naming

AutoCAD expects fairly strict drawing structures. When those expectations aren't met, the result is distorted geometry or missing information.

Common import symptoms:

1. Walls appearing as hundreds of short line segments
2. Doors and windows imported as anonymous blocks
3. Line types disappearing
4. Entire layer groups merging together

Autodesk documentation confirms that DWG compatibility issues often appear when files are exported from third‑party software without proper layer mapping.

save pin

Fixing Scale and Unit Mismatch in DWG Files

Key Insight: Incorrect units are the number one reason a floor plan looks wrong in AutoCAD.

One of the most common AutoCAD troubleshooting floor plan issues is opening a drawing and finding a 12‑meter room measuring 12 inches.

This happens because the original file was created in a different unit system.

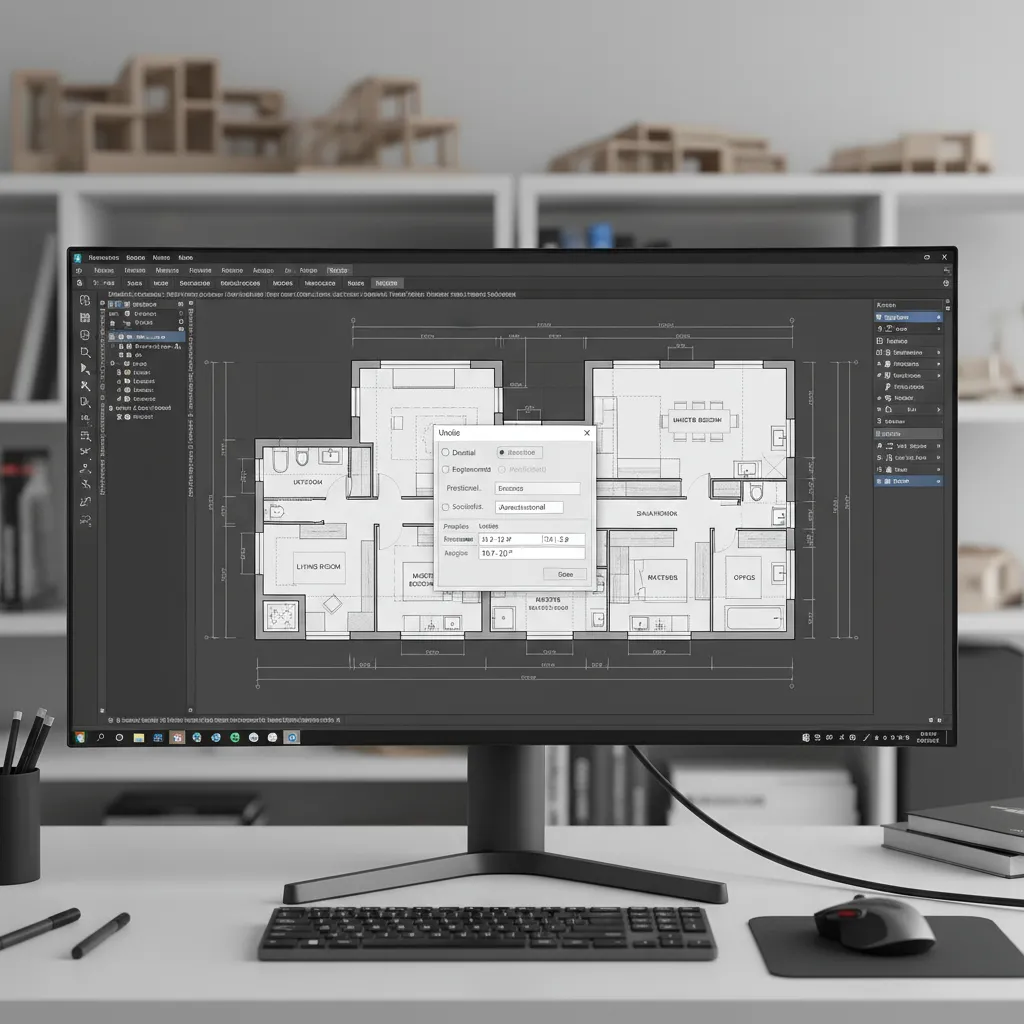

How to fix scale issues step‑by‑step:

1. Type UNITS in AutoCAD.
2. Check the insertion scale setting.
3. Confirm the source software unit system.
4. Use the SCALE command if necessary.
5. Verify dimensions with a known measurement.

In professional workflows, I always measure a door width immediately after importing a file. A standard door should be about 36 inches (or roughly 0.9 meters). If that measurement is wrong, the entire drawing scale is wrong.

This small verification step has saved me from redrawing entire floor plans.

Resolving Missing Layers or Line Types

Key Insight: Missing layers typically occur because exported files flatten layer structures or replace unsupported line types.

Another common complaint I hear: "Half my layers disappeared." In reality, they usually didn’t disappear—they were merged during export.

Many floor‑planning tools simplify their drawings to improve compatibility.

Typical layer problems:

1. Walls, doors, and furniture all placed on one layer
2. Custom line types replaced with continuous lines
3. Layer names replaced with generic numbers

How to recover structure:

1. Use the LAYER manager to review imported layers
2. Separate elements manually using selection filters
3. Reassign objects to organized layers
4. Reload missing line types with the LINETYPE command

When teams rely on hybrid workflows—generating layouts outside AutoCAD and refining them inside—it helps to maintain a consistent layer naming convention across tools. This is something I emphasize when reviewing projects built with visual layout systems that generate structured floor plan geometry.

Cleaning Up Messy Imported Floor Plans

Key Insight: Messy geometry usually comes from exploded objects or export conversions that create excessive line segments.

One hidden problem many designers underestimate is geometry fragmentation. A simple wall may import as 40 tiny lines instead of one clean polyline.

That makes editing painfully slow.

AutoCAD cleanup commands I use most often:

1. OVERKILL – removes duplicate lines
2. PEDIT – joins line segments into polylines
3. PURGE – removes unused layers and blocks
4. AUDIT – fixes drawing errors

In larger projects, running these four commands immediately after import can reduce file complexity by 60–80%.

Autodesk also recommends cleaning imported files before editing to prevent performance slowdowns.

save pin

How to Correct Dimension and Measurement Errors

Key Insight: Dimension problems are often a combination of scale issues and annotation settings.

Sometimes the drawing scale is correct, but the dimension style isn’t.

This leads to numbers that look wrong even when the geometry is accurate.

Things to check:

1. Dimension style scale factor
2. Annotation scale
3. Text height settings
4. Measurement units

Quick verification workflow:

1. Measure a known wall using DIST.
2. Add a dimension with DIM.
3. Compare the two values.
4. Adjust the dimension style if necessary.

If the geometry measurement is correct but the dimension reads incorrectly, the issue is almost always annotation scaling.

save pin

Preventing Future Compatibility Issues

Key Insight: The best fix for AutoCAD floor plan import problems is preventing them before export.

After repairing dozens of imported drawings, I’ve learned that prevention saves far more time than cleanup.

Best practices before exporting floor plans:

1. Standardize units across software
2. Use simple line types
3. Avoid excessive blocks
4. Keep layer names consistent
5. Export in the latest compatible DWG format

Designers who build layouts in specialized planning tools often avoid many of these issues because the geometry structure is cleaner from the start. For example, reviewing how structured digital floor plans are generated before CAD export helps teams maintain better compatibility.

Answer Box

The fastest way to fix AutoCAD floor plan import problems is to verify units, clean duplicate geometry, rebuild layers, and confirm dimension settings. Most issues stem from mismatched units or messy exported geometry rather than AutoCAD itself.

Final Summary

1. Unit mismatches are the most common cause of AutoCAD floor plan import problems.
2. Layer structures often collapse during third‑party exports.
3. Cleanup commands like OVERKILL and PURGE dramatically improve imported drawings.
4. Dimension errors usually relate to annotation scale settings.
5. Standardized export settings prevent most compatibility issues.

FAQ

Why does my floor plan look wrong in AutoCAD?

The most common cause is incorrect units during import. When the source software uses meters but AutoCAD expects inches, the entire drawing appears incorrectly scaled.

How do I fix AutoCAD floor plan import problems?

Check units first, then run cleanup commands like OVERKILL, PURGE, and AUDIT. After that, verify layers and dimension styles.

Why are my layers missing after importing a DWG?

Some floor planning software merges layers during export. Review the layer manager and reorganize objects if necessary.

Why do walls import as hundreds of lines?

Many programs export walls as segmented polylines. Use PEDIT to join the segments into cleaner geometry.

How do I repair an imported floor plan drawing in AutoCAD?

Run AUDIT to detect drawing errors, then use OVERKILL and PURGE to remove duplicates and unused elements.

Can AutoCAD automatically fix scale issues?

AutoCAD cannot guess the correct scale automatically. You must confirm units and manually scale the drawing if needed.

What causes DWG floor plan scale issues in AutoCAD?

DWG floor plan scale issues usually occur when different unit systems are used between software during export or insertion.

Is it better to recreate a messy imported floor plan?

If the drawing contains excessive fragmented geometry, redrawing major elements can sometimes be faster than repairing them.
