Common Problems When Installing a Laundry Room Dog Wash and How to Fix Them: Troubleshoot drainage, pressure, waterproofing, and odor issues before your indoor dog wash becomes a costly repair.

Direct Answer

The most common laundry room dog wash installation problems involve poor drainage slope, weak waterproofing, splash damage, low water pressure, and trapped drain odors. Most issues happen because laundry rooms were never designed for wet-zone use, so proper slope, sealing, and plumbing layout must be corrected during installation.

Quick Takeaways

1. Most dog wash failures come from drainage slope and improper waterproofing.
2. A laundry room floor drain alone rarely handles dog wash water volume.
3. Wall splash damage is usually caused by low backsplash height.
4. Odors typically indicate a dry trap or poor drain venting.
5. Dedicated plumbing lines often fix low water pressure problems.

Introduction

After designing dozens of homes with a laundry room dog wash, I’ve noticed something interesting: the idea is fantastic, but the installation details are where people run into trouble.

Homeowners often assume a dog wash is just a utility sink placed lower to the ground. In reality, it behaves much closer to a small shower. That means drainage slope, waterproofing, splash control, and water pressure all become critical.

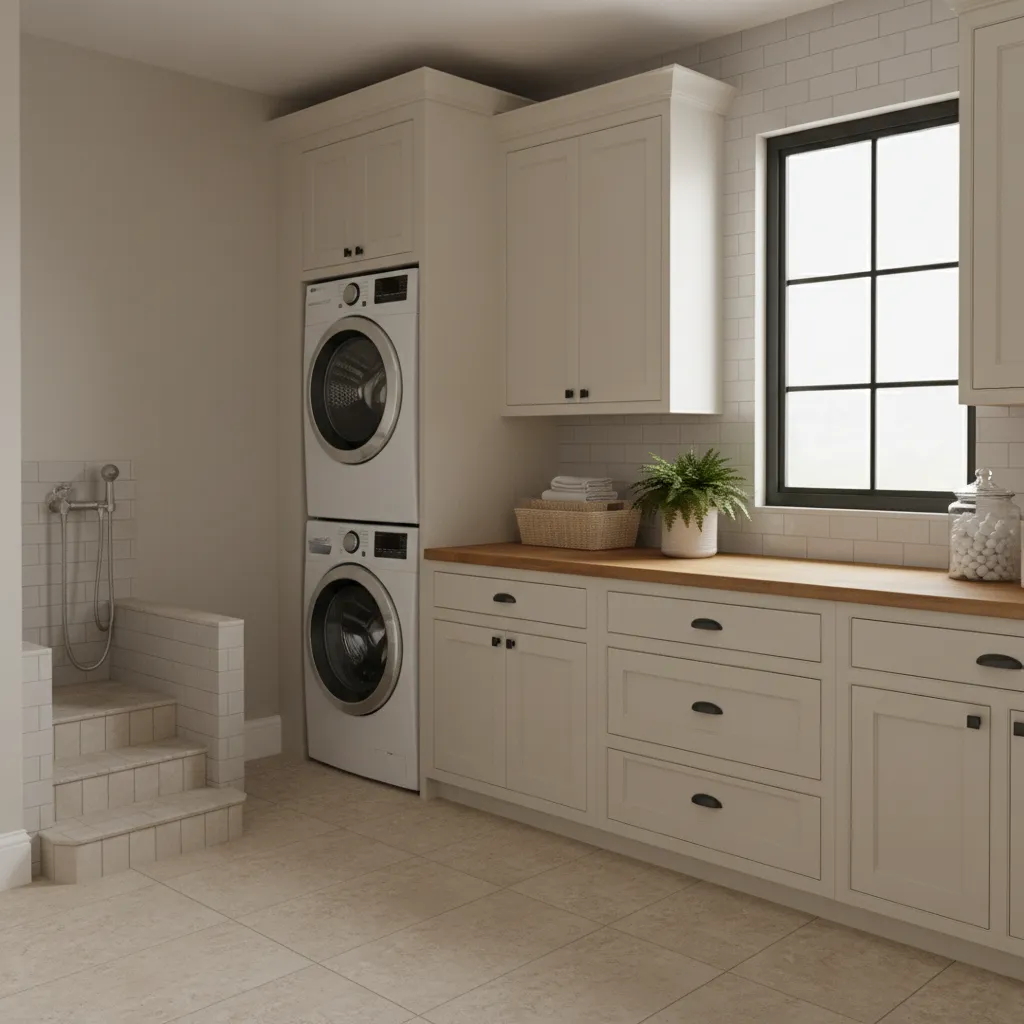

Many people first sketch their space using tools that help visualize layout and plumbing paths. If you're planning or adjusting a layout, it's useful to experiment with laundry room layouts before installing a dog washing stationso you can see where drainage and plumbing should realistically sit.

In this troubleshooting guide, I’ll walk through the most common problems I see during indoor dog wash installations, explain why they happen, and show practical ways to fix them before they turn into structural damage or expensive plumbing repairs.

save pin

Why Laundry Room Dog Wash Stations Sometimes Fail

Key Insight: Most laundry room dog wash problems come from treating the station like a sink instead of a wet-room fixture.

In professional design projects, the dog wash is usually engineered more like a compact shower base. But in residential DIY installations, the station often connects directly to existing laundry plumbing without adapting the floor, walls, or drain system.

Common installation mistakes include:

1. Using standard laundry drain pipes without slope adjustment
2. No waterproof membrane behind tile
3. Insufficient backsplash height
4. No dedicated shutoff or pressure control
5. Floor surfaces not designed for heavy water use

According to guidance from the National Kitchen & Bath Association (NKBA), any fixture exposed to frequent splashing should be treated as a "wet zone," meaning waterproof substrate and sealed transitions are required.

In other words: the dog wash isn't failing—the room design around it is.

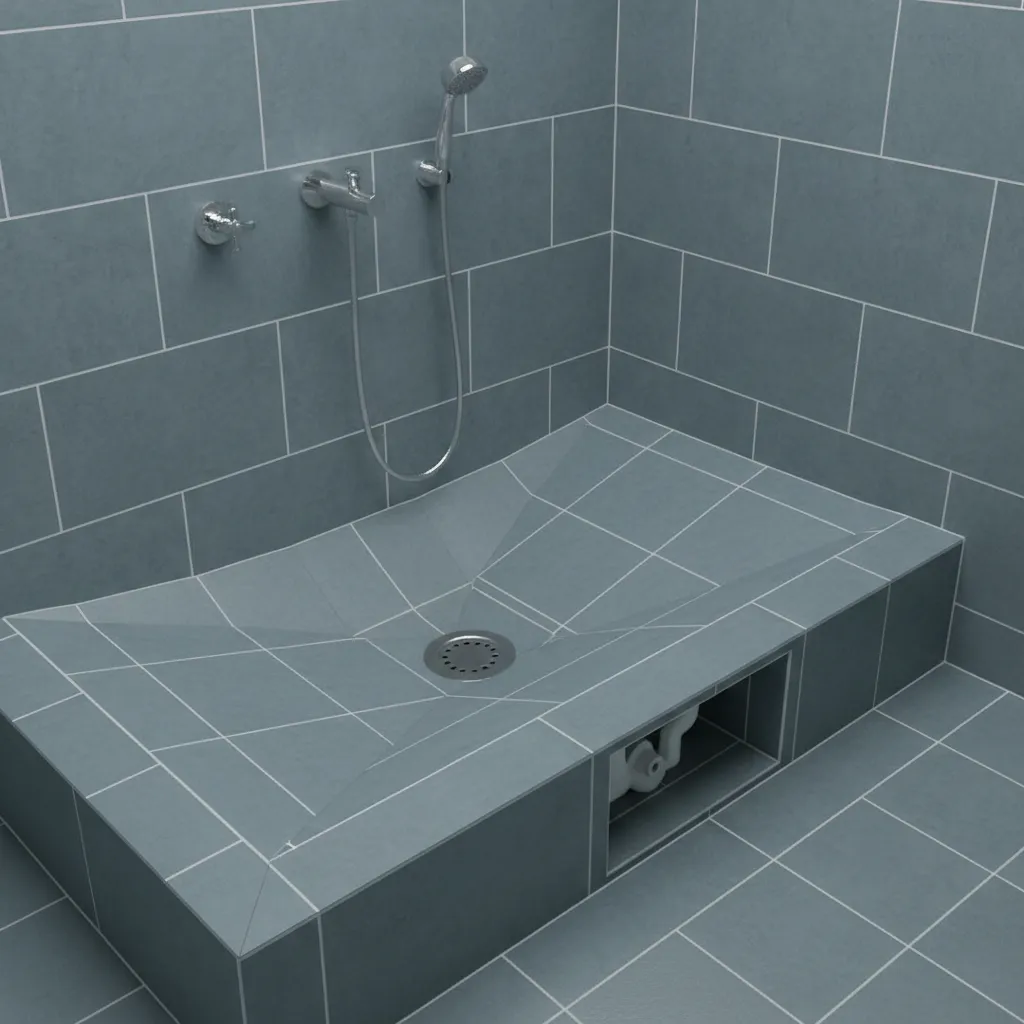

Drainage Problems and Slow Water Flow

Key Insight: Slow drainage usually means the dog wash base is flatter than it should be.

One of the most common complaints I hear is: "Water just sits there after I wash the dog." That almost always comes down to slope.

A proper dog wash basin should slope toward the drain at roughly 1/4 inch per foot. Laundry floors typically have zero slope, which causes water pooling.

Typical drainage issues include:

1. Drain pipe too small (often 1.5" instead of 2")
2. Trap installed too far from basin
3. Improper slope toward main drain line
4. Hair clogging standard sink drains

Practical fixes homeowners use:

1. Install a removable hair catcher
2. Upgrade to a 2" drain connection
3. Add a slightly pitched basin insert
4. Install a secondary floor drain nearby

save pin

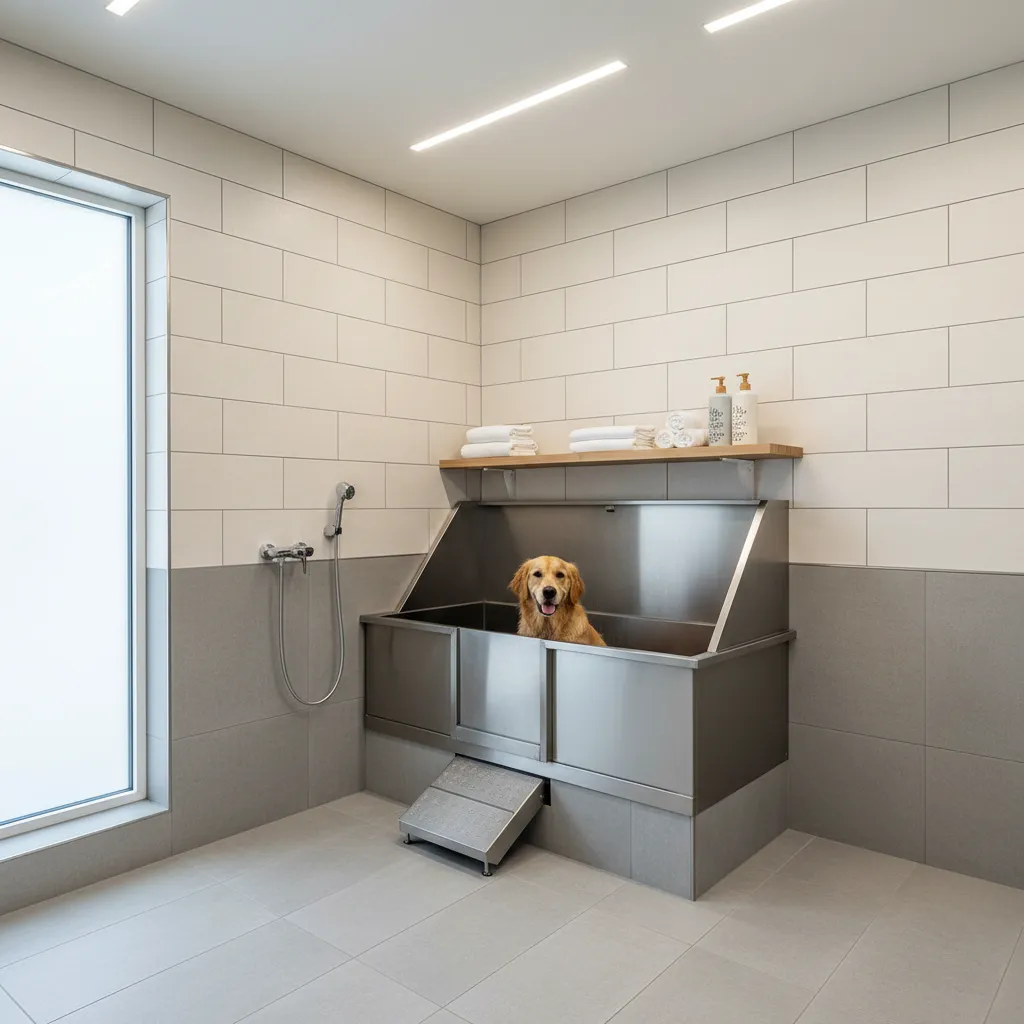

Water Splash and Wall Damage Issues

Key Insight: Splash damage is rarely caused by messy dogs—it’s usually poor wall protection.

Dogs shake. Water flies everywhere. That part is unavoidable.

What many homeowners underestimate is how high water actually travels during a wash. In testing and real homes, splashes can reach 36–48 inches above the basin.

That’s why professional dog wash stations typically include:

1. Tile or waterproof wall panels
2. Minimum 36" backsplash
3. Corner splash guards
4. Raised basin edges

A surprisingly common hidden cost: drywall replacement. I've seen laundry rooms where repeated splashing slowly soaked gypsum board behind the dog wash, leading to mold issues months later.

Many designers now model splash zones in advance using rendering tools that help visualize realistic wet-zone layouts and wall protection areasbefore construction begins.

save pin

Low Water Pressure at the Wash Station

Key Insight: Low pressure usually happens because the dog wash shares a supply line with other laundry fixtures.

In many homes, the washing machine and utility sink already consume most of the available water flow in the laundry plumbing branch.

When a handheld sprayer gets added, the pressure drops significantly.

Typical pressure problems come from:

1. Shared supply lines
2. Long pipe runs
3. Small diameter plumbing
4. Low-quality spray fixtures

Fix options I often recommend:

1. Install a pressure-boosting sprayer head
2. Add a dedicated hot/cold line split
3. Upgrade supply line diameter
4. Use a commercial-style grooming sprayer

Professional grooming facilities almost always use dedicated plumbing lines specifically to avoid this pressure loss.

Dog Wash Odor and Drain Smell Problems

Key Insight: Dog wash drain smells almost always mean the trap is drying out.

If the dog wash isn't used daily, the P-trap water seal can slowly evaporate. Once that happens, sewer gases travel back up through the drain.

Common odor causes:

1. Dry P-trap
2. Hair buildup
3. Bacteria in organic debris
4. Poor drain venting

Quick fixes that work well:

1. Run water weekly to refill the trap
2. Install a trap primer
3. Use enzyme drain cleaners
4. Add a removable hair filter basket

In my experience, hair buildup is the hidden culprit in about half of odor complaints.

How to Fix Waterproofing and Seal Failures

Key Insight: Waterproofing failure is the most expensive dog wash problem—and the most preventable.

Laundry rooms typically have painted drywall and standard flooring. Once you add a dog wash, the space effectively becomes a mini wet room.

Without proper sealing, water slowly seeps behind walls or under tile.

Key waterproofing elements include:

1. Waterproof membrane behind tile
2. Sealed wall-to-floor transitions
3. Silicone joints around basin edges
4. Water-resistant backing board

Design planning helps avoid these costly mistakes. Many homeowners now map plumbing zones and splash areas in advance using tools that help plan a functional laundry room floor plan before construction begins.

Answer Box

The most frequent laundry room dog wash problems involve drainage slope, waterproofing failures, and splash damage. Fixing these typically requires improving drain design, adding proper wall protection, and ensuring dedicated plumbing lines for water pressure.

Final Summary

1. Drain slope mistakes cause most dog wash drainage problems.
2. Waterproofing failures lead to the most expensive repairs.
3. Low water pressure usually means shared plumbing lines.
4. Drain odors often come from dry traps or hair buildup.
5. Design planning prevents most installation mistakes.

FAQ

Why does my laundry room dog wash drain slowly?

Most slow drains happen because the basin slope is too flat or hair is clogging the trap. Installing a hair catcher and ensuring proper pipe slope usually fixes the issue.

How do I fix a leaking dog wash station?

Check sealant joints around the basin and wall connections. Many leaks occur where tile meets the wash tub or where plumbing penetrates the wall.

Why does my dog wash drain smell?

The most common reason is a dry P-trap. Running water weekly or installing a trap primer keeps the seal filled and blocks sewer gases.

What size drain pipe is best for a dog wash?

A 2-inch drain pipe is typically recommended for a laundry room dog wash because it handles hair and debris better than smaller pipes.

How tall should the backsplash be behind a dog wash?

At least 36 inches. Larger dogs can throw water surprisingly high during washing and shaking.

Can I install a dog wash using existing laundry plumbing?

Yes, but pressure and drainage may suffer. Many installations benefit from upgraded supply lines or a larger drain.

How do you prevent water damage around a dog wash?

Use waterproof membranes, tile or waterproof panels, sealed joints, and moisture-resistant backing board.

Is a laundry room dog wash worth installing?

For homes with active dogs, a properly designed indoor dog wash reduces bathroom mess and makes grooming significantly easier.
