Common Problems When Installing a Toilet Above a Crawl Space and How to Fix Them: Troubleshoot drainage, venting, odor, and leak issues that often appear after installing a toilet over a crawl space.

Direct Answer

The most common problems when installing a toilet above a crawl space are improper drain slope, poor venting, flange leaks, and moisture buildup below the floor. These issues typically cause slow flushing, sewer smells, or hidden water damage. Most can be fixed by correcting pipe slope, improving vent connections, sealing the flange properly, and controlling crawl space humidity.

Quick Takeaways

1. Incorrect drain slope is the most common reason a new toilet drains slowly.
2. Sewer odors usually mean the vent pipe is blocked, undersized, or disconnected.
3. Most crawl space leaks happen at the toilet flange or poorly glued PVC joints.
4. Adding plumbing through a crawl space often creates hidden moisture problems.
5. Professional help is often required if the vent stack must be modified.

Introduction

Installing a toilet above a crawl space sounds simple in theory. In reality, it’s where I see some of the most persistent plumbing problems in residential remodels.

Over the last decade working on laundry room conversions and small bathroom additions, I’ve reviewed dozens of crawl space installations that looked perfect on the surface but failed underneath the floor. The toilet might flush, but drainage is slow. Or worse, the room smells like sewer gas a week after installation.

The tricky part is that most of these issues originate in the crawl space where homeowners rarely look. Pipe slope, venting, flange height, and moisture management all interact in ways that aren’t obvious during installation.

If you're planning a layout change or reviewing your plumbing configuration, it helps to visualize the entire drainage path first. A good starting point is exploring interactive floor layout planning for plumbing routesso you can see how fixtures, drain lines, and vents align before cutting into floors.

In this guide I’ll walk through the most common crawl space toilet installation problems I encounter, what causes them, and the practical fixes that actually work.

save pin

Signs Your Crawl Space Toilet Installation Has Problems

Key Insight: Early symptoms usually appear as slow flushing, gurgling pipes, or intermittent sewer smells.

Many homeowners assume a new toilet that "sort of works" is installed correctly. In reality, toilets are extremely sensitive to drain slope and vent pressure. Even small installation errors show up quickly.

Typical warning signs include:

1. Toilet drains slowly or requires two flushes
2. Gurgling sounds from nearby sinks or washer drains
3. Sewer smell in the laundry room or bathroom
4. Water stains appearing on the crawl space subfloor
5. Persistent moisture or mildew under the house

One mistake I see frequently is assuming the problem is the toilet itself. In over 80% of cases I've inspected, the real cause was pipe configuration below the floor.

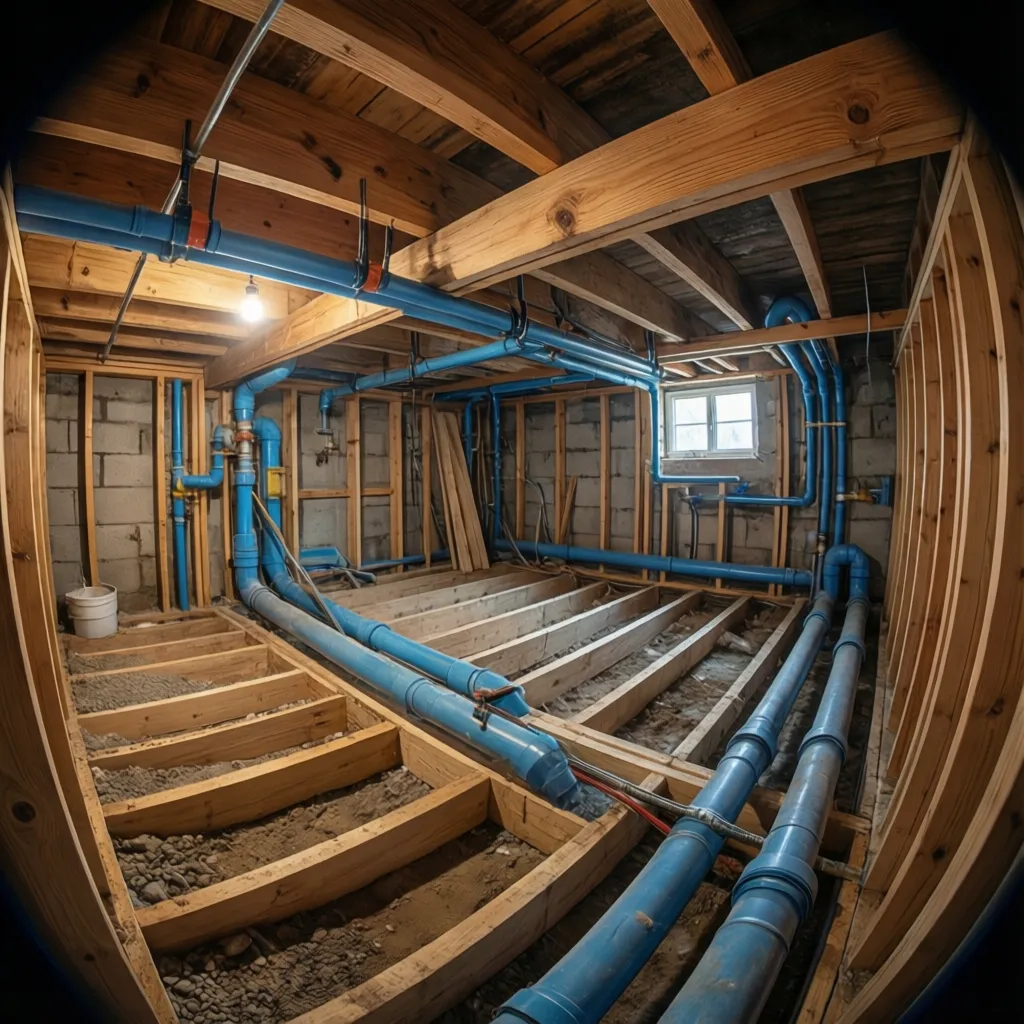

Drainage Issues Caused by Incorrect Pipe Slope

Key Insight: Toilets require a consistent 1/4 inch per foot drain slope to move waste efficiently.

Crawl spaces often tempt installers to run long horizontal drain lines. The problem is that even a small sag in PVC piping can disrupt gravity flow.

Common slope mistakes:

1. Drain pipe installed perfectly level
2. Pipe sections sagging between joists
3. Too much slope causing water to outrun solids
4. Improper transitions between pipe sizes

Correct installation standards recommended by the International Residential Code specify:

1. 3" drain line slope: 1/4 inch per foot
2. Maximum trap arm distance limits
3. Proper cleanout placement

If your toilet is not draining properly in crawl space plumbing, the fix usually involves re-hanging the pipe with proper supports every 4 feet.

save pin

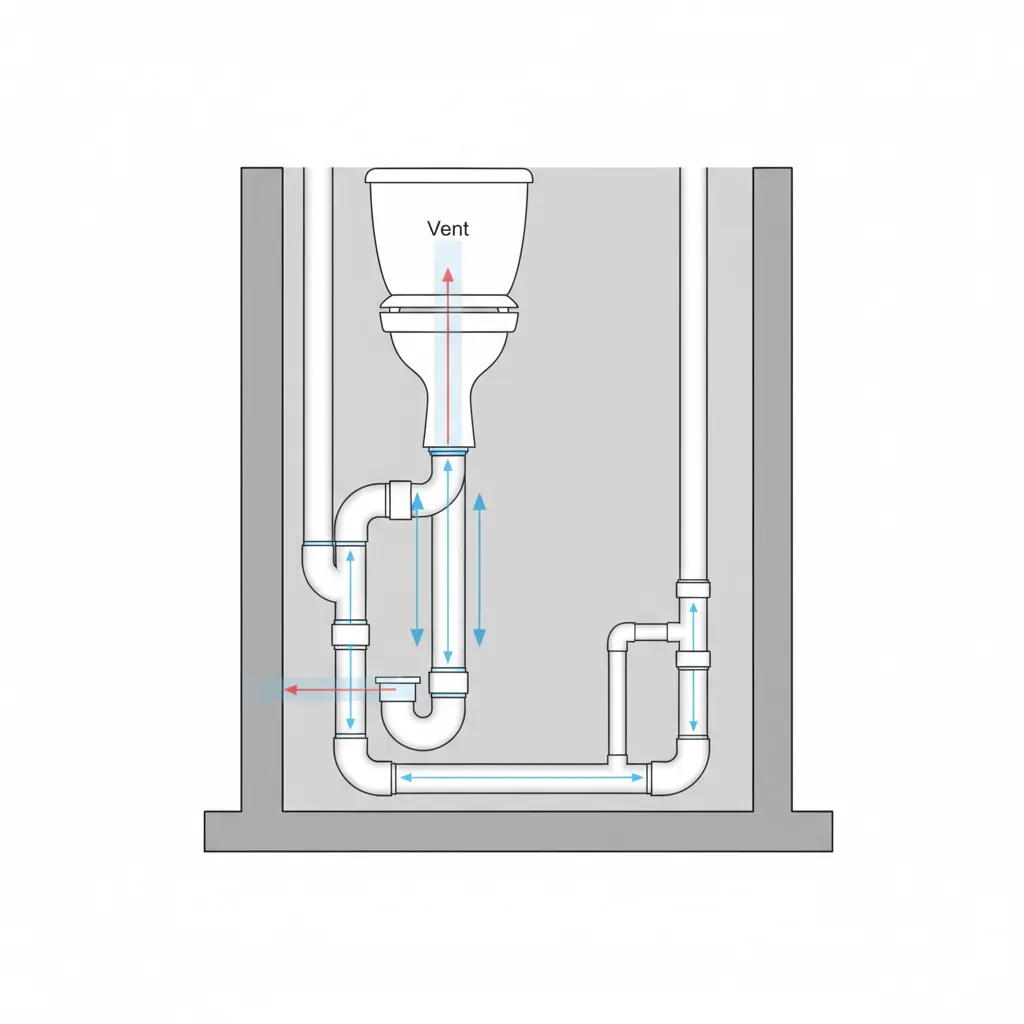

Sewer Gas Smells and Venting Failures

Key Insight: Sewer smells after installing a toilet almost always indicate a venting problem rather than a drain problem.

Every toilet relies on a vent stack to equalize pressure during flushing. Without proper venting, negative pressure pulls water out of traps, allowing sewer gas to enter the room.

Typical venting mistakes in crawl space installations:

1. Vent line tied into the washer standpipe incorrectly
2. Vent pipe diameter too small
3. Long horizontal vent runs under the floor
4. Air admittance valves used where code requires a vent stack

This problem often appears as sewer smell after installing a toilet in a laundry room.

Designing vent routes before installation dramatically reduces these issues. Many remodelers map their fixtures using a simple layout planning workflow for plumbing fixturesto confirm that drains and vents can reach the main stack without awkward pipe runs.

save pin

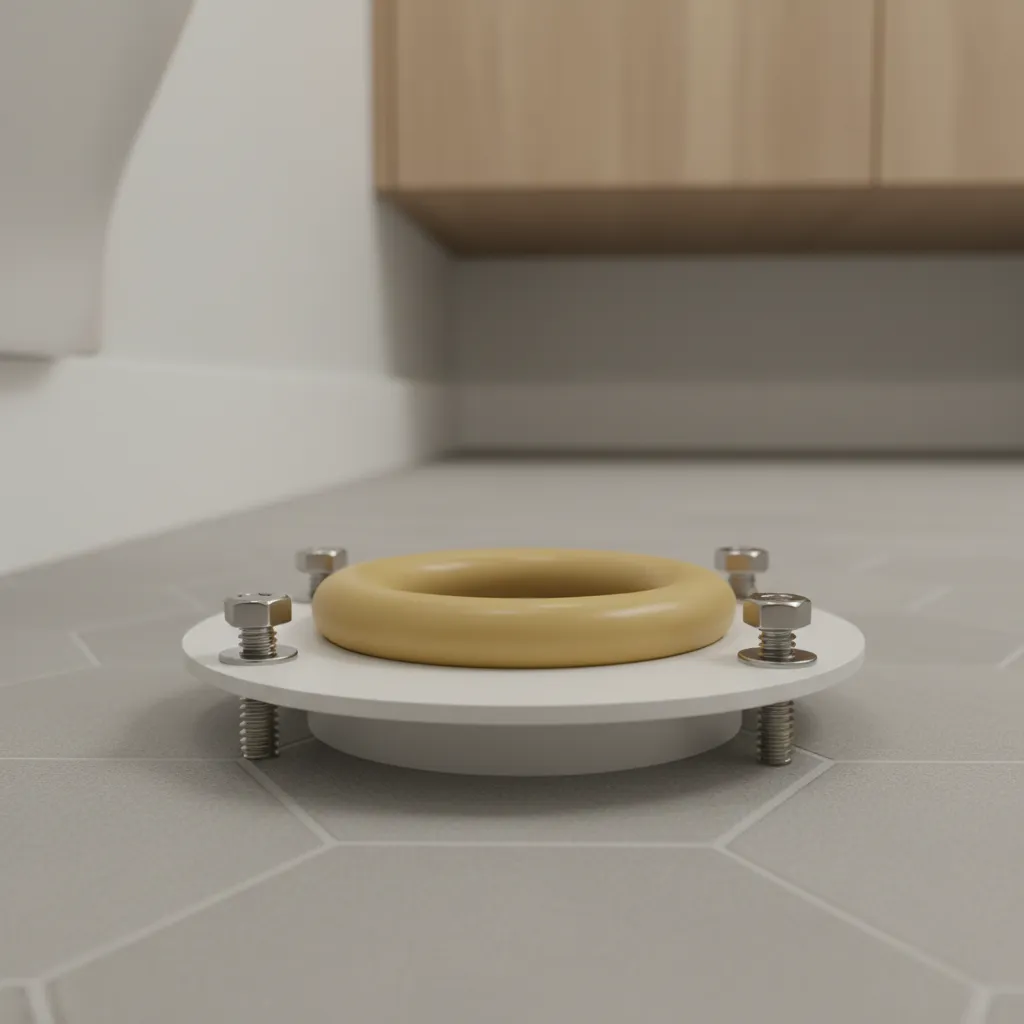

Leaks Around the Toilet Flange or Drain Pipe

Key Insight: The toilet flange is the most common leak point in crawl space toilet installations.

A flange must sit directly on top of the finished floor. When it's mounted too low or attached to subfloor only, the wax seal fails over time.

Frequent causes of crawl space toilet flange leaks:

1. Flange installed below tile or vinyl flooring
2. Loose flange screws in plywood
3. Warped wax rings due to movement
4. Poorly glued PVC joints under the floor

Professional plumbers usually correct this by installing:

1. A flange extender ring
2. A reinforced stainless steel flange
3. Proper subfloor anchoring

If you see water stains on insulation or joists below the toilet, check the flange immediately.

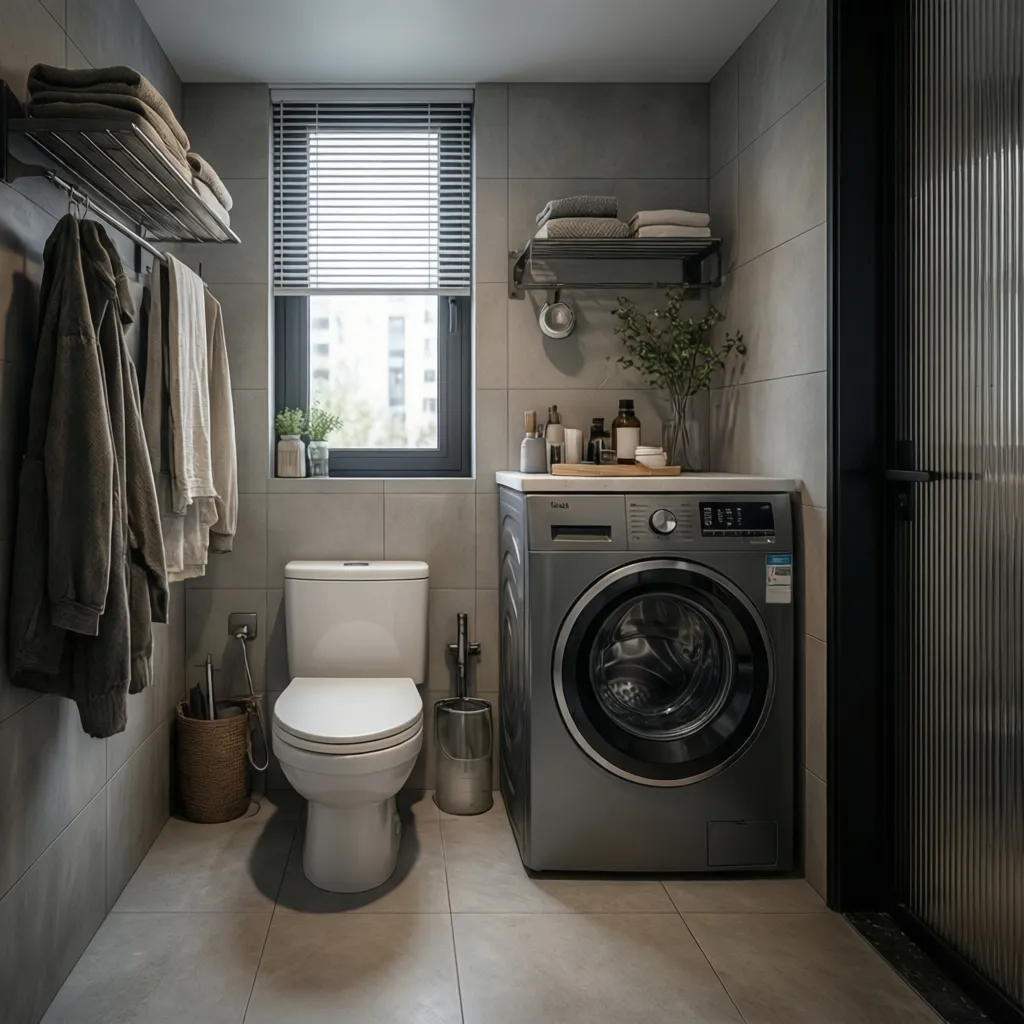

Washer Drain and Toilet Line Interference

Key Insight: Laundry room toilet drainage problems often happen when the washer standpipe shares the wrong branch line.

This is a design mistake I see frequently when homeowners add a toilet beside a washing machine.

The washer discharges water rapidly, creating pressure fluctuations in the drain system. If both fixtures share a poorly sized branch:

1. The toilet may gurgle
2. The washer drain may overflow
3. The trap seal may break

Proper configuration typically includes:

1. Dedicated 3-inch toilet drain
2. 2-inch washer standpipe line
3. Separate venting where required

Planning fixture spacing early helps prevent this. Many homeowners sketch options using a visual bathroom and laundry layout planning guideto verify plumbing clearances before cutting the floor.

save pin

Fixing Moisture and Mold Problems in Crawl Spaces

Key Insight: Plumbing additions often introduce moisture problems that weren’t present before installation.

A new toilet line means new penetrations through the subfloor and additional condensation points.

Common crawl space moisture sources:

1. Slow drip leaks at fittings
2. Condensation on cold water lines
3. Unsealed pipe penetrations
4. High ground humidity

Solutions that work best:

1. Pipe insulation on cold water supply lines
2. Plastic vapor barrier covering soil
3. Sealed pipe penetrations with foam
4. Mechanical crawl space ventilation

The EPA has repeatedly linked poorly ventilated crawl spaces to mold growth and indoor air quality issues, especially in humid climates.

Answer Box

The majority of crawl space toilet installation problems come from incorrect pipe slope, weak venting, or poorly installed flanges. Correcting drain angle, improving vent routing, and sealing the flange properly usually resolves slow drainage, sewer smells, and leaks.

When to Call a Licensed Plumber

Key Insight: Vent stack modifications and major drain rerouting are best handled by licensed professionals.

DIY repairs work for small fixes, but certain warning signs require professional help.

Call a plumber if you notice:

1. Repeated sewer odors despite trap seals
2. Drain pipes that must be rerouted through joists
3. Main vent stack connection problems
4. Structural floor damage from leaks

Licensed plumbers also ensure compliance with local plumbing codes, which vary significantly between states.

Final Summary

1. Improper drain slope is the most frequent crawl space toilet problem.
2. Sewer odors usually indicate venting failure, not drain blockage.
3. Most leaks originate from poorly installed toilet flanges.
4. Washer drains can interfere with toilet drainage if improperly connected.
5. Moisture control is critical for crawl space plumbing longevity.

FAQ

Why is my toilet not draining properly with crawl space plumbing?

Most often the drain pipe slope is incorrect or sagging between supports. Toilets require about 1/4 inch slope per foot for reliable gravity flow.

Why do I smell sewer gas after installing a toilet in my laundry room?

This usually means the toilet vent is blocked, disconnected, or improperly tied into another fixture’s vent system.

How do I fix a crawl space toilet flange leak?

Remove the toilet, install a flange extender if needed, secure the flange to the finished floor, and replace the wax ring.

Can a washing machine affect toilet drainage?

Yes. If the washer and toilet share an undersized branch drain, the washer discharge can disrupt toilet drainage.

Is venting required for crawl space toilet installation?

Yes. Proper venting is essential to maintain trap seals and prevent sewer gases from entering the home.

What pipe size should a toilet drain use?

Most residential codes require a 3‑inch drain line for toilets.

Can moisture from plumbing damage a crawl space?

Yes. Small leaks or condensation can create mold, wood rot, and insulation damage over time.

How do I troubleshoot crawl space toilet installation problems?

Start by checking pipe slope, vent connections, flange height, and crawl space moisture conditions.

References

1. International Residential Code (IRC) Plumbing Standards
2. EPA Moisture Control Guidance for Crawl Spaces
3. American Society of Plumbing Engineers (ASPE)
