Common Problems When Installing Built In Corner Cabinets in Dining Rooms and How to Fix Them: Practical solutions for alignment issues, wasted space, and accessibility mistakes in dining room corner cabinetry

Direct Answer

Built in corner cabinet installation problems usually come from three issues: inaccurate measurements, poor door alignment, and inaccessible interior storage. Most problems can be corrected by adjusting hinge hardware, redesigning shelf layouts, or reworking corner measurements before installation. With the right planning and small structural fixes, a problematic corner cabinet can become one of the most efficient storage zones in a dining room.

Quick Takeaways

1. Most corner cabinet failures begin with incorrect wall measurements rather than bad cabinetry.
2. Soft-close adjustable hinges solve the majority of door alignment issues.
3. Corner storage becomes usable when shelves are redesigned around reach distance.
4. Pre-installation layout planning prevents expensive structural corrections later.
5. Reinforcing cabinet frames avoids long-term sagging and wall damage.

Introduction

Built in corner cabinets can transform an awkward dining room corner into valuable storage. But after working on dozens of residential projects over the past decade, I can tell you that corner cabinet installation problems in dining rooms show up far more often than homeowners expect.

The reason is simple: corners are unforgiving. Walls are rarely perfectly square, cabinet doors must open in tight clearances, and the interior space can easily become unusable if the layout isn't carefully planned.

In many renovation projects I review, the cabinet itself isn't the problem. The issue usually comes from planning mistakes before installation. This is why I always recommend mapping the space with a proper layout tool first. If you're planning a layout from scratch, using a visual room planning approach that tests furniture and cabinetry placementcan reveal corner conflicts long before any cabinets are installed.

In this guide, I'll walk through the most common problems I see when installing built in corner cabinets in dining rooms and the practical fixes designers and contractors actually use.

save pin

Why Corner Cabinet Installations Often Go Wrong

Key Insight: Most corner cabinet failures originate from wall geometry problems, not cabinet design.

In theory, corner cabinets are designed for 90 degree walls. In reality, many dining rooms have corners that are slightly off-square. Even a 2–3 degree deviation can cause visible alignment issues once doors and panels are installed.

In my experience, three installation mistakes appear repeatedly:

1. Assuming walls are perfectly square
2. Ignoring baseboard or trim interference
3. Failing to account for door swing clearance

Professional installers usually verify three measurements before building or installing cabinetry:

1. Wall angle measurement
2. Corner depth on both sides
3. Door clearance radius

According to the National Kitchen and Bath Association, corner cabinetry requires more installation tolerance than standard wall cabinets because hinge hardware and door overlap amplify alignment errors.

A common design solution is using slightly adjustable filler panels that absorb minor wall irregularities.

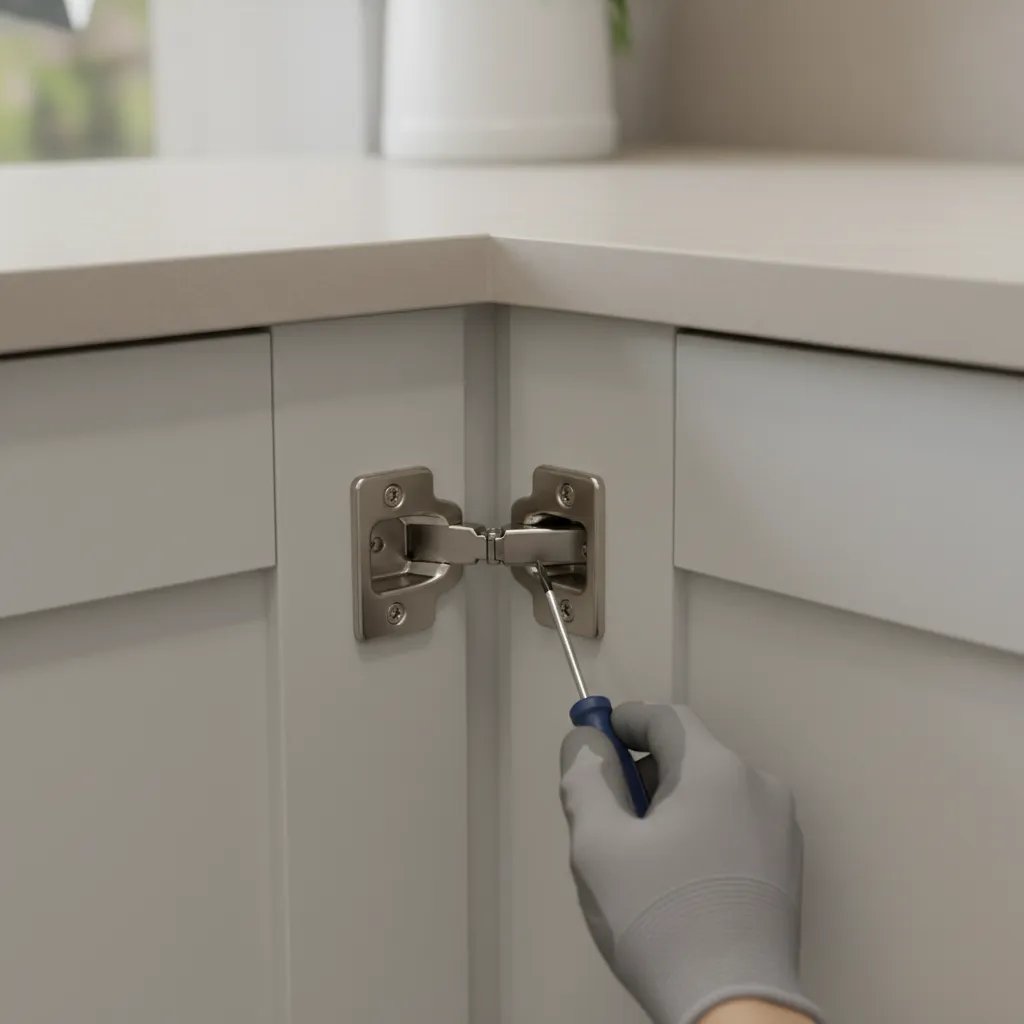

Fixing Misaligned Corner Cabinet Doors

Key Insight: Most door alignment issues can be solved by hinge adjustment rather than reinstalling the cabinet.

Homeowners often assume a crooked door means the entire cabinet was installed incorrectly. In reality, modern concealed hinges allow multi-directional adjustment.

Typical alignment problems include:

1. Doors rubbing against each other
2. Uneven vertical gaps
3. Doors not closing flush

Most built in corner cabinet door alignment fixes follow this adjustment process:

1. Adjust depth screw to move the door forward or backward
2. Use the side screw to shift the door left or right
3. Fine tune vertical position through hinge plate adjustment

In several projects I've corrected, installers initially blamed cabinet warping. After 5 minutes of hinge tuning, the doors aligned perfectly.

However, if doors continue drifting out of alignment, the cabinet box may not be anchored evenly to the wall studs.

save pin

Dealing with Hard to Reach Storage Areas

Key Insight: The biggest usability problem in corner cabinets is not size but reach distance.

One of the most common complaints I hear is that items disappear into the back of the cabinet and become almost impossible to access.

Standard corner cabinets often waste nearly 30–40% of their interior volume because the back corner becomes dead space.

Several solutions dramatically improve usability:

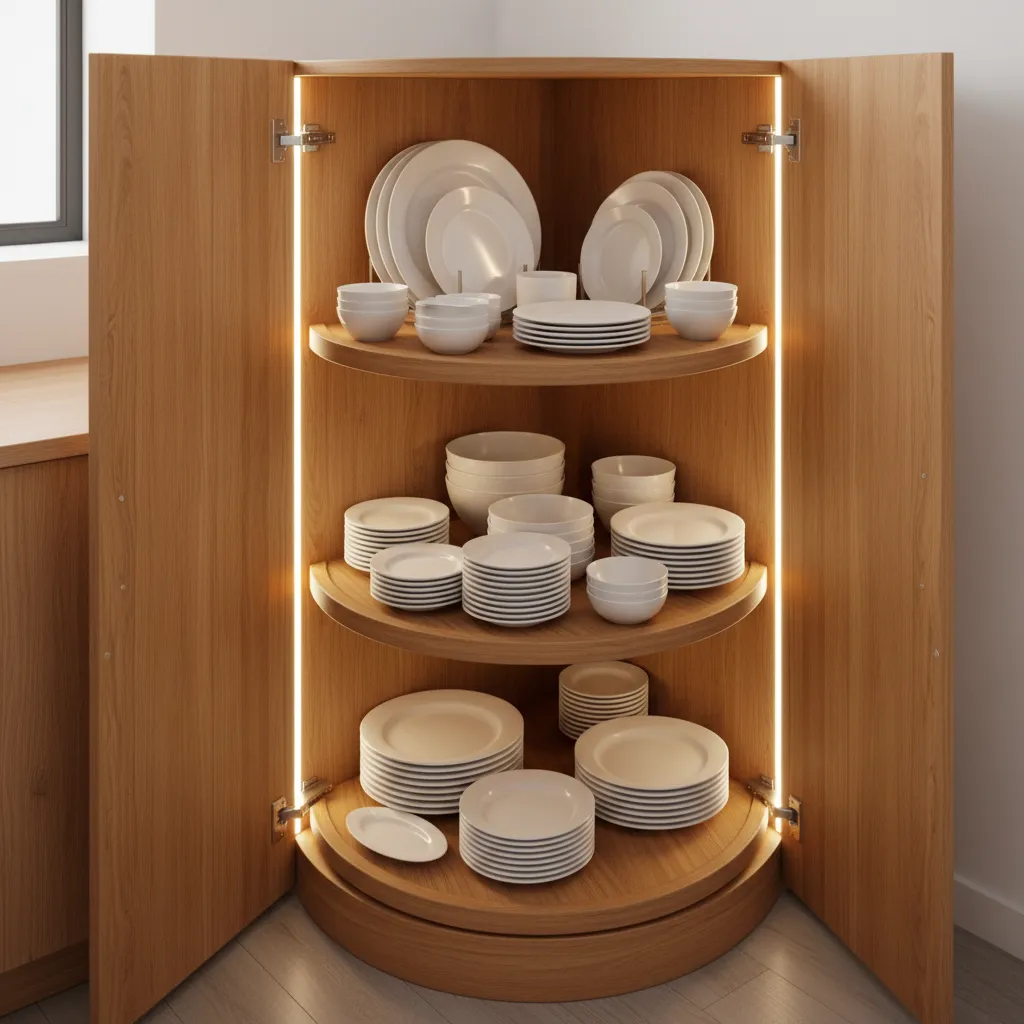

1. Lazy Susan rotating trays
2. Pull-out swing shelves
3. Diagonal corner shelving
4. Sliding basket systems

In dining rooms specifically, I often recommend rotating trays for storing serving dishes or seasonal tableware. The rotation eliminates deep reach distances.

When planning storage layouts, I frequently test configurations using a 3D layout visualization that simulates cabinet openings and circulation space. Seeing the door swing and interior access in 3D prevents many usability mistakes.

save pin

Solving Space Measurement Mistakes

Key Insight: Incorrect corner measurements are the most expensive installation mistake.

Unlike flat wall cabinets, corner cabinets require coordinated measurements from two intersecting walls. If either dimension is wrong, the cabinet will not sit correctly.

The three most overlooked measurements are:

1. Corner angle deviation
2. Wall depth differences
3. Clearance for adjacent furniture

Professional installers typically verify measurements using this process:

1. Measure wall length from corner outward on both sides
2. Confirm the wall angle with a digital angle finder
3. Subtract baseboard depth from cabinet placement
4. Test door clearance using cardboard templates

A surprising number of projects skip the last step. But physical templates can reveal conflicts with dining chairs or nearby furniture before installation.

Answer Box

The most reliable way to avoid corner cabinet installation problems is accurate measurement, adjustable hinges, and interior storage systems designed for reachability. Most issues can be corrected without replacing the entire cabinet.

Improving Interior Shelf Accessibility

Key Insight: Fixed shelves are the hidden reason many corner cabinets become unusable.

In many factory cabinets, shelves are permanently installed. This restricts storage flexibility and makes deep corners difficult to organize.

Better alternatives include:

1. Adjustable shelf pin systems
2. Pull-out tray shelves
3. Corner carousel storage
4. Tiered dish organizers

In one dining room remodel I worked on in Los Angeles, replacing fixed shelves with pull-out trays increased usable storage by nearly half because every item became visible and reachable.

Accessibility matters even more in dining spaces where items like platters, wine glasses, and seasonal serving pieces vary greatly in size.

save pin

Preventing Structural Damage During Installation

Key Insight: Corner cabinets carry uneven load distribution and require stronger anchoring than flat wall cabinets.

Many DIY installations fail because the cabinet is secured to drywall rather than wall studs.

Over time this can lead to:

1. Cabinet sagging
2. Door misalignment
3. Wall cracking
4. Frame separation

Professional installers prevent these issues using several reinforcement methods:

1. Anchoring both cabinet sides into studs
2. Using L-brackets for additional support
3. Installing load-distributing back rails

Before installing cabinetry in a tight dining space, I often recommend mapping the exact wall structure using a detailed floor plan layout that verifies wall dimensions and structural positioning. Accurate structural planning prevents many long-term failures.

Final Summary

1. Corner cabinet problems usually start with incorrect wall measurements.
2. Most door alignment issues are fixable through hinge adjustment.
3. Interior storage systems dramatically improve corner usability.
4. Pull-out shelves eliminate unreachable cabinet areas.
5. Proper stud anchoring prevents structural cabinet damage.

FAQ

Why do built in corner cabinet doors not line up?

Most misalignment comes from hinge adjustment issues rather than cabinet defects. Modern concealed hinges allow horizontal, vertical, and depth corrections.

How do you fix corner cabinet installation problems in a dining room?

Start by checking wall angles and hinge alignment. If the cabinet box is level, most issues can be corrected with hinge adjustments or interior shelf redesign.

What is the best storage solution for hard to reach corner cabinets?

Lazy Susan trays and pull-out swing shelves are the most effective solutions for deep corner storage.

Can a mismeasured corner cabinet be fixed?

Minor errors can often be corrected with filler panels or trim adjustments. Large measurement mistakes may require resizing the cabinet.

How deep should a dining room corner cabinet be?

Typical depths range from 20 to 24 inches depending on layout and accessibility requirements.

Why do corner cabinets waste space?

Fixed shelves and deep angles create inaccessible areas. Rotating or sliding storage systems solve this problem.

Are built in corner cabinets difficult to install?

They are more complex than standard cabinets because two walls and door clearances must be perfectly coordinated.

How do you repair built in corner cabinets that sag?

Re-anchor the cabinet into wall studs and reinforce the frame with internal support brackets.

References

National Kitchen and Bath Association Design Guidelines

American Wood Council Cabinet Installation Standards
