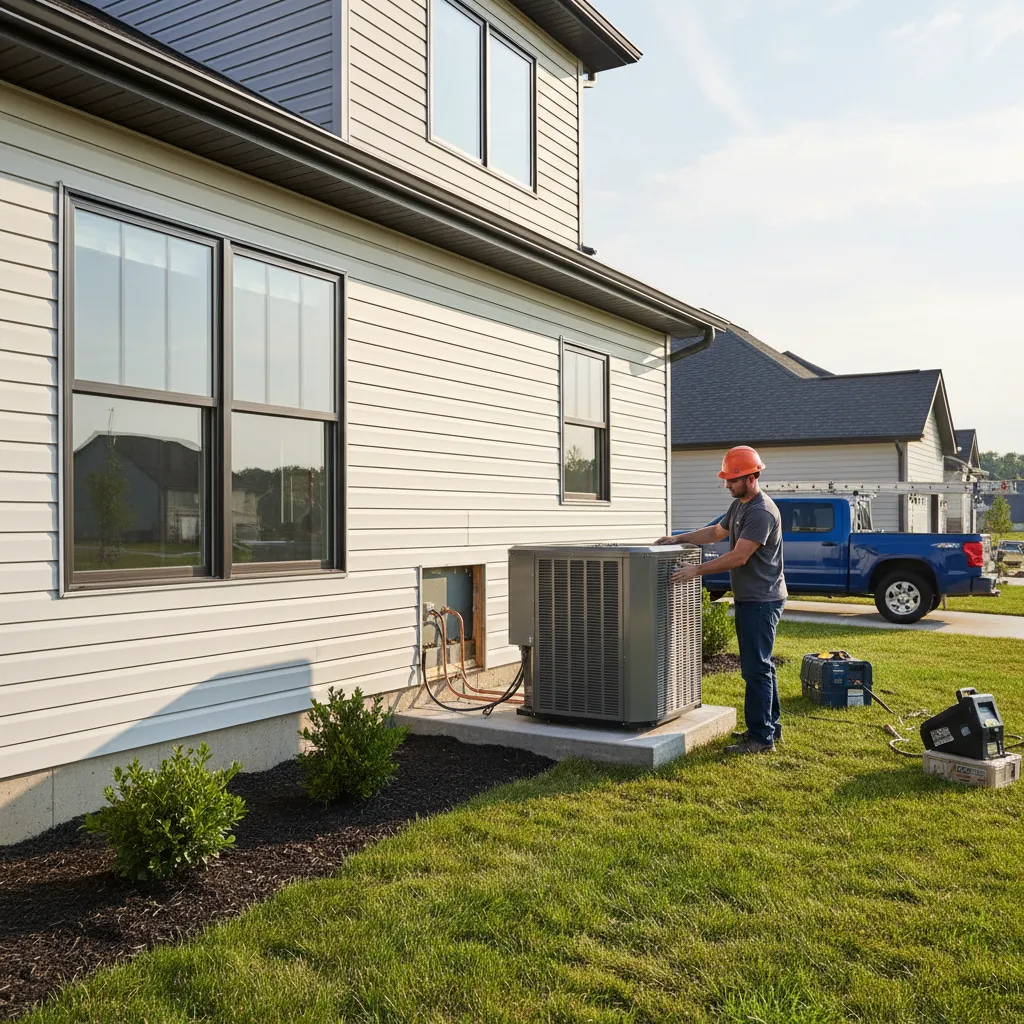

Common Problems When Installing Central Air in a 1200 Sq Ft House: Real installation issues homeowners face—and how to diagnose airflow, sizing, ductwork, and electrical problems before they become expensive fixes.

Direct Answer

The most common problems when installing central air in a 1200 sq ft house include incorrect AC unit sizing, inadequate ductwork, electrical capacity limits, and poor airflow balance. These issues usually appear when contractors skip proper load calculations or try to adapt older home infrastructure to modern HVAC systems.

In most cases, the problems are preventable with correct planning, duct inspection, and airflow testing before installation begins.

Quick Takeaways

1. An oversized AC unit cools quickly but leaves humidity and uneven temperatures.
2. Older homes often lack duct systems large enough for modern central air.
3. Electrical panels under 100 amps may require upgrades before installation.
4. Airflow problems after installation usually come from duct leaks or poor return placement.
5. Permit delays often occur when installations ignore local HVAC code requirements.

Introduction

Installing central air in a 1200 sq ft house sounds straightforward on paper. In reality, it’s one of the most common project types where I see preventable HVAC mistakes.

After working on dozens of small‑home renovations and HVAC planning projects, I’ve noticed the same pattern: the equipment itself isn’t usually the problem. The house layout, duct routing, and electrical infrastructure are.

In smaller homes especially, every design decision matters. A supply vent placed a few feet off, a return vent that’s undersized, or a contractor skipping a proper load calculation can leave homeowners wondering why their brand‑new system still struggles to cool evenly.

Before starting a project, I often recommend homeowners visualize airflow and layout with tools like a visual floor plan layout tool to map HVAC vent locations. It helps identify duct routes and airflow paths before any cutting or installation begins.

In this guide, I’ll walk through the most common installation problems in 1200 sq ft homes, why they happen, and what experienced HVAC designers look for to prevent them.

save pin

Incorrect AC Unit Sizing Problems

Key Insight: The biggest installation mistake in small homes is installing an oversized AC unit, not an undersized one.

Many homeowners assume a bigger unit means faster cooling. In reality, oversized systems create short cooling cycles. The house cools quickly but humidity remains high, rooms feel uneven, and energy use rises.

Professional HVAC sizing should be based on a Manual J load calculation, which evaluates:

1. Square footage
2. Insulation levels
3. Window orientation
4. Ceiling height
5. Local climate

For most 1200 sq ft homes, the typical capacity range is:

1. 1.5 to 2.5 tons of cooling

But I’ve seen many installations where contractors install 3‑ton units simply because they were available or discounted.

Common symptoms of incorrect sizing:

1. AC turns on and off frequently
2. Humidity remains high indoors
3. Bedrooms cool slower than living rooms
4. Higher than expected energy bills

According to guidance from the U.S. Department of Energy, proper load calculations are essential because oversized systems can reduce efficiency by up to 30% due to short cycling.

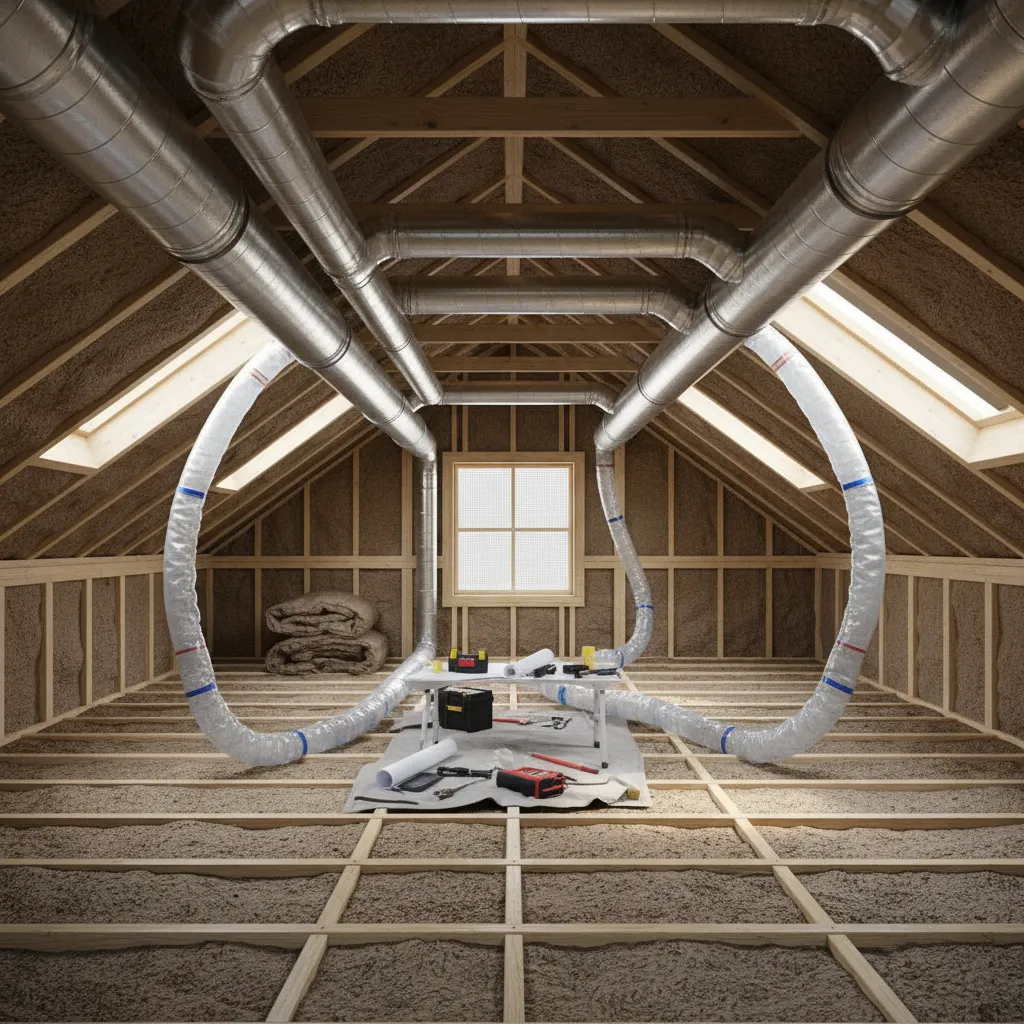

Ductwork Limitations in Older Homes

Key Insight: Many 1200 sq ft homes simply don’t have duct systems designed for modern central air.

This is especially common in homes built before the 1980s. Heating systems originally used smaller ducts designed for furnaces, not full cooling airflow.

When installers connect central air to undersized ducts, several issues appear:

1. Weak airflow in distant rooms
2. Whistling vents
3. Temperature imbalance between floors
4. High system pressure

Typical airflow requirements look like this:

1. 1 ton of cooling requires about 400 CFM airflow
2. 2 ton system requires about 800 CFM airflow

If the duct system can’t handle that volume, the system struggles regardless of equipment quality.

save pin

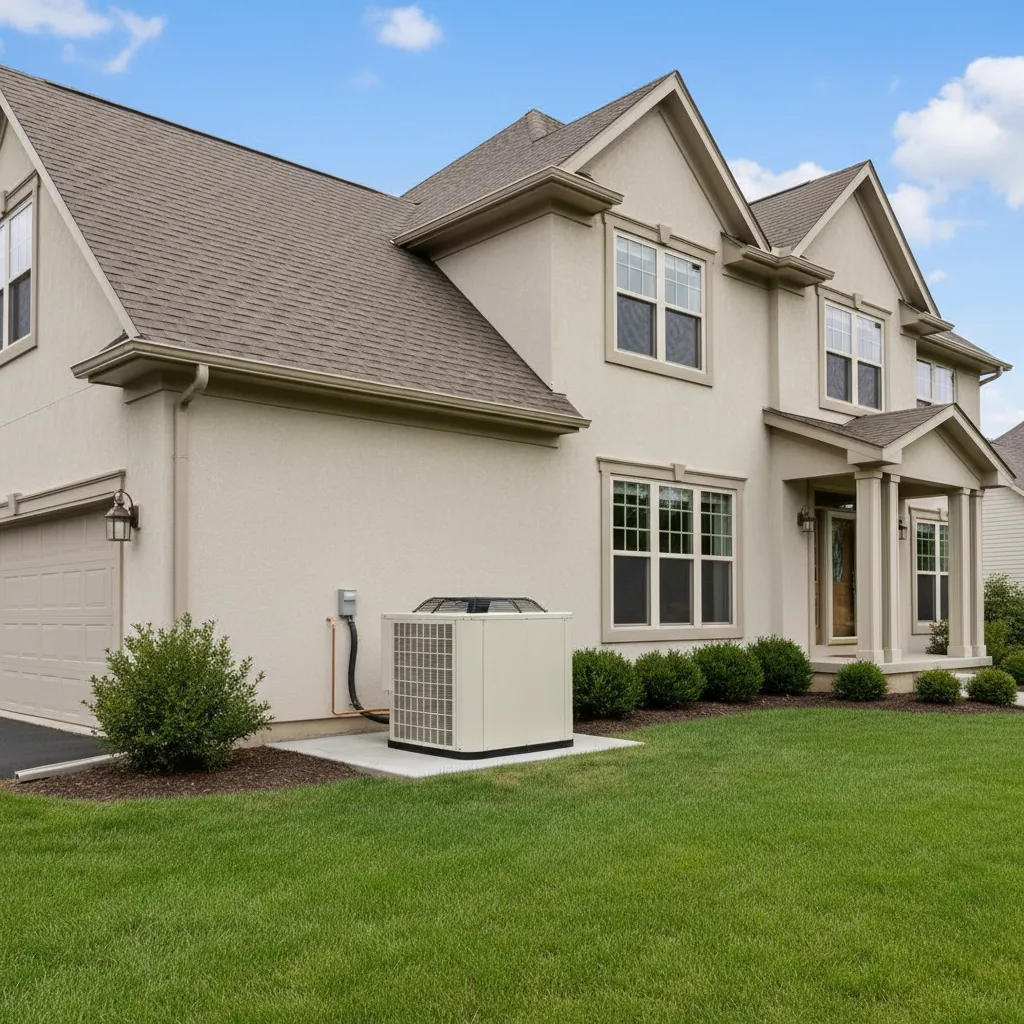

Electrical Capacity Issues During Installation

Key Insight: Electrical panel limitations are one of the most overlooked barriers to central air installation.

Many smaller homes still operate on 60–100 amp electrical panels. Modern central air systems, however, often require dedicated 240‑volt circuits.

Typical electrical requirements include:

1. Dedicated circuit for outdoor condenser
2. Breaker capacity between 20–40 amps
3. Outdoor disconnect switch

When panels lack capacity, homeowners face additional upgrades such as:

1. Electrical panel replacement
2. New breaker installation
3. Outdoor wiring runs

According to the National Electrical Code (NEC), HVAC systems must have dedicated circuits to prevent overload and ensure safe operation.

Answer Box

The most frequent central air installation problems in 1200 sq ft homes come from incorrect system sizing, insufficient duct airflow, and outdated electrical panels. Proper load calculations and duct inspections prevent most performance issues.

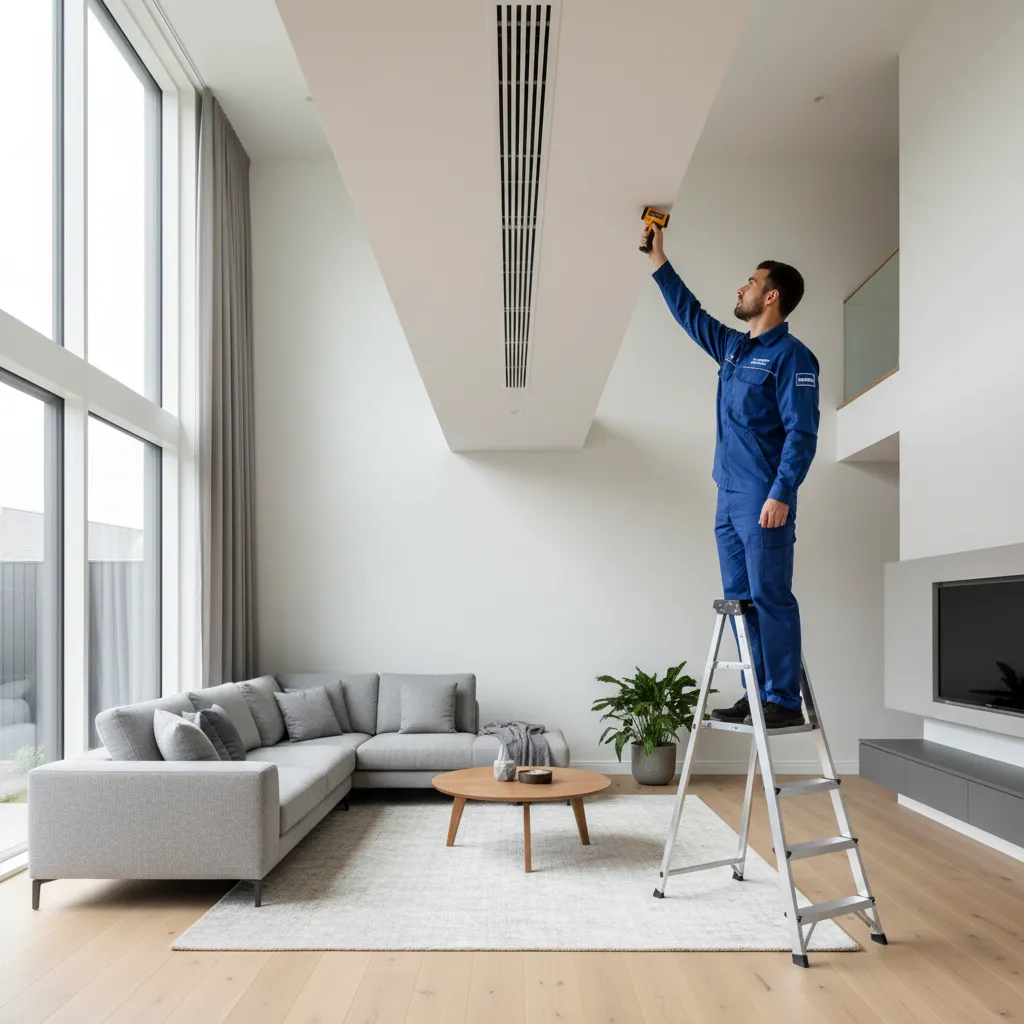

Airflow Problems After System Installation

Key Insight: Poor airflow after installation usually indicates duct layout problems rather than equipment failure.

Homeowners often call technicians thinking the AC unit is defective when the real issue is airflow imbalance.

Typical airflow mistakes include:

1. Too few return vents
2. Blocked attic duct runs
3. Duct leakage
4. Improper vent placement

In smaller homes, airflow planning becomes even more important because rooms are closer together and pressure imbalances spread quickly.

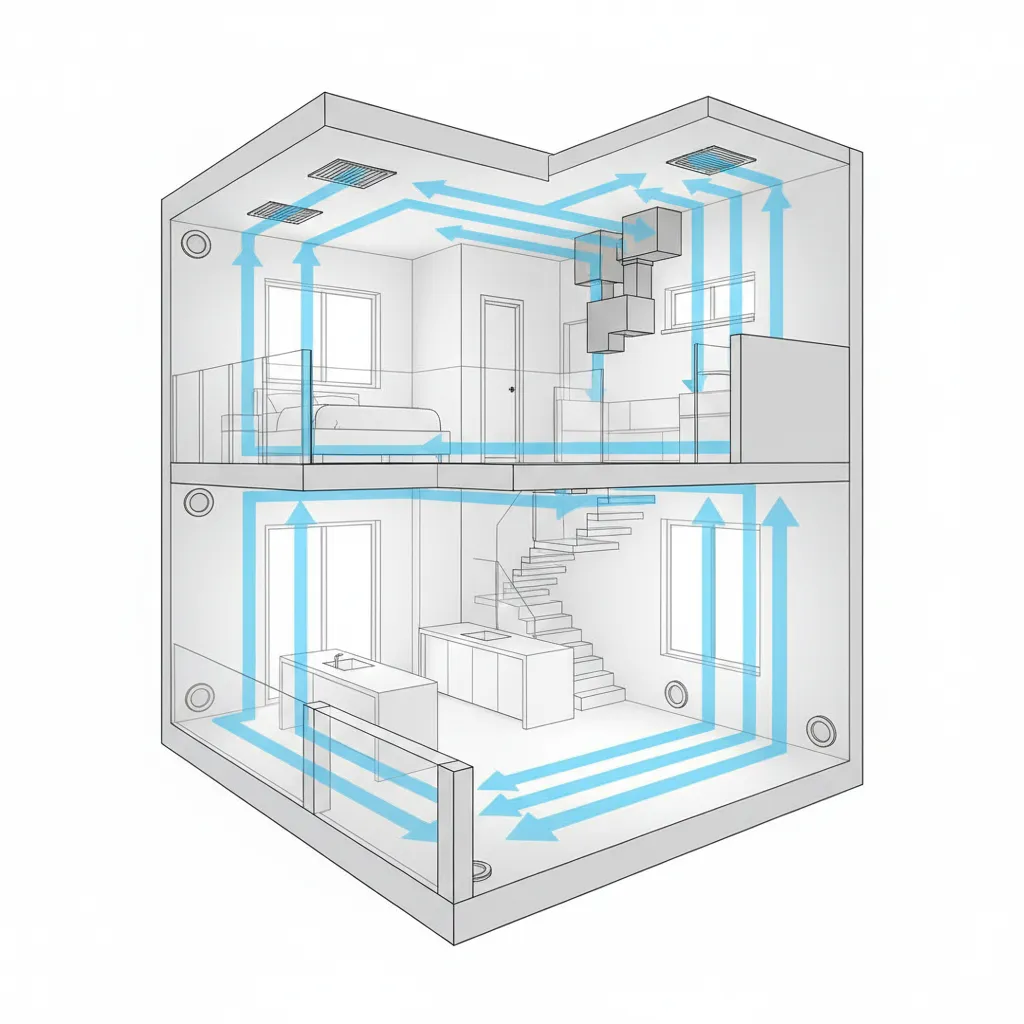

One practical way to evaluate layout before installation is using a 3D home layout planner for testing vent placement and airflow paths. Visualizing supply and return vent positions often reveals airflow bottlenecks early.

save pin

Permits and Code Compliance Delays

Key Insight: Skipping permits may seem faster but often causes costly delays during inspection.

Many municipalities require permits for central air installations because the system connects to electrical, structural, and mechanical systems.

Typical permit requirements include:

1. HVAC mechanical permit
2. Electrical inspection
3. Ductwork inspection
4. Refrigerant line compliance

If the installation fails inspection, homeowners may need to redo duct connections or electrical wiring.

Based on my renovation experience, permit issues are particularly common when contractors install systems in older homes without updating return airflow or electrical safety components.

How to Fix or Prevent Installation Issues

Key Insight: Most central air installation problems can be avoided during planning rather than after installation.

Before installing central air in a 1200 sq ft house, professionals typically follow these steps:

1. Perform a Manual J load calculation
2. Inspect duct size and airflow capacity
3. Check electrical panel capacity
4. Map supply and return vent placement
5. Verify permit requirements

When homeowners plan layouts early, even small homes can achieve excellent airflow and cooling balance. Visualizing layouts with an AI interior layout planner for testing room airflow and furniture placementcan also prevent blocked vents and circulation problems.

save pin

Final Summary

1. Incorrect AC sizing causes humidity and short cycling.
2. Older duct systems often restrict airflow in small homes.
3. Electrical panel capacity can limit central air installation.
4. Poor return vent placement creates uneven cooling.
5. Planning layout and airflow early prevents most problems.

FAQ

Why is my new central air not cooling properly after installation?

The most common causes are incorrect AC sizing, duct airflow restrictions, or poor return vent placement. These issues affect many central air installations in smaller homes.

Can an AC unit be too big for a 1200 sq ft house?

Yes. Oversized units cool too quickly, causing short cycles, uneven temperatures, and humidity problems.

How many tons of AC do I need for a 1200 sq ft house?

Most homes require 1.5–2.5 tons, depending on insulation, climate, ceiling height, and window exposure.

Why does airflow feel weak in some rooms?

This usually indicates duct size limitations, blocked ducts, or insufficient return vents.

Do older homes need new ductwork for central air?

Often yes. Older heating ducts may be too small to deliver the airflow required for cooling.

How much does an electrical upgrade cost for AC installation?

Panel upgrades typically range from $1,500–$4,000 depending on panel size and wiring requirements.

Can central air be installed without existing ducts?

Yes, but installing ductwork adds cost and complexity. Some homeowners instead consider ductless systems.

What causes airflow problems in a new central air system?

Leaky ducts, poor vent placement, undersized ducts, or blocked airflow paths inside the house.

References

1. U.S. Department of Energy – Air Conditioning Efficiency Guidelines
2. ENERGY STAR HVAC Installation Standards
3. National Electrical Code (NEC) HVAC Requirements
