Common Problems When Installing Modern Cabinet Handles and How to Fix Them: Practical fixes designers use to correct alignment, spacing, and drilling mistakes with modern cabinet handles.

Direct Answer

Most problems when installing modern cabinet handles come from inaccurate measurements, incorrect hole spacing, or uneven drilling. The fix usually involves using a drilling template, re-centering misaligned holes, or reinforcing loose screws with proper hardware. With the right alignment tools and careful spacing checks, most installation mistakes can be corrected without replacing the entire cabinet door.

Quick Takeaways

1. Most modern cabinet handle issues come from inaccurate measurements rather than hardware defects.
2. A cabinet handle jig is the fastest way to prevent alignment mistakes.
3. Misaligned handles can often be fixed by filling and re-drilling holes precisely.
4. Loose handles usually indicate incorrect screw length or stripped holes.
5. Surface damage during drilling is preventable with proper masking and pilot holes.

Introduction

Modern cabinet handles look simple, but installing them correctly is one of the most common pain points I see in kitchen renovations. After working on dozens of residential projects, I've learned that even small alignment mistakes become painfully obvious once sleek, minimalist hardware is mounted across a full row of cabinets.

Unlike traditional knobs, modern cabinet handles depend heavily on perfect symmetry. A difference of even a few millimeters can disrupt the entire visual rhythm of a kitchen wall. Many homeowners only realize this after installation—when a row of handles suddenly looks "off" even though each one was installed carefully.

In many projects I review, the real issue isn't the handle itself. It's the layout planning. Before installers even drill holes, I often recommend visualizing handle placement during the cabinet planning stage. Tools that help homeowners experiment with cabinet hardware positions during kitchen layout planningcan prevent costly drilling mistakes later.

In this guide, I'll walk through the most common modern cabinet handle installation problems, why they happen, and the practical fixes professionals use on real projects.

save pin

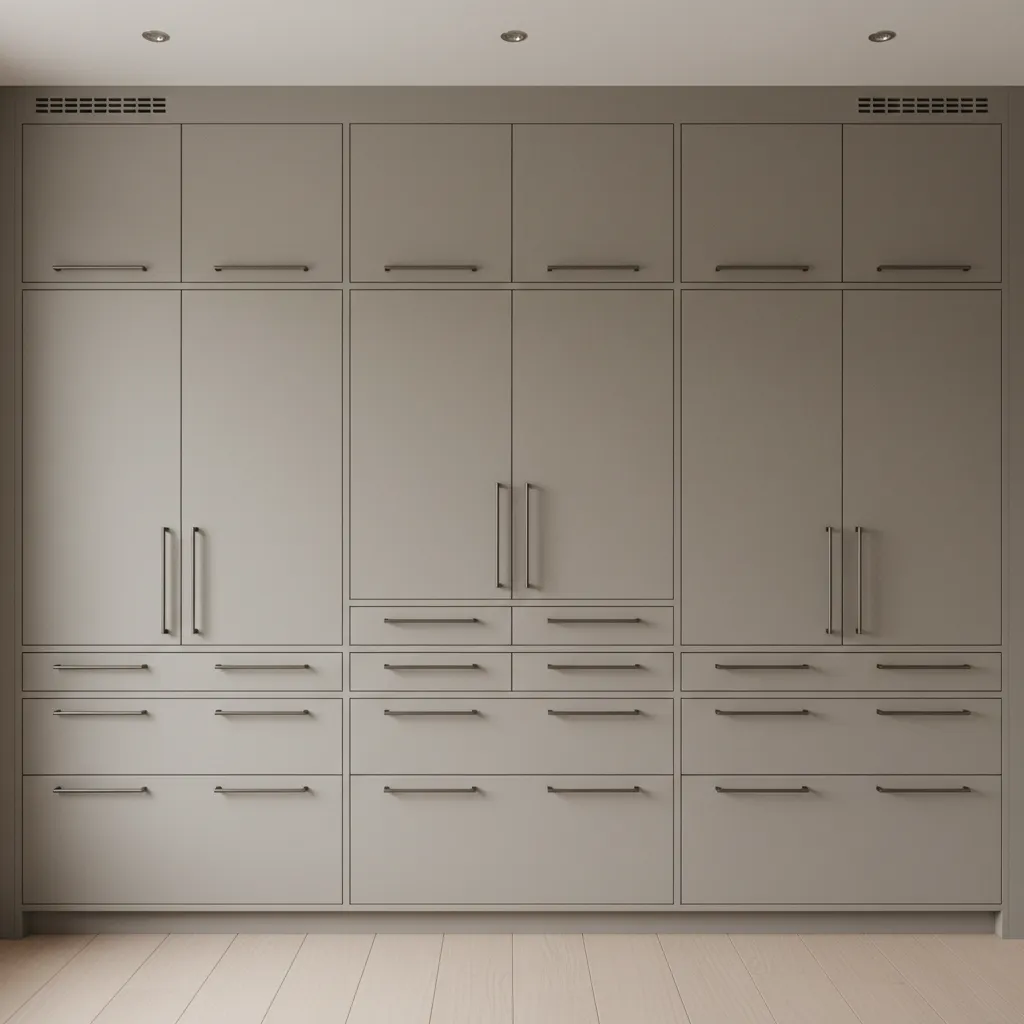

Why Installation Precision Matters for Modern Cabinet Handles

Key Insight: Modern cabinet handles emphasize straight lines and symmetry, which means even small installation errors become highly visible.

Contemporary kitchen design relies heavily on visual alignment. Long bar pulls, edge pulls, and slim linear handles create horizontal and vertical lines that the eye naturally follows. When one handle sits slightly higher or tilts by a few degrees, it breaks that visual continuity.

This is why professional installers treat cabinet hardware installation almost like layout drafting rather than simple hardware mounting.

Common precision issues include:

1. Inconsistent vertical placement across drawers
2. Slightly angled drilling causing tilted handles
3. Uneven spacing between double-hole pulls
4. Different handle heights across cabinet rows

Industry guidance from the National Kitchen and Bath Association (NKBA) emphasizes consistent placement templates for hardware alignment, especially with long modern pulls.

In practice, I rarely allow freehand drilling on modern cabinetry. Templates or jigs dramatically reduce alignment errors.

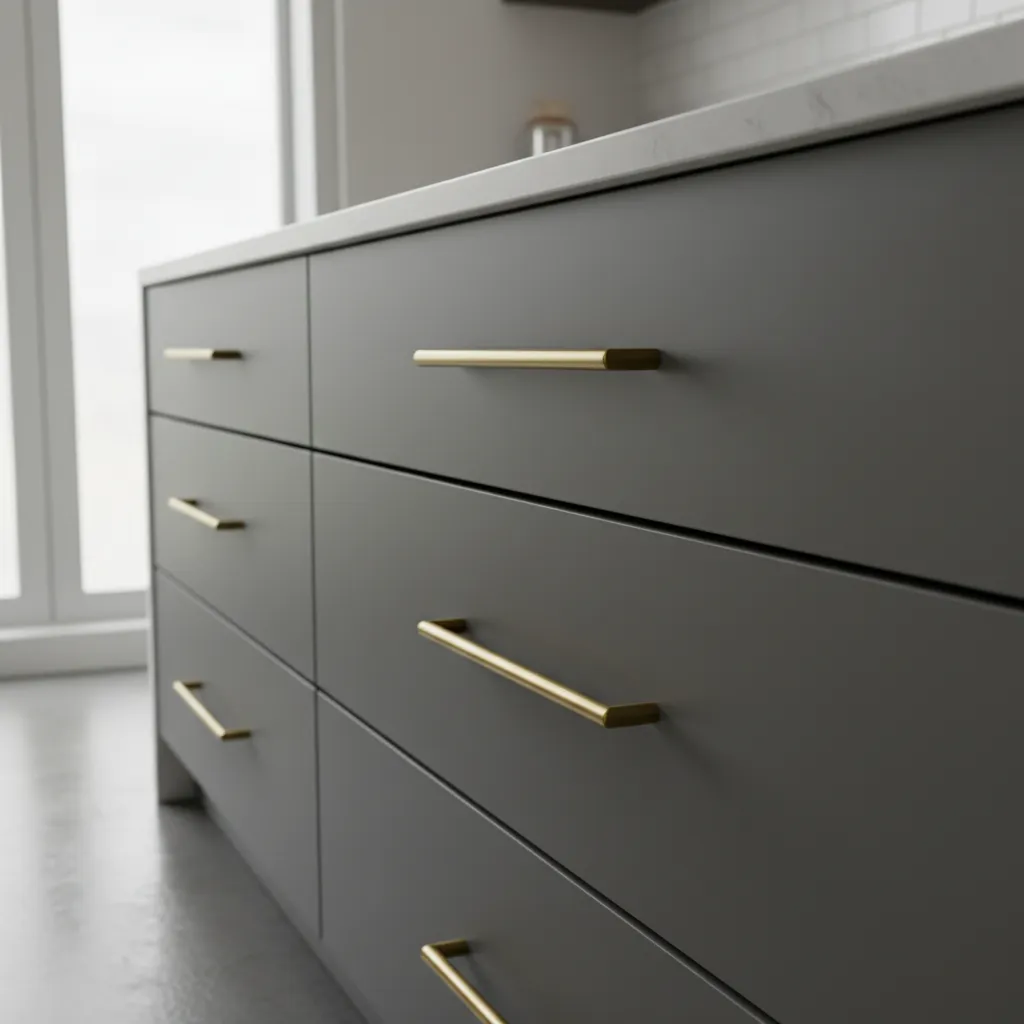

Misaligned Handles and How to Correct Them

Key Insight: Slightly misaligned cabinet handles can usually be corrected without replacing the cabinet door.

This is the mistake I encounter most often during renovation inspections. A handle sits a few millimeters too high, or the two screw holes aren't perfectly level.

Depending on the severity, there are several fixes designers and installers use:

Fix options for misaligned cabinet handles:

1. Fill incorrect holes using wood filler or dowels
2. Sand the surface flush after filling
3. Measure the corrected spacing using a template
4. Re-drill pilot holes with a guide jig

For painted cabinet doors, the repair can often be invisible after touch-up. For natural wood cabinets, installers sometimes shift the handle position slightly so the repaired hole remains hidden behind the handle plate.

This kind of correction is much easier if alignment is planned visually. I often recommend homeowners preview hardware placement by using tools that help visualize cabinet hardware alignment within a full room layout. Seeing the entire cabinet wall helps spot symmetry problems early.

save pin

Incorrect Hole Spacing and Drilling Fixes

Key Insight: Incorrect hole spacing happens when installers confuse metric and imperial measurements or skip using drilling templates.

Most modern cabinet pulls follow standardized spacing measurements, typically:

1. 96 mm
2. 128 mm
3. 160 mm
4. 224 mm

But many DIY installers measure from the outer edges of the handle rather than the center of the screw holes. This leads to spacing errors that make the handle impossible to install.

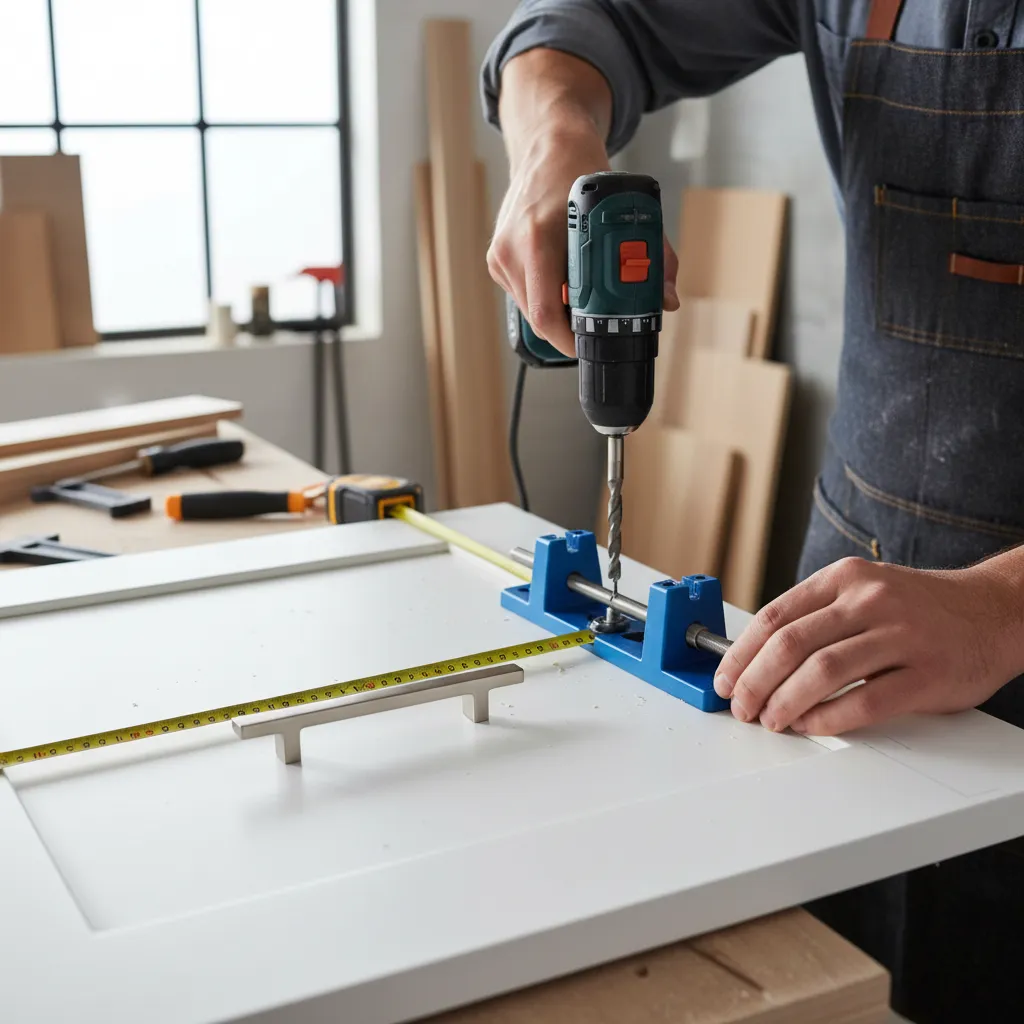

How professionals prevent spacing errors:

1. Measure center-to-center distance between holes
2. Use cabinet handle drilling jigs
3. Mark hole locations with painter's tape
4. Drill small pilot holes before final drilling

Hidden cost insight: drilling errors can permanently damage expensive cabinet fronts, especially with lacquer or veneer finishes. In high-end kitchens, replacing a single cabinet door can cost hundreds of dollars.

save pin

Loose or Wobbly Cabinet Handles Solutions

Key Insight: Wobbly cabinet handles are usually caused by incorrect screw length or stripped mounting holes.

This issue often appears weeks after installation. The handle feels tight at first but gradually loosens as the cabinet door is used daily.

Typical causes include:

1. Screws that are too short
2. Over-drilled holes
3. Soft cabinet materials like MDF
4. Missing washers or mounting plates

Reliable fixes used by installers:

1. Replace screws with correct-length hardware
2. Add threaded inserts for stripped holes
3. Use small washers behind screw heads
4. Apply thread-lock adhesive for stability

In many modern kitchens with large bar pulls, longer handles actually create more leverage when opening cabinets. That extra force is why secure mounting hardware becomes especially important.

Preventing Damage to Cabinet Surfaces During Installation

Key Insight: Most cabinet surface damage occurs during drilling, not during handle installation itself.

High-gloss lacquer cabinets and laminated surfaces are particularly vulnerable to chipping when drill bits exit the material.

To prevent damage, professionals follow a simple preparation process:

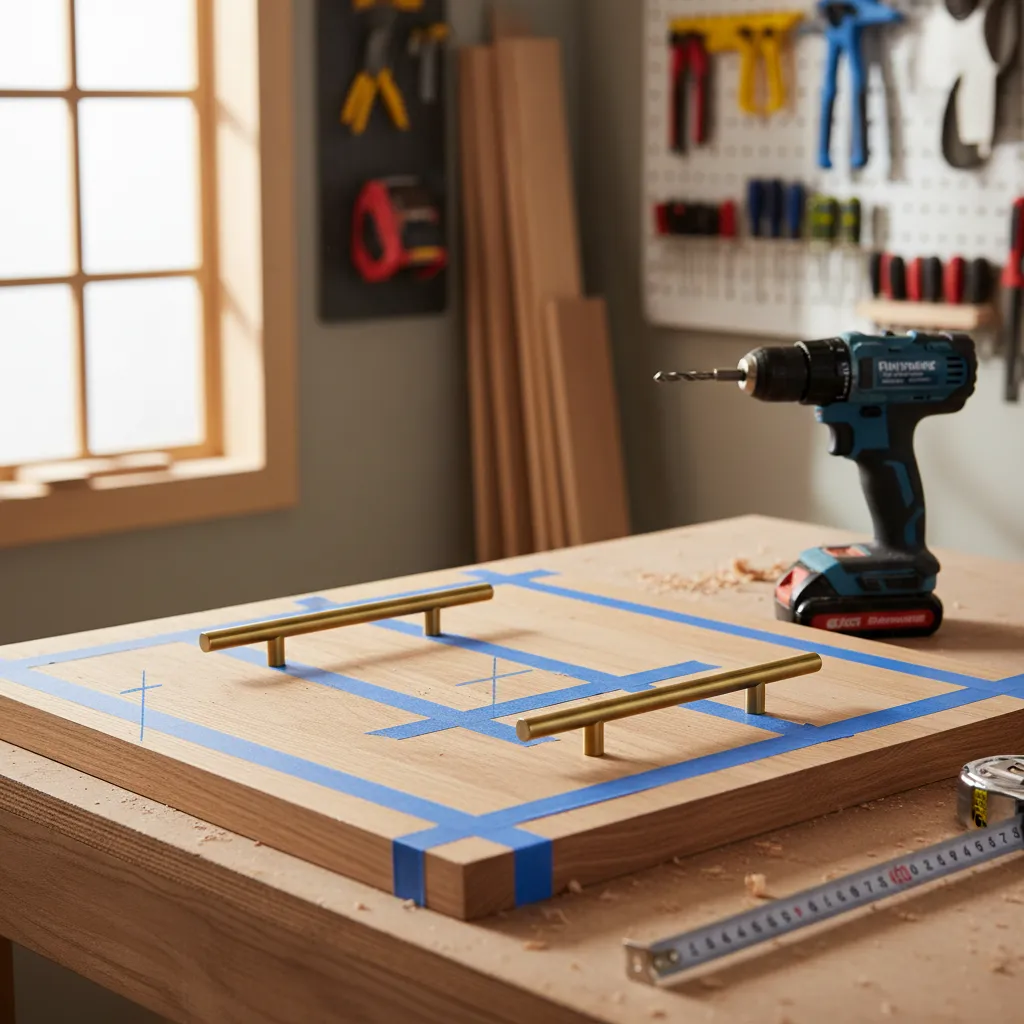

1. Apply painter's tape over drilling points
2. Mark hole centers on the tape
3. Use a sharp brad-point drill bit
4. Drill slowly with steady pressure
5. Place a wood backing board behind the panel

This backing board technique prevents tear-out when the drill bit exits the cabinet door.

Another overlooked issue is handle placement affecting workflow. I often review hardware placement using photorealistic previews before installation. Tools that help homeowners preview realistic cabinet hardware in finished kitchen renderscan reveal awkward handle placement that isn't obvious in drawings.

save pin

Tools Designers and Installers Use for Perfect Alignment

Key Insight: Professional installers rely on alignment tools rather than manual measurements.

Some of the most useful tools I see on job sites include:

1. Cabinet handle jig – ensures identical spacing across multiple doors
2. Laser level – maintains consistent horizontal alignment
3. Combination square – measures edge offsets accurately
4. Step drill bits – reduce surface chipping

Among these, the cabinet jig is easily the biggest time saver. It allows installers to drill dozens of cabinet doors with identical spacing in minutes.

One mistake I still see even among experienced DIY installers is measuring every door individually. That approach compounds small measurement errors across a kitchen. A jig eliminates that cumulative drift entirely.

Answer Box

The most common modern cabinet handle installation problems are misalignment, incorrect hole spacing, and loose hardware. These issues are usually caused by inaccurate measurements or skipping alignment tools. Using drilling templates, pilot holes, and proper screws prevents most installation failures.

Final Summary

1. Modern cabinet handles require precise alignment for visual consistency.
2. Most installation mistakes come from incorrect measurements.
3. Drilling jigs dramatically reduce handle spacing errors.
4. Loose handles usually result from incorrect screw length.
5. Surface damage can be prevented with tape and pilot holes.

FAQ

Why do modern cabinet handles look misaligned after installation?

Even a few millimeters of height difference can break visual alignment. Modern cabinet handles emphasize straight lines, making small installation errors very noticeable.

What is the correct spacing for modern cabinet pulls?

Most modern cabinet pulls follow standard center-to-center measurements such as 96 mm, 128 mm, or 160 mm. Always measure between screw hole centers.

How do you fix misaligned cabinet handles?

Fill incorrect holes with wood filler or dowels, sand the surface smooth, and re-drill holes using a cabinet jig to ensure accurate alignment.

Why do cabinet handles become loose after installation?

Loose cabinet handles are usually caused by incorrect screw length, stripped holes, or repeated pulling force from daily use.

Can you install modern cabinet handles without a jig?

Yes, but it's risky. Without a jig, measurement errors are common and alignment can vary between cabinet doors.

Should cabinet handles be centered on drawers?

Most designers center handles horizontally on drawers, but vertical placement may vary depending on drawer height.

What drill bit should be used for cabinet handles?

A sharp brad-point drill bit is recommended because it prevents surface chipping and provides more precise drilling.

Can damaged cabinet holes be repaired?

Yes. Wood filler or glued dowels can fill incorrect holes, allowing accurate re-drilling for modern cabinet handle installation.
