Common Problems When Modeling Water and Ponds in 3D and How to Fix Them: Practical fixes designers use to solve unrealistic water, reflections, terrain seams, and rendering artifacts in 3D pond scenes

Direct Answer

The most common problems when modeling water and ponds in 3D come from incorrect scale, poor terrain mesh transitions, overly simple water shaders, and lighting setups that break reflections. Fixing these usually involves adjusting mesh topology at the shoreline, using physically accurate water materials, correcting scene scale, and refining reflection or refraction settings.

Quick Takeaways

1. Most unrealistic water renders are caused by incorrect scale or missing surface detail.
2. Clean shoreline topology prevents visible seams between terrain and water.
3. Reflection artifacts usually come from lighting and environment map mistakes.
4. Water shaders should include subtle roughness variation and depth coloration.
5. Lighting angle often matters more than material settings for believable water.

Introduction

After working on dozens of landscape visualizations and outdoor architectural renders, I can say that water is one of the easiest things to model—and one of the hardest things to make believable. A simple plane with a shiny shader might technically represent a pond, but it rarely looks convincing in a final render.

Many designers run into the same problems: water that looks like plastic, reflections that behave strangely, or terrain edges that visibly clip through the surface. These issues show up whether you're using Blender, Unreal Engine, Maya, or a dedicated visualization workflow.

In many residential visualization projects—especially backyard landscape designs—we often combine water features with architectural renders. If you're working on broader exterior visualization workflows, this guide on creating photorealistic residential renderings with full environment contextexplains how water elements fit into a complete scene pipeline.

Below are the most common pond modeling problems I repeatedly see in professional projects, along with practical ways to fix them quickly.

save pin

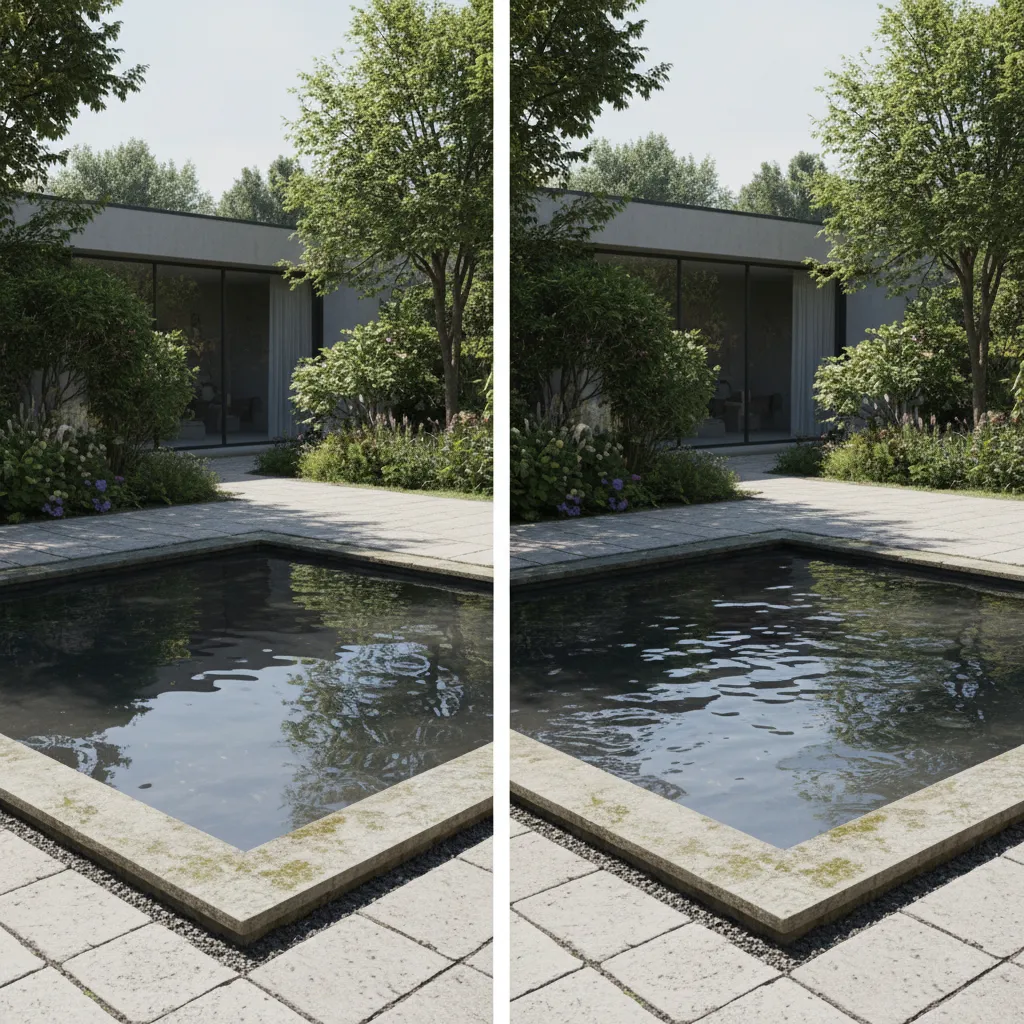

Why Water Surfaces Look Unrealistic in 3D Scenes

Key Insight: Water looks fake in most 3D scenes because the surface is too perfect and lacks micro‑detail and depth variation.

Real water is never completely flat or uniformly reflective. Even a calm pond has subtle ripples, depth color shifts, and imperfect reflections. When artists apply a perfectly smooth shader, the result immediately looks synthetic.

Three mistakes appear constantly in renders:

1. No normal or displacement detail
2. Uniform reflectivity across the surface
3. No depth‑based color change

Practical fixes used in production pipelines:

1. Add small-scale noise or ripple normal maps.
2. Introduce roughness variation (0.02–0.15 works well for calm ponds).

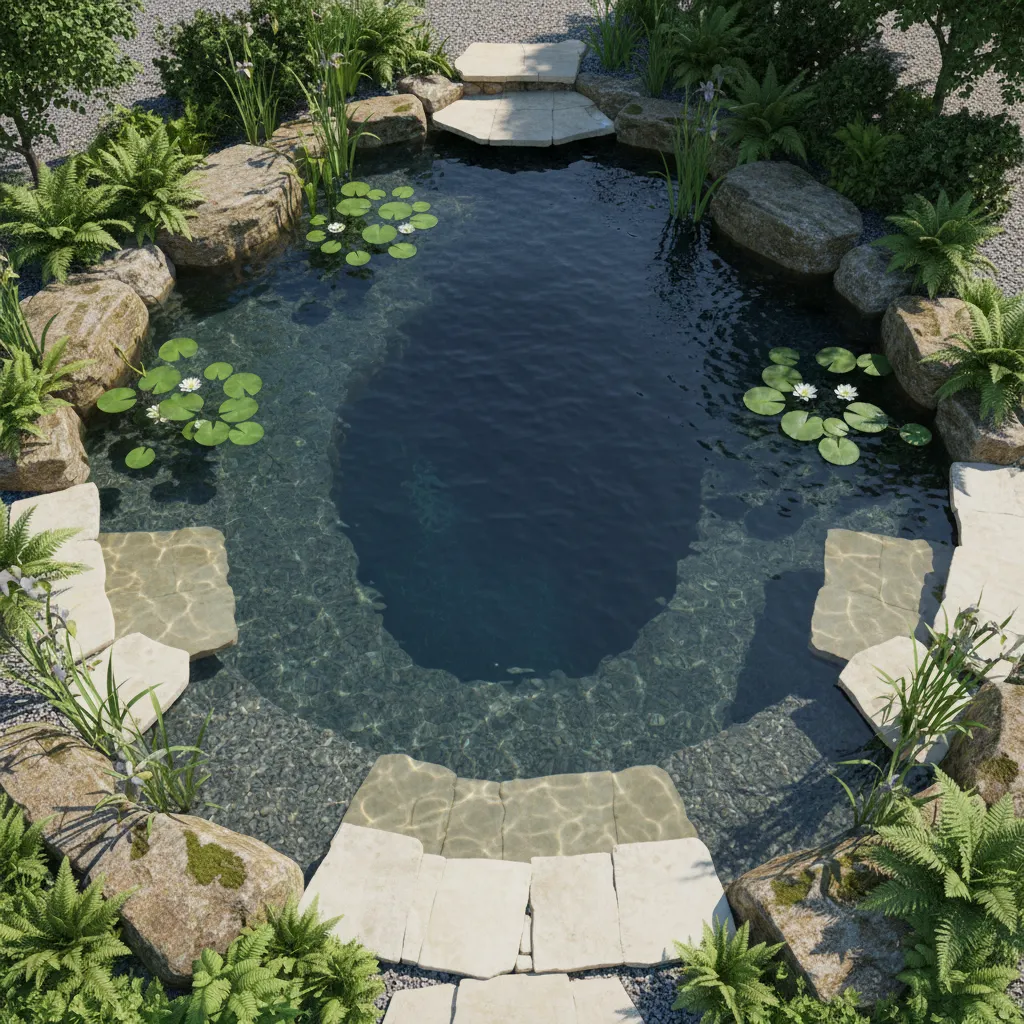

3. Use depth-based color gradients (darker center, lighter edges).
4. Layer two normal maps with different scales for realism.

Film and game studios commonly stack multiple wave layers because real water motion occurs at different frequencies. Even subtle variation dramatically improves realism.

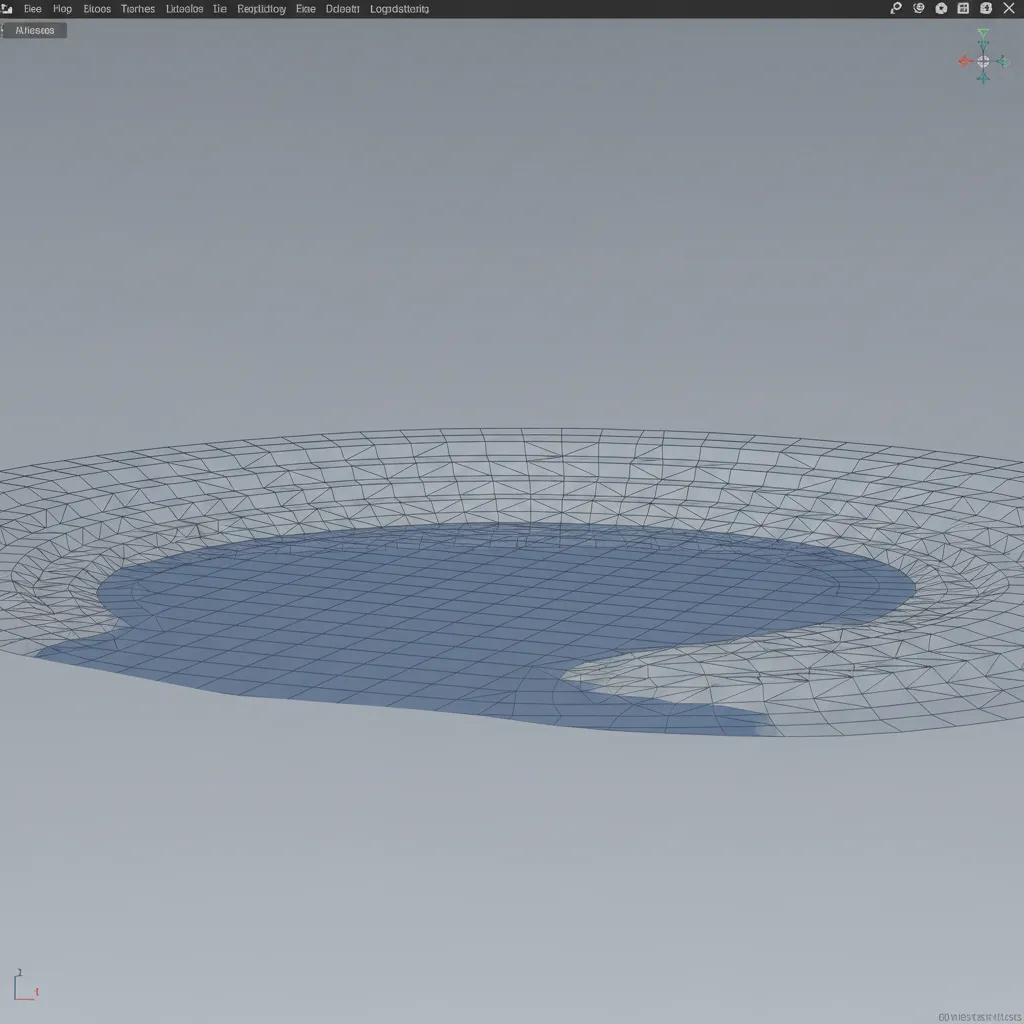

Fixing Terrain and Shoreline Mesh Issues

Key Insight: Visible seams between land and water usually come from poorly connected meshes or terrain topology that collapses at the shoreline.

Shoreline modeling is one of the most overlooked parts of pond creation. Beginners often intersect a flat water plane through terrain geometry, which produces gaps or shading artifacts.

Reliable shoreline workflow:

1. Cut the terrain mesh along the pond boundary.
2. Create a clean edge loop around the water perimeter.
3. Slightly lower the water plane below terrain level.
4. Add small rock or soil displacement along edges.

Why this matters: natural ponds rarely have perfect edges. Adding irregular geometry and small debris helps hide transitions and dramatically increases realism.

In landscape design visualization projects, terrain preparation usually happens early during layout planning. Many designers actually sketch terrain and water zones using tools similar to a

save pin

visual layout planner used to map outdoor zones and spatial relationships before building the full 3D scene.

Resolving Reflection and Refraction Problems

Key Insight: Broken reflections almost always come from missing environment information rather than incorrect water materials.

Water reflects its surroundings. If your scene has poor lighting or missing environment maps, the reflection will appear black, distorted, or overly sharp.

Typical reflection issues include:

1. Sky reflections missing
2. Objects disappearing in reflection
3. Mirror-like surfaces that look unrealistic

Fix checklist:

1. Add HDRI environment lighting.
2. Enable screen space reflections or ray tracing.
3. Increase reflection sampling.
4. Introduce subtle surface roughness.

Architectural visualization studios often rely on HDRI skies because they create physically consistent reflections across water, glass, and polished materials.

Common Shader and Material Mistakes for Water

Key Insight: Most water materials fail because they ignore absorption and depth color.

Real water absorbs light. That means deeper areas appear darker and slightly more saturated than shallow zones. Without this effect, ponds appear like reflective mirrors.

Professional water material setup typically includes:

1. Transmission or transparency
2. Depth-based color ramp
3. Fresnel reflection
4. Normal map layering

A practical shader structure:

save pin

1. Base color: dark green or blue tint
2. Roughness: 0.03–0.1
3. IOR: about 1.33 (real water)
4. Normal strength: subtle, under 0.4

These small parameters often matter more than the renderer you're using.

Fixing Scale and Depth Errors in Pond Models

Key Insight: Incorrect scene scale is one of the most common hidden causes of unrealistic water behavior.

If a scene is built at the wrong scale, water shaders behave incorrectly. Ripples become oversized, reflections distort, and lighting interactions break.

Common scale mistakes:

1. Pond modeled too small relative to environment
2. Wave textures scaled incorrectly
3. Camera placed too close to water surface

Simple scale sanity check:

1. Small garden pond: 2–5 meters wide
2. Backyard pond: 5–10 meters
3. Park pond: 15+ meters

When building exterior spaces that combine buildings, landscape, and water features, maintaining accurate scale across the entire model becomes essential. Many designers first establish spatial proportions using tools similar to a layout workflow that helps map architectural and landscape dimensions before 3D modeling.

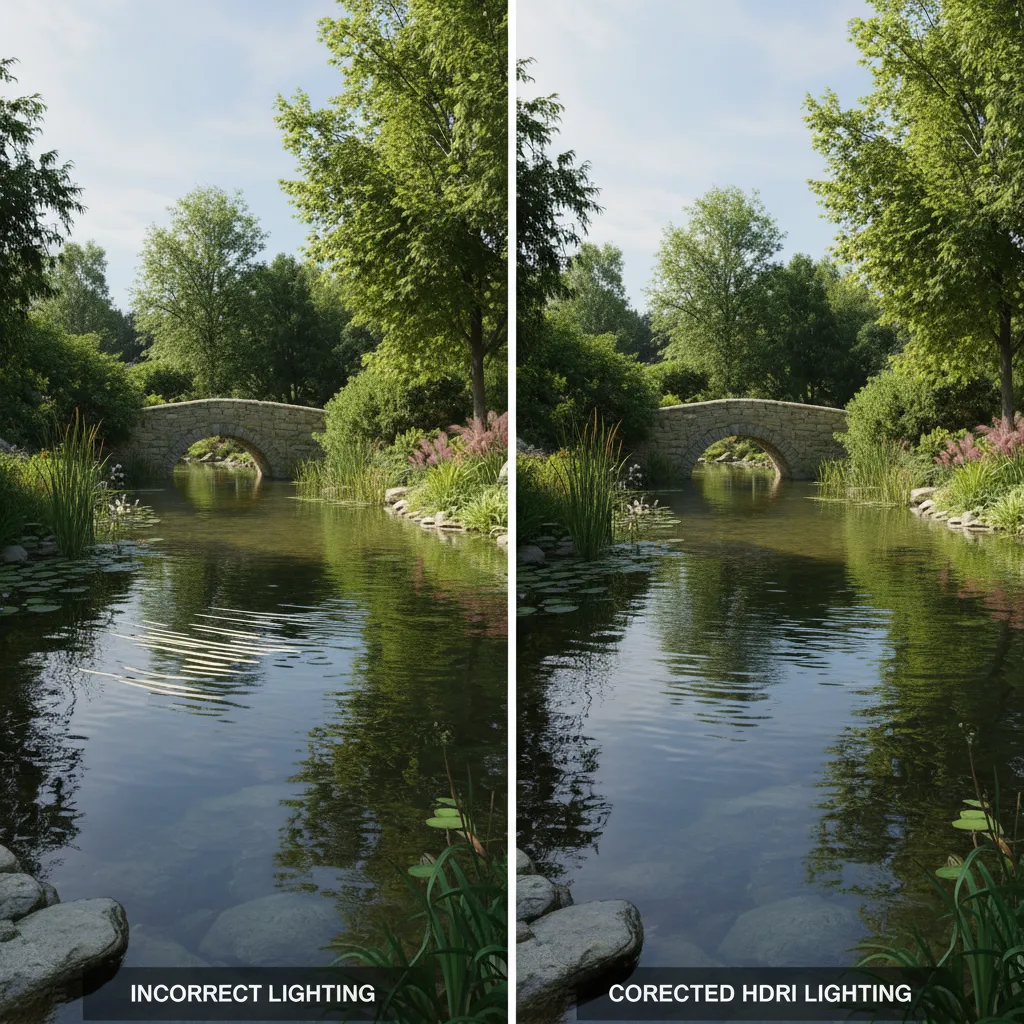

Debugging Lighting and Rendering Artifacts

Key Insight: Many water rendering artifacts are actually lighting problems rather than geometry or shader errors.

Typical artifacts include:

1. Bright noise in reflections
2. Flickering highlights
3. Strange refraction distortions

Professional debugging workflow:

1. Test render with simplified water shader.
2. Check HDRI brightness and sun angle.
3. Increase reflection or caustic samples.
4. Disable volumetric effects temporarily.

One counterintuitive observation: lowering reflection intensity often improves realism. Perfect mirror reflections rarely occur in natural ponds.

save pin

Answer Box

The majority of 3D pond rendering problems come from three issues: unrealistic scale, overly simple water shaders, and poor terrain transitions. Fixing shoreline topology, adding layered normal maps, and using proper reflections usually solves most visual problems quickly.

Final Summary

1. Unrealistic water usually comes from missing surface detail.
2. Clean shoreline topology prevents visible terrain seams.
3. Accurate scale is critical for believable reflections and waves.
4. Water materials need depth color and Fresnel reflections.
5. Lighting setup strongly affects final water realism.

FAQ

Why does water look fake in 3D renderings?

Water often looks fake when the surface is perfectly smooth, lacks depth color, or has unrealistic reflections.

How do I fix water shader problems in 3D modeling?

Use layered normal maps, realistic IOR around 1.33, depth-based color, and subtle roughness variation.

Why are my pond reflections not showing correctly?

Reflections usually fail because environment lighting or HDRI maps are missing.

What causes terrain mesh problems around water?

Terrain meshes that intersect water planes instead of cleanly outlining the shoreline create gaps and shading artifacts.

What is the best roughness value for calm pond water?

Most realistic pond renders use roughness between 0.03 and 0.1.

How do I troubleshoot water rendering artifacts?

Start by simplifying the shader, then check lighting, HDRI reflections, and render sampling.

Do I need displacement for realistic water?

Not always. Small normal maps are usually enough unless the water is very close to the camera.

How deep should a 3D pond look in renders?

Depth depends on design, but visual cues like darker center coloration help communicate depth in a 3D pond scene.
