Common Problems When Splitting 3D Models and How to Fix Them: Practical troubleshooting methods designers use to repair meshes, prevent STL errors, and split 3D models cleanly

Direct Answer

Most problems when splitting a 3D model come from non‑manifold geometry, open meshes, or misaligned cutting planes. Fixing these issues usually requires repairing the mesh first, validating geometry, and exporting a clean STL before cutting. When the underlying model integrity is correct, most 3D model split failures disappear.

Quick Takeaways

1. Non‑manifold geometry is the most common reason a 3D model split fails.
2. Always repair mesh errors before attempting to cut an STL.
3. Misaligned cutting planes often cause overlapping surfaces after separation.
4. Exporting a clean STL after cutting prevents printing errors.
5. Small geometry defects can create large gaps when models are split.

Introduction

After working on dozens of complex models over the past decade, I've noticed that splitting a model looks simple in tutorials but often breaks down in real projects. A 3D model split can fail for reasons that aren't obvious until you inspect the mesh structure.

In real workflows, users usually encounter problems like missing faces, broken STL files, or parts that don't align after cutting. These issues become especially common when preparing models for printing or when dividing a large object into multiple printable pieces.

If you're still learning the full workflow, it helps to understand the broader process first. I recommend reviewing a step‑by‑step breakdown of how complex digital models are structured and separated in practical design workflows, because the same structural principles apply to 3D mesh segmentation.

In this guide, I'll walk through the most common technical failures I see when splitting models and how professionals fix them quickly.

save pin

Why 3D Model Cuts Sometimes Fail

Key Insight: A 3D model split usually fails because the mesh already contains hidden structural errors.

Many people assume the cutting tool is the problem. In reality, the mesh itself is often flawed. Even a tiny hole, flipped normal, or overlapping surface can cause a failed split.

Common causes include:

1. Non‑manifold edges
2. Duplicate faces
3. Inverted normals
4. Open boundaries in the mesh
5. Extremely thin geometry

In professional modeling pipelines, validation tools are always run before performing boolean operations like cuts or unions. Autodesk and Blender documentation both emphasize mesh validation because boolean tools rely on mathematically closed geometry.

One hidden mistake I often see: downloaded STL files from marketplaces frequently contain micro‑errors. They may render fine visually but fail during operations like splitting.

Fixing Non Manifold Geometry Before Cutting

Key Insight: If your model contains non‑manifold geometry, any attempt to split the model will likely produce corrupted pieces.

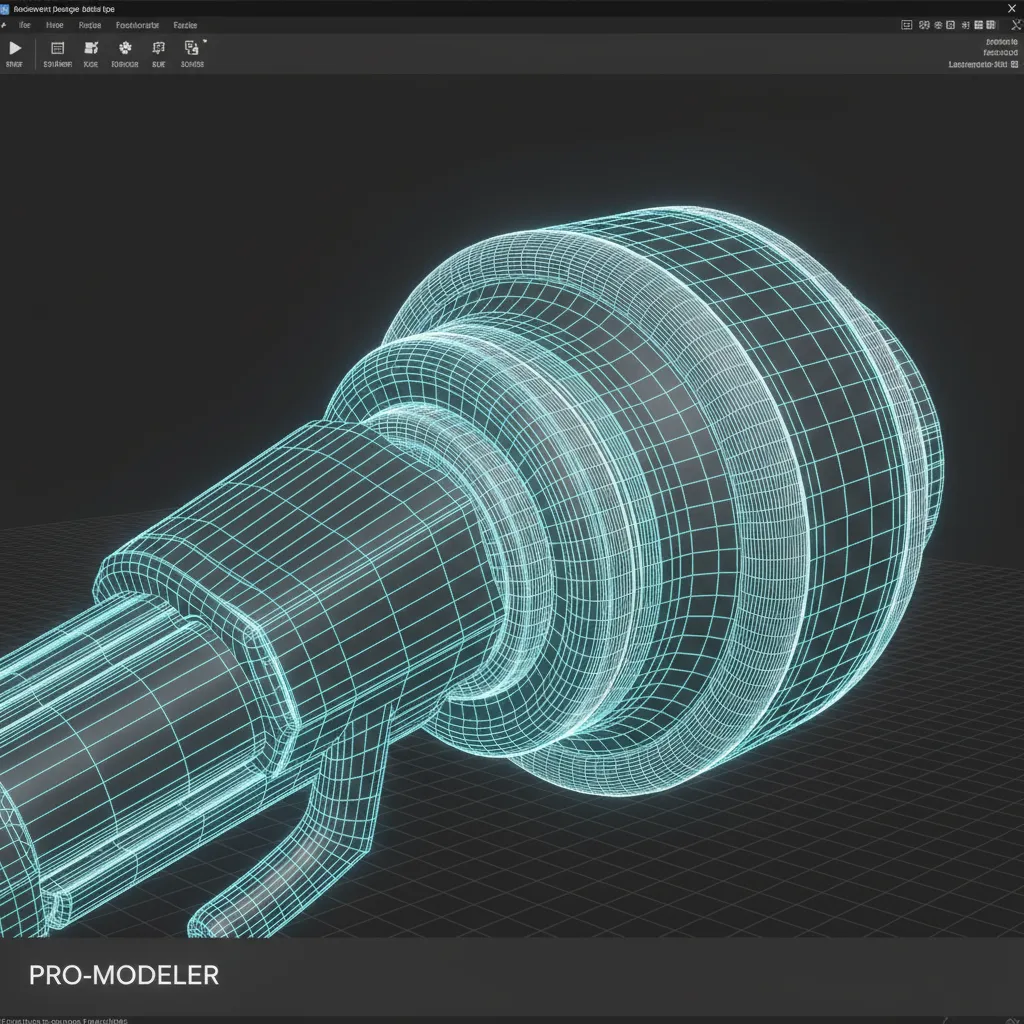

Non‑manifold geometry occurs when edges or vertices are shared in impossible ways. For example, an edge belonging to three faces instead of two.

Typical signs include:

1. STL repair warnings
2. Boolean operations failing
3. Random holes appearing after cuts

Professional repair workflow:

1. Run mesh analysis to detect non‑manifold edges.
2. Delete duplicate vertices.
3. Fill open holes.
4. Recalculate normals.
5. Remesh if geometry is severely corrupted.

Meshmixer and Blender both include automatic repair tools, but experienced designers rarely rely solely on auto‑fix. Manual inspection often reveals overlapping surfaces that automatic tools miss.

save pin

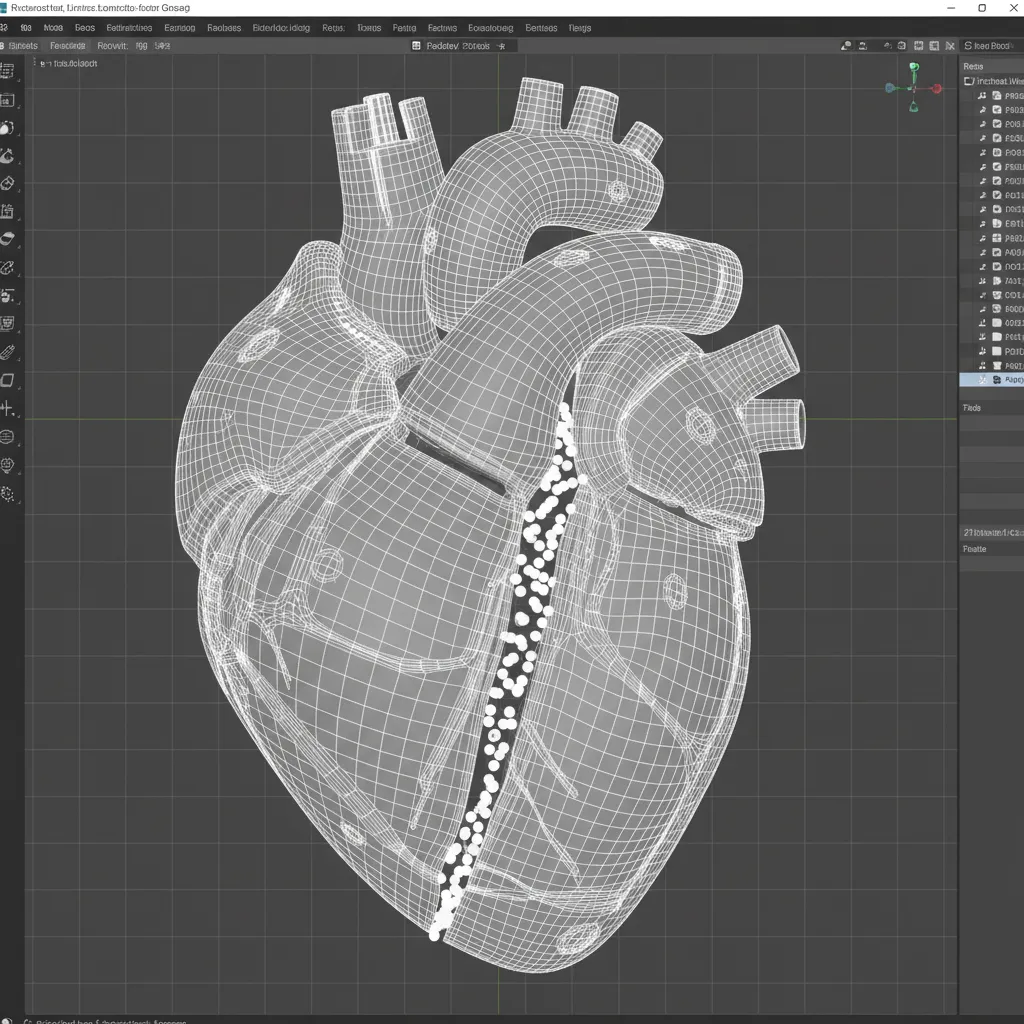

Repairing Broken Mesh After Splitting a Model

Key Insight: When an STL breaks after cutting, the problem is usually missing cap surfaces on the new edges.

When you slice a mesh, new open edges are created. If the software doesn't properly generate "cap faces," the model becomes hollow or non‑printable.

Typical repair steps:

1. Fill open boundaries created during the cut
2. Merge duplicate vertices along the seam
3. Recalculate surface normals
4. Run mesh cleanup tools

In large architectural or product models, this issue becomes even more noticeable. When parts must fit together precisely, broken mesh edges can create millimeter‑level misalignment.

Understanding how objects connect spatially also helps prevent these issues. Designers working with spatial layouts often rely on structured planning tools similar to those used when planning complex interior spaces with accurate room layouts, where structural relationships must remain consistent.

save pin

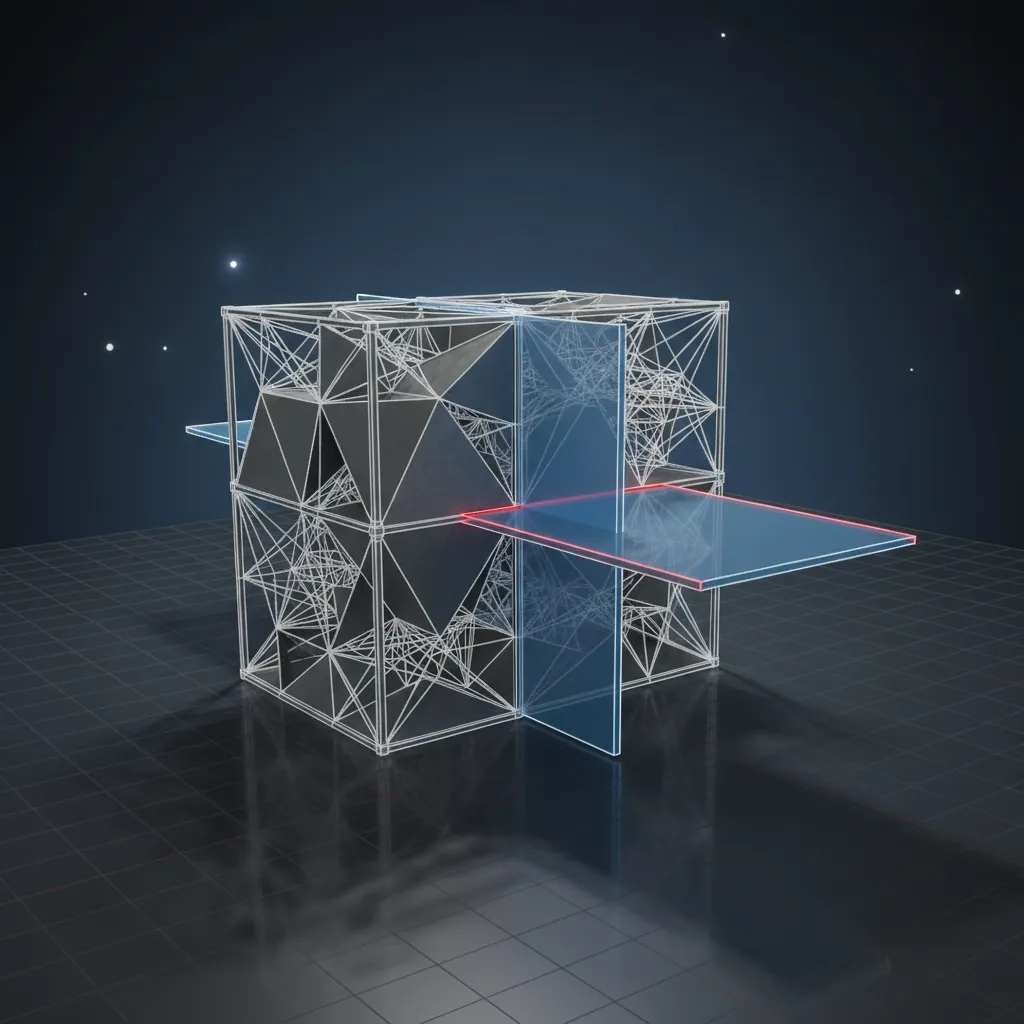

How to Align Cut Parts Correctly

Key Insight: Misaligned cutting planes are a leading cause of parts that don't fit together after splitting.

If the cutting plane is slightly rotated or offset, the separated components will not align correctly when reassembled.

Professional alignment techniques:

1. Use grid snapping before cutting
2. Align the cutting plane to global axes
3. Create reference geometry before splitting

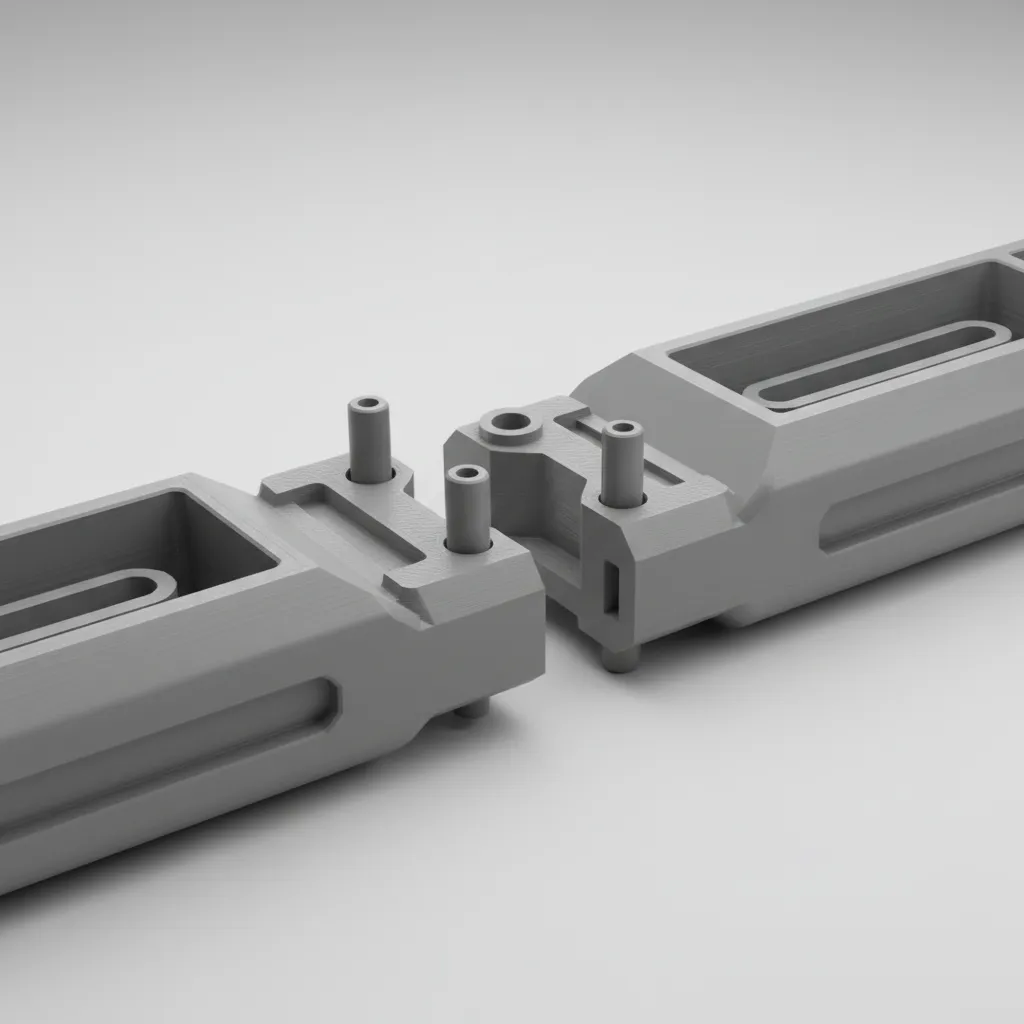

4. Export alignment pins or registration keys

For 3D printing, I often add alignment pins directly into the cut. This small step prevents assembly frustration later and improves structural stability.

Preventing Gaps or Overlapping Surfaces

Key Insight: Gaps after splitting are usually caused by floating vertices or precision errors during the boolean operation.

Even when the split appears correct visually, tiny gaps can appear when zooming into the seam.

Common prevention techniques:

1. Apply mesh weld or merge threshold
2. Avoid extremely thin surfaces
3. Use clean planar cutting surfaces
4. Recalculate vertex normals after cutting

Industry practice also includes performing a "mesh integrity check" before exporting files to printers or manufacturing pipelines.

save pin

Answer Box

The most reliable way to fix a failed 3D model split is to repair mesh integrity before cutting. Non‑manifold edges, missing faces, and misaligned cutting planes are responsible for most splitting errors.

Exporting Clean STL Files After Model Separation

Key Insight: Even if the split looks correct inside the software, exporting a clean STL is essential for preventing print failures.

When exporting, many tools triangulate surfaces differently, which can introduce new mesh errors.

Best export practices:

1. Run final mesh repair before export
2. Use binary STL instead of ASCII for stability
3. Check the file in a separate viewer
4. Validate wall thickness

Many professionals run their files through a second validation stage before production. This workflow is similar to processes used when preparing detailed scenes for creating high quality architectural visualization renders, where geometry errors can ruin the final output.

Final Summary

1. Most 3D model split failures originate from hidden mesh errors.
2. Non‑manifold geometry must be repaired before cutting.
3. Missing cap surfaces often break STL files after splitting.
4. Aligned cutting planes prevent assembly issues.
5. Clean STL exports ensure successful 3D printing.

FAQ

Why did my 3D model split fail?

Most failures occur because of non‑manifold geometry or open mesh surfaces that prevent boolean operations from completing.

How do I fix a non manifold error when cutting STL?

Run mesh repair tools, remove duplicate vertices, fill holes, and recalculate normals before attempting the cut again.

Why does my STL break after cutting a model?

The software may not generate cap faces on the new edges, leaving open geometry that corrupts the STL file.

How do I repair mesh after splitting a model?

Use boundary fill tools, merge vertices along seams, and run a mesh cleanup process to restore watertight geometry.

What causes gaps after splitting a 3D model?

Floating vertices, precision errors, or poorly aligned cutting planes typically create gaps along the split line.

Can non manifold geometry stop a 3D model split?

Yes. Non‑manifold geometry prevents boolean operations from working correctly, often producing failed cuts.

Is splitting a model bad for 3D printing?

Not at all. Splitting models is common for large prints, but the parts must be repaired and aligned properly.

What software helps fix STL split problems?

Blender, Meshmixer, and Fusion 360 all include mesh analysis and repair tools for fixing splitting errors.
