Common Problems When Transforming a Back Casting Room: Practical fixes for layout, workflow, ventilation, and equipment mistakes in casting room renovations

Direct Answer

The most common back casting room renovation problems come from poor workflow planning, weak ventilation systems, and incorrect equipment placement. These issues disrupt material movement, create heat buildup, and slow production. Fixing them usually requires redesigning the workflow path, relocating heavy equipment, and improving air extraction.

Quick Takeaways

1. Most casting room renovation failures start with workflow mistakes, not equipment problems.
2. Heat and fumes accumulate quickly without dedicated ventilation zones.
3. Improper equipment placement often creates hidden bottlenecks.
4. Small casting rooms can still function well with clear zoning.
5. Simple layout adjustments can restore efficiency without full renovation.

Introduction

After more than a decade working on specialized workspaces, I’ve seen how often a back casting room renovation goes sideways for one simple reason: people focus on equipment before they understand workflow.

A casting room is fundamentally a process-driven space. Metal enters, molds are prepared, casting happens, cooling and finishing follow. When that sequence isn’t reflected in the room layout, even expensive upgrades won’t fix productivity issues.

In several projects I consulted on, the biggest complaints weren’t about machines—they were about congestion, heat buildup, and workers constantly crossing paths. In almost every case, the layout had been redesigned without mapping the actual workflow.

If you're currently redesigning a workspace like this, starting with a simple planning model can prevent most mistakes. I usually recommend sketching your functional zones first using a simple tool to map an efficient workshop floor layoutbefore moving equipment.

In this guide, I’ll walk through the most common back casting room renovation problems I’ve seen in real projects—and how to fix them without tearing everything apart again.

save pin

Why Casting Room Renovations Often Fail

Key Insight: Most casting room renovations fail because the design is based on space availability instead of production workflow.

When facilities expand or remodel, the layout often evolves organically. Machines are added where space is available rather than where they belong in the process chain.

Over time, this creates a fragmented production path.

Common failure patterns I frequently see include:

1. Molding stations placed far from melting equipment
2. Cooling areas blocking main movement paths
3. Shared worktables creating cross-traffic
4. Storage mixed into active production zones

The Manufacturing Extension Partnership in the U.S. regularly emphasizes process flow mapping before layout design. Facilities that model workflow first consistently reduce internal movement and improve output efficiency.

In practical terms, a casting room should follow a linear or circular production path—never a zigzag.

Poor Workflow Planning and How to Fix It

Key Insight: A clear workflow path—from material intake to finishing—is the foundation of an efficient casting room.

One of the most effective fixes I’ve implemented in small casting workshops is simply reorganizing stations according to process order.

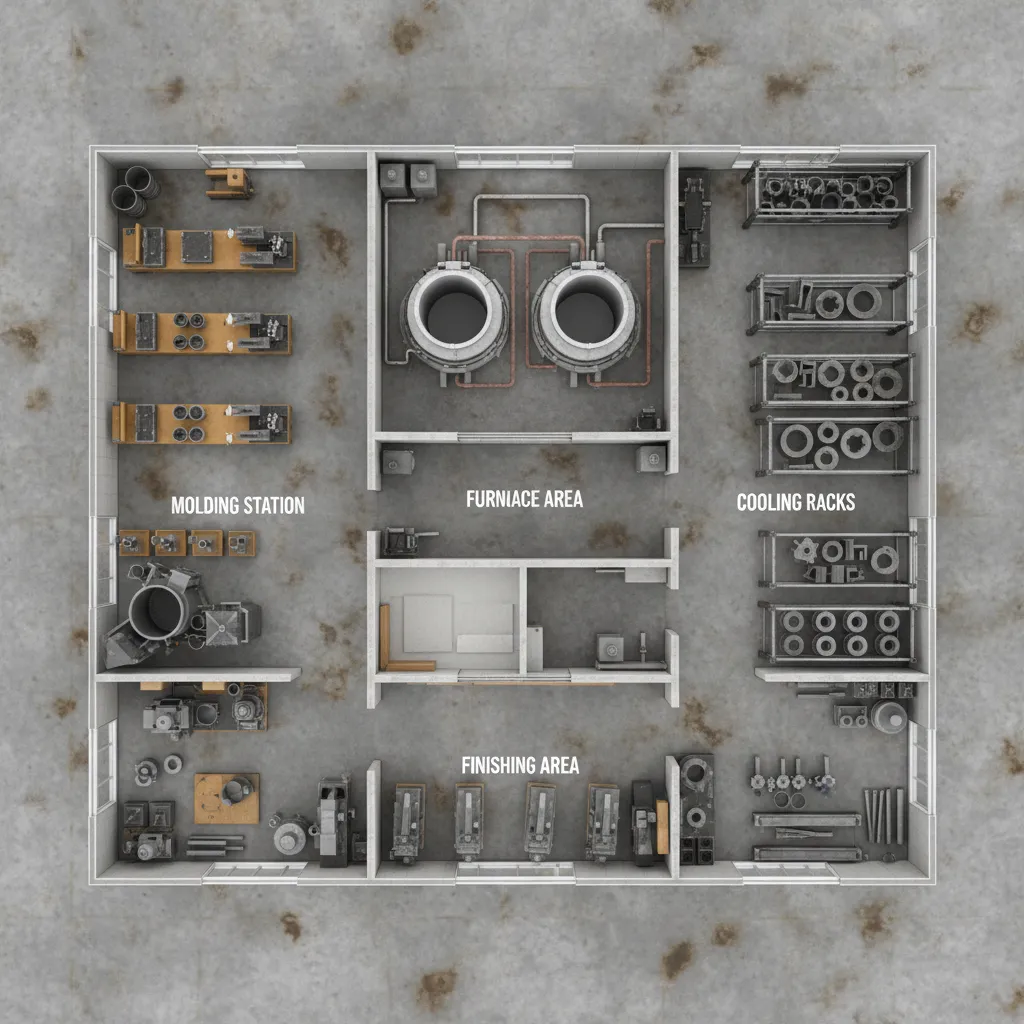

Typical casting workflow should follow this sequence:

1. Raw material storage
2. Melting furnace area
3. Mold preparation station
4. Casting zone
5. Cooling rack or sand bed
6. Cleaning or finishing area

When workers must walk backward through steps, productivity drops quickly.

Before moving anything physically, I usually test layouts digitally using a 3D floor planning method to visualize workflow paths. Even a rough model can reveal unexpected collisions between stations.

save pin

Ventilation and Heat Management Problems

Key Insight: Ventilation failures in casting rooms often come from airflow design mistakes rather than fan capacity.

Heat and fumes behave predictably. Hot air rises, but casting fumes tend to spread horizontally before dispersing.

Common ventilation mistakes include:

1. Exhaust fans placed too far from the furnace
2. Single-point ventilation for the entire room
3. Airflow blocked by tall equipment
4. No dedicated heat extraction above casting areas

In one renovation project I advised on, moving the furnace hood just 1.5 meters closer to the pouring station reduced room temperature by nearly 6°C during peak operation.

Good casting room ventilation design should include:

1. Local extraction above furnaces
2. Cross-ventilation through wall openings
3. Heat-resistant duct routing
4. Clear airflow paths above equipment

save pin

Equipment Placement Mistakes

Key Insight: Heavy equipment placement determines movement efficiency more than overall room size.

Many casting rooms place furnaces or molding stations along walls simply because it "looks organized." In practice, that often creates narrow walkways and awkward handling paths.

Better placement strategies include:

1. Centering primary casting equipment when possible
2. Keeping at least 1.2–1.5 meters of movement clearance
3. Separating hot zones from finishing workstations
4. Aligning equipment with workflow direction

Digital layout testing can help here as well. I often simulate equipment placement using a visual planning approach to test industrial room layouts before finalizing installation positions.

Space Constraints in Small Casting Rooms

Key Insight: Even very small casting rooms can function efficiently if zones are clearly separated.

Small workshops frequently struggle because everything shares the same central area.

Instead of compressing everything together, divide the space into micro-zones:

1. Hot zone – furnace and pouring
2. Mold preparation zone
3. Cooling zone
4. Finishing zone
5. Material storage

Vertical storage also becomes critical in smaller casting rooms. Wall-mounted racks and overhead shelving can reclaim floor space without interfering with workflow.

save pin

How to Diagnose Workflow Bottlenecks

Key Insight: The fastest way to find casting room layout problems is to track worker movement during one full production cycle.

I often run a simple observation exercise when evaluating a casting room:

1. Follow one casting job from start to finish
2. Record every movement between stations
3. Note waiting times and congestion points
4. Measure walking distances

Common bottleneck indicators include:

1. Workers crossing each other repeatedly
2. Frequent equipment repositioning
3. Cooling areas filling faster than expected
4. Material carts blocking work zones

In my experience, a well-designed casting room rarely requires workers to backtrack more than once per cycle.

Quick Fixes for Inefficient Casting Room Layouts

Key Insight: Many casting room layout problems can be improved with small adjustments rather than full renovations.

Before considering expensive reconstruction, try these quick fixes:

1. Rotate equipment 90 degrees to align with workflow
2. Move cooling racks away from central walkways
3. Separate storage from active work areas
4. Mark floor paths for material transport
5. Install localized exhaust near hot stations

Even minor changes can dramatically improve daily operations. One workshop I worked with reduced internal walking distance by nearly 30% simply by repositioning two casting tables and relocating storage bins.

Answer Box

The majority of back casting room renovation problems come from workflow disruption, poor ventilation planning, and misaligned equipment placement. Mapping the production sequence first—and designing the layout around it—solves most efficiency issues before construction begins.

Final Summary

1. Workflow design should guide every casting room renovation decision.
2. Ventilation must be positioned near heat and fume sources.
3. Equipment placement impacts efficiency more than room size.
4. Small casting rooms succeed with clear production zones.
5. Many layout problems can be fixed without full reconstruction.

FAQ

What are the most common back casting room renovation problems?

The most common problems include poor workflow design, ventilation issues, equipment crowding, and inefficient material movement paths.

How do you fix inefficient casting room workflow?

Reorganize workstations according to production sequence: material storage, melting, mold preparation, casting, cooling, and finishing.

Why is ventilation important in casting rooms?

Casting generates heat and fumes that accumulate quickly. Proper ventilation removes hazardous gases and keeps working temperatures manageable.

What causes casting room layout mistakes?

Most layout mistakes happen when equipment placement is based on available space rather than production workflow.

Can small casting rooms still work efficiently?

Yes. Small casting rooms can operate effectively when activities are divided into clear zones and equipment placement follows workflow order.

How much space should be around casting equipment?

A minimum clearance of 1.2–1.5 meters around major equipment allows safe movement and material handling.

How do you identify casting room bottlenecks?

Track one full production cycle and record movement, delays, and congestion points between stations.

What tools help plan a casting room layout?

Digital floor planning tools allow teams to test equipment placement and workflow paths before moving heavy machinery.
