Common Problems When Using 3D Air Conditioning Models and How to Fix Them: Practical fixes for import errors, missing textures, scale issues, and performance problems in HVAC 3D models.

Direct Answer

The most common problems with 3D air conditioning models include import errors, missing textures, incorrect scale, heavy polygon counts, and software compatibility issues. These problems usually come from format mismatches, missing asset files, or unoptimized geometry. Fixing them requires checking file formats, relinking materials, correcting units, and simplifying mesh complexity.

Quick Takeaways

1. Most 3D air conditioning model import errors are caused by unsupported file formats or missing dependencies.
2. Missing textures usually happen when texture folders are not included with the model files.
3. Incorrect scale is typically due to mismatched unit settings between modeling software.
4. Large HVAC models often contain unnecessary polygons that slow down rendering.
5. Using optimized workflows prevents most compatibility and performance issues.

Introduction

In the last decade working on residential and commercial interiors, I have imported hundreds of HVAC assets into design environments. And surprisingly, 3D air conditioning models are some of the most troublesome files designers deal with. A model might look perfect in the asset library, but once imported into your scene, the air conditioner suddenly appears ten times too large, textures disappear, or the model refuses to load entirely.

These issues usually appear when designers integrate mechanical assets into interior visualizations or architectural planning workflows. Many of my clients encounter them while building layouts using tools that combine space planning and visualization, such as workflows that help generate full interior concepts from layout ideas. When HVAC components enter the scene, technical conflicts often follow.

The good news is that most of these problems are predictable. After troubleshooting dozens of projects—from apartment renovations to office planning—I started noticing the same patterns again and again. In this guide, I'll break down the most common problems with 3D air conditioning models and the practical fixes professionals use to solve them quickly.

save pin

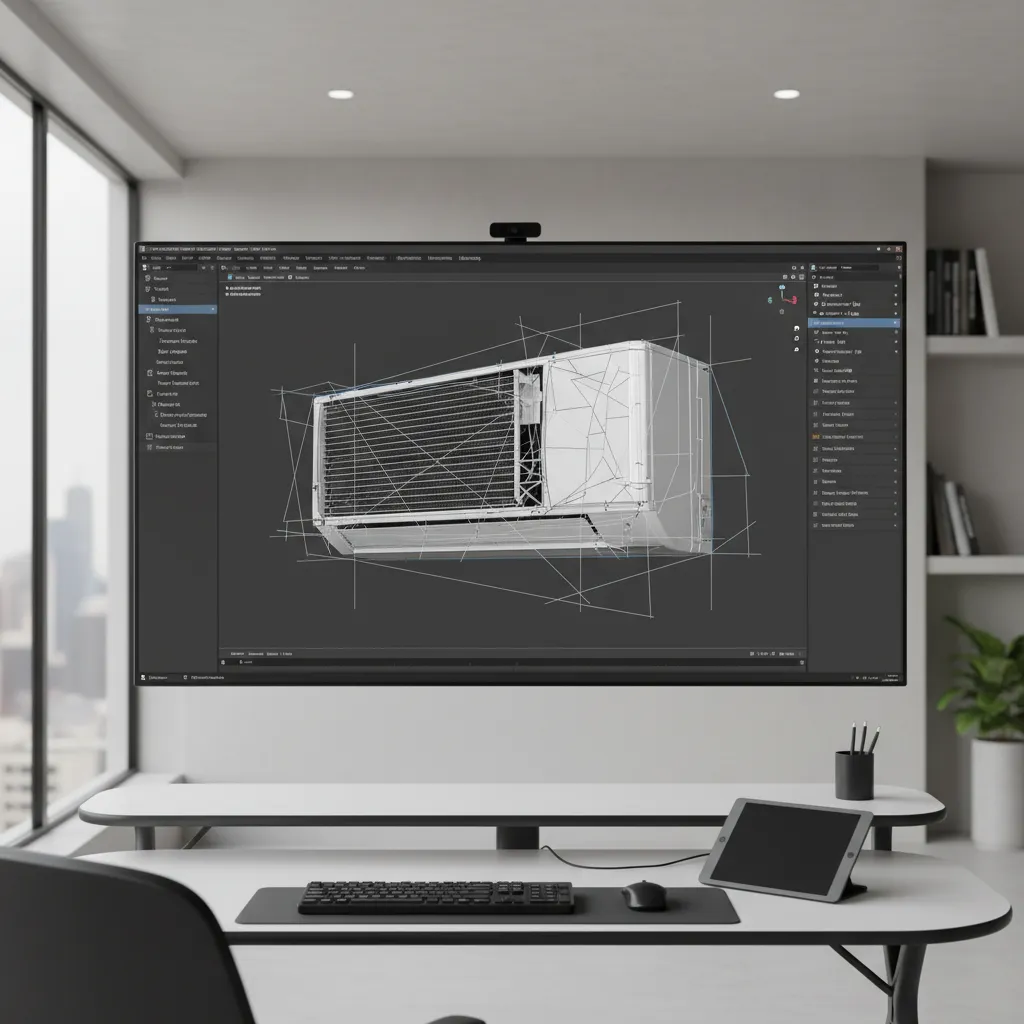

Why 3D Air Conditioning Models Fail to Import Correctly

Key Insight: Most 3D air conditioning model import errors happen because the file format or embedded data is incompatible with the target software.

Different modeling ecosystems treat geometry and metadata differently. A model exported from a BIM platform like Revit often carries parametric data that standard 3D software cannot interpret. When imported into a renderer or layout tool, parts of the model may fail to load.

Common causes include:

1. Unsupported file formats
2. Broken geometry during export
3. Missing linked files
4. Corrupted mesh data

Typical troubleshooting steps:

1. Re-export the model using FBX or OBJ.
2. Ensure "embed media" is enabled during export.
3. Check that the model is triangulated or properly meshed.
4. Open the file in an intermediate tool like Blender to validate geometry.

According to Autodesk documentation, FBX remains the most stable interchange format for transferring geometry and materials between modeling environments. When dealing with a 3D air conditioning model import error, re-exporting in FBX solves the issue surprisingly often.

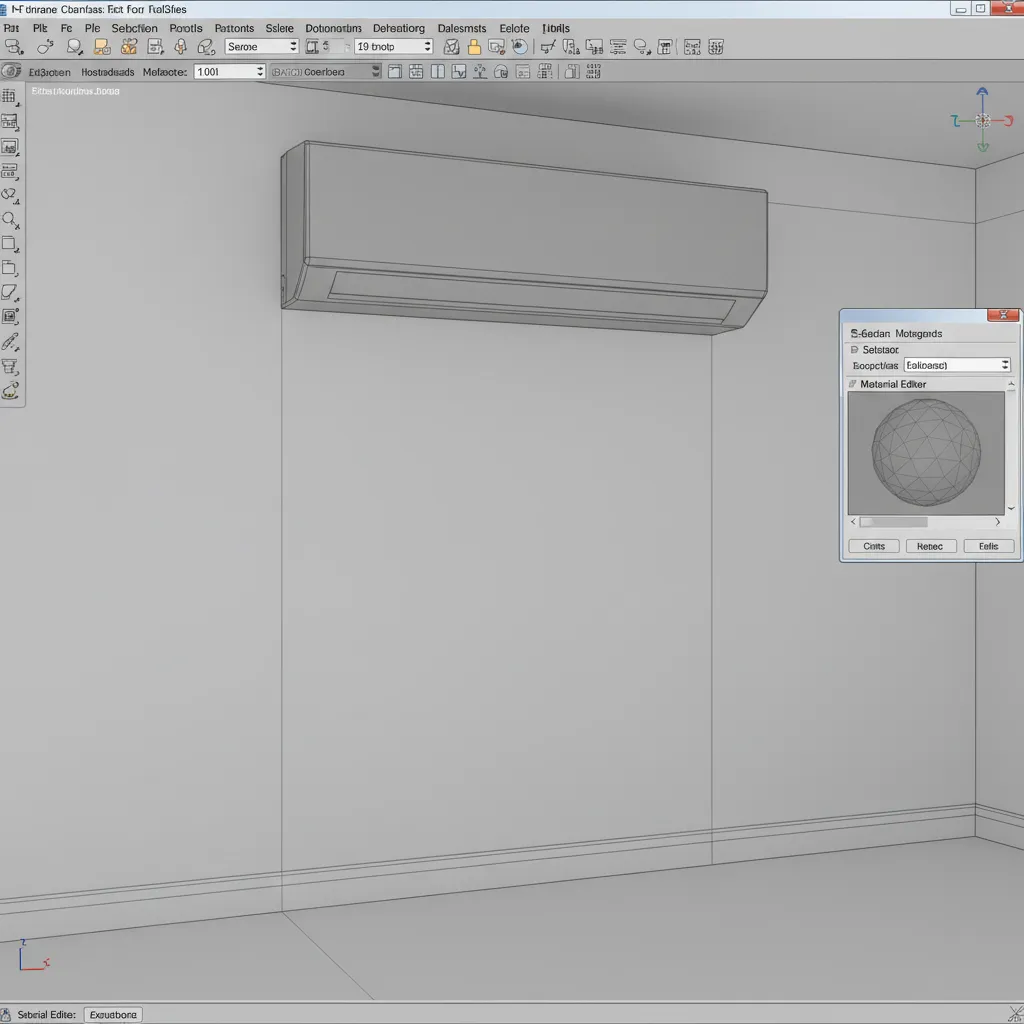

Fixing Missing Textures in HVAC Models

Key Insight: Missing textures in HVAC models almost always occur because the texture directory is not linked or exported with the model.

If your air conditioner model loads as a plain gray object, the geometry is intact but the material references are broken. This is one of the most common problems I see when designers download assets from online libraries.

The texture troubleshooting checklist:

1. Locate the original texture folder.
2. Relink materials inside the rendering software.
3. Confirm the texture file paths are relative rather than absolute.
4. Repack textures into the model file if the format supports it.

Another overlooked issue is texture resolution. Many HVAC manufacturers publish extremely large texture maps intended for product marketing renders. These textures can exceed 8K resolution, which slows down viewport performance. Resizing them to 2K or 4K often improves workflow without visible quality loss.

save pin

Resolving Scale and Dimension Problems

Key Insight: Scale problems occur when the model and the scene use different unit systems.

I once imported a wall-mounted AC unit that appeared larger than the entire apartment wall. The model itself wasn't wrong—the units simply differed. The asset was modeled in millimeters while the scene used meters.

Typical unit conflicts:

1. Millimeters vs meters
2. Inches vs centimeters
3. BIM parametric scaling vs static mesh scale

Steps to correct scale:

1. Check the original modeling unit.
2. Verify the target software unit settings.
3. Apply a global scale correction during import.
4. Freeze transformations after scaling.

For layout-driven workflows—especially when planning mechanical equipment within interior spaces—accurate scaling becomes critical. Designers often rely on tools that help visualize room layouts with precise architectural measurements. If the HVAC model scale is wrong, it can completely distort clearance calculations.

save pin

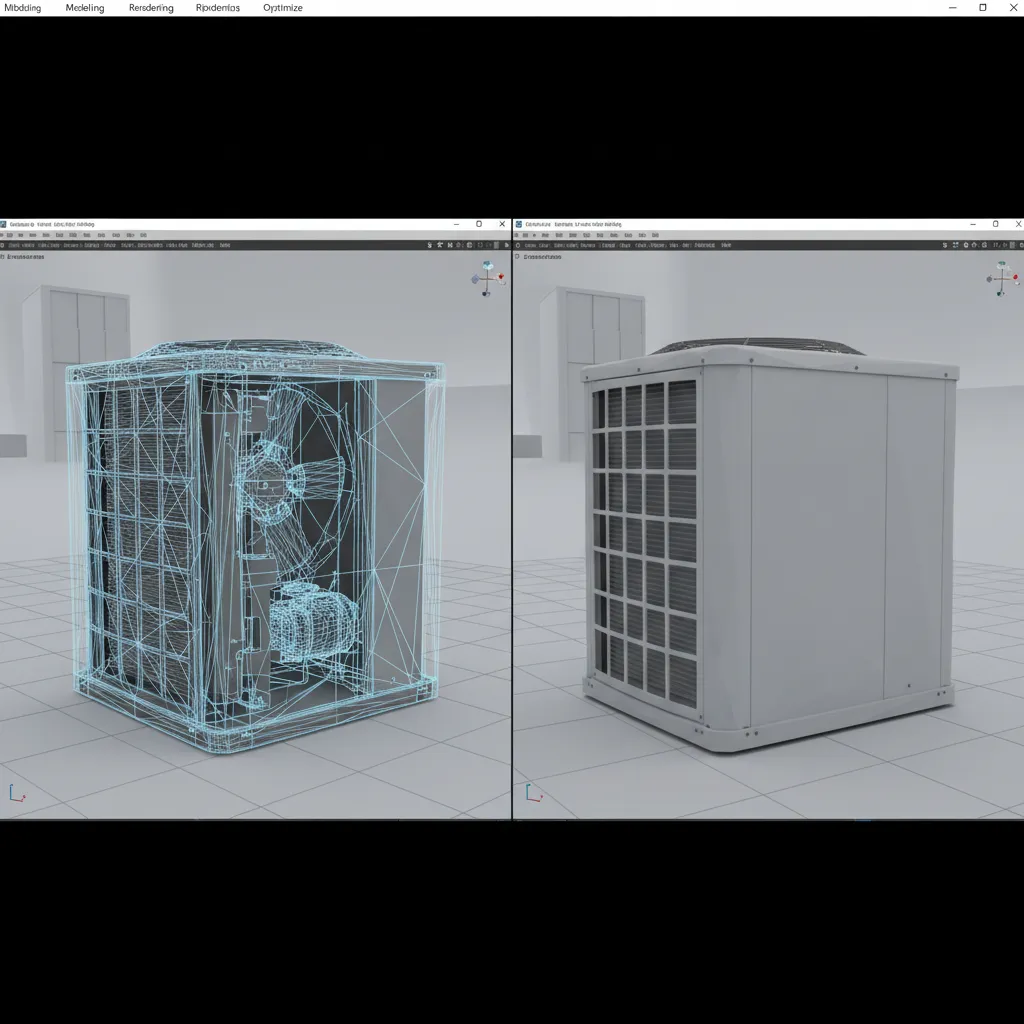

Handling Polygon Overload in AC Units

Key Insight: Many manufacturer-supplied HVAC models contain far more polygons than necessary for architectural visualization.

One of the hidden performance killers in rendering pipelines is over-detailed mechanical models. Some air conditioning units are modeled with screws, internal fins, and micro geometry that will never be visible in a room render.

Signs of polygon overload:

1. Viewport lag when moving the camera
2. Long render preparation times
3. Large file sizes

Optimization techniques:

1. Use mesh decimation tools.
2. Replace complex components with normal maps.
3. Remove internal geometry.
4. Create simplified LOD versions.

In several commercial office projects I've worked on, simplifying HVAC assets reduced scene polygon counts by nearly 40%. That translated into significantly faster rendering times and smoother navigation.

save pin

Compatibility Issues with BIM and CAD Software

Key Insight: BIM-based HVAC models often include parametric information that standard rendering tools cannot interpret.

Revit HVAC families are designed for building documentation, not visualization. When exported into standard 3D environments, the parametric behavior disappears and sometimes leaves behind broken geometry.

Common compatibility issues include:

1. Lost parameters
2. Broken nested families
3. Material mapping errors
4. Unexpected scaling

The most reliable workflow I recommend is:

1. Export the BIM model to FBX.
2. Clean geometry in a mesh editor.
3. Reapply materials.
4. Import into visualization software.

Best Practices to Prevent Model Errors

Key Insight: Preventing problems with 3D air conditioning models is far easier than fixing them later.

Over time, I developed a short checklist my team follows before importing HVAC models into any visualization project.

1. Always verify model units before importing.
2. Store textures in the same project folder.
3. Use optimized mesh versions when available.
4. Keep original source files for troubleshooting.
5. Test import using a small sandbox scene.

Once the model is verified and optimized, rendering workflows become far more predictable. Many designers eventually integrate these assets into complete visualization pipelines that help create photorealistic interior renderings for full home projects.

Answer Box

The majority of 3D air conditioning model problems come from format mismatches, missing texture files, incorrect unit scaling, or overly dense geometry. Checking file formats, relinking materials, and optimizing polygons usually resolves these issues quickly.

Final Summary

1. 3D air conditioning model errors usually originate from file format or unit mismatches.
2. Missing textures are typically caused by broken file paths.
3. Incorrect scaling results from inconsistent measurement units.
4. Reducing polygon count dramatically improves rendering performance.
5. Clean import workflows prevent most HVAC model problems.

FAQ

Why does my 3D air conditioning model fail to import?

This usually happens because the software does not support the model format or the file was exported incorrectly. Re-exporting as FBX often fixes the issue.

How do I fix missing textures in an HVAC model?

Locate the texture folder and relink the materials inside your software. Ensure the textures were exported with the model.

Why is my HVAC 3D model the wrong size?

The most common cause is mismatched units between the model and the scene. Check whether the asset was created in millimeters, centimeters, or meters.

What causes a 3D air conditioner model to render slowly?

Excessive polygon counts are usually responsible. Simplifying the mesh or using lower-detail models improves performance.

Can Revit HVAC families be used in rendering software?

Yes, but they usually need to be exported and cleaned because parametric BIM data does not translate well into visualization environments.

How do I reduce polygon count in an HVAC model?

Use mesh decimation tools, remove internal components, and replace small geometric details with texture maps.

Why does my air conditioner 3D model appear gray?

The model likely lost its texture references during import. Relinking the material files usually fixes it.

What is the best file format for a 3D air conditioning model?

FBX is widely considered the most stable format for transferring models between design, BIM, and rendering software.
