Common Problems When Using Modular Duplex Floor Plans and How to Fix Them: Real design solutions for fixing layout, lot fit, plumbing alignment, and code issues in modular duplex projects

Direct Answer

Modular duplex floor plan problems usually happen when standardized factory modules meet real-world constraints like irregular lots, plumbing stacks, stair placement, and local building codes. The fix is rarely redesigning the entire building. Instead, experienced designers adjust module dimensions, vertical utility alignment, and circulation zones so the plan works with both factory manufacturing and the site.

Quick Takeaways

1. Most modular duplex layout failures come from lot width mismatches and module size limitations.
2. Stacking bathrooms and kitchens vertically prevents costly plumbing redesigns.
3. Entry and stair placement often determines whether a duplex feels efficient or cramped.
4. Local codes frequently require small adjustments to otherwise perfect prefab layouts.
5. Testing layouts with digital floor planners reveals hidden circulation problems early.

Introduction

After working on modular housing projects for more than a decade, I can tell you this: modular duplex floor plan problems almost never come from the architecture itself. They come from the gap between a factory-optimized design and a real building site.

I have seen beautiful prefab duplex plans fail simply because the lot was four feet narrower than expected, or because plumbing stacks were misaligned between modules. These are common modular duplex design mistakes that many guides online never explain.

One of the first things I recommend to developers and homeowners is testing the plan inside a digital layout environment before construction. Tools that let you experiment with different duplex floor configurations before constructionoften reveal circulation problems, wasted hallway space, or entry conflicts within minutes.

In this guide, I'll walk through the most common prefab duplex layout issues I see in real projects and—more importantly—how we actually fix them in practice.

save pin

Why Some Modular Duplex Floor Plans Don't Fit Real Lots

Key Insight: Most modular duplex floor plans fail because standardized module widths rarely match the dimensions of real residential lots.

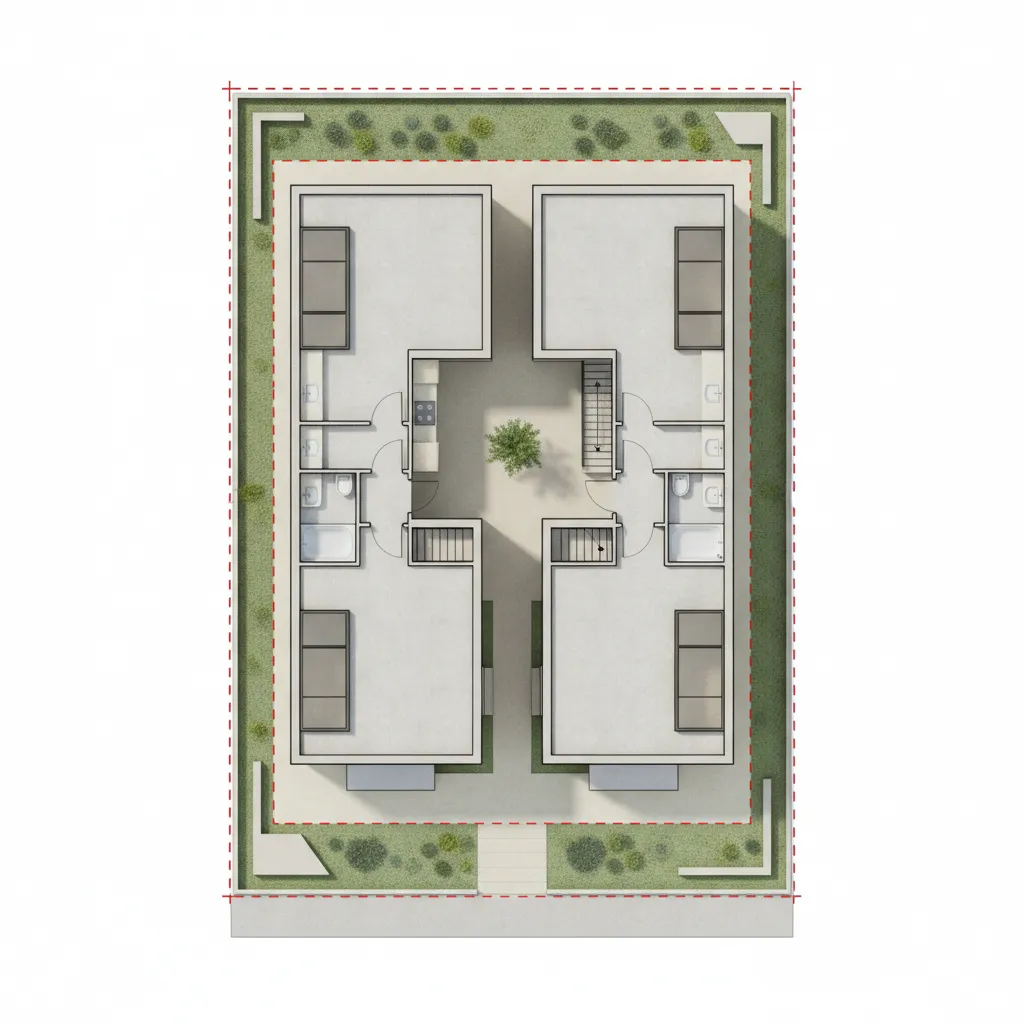

Factories typically produce modules in widths between 12 and 16 feet. A typical duplex might combine two or three modules per unit. On paper, this looks flexible. In reality, lot setbacks, driveway clearance, and side-yard requirements quickly break the math.

For example, I worked on a project in Southern California where a 32‑foot-wide duplex design could not fit on a 50‑foot lot once setbacks were applied. The solution wasn't redesigning everything. We reduced hallway width slightly and converted a side stair to a stacked stair configuration.

Common lot compatibility problems include:

1. Side setbacks shrinking buildable width
2. Garage access requirements altering entry placement
3. Utility easements cutting into the footprint
4. Driveway turning radius affecting unit orientation

According to the National Association of Home Builders, zoning and setback constraints are among the top three causes of modular housing redesigns during permitting.

Module Size Restrictions That Affect Layouts

Key Insight: Factory transport limits quietly dictate room sizes, hallway widths, and even window placement.

Modules must travel on highways. That means height, width, and structural framing are restricted by transportation regulations.

This creates subtle layout compromises many designers overlook.

1. Extra-wide living rooms often require combining two modules.
2. Open kitchens may need structural beams at module joints.
3. Long hallways appear when rooms must fit module geometry.

One practical fix is planning "transition zones" at module seams. These are spaces like closets, laundry areas, or pantry walls that hide structural connections between modules.

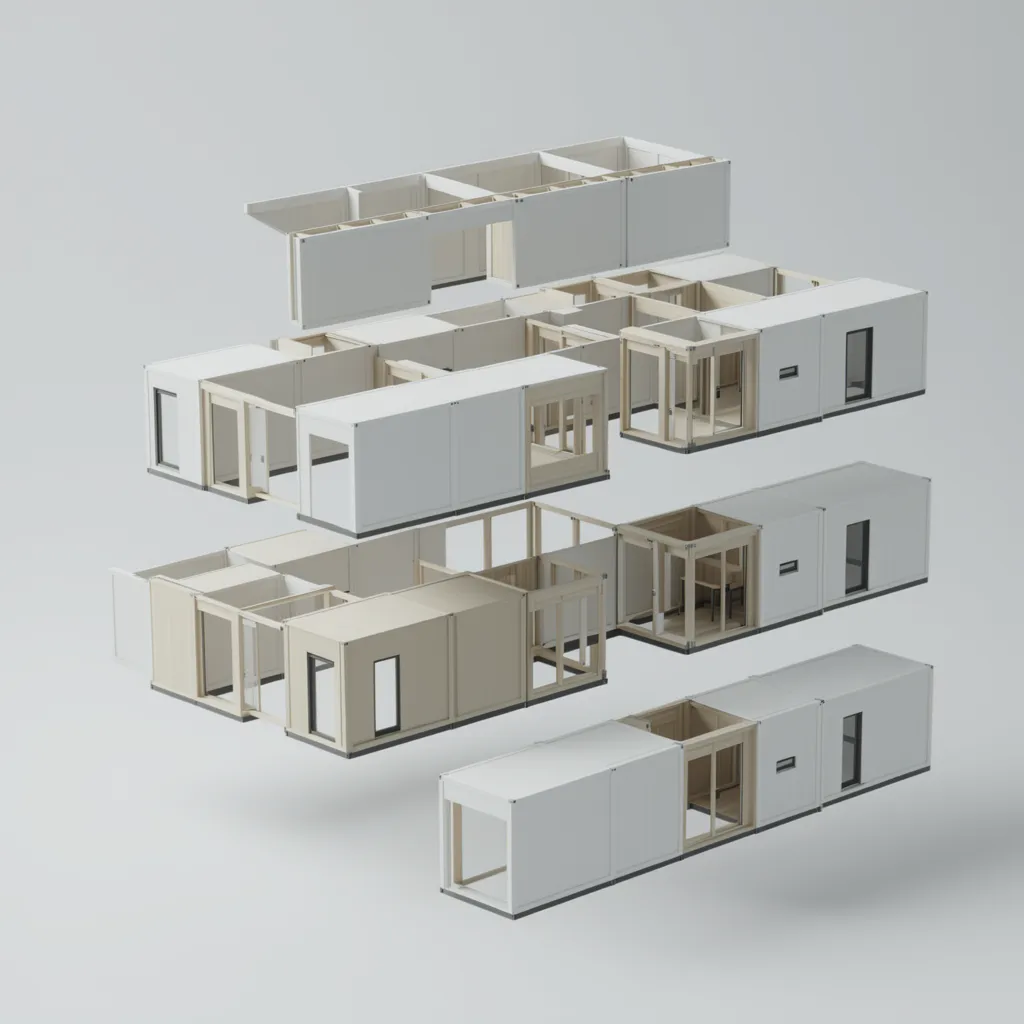

When I review modular duplex layouts, I often rebuild them inside a visualization environment that lets teams simulate how modular sections connect inside a full duplex layout. This quickly reveals where module seams interfere with functional rooms.

save pin

Utility and Plumbing Alignment Challenges

Key Insight: Misaligned plumbing between modules is one of the most expensive mistakes in modular duplex design.

Because modules are manufactured separately, plumbing systems need to connect vertically and horizontally once the structure is assembled onsite.

The most efficient modular duplex designs follow a "wet wall stacking" principle.

1. Bathrooms stacked above bathrooms
2. Kitchens aligned back-to-back
3. Laundry rooms near plumbing risers
4. Shared plumbing walls between units

If plumbing fixtures are scattered across the layout, installers often need custom piping connections after modules arrive. That increases cost, time, and risk of leaks.

In one duplex renovation project I consulted on, relocating a second-floor bathroom by just three feet reduced plumbing installation cost by nearly 18% because the vertical stack aligned with the kitchen below.

Answer Box

The most common modular duplex floor plan problems come from module transport limits, lot setbacks, and misaligned plumbing stacks. Smart designers solve these issues by adjusting circulation zones, stacking utilities, and testing layouts digitally before construction begins.

Staircase and Entry Placement Problems

Key Insight: Stair and entry placement determines whether a duplex feels spacious or cramped.

In many prefab duplex plans, stairs are inserted wherever module framing allows. The result is often awkward circulation paths.

Typical problems I see:

1. Front doors opening directly into staircases
2. Long narrow corridors leading to living rooms
3. Upper-unit stairs consuming valuable ground-floor space
4. Confusing shared entry points

The most effective fixes include:

1. Using side-entry stairs rather than center stairs
2. Combining entry and mudroom spaces
3. Stacking stairs vertically between units
4. Rotating stair orientation to align with module seams

Small circulation adjustments like these often improve usable floor area by 6–10% without increasing the footprint.

save pin

Fixing Inefficient Room Layouts in Duplex Designs

Key Insight: Inefficient duplex layouts usually come from leftover space created by module seams.

When modules are combined, leftover areas often turn into awkward corridors or oversized transitional spaces.

To correct inefficient duplex layouts, designers typically apply three strategies:

1. Convert dead corridors into storage. Built-in cabinets or laundry closets make hallways functional.
2. Merge small rooms. Combining dining and kitchen areas often eliminates wasted wall space.
3. Shift doors rather than walls. Door placement alone can improve furniture layout dramatically.

One trick I frequently use is running a quick layout test in a room planning environment where you can test furniture placement and circulation paths inside a duplex layout. Many inefficient designs become obvious the moment you try placing a sofa or dining table.

save pin

Adapting Modular Plans to Local Building Codes

Key Insight: Even well-designed modular duplex plans often need adjustments to meet local zoning and building codes.

Common regulatory conflicts include:

1. Minimum stair width requirements
2. Fire separation between units
3. Egress window sizing
4. Parking and driveway rules

Many jurisdictions also require enhanced fire-rated assemblies between duplex units. That can slightly increase wall thickness, which affects interior room dimensions.

According to the International Residential Code (IRC), duplex units require a minimum one-hour fire-resistance-rated separation between dwellings unless alternative assemblies are approved.

Experienced modular designers anticipate these adjustments early so the factory build does not need expensive redesign during permitting.

Final Summary

1. Most modular duplex floor plan problems come from mismatches between factory modules and real lot conditions.
2. Stacked plumbing and aligned wet walls reduce installation complexity.
3. Smart stair placement dramatically improves circulation.
4. Testing layouts digitally exposes inefficient room arrangements early.
5. Local building codes often require subtle but important plan adjustments.

FAQ

1. What are the most common modular duplex floor plan problems?

Lot width conflicts, plumbing misalignment, inefficient hallways, and poor stair placement are the most common modular duplex floor plan problems.

2. Why do modular duplex layouts sometimes waste space?

Because modules are rectangular shipping units, leftover areas often become awkward corridors or unused corners when modules are combined.

3. Can modular duplex floor plans be customized?

Yes. Most manufacturers allow adjustments to room placement, entry locations, and plumbing stacks while keeping the module structure intact.

4. How do designers fix inefficient duplex layouts?

They adjust circulation paths, relocate doors, merge rooms, and convert hallway space into storage or utility areas.

5. Are plumbing systems difficult in modular duplex construction?

They can be if fixtures are scattered. Efficient designs stack kitchens and bathrooms vertically to simplify connections.

6. Do local codes affect modular duplex floor plans?

Yes. Building codes often require fire-rated walls, stair width minimums, and specific egress window sizes.

7. What tools help identify modular duplex design mistakes?

Digital floor planners and 3D layout simulations help visualize circulation, furniture placement, and module connections.

8. Is modular duplex construction cheaper than traditional building?

Often yes, but only if the design avoids major modular duplex building challenges like structural misalignment or plumbing redesign.
