Common Problems When Using Online Roof Design Software and How to Fix Them: Practical fixes for roof design software errors so you can correct layouts, measurements, and pitch calculations quickly

Direct Answer

Most roof design software problems come from incorrect measurements, misaligned geometry, or pitch settings that don’t match the building footprint. These issues usually appear as wrong dimensions, broken roof shapes, or export failures. Fixing them typically involves correcting scale settings, snapping roof lines to the base plan, and verifying pitch calculations before rendering.

Quick Takeaways

1. Most roof design errors start with incorrect base measurements or scale mismatches.
2. Roof pitch calculation mistakes usually come from mixing slope ratios and angle values.
3. Misaligned geometry often happens when roof edges are not snapped to the building footprint.
4. Rendering failures are commonly caused by overlapping surfaces or incomplete roof faces.
5. A clean floor plan foundation prevents the majority of roof modeling problems.

Introduction

After working on residential projects for more than a decade, I’ve noticed something interesting: most roof design software problems aren’t actually software bugs. They’re workflow issues. The tool simply exposes mistakes that already exist in the underlying layout.

I’ve seen contractors blame the software when roof ridges twist in the wrong direction or slopes look impossible. But once we inspect the plan, the root cause is almost always the same—incorrect scale, misaligned edges, or a pitch setting that doesn’t match the building dimensions.

If you're currently fighting with incorrect roof dimensions or broken layouts, the good news is that these issues are usually easy to fix once you know where to look. In fact, many professionals now start their projects by building the base structure using tools like a visual workspace that lets you draft accurate floor layouts before modeling the roof, because roof geometry depends heavily on a clean structural outline.

In this guide, I’ll walk through the most common roof design software errors I’ve encountered across real projects—and exactly how to troubleshoot them without restarting your design.

save pin

Why Roof Designs Fail in Online Tools

Key Insight: Roof models usually fail because the building footprint underneath them contains small geometric inconsistencies.

Online roof modeling tools rely on clean geometry. If the base structure has overlapping walls, slightly angled corners, or uneven lengths, the software struggles to generate a stable roof structure.

In practice, I’ve seen errors caused by something as small as a wall that’s misaligned by half an inch. The roof algorithm interprets that as a different plane and creates strange intersections.

Common causes of roof design failures:

1. Non‑closed building outlines
2. Walls that are slightly off-axis
3. Duplicate structural lines
4. Incorrect snapping when drawing corners
5. Mixed measurement units

According to guidance from the National Association of Home Builders, consistent geometry is critical for any digital building model because automated roof calculations depend on closed shapes and correct angles.

The simple rule I use on projects: if the footprint isn’t perfectly clean, the roof will never behave correctly.

Fixing Incorrect Roof Pitch Calculations

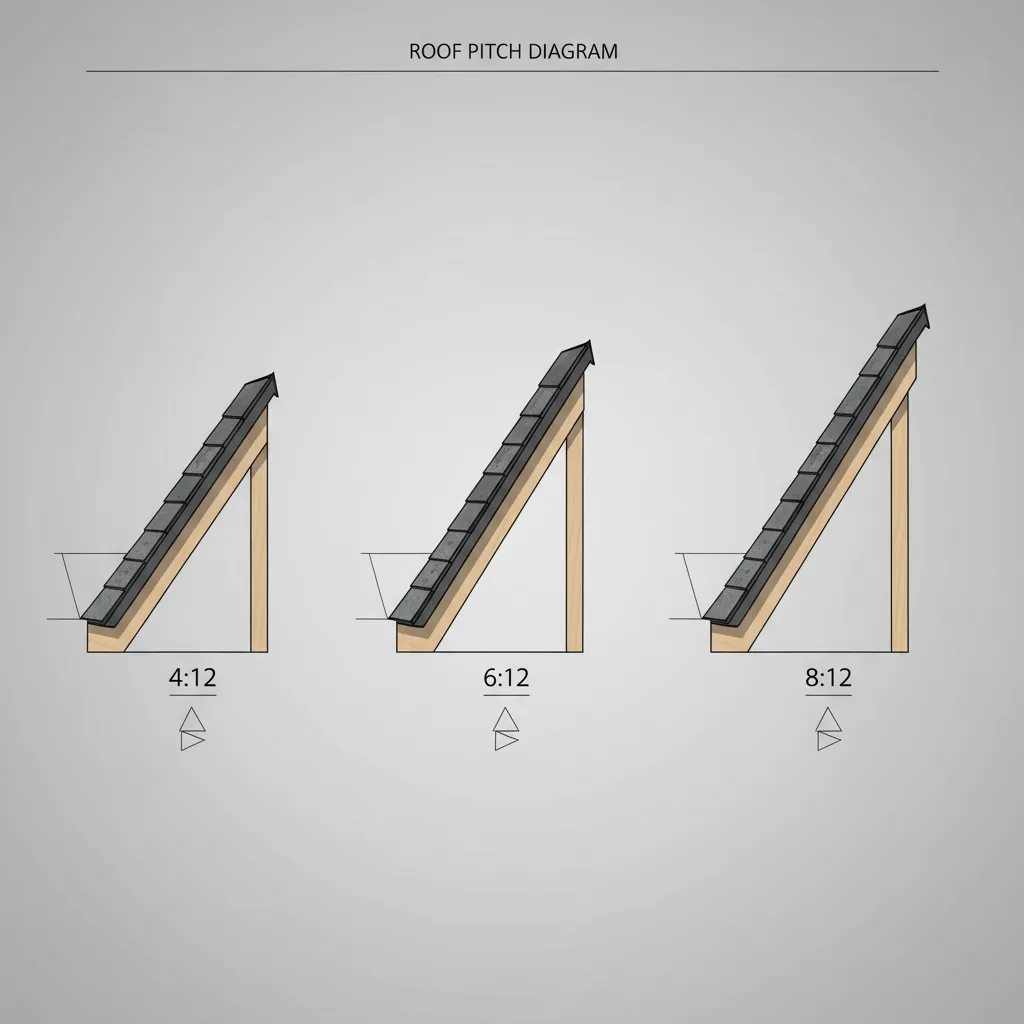

Key Insight: Roof pitch calculation errors usually happen because the software expects slope ratios while the user enters angle degrees.

Pitch confusion is extremely common. Some tools use ratios like 6:12 or 8:12, while others require degrees. If you enter one format where the other is expected, the slope becomes dramatically incorrect.

Quick method to verify roof pitch:

1. Confirm whether the tool uses degrees or rise‑over‑run.
2. Check local building standards for typical pitch ranges.
3. Verify ridge height after applying the slope.
4. Inspect eave alignment on all roof planes.

Typical residential pitch ranges:

1. Low slope: 2:12 to 4:12
2. Standard residential: 5:12 to 9:12
3. Steep roof: 10:12 or higher

If the roof suddenly becomes extremely tall or nearly flat, it’s usually a pitch format error rather than a structural issue.

save pin

Resolving Measurement and Scale Errors

Key Insight: Incorrect scaling between imported plans and modeling tools is the leading cause of wrong roof dimensions.

This problem shows up constantly when users import blueprints or sketches into online roof modeling software. If the imported image scale isn’t calibrated properly, every roof dimension becomes inaccurate.

Steps to fix scale errors:

1. Measure one known dimension from the blueprint.
2. Set that exact distance inside the software.
3. Lock the scale before drawing roof edges.
4. Re-check ridge and eave distances.

Many designers now verify this step using tools like a simple planner that converts sketches into correctly scaled digital layouts, which dramatically reduces downstream roof modeling errors.

Once the base scale is accurate, most dimension problems disappear immediately.

How to Correct Misaligned Roof Plan Geometry

Key Insight: Misaligned roof geometry is usually caused by roof planes that aren’t snapped precisely to wall edges.

When roof edges float slightly outside the building perimeter, the software tries to reconcile overlapping planes. That’s when you see warped valleys or broken ridgelines.

Checklist to repair roof alignment:

1. Turn on grid or snap settings
2. Align roof edges with exterior walls
3. Ensure all roof planes share common ridge lines
4. Remove overlapping roof surfaces
5. Verify valley intersections

In architectural visualization workflows, even small misalignments can create rendering artifacts or structural inconsistencies. Cleaning these edges usually stabilizes the entire roof model.

save pin

Answer Box

The fastest way to fix roof design software problems is to verify three things: the base plan scale, roof pitch format, and alignment of roof edges to the building footprint. When those elements are correct, most modeling and rendering issues disappear.

Dealing With Software Rendering or Export Issues

Key Insight: Rendering failures usually occur because roof surfaces overlap or the model contains incomplete geometry.

Rendering engines require clean surfaces. If two roof planes occupy the same space—even slightly—the software may fail to export the model or produce broken visuals.

Common rendering problems and fixes:

1. Overlapping roof faces → delete and redraw one surface
2. Missing roof segments → close open edges
3. Shadow artifacts → recalculate lighting
4. Export failures → simplify complex geometry

Professional visualization workflows often rebuild roof surfaces entirely if the geometry becomes unstable. Surprisingly, this can be faster than debugging each individual plane.

Tips to Avoid Design Errors in Future Projects

Key Insight: Preventing roof layout errors is mostly about establishing a clean workflow before roof modeling begins.

Experienced designers rarely start with the roof itself. Instead, we build a precise structural foundation first.

A reliable roof design workflow:

1. Create a precise floor plan
2. Confirm measurements and scale
3. Define wall heights
4. Apply roof planes
5. Verify ridge alignment
6. Render and export

Many teams streamline this process by starting with a workflow that automatically converts layout sketches into structured building models, which dramatically reduces manual roof corrections later.

save pin

Final Summary

1. Most roof design software problems originate from incorrect base geometry.
2. Pitch errors usually come from mixing slope ratios and degree angles.
3. Scale calibration fixes many dimension issues instantly.
4. Snapping roof planes to walls prevents broken intersections.
5. Clean modeling workflows eliminate most troubleshooting later.

FAQ

Why does my roof design software show incorrect dimensions?

This usually happens because the floor plan scale was not calibrated correctly when importing a blueprint or sketch.

How do I fix roof pitch calculation errors in design software?

Verify whether the tool expects pitch ratios (like 6:12) or degrees. Entering the wrong format often causes unrealistic slopes.

What causes broken roof shapes in online modeling tools?

Broken roof geometry typically appears when roof edges are not aligned with the building footprint.

Why does roof design software fail to render my model?

Rendering failures often happen when roof planes overlap or when surfaces contain gaps.

Can incorrect measurements affect roof design software results?

Yes. Incorrect base measurements are one of the most common roof design software problems and can distort the entire model.

How accurate are online roof modeling tools?

They can be highly accurate when the base plan scale and geometry are correct.

What is the best way to avoid roof modeling errors?

Start with a precise floor plan and verify scale before creating roof planes.

Why does my roof layout look twisted or uneven?

This usually happens when roof planes are not snapped correctly to wall edges.
