Common Problems with 3D Epoxy Flooring and How to Fix Them: A practical troubleshooting guide to identify, repair, and prevent common 3D epoxy floor issues before they become expensive replacements.

Direct Answer

The most common problems with 3D epoxy flooring include air bubbles, peeling layers, surface imperfections, and color distortion. Most of these issues are caused by poor surface preparation, moisture in the concrete, or incorrect curing conditions. In many cases, the damage can be repaired through sanding, re‑coating, or localized epoxy patching rather than replacing the entire floor.

Quick Takeaways

1. Most 3D epoxy floor failures come from improper surface preparation.
2. Air bubbles usually form when moisture or trapped air escapes during curing.
3. Peeling typically means the epoxy did not properly bond to the substrate.
4. Small damaged areas can often be repaired without removing the whole floor.
5. Regular maintenance significantly extends the lifespan of 3D epoxy flooring.

Introduction

3D epoxy flooring looks incredible when it’s installed correctly. I’ve used it in residential bathrooms, retail showrooms, and even a few boutique hotels. But after more than a decade working with decorative flooring systems, I can say this confidently: most complaints about 3D floors are not about the design — they’re about installation mistakes.

Homeowners often contact me weeks or months after installation asking why bubbles appear, why the surface feels uneven, or why parts of the design start lifting. These are classic 3D epoxy floor problems and solutions scenarios that installers should anticipate long before the resin touches the floor.

Another common issue is unrealistic expectations. People see perfect marketing photos but don’t realize that environmental factors, humidity, and substrate conditions dramatically affect epoxy results. In fact, many of the failures I’ve inspected could have been prevented during the planning stage — especially when the layout and surface conditions were evaluated carefully using tools like a simple floor layout planning workflow before installation begins.

In this guide, I’ll walk through the most common 3D flooring failures I’ve encountered on real projects, why they happen, and how professionals actually repair them.

save pin

Why Problems Occur in 3D Epoxy Flooring

Key Insight: Nearly every 3D epoxy flooring failure traces back to poor substrate preparation or incorrect curing conditions.

Epoxy is extremely strong, but it’s also unforgiving. If the concrete below contains moisture, dust, oil, or micro‑cracks, the resin cannot bond correctly.

In professional installations, contractors usually test concrete moisture levels and mechanically grind the surface before applying primer. Skipping those steps often leads to early failures.

Typical root causes include:

1. Moisture trapped inside concrete slabs
2. Insufficient floor grinding or sanding
3. Dust contamination before coating
4. Incorrect resin mixing ratios
5. Temperature changes during curing

Industry guidelines from organizations like the American Concrete Institute emphasize that decorative coatings require properly cured and tested concrete substrates. When these steps are ignored, the decorative layer becomes the weak link.

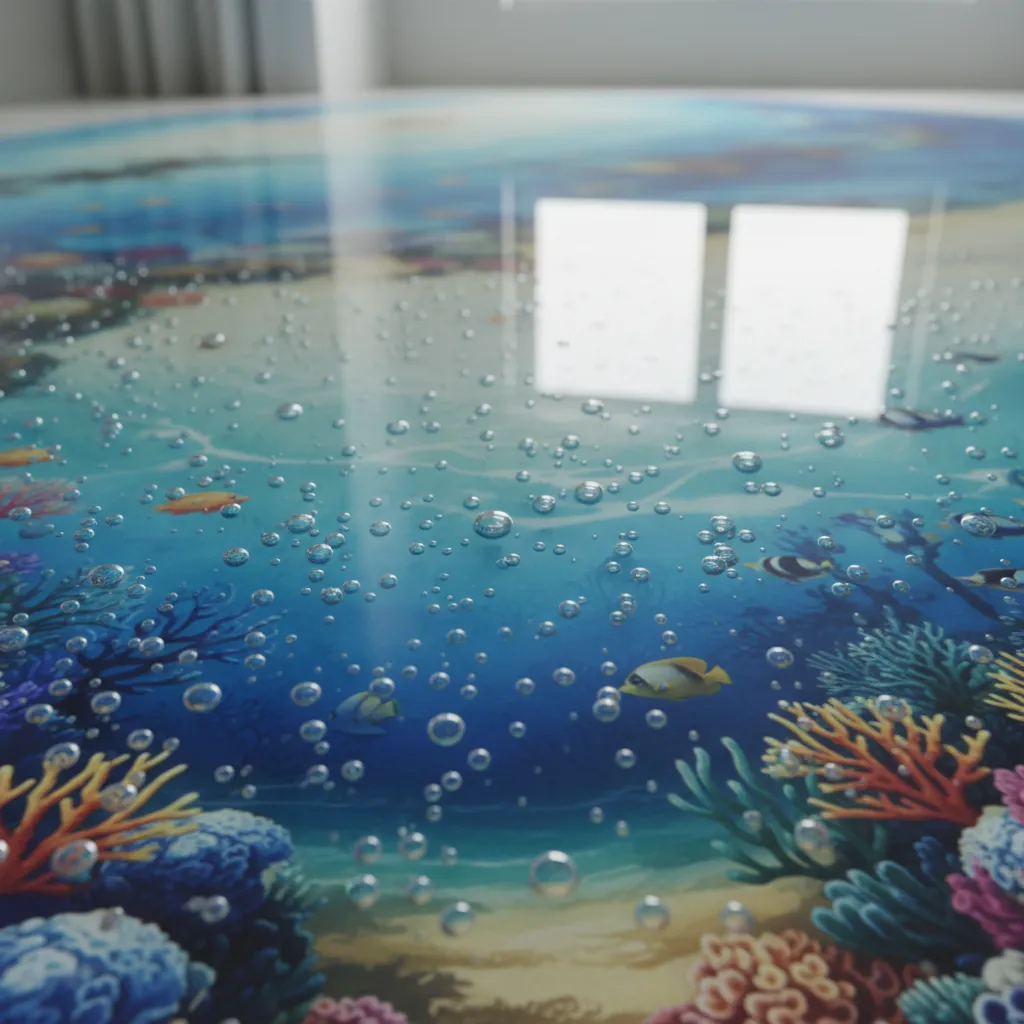

Air Bubbles and Surface Imperfections

Key Insight: Air bubbles appear when trapped air or moisture escapes through curing epoxy.

This is probably the most common complaint I see. Small craters or bubbles appear across the surface, sometimes hours after installation.

In many cases, the concrete slab contains microscopic air pockets. When epoxy warms during curing, air expands and rises through the resin layer.

Common causes of bubbles:

1. Concrete pores releasing trapped air
2. Applying epoxy on a hot substrate
3. High humidity during curing
4. Mixing resin too aggressively

Repair method:

1. Lightly sand the affected area
2. Apply a thin recoat of clear epoxy
3. Use a spiked roller to release trapped air

In severe cases, installers may need to grind the surface and apply a new clear coat layer.

save pin

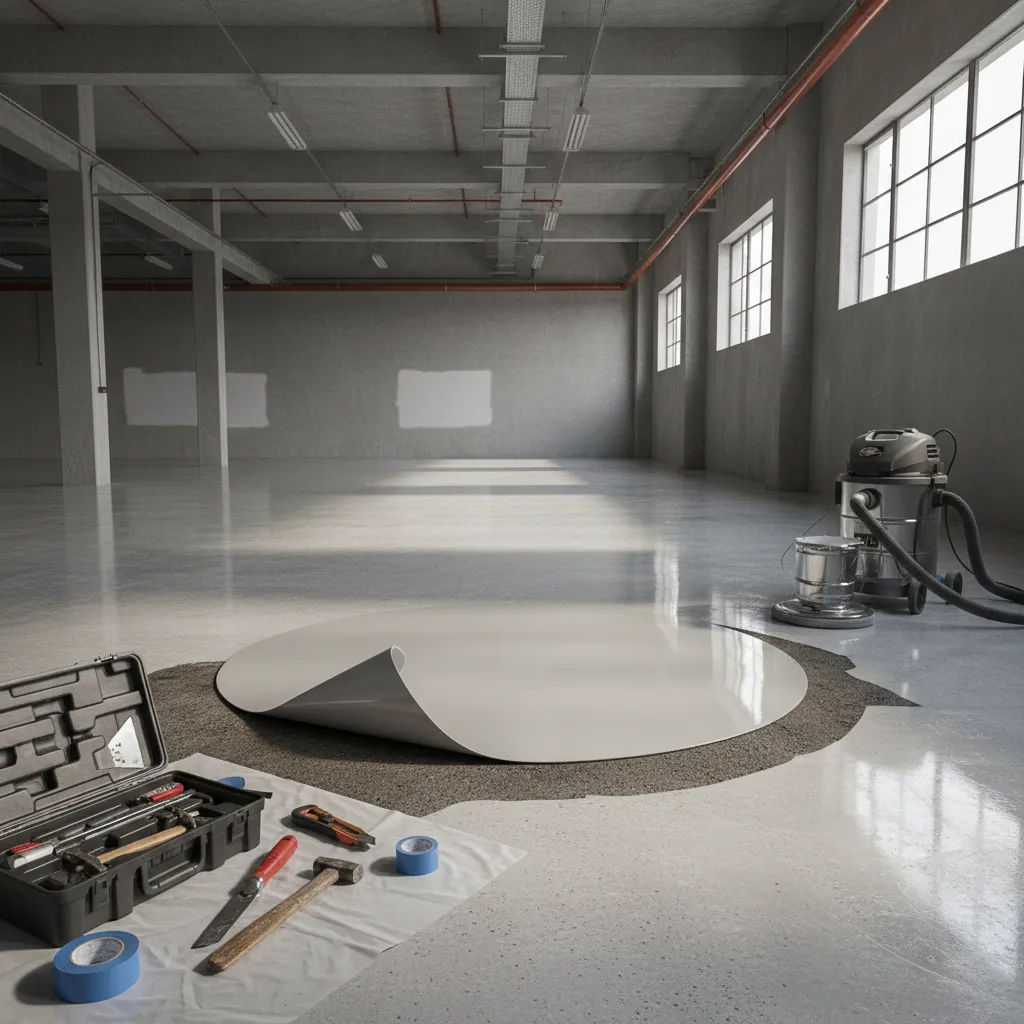

Peeling or Delamination Issues

Key Insight: Peeling occurs when the epoxy layer cannot properly adhere to the base surface.

When someone asks me about a 3D floor peeling issue fix, the first thing I check is the bonding layer between the concrete and the epoxy primer.

If the concrete was dusty or sealed with previous coatings, epoxy simply sits on top rather than chemically bonding to the surface.

Typical warning signs include:

1. Edges lifting near walls
2. Hollow sounds when tapping the floor
3. Thin sheets of epoxy peeling away

Repair options:

1. Remove loose epoxy completely
2. Re‑grind the concrete surface
3. Apply new primer and resin layers

When delamination spreads across large areas, a full resurfacing is often the safest solution.

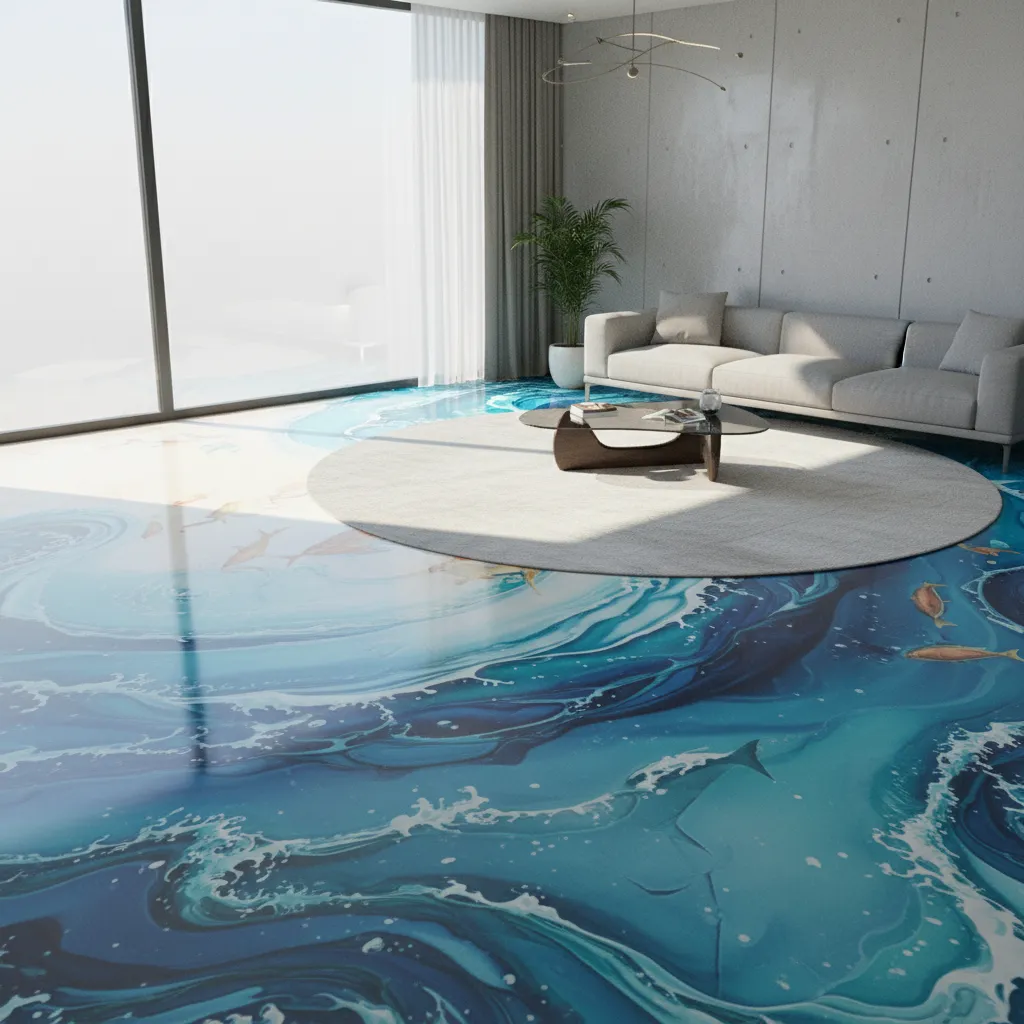

Color Fading or Image Distortion

Key Insight: Image fading usually happens because of UV exposure or low‑quality printing materials.

The visual layer in 3D flooring is typically a printed image sealed under clear epoxy. If the print quality or protective coating is poor, colors can fade within a few years.

Common reasons include:

1. Low‑resolution graphics
2. UV exposure from large windows
3. Thin protective epoxy layer
4. Cheap ink printing

Professional installers often apply UV‑resistant topcoats to reduce fading. In spaces with large windows, UV protective coatings become even more important.

save pin

Repair Methods for Damaged 3D Floors

Key Insight: Most damaged areas can be repaired locally without replacing the entire 3D epoxy floor.

One misconception I frequently hear is that a damaged 3D floor must be completely removed. That’s rarely true.

Depending on the issue, contractors can repair specific zones using targeted methods.

Typical repair workflow:

1. Identify the damaged section
2. Grind the affected area
3. Apply a compatible epoxy patch
4. Reapply the clear protective layer

When design sections need replacement, installers may reprint and embed a new image patch before resealing the floor.

Planning repairs is much easier when the floor layout is clearly mapped. Tools used for visualizing a detailed 3D floor plan before renovation help contractors isolate damage zones and estimate material needs.

When to Call a Professional Flooring Contractor

Key Insight: Structural epoxy failures usually require professional inspection and specialized equipment.

Small scratches and bubbles are manageable DIY fixes, but larger structural failures are different.

You should call a contractor if you notice:

1. Large sections lifting from the slab
2. Cracks spreading under the epoxy
3. Moisture stains appearing beneath the coating
4. Widespread discoloration

Professionals typically perform moisture tests and substrate inspections before recommending repairs.

If the original design needs modification, contractors may even recreate the room digitally using AI‑assisted interior visualization for flooring upgrades before applying new coatings.

Answer Box

Most 3D epoxy floor problems are caused by installation errors rather than material failure. Air bubbles, peeling, and fading typically result from moisture, poor surface preparation, or insufficient protective coatings. Early repairs such as sanding and recoating can often restore the floor without full replacement.

Final Summary

1. Poor surface preparation is the leading cause of 3D epoxy flooring failures.
2. Air bubbles usually result from trapped moisture or air in concrete.
3. Peeling indicates weak bonding between epoxy and the substrate.
4. Localized repairs often fix damage without replacing the entire floor.
5. Professional inspection is necessary for widespread delamination.

FAQ

1. What are the most common 3D epoxy floor problems?

Air bubbles, peeling, discoloration, and uneven curing are the most common 3D epoxy floor problems and solutions usually involve sanding and re‑coating.

2. Why do bubbles appear in 3D flooring?

Bubbles usually form when moisture or trapped air escapes from concrete during epoxy curing.

3. Can peeling 3D epoxy flooring be repaired?

Yes. Small areas can be ground down and recoated with new epoxy layers.

4. How long does a 3D epoxy floor typically last?

With proper installation and maintenance, 3D epoxy flooring can last 10–20 years.

5. Does sunlight damage 3D epoxy floors?

Prolonged UV exposure can cause fading unless UV‑resistant topcoats are used.

6. Is repairing 3D epoxy flooring expensive?

Minor repairs are relatively inexpensive, but large delamination areas may require resurfacing.

7. Can I fix epoxy floor bubbles myself?

Small bubbles can often be sanded and sealed with a new epoxy topcoat.

8. How do I prevent future 3D epoxy floor problems?

Proper concrete preparation, moisture testing, and high‑quality protective coatings prevent most failures.
