Common Problems With AI Bathroom Layouts and How to Fix Them: A practical troubleshooting guide to correcting unrealistic AI bathroom layouts and turning them into buildable designs.

Direct Answer

AI bathroom layouts often fail because the software lacks real-world construction context. The most common issues include incorrect fixture spacing, unrealistic plumbing placement, and layouts that technically fit on screen but cannot be built. The fix usually involves adjusting input measurements, validating plumbing locations, and applying basic spatial design rules.

Quick Takeaways

1. Most AI bathroom design problems come from inaccurate room measurements or incomplete input data.
2. Fixture spacing errors are the most common issue in AI bathroom layouts.
3. AI often ignores plumbing stack limitations, creating impossible layouts.
4. Manual review is necessary before any AI-generated bathroom design is finalized.
5. Better inputs dramatically improve AI bathroom planning accuracy.

Introduction

AI bathroom layouts look impressive at first glance. In seconds, a tool can generate a complete arrangement of showers, vanities, and toilets. But after working on residential renovation projects for more than a decade, I’ve learned that AI bathroom layouts often miss the practical constraints that contractors deal with every day.

The problem is simple: AI is great at geometry, but bathrooms are governed by plumbing, building codes, and human comfort. I’ve seen layouts where a toilet is technically centered but violates clearance standards, or showers placed far from the plumbing wall. These mistakes show up frequently when homeowners experiment with automated planning tools.

If you're experimenting with a visual bathroom planning workflow that generates layouts automatically, you’ll probably notice that some results look good but feel slightly off. This guide explains why that happens and how to fix the most common AI bathroom design problems.

Below are the issues I encounter most often when reviewing AI-generated bathroom layouts—and the practical adjustments that turn them into workable designs.

save pin

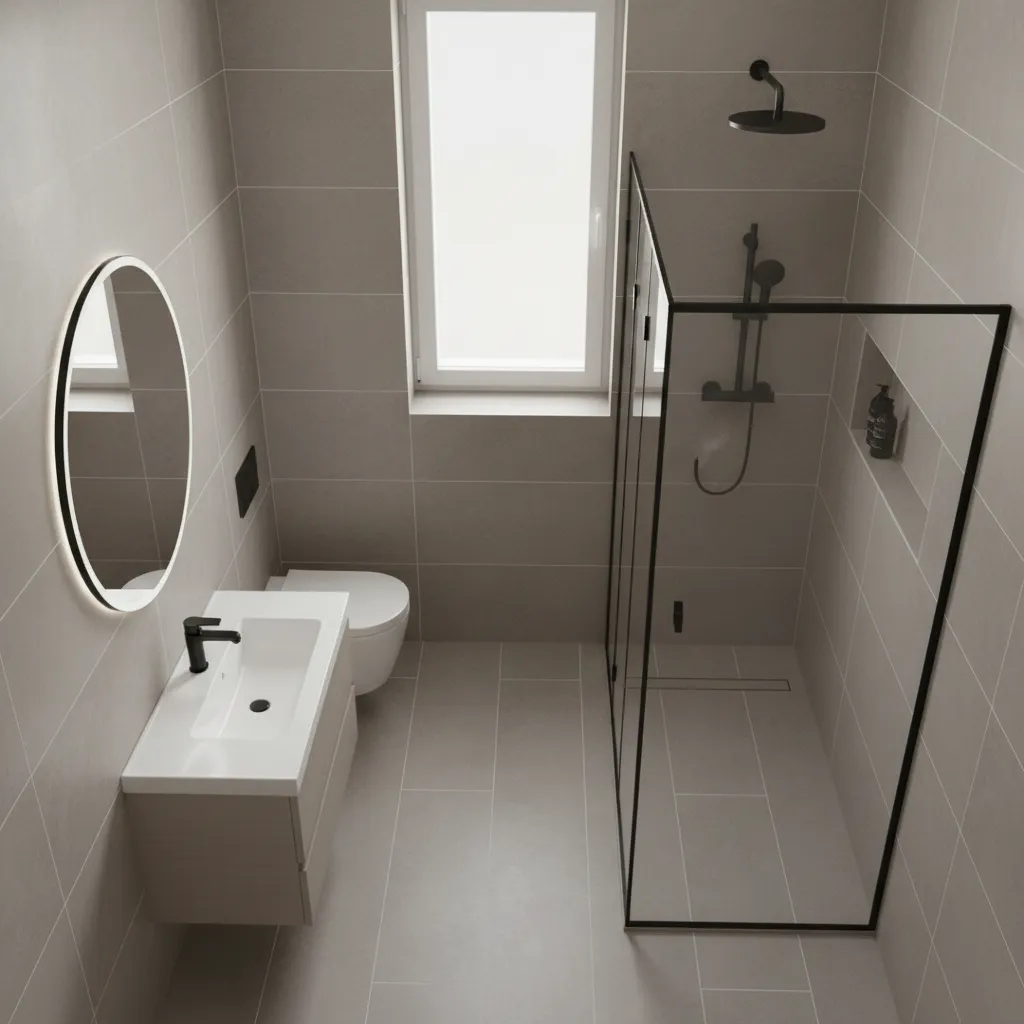

Why AI Bathroom Layouts Sometimes Fail

Key Insight: AI bathroom layouts fail when spatial calculations ignore construction constraints like plumbing lines, door swings, and code-required clearances.

AI layout tools typically prioritize visual balance and geometry. That works well for living rooms or bedrooms, but bathrooms are one of the most technically constrained rooms in a home.

Three limitations appear repeatedly in AI-generated designs:

1. Code awareness: Many tools don't fully apply clearance standards around toilets, sinks, or showers.
2. Plumbing logic: AI may move fixtures too far from the drain stack.
3. Human comfort: The layout may technically fit but feel cramped in practice.

For example, the National Kitchen and Bath Association recommends at least 15 inches from the center of a toilet to any wall or obstacle. AI layouts frequently compress this spacing to maximize symmetry.

From a designer’s perspective, this happens because most generative models prioritize visual optimization rather than construction feasibility.

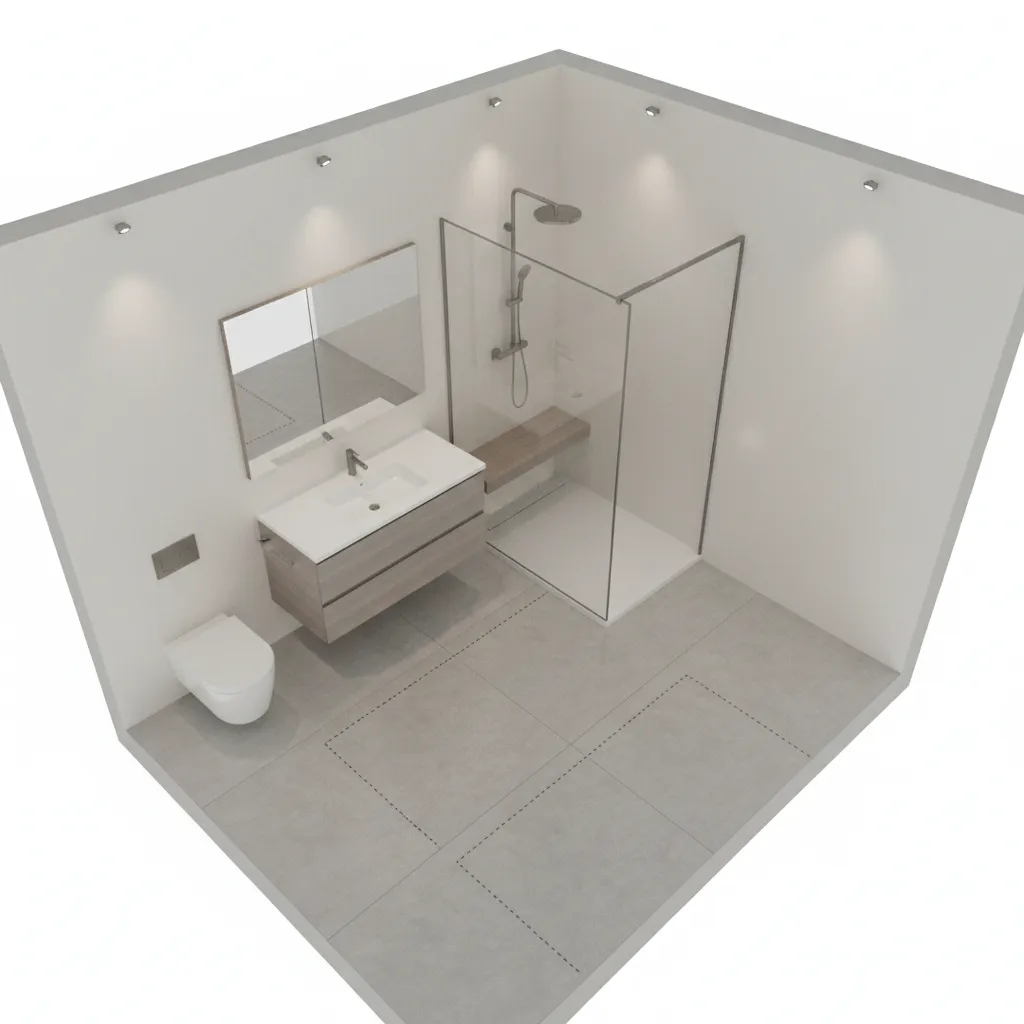

Incorrect Fixture Spacing and Clearance Issues

Key Insight: The most common AI bathroom design mistake is violating minimum clearance distances between fixtures.

In real projects, spacing determines whether a bathroom feels usable or claustrophobic. AI tools often place fixtures closer together to fit more features into a small room.

Typical spacing errors include:

1. Toilets placed too close to walls
2. Vanities blocking door swings
3. Showers interfering with circulation paths
4. Bathtubs positioned without step-in clearance

Here are common recommended clearances designers rely on:

1. Toilet centerline to wall: minimum 15 inches
2. Toilet front clearance: 24 inches
3. Shower entry clearance: 24 inches
4. Double vanity spacing: 30–36 inches between sinks

When I review AI layouts, I usually overlay these clearances on the floor plan first. You’d be surprised how often a design that "looks fine" immediately fails once real measurements are applied.

save pin

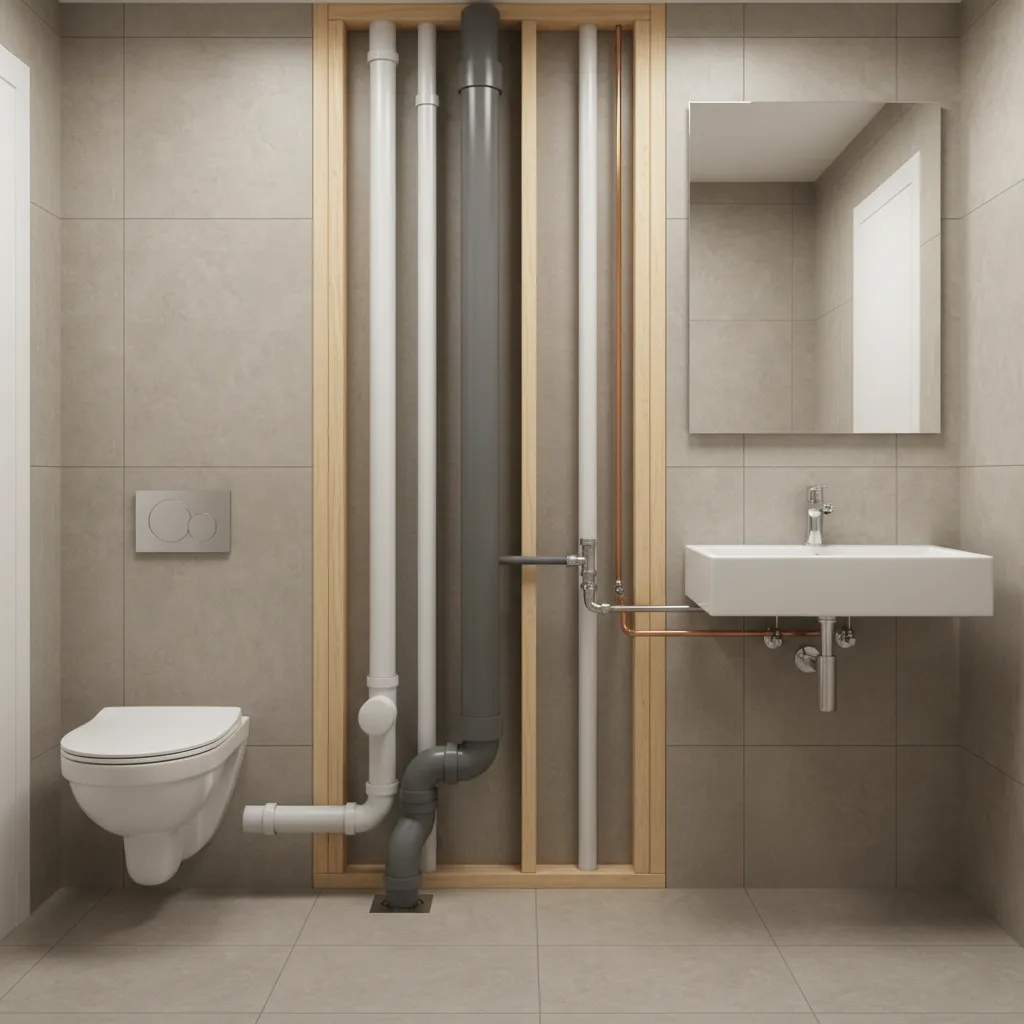

AI Designs That Ignore Plumbing Constraints

Key Insight: Plumbing limitations are the hidden constraint most AI bathroom planners overlook.

Bathrooms are expensive to remodel largely because plumbing relocation is costly. AI tools often treat fixture placement as fully flexible, but real-world plumbing systems are not.

Major plumbing constraints include:

1. Drain stack location
2. Vent pipe routing
3. Floor joist direction
4. Slope requirements for waste lines

For instance, moving a toilet even three feet away from the main drain line may require structural floor work. AI-generated layouts frequently relocate toilets across the room without accounting for this.

When experimenting with AI tools or exploring examples of automated interior layouts created with AI assistance, always treat plumbing-heavy rooms with extra skepticism. Kitchens and bathrooms simply have more technical constraints.

save pin

Fixing Unrealistic Layout Suggestions

Key Insight: Most AI bathroom layout issues can be corrected by applying manual design checks after generation.

Instead of discarding AI results entirely, I recommend a quick validation process.

Here’s the workflow I typically use when reviewing AI layouts:

1. Validate room dimensions
2. Confirm the AI model interpreted the room size correctly.
3. Check fixture clearances
4. Overlay spacing guidelines for toilets, sinks, and showers.
5. Locate plumbing walls
6. Identify where supply and waste lines already exist.
7. Review door swing paths
8. Doors often conflict with vanities or toilets in AI designs.
9. Simplify the layout
10. Removing one fixture often dramatically improves usability.

Ironically, one of the most common fixes is making the design simpler. AI tends to over-program rooms with double vanities, large showers, and storage units—even when the room size doesn’t support them comfortably.

Improving AI Results With Better Input Data

Key Insight: AI layout accuracy improves dramatically when the input measurements include structural and plumbing information.

Most users only enter basic room dimensions. That’s rarely enough.

To improve results, include these details when generating layouts:

1. Exact wall-to-wall dimensions
2. Window and door locations
3. Existing plumbing wall
4. Ceiling height
5. Obstacles such as columns or soffits

When these constraints are defined, AI has fewer unrealistic possibilities to explore, which produces layouts closer to real construction plans.

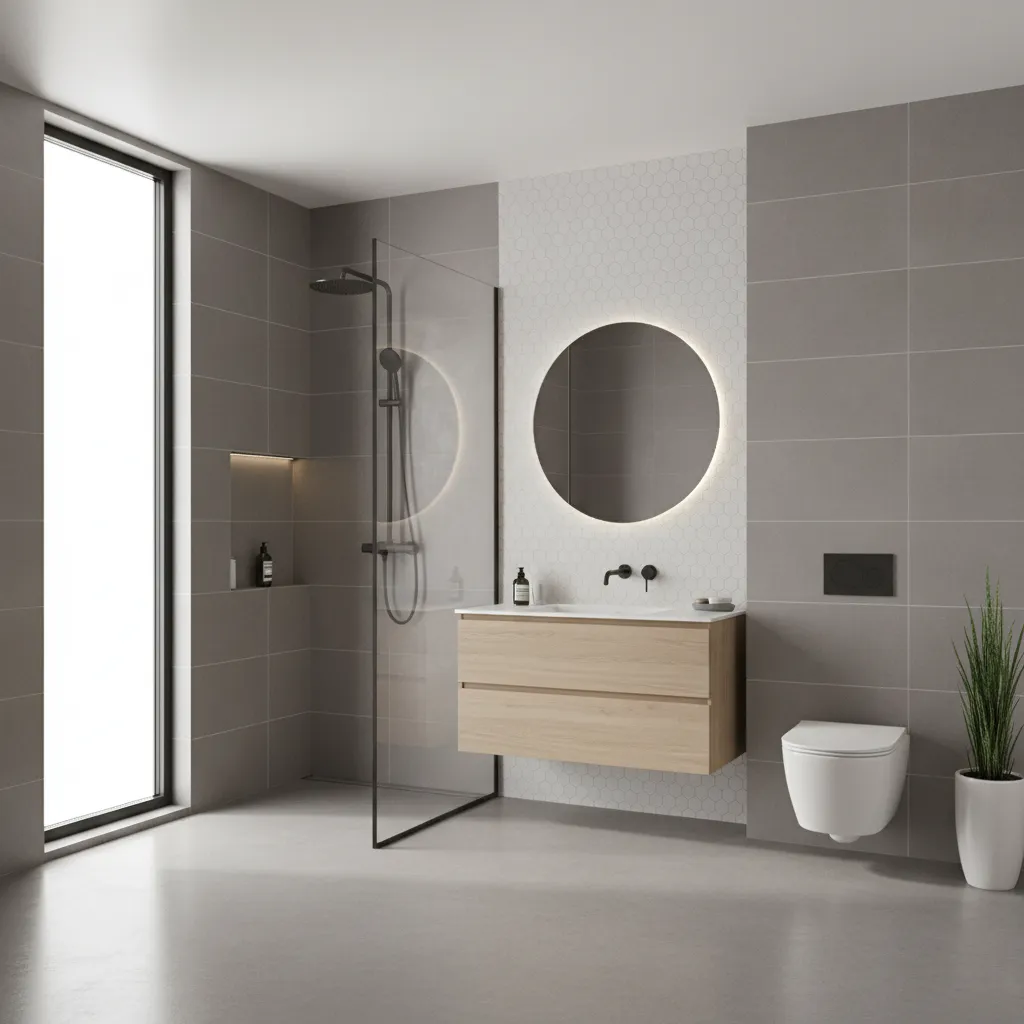

In renovation planning, I also recommend reviewing the design through a photorealistic interior rendering workflow that shows spatial depth. Seeing the room in three dimensions often reveals spacing issues that flat floor plans hide.

save pin

Answer Box

The biggest problems with AI bathroom layouts come from clearance violations, unrealistic plumbing placement, and incomplete input measurements. Most issues can be fixed by validating spacing rules, identifying plumbing walls, and simplifying fixture arrangements.

When to Override AI Recommendations

Key Insight: AI should assist bathroom planning, but final layout decisions should always be validated by human design judgment.

There are situations where AI suggestions should simply be ignored.

Override AI recommendations when:

1. The layout moves the toilet far from existing plumbing
2. Clearance rules are violated
3. Door swings block fixtures
4. Maintenance access becomes difficult
5. The layout feels visually crowded

After reviewing hundreds of AI-generated layouts, I’ve noticed something interesting: the best results usually come when AI proposes two or three variations and the designer refines them. Treat AI as a fast concept generator, not the final authority.

Final Summary

1. AI bathroom layouts often ignore plumbing and building constraints.
2. Fixture spacing violations are the most common AI design error.
3. Providing detailed input measurements improves layout accuracy.
4. Manual review is essential before construction decisions.
5. AI works best as a concept generator, not a final planner.

FAQ

Why are AI bathroom layouts sometimes wrong?

Most AI bathroom layouts rely on geometric optimization instead of construction constraints like plumbing lines and clearance codes.

How can I fix an AI generated bathroom layout?

Check fixture clearances, verify plumbing locations, adjust room measurements, and simplify the fixture arrangement.

Do AI bathroom planners follow building codes?

Some tools approximate spacing rules, but many do not strictly enforce local building codes.

What is the most common AI bathroom design problem?

Incorrect spacing between fixtures such as toilets, sinks, and showers.

Can AI design a bathroom accurately?

Yes, but accuracy improves significantly when detailed room measurements and constraints are included.

Should I trust AI bathroom layout suggestions?

Treat them as concept ideas rather than final construction plans.

How do professionals review AI bathroom designs?

Designers typically verify clearances, plumbing placement, and circulation paths before accepting a layout.

What tools help visualize AI bathroom layouts better?

3D rendering and spatial walkthrough tools help reveal spacing and usability issues.
