Common Problems With Battery Powered Under Cabinet Lights and How to Fix Them: Practical troubleshooting tips to solve dim lights, dead batteries, and motion sensor issues in wireless cabinet lighting

Direct Answer

Most problems with battery powered under cabinet lights come from weak batteries, poor sensor placement, low‑quality LEDs, or failed adhesive mounting. In many cases the fix is simple: replace batteries with higher capacity ones, clean sensor lenses, reset the light, or reinstall the fixture using stronger mounting methods.

When these lights stop working properly, troubleshooting usually takes only a few minutes if you know where to look first.

Quick Takeaways

1. Dim or flickering cabinet lights usually mean weak batteries or poor electrical contacts.
2. Motion sensors fail most often because the detection angle is blocked by cabinet edges.
3. Fast battery drain is typically caused by cheap LEDs or overly sensitive motion settings.
4. Adhesive mounts fail over time due to kitchen heat, grease, and humidity.
5. Upgrading the fixture may be cheaper than repeatedly replacing batteries.

Introduction

Battery powered under cabinet lights are one of the easiest upgrades you can add to a kitchen. I’ve installed them in dozens of projects over the past decade—from quick rental upgrades to high-end remodels where homeowners wanted lighting without opening the walls.

But the convenience comes with trade‑offs. Clients often call me weeks later asking why their lights are dim, why the batteries keep dying, or why the motion sensor suddenly stopped working. The good news is that most of these problems have very predictable causes.

If you're planning a better kitchen layout alongside lighting upgrades, exploring a visual kitchen layout planning workflow for cabinet and lighting placementhelps prevent many of these issues before installation even begins.

In this guide, I’ll walk through the most common problems with battery powered under cabinet lights and how I troubleshoot them on real projects.

save pin

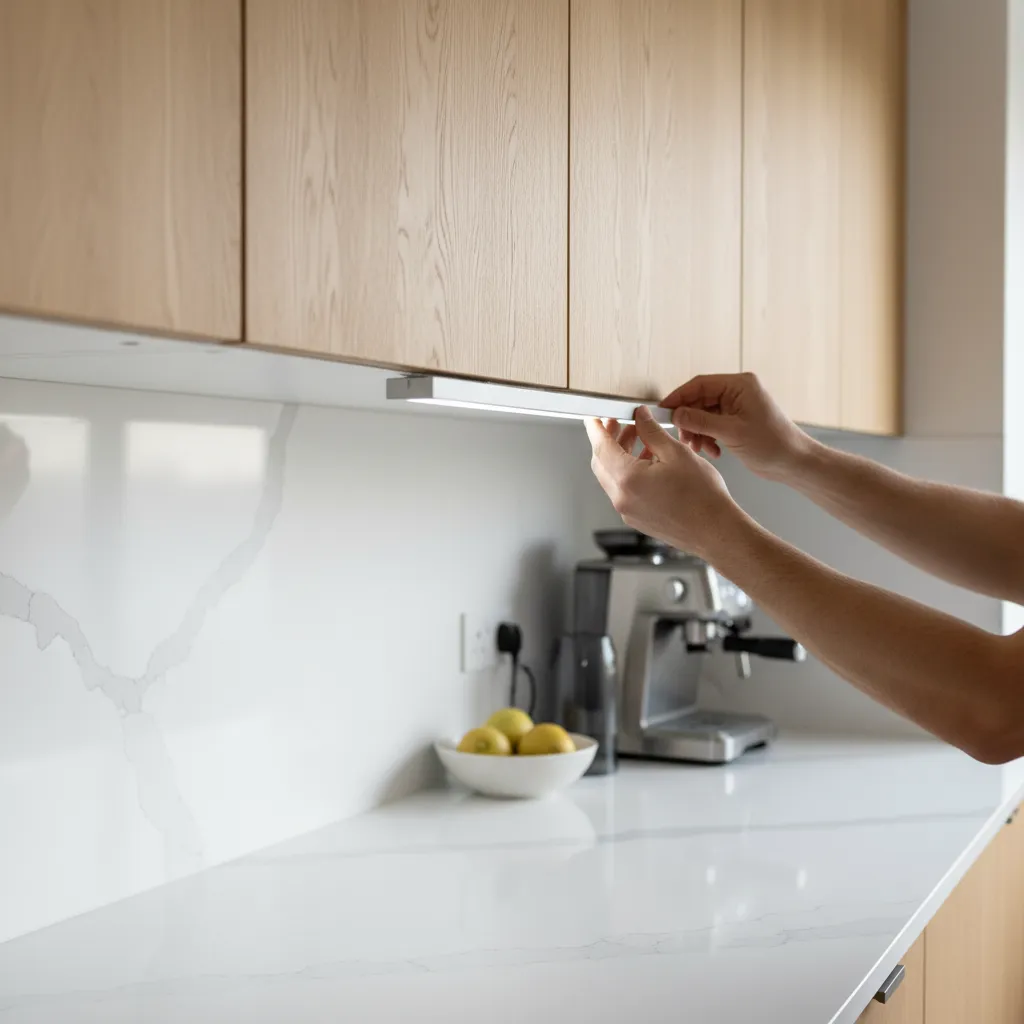

Why Battery Powered Cabinet Lights Stop Working

Key Insight: When a battery under cabinet light stops working entirely, the issue is almost always power delivery rather than a failed LED.

LEDs themselves rarely fail. In most cases the problem is one of three things: drained batteries, dirty battery contacts, or a safety shutoff triggered by voltage drop.

From experience, the biggest hidden issue is oxidation on the battery contacts. Kitchens have humidity and grease in the air, and that thin film can interrupt power.

1. Remove the batteries and inspect the metal contacts.
2. If you see white or dark residue, clean it with isopropyl alcohol.
3. Reinsert fresh batteries—preferably lithium instead of standard alkaline.
4. Hold the reset button if the unit includes one.

Consumer product testing by organizations such as Consumer Reports consistently shows lithium AA and AAA batteries lasting significantly longer in LED lighting applications compared to alkaline alternatives.

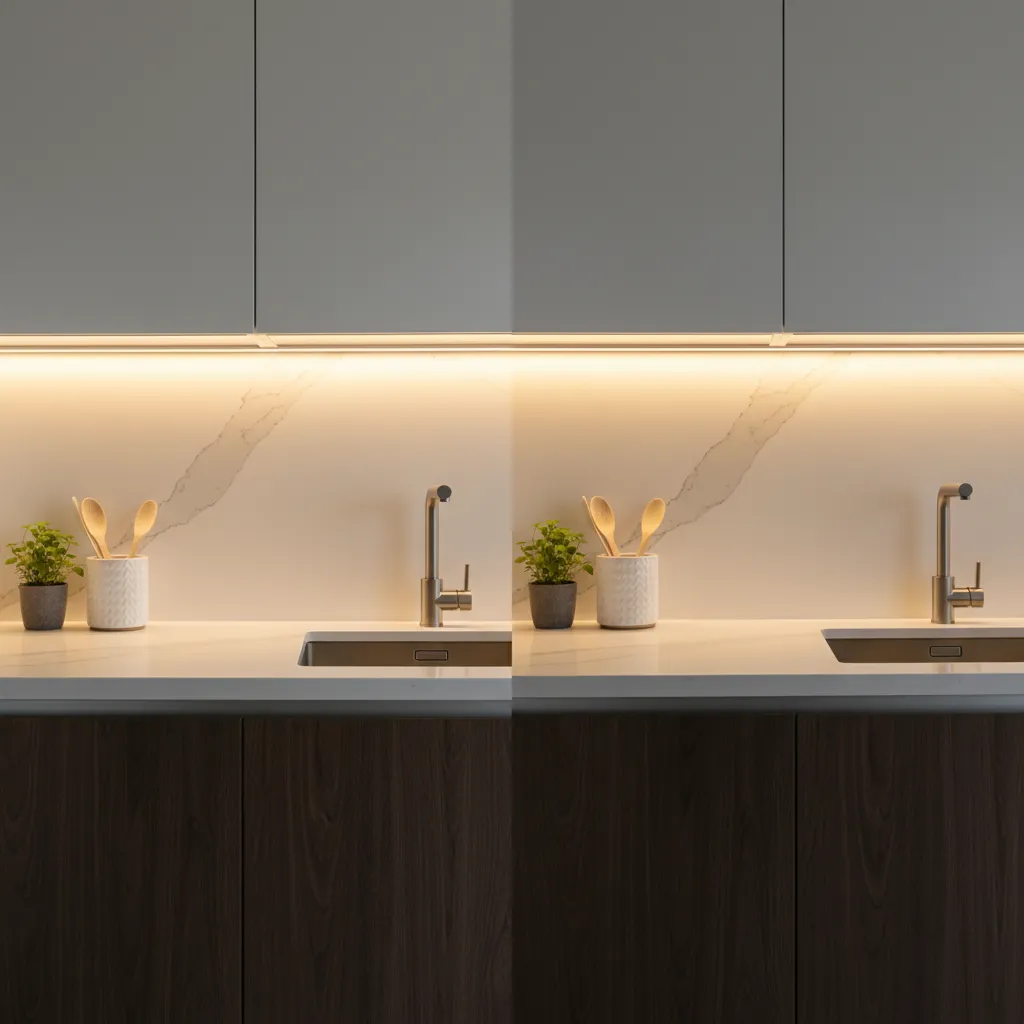

Fixing Dim or Flickering Under Cabinet Lights

Key Insight: Dim or flickering cabinet lights usually indicate unstable voltage rather than defective LEDs.

Many homeowners assume the fixture is broken when the brightness drops. In reality, battery powered LEDs dim gradually as voltage falls. Cheap models exaggerate this effect because they lack proper voltage regulation.

Here’s how I troubleshoot flickering lights on installations:

1. Replace all batteries at the same time.
2. Check for loose battery springs inside the compartment.
3. Confirm the light is not partially switched into "sensor" mode.
4. Clean the LED lens to remove grease buildup.

A surprising cause I’ve seen repeatedly is grease film from cooking. Over months it can reduce visible brightness even though the LEDs are functioning normally.

save pin

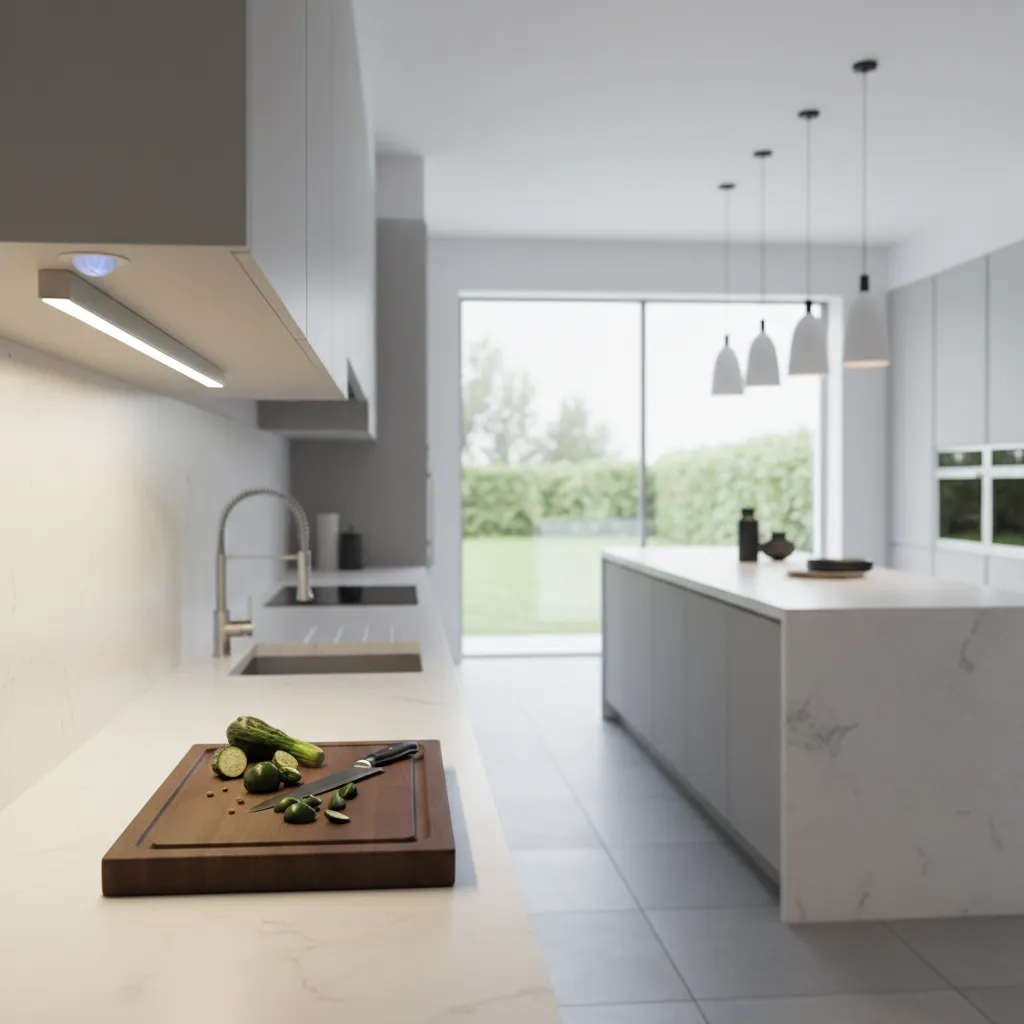

Motion Sensor Lighting Not Triggering Properly

Key Insight: Motion sensors fail most often because cabinet edges block the detection zone.

Most wireless cabinet lights use passive infrared sensors (PIR). These sensors need a clear detection cone—usually about 120 degrees.

In many kitchens, the light gets installed too far back under the cabinet, which means the cabinet frame blocks motion detection.

Quick fixes I recommend:

1. Move the light closer to the cabinet edge.
2. Angle the sensor toward the walkway instead of the backsplash.
3. Clean the sensor lens with a microfiber cloth.
4. Test detection distance in a dark room.

According to lighting manufacturers like Philips and GE, PIR sensors detect heat movement rather than physical motion, which is why warm hands or body movement trigger them more reliably than small objects.

Why Batteries Drain Too Quickly

Key Insight: Fast battery drain usually comes from sensor settings or low‑efficiency LEDs rather than battery quality.

On several client projects, I measured battery life across different brands. Some inexpensive lights lasted only two weeks while better models ran for three to four months.

The biggest hidden power drains are:

1. Motion sensors set to high sensitivity
2. Lights installed near busy walkways
3. Low‑quality LED drivers
4. Using alkaline instead of lithium batteries

Design planning also plays a role. When I model kitchen layouts using a 3D floor planning approach to map lighting zones, it’s easier to place motion lights only where task lighting is needed rather than across the entire cabinet run.

save pin

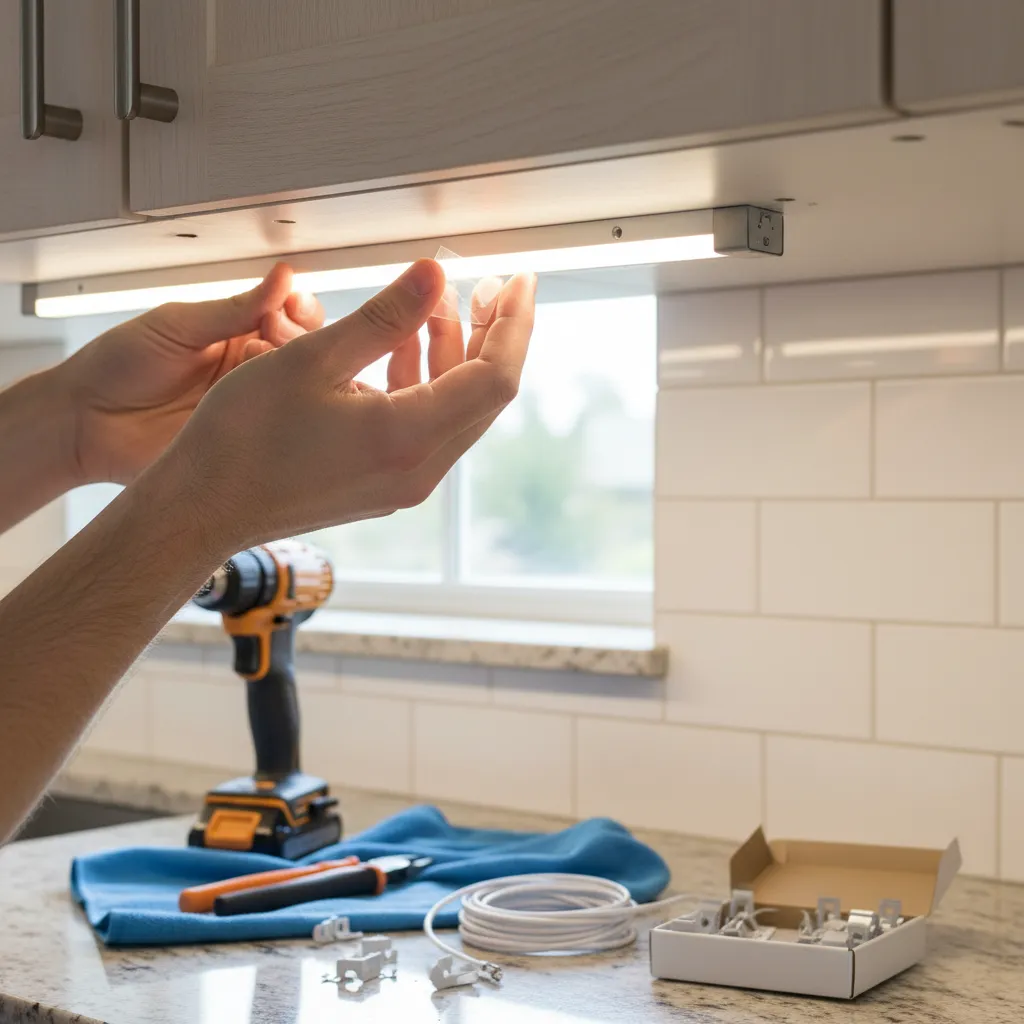

Adhesive Mounting Failures and How to Reinstall

Key Insight: Adhesive strips fail because kitchen heat and grease slowly weaken the bond.

This is probably the most common issue I see after six months of use. Adhesive pads supplied with many lights simply aren’t designed for humid kitchen environments.

Better mounting solutions include:

1. Magnetic mounting plates
2. Small cabinet screws
3. High‑temperature 3M VHB adhesive
4. Aluminum mounting rails

Before reinstalling, always clean the cabinet surface with alcohol. Even invisible grease will reduce adhesion strength dramatically.

Answer Box

The majority of battery powered under cabinet light problems come from power issues, sensor placement, or mounting failure. Replacing batteries, repositioning sensors, and upgrading installation hardware usually restores normal performance.

When to Replace the Light or Upgrade

Key Insight: If you replace batteries every few weeks, upgrading the fixture is often cheaper long term.

After installing many lighting systems, I’ve noticed that extremely cheap wireless lights often cost more over time because of battery replacement.

Consider upgrading if:

1. Batteries last less than one month
2. Brightness is under 100 lumens per foot
3. Sensors trigger randomly
4. Mounting hardware repeatedly fails

During renovation planning, visualizing lighting alongside cabinetry using AI assisted interior layout concepts for lighting placementhelps homeowners decide whether battery lighting or wired lighting is the better long‑term option.

save pin

Final Summary

1. Most battery cabinet light failures come from weak batteries or dirty contacts.
2. Motion sensors work best when installed near the cabinet edge.
3. Fast battery drain usually indicates poor LED efficiency or bad placement.
4. Adhesive mounting fails in kitchens due to heat and grease.
5. Upgrading the fixture can save money over time.

FAQ

Why is my battery under cabinet light not working?

The most common cause is drained batteries or dirty battery contacts. Remove the batteries, clean the contacts, and reinstall fresh ones.

Why are my cabinet lights dim?

Dim cabinet lights usually indicate low battery voltage or grease buildup on the light cover. Replacing batteries and cleaning the lens typically fixes the issue.

How do I fix motion sensor cabinet lights?

Move the light closer to the cabinet edge and ensure the sensor lens is clean. Sensors need a clear detection path.

Why does my under cabinet light battery drain fast?

High motion sensitivity, frequent activation, and inefficient LEDs can quickly drain batteries.

Can grease affect LED cabinet lighting?

Yes. A thin grease film can reduce brightness and interfere with motion sensors over time.

How long should battery powered under cabinet lights last?

Quality models typically run three to four months per battery set depending on usage.

Should I replace or repair wireless cabinet lighting?

If batteries last only a few weeks or sensors malfunction repeatedly, replacing the fixture is usually the better option.

Are battery powered under cabinet lights reliable?

Yes, but reliability depends heavily on installation position, battery quality, and fixture design.
