Common Problems With Decorative Insulation Panels for Walls and How to Fix Them: A designer’s practical guide to diagnosing moisture, warping, and installation issues in decorative insulated wall panels.

Direct Answer

The most common problems with decorative insulation panels for walls include trapped moisture, panel warping, weak adhesion, and thermal bridging. Most issues come from installation shortcuts such as poor wall preparation, incorrect adhesives, or missing vapor control layers. Fixing them typically involves improving ventilation, resealing panels, correcting attachment methods, and eliminating exposed structural gaps.

Quick Takeaways

1. Moisture behind decorative insulation panels usually comes from missing vapor barriers or sealed airflow paths.
2. Panel warping often happens when adhesive curing or wall moisture conditions are ignored during installation.
3. Loose panels typically indicate poor surface preparation or incompatible adhesives.
4. Thermal bridging occurs when insulation panels are interrupted by exposed framing or metal fasteners.
5. Most panel damage can be repaired without replacing the entire wall section.

Introduction

Decorative insulation panels for walls look simple on the surface: attach the panel, seal the seams, and enjoy a finished wall that insulates and decorates at the same time. In reality, they’re one of the most misunderstood wall systems I see in residential and light commercial projects.

After working on interior renovations for more than a decade, I’ve been called in to troubleshoot dozens of installations where the panels looked perfect on day one but started failing months later. Warped surfaces, hidden condensation, or panels slowly separating from the wall are surprisingly common.

Many of these problems aren’t product failures—they’re installation logic failures. The wall assembly behind the panel still has to breathe, move, and handle temperature shifts.

When planning layouts or renovations, I usually visualize the entire wall system first using tools similar to those in this interactive room layout planning guide for remodeling walls. Mapping structure, insulation, and finish layers early prevents most installation mistakes.

Below are the most frequent decorative insulation panel installation problems I see—and the practical ways professionals fix them.

save pin

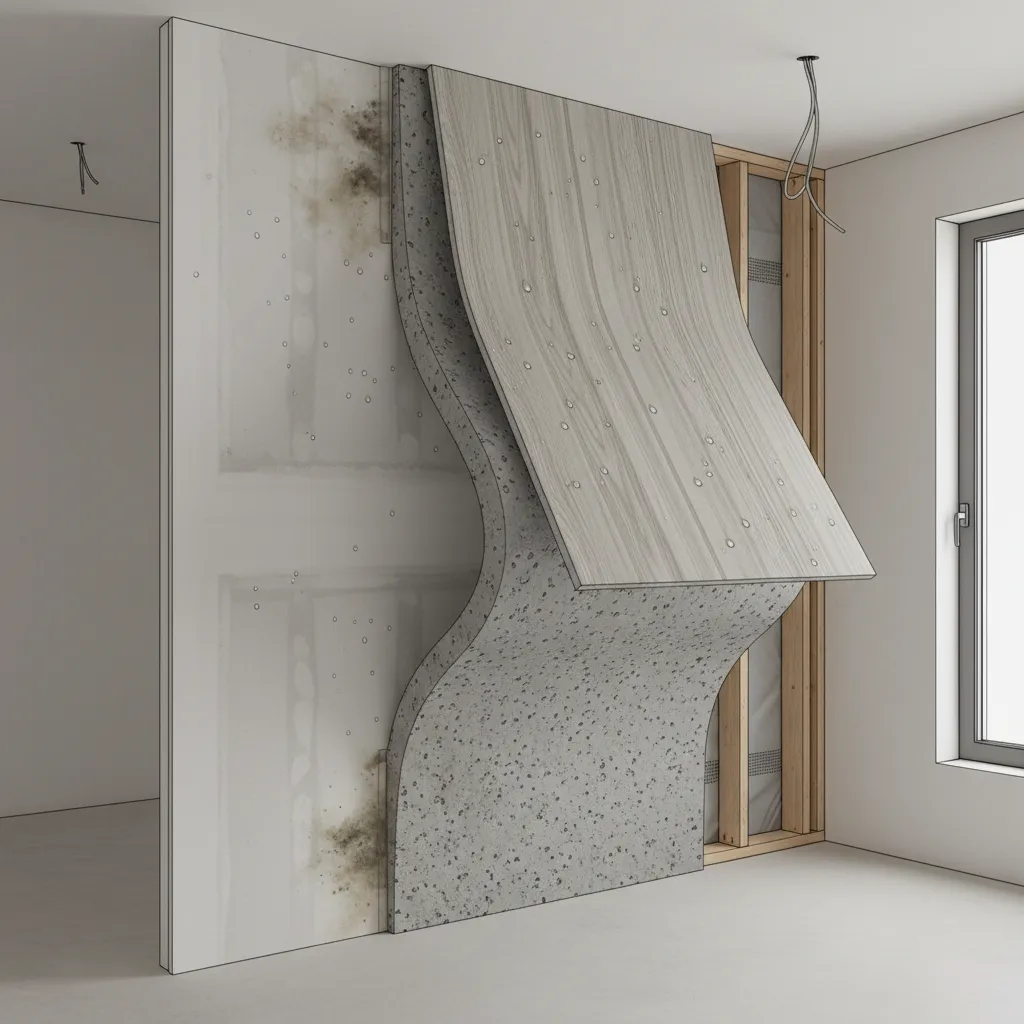

Moisture and Condensation Issues Behind Panels

Key Insight: Moisture behind decorative insulation panels for walls almost always indicates trapped vapor rather than external water intrusion.

One of the biggest hidden risks with insulated decorative panels is condensation forming behind the surface layer. When warm indoor air hits a colder wall cavity without proper vapor control, moisture accumulates.

Over time this leads to:

1. Mold growth behind panels
2. Musty odors
3. Adhesive degradation
4. Panel swelling or discoloration

Common causes:

1. No vapor barrier in exterior walls
2. Panels installed directly on damp masonry
3. Improper sealing at panel joints
4. Lack of ventilation in bathrooms or kitchens

How professionals fix it:

1. Remove affected panels and dry the wall cavity
2. Install a vapor barrier or breathable membrane
3. Seal all panel seams with moisture‑resistant tape
4. Improve mechanical ventilation

According to the U.S. Department of Energy, condensation control is one of the primary factors determining insulation system durability in interior wall retrofits.

Panel Warping or Surface Cracking

Key Insight: Decorative wall panels usually warp because the wall substrate and the panel expand at different rates.

I’ve seen this happen most often when installers rush projects. Panels are attached before drywall compound, concrete, or plaster has fully dried.

As moisture evaporates later, the wall shifts slightly and the rigid panel surface reacts.

Typical symptoms include:

1. Curved panel edges
2. Hairline cracks across decorative textures
3. Visible joint separation

Repair steps:

1. Remove the warped panel carefully.
2. Check wall moisture levels with a meter.
3. Reinstall using flexible adhesive systems.
4. Leave micro expansion gaps at panel edges.

In large projects, I often model wall layers visually to check where stress might occur, similar to workflows shown in this step‑by‑step 3D visualization of complete wall interiors. Seeing structural layers in advance prevents many cracking problems.

save pin

Adhesion Failure and Loose Panels

Key Insight: If decorative insulation panels detach from the wall, surface preparation—not the panel itself—is usually the real problem.

Many installers underestimate how important the substrate condition is. Paint dust, drywall powder, or old sealant residue can weaken adhesive bonding dramatically.

Most common adhesion mistakes:

1. Installing panels over glossy paint
2. Skipping primer on porous drywall
3. Using general construction adhesive instead of panel-specific bonding agents
4. Uneven pressure during installation

Professional fix approach:

1. Remove the panel carefully
2. Sand and clean the wall surface
3. Apply bonding primer
4. Use manufacturer‑approved adhesive
5. Apply even pressure during curing

Manufacturers such as Kingspan and Rockwool consistently recommend substrate preparation as the single most important factor affecting insulated panel adhesion.

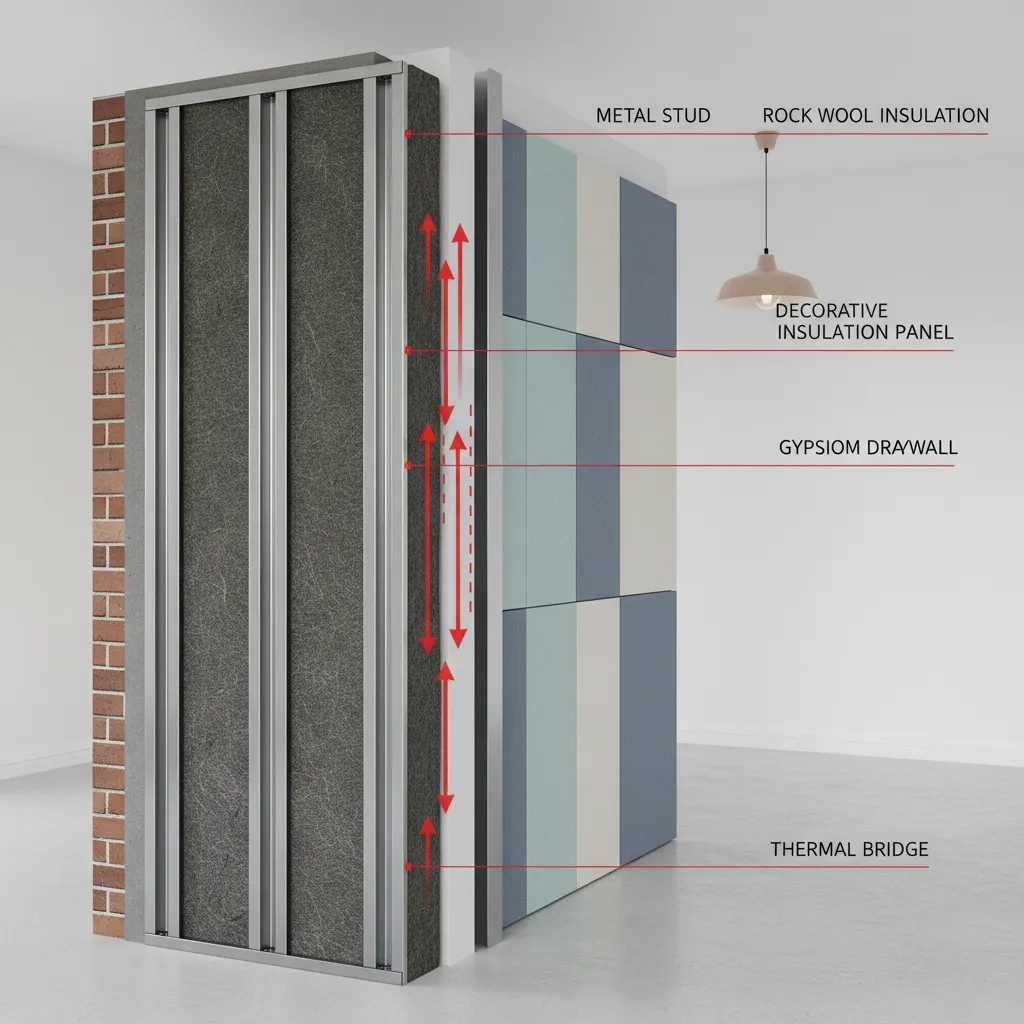

Thermal Bridging Problems in Wall Installations

Key Insight: Even with insulated panels, exposed structural materials can create hidden heat loss paths.

Thermal bridging happens when conductive materials—metal studs, screws, or concrete beams—bypass the insulation layer.

In decorative insulation panels for walls, bridging often occurs at:

1. Panel edges
2. Mechanical fasteners
3. Structural columns
4. Window framing

Solutions used in modern installations:

1. Thermal break strips
2. Continuous insulation backing boards
3. Hidden fastening systems
4. Offset panel seams

The International Energy Agency notes that thermal bridging can reduce effective insulation performance by up to 30% if not addressed in wall assemblies.

save pin

Repair Methods for Damaged Decorative Insulation Panels

Key Insight: Most decorative insulated wall panels can be repaired locally instead of replacing the entire installation.

This surprises many homeowners. Unless the insulation core is saturated or structurally compromised, partial repairs are usually enough.

Common repair strategies:

1. Surface crack filler for minor cosmetic damage
2. Panel edge resealing
3. Localized panel replacement
4. Joint reinforcement strips

When evaluating repair options, I often recreate the wall layout digitally to identify exactly where the failure started. Tools similar to those used in this interactive wall and layout planning workflow make it easier to map structural causes rather than guessing.

Answer Box

The majority of decorative insulation panel failures come from moisture control issues, poor surface preparation, or structural thermal bridging. Correcting wall assembly layers and installation methods usually resolves the problem without replacing the entire system.

save pin

Preventive Installation Best Practices

Key Insight: Decorative insulation panel problems are far easier to prevent than repair.

Across the projects I’ve worked on, a few installation habits consistently separate durable installations from problematic ones.

Best practices professionals follow:

1. Test wall moisture before installation
2. Install vapor barriers where climate requires them
3. Use manufacturer‑approved adhesives
4. Leave expansion gaps at panel joints
5. Seal seams carefully
6. Inspect wall flatness before mounting panels

Another overlooked factor is environmental control during installation. Temperature and humidity affect adhesive curing and panel expansion significantly.

Final Summary

1. Moisture behind panels usually results from trapped vapor and poor wall preparation.
2. Warping and cracking often occur when panels are installed on damp or unstable walls.
3. Loose panels are typically caused by weak surface preparation or incorrect adhesives.
4. Thermal bridging can reduce insulation performance even with insulated panels installed.
5. Most decorative insulation panel damage can be repaired without full replacement.

FAQ

1. Why are my decorative insulation panels cracking?

Cracking usually happens when the wall behind the panel shifts due to moisture or temperature expansion. Installing panels before the wall fully dries is a common cause.

2. Can moisture build up behind decorative insulation panels for walls?

Yes. If there is no vapor barrier or proper ventilation, warm indoor air can condense behind decorative insulation panels for walls.

3. How do you fix loose insulated wall panels?

Remove the panel, clean and sand the surface, apply bonding primer, and reinstall with the correct adhesive recommended by the panel manufacturer.

4. Are warped decorative panels repairable?

Minor warping can be corrected by removing and reinstalling panels after fixing moisture or structural movement issues.

5. What causes thermal bridging in insulated wall panels?

Thermal bridging occurs when conductive materials like metal studs or fasteners bypass the insulation layer.

6. Do decorative insulation panels need a vapor barrier?

In many climates, yes. A vapor barrier helps prevent condensation forming behind decorative insulation panels for walls.

7. Can damaged decorative insulated wall panels be patched?

Yes. Surface cracks and minor damage can usually be repaired with fillers or localized panel replacement.

8. How long do decorative insulation wall panels last?

With proper installation and moisture control, many systems last 20–30 years or more.

References

1. U.S. Department of Energy – Building Envelope and Insulation Guides
2. International Energy Agency – Thermal Bridging in Building Envelopes
3. Building Science Corporation – Moisture Control in Wall Assemblies
