Common Problems With RVs That Have a Second Floor and How to Fix Them: Practical fixes for weight, stability, leaks, and maintenance issues in two level RV designs

Direct Answer

RVs with a second floor commonly face weight distribution imbalance, roof water leaks, driving instability, ladder safety risks, and accelerated roof wear. Most issues can be prevented through better structural reinforcement, balanced cargo placement, proper sealing around rooftop structures, and regular inspections of elevated components.

In real projects and field inspections, the biggest problems rarely come from the concept of a second level itself. They come from overlooked engineering details and maintenance habits.

Quick Takeaways

1. Most two level RV issues come from poor weight distribution rather than structural failure.
2. Rooftop decks and loft structures increase leak risks if sealant maintenance is ignored.
3. Stability problems often appear at highway speeds or during uneven campsite parking.
4. Ladder access design is frequently the most underestimated safety risk.
5. Routine inspection schedules must be stricter for multi level RV structures.

Introduction

An RV with a second floor looks incredible on paper. More views, more space, sometimes even a rooftop lounge. But after working on multiple custom builds and consulting on RV space layouts, I have seen the same pattern repeat: the design idea is exciting, but the real challenges appear once the vehicle hits the road.

Many owners only discover the downsides after a season of travel. A rooftop loft shifts the center of gravity. A deck railing introduces new leak points. Even small things like ladder placement can affect safety and usability.

Interestingly, some of the best layout lessons actually come from digital planning tools. When clients experiment with vertical layouts using a visual RV layout planning workflow that maps multi level spaces, weight distribution and circulation problems often become obvious before construction even begins.

This guide walks through the most common problems I see in second floor RV designs and, more importantly, the practical fixes that actually work.

save pin

Weight Distribution Problems in Two-Level RVs

Key Insight: The biggest structural risk in a two story RV is not height but an improperly balanced center of gravity.

Adding a second level pushes weight upward, which naturally raises the center of gravity. When that happens, handling becomes less predictable, especially in crosswinds or during sharp turns.

In several custom builds I reviewed, the problem wasn't the loft structure itself. It was storage placement. Heavy items such as batteries, water tanks, or generators were installed too high.

Common weight distribution mistakes:

1. Installing water tanks beneath rooftop decks
2. Mounting solar battery systems above midline
3. Adding rooftop furniture or storage boxes
4. Uneven cargo loading between front and rear axles

Practical fixes that work:

1. Keep heavy systems below the axle line whenever possible
2. Use lightweight aluminum or composite materials for upper structures
3. Distribute storage evenly across both axles
4. Limit rooftop furniture and removable accessories

Professional RV builders often target a center of gravity slightly forward of the rear axle to improve stability. This small adjustment dramatically improves road handling.

Water Leaks Around Rooftop Structures

Key Insight:Every rooftop addition multiplies potential leak points.

Any RV roof already deals with stress, vibration, UV exposure, and constant flexing while driving. When you add railings, skylights, access hatches, or deck mounts, each penetration becomes a possible failure point.

I have inspected rooftop decks where the core structure was solid, but sealant joints had cracked after just two years.

save pin

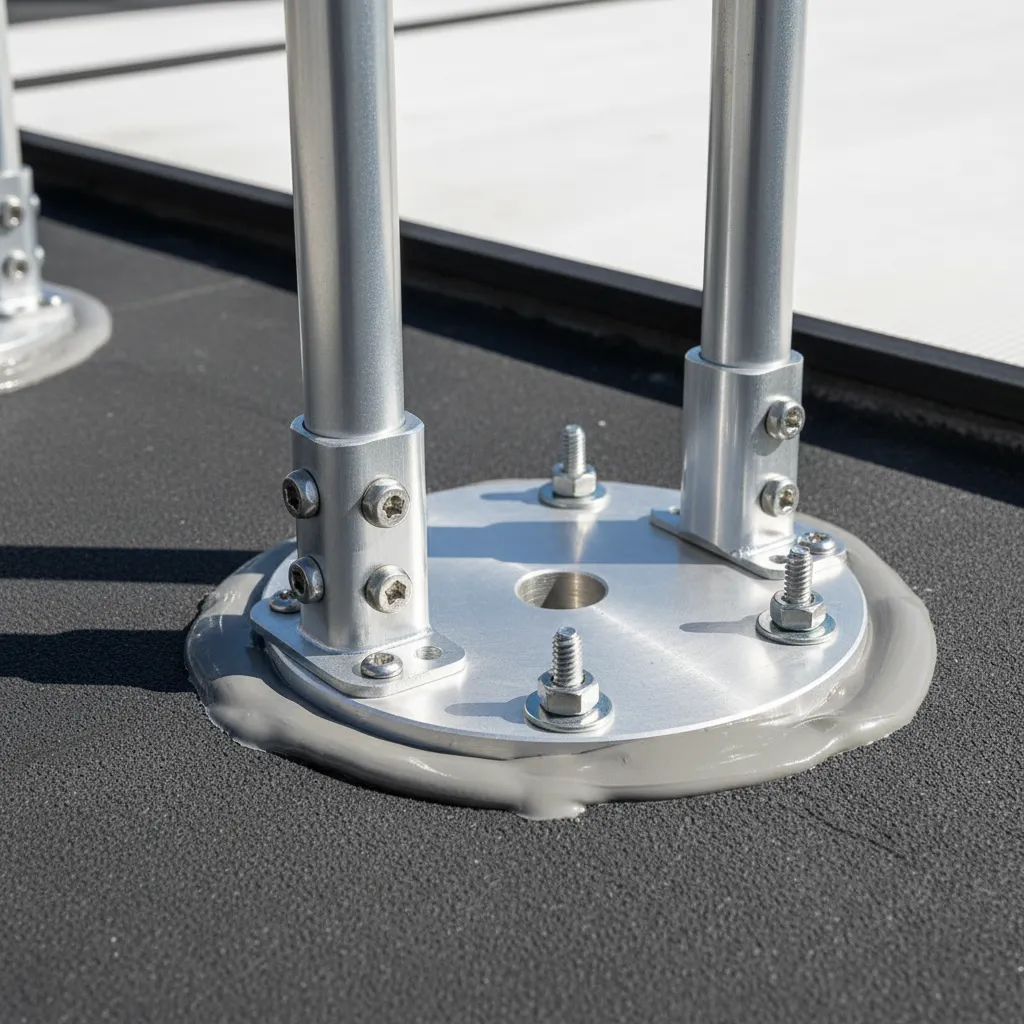

High risk leak locations:

1. Deck railing anchor bolts
2. Roof hatch frames
3. Stair or ladder mounts
4. Lighting or electrical conduit openings

Maintenance schedule professionals recommend:

1. Seal inspection every 3–4 months
2. Full reseal annually for rooftop decks
3. After any long-distance trip over rough terrain

Using flexible RV-grade lap sealant rather than standard roof caulk dramatically reduces cracking caused by vibration.

Stability Issues While Driving or Parking

Key Insight:A second floor magnifies small suspension weaknesses that would normally go unnoticed.

Drivers often describe this as "top heaviness" on highways. Technically, it's body roll amplified by increased height and leverage.

save pin

Signs of stability problems:

1. Excessive sway in crosswinds
2. Slow response after steering adjustments
3. Noticeable rocking when parked and walking upstairs

Upgrades that dramatically improve stability:

1. Heavy duty sway bars
2. Rear track bars
3. Upgraded suspension dampers
4. Automatic leveling systems

Some owners also experiment with layout simulations similar to testing circulation and structure in a multi zone interior layout planner. Visualizing upper floor placement sometimes reveals why the vehicle feels unstable.

Access and Ladder Safety Problems

Key Insight: Ladder design is the most overlooked safety issue in multi level RVs.

In many builds, the ladder is treated as an afterthought. But climbing between levels inside a moving vehicle environment requires more stability than a normal household ladder.

Common ladder problems:

1. Angles steeper than 70 degrees
2. Slippery aluminum steps
3. Insufficient handholds
4. Poor nighttime lighting

Safer alternatives:

1. Marine style angled ladders
2. Foldable stair modules
3. Anti slip step coatings
4. Integrated grab rails

Some modern builds even use compact alternating tread stairs, which dramatically improve safety without consuming much floor area.

Roof Deck Drainage and Weather Exposure

Key Insight:Poor drainage, not rain itself, causes most roof deck damage.

Flat RV roofs are designed to shed water slowly, but once a deck platform is installed, water flow paths often change.

save pin

Drainage design mistakes:

1. Blocking factory roof slope with deck platforms
2. Installing flooring that traps standing water
3. Covering drainage channels

Better deck design approach:

1. Use raised modular deck tiles
2. Maintain original roof slope
3. Leave open drainage gaps along edges
4. Inspect drainage after storms

Proper weather management is similar to exterior planning used in residential visualization workflows such as previewing how structural elements interact with light, weather, and exterior surfaces.

Maintenance Checks for Multi-Level RV Structures

Key Insight: Multi level RVs require roughly 30–40% more structural inspection points than standard RVs.

Owners often underestimate how much additional stress upper structures experience due to vibration and wind load.

Critical inspection checklist:

1. Roof seam integrity
2. Deck mounting bolts
3. Ladder attachment points
4. Suspension wear
5. Frame flex around upper supports

Recommended inspection intervals:

1. Before every long trip
2. After rough terrain travel
3. Every 6 months structural inspection
4. Annual full roof resealing

Answer Box

The main problems with RVs that have a second floor involve weight balance, water intrusion, driving stability, and maintenance complexity. With proper design adjustments and consistent inspections, these issues are manageable and do not prevent safe long term use.

Final Summary

1. Weight distribution is the most critical engineering challenge in two level RVs.
2. Rooftop decks dramatically increase potential water leak points.
3. Suspension upgrades significantly improve highway stability.
4. Ladder design affects daily safety more than most owners expect.
5. Regular inspections prevent the majority of multi level RV failures.

FAQ

Are two story RVs safe to drive?

Yes, if properly engineered. Stability depends on weight distribution, suspension upgrades, and responsible cargo loading.

Do rooftop decks cause RV roof leaks?

They can if seals are poorly maintained. Deck anchors and rail mounts create additional penetration points that require regular resealing.

What are the most common problems with RV rooftop decks?

The most frequent problems with RV rooftop decks include water leaks, blocked drainage, loose mounting hardware, and structural flex during highway travel.

How often should a two level RV roof be inspected?

Every three to four months, and always after long road trips or severe weather exposure.

Do second floor RVs feel unstable?

Some drivers notice additional sway. Upgraded sway bars, suspension systems, and proper cargo placement usually resolve the issue.

Can you add a second floor to an existing RV?

Technically possible but rarely recommended. Structural reinforcement and weight limits often make retrofits impractical.

How do you maintain an RV with a rooftop loft?

Follow stricter inspections for seals, deck mounts, suspension, and ladder safety components.

What causes two story RV stability issues?

Most two story RV stability issues come from uneven cargo placement or excessive rooftop weight.
