Common Problems With Square Dining Tables With Leaf Extensions and How to Fix Them

Direct Answer

Most problems with square dining tables with leaf extensions come from alignment issues, worn slide mechanisms, loose hardware, or uneven floor support. The good news is that many of these problems can be fixed with simple adjustments, lubrication, or reinforcement rather than replacing the entire table.

In my experience designing dining spaces and specifying expandable furniture, about 80% of extension problems are maintenance issues rather than structural failures.

Quick Takeaways

1. Most leaf alignment problems are caused by loose slide rails or debris in the track.
2. Wobbly expandable tables usually come from uneven floor contact or loose leg hardware.
3. Lubricating extension rails once a year prevents most sticking problems.
4. Visible gaps between leaves often indicate worn alignment pins or warped wood.
5. Major mechanism failure usually happens after years of overloading the extension system.

Introduction

Square dining tables with leaf extensions are one of my favorite solutions for flexible dining spaces. They give you the intimacy of a compact square table for everyday meals and the ability to expand when guests arrive. But after specifying dozens of expandable tables for residential projects, I’ve noticed the same complaints from homeowners: the leaf doesn’t align, the table sticks when opening, or the extended surface suddenly feels unstable.

These issues are rarely design flaws alone. In most cases, they come from small mechanical problems that accumulate over time—dust in the rails, loosened fasteners, or minor wood movement due to humidity.

When planning dining layouts, I often show clients examples using a visual room layout planning approach for dining furniture placementso they understand how expandable tables behave when fully opened. A surprising number of mechanical issues start with how the table is positioned and used in the room.

Below are the most common problems I see with square dining table leaf systems—and the practical fixes that actually work.

save pin

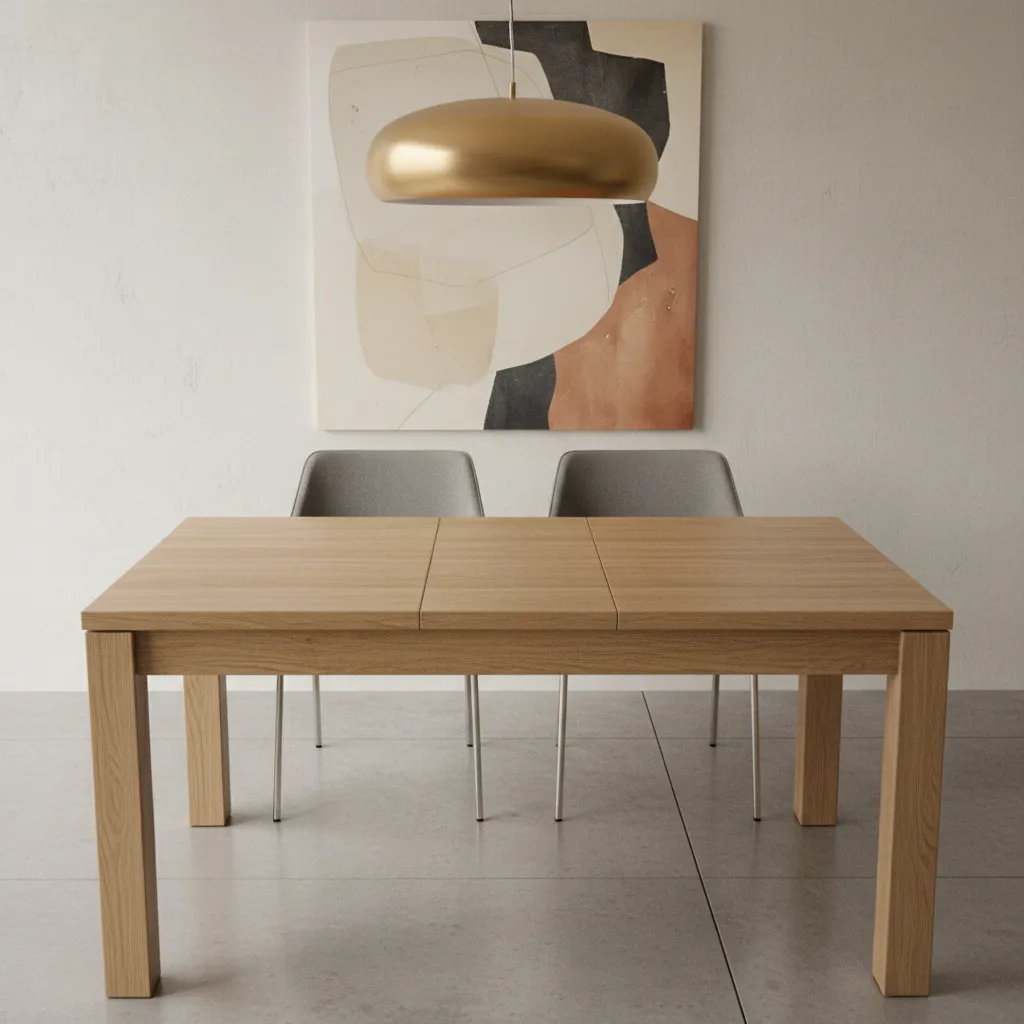

Why Leaf Extensions Sometimes Do Not Align Properly

Key Insight: Misaligned table leaves are usually caused by worn alignment pins or slightly shifted slide rails rather than a defective leaf panel.

One thing people rarely realize is that expandable tables rely on very small tolerance margins. Even a millimeter shift in the slide track can cause the leaf to sit slightly higher or lower than the tabletop.

In projects where clients reported uneven leaves, the most common causes were:

1. Loose rail screws underneath the tabletop
2. Dust or debris inside slide tracks
3. Warped wood due to humidity changes
4. Damaged alignment dowels

Steps to fix alignment:

1. Fully extend the table and inspect the slide rails underneath.
2. Tighten all rail mounting screws evenly.
3. Clean the tracks using compressed air or a dry cloth.
4. Check alignment pins and replace if worn.
5. Close and reopen the table slowly to re-seat the mechanism.

Furniture technicians often point out that seasonal wood movement is unavoidable. According to woodworking guidelines from the Wood Database, solid wood panels can expand or shrink several millimeters depending on humidity. That small change is enough to misalign leaf surfaces.

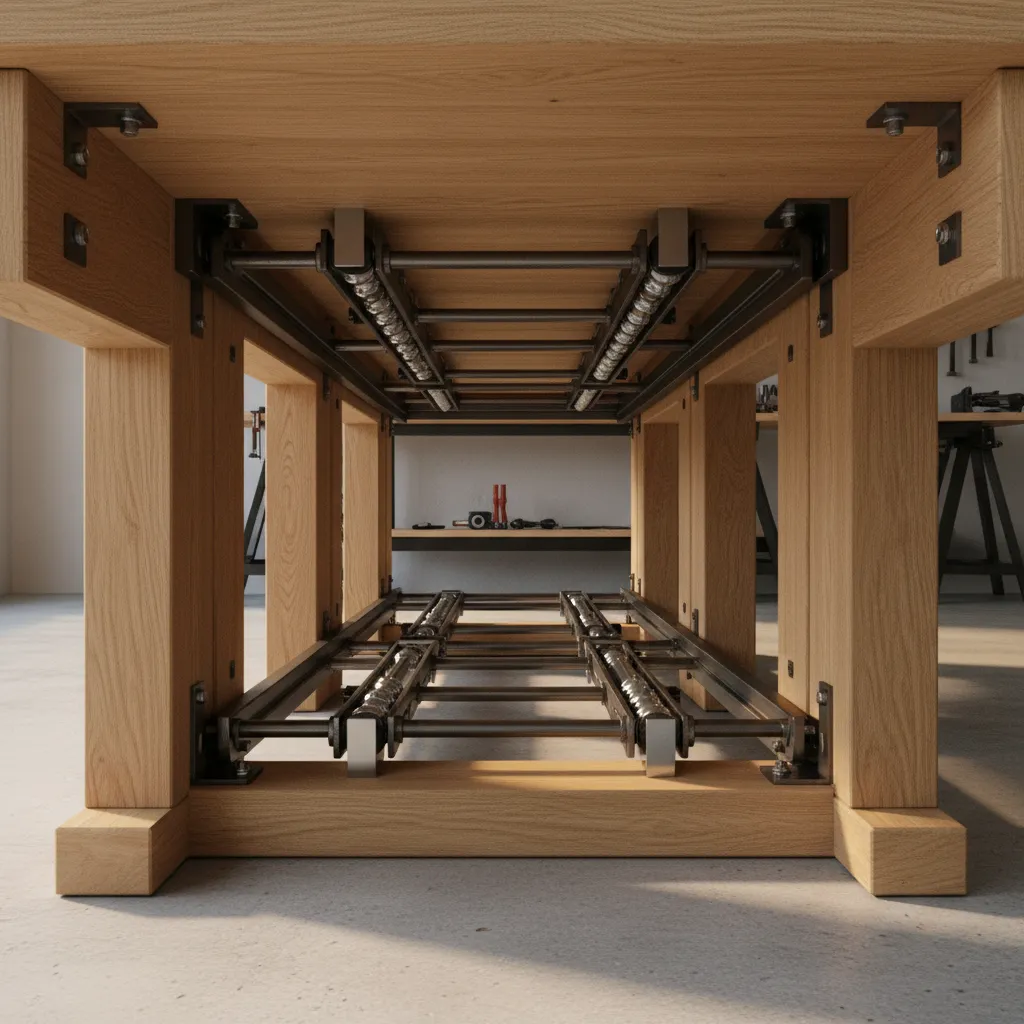

Fixing Stuck or Hard-to-Pull Table Leaf Mechanisms

Key Insight: If the table leaf feels stuck, the mechanism usually lacks lubrication or the rails are slightly bent from uneven pulling.

One mistake I see homeowners make is pulling only one side of the table when opening it. Over time, this twists the extension rails and creates friction.

Common reasons the leaf mechanism sticks:

1. Dry metal slide rails
2. Slight rail bending from uneven force
3. Dirt accumulation inside tracks
4. Overweight objects stored on the table during extension

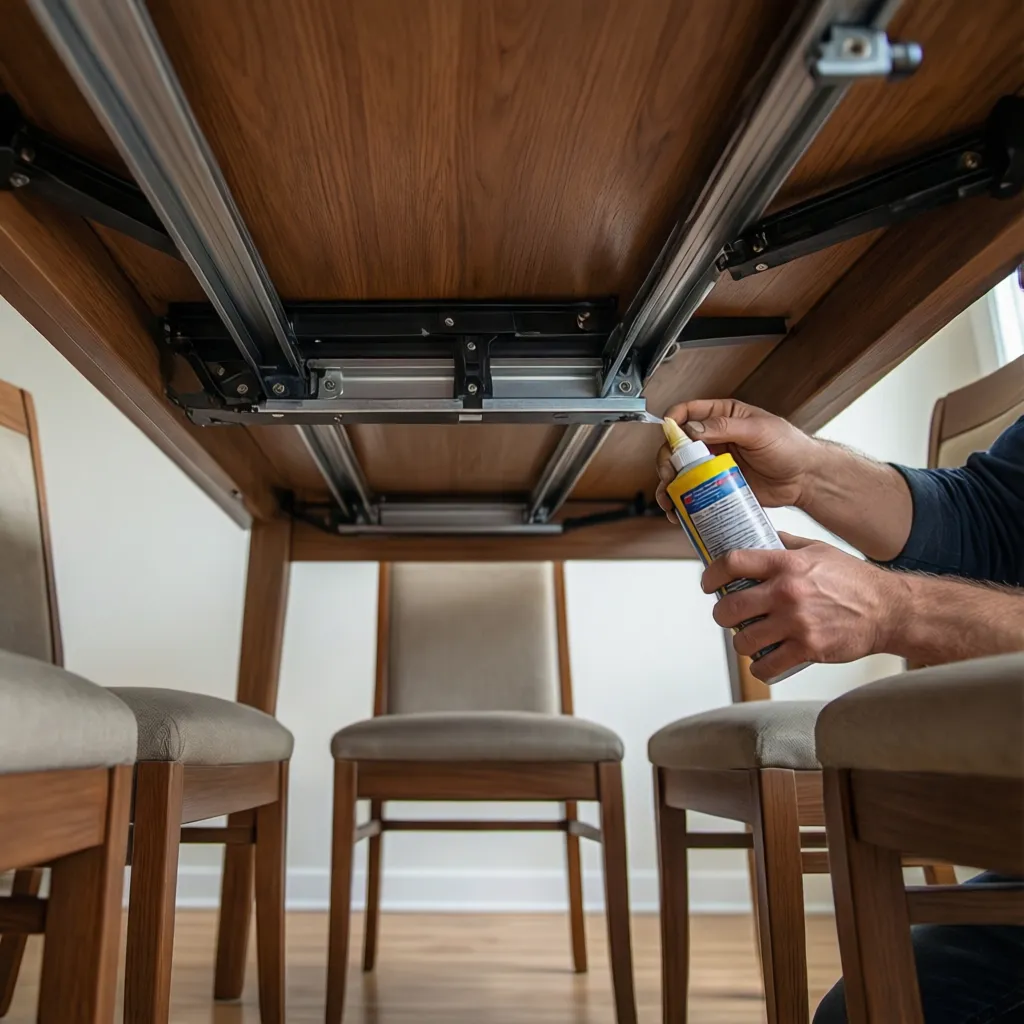

How to fix it:

1. Clean the rails thoroughly.
2. Apply silicone-based lubricant to sliding components.
3. Extend and retract the mechanism several times.
4. Always pull both sides evenly when opening.

Furniture repair specialists typically recommend silicone lubricant instead of oil because oil attracts dust, which eventually worsens the problem.

save pin

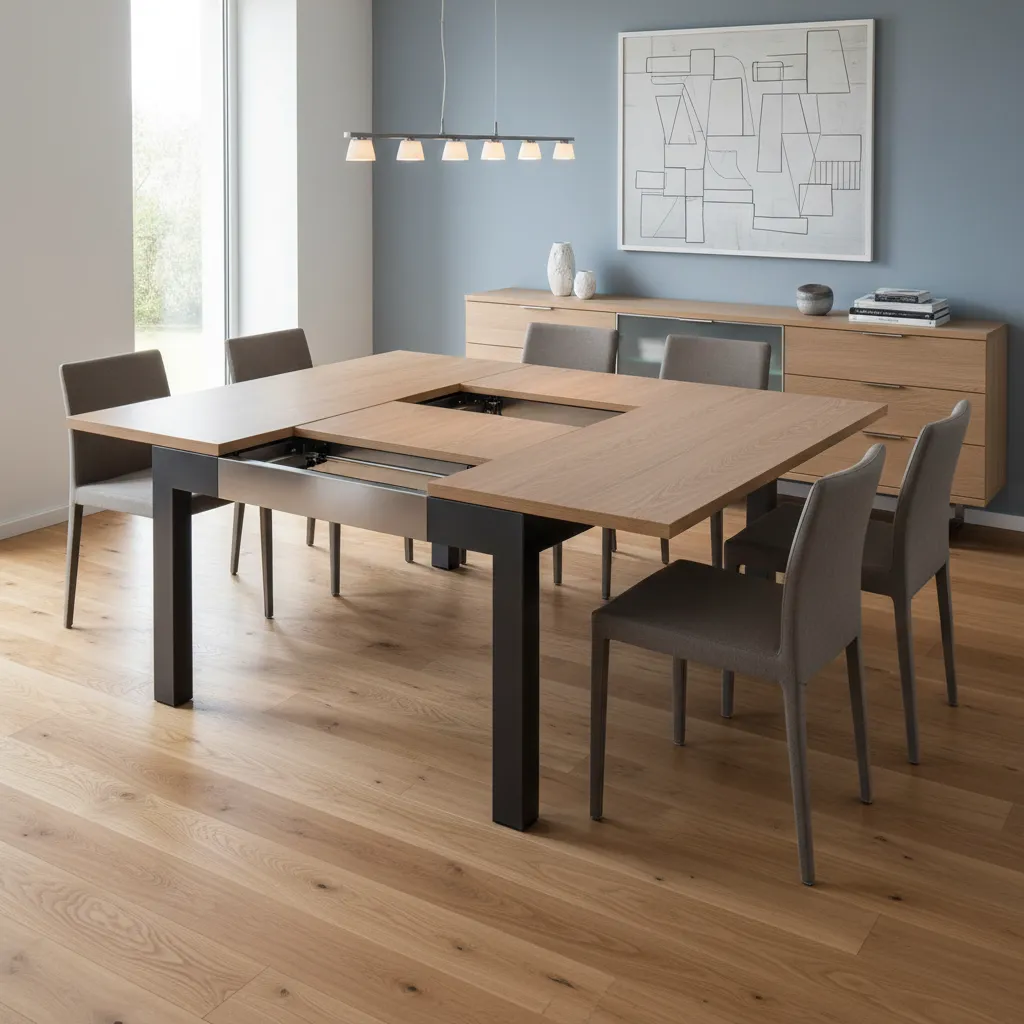

How to Stabilize a Wobbly Expandable Square Table

Key Insight: A wobbling expandable table is usually a support distribution problem, not a structural failure.

When the table expands, the center of gravity changes. If the table legs were originally placed near the corners of the smaller footprint, the extended configuration may create uneven load distribution.

Quick stability checklist:

1. Tighten all leg bolts and corner brackets
2. Check if the floor is uneven
3. Add adjustable furniture levelers
4. Inspect center support rails

During dining room planning, I often simulate expanded configurations using a realistic 3D dining space visualization workflowso homeowners understand how the table behaves at full size. Seeing the extended load distribution early can prevent furniture choices that wobble later.

save pin

Gaps Between Table Leaves and Tabletop Surfaces

Key Insight: Small gaps between leaves usually mean the locking mechanism or guide pins are worn.

Expandable tables depend on precise guide hardware. Over years of use, these small metal or wooden components gradually loosen.

Typical gap causes:

1. Worn alignment dowels
2. Loose locking brackets
3. Slight tabletop warping
4. Improper leaf storage

Fix options:

1. Replace alignment pins
2. Install new table leaf locks
3. Add thin felt spacers
4. Re-seat the tabletop brackets

Hidden mistake many people make: storing leaves in damp areas like garages. Humidity changes are one of the biggest causes of slight warping.

Maintenance Tips to Prevent Leaf Extension Problems

Key Insight: Most extension failures are preventable with simple annual maintenance.

In residential design projects, I always recommend a quick yearly check for expandable furniture. It takes about 10 minutes and dramatically extends the life of the mechanism.

Annual maintenance checklist:

1. Clean extension rails
2. Apply silicone lubricant
3. Tighten bolts and brackets
4. Inspect alignment pins
5. Check tabletop warping

If you are planning a dining layout that uses an expandable table frequently, a simple floor plan planning workflow for flexible dining layoutscan also help ensure the table opens without obstruction, which reduces mechanical strain.

save pin

When to Repair or Replace the Expansion Mechanism

Key Insight: Replace the mechanism only when slide rails are bent or cracked beyond realignment.

Many homeowners assume that a failing extension system means replacing the entire table. In reality, most mechanisms are modular and repairable.

Repair is possible when:

1. Rails are dirty or dry
2. Fasteners are loose
3. Alignment pins are worn

Replacement is necessary when:

1. Metal slide rails are bent
2. Rail bearings are broken
3. Wood frame structure is cracked

Answer Box

The most common issues with square dining tables with leaf extensions are misaligned leaves, sticking rails, wobbling frames, and small surface gaps. Most problems come from loose hardware or lack of maintenance rather than manufacturing defects.

Final Summary

1. Leaf alignment problems usually come from loose rails or worn guide pins.
2. Stuck mechanisms are often solved with cleaning and silicone lubrication.
3. Wobbling tables typically result from uneven floor support.
4. Small tabletop gaps often signal worn alignment hardware.
5. Annual maintenance prevents most expandable table failures.

FAQ

Why is my square dining table leaf not aligning?

Most alignment issues come from loose slide rails or worn alignment pins. Tightening hardware and cleaning the tracks usually fixes the problem.

How do you fix an expandable table leaf mechanism?

Clean the slide tracks, apply silicone lubricant, tighten rail screws, and check alignment pins. Most expandable table leaf mechanisms only need minor maintenance.

Why does my expandable dining table wobble when extended?

Wobbling usually happens because the table's center support is not distributing weight evenly or the floor is slightly uneven.

Can you repair a dining table leaf system?

Yes. Most leaf systems are repairable by replacing rails, alignment pins, or locking brackets.

How do you fix gaps between table leaves?

Check the alignment pins and leaf locks. Replacing worn pins usually closes the gap.

Why is my square dining table leaf stuck?

A square dining table leaf stuck problem usually comes from dust buildup or dry rails. Cleaning and lubrication normally solve it.

Should I lubricate table extension rails?

Yes. Use silicone lubricant once a year to keep the sliding mechanism smooth.

How long do expandable dining table mechanisms last?

With proper maintenance, quality extension mechanisms can last 10–20 years.
