Common Punching Shear Problems in Flat Slabs and How to Fix Them: Practical troubleshooting methods engineers use to identify and fix punching shear weaknesses in flat slab systems.

Direct Answer

Punching shear problems in flat slabs typically occur when column reactions exceed the slab’s local shear capacity around the column perimeter. The most effective fixes include increasing slab thickness, enlarging drop panels, adding shear reinforcement, or improving column strip design.

Most failures are not caused by complex theory—they come from overlooked geometry, incorrect critical perimeter calculations, or underestimating column loads.

Quick Takeaways

1. Punching shear failures usually originate from incorrect critical perimeter assumptions.
2. Drop panel geometry has a larger impact on shear capacity than many engineers expect.
3. Interior panels distribute load better and reduce column stress concentrations.
4. Increasing slab depth is often the simplest and safest fix.
5. Design spreadsheets frequently miss load combinations governing punching shear.

Introduction

Punching shear problems in flat slabs are one of the most stressful issues structural engineers face. Unlike flexural cracks that give warning, punching shear failure can be sudden and brittle. After working on residential towers, office buildings, and podium slabs over the past decade, I’ve seen that most flat slab punching shear problems don’t come from complicated structural behavior—they come from small design assumptions that snowball into major capacity shortages.

In several projects I reviewed, the slab design passed flexural checks comfortably but failed punching shear by a narrow margin once the final column reactions were calculated. That’s when engineers start scrambling for fixes: thicker slabs, bigger drops, or shear studs.

Interestingly, the root cause often appears much earlier in the layout stage. Poor column spacing or inefficient panel geometry can drastically increase punching demand. When planning layouts, many designers benefit from visualizing panel geometry early using tools like a visual workflow for mapping slab and column layouts, which helps reveal problematic column spacing before detailed calculations begin.

In this guide, I’ll walk through the most common flat slab punching shear problems I see during design reviews, explain why they happen, and show practical fixes that engineers actually use in real projects.

save pin

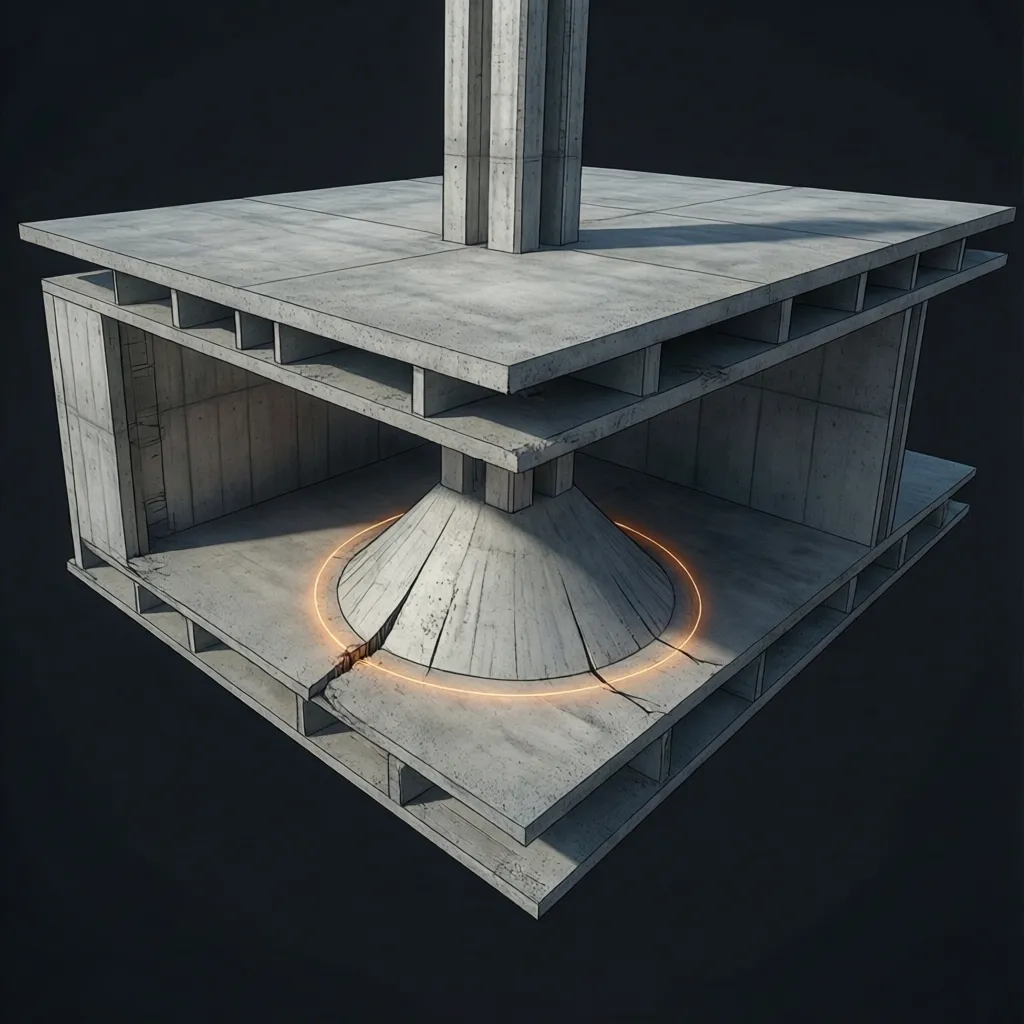

Understanding Punching Shear in Flat Slab Systems

Key Insight: Punching shear occurs when concentrated column forces exceed the slab’s ability to resist shear along a critical perimeter surrounding the column.

In flat slab systems, loads transfer directly from the slab to columns without beams. This structural simplicity is efficient architecturally but creates a localized stress concentration around each column.

The critical perimeter is typically taken at a distance of about d/2 from the column face in many design codes (ACI, Eurocode variations). The slab must resist shear along this perimeter.

Typical punching shear check process:

1. Determine column reaction from load combinations
2. Calculate effective slab depth (d)
3. Locate critical perimeter around column
4. Compute nominal shear stress
5. Compare against allowable shear capacity

One overlooked issue: column size strongly influences the critical perimeter. Slightly increasing column dimensions can sometimes improve punching capacity significantly without modifying the slab.

According to ACI 318 provisions, punching shear is one of the governing design checks for flat slabs, especially in buildings with large column spacing or heavy live loads.

Typical Causes of Punching Shear Failure

Key Insight: Most flat slab punching shear problems stem from geometric decisions made during early layout—not from calculation errors.

After reviewing dozens of slab designs, these are the causes I encounter most frequently.

Common causes:

1. Large column spacing creating high panel loads
2. Thin slabs driven by architectural height limits
3. Undersized drop panels
4. Incorrect load combinations
5. Ignoring unbalanced moments

Hidden issue many engineers miss:Edge and corner columns experience different stress distributions. Interior column formulas are sometimes mistakenly applied to them.

Another overlooked factor is slab openings near columns, which reduce effective shear perimeter.

save pin

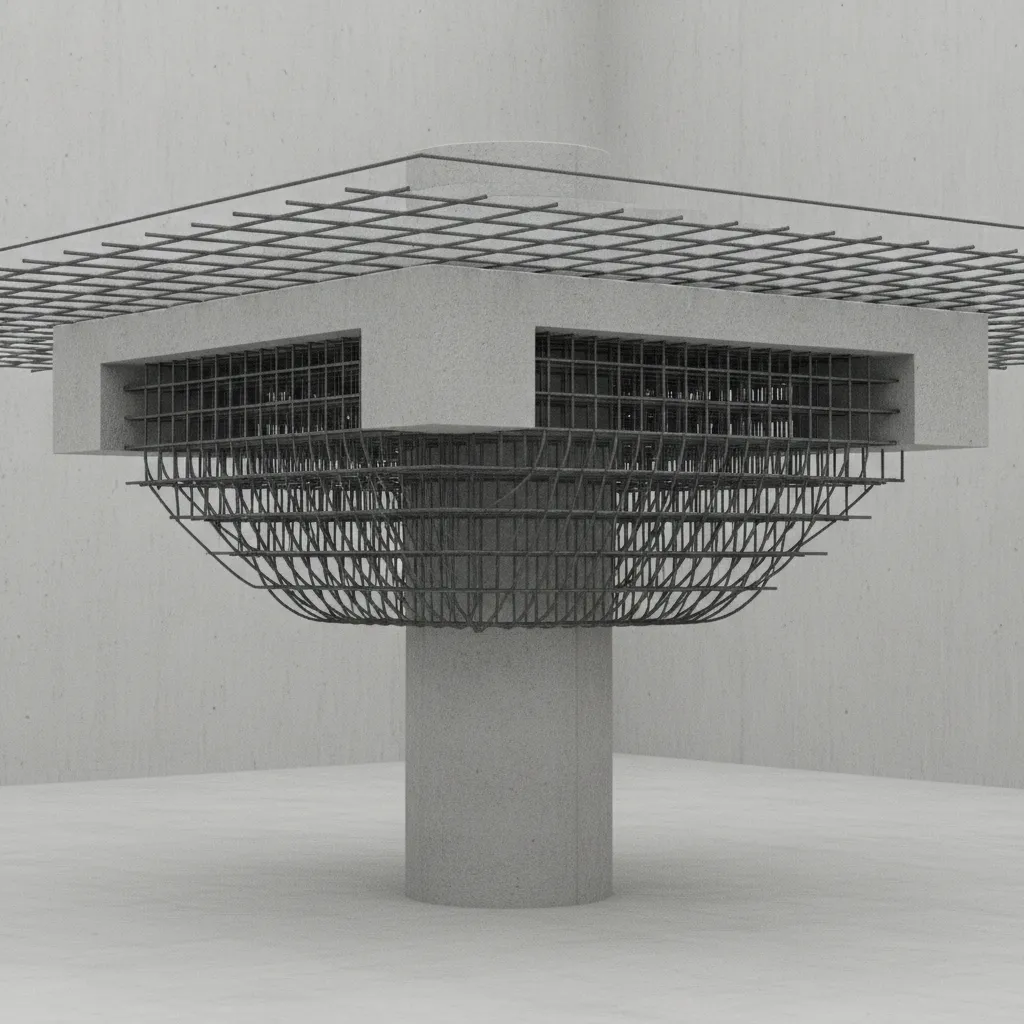

Design Mistakes in Drop Panel Geometry

Key Insight: A poorly proportioned drop panel provides far less punching shear benefit than engineers assume.

Drop panels are intended to increase slab thickness near columns, which increases shear capacity and reduces negative moment reinforcement.

However, I frequently see drop panels that are too small to meaningfully influence the critical perimeter.

Common drop panel mistakes:

1. Drop width smaller than one‑third of the panel span
2. Insufficient depth increase
3. Ignoring effective depth changes
4. Assuming drops eliminate the need for shear reinforcement

Industry recommendations typically suggest:

1. Drop width ≥ 1/3 of span
2. Drop thickness increase of 25–30%
3. Symmetrical layout around columns

A surprising reality: sometimes removing ineffective drops and simply thickening the slab results in a more efficient design.

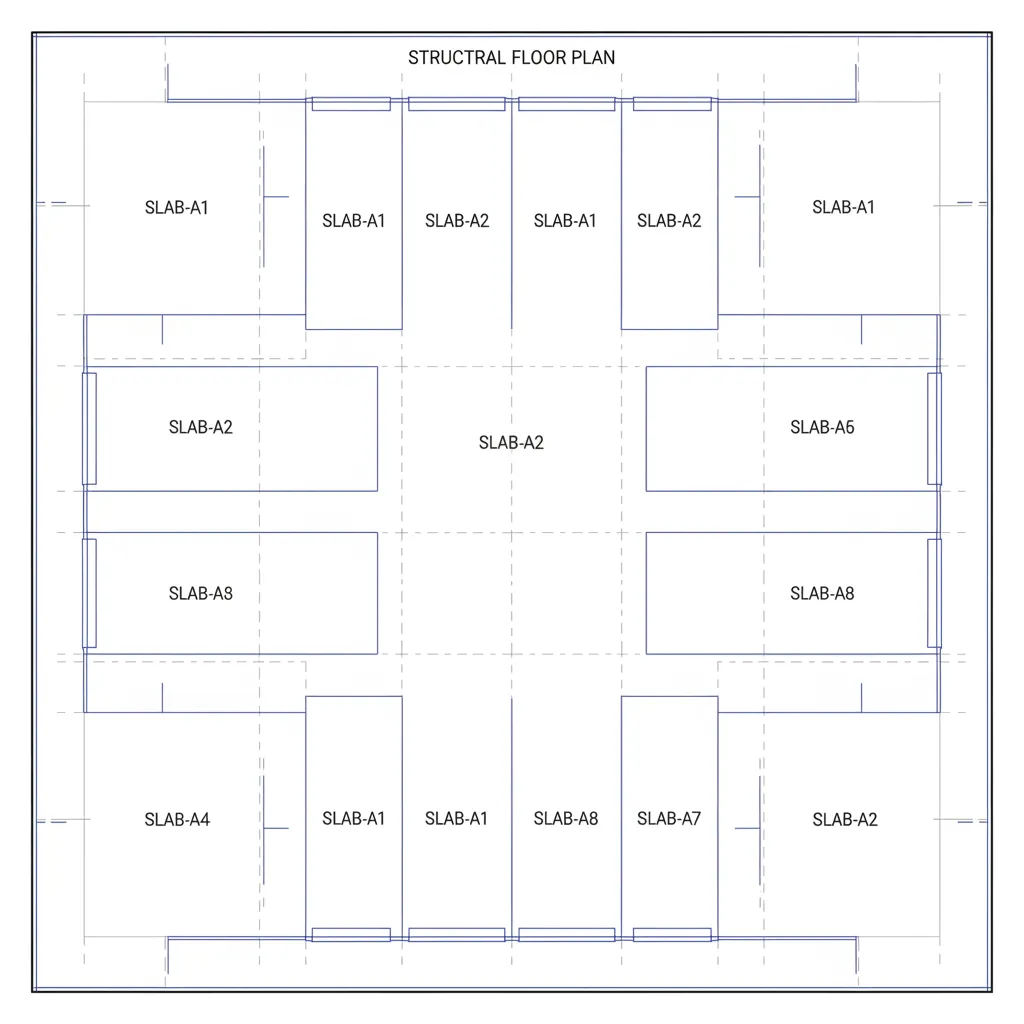

How Interior Panels Improve Shear Capacity

Key Insight: Interior panels naturally distribute loads more evenly, reducing peak punching stresses compared with edge or corner panels.

Interior columns receive load from four surrounding panels, but the load path spreads symmetrically. Edge and corner columns create eccentric shear stresses that reduce effective capacity.

Panel behavior comparison:

1. Interior panels – balanced load distribution
2. Edge panels – partial load eccentricity
3. Corner panels – highest punching vulnerability

During conceptual layout planning, mapping column grids visually can reveal problematic spans early. Many engineers experiment with spacing using tools like an interactive floor layout exploration method for structural planningto quickly test different column arrangements before detailed analysis.

In high‑rise buildings, even a small reduction in span length can significantly reduce punching demand across dozens of floors.

save pin

Calculation Checks Engineers Often Miss

Key Insight: Punching shear failures frequently occur because engineers check only the obvious load case rather than the governing combination.

In many projects I audit, the slab initially appears safe. But once lateral load combinations and unbalanced moments are included, punching shear suddenly governs.

Critical checks that are often skipped:

1. Load combinations including seismic effects
2. Moment transfer from slab to column
3. Reduced shear capacity due to openings
4. Effective depth reduction due to reinforcement congestion

Another common oversight is using nominal slab thickness instead of effective depth in shear calculations.

This difference alone can reduce calculated shear capacity by 10–15%.

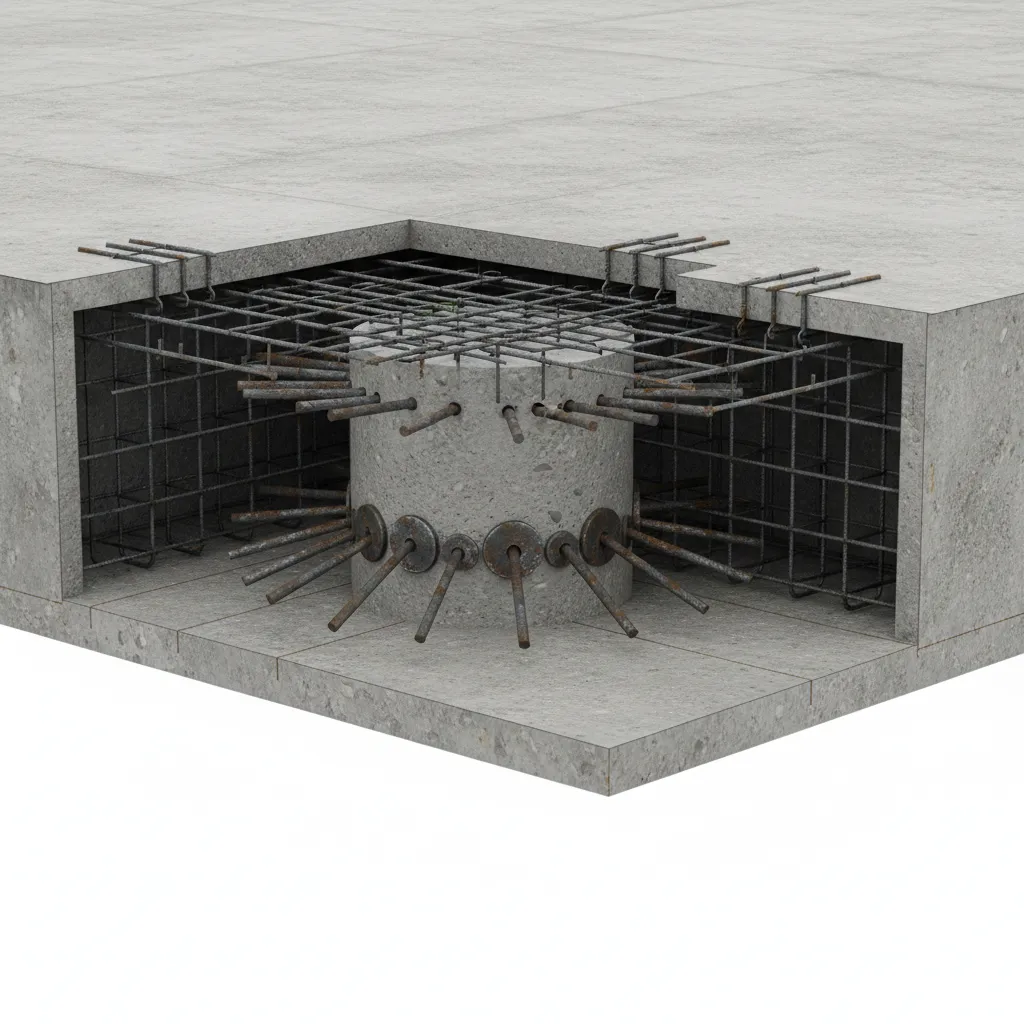

Practical Fixes for Insufficient Punching Shear Capacity

Key Insight: When punching shear capacity is insufficient, increasing slab depth or improving drop geometry usually works better than adding complex reinforcement.

Engineers often jump straight to shear studs or stirrups, but simpler geometric adjustments are often more efficient.

Practical fixes used in real projects:

1. Increase slab thickness by 20–40 mm
2. Increase drop panel width
3. Use shear studs or shear heads
4. Increase column dimensions
5. Reduce column spacing

save pin

Cost reality:

Adding shear reinforcement may look efficient on paper but can significantly increase construction complexity. Contractors often prefer slightly thicker slabs instead.

When redesigning layouts, engineers frequently sketch revised column grids or slab zones first. A quick practical way to test revised slab and column layouts visually can speed up the iteration process before recalculating loads.

Answer Box

The fastest way to fix flat slab punching shear problems is usually increasing slab thickness, enlarging drop panels, or slightly increasing column size. Most failures originate from layout geometry rather than calculation errors.

Final Summary

1. Punching shear is typically controlled by slab depth and column geometry.
2. Drop panels only work when properly sized.
3. Interior columns behave differently from edge and corner columns.
4. Incorrect load combinations often hide punching failures.
5. Simple geometric changes often outperform complex reinforcement fixes.

FAQ

1. What causes punching shear failure in flat slabs?

Punching shear failure occurs when concentrated column loads exceed the slab’s shear capacity along the critical perimeter around the column.

2. How can you increase punching shear capacity in flat slabs?

You can increase slab thickness, enlarge drop panels, increase column size, or add shear reinforcement such as shear studs.

3. Are drop panels always required for flat slabs?

No. Many flat slab systems work without drop panels if the slab thickness is sufficient to resist punching shear.

4. What is the most common flat slab punching shear problem?

The most common issue is insufficient slab depth relative to column loads and panel span.

5. How far is the critical perimeter from the column face?

In many design codes, it is located approximately d/2 from the column face, where d is the effective slab depth.

6. Do larger columns reduce punching shear risk?

Yes. Larger columns increase the critical perimeter, which improves punching shear capacity.

7. Why are corner columns more vulnerable?

Corner columns support load from fewer panels and experience eccentric shear stresses.

8. Can openings near columns cause punching shear problems?

Yes. Openings reduce the effective shear perimeter and can significantly lower punching capacity.

References

American Concrete Institute (ACI 318) – Building Code Requirements for Structural Concrete.

Eurocode 2 – Design of Concrete Structures.
