Common Reasons an Airbag Light Turns On Before Inspection: Understand what triggers the SRS warning light and how to diagnose the issue before a vehicle safety inspection.

Direct Answer

If your airbag light turns on before inspection, it usually means the vehicle’s Supplemental Restraint System (SRS) has detected a fault such as loose seat wiring, a faulty clock spring, low battery voltage, or a malfunctioning crash sensor. Because the system is safety‑critical, most inspections will fail a vehicle if the airbag warning light remains illuminated.

The key is identifying the underlying trigger early, since many airbag light issues are relatively simple electrical faults rather than expensive component failures.

Quick Takeaways

1. The airbag light means the SRS system detected a fault and may disable airbags until repaired.
2. Loose seat wiring connectors are one of the most common causes.
3. A failing clock spring often triggers the light along with steering wheel button issues.
4. Low battery voltage can temporarily activate the airbag warning light.
5. A professional diagnostic scan is sometimes required to identify the exact module fault.

Introduction

One of the most common questions I hear from drivers before a safety inspection is: “Why is my airbag light on before inspection?” And it’s a valid concern. In most states, an illuminated airbag or SRS warning light automatically causes a failed inspection because it indicates a safety system fault.

After years of working with vehicle diagnostics and speaking with mechanics during safety compliance reviews, I’ve noticed that the majority of airbag light problems are not catastrophic failures. In fact, many stem from simple electrical issues—loose connectors, weak batteries, or sensor communication problems.

The real challenge is identifying the cause before inspection day. Understanding common triggers can save both diagnostic time and repair costs. If you're researching inspection readiness, it also helps to review a visual step‑by‑step planning approach for understanding complex systems, which is similar to how technicians map out vehicle diagnostics logically.

Below are the most frequent reasons an airbag light appears—and how technicians typically diagnose each one.

save pin

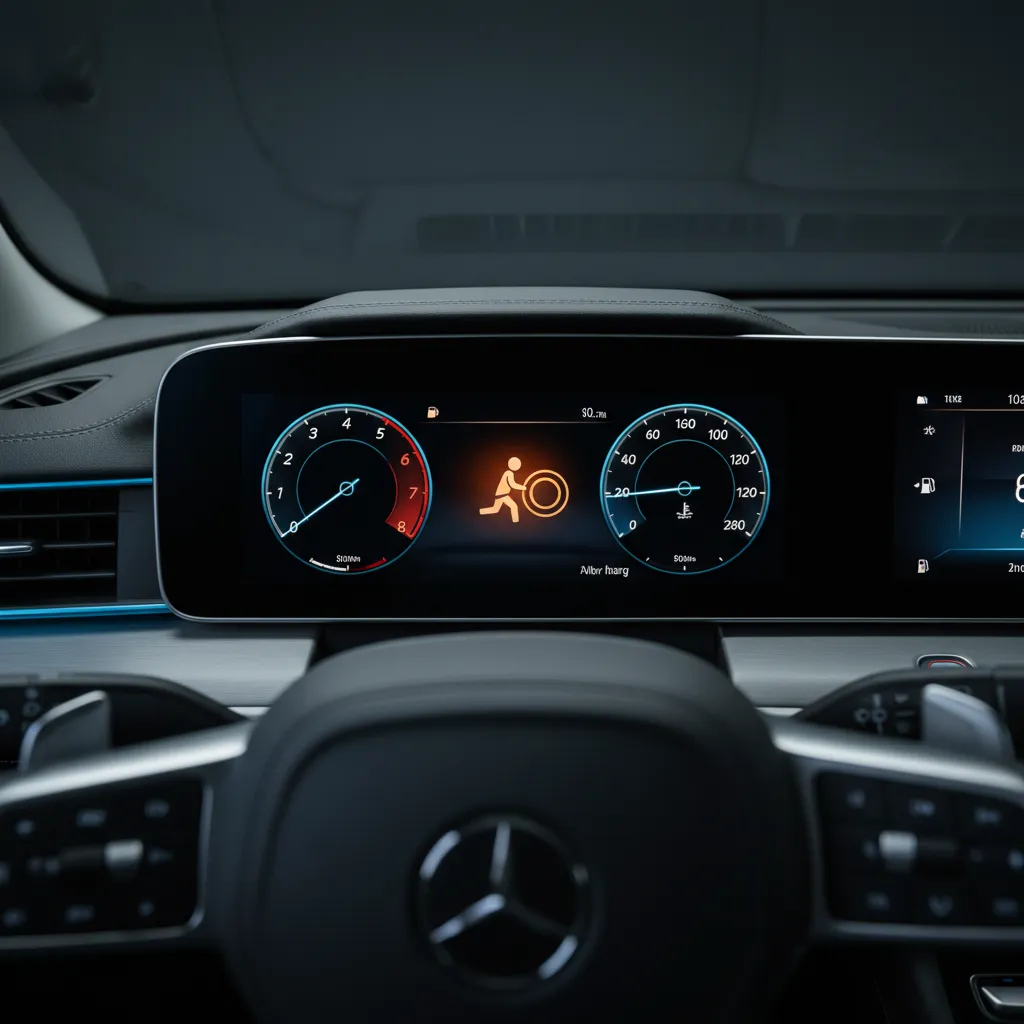

What the Airbag or SRS Warning Light Actually Means

Key Insight: The airbag warning light means the SRS control module has detected a fault that could prevent airbags from deploying correctly.

The Supplemental Restraint System constantly runs self‑checks whenever the car starts. If the system detects abnormal resistance, communication errors, or sensor failures, the warning light activates.

Contrary to what many drivers assume, the light does not always mean the airbags themselves are broken. Often, it indicates a fault somewhere within the network of components.

Typical components monitored by the SRS module include:

1. Front and side airbags
2. Seatbelt pretensioners
3. Crash sensors
4. Occupant detection sensors
5. Steering wheel clock spring
6. Airbag control module

According to guidance from the National Highway Traffic Safety Administration (NHTSA), any malfunction within this system must trigger a warning indicator to alert the driver.

This safety requirement is exactly why most inspection programs treat the warning light as an automatic failure.

Loose Seat Connector Wiring Under the Seats

Key Insight: The most common cause of an airbag light is a loose wiring connector under the driver or passenger seat.

In many vehicles, side airbags and seatbelt pretensioners are wired through connectors beneath the seats. These connectors move slightly whenever the seat position changes.

Over time, that movement can loosen the connection or create intermittent resistance in the circuit.

Typical scenarios that trigger this issue:

1. Sliding seats forward or backward frequently
2. Storing items under the seat
3. Vacuuming or cleaning the interior
4. Passenger seat weight sensor movement

In workshops, technicians often start with a simple inspection:

1. Turn off the vehicle and disconnect the battery.
2. Locate seat wiring connectors.
3. Check for loose clips or corrosion.
4. Reconnect firmly and clear the diagnostic code.

This single issue accounts for a surprisingly large share of airbag warning lights.

save pin

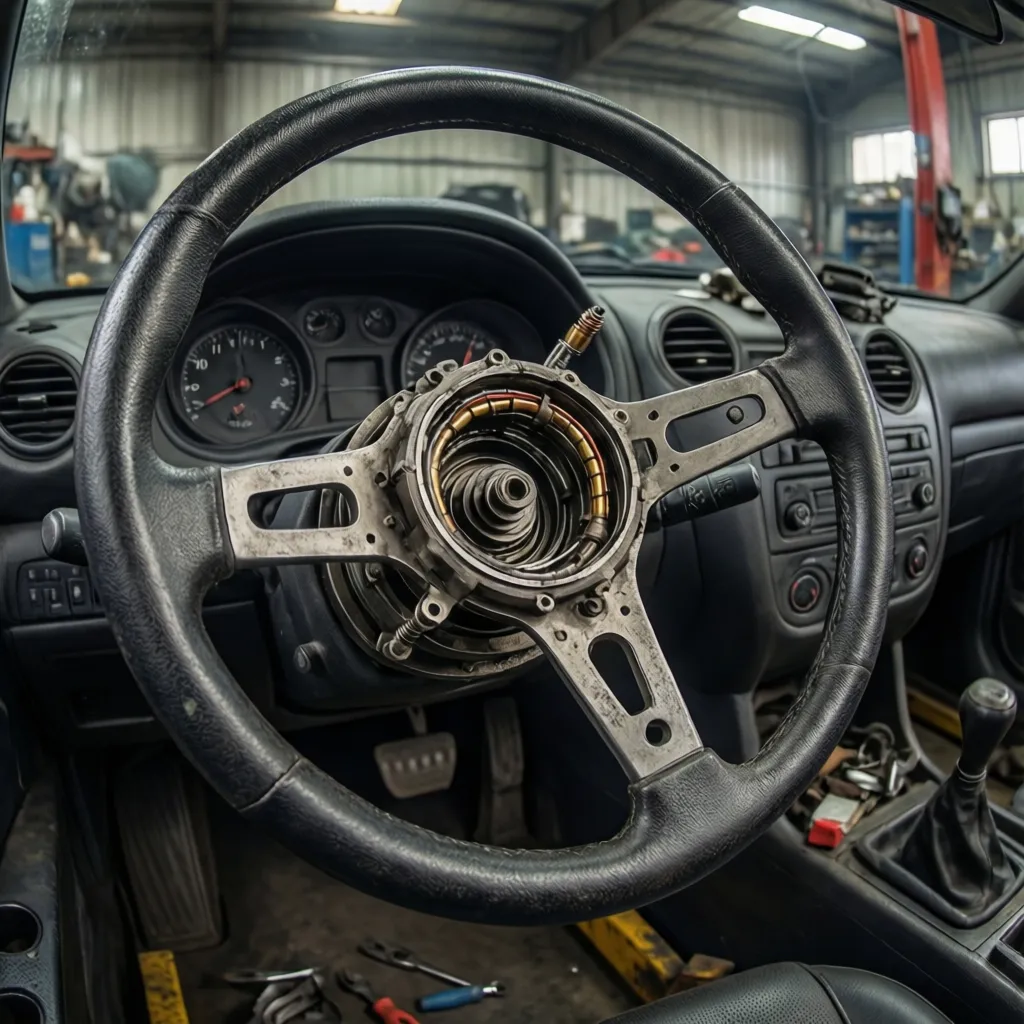

Faulty Clock Spring in the Steering Wheel

Key Insight: A damaged clock spring interrupts the electrical connection between the steering wheel and the airbag module.

The clock spring is a spiral cable assembly that allows electrical signals to travel to the steering wheel while it turns. It connects several critical components:

1. Driver airbag module
2. Horn circuit
3. Steering wheel buttons
4. Cruise control switches

When the clock spring begins to wear out, multiple symptoms often appear together:

1. Airbag light illuminated
2. Horn stops working
3. Steering wheel controls malfunction
4. Cruise control stops responding

Because the steering wheel rotates thousands of times over a vehicle’s life, this component naturally wears down over time.

Technicians confirm the issue using diagnostic codes related to driver airbag circuit resistance.

save pin

Low Battery Voltage or Electrical Faults

Key Insight: Weak batteries or unstable voltage can temporarily trigger the SRS warning light.

This is one of the most overlooked causes of airbag system faults.

When battery voltage drops during startup, electronic modules may register temporary communication failures. The airbag module then stores a fault code and activates the warning light.

Common situations that cause voltage-related warnings:

1. Old or weak car battery
2. Recently replaced battery
3. Cold weather starts
4. Loose battery terminals
5. Alternator charging issues

Professional diagnostic scanners can determine whether the fault was voltage-related or a permanent hardware issue.

Technicians often approach the system methodically—similar to how designers map system layouts visually using tools such as interactive planning tools that break down complex layouts. The same logic applies when tracing electrical faults through vehicle modules.

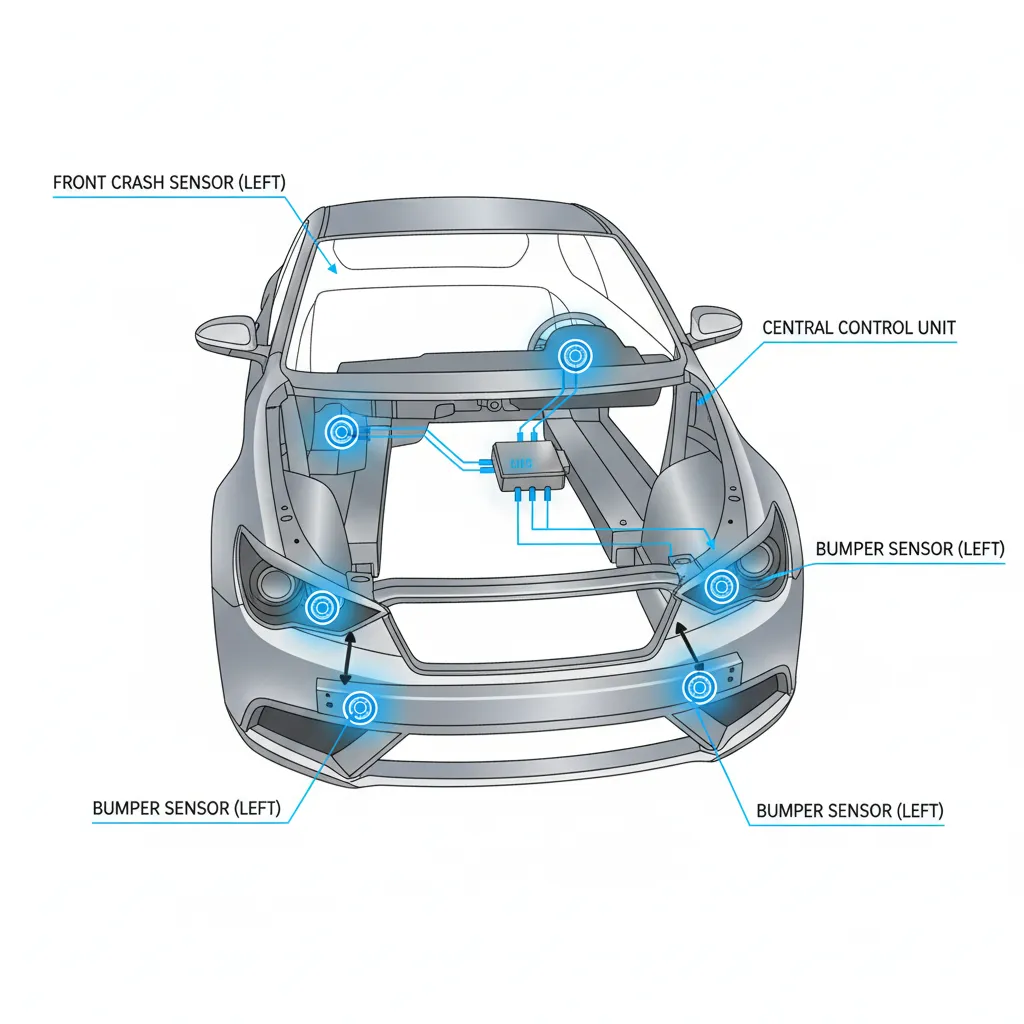

Crash Sensor or Impact Module Issues

Key Insight: A malfunctioning crash sensor or airbag control module can trigger persistent SRS warnings.

Crash sensors measure sudden deceleration and send signals to deploy airbags during collisions. These sensors are typically located:

1. In the front bumper area
2. Along the vehicle frame rails
3. Inside the central airbag control module

Several factors can cause sensor faults:

1. Minor collisions or curb impacts
2. Water intrusion
3. Corroded connectors
4. Module memory faults

Unlike loose wiring, crash sensor issues usually require replacement and professional calibration.

save pin

Answer Box

The most common causes of an airbag light before inspection are loose seat connectors, faulty clock springs, low battery voltage, or crash sensor faults. A diagnostic scan is usually required to identify the exact system error before repairs.

When a Professional Diagnostic Scan Is Required

Key Insight: When the airbag light persists, a diagnostic scan is the only reliable way to identify the exact SRS fault code.

Modern vehicles store detailed error codes inside the airbag control module. These codes identify the exact circuit or component causing the warning.

A professional scan tool typically provides:

1. Specific fault codes
2. Circuit resistance values
3. Sensor communication status
4. Historical fault records

This is why technicians rarely guess when diagnosing SRS problems. Instead, they follow a structured troubleshooting process—much like how complex system planning can be mapped visually using step‑by‑step visual planning methods for organizing complex layouts.

Once the exact code is identified, repairs become much faster and cheaper.

Final Summary

1. Airbag lights indicate a detected fault within the SRS system.
2. Loose seat wiring is the most frequent trigger.
3. Clock spring failures often affect steering wheel controls.
4. Weak batteries can create temporary SRS warning codes.
5. Diagnostic scans are essential for persistent airbag light issues.

FAQ

Why is my airbag light on before inspection?

The airbag light usually indicates a fault in the Supplemental Restraint System such as loose seat wiring, sensor faults, or low battery voltage.

Will my car fail inspection if the airbag light is on?

In most regions, yes. Safety inspections typically fail vehicles with an illuminated airbag or SRS warning light.

Can a low battery trigger an airbag warning light?

Yes. Low voltage during startup can cause the airbag control module to register a temporary system fault.

Is it safe to drive with the airbag light on?

Driving may still be possible, but the airbags might not deploy properly in a crash.

What triggers an airbag warning light in cars?

Common causes include seat wiring issues, faulty clock springs, crash sensor problems, or electrical faults.

How much does it cost to diagnose an airbag light?

Most shops charge $50–$150 for a diagnostic scan depending on the vehicle and region.

Can I reset the SRS light myself?

Only if the underlying issue is fixed. Otherwise the system will trigger the warning again.

Do airbag sensors fail often?

Not frequently, but they can fail due to corrosion, collision damage, or electrical faults.
