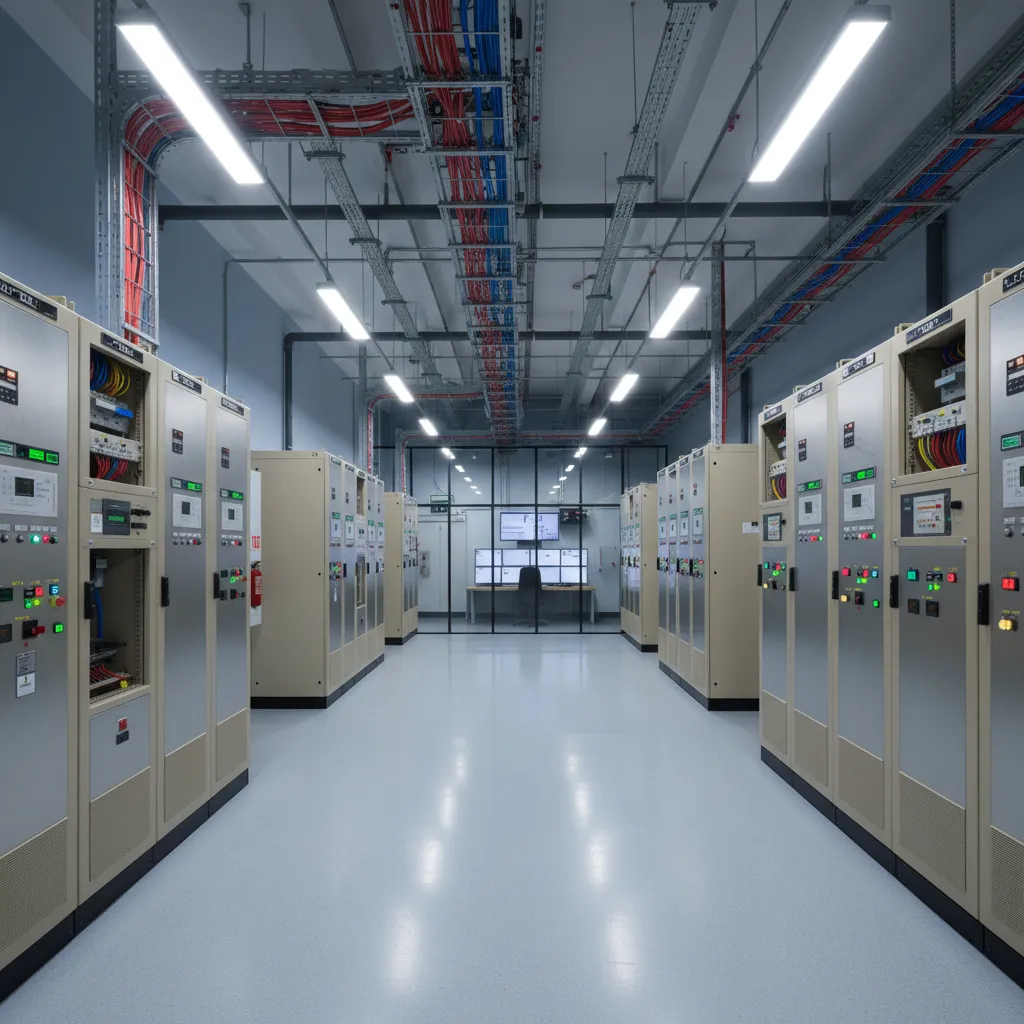

Common Relay Room Design Mistakes and How to Fix Them: Practical fixes engineers and facility teams can use to solve wiring, cooling, spacing, and grounding problems in relay protection rooms

Direct Answer

Common relay room design mistakes usually involve poor cable routing, inadequate cooling, incorrect panel spacing, and improper grounding. These issues can cause relay malfunction, maintenance delays, and long‑term reliability risks in power facilities. Most problems can be corrected through structured cable management, improved airflow planning, proper equipment spacing, and robust grounding systems.

Quick Takeaways

1. Most relay room failures originate from layout mistakes rather than faulty equipment.
2. Poor cable routing increases electromagnetic interference and maintenance complexity.
3. Overheating is often caused by airflow design errors, not just insufficient cooling capacity.
4. Correct panel spacing improves technician safety and reduces maintenance downtime.
5. Grounding errors can silently degrade relay protection reliability for years.

Introduction

After working on electrical facility upgrades and infrastructure retrofits for more than a decade, I've seen a pattern: the majority of relay room issues aren't caused by the protection equipment itself. They're design problems hiding in plain sight.

When engineers investigate relay room design mistakes, they usually start with hardware or configuration. But in real projects, the root cause often sits in the room layout—how panels are spaced, how cables are routed, and how airflow moves around equipment racks.

One substation project I reviewed had brand‑new digital relays but still experienced nuisance alarms. The culprit wasn't software. It was a chaotic wiring layout that allowed signal cables to run parallel with high‑current lines for several meters.

These types of common relay room design problems appear repeatedly across power plants, substations, and industrial facilities. And the frustrating part is that many of them are preventable.

If you're planning upgrades or troubleshooting issues, it helps to visualize the entire room layout before changing hardware. A structured planning approach like mapping equipment placement and cable paths in a clear relay room layoutoften reveals problems that diagrams alone hide.

In this guide, I'll break down the most frequent relay protection room wiring mistakes, explain why they cause operational risks, and show practical retrofit solutions I've seen work in real facilities.

save pin

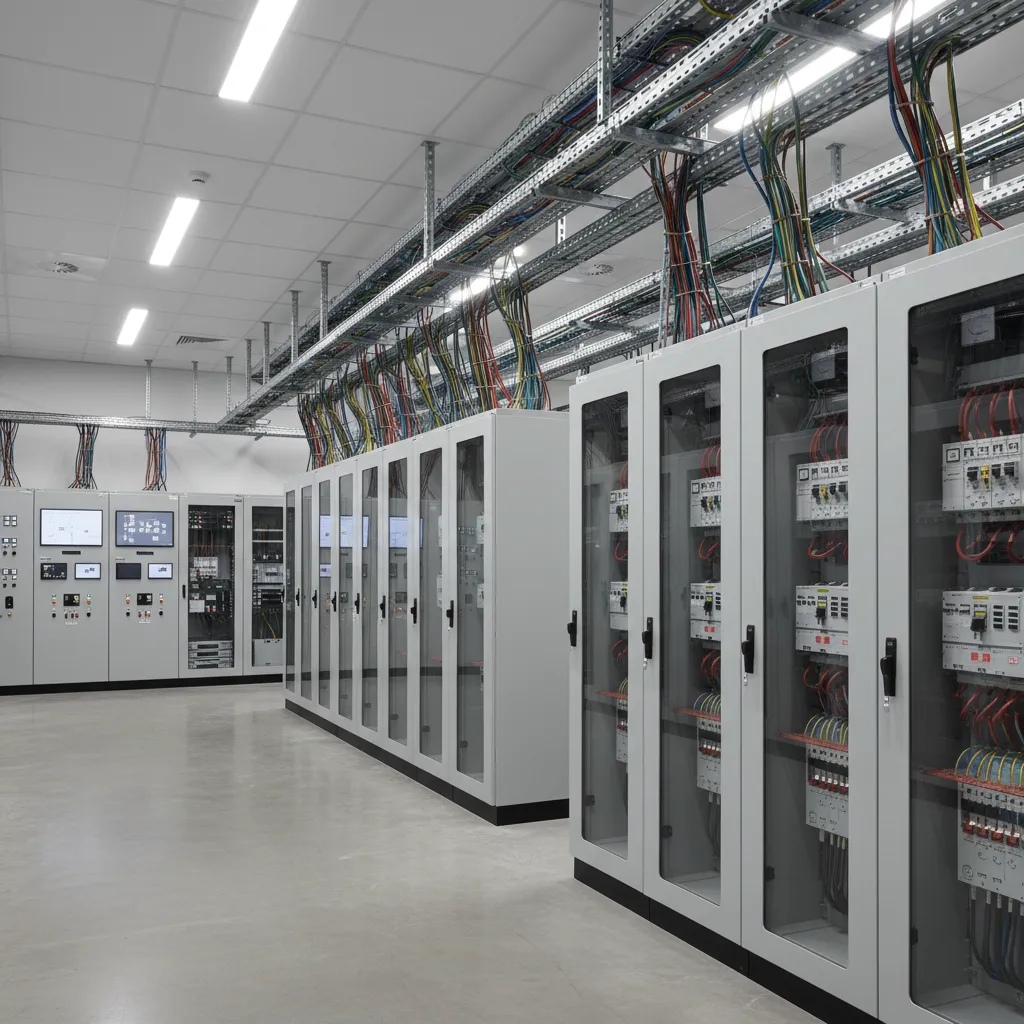

Why Relay Room Design Mistakes Cause System Problems

Key Insight: Relay system reliability depends as much on physical room design as it does on protection logic.

Protection relays operate on precise signal measurements. Any disturbance—electrical noise, temperature drift, or wiring complexity—can affect their accuracy.

When relay room layouts ignore physical constraints, several operational problems appear:

1. Signal interference between control and power circuits
2. Difficult maintenance access to relay panels
3. Heat buildup around densely packed racks
4. Increased risk of wiring errors during upgrades

IEEE and IEC guidance for protection systems consistently emphasize environmental stability and wiring separation. The protection relay itself may be highly reliable, but the surrounding infrastructure determines whether it operates as intended.

From a design standpoint, the room must function like a controlled technical environment—not just a storage space for panels.

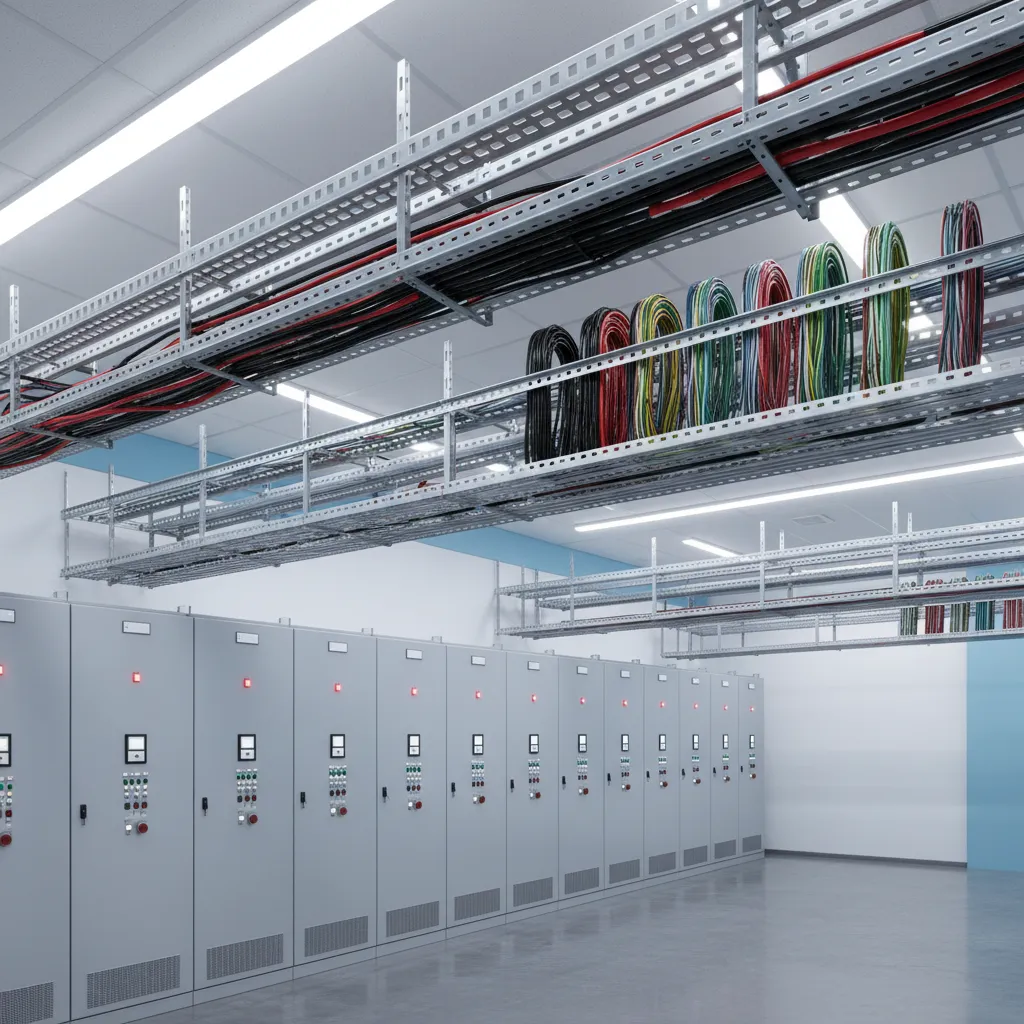

Poor Cable Routing and Wiring Layout Issues

Key Insight: Disorganized cable routing is the most common relay protection room wiring mistake.

In many existing relay rooms, signal cables, power conductors, communication lines, and grounding wires end up sharing trays or running in parallel. That arrangement increases electromagnetic interference and complicates troubleshooting.

Typical wiring layout mistakes include:

1. Control cables routed alongside high‑current power cables
2. Overfilled cable trays with no separation
3. Sharp cable bends causing long‑term insulation stress
4. Unlabeled wiring bundles

Better cable routing practices:

1. Separate power and signal cables in dedicated trays
2. Maintain minimum spacing between high‑voltage and control circuits
3. Label every termination point clearly
4. Route cables along defined pathways instead of direct shortcuts

In retrofit projects, I often recommend mapping cable pathways before physical changes. Teams sometimes sketch layouts manually, but visual planning platforms similar to building a structured technical room floor plan before routing cablescan make coordination easier between engineers and installers.

save pin

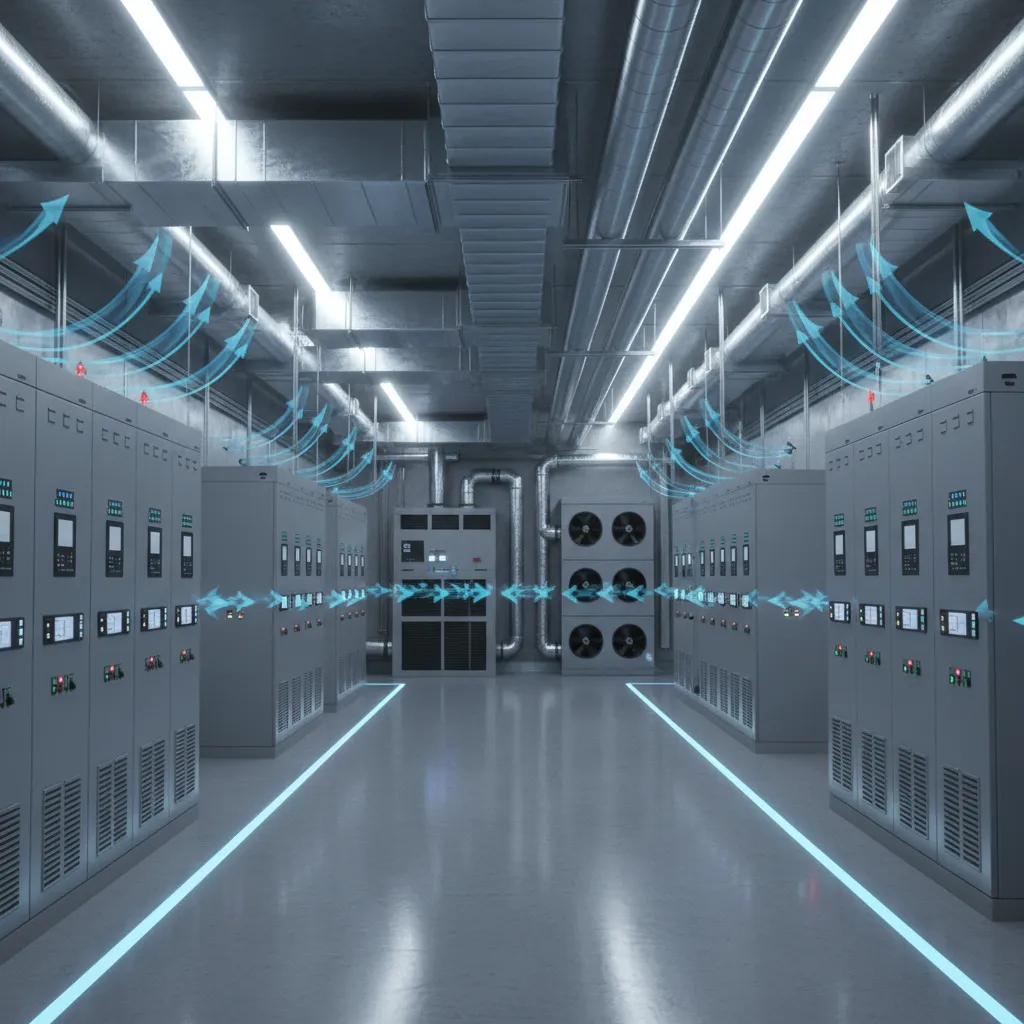

Why Do Relay Rooms Frequently Overheat

Key Insight: Relay room overheating problems usually come from airflow design failures rather than insufficient cooling equipment.

Protection panels generate moderate heat individually, but dozens of panels in a confined room create a concentrated thermal load.

The most common overheating causes are:

1. Blocked ventilation pathways behind panels
2. Poor air circulation between equipment rows
3. Heat accumulation near ceilings without extraction
4. Cooling units placed without airflow modeling

Industry guidelines often recommend maintaining stable operating temperatures between 18°C and 27°C for relay equipment. Temperature fluctuations outside this range can shorten electronic component life.

Practical cooling improvements:

1. Create hot and cold airflow zones between panel rows
2. Ensure rear clearance for ventilation
3. Install temperature monitoring sensors
4. Design airflow paths rather than relying on random air distribution

save pin

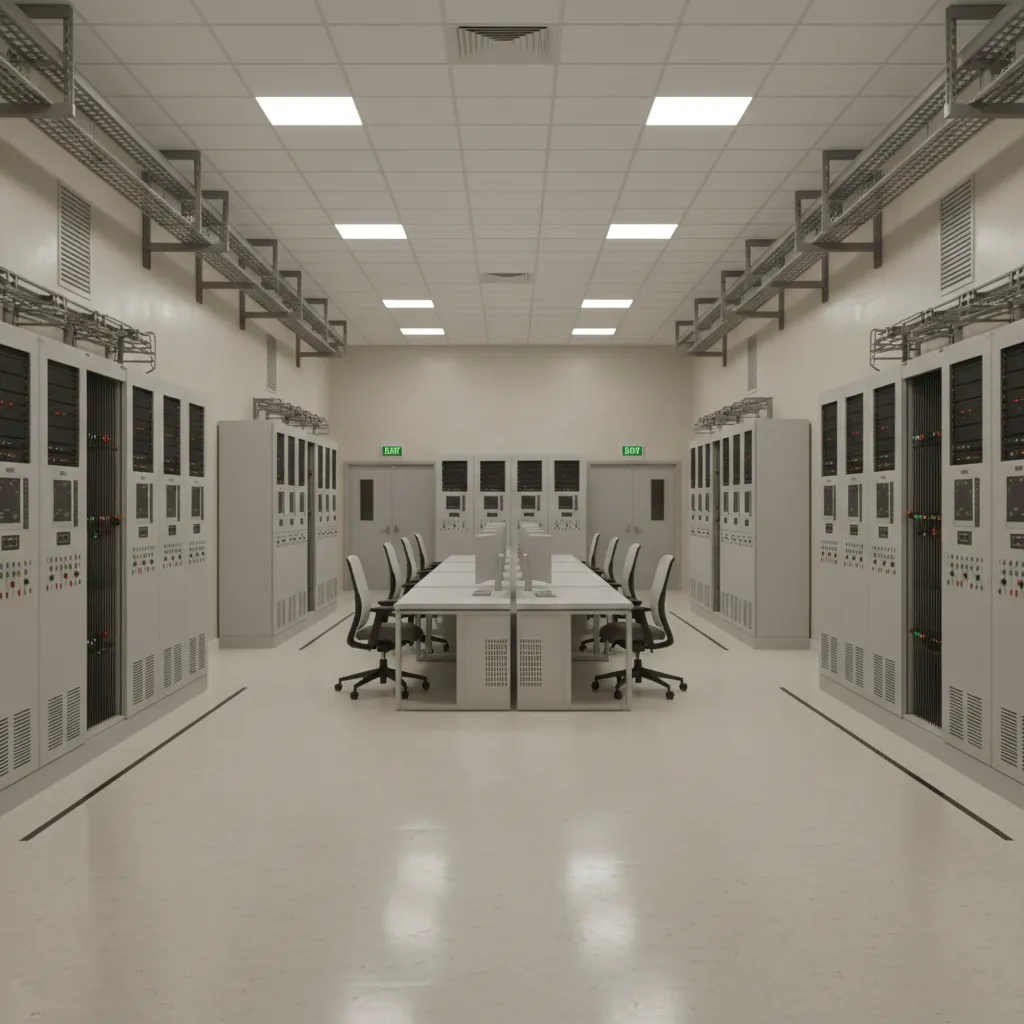

Improper Panel Spacing and Accessibility Problems

Key Insight: Incorrect relay panel spacing creates both safety hazards and long‑term maintenance inefficiency.

Many relay rooms are designed with maximum equipment density in mind. While that saves space initially, it creates serious operational challenges later.

Common panel spacing problems include:

1. Insufficient clearance between panel rows
2. Doors or access panels that cannot fully open
3. Maintenance areas blocked by cable trays
4. Technicians forced to work in cramped conditions

From my experience reviewing facility layouts, once maintenance access becomes difficult, small issues take much longer to diagnose. Over time that increases outage risk.

Typical spacing recommendations seen in engineering practice:

1. Front working clearance: about 1.2–1.5 meters
2. Rear service clearance: around 1 meter
3. Clear cable routing space above panels

Before installing new panels, it helps to simulate the equipment arrangement using planning models such as visualizing relay equipment zones and technician movement paths. This often reveals bottlenecks early.

save pin

How Grounding and EMI Problems Affect Relay Protection

Key Insight: Poor grounding design can silently undermine relay accuracy through electromagnetic interference.

Relay room grounding issues rarely produce obvious immediate failures. Instead, they create unstable signal conditions that may trigger incorrect relay operations.

Typical grounding mistakes include:

1. Multiple grounding paths forming loops
2. Inconsistent grounding bar connections
3. Signal shields incorrectly bonded
4. Grounding cables routed alongside interference sources

According to IEC protection system guidelines, a structured grounding scheme with a single reference grid helps minimize noise and maintain signal integrity.

Recommended grounding practices:

1. Install a dedicated grounding bar system
2. Maintain consistent bonding points
3. Separate grounding paths from signal wiring
4. Test grounding resistance regularly

Practical Fixes and Retrofit Solutions for Existing Relay Rooms

Key Insight: Most relay room design faults can be corrected incrementally without rebuilding the entire facility.

Many facility managers assume fixing relay room design mistakes requires major reconstruction. In reality, targeted upgrades often solve the majority of problems.

Effective retrofit steps:

1. Audit cable routing and separate power and signal pathways.
2. Install organized cable trays and labeling systems.
3. Improve airflow with ventilation channels or localized cooling.
4. Reconfigure panel spacing where maintenance access is limited.
5. Upgrade grounding bars and bonding connections.

The most successful retrofit projects start with a full layout assessment. Once teams see the entire system visually—equipment, wiring, airflow, and service space—the hidden constraints become obvious.

Answer Box

Most relay room reliability issues originate from layout mistakes such as cable interference, poor ventilation, limited panel access, and grounding errors. Correcting wiring separation, airflow paths, equipment spacing, and grounding structure can significantly improve protection system stability.

Final Summary

1. Relay room failures are often caused by design issues, not faulty relays.
2. Proper cable routing reduces electromagnetic interference.
3. Airflow planning prevents relay room overheating problems.
4. Correct panel spacing improves safety and maintenance efficiency.
5. Grounding structure is critical for stable protection signals.

FAQ

What are the most common relay room design problems?

Typical problems include poor cable routing, overheating, insufficient panel spacing, and grounding errors that create electromagnetic interference.

Why do relay rooms experience overheating problems?

Relay room overheating problems usually occur when airflow pathways are blocked or equipment density is too high for the room's ventilation capacity.

What is the recommended spacing between relay panels?

Engineering practice commonly recommends 1.2–1.5 meters of front working clearance and about 1 meter behind panels for maintenance access.

Can relay room design mistakes affect protection reliability?

Yes. Wiring interference, grounding issues, and environmental instability can cause incorrect measurements and relay misoperation.

How can cable routing mistakes be corrected?

Separate signal and power cables, install labeled trays, and avoid long parallel runs that increase electromagnetic interference.

What grounding system is best for relay protection rooms?

A structured grounding grid with a single reference bar helps maintain stable signal conditions and minimize noise.

Do old relay rooms need complete reconstruction?

No. Many issues can be fixed through targeted retrofits such as improved cable management, airflow upgrades, and grounding improvements.

How do engineers identify hidden relay room design faults?

Detailed layout reviews, wiring audits, and thermal inspections often reveal design weaknesses that are not obvious during normal operation.

References

1. IEEE Power System Relaying Committee Guidelines
2. IEC 60255 Measuring Relays and Protection Equipment Standards
3. CIGRÉ Technical Brochures on Substation Protection Design
