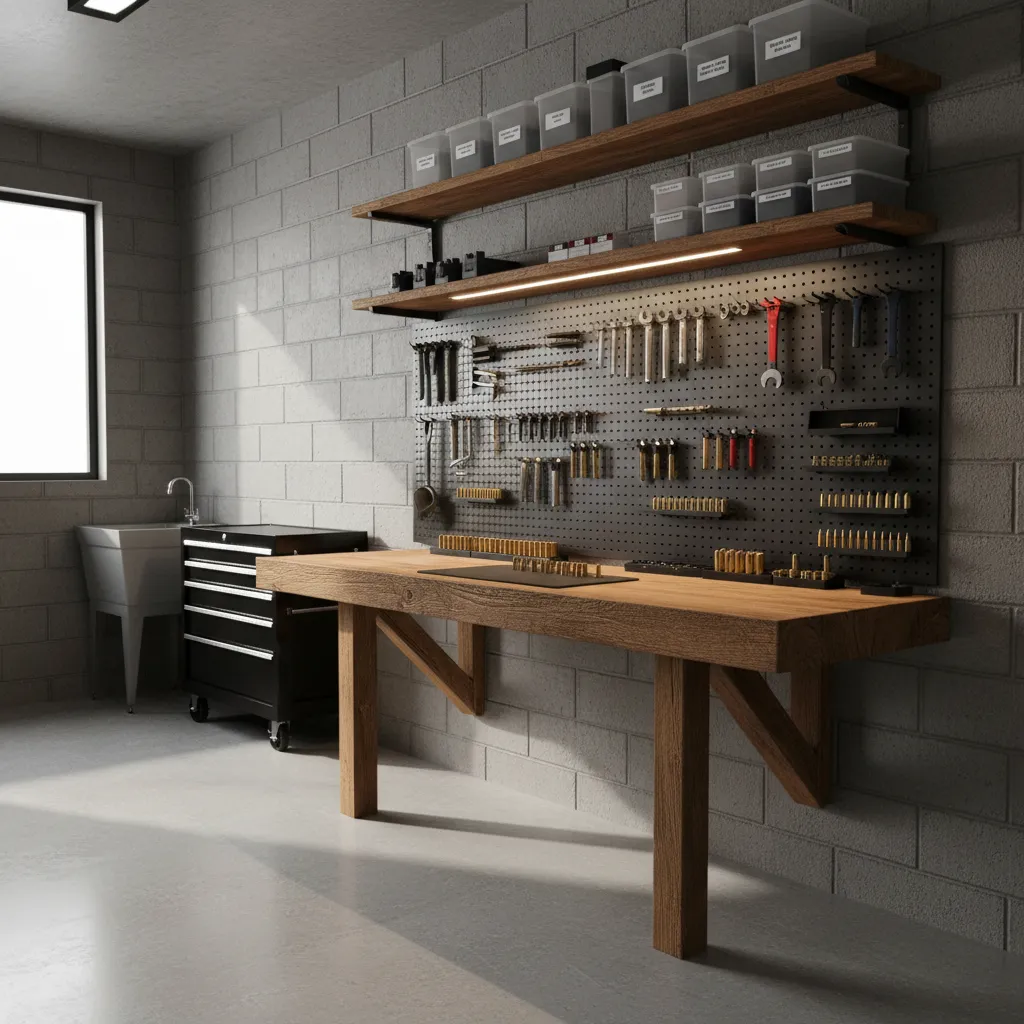

Common Reloading Room Setup Problems and How to Fix Them: Practical solutions to lighting, layout, stability, and storage issues in real reloading workspaces.

Direct Answer

Most reloading room setup problems come from poor lighting, unstable benches, cluttered storage, and inefficient layouts. Fixing these issues usually requires improving task lighting, anchoring the bench properly, organizing components into zones, and optimizing the workflow path between tools. Even small rooms can become efficient reloading workspaces with a few targeted layout adjustments.

Quick Takeaways

1. Weak lighting causes measurement errors and eye strain during long reloading sessions.
2. A wobbly reloading bench usually means poor anchoring or insufficient weight.
3. Clutter often results from mixing tool storage with component storage.
4. Workflow improves dramatically when tools follow the order of the reloading process.
5. Small reloading rooms benefit more from vertical storage than larger benches.

Introduction

After designing and evaluating dozens of hobby workspaces over the past decade, I can tell you something most people underestimate: reloading room setup problems rarely come from the equipment itself. They almost always come from the layout around it.

Reloading requires precision. Powder measurement, primer seating, and case inspection all rely on visibility, stability, and organization. Yet many reloaders end up working in converted basements, spare rooms, or garage corners where the workspace was never planned for this level of detail.

I frequently see the same complaints: "my reloading bench moves," "I can't see powder levels clearly," or "my components are scattered everywhere." These are classic reloading workspace troubleshooting issues, and most of them are surprisingly easy to fix.

One of the biggest improvements I see comes when reloaders sketch their room layout before rearranging equipment. Even a simple digital layout can reveal wasted space or awkward movement paths. If you're unsure how your room should flow, this walkthrough showing how to map out a practical hobby room layout before moving heavy equipmentis a helpful starting point.

Below are the most common reloading room setup problems I see—and the practical fixes that actually work.

save pin

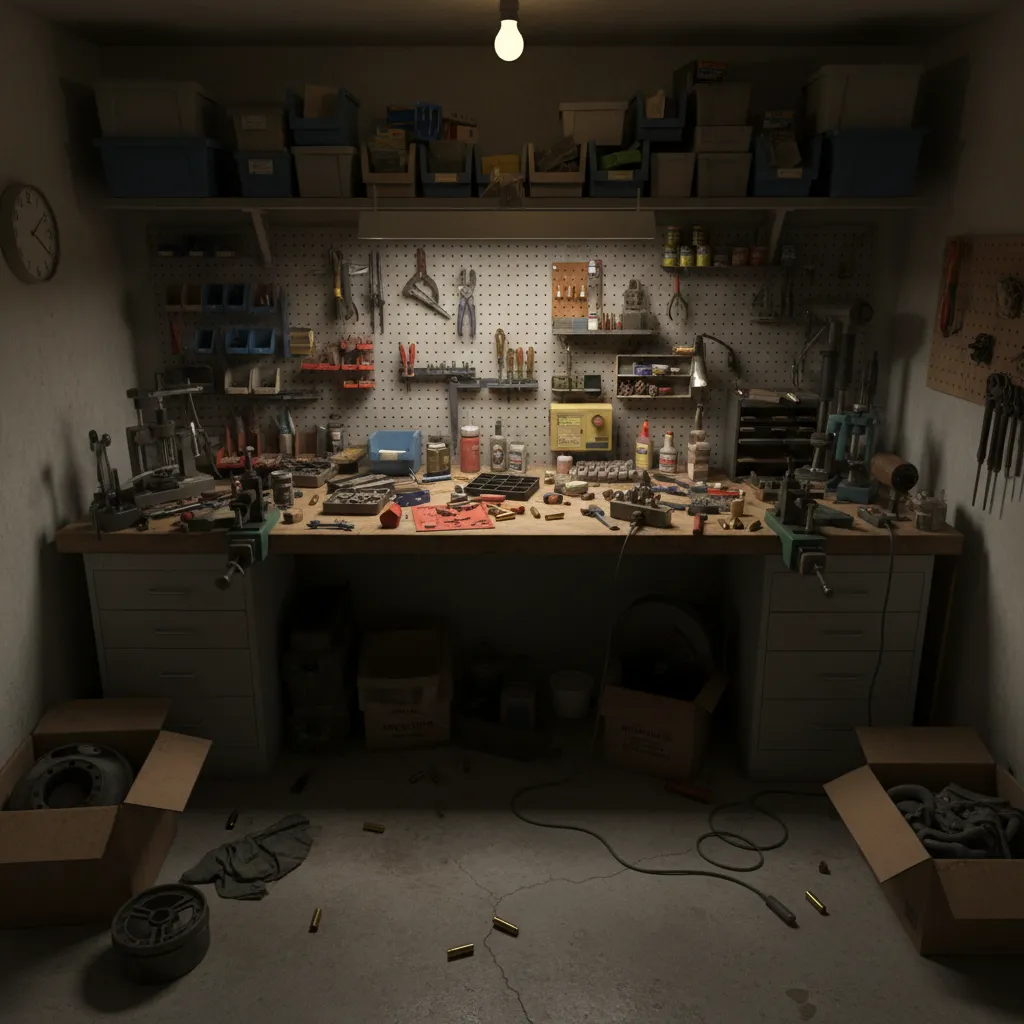

Signs Your Reloading Room Layout Is Not Working

Key Insight: If you constantly reach across the bench, move tools mid‑session, or struggle to find components, your layout is fighting your workflow.

Reloading is essentially a sequence process: clean → size → prime → charge → seat → inspect. When the workspace doesn't follow that order, you waste time shifting cases, turning around, or clearing space repeatedly.

In many poorly arranged rooms, tools are placed wherever they physically fit rather than where they logically belong. That leads to interrupted concentration—which increases the risk of mistakes.

Common layout warning signs:

1. Powder scale placed far from the press
2. Case prep tools located behind the operator
3. Component boxes stacked on the main work surface
4. Frequently used tools stored in drawers
5. Reloading steps requiring you to turn around repeatedly

A simple workflow layout that works well:

1. Left side: case prep tools
2. Center: primary press
3. Right side: powder measure and seating station
4. Above bench: dies and small tools
5. Below bench: component storage

Many experienced reloaders eventually shift to a straight or U‑shaped workflow layout because it mirrors the order of operations.

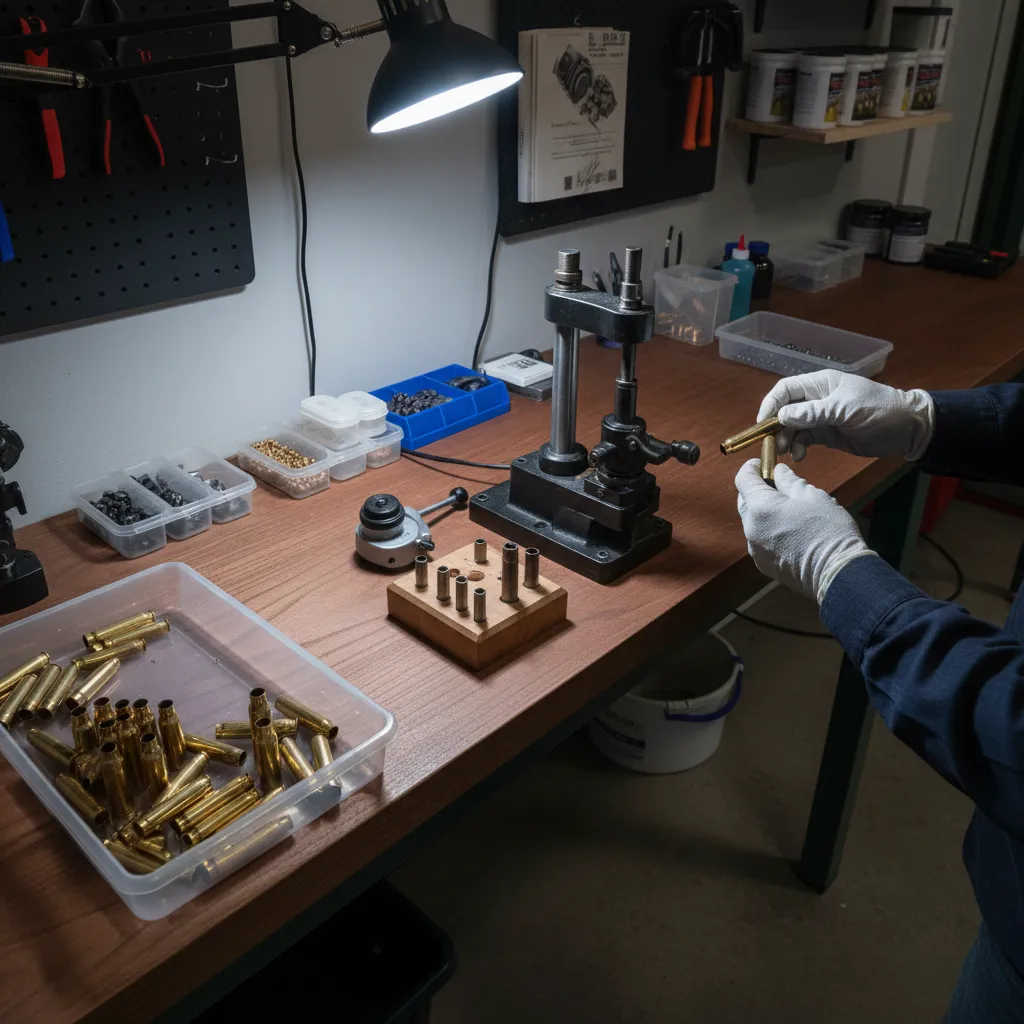

Fixing Poor Lighting and Visibility Problems

Key Insight: Overhead room lights are rarely enough for reloading; dedicated task lighting is essential for powder inspection and precision work.

This is one of the most overlooked reloading room setup problems. Garages and basements typically rely on a single ceiling fixture, which creates shadows directly over the press.

When lighting is insufficient, reloaders struggle to see powder levels, primer seating depth, or case defects.

Effective lighting setup:

1. Install a bright LED shop light above the bench
2. Add an adjustable task lamp aimed into the case mouth
3. Use neutral white light (4000–5000K)
4. Avoid warm bulbs that distort brass color

In professional workshops I’ve designed, the most effective configuration is layered lighting:

1. Ambient ceiling lighting
2. Bench‑mounted task lighting
3. Optional magnifying inspection light

Reloaders who upgrade lighting often report fewer mistakes and less eye fatigue during long sessions.

save pin

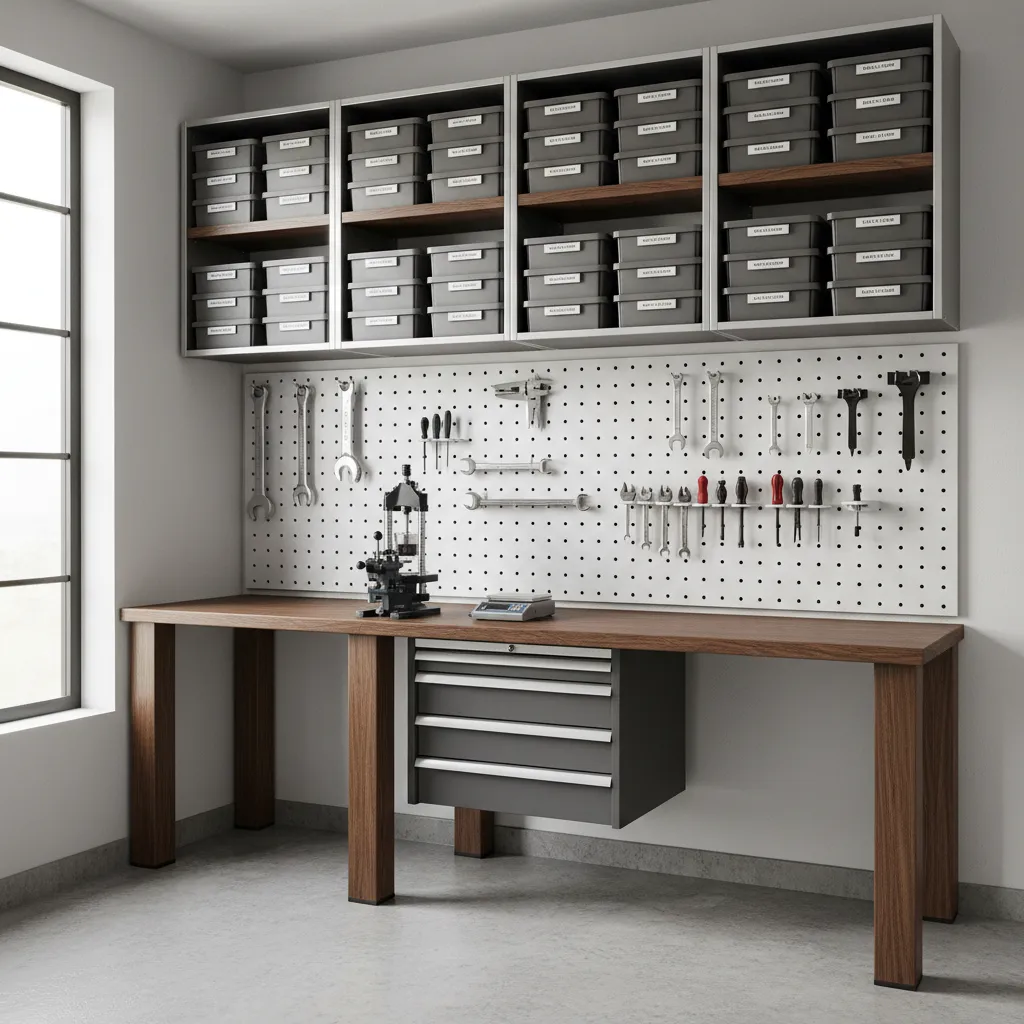

Solving Storage and Component Organization Issues

Key Insight: Mixing tools, components, and finished ammunition in the same space is the fastest way to create a cluttered reloading bench.

One hidden mistake I see constantly is storing everything at bench level. When powder bottles, bullet boxes, calipers, and dies all share the same surface, usable workspace disappears quickly.

A smarter storage structure:

1. Upper shelves: dies and small tools
2. Pegboards: frequently used hand tools
3. Drawer units: primers and measuring tools
4. Lower cabinets: powder and bulk components

Vertical storage dramatically improves small reloading rooms because it frees the main working surface.

If you're reorganizing your space entirely, mapping storage zones first can prevent future clutter. Many reloaders find it helpful to experiment with layouts using a simple tool that lets you test workbench and shelving placement before building.

save pin

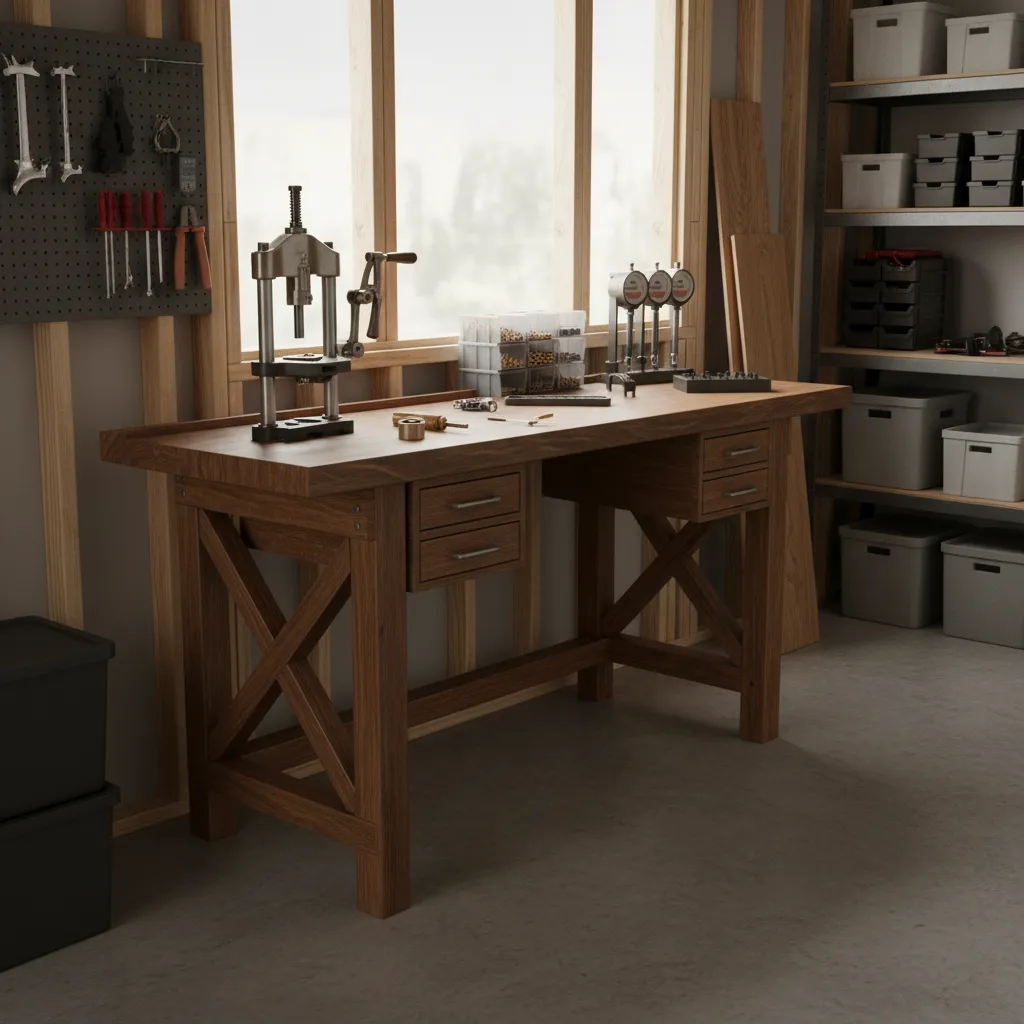

How to Stabilize a Wobbly Reloading Bench

Key Insight: A reloading bench moves when it lacks mass, wall anchoring, or proper bracing.

"Why my reloading bench moves" is one of the most common questions I hear from new reloaders. Progressive presses apply significant leverage, especially during resizing operations.

Lightweight furniture simply can't handle those forces.

Reliable ways to stabilize a bench:

1. Anchor the bench directly into wall studs
2. Add a lower shelf filled with heavy components
3. Use 4x4 legs or double 2x4 framing
4. Install cross bracing on the rear frame

In many of my workshop redesigns, anchoring the bench to two wall studs eliminates nearly all vibration.

Another overlooked factor: bench depth. A deeper bench (30–36 inches) distributes press force better than shallow tables.

Reducing Clutter in Small Reloading Rooms

Key Insight: Small reloading rooms become cluttered when reloaders expand equipment without redesigning storage.

Most reloaders gradually accumulate presses, dies, case prep tools, tumblers, and accessories. Without planning, the room slowly fills until the workspace disappears.

Practical clutter reduction strategies:

1. Store rarely used dies in labeled bins
2. Mount tools on removable quick‑change plates
3. Use vertical shelving above eye level
4. Dedicate one drawer for measurement tools only

One solution I often recommend is modular bench plates. Instead of installing every press permanently, tools can be swapped when needed.

save pin

Improving Workflow Without Expanding Your Space

Key Insight: Workflow efficiency improves more from layout sequencing than from adding square footage.

Many reloaders assume they need a bigger room. In reality, most inefficiency comes from movement friction—unnecessary steps between tools.

Workflow optimization steps:

1. Place tools in the exact order of the reloading process.
2. Keep components within arm's reach.
3. Separate preparation tasks from final assembly.
4. Leave a clear inspection zone on the bench.

Visualizing the full room layout often reveals wasted space or awkward tool placement. I recommend experimenting with layouts digitally before rebuilding benches. This guide showing how to visualize a full workshop layout before rearranging equipment demonstrates how quickly these adjustments can improve workflow.

Answer Box

The most common reloading room setup problems involve unstable benches, poor lighting, cluttered storage, and inefficient workflow. These issues can usually be solved by adding task lighting, anchoring the bench, organizing vertical storage, and aligning tools with the reloading process order.

Final Summary

1. Most reloading workspace issues come from layout, not equipment.
2. Dedicated task lighting dramatically improves precision and safety.
3. Vertical storage is the key to organizing small reloading rooms.
4. Bench stability requires anchoring, weight, and solid framing.
5. Efficient workflow follows the exact order of the reloading process.

FAQ

What are the most common reloading room setup problems?

The most common issues include poor lighting, unstable benches, cluttered work surfaces, and inefficient tool placement that interrupts workflow.

Why does my reloading bench move when I use the press?

A moving bench usually lacks wall anchoring or sufficient weight. Attaching it to wall studs and adding lower shelving often fixes the problem.

What lighting works best for a reloading bench?

Neutral white LED lighting between 4000K and 5000K works best. Combine overhead lighting with a focused task lamp aimed at the case mouth.

How do I fix a cluttered reloading bench?

Separate storage zones for tools, components, and finished rounds. Use shelves, pegboards, and drawers instead of keeping everything on the bench.

Is a bigger room necessary for reloading?

Not usually. Most reloading workspace troubleshooting solutions involve improving layout and storage rather than expanding the room.

How deep should a reloading bench be?

A depth of 30–36 inches works well. It provides stability and enough space for presses, scales, and case trays.

What causes small reloading room organization problems?

Storing everything at bench level is the biggest cause. Vertical storage and wall organization systems solve most space issues.

How can I improve reloading workflow?

Arrange tools according to the sequence of the reloading process and keep components within easy reach.
