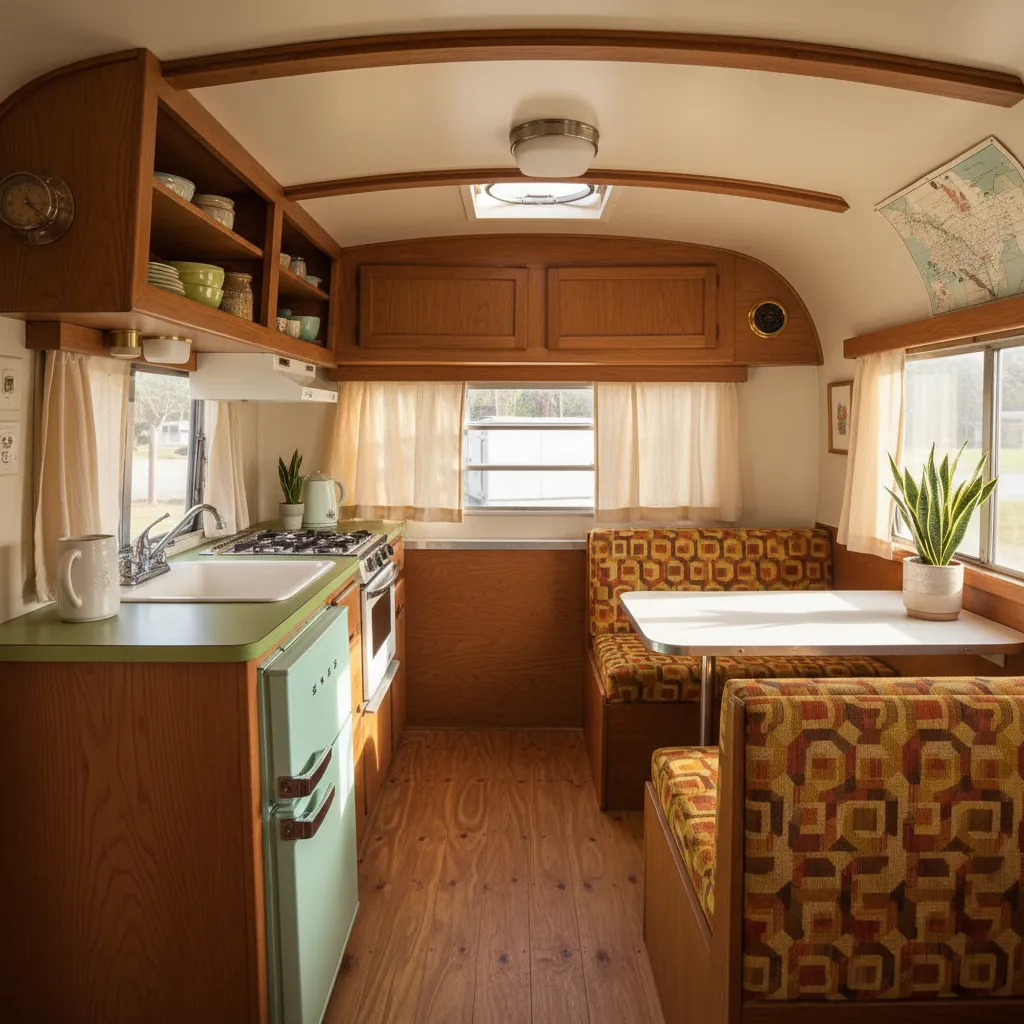

Common Restoration Problems in 1960 Rambler Floor Layouts: A practical guide to diagnosing structural and layout issues when restoring vintage Rambler travel trailers

Direct Answer

Most restoration problems in a 1960 Rambler floor layout come from hidden floor rot, weak frame rails, outdated plumbing routes, and electrical wiring embedded directly inside wall framing. These trailers were built lightweight, so decades of moisture and vibration often damage the subfloor and structural supports beneath the original layout.

Successful restoration usually involves reinforcing the floor structure, rerouting utilities, and carefully deciding which parts of the original layout should be preserved versus modernized.

Quick Takeaways

1. Floor rot under the kitchen and bathroom is the most common structural issue in 1960 Rambler trailers.
2. Original electrical routing rarely meets modern safety expectations.
3. Layout constraints often come from narrow frame rails and fixed appliance locations.
4. Many restorers underestimate hidden damage beneath cabinets and walls.
5. Smart restoration balances historical authenticity with structural safety.

Introduction

Restoring a vintage travel trailer is exciting until you open the floor and realize how fragile the original construction can be. The typical 1960 Rambler floor layout looks simple on paper, but after working on multiple vintage RV restoration projects, I’ve seen the same hidden problems appear again and again.

Most owners begin with cosmetic upgrades—new cabinets, paint, upholstery—only to discover that the real issues sit underneath the floor plan itself. Water infiltration, weak framing, and outdated utility routing often turn a small renovation into a full structural repair.

One of the best ways to understand how these layouts were originally structured is by studying vintage floor plan configurations. A helpful visual reference is this guide that shows how compact RV layouts were historically organized when designers tried to visualize compact living layouts in three dimensional planning tools. Seeing the structural relationships between rooms often reveals why certain areas fail first.

In this guide, I’ll break down the most common restoration problems found in 1960 Rambler floor plans and explain how experienced restorers diagnose and fix them without destroying the character of the trailer.

save pin

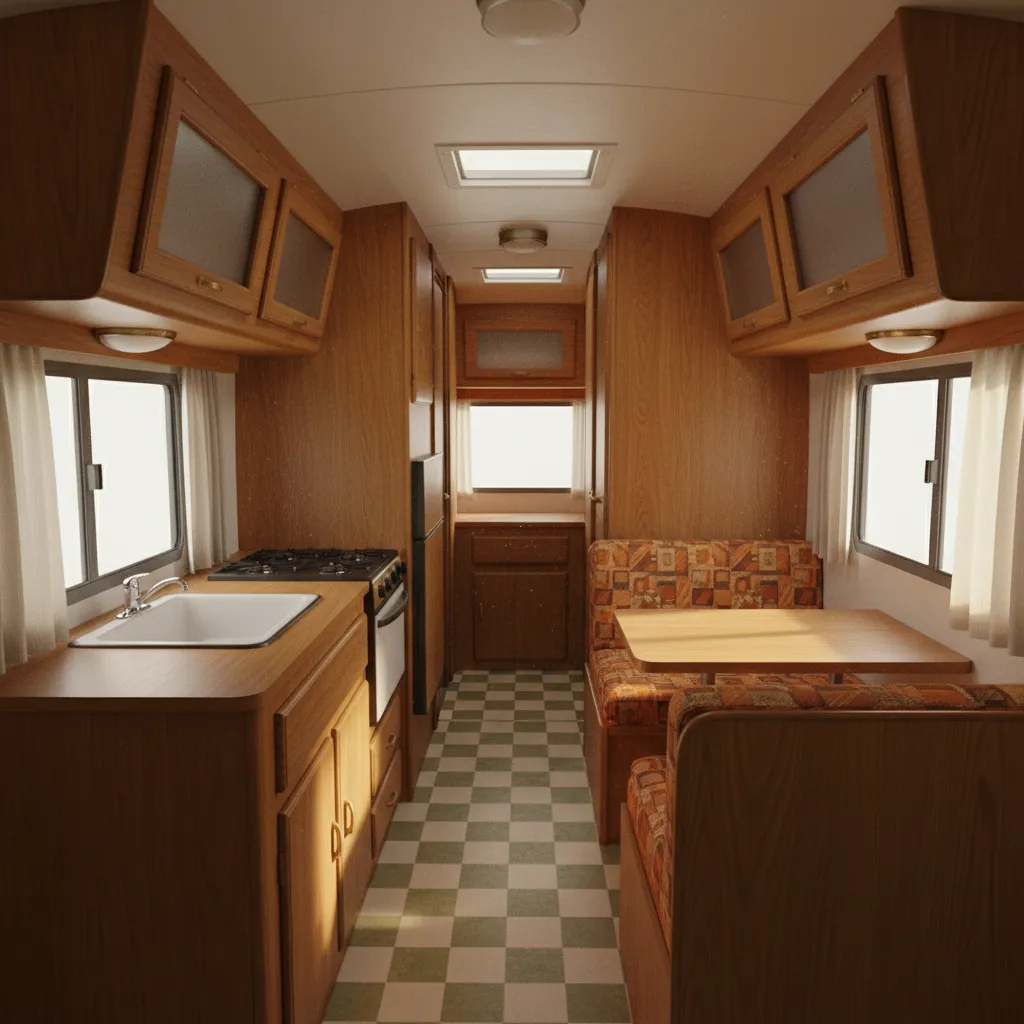

Why Vintage Rambler Floor Layouts Develop Structural Issues

Key Insight: The original Rambler trailers prioritized lightweight construction over long‑term durability, which makes their floor structures vulnerable after decades of use.

In the late 1950s and early 1960s, travel trailers were engineered to be towable by relatively small vehicles. To achieve this, manufacturers used thinner plywood subfloors, minimal insulation layers, and lightweight steel frames.

The design worked well when the trailer was new—but time introduces three structural stress factors:

1. Moisture intrusion around windows and roof seams
2. Road vibration loosening fasteners
3. Temperature cycles weakening adhesive bonds

Many Rambler trailers used 5/8 inch plywood directly attached to steel crossmembers. Once water enters, the plywood softens and the entire floor becomes spongy.

Vintage trailer restoration communities such as Tin Can Tourists frequently report that floor damage begins long before it becomes visible from inside the trailer.

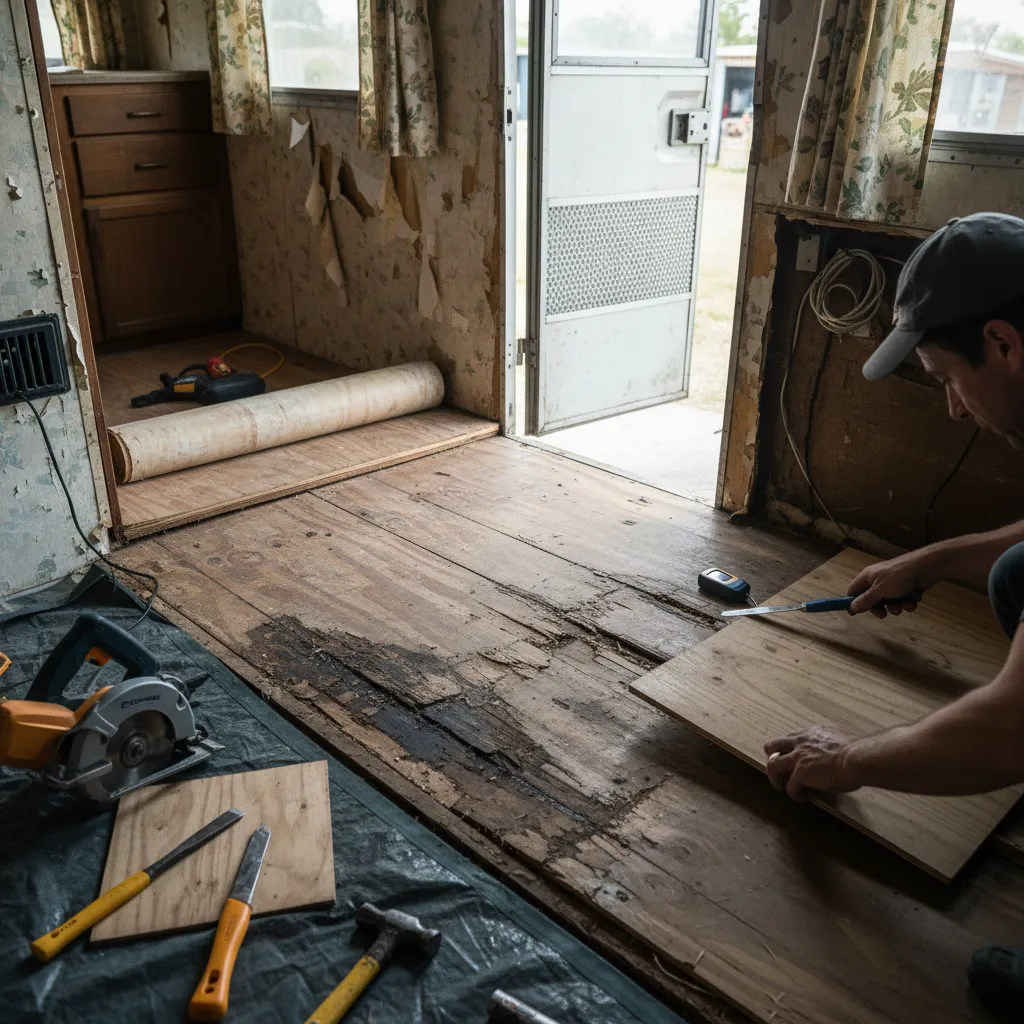

Signs of Floor Rot and Frame Weakness

Key Insight: Soft flooring around entry doors, kitchens, and wheel wells usually indicates deeper structural rot below the visible surface.

After inspecting dozens of vintage trailers, I’ve noticed that floor damage rarely appears in the center of the trailer first. It almost always begins near moisture entry points.

Common diagnostic signs include:

1. Spongy feeling when stepping near the door
2. Cabinets slightly separating from the wall
3. Vinyl flooring bubbling or lifting
4. Rust stains near frame bolts
5. Uneven door alignment

Hidden rot typically develops in these zones:

1. Under kitchen sinks
2. Bathroom plumbing areas
3. Wheel well corners
4. Entry door thresholds

save pin

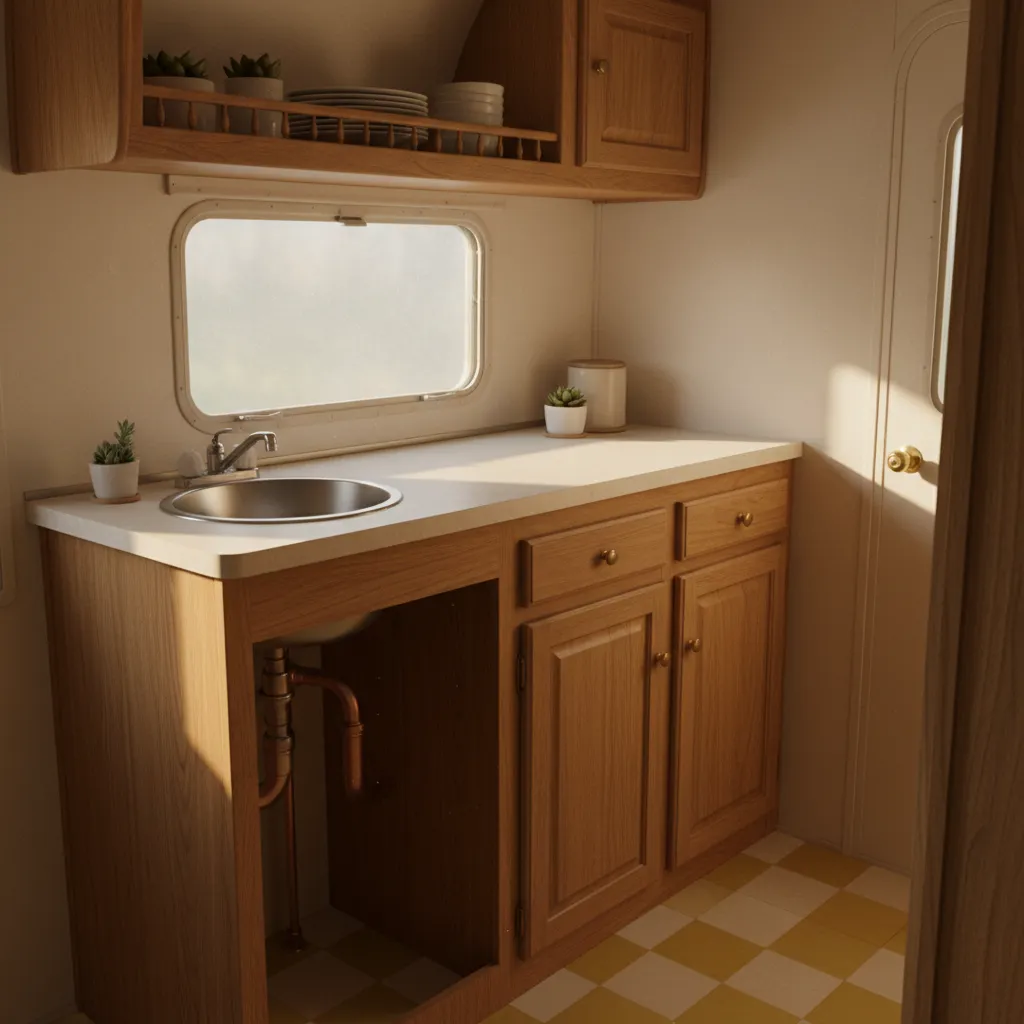

Plumbing and Kitchen Layout Problems in 1960 Ramblers

Key Insight: The original kitchen and plumbing layout often concentrates water risk in the weakest structural area of the trailer.

Many Rambler floor plans placed the sink, icebox, and water tank along a single wall. While this simplified plumbing, it created a concentrated moisture zone.

Typical plumbing restoration challenges include:

1. Galvanized steel pipes corroding internally
2. Drain pipes routed through floor beams
3. Water tanks sitting directly on plywood
4. Poor ventilation around sink cabinets

Modern restorers often redesign this area entirely. Studying examples of efficient compact kitchen planning—like those shown in guides explaining how designers optimize narrow kitchen layouts for small spaces—can help when reorganizing appliances while keeping the trailer balanced.

save pin

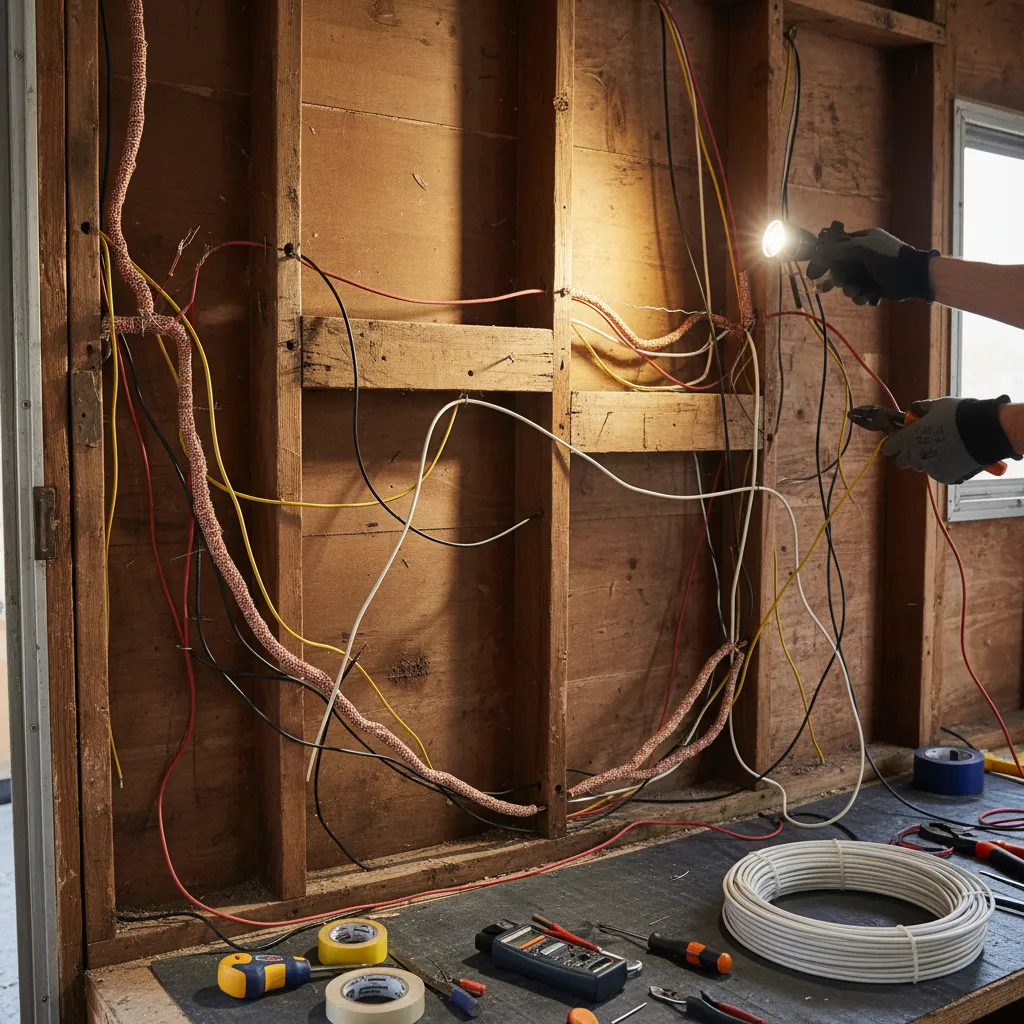

Electrical Routing Challenges in Original Floor Plans

Key Insight: Vintage Rambler wiring was routed for convenience rather than long‑term serviceability.

Most 1960 Rambler trailers used very simple 120‑volt wiring with minimal circuit separation. The wiring often ran through wall studs without protective conduits.

This creates several restoration complications:

1. Wires embedded behind glued paneling
2. No centralized breaker panels
3. Shared circuits for multiple appliances
4. Non‑grounded outlets

Because the electrical system was installed before cabinetry, accessing wires often requires partial disassembly of the interior layout.

For restorers planning a full rebuild, mapping the space digitally before rerouting utilities can save enormous effort. Tools designed to experiment with different floor plan layouts before constructionare especially useful for testing appliance placement and wiring paths.

save pin

Fixing Layout Constraints During Restoration

Key Insight: The biggest mistake restorers make is rebuilding the original layout exactly—even when structural weaknesses remain.

Some vintage layouts look charming but actually create maintenance problems.

For example:

1. Bathrooms placed directly over frame seams
2. Water tanks installed without drainage access
3. Closets blocking ventilation paths

Experienced restorers usually follow a staged approach:

1. Remove interior cabinets to expose the full floor structure
2. Inspect steel frame rails and crossmembers
3. Replace damaged plywood sections
4. Reinforce weak areas with marine‑grade subfloor
5. Redesign cabinetry around stronger structural zones

Marine plywood and sealed insulation panels are now commonly used because they resist moisture far better than the original materials.

When to Modify vs Preserve the Original Floor Plan

Key Insight: The best restorations preserve the visual spirit of the Rambler layout while quietly upgrading the underlying structure.

Not every part of the original design needs to remain untouched.

Good candidates for preservation:

1. Front lounge or dinette area
2. Original window alignment
3. Exterior door placement

Areas that often benefit from modification:

1. Bathroom size and location
2. Kitchen plumbing routing
3. Electrical system layout

Vintage RV restorers often follow the “invisible upgrade” philosophy—modern safety and structure hidden beneath a historically accurate interior.

Answer Box

The most common restoration problems in 1960 Rambler floor layouts involve hidden floor rot, plumbing moisture damage, and outdated electrical routing. Successful restorations focus on structural reinforcement first, then redesign utilities before rebuilding the interior layout.

Final Summary

1. Moisture damage is the leading cause of Rambler floor failure.
2. Kitchen and bathroom areas create the highest structural risk.
3. Original wiring layouts rarely meet modern safety standards.
4. Structural repairs should happen before interior rebuilding.
5. The best restorations balance authenticity and modern durability.

FAQ

What is the most common structural issue in a 1960 Rambler trailer?

Floor rot caused by long‑term moisture exposure is the most common issue, especially near kitchens, bathrooms, and entry doors.

How do you repair a 1960 Rambler trailer floor?

The typical repair involves removing interior cabinets, replacing damaged plywood subfloor sections, reinforcing frame supports, and installing moisture‑resistant flooring materials.

Are vintage Rambler trailers safe to restore?

Yes, but structural inspection is essential. Many issues remain hidden beneath the original floor layout until cabinets and flooring are removed.

Why do vintage Rambler RV floors rot so easily?

Lightweight plywood construction and poor moisture sealing make vintage Rambler RV floor rot problems very common after decades of use.

Should I keep the original 1960 Rambler floor layout?

Preserving the visual layout is ideal, but plumbing and electrical systems usually need modernization for safety and durability.

How long does a vintage RV floor restoration take?

Depending on damage, structural floor repairs typically take two to six weeks.

Can you redesign the interior during a Rambler restoration?

Yes. Many owners update kitchens and bathrooms while maintaining the vintage appearance.

What tools help when restoring a 1960 Rambler interior layout?

Digital floor planners and 3D layout tools help visualize appliance placement and utility routing before reconstruction begins.
