Common Roof Plan Drawing Mistakes and How to Fix Them: A practical troubleshooting guide from real design projects to help you identify and correct roof plan drafting errors before construction begins.

Direct Answer

Common roof plan drawing mistakes usually involve incorrect slope notation, poorly placed drainage lines, missing annotations, and scale inconsistencies. These errors often lead to construction confusion, water drainage failures, or inaccurate material estimates. The solution is systematic checking: verify slopes, confirm drainage paths, standardize symbols, and validate scale before final submission.

Quick Takeaways

1. Most roof construction issues start with incorrect slope or drainage representation in the roof plan.
2. Missing valleys, ridges, or drainage directions can cause costly on‑site corrections.
3. Annotation standards matter; unclear symbols confuse contractors and inspectors.
4. Always validate scale and dimensions before issuing a construction drawing.
5. A final checklist review prevents the majority of roof plan drawing mistakes.

Introduction

Roof plan drawing mistakes are more common than most designers want to admit. After working on residential and small commercial projects for over a decade, I’ve learned that roof plans are often the most rushed drawings in a set. Designers focus heavily on floor plans and elevations, while the roof gets assembled at the end.

The problem is that contractors rely heavily on roof plans to understand slope direction, drainage flow, ridge placement, and material quantities. A small drafting mistake can result in water pooling, structural confusion, or expensive field changes.

In many renovation projects I’ve reviewed, the original issue wasn’t poor construction—it was an inaccurate roof plan. Even something as simple as a misaligned valley line can change the entire drainage pattern of the roof.

If you're drafting or reviewing a roof plan, visualizing the geometry in three dimensions is essential. Tools that allow designers to turn flat plans into interactive 3D layout previewsoften reveal slope or ridge conflicts before drawings reach contractors.

In this guide, I’ll walk through the most common roof plan drafting problems I repeatedly see in professional design reviews—and the practical ways to fix them before they become construction headaches.

save pin

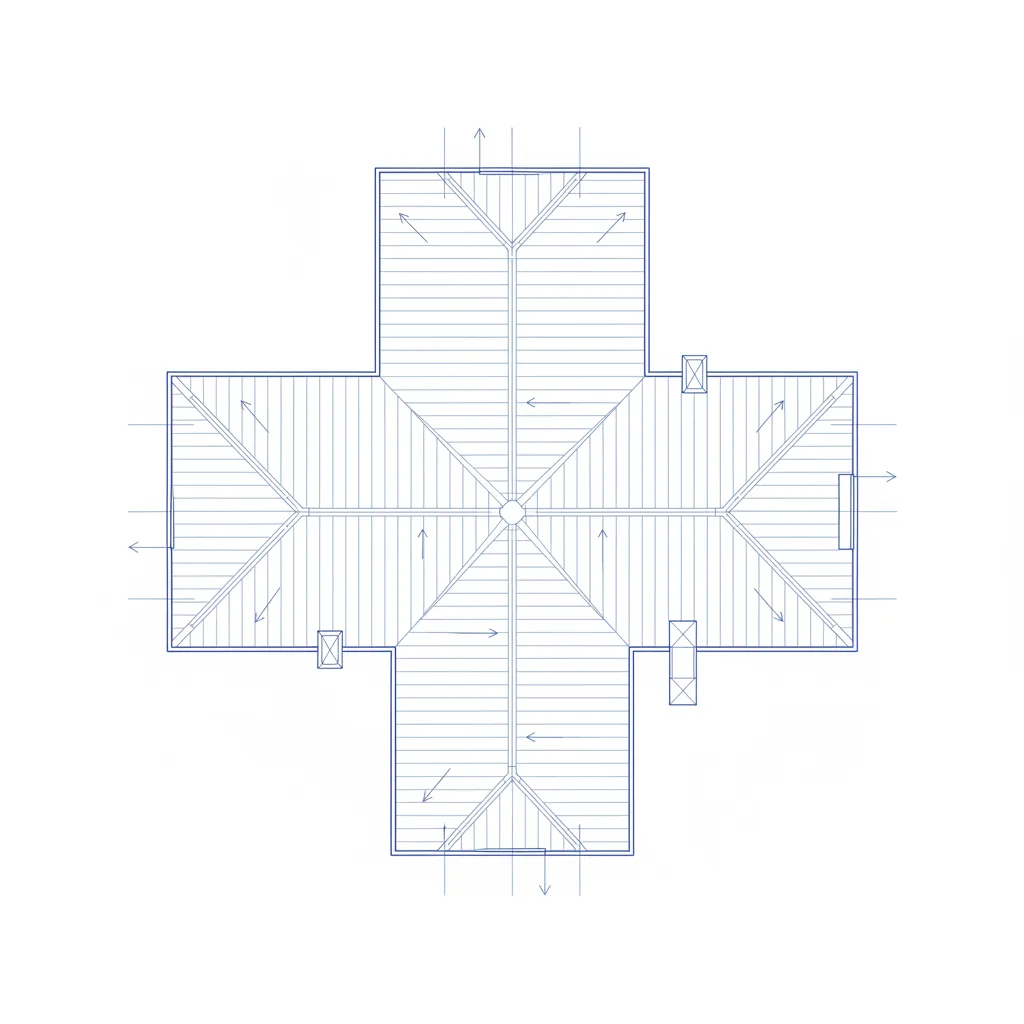

Why Roof Plan Errors Cause Construction Problems

Key Insight: Roof plan errors rarely stay on paper—they almost always become structural, drainage, or budgeting problems during construction.

A roof system works as a connected geometry. Slopes, ridges, valleys, and drainage points must align perfectly. When a drawing contains inconsistencies, contractors are forced to interpret the intent themselves.

In my experience reviewing permit drawings, the most common consequences include:

1. Improper water drainage causing pooling or leaks
2. Incorrect framing due to missing ridge lines
3. Material estimation errors
4. Conflicting instructions between plan and section drawings

According to the American Institute of Architects (AIA) construction documentation guidelines, roof geometry should always clearly indicate slopes, ridges, valleys, and drainage flow to prevent interpretation errors.

Even experienced builders hesitate when a roof plan lacks clarity. When drawings are ambiguous, contractors often request RFIs (Requests for Information), which slow projects and increase administrative costs.

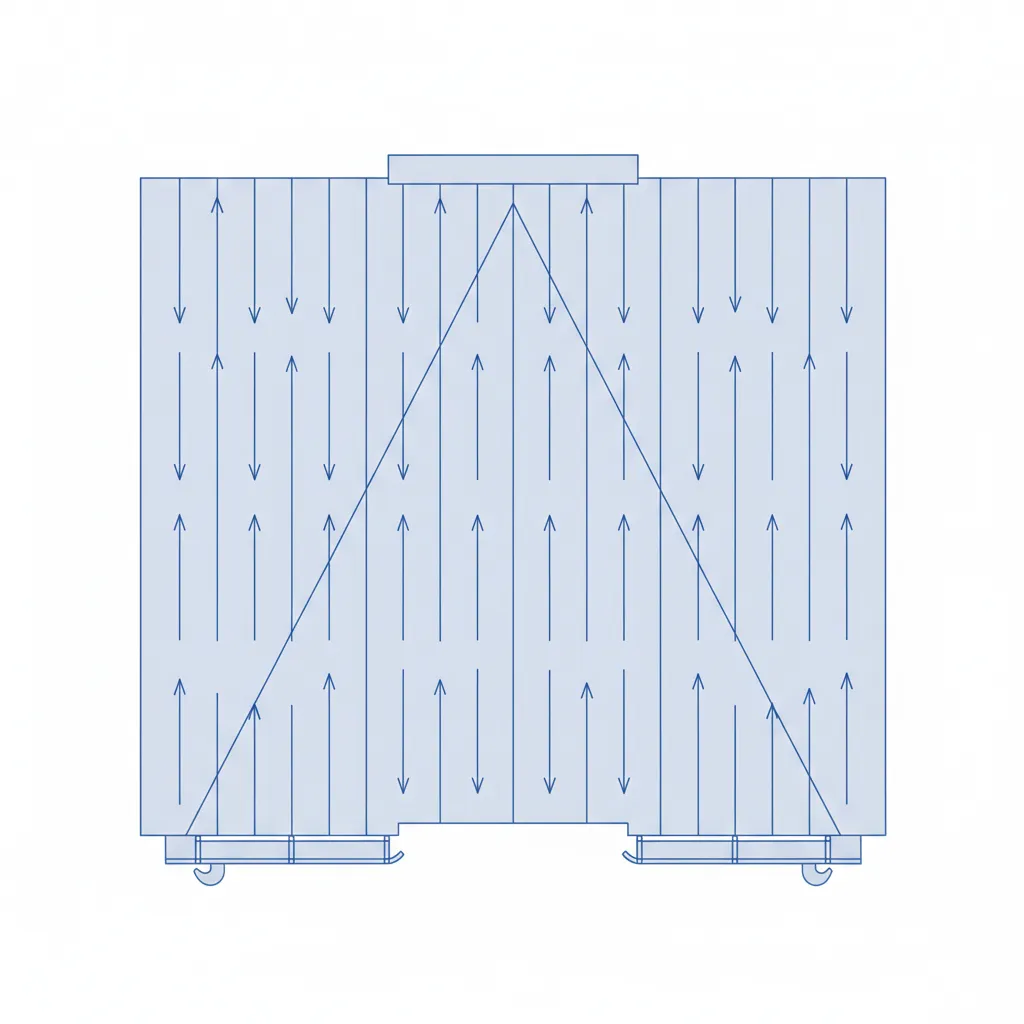

Incorrect Roof Slope Representation

Key Insight: Incorrect or missing slope indicators are the single most common roof drafting mistake.

Slope indicators communicate how water flows across the roof surface. When slopes are drawn incorrectly—or not labeled at all—contractors must guess the intended pitch.

Typical slope notation mistakes include:

1. Missing pitch ratios (e.g., 4:12)
2. Slope arrows pointing in the wrong direction
3. Inconsistent slope labels between roof areas
4. Slopes that don't align with ridge or valley geometry

How to fix slope mistakes:

1. Label every roof plane with a pitch value.
2. Ensure slope arrows point toward drainage edges.
3. Cross‑check slopes with elevations or sections.
4. Verify ridge lines sit at the highest elevation point.

Modern visualization workflows can help here. Many designers now generate quick automated layout previews to validate slopes and roof geometrybefore finalizing drafting details.

save pin

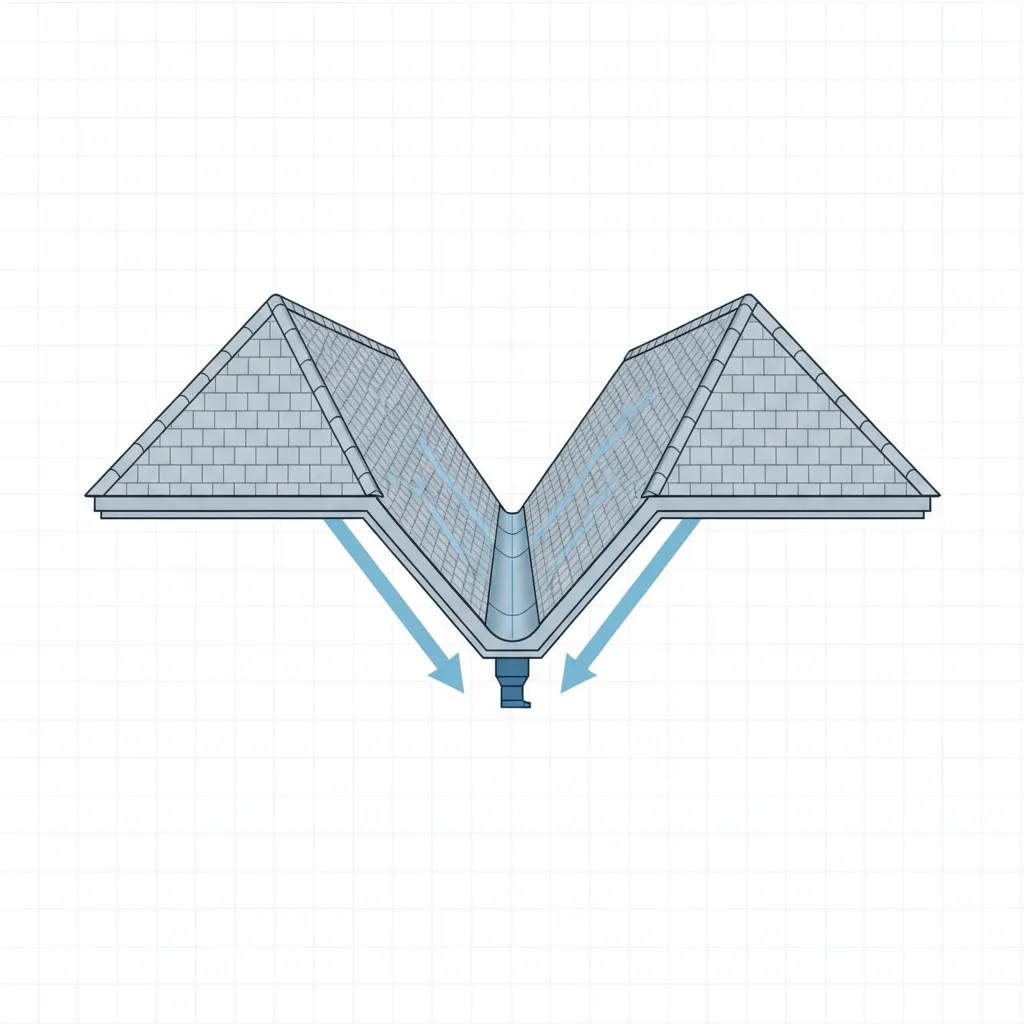

Misplaced Drainage and Valley Lines

Key Insight: A valley drawn in the wrong location completely changes the roof’s drainage behavior.

Valleys are critical lines where two roof slopes meet and channel water downward. If they’re misplaced—even slightly—the roof may direct water toward walls, skylights, or mechanical penetrations.

Common drainage mistakes I see in project reviews:

1. Valley lines that don’t follow slope intersections
2. Drainage arrows pointing away from valleys
3. Gutters placed on high edges instead of low edges
4. Missing scuppers or internal drains on flat roofs

Quick drainage validation method:

1. Trace every roof plane slope.
2. Confirm where water converges.
3. Verify the lowest points contain gutters or drains.
4. Ensure valleys align with slope geometry.

Building envelope consultants frequently point out that poorly designed drainage systems are a major contributor to long‑term roof failures.

save pin

Symbol and Annotation Mistakes in Roof Plans

Key Insight: Inconsistent symbols cause more confusion on job sites than missing lines.

Contractors read drawings quickly. If symbols differ between sheets—or don't match standard drafting conventions—interpretation becomes risky.

Typical annotation mistakes include:

1. Ridge lines drawn the same as valleys
2. Missing roof material notes
3. Unlabeled roof penetrations
4. Inconsistent symbol legends

Best practice checklist:

1. Use distinct line types for ridges and valleys
2. Include a clear roof legend
3. Label all skylights, vents, and chimneys
4. Maintain consistent symbols across all sheets

The National CAD Standard recommends standardized roof symbols specifically to avoid these types of construction misinterpretations.

Fixing Scale and Dimension Issues

Key Insight: If the roof plan scale is wrong, every framing measurement becomes unreliable.

I once reviewed a small residential project where the roof plan scale differed from the floor plan scale. The result? Framing estimates were off by nearly 15%.

Common scale issues include:

1. Roof overhangs not dimensioned
2. Scale mismatches between sheets
3. Incorrect ridge spacing measurements
4. Missing building footprint references

Scale verification process:

1. Overlay the roof plan over the floor plan footprint.
2. Confirm overhang distances.
3. Check ridge alignment with structural walls.
4. Reconfirm drawing scale before export.

If you're drafting quickly, platforms that allow designers to build and adjust accurate floor layouts before adding roof geometryhelp maintain consistent dimensions across drawings.

save pin

Answer Box

The majority of roof plan drawing mistakes fall into four categories: slope errors, incorrect drainage paths, unclear symbols, and scale inconsistencies. Systematically reviewing these four elements can prevent most construction issues.

Checklist to Review a Roof Plan Before Submission

Key Insight: A five‑minute checklist can eliminate most roof plan drafting errors.

This is the exact checklist I use when reviewing roof drawings before sending them to consultants or contractors.

Roof plan review checklist:

1. All roof planes labeled with slopes
2. Ridge and valley lines clearly distinguished
3. Drainage arrows confirm water direction
4. Gutters or drains placed at lowest edges
5. Roof penetrations labeled
6. Overhang dimensions included
7. Scale verified with floor plan
8. Legend included for roof symbols

Running through this list takes only minutes but prevents hours of confusion on the construction site.

Final Summary

1. Incorrect slope notation is the most frequent roof plan drafting error.
2. Valleys and drainage lines determine whether roofs succeed or fail.
3. Clear symbols prevent costly contractor misinterpretations.
4. Consistent scale ensures accurate framing and material estimation.
5. A simple review checklist catches most roof plan drawing mistakes.

FAQ

What are the most common roof plan drawing mistakes?

Common roof plan drawing mistakes include incorrect slope arrows, missing valleys, inconsistent symbols, and inaccurate dimensions.

How do you fix roof plan errors before construction?

Review slopes, drainage paths, symbols, and dimensions systematically. Verifying geometry with a 3D visualization often reveals drafting problems quickly.

Why are roof slopes important in a roof plan?

Roof slopes determine how water drains. Incorrect slopes can cause pooling, leaks, or structural damage.

Can a wrong roof plan affect construction costs?

Yes. Incorrect roof plans often lead to material waste, framing changes, and contractor RFIs that increase project costs.

What symbols should be included in a roof plan?

Typical symbols include ridge lines, valley lines, slope arrows, roof penetrations, drainage points, and roof material annotations.

How do you check roof plan scale accuracy?

Overlay the roof plan with the building footprint and confirm ridge placement, overhang dimensions, and structural alignment.

What is the difference between a roof plan and a roof framing plan?

A roof plan shows slopes, ridges, and drainage, while a roof framing plan focuses on structural members like rafters and trusses.

Is a roof plan troubleshooting guide useful for beginners?

Yes. A roof plan troubleshooting guide helps new designers identify roof plan drawing mistakes before they become construction problems.

References

American Institute of Architects (AIA) Construction Documentation Guidelines

National CAD Standard (NCS)

Building Envelope Design Guide – Whole Building Design Guide
