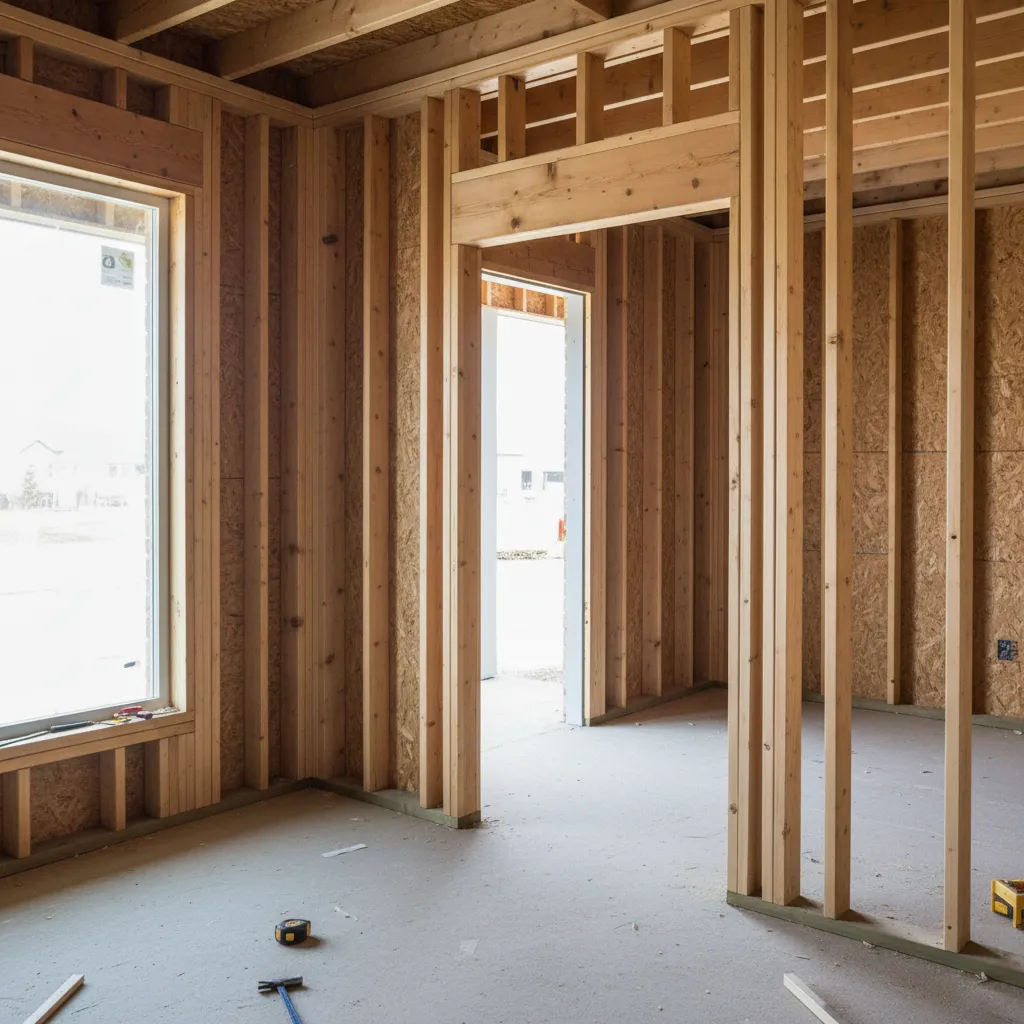

Common Rough Opening Mistakes When Installing a 36-Inch Exterior Door: Troubleshoot framing errors, sizing issues, and hidden installation problems that prevent a 36-inch exterior door from fitting correctly.

Direct Answer

The most common rough opening mistakes for a 36-inch exterior door involve incorrect opening size, out-of-square framing, and leaving no room for shimming and adjustment. A standard rough opening should usually measure about 38 inches wide by 82–82.5 inches high, allowing space to align and seal the door properly. When framing is too tight, uneven, or oversized, the door becomes difficult to install and may cause long-term sealing or alignment problems.

Quick Takeaways

1. A typical rough opening for a 36-inch exterior door is around 38" wide and 82–82.5" high.
2. Doors rarely fail because of the door itself—framing errors are usually the real cause.
3. Leaving no space for shims makes proper leveling nearly impossible.
4. Out-of-square framing causes sticking doors and uneven gaps.
5. Oversized openings can lead to structural instability and poor weather sealing.

Introduction

Over the past decade working on residential remodels, I’ve seen the same frustration repeat itself: someone buys a beautiful exterior door, only to realize the rough opening doesn’t cooperate. The issue usually isn’t the door—it’s the framing.

A 36-inch exterior door rough opening seems straightforward, but small mistakes in width, height, or wall alignment can snowball into serious installation headaches. I’ve walked into projects where the opening was technically "close enough," yet the door wouldn’t close properly, leaked air, or required hours of adjustment.

Many DIY installers run into these problems because framing tolerances for doors are tighter than most people expect. Even half an inch off can cause major installation trouble. If you're planning a layout or verifying measurements, it helps to understand how framing and layout tools visualize door openings in advance. A practical way to see this is by exploring interactive 3D floor plan examples that show accurate door placement in wall framing.

Below are the most common rough opening mistakes I encounter when installing 36-inch exterior doors—and how to fix them before they become expensive problems.

save pin

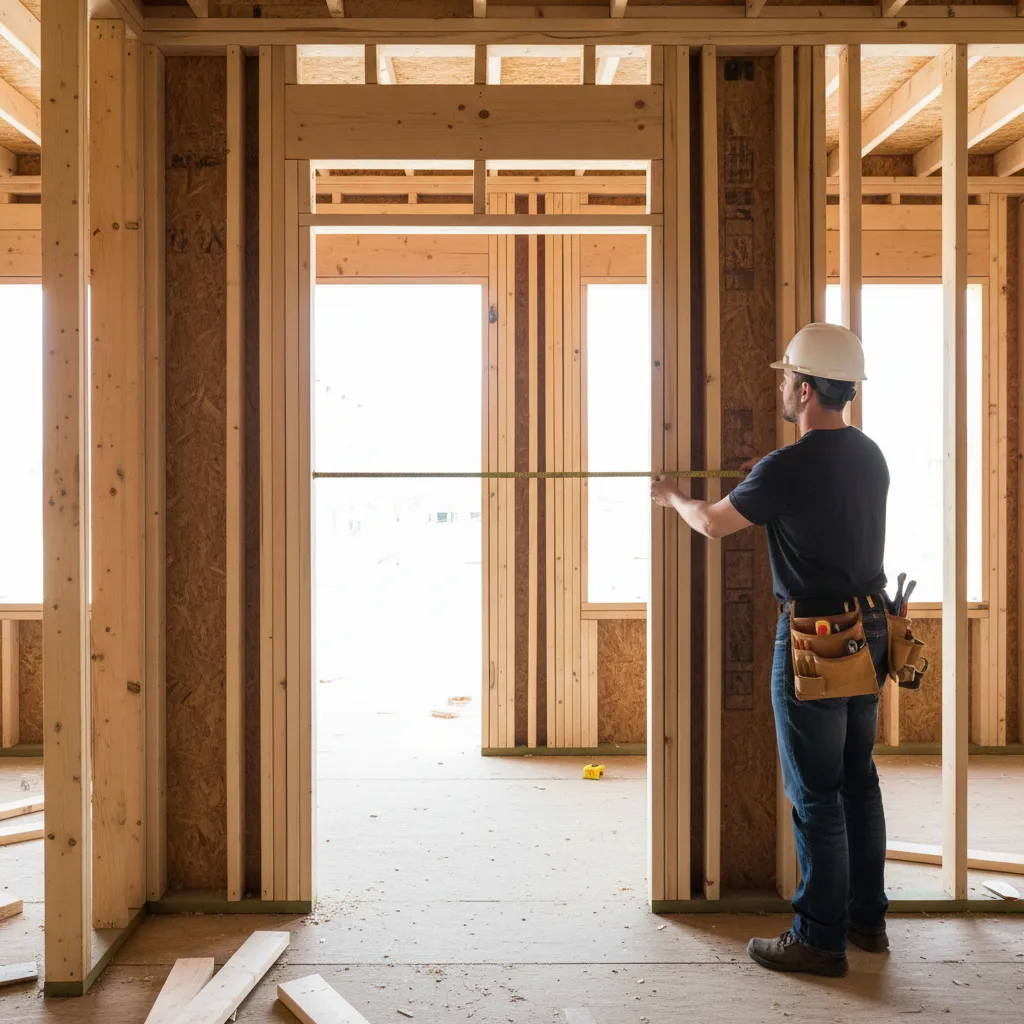

Incorrect Rough Opening Width or Height

Key Insight: The most frequent door installation problem is simply a rough opening that’s the wrong size.

Many installers assume the opening should match the door size exactly. That’s incorrect. Exterior doors require clearance around the frame for shimming, leveling, and insulation.

For most prehung exterior doors, the rough opening should be roughly 2 inches wider and about 2–2.5 inches taller than the door slab.

Typical measurements:

1. Door slab width: 36 inches
2. Recommended rough opening width: about 38 inches
3. Door slab height: 80 inches
4. Recommended rough opening height: 82–82.5 inches

If the opening is even slightly smaller than this, installers often force the door into place. That creates pressure on the frame, which eventually leads to doors sticking or failing to latch properly.

According to installation guides from manufacturers like Masonite and JELD‑WEN, leaving proper adjustment space is essential for weather sealing and hinge alignment.

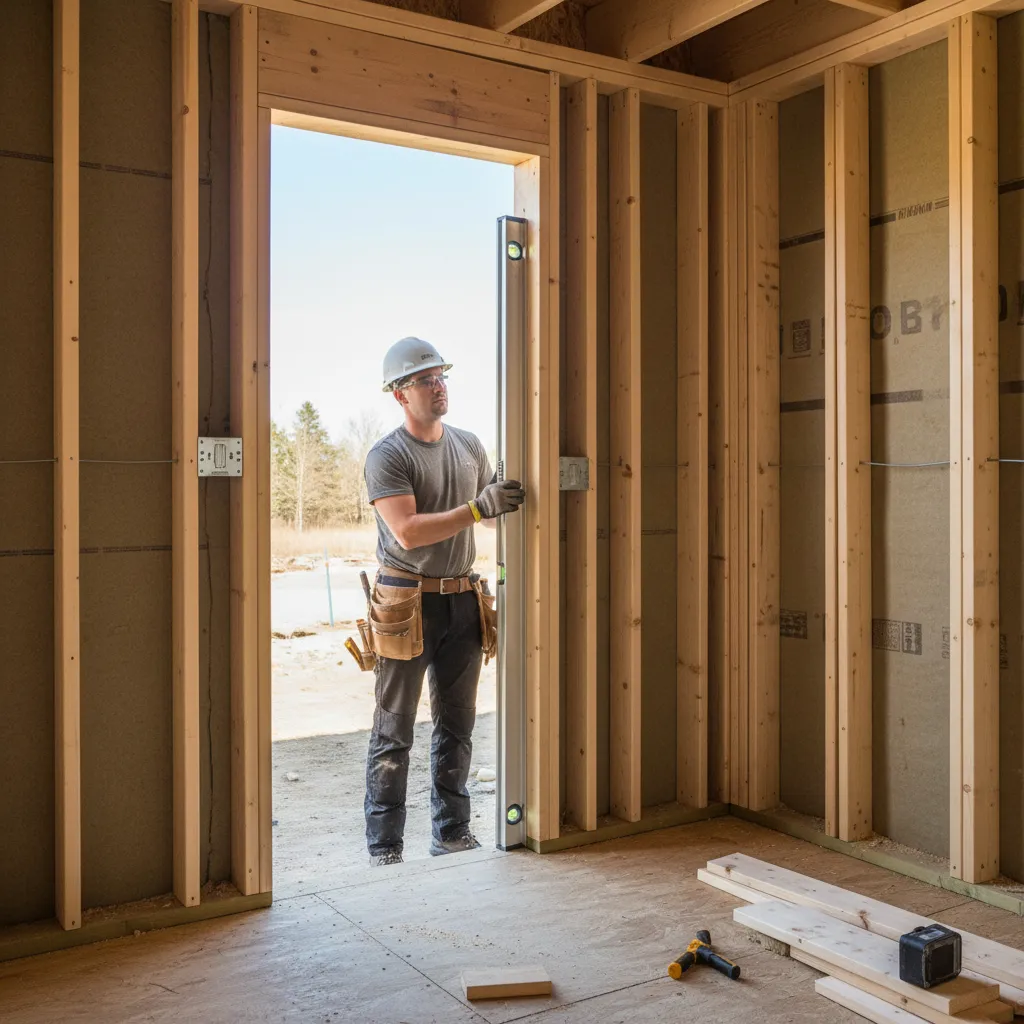

Framing That Is Not Level or Square

Key Insight: Even a perfectly sized opening will fail if the framing isn’t level, plumb, and square.

One hidden mistake I often see is assuming new framing is automatically straight. Lumber moves, walls settle, and small inaccuracies during framing accumulate quickly.

Common framing alignment issues include:

1. Header slightly tilted
2. Studs not perfectly vertical
3. Opening corners not square
4. Subfloor sloping beneath the threshold

These small deviations cause uneven gaps around the door frame, which makes shimming much harder.

Quick check before installation:

1. Use a 6‑foot level on both king studs
2. Measure diagonally corner-to-corner
3. Verify the subfloor is level at the threshold

Professional installers almost always correct these issues before placing the door frame, because once the door is installed, fixing structural misalignment becomes far more complicated.

save pin

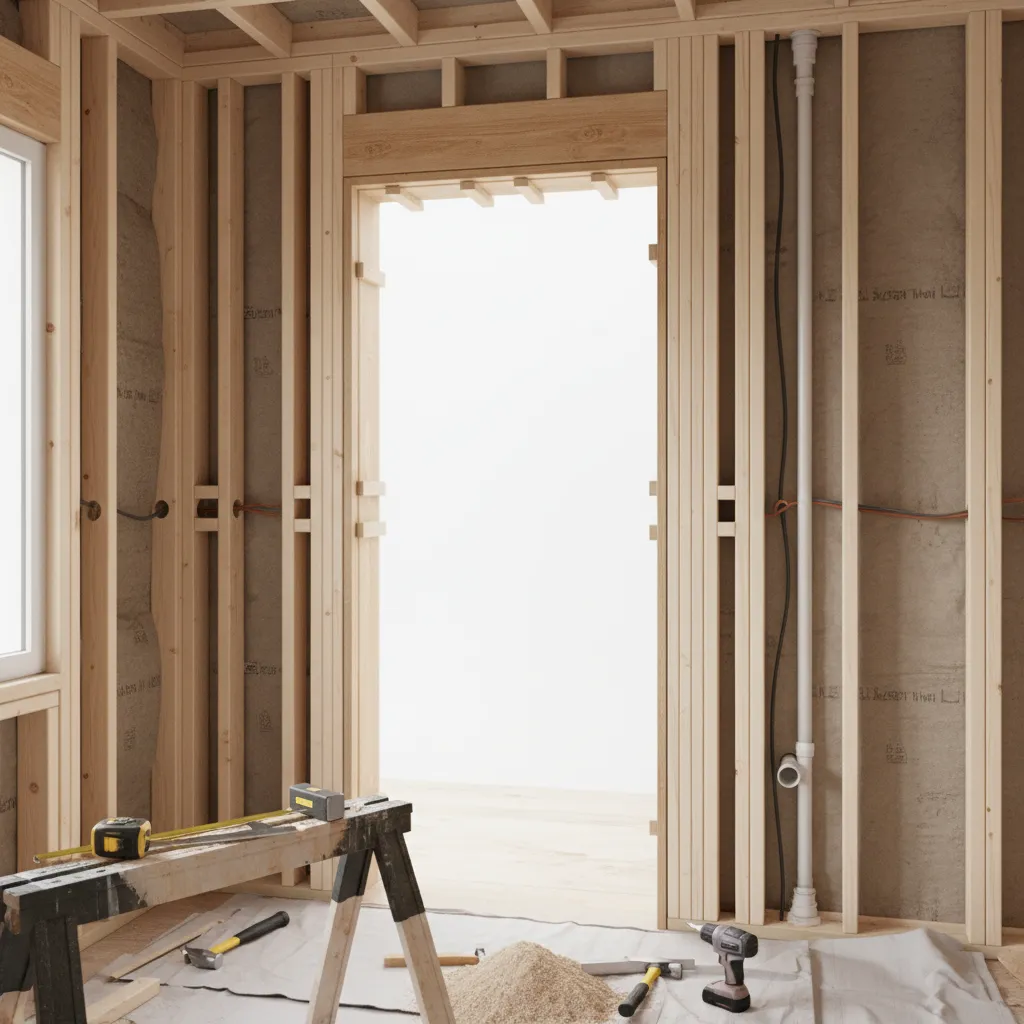

Insufficient Space for Door Shimming

Key Insight: Leaving no room for shims is one of the most overlooked door installation mistakes.

Shims allow installers to adjust the frame so the door hangs perfectly straight. Without this adjustment space, the hinges and latch side cannot be aligned correctly.

I’ve seen many DIY openings framed "perfectly" at 36 inches. The problem is that a prehung door unit often measures around 37.5 inches including the jamb.

Without extra space:

1. The frame cannot be centered
2. The hinge side cannot be adjusted
3. The door may rub against the jamb
4. Weather seals compress unevenly

Most installers plan for roughly 1/2 inch of adjustment space on each side of the frame. This small detail dramatically improves installation accuracy and long‑term door performance.

Problems Caused by Wall Thickness Differences

Key Insight: Wall thickness mismatches can create trim, jamb, and insulation problems around exterior doors.

Exterior doors are usually designed for standard wall thicknesses, such as:

1. 4‑9/16 inches for 2×4 construction
2. 6‑9/16 inches for 2×6 construction

If the wall thickness doesn’t match the door jamb depth, several issues can occur:

1. Interior trim won’t sit flush
2. Exterior casing gaps appear
3. Insulation coverage becomes inconsistent

When planning layouts, visualizing wall assemblies and openings together can prevent these surprises. Many builders now preview wall framing and door placements using AI-assisted floor layout planning for accurate wall and opening proportionsbefore construction begins.

save pin

How to Fix an Exterior Door Opening That Is Too Small

Key Insight: When the rough opening is too small, the safest solution is usually adjusting the framing rather than forcing the door.

Trying to squeeze a door into a tight opening almost always leads to alignment issues.

Steps to enlarge a rough opening:

1. Remove the existing trim or drywall around the opening.
2. Identify which studs limit the width.
3. Adjust or reposition the jack stud.
4. Verify the header remains properly supported.
5. Re-measure to reach the target rough opening size.

If the height is too small, you may need to raise the header or modify the subfloor. Structural changes should be done carefully to maintain load support.

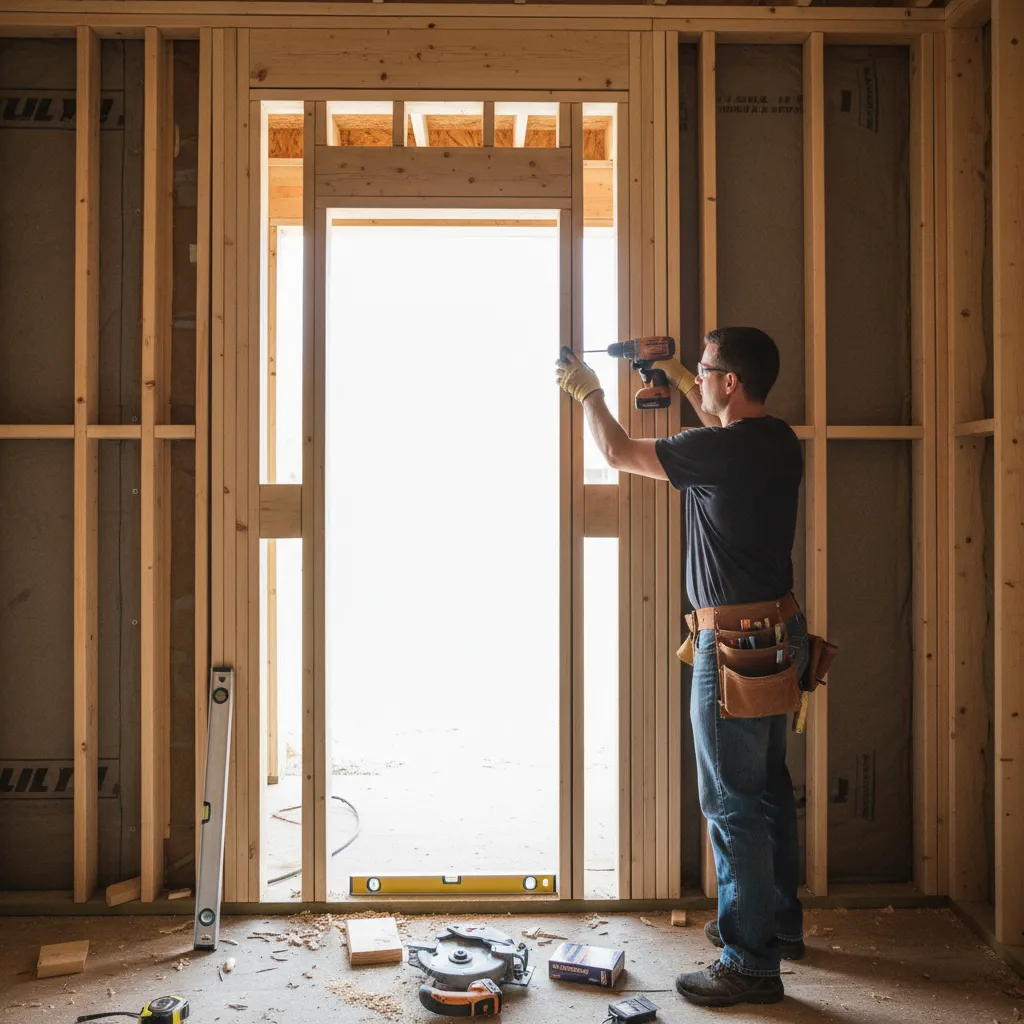

How to Correct an Oversized Rough Opening

Key Insight: Oversized openings can still work, but they require proper reinforcement and careful shimming.

While smaller openings block installation, oversized ones create a different issue: the door frame lacks stable support.

Ways professionals fix oversized openings:

1. Add filler studs or plywood strips
2. Install wider shims along the jamb
3. Reframe sections of the opening
4. Add structural blocking behind trim

Large gaps also increase the risk of air leaks. Proper insulation and sealing become critical once the frame is secured.

save pin

Answer Box

The majority of exterior door installation problems come from incorrect rough opening size or misaligned framing. For a 36-inch exterior door, aim for an opening about 38 inches wide and roughly 82–82.5 inches high, leaving room for shimming, insulation, and precise alignment.

Final Summary

1. A 36-inch exterior door typically requires a 38-inch rough opening.
2. Doors fail to install properly when framing isn’t square or level.
3. Shimming space is essential for proper hinge alignment.
4. Wall thickness mismatches create trim and sealing issues.
5. Both undersized and oversized openings require framing corrections.

If you’re planning door layouts during early design stages, it’s helpful to preview wall openings and furniture flow using interactive room layout planning tools that simulate door placement before framing begins.

FAQ

What is the rough opening for a 36 inch exterior door?

A typical rough opening is about 38 inches wide and 82–82.5 inches high, allowing space for the door frame and shimming.

Why won't my exterior door fit the rough opening?

The most common reasons are incorrect width, framing that isn’t square, or insufficient space for shimming.

Can a rough opening be slightly larger than recommended?

Yes, but oversized openings must be shimmed and reinforced properly to maintain structural support and weather sealing.

How much gap should be around an exterior door frame?

Typically about 1/4 to 1/2 inch on each side to allow for shimming and alignment.

Is a 36 inch door actually 36 inches wide?

The slab is 36 inches, but a prehung door unit with jambs is usually wider.

What happens if a rough opening is too small for an exterior door?

The door frame can warp during installation, causing the door to stick or fail to latch.

How do you square a rough door opening?

Measure diagonals from corner to corner and adjust studs until both measurements match.

What are the most common door framing mistakes?

Incorrect rough opening size, uneven studs, no shimming space, and ignoring wall thickness differences.
