Common Scale Ruler Mistakes in Floor Plans and How to Fix Them: Learn how to diagnose inaccurate scale bars and restore measurement accuracy in printed and digital floor plans

Direct Answer

Scale ruler mistakes in floor plans usually happen when drawings are resized, exported incorrectly, or created with inconsistent measurement references. The most reliable fix is verifying the graphic scale against a known dimension and correcting the drawing or export settings before printing or sharing.

Architects and designers typically solve scale problems by checking reference measurements, recalibrating CAD units, and ensuring print settings preserve the original drawing scale.

Quick Takeaways

1. Most floor plan scale problems occur after printing or PDF export.
2. A graphic scale bar should always match a verified real dimension.
3. Resizing drawings in presentation software often breaks scale accuracy.
4. Digital plans must maintain consistent drawing units to avoid scaling errors.
5. Checking one known wall length quickly reveals scale mistakes.

Introduction

After working on residential and commercial interiors for more than a decade, I can say this with confidence: scale ruler mistakes in floor plans are far more common than most people expect. I have seen contractors misinterpret measurements, furniture layouts fail on installation day, and renovation budgets climb simply because a scale bar was slightly off.

The tricky part is that the drawing can look perfectly professional while still being wrong. A floor plan might show a clean graphic scale, neat dimensions, and a tidy layout—but if that scale ruler doesn’t match the real measurement, everything downstream becomes unreliable.

Many designers today rely on digital planning tools to avoid these issues. When teams build layouts using tools like this visual workflow for generating accurate scaled floor plans, the scale is tied directly to the room’s real dimensions, which dramatically reduces manual errors.

Still, mistakes happen. Print settings distort drawings. PDF exports shrink graphics. And sometimes a scale bar is simply drawn incorrectly from the start.

In this guide, I’ll walk through the most common scale ruler mistakes I’ve seen in real projects, how to diagnose them quickly, and the practical fixes professionals use to restore measurement accuracy.

save pin

Why Scale Rulers in Floor Plans Sometimes Become Inaccurate

Key Insight: Scale rulers fail when the drawing scale, export settings, and graphic scale bar are no longer aligned.

In architectural drawings, there are actually two scale systems working at the same time:

1. The drawing scale (such as 1/4 inch = 1 foot)
2. The graphic scale bar shown on the sheet

Ideally, both match perfectly. But during real-world workflows, several things break that relationship.

Common causes include:

1. Resizing drawings in presentation software
2. Incorrect printer scaling settings
3. Exporting PDFs with “fit to page” enabled
4. Changing drawing units inside CAD software
5. Manually drawing a graphic scale incorrectly

According to architectural documentation standards published by the American Institute of Architects (AIA), scale integrity must be preserved across all reproduction methods. Yet in practice, many drawing packages pass through multiple tools before reaching contractors or clients.

That extra step is where scale distortion usually sneaks in.

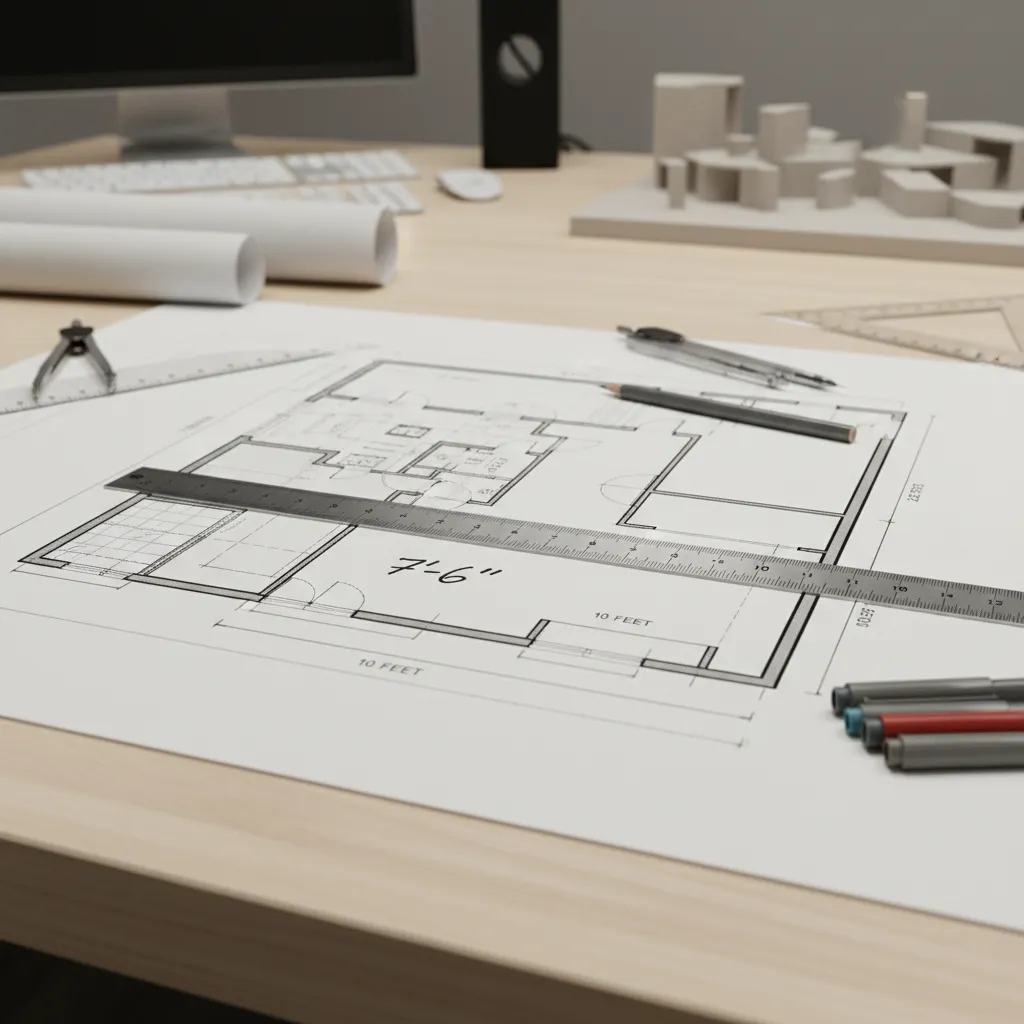

Mistake Incorrect Segment Length in the Graphic Scale

Key Insight: A graphic scale bar that is drawn with incorrect segment lengths instantly invalidates the entire floor plan.

This mistake usually happens during manual drafting or quick diagram creation. Someone sketches a scale bar visually instead of calculating the correct length.

For example:

1. Scale: 1/4 inch = 1 foot
2. A 4‑foot graphic scale segment should equal exactly 1 inch

If the scale bar is even slightly shorter or longer, the entire drawing becomes misleading.

How to detect this issue:

1. Measure the scale bar with a ruler
2. Compare it to the stated scale ratio
3. Check against a known dimension on the drawing

Hidden mistake designers often overlook: some graphic scales are copied from previous projects without recalculating them for the new drawing scale.

I’ve seen this happen frequently in quick renovation layouts where teams reuse template sheets.

save pin

Mistake Scale Distortion After Printing or PDF Export

Key Insight: Print scaling settings are the number one reason a floor plan scale bar becomes inaccurate.

Even when the drawing itself is perfect, printers and PDF viewers can change the scale automatically.

Typical causes include:

1. "Fit to page" printing
2. Automatic margin adjustments
3. PDF viewer scaling
4. Printing from presentation slides

Professional architecture firms usually follow a simple rule:

1. Always print at 100 percent scale
2. Disable automatic page scaling
3. Verify the graphic scale after printing

A quick real‑world check I often recommend to junior designers:

1. Print the drawing.
2. Measure the graphic scale bar with a physical ruler.
3. Confirm that the segments match the intended dimension.

If they don’t match, the drawing was resized somewhere in the export process.

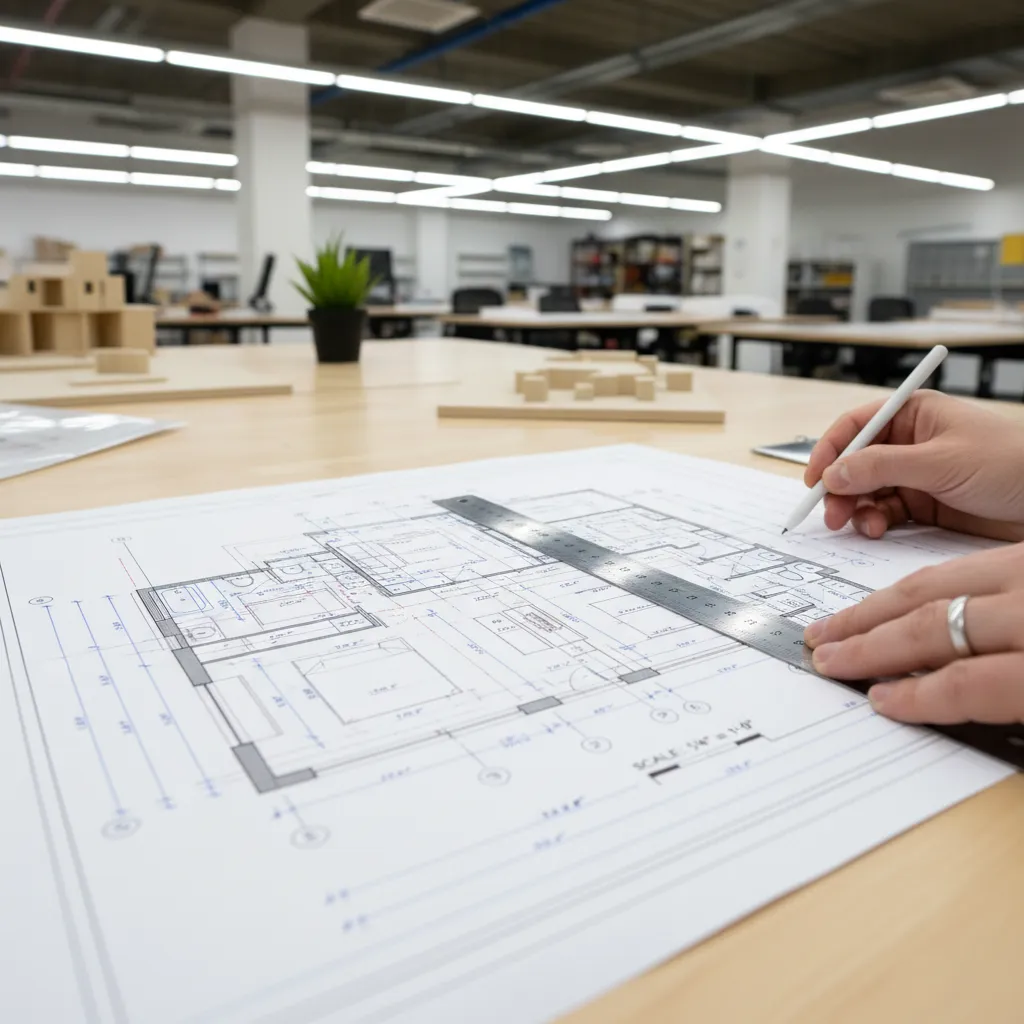

How to Check If a Floor Plan Scale Is Still Accurate

Key Insight: The fastest way to verify scale accuracy is measuring one known dimension and comparing it with the graphic scale.

This method takes less than 30 seconds and works for both digital and printed drawings.

Quick verification checklist:

1. Find a labeled dimension (for example, a 10‑foot wall).
2. Measure the wall on the printed plan.
3. Compare the measurement with the stated drawing scale.

If the numbers don’t match, the plan has been resized.

Digital tools simplify this verification. Many designers now test layouts using a 3D environment that keeps architectural scale consistent across the entire layout, allowing them to cross‑check real room dimensions instantly.

save pin

Fixing Scale Bar Errors in Manual Drawings

Key Insight: Manual floor plans can regain accuracy by recalculating and redrawing the graphic scale bar using the correct ratio.

If the error exists inside the drawing itself, the fix is straightforward.

Steps professionals follow:

1. Confirm the intended drawing scale.
2. Calculate the correct graphic scale segment length.
3. Redraw the scale bar precisely using a drafting ruler.
4. Recheck the dimension against a known wall length.

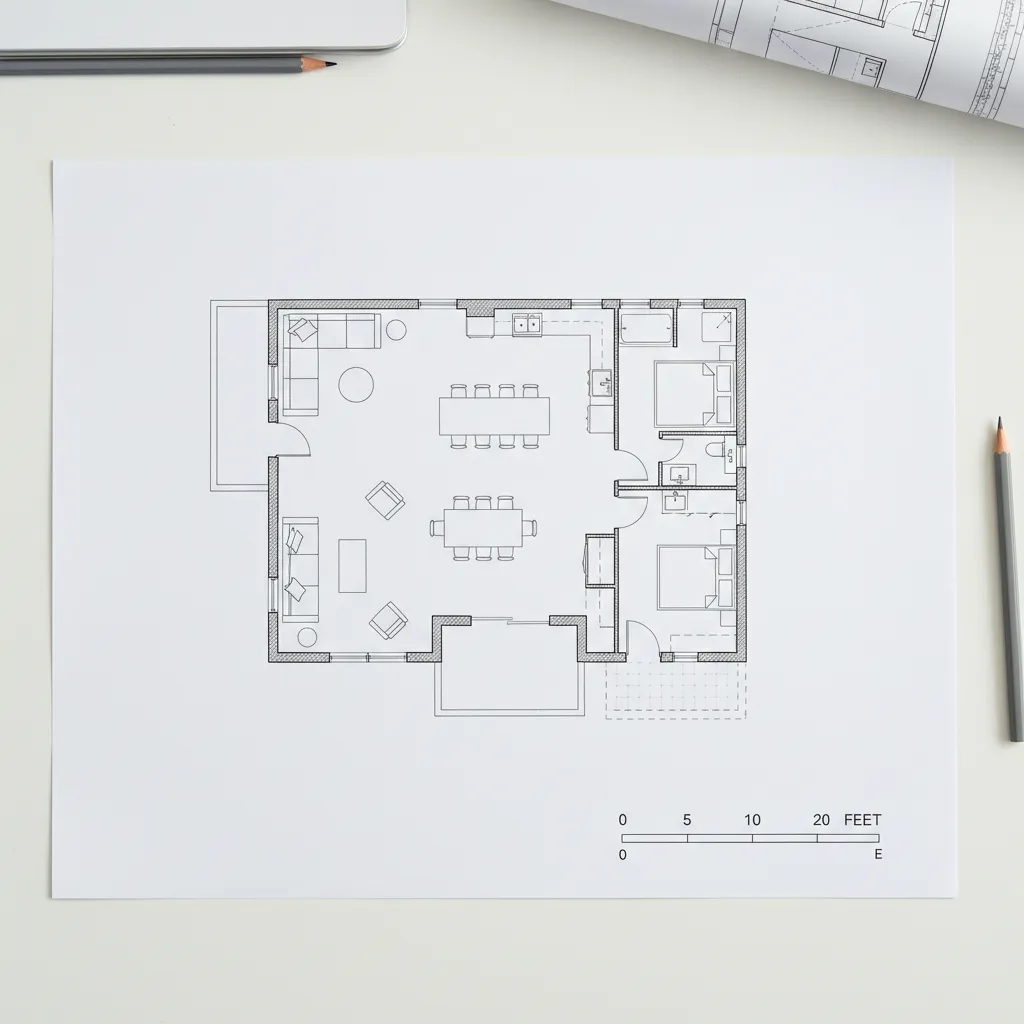

Typical architectural graphic scale layout:

1. 0
2. 4 ft
3. 8 ft
4. 12 ft
5. 16 ft

Each segment must match the physical measurement implied by the drawing scale.

Answer Box

The most reliable way to fix scale ruler mistakes in floor plans is verifying one real dimension against the graphic scale bar. If they don’t match, correct the drawing scale or export settings before distributing the plan.

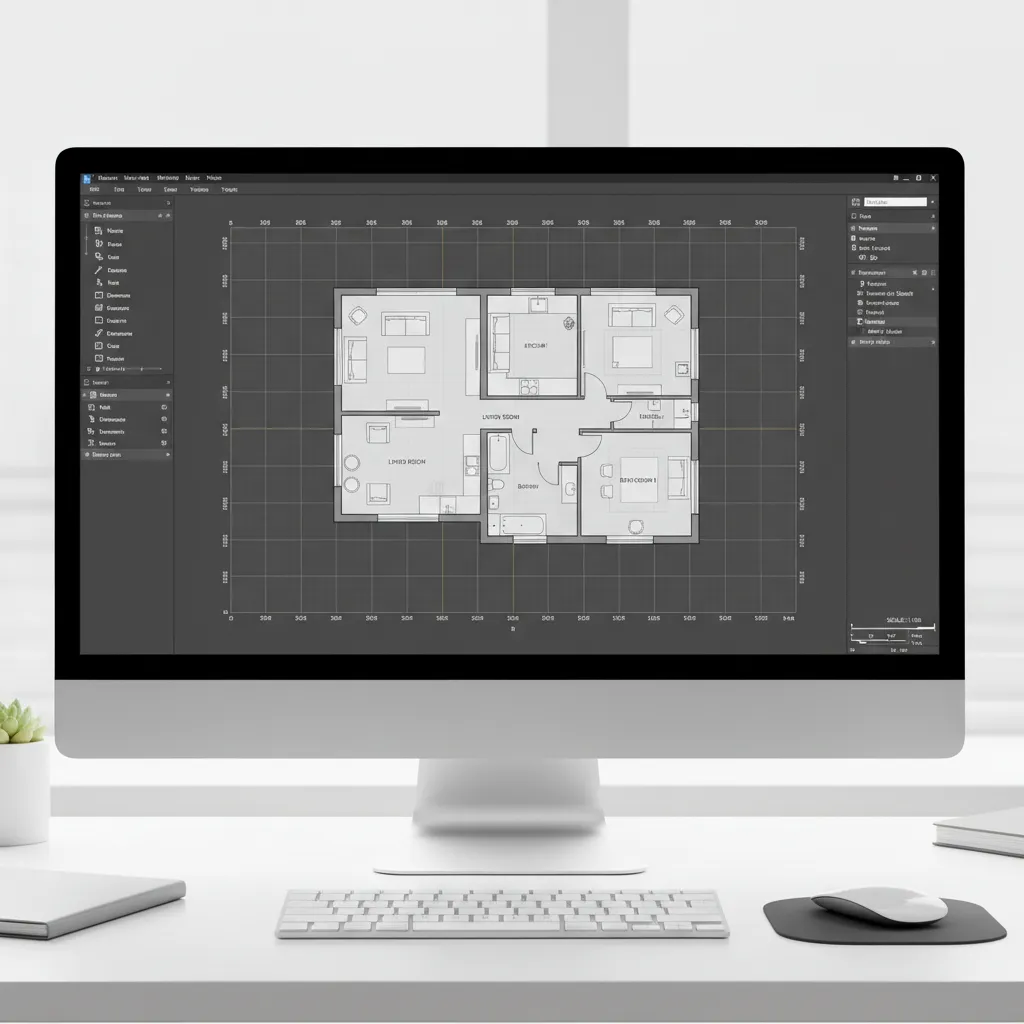

Fixing Scale Errors in CAD or Digital Plans

Key Insight: Most digital scale problems originate from incorrect unit settings or improperly scaled imports.

In CAD workflows, scale errors typically appear when:

1. Files are imported from different software
2. Units switch between feet, meters, or millimeters
3. Blocks or symbols are inserted at the wrong scale

Professional troubleshooting process:

1. Check drawing units.
2. Verify reference dimensions.
3. Rescale imported geometry if necessary.
4. Regenerate the graphic scale block.

For teams producing conceptual layouts or early-stage interior planning, starting with a workflow that automatically maintains measurement accuracy while building a floor plansignificantly reduces these technical issues.

save pin

Preventing Future Scale Problems in Architectural Documents

Key Insight: The best way to avoid scale ruler mistakes is embedding scale verification into every stage of the drawing workflow.

Professional design teams usually implement these safeguards:

1. Always include both numeric scale and graphic scale bars.
2. Lock printer settings for construction documents.
3. Verify one reference dimension before publishing drawings.
4. Avoid resizing drawings in presentation software.

A less discussed issue I’ve noticed across projects is version control. Teams often export multiple versions of a plan for presentations, approvals, and contractor sets. Somewhere along that chain, a resized PDF replaces the original drawing.

That’s why many architecture firms now standardize digital workflows where the drawing scale is preserved from the moment the plan is created.

Final Summary

1. Scale ruler errors usually appear after printing or file export.
2. A single verified wall measurement can confirm scale accuracy.
3. Incorrect graphic scale segments invalidate the entire drawing.
4. Consistent CAD units prevent most digital scaling problems.
5. Embedding scale checks in workflows avoids costly construction mistakes.

FAQ

Why is my floor plan scale bar wrong after printing?

Most printers automatically resize documents using “fit to page.” Disable scaling and print at 100 percent to maintain the correct floor plan scale.

How do I fix incorrect scale in a floor plan?

Measure a known dimension on the drawing. If it doesn’t match the graphic scale, correct the drawing scale or export settings before printing again.

Why does a graphic scale bar become inaccurate in a PDF?

PDF viewers sometimes resize pages automatically. If the drawing is scaled during export or viewing, the graphic scale bar becomes inaccurate.

How can I verify floor plan scale accuracy quickly?

Measure one labeled dimension on the plan and compare it with the graphic scale. If they match, the scale is accurate.

Do CAD drawings lose scale accuracy?

They can if units change or imported files are incorrectly scaled. Always confirm units and reference dimensions.

Is a graphic scale better than a numeric scale?

Graphic scales remain accurate even if the drawing is resized slightly, which is why most architectural sheets include them.

What is the most common scale ruler mistake in architectural drawings?

The most common mistake is print scaling. Even a correct drawing becomes inaccurate if printed with automatic page resizing.

Can I fix a scale ruler without redrawing the entire plan?

Yes. If the drawing itself is accurate, you only need to correct the graphic scale bar or export settings.
