Common Shipping Container House Design Mistakes and How to Fix Them: A practical guide to diagnosing container home planning errors and correcting layout, structure, ventilation, and lighting issues.

Direct Answer

The most common shipping container house design mistakes involve poor space planning, excessive structural cutting, weak ventilation strategies, and poorly placed windows. These problems often happen when designers treat containers like normal rooms instead of structural steel modules. The good news: most issues can be corrected through smarter layout planning, controlled structural modifications, and better environmental design.

Quick Takeaways

1. Container homes fail most often due to layout mistakes, not material limitations.
2. Cutting too many walls weakens the container's structural frame.
3. Poor ventilation design causes overheating and condensation problems.
4. Window placement matters more in narrow container spaces.
5. Most planning mistakes can be fixed early with proper layout visualization.

Introduction

After working on container-based housing projects for more than a decade, I’ve noticed something interesting: most shipping container house design mistakes don’t come from creativity—they come from treating a container like a conventional building block.

A shipping container is a structural steel tube. Once you start cutting into it for doors, windows, or open living areas, the entire load path changes. Many first-time designers focus on aesthetics before understanding how these modifications affect space flow, daylight, insulation, and structural integrity.

I’ve reviewed dozens of container house plans where the biggest issues were surprisingly simple: awkward circulation paths, dark interiors, or entire walls removed without reinforcement.

If you're currently diagnosing layout problems, it helps to visualize the full interior early using a simple workflow for turning container ideas into accurate floor plans. Seeing the structure in plan view often reveals mistakes before construction begins.

In this guide, I’ll break down the most common container house design mistakes I’ve seen in real projects—and more importantly, how to fix them without starting from scratch.

save pin

Why Design Errors Are Common in Container Home Projects

Key Insight: Most container home problems happen because designers underestimate the structural and spatial constraints of the container module.

Standard shipping containers are incredibly strong—but only when their structure remains intact. The corner posts and corrugated steel walls distribute loads in very specific ways. Once large sections are removed, the container behaves very differently.

Another challenge is the narrow interior width. A standard container is about 8 feet wide externally and roughly 7 feet 8 inches inside. That changes how furniture, hallways, and kitchen layouts must be planned.

Common misconceptions I often see:

1. Assuming container walls can be removed freely
2. Ignoring structural reinforcement when combining containers
3. Treating container interiors like normal rectangular rooms
4. Overlooking thermal behavior of steel walls

According to guidance from the International Code Council and modular housing engineers, structural reinforcement is almost always required when more than 50% of a container wall is removed.

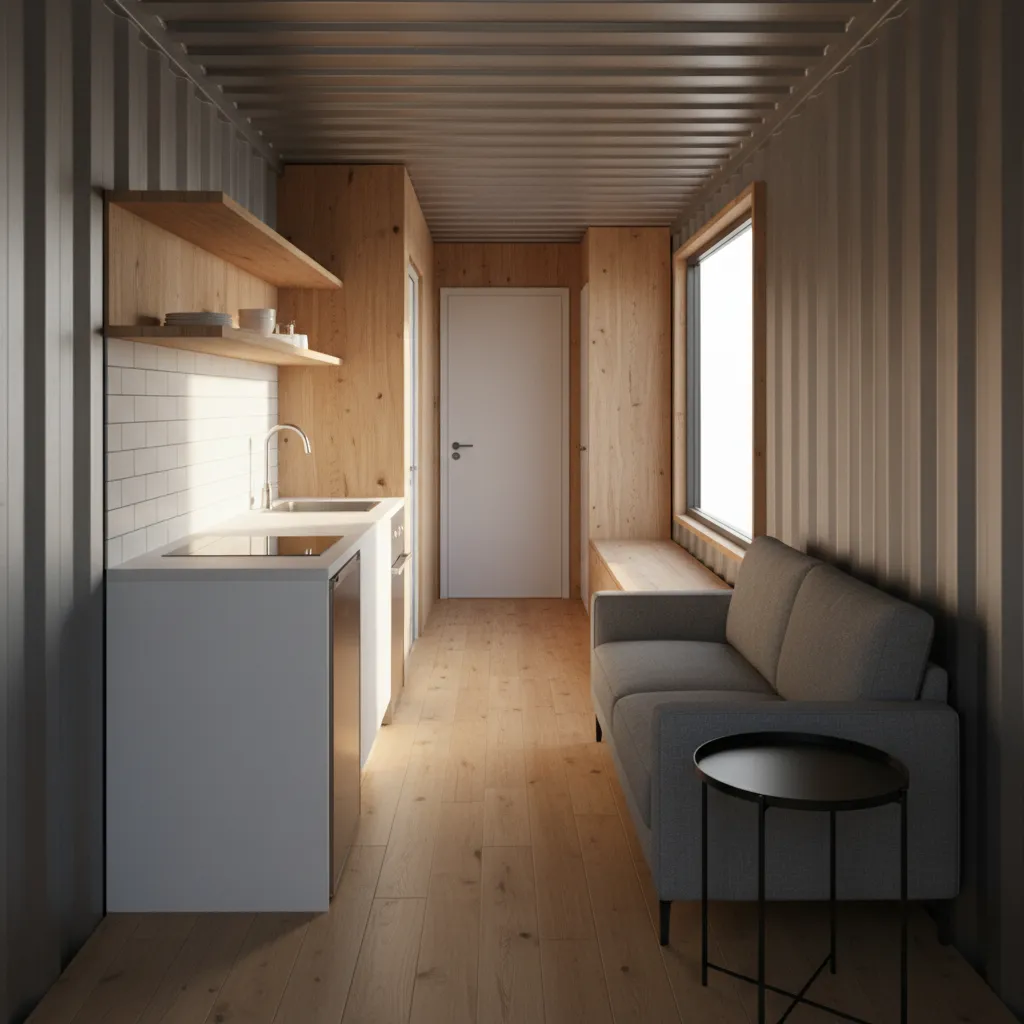

Poor Space Planning and Circulation Problems

Key Insight: Bad circulation is the fastest way to make a container home feel cramped, even if the total square footage is adequate.

Because containers are long and narrow, circulation routes matter far more than in traditional homes. I’ve seen designs where hallways consumed nearly a third of the usable width.

Typical layout mistakes include:

1. Long central hallways
2. Furniture blocking movement paths
3. Kitchens placed in the narrowest sections
4. Bathrooms located in the center without ventilation

A better approach is zoning the container lengthwise:

1. Entry and storage at one end
2. Kitchen and dining in the center
3. Living or sleeping areas toward window-heavy zones

Testing layouts visually with a 3D planning method for visualizing narrow container interiorsoften reveals circulation conflicts immediately.

save pin

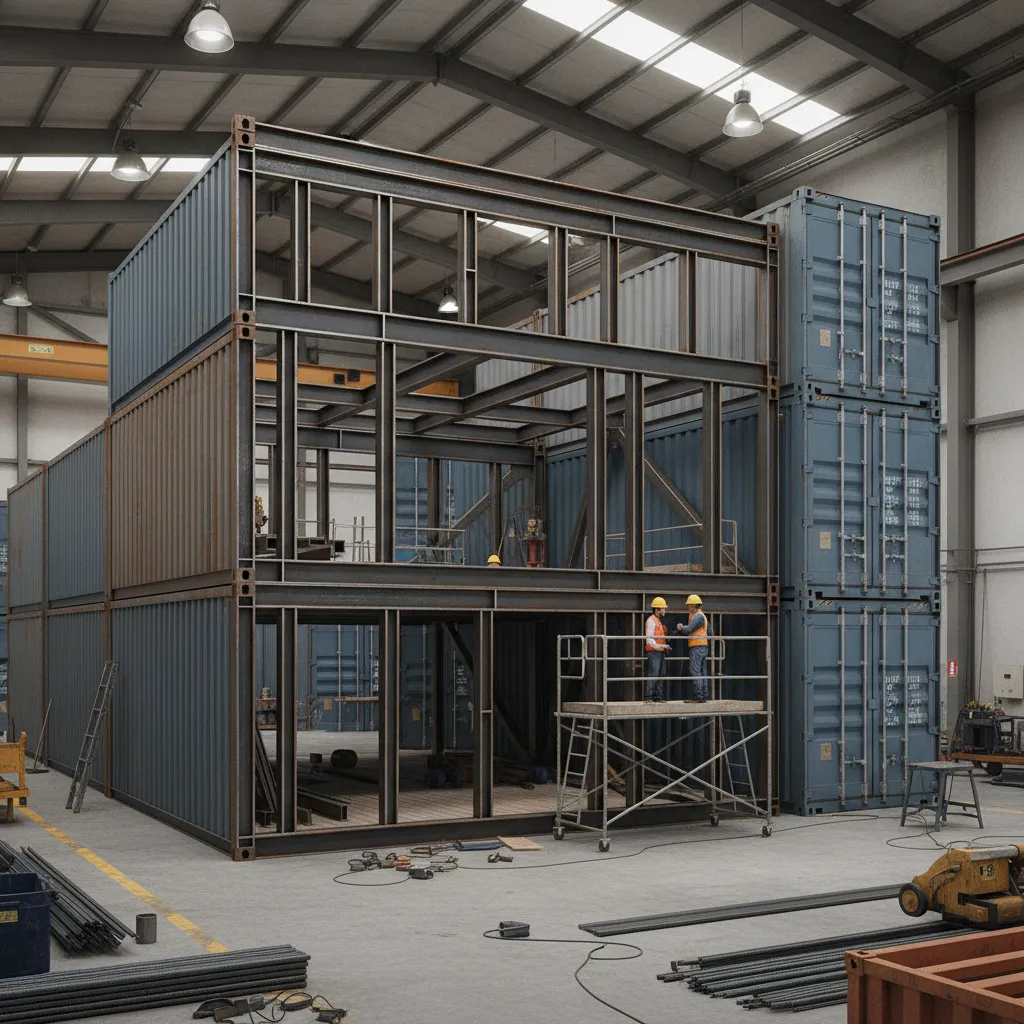

Structural Weakness From Improper Container Cutting

Key Insight: Removing large wall sections without reinforcement is the most dangerous container home design mistake.

Many modern container homes combine two or more containers to create larger rooms. To achieve this, designers often cut out entire side walls.

The problem is that container walls contribute significantly to structural rigidity. Removing them without adding steel beams can lead to:

1. Roof sagging
2. Wall deformation
3. Door and window frame misalignment
4. Long‑term structural fatigue

Standard reinforcement strategies include:

1. Steel I-beams along cut edges
2. Box frame reinforcement around openings
3. Welded structural headers above large openings
4. Secondary support columns between containers

Structural engineers typically recommend reinforcing any opening wider than 6 feet.

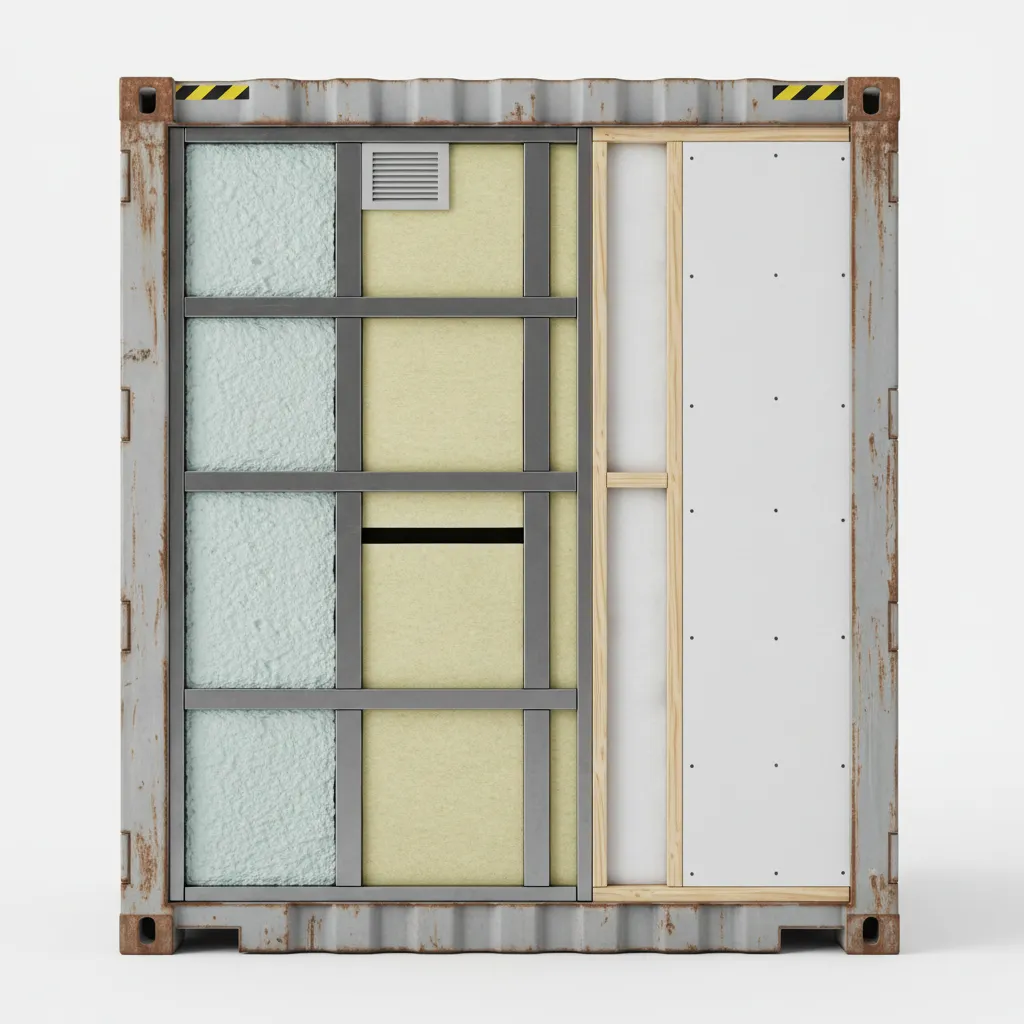

Ventilation and Insulation Design Mistakes

Key Insight: Steel containers trap heat and moisture quickly if ventilation and insulation are not designed together.

This is one of the most underestimated container house design mistakes. Steel walls conduct heat rapidly, and without proper insulation layers the interior becomes uncomfortable in both hot and cold climates.

The bigger issue, however, is condensation. When warm interior air touches cold steel walls, moisture forms inside the wall assembly.

Common ventilation mistakes include:

1. Only installing windows on one side
2. No cross‑ventilation strategy
3. Ignoring roof ventilation
4. Using insulation that traps moisture

Effective container wall systems usually include:

1. Closed-cell spray foam insulation
2. Interior vapor barriers
3. Operable windows on opposing walls
4. Mechanical ventilation or ERV systems

Building science research from the U.S. Department of Energy emphasizes that moisture control is just as critical as thermal insulation in steel structures.

save pin

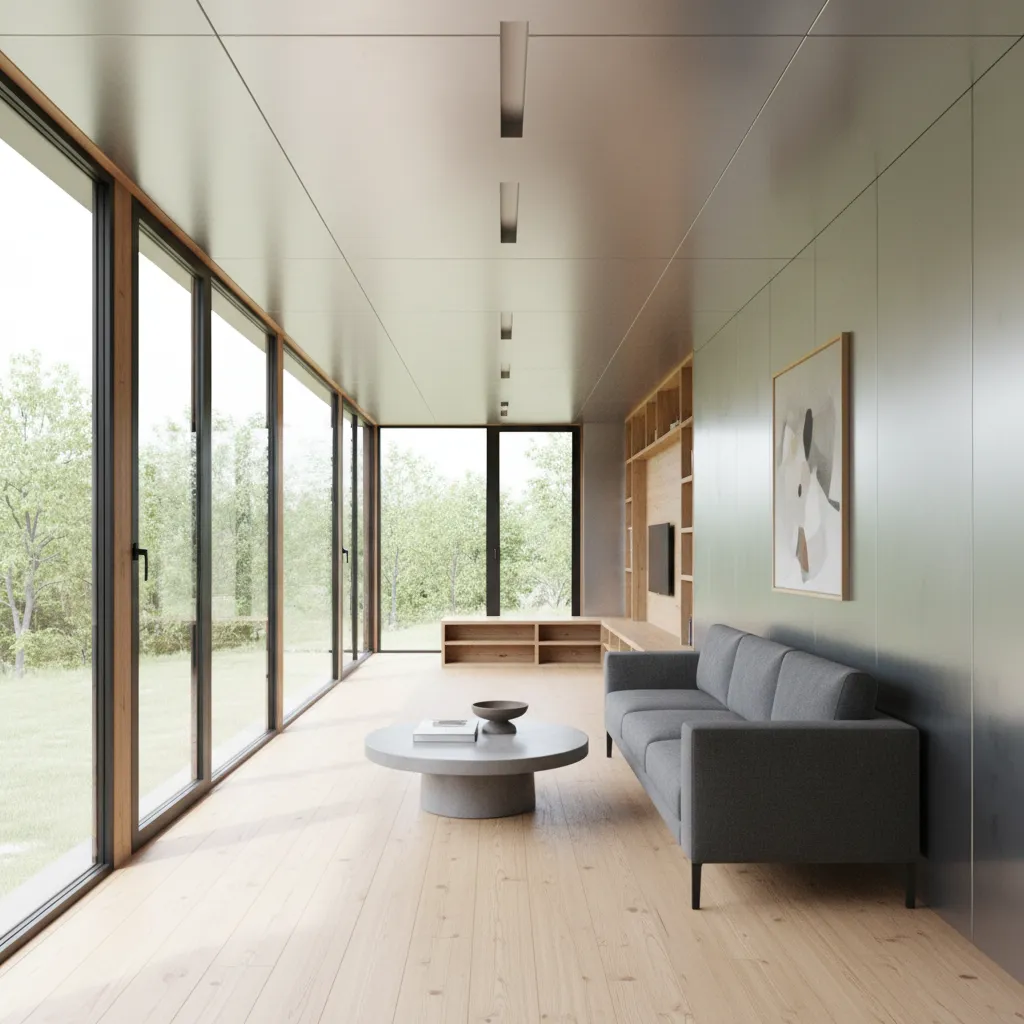

Window and Natural Light Placement Problems

Key Insight: Poorly placed windows can make container homes feel dark even when several openings exist.

The long rectangular form of a container means daylight often struggles to reach the center of the space. Many plans simply place windows on one wall, which creates harsh contrast between bright and dark zones.

Better daylight strategies include:

1. Windows on both long sides of the container
2. Glass doors at container ends
3. Clerestory windows above cabinetry
4. Interior openings between connected containers

In projects where two containers are combined, removing a narrow strip of roof and installing skylights can dramatically improve daylight penetration.

save pin

Practical Fixes for Common Container House Design Issues

Key Insight: Most container house design mistakes can be corrected through layout refinement and structural reinforcement before construction begins.

When reviewing problematic container house plans, I typically recommend the following correction process:

1. Map circulation paths across the entire container layout.
2. Identify any structural wall sections scheduled for removal.
3. Adjust window placement for cross‑ventilation.
4. Add reinforcement framing for wide openings.
5. Simulate lighting and interior space proportions.

When designers evaluate these issues visually with a step‑by‑step room layout visualization workflow, most design flaws become obvious before construction costs start escalating.

Answer Box

The majority of container home design problems come from four areas: layout circulation, structural cutting, insulation strategy, and window placement. Addressing these early through proper planning and structural reinforcement prevents costly redesigns during construction.

Final Summary

1. Container homes require different planning logic than traditional houses.
2. Structural walls must be reinforced when large openings are cut.
3. Ventilation and insulation must be designed together.
4. Daylight strategy is essential for narrow container interiors.
5. Early layout visualization prevents most container house design mistakes.

FAQ

What are the most common container house design mistakes?

The most frequent mistakes include removing structural walls without reinforcement, poor ventilation design, narrow circulation paths, and badly positioned windows that limit daylight.

Can you cut large openings in shipping containers safely?

Yes, but structural reinforcement is usually required. Steel beams or frames must support loads that the removed wall previously carried.

Why do container homes feel cramped?

Most containers are only about 8 feet wide. Poor furniture placement or central hallways can reduce usable width significantly.

How do you fix container house ventilation problems?

Use cross‑ventilation with windows on opposite sides, add roof ventilation, and integrate mechanical ventilation systems if necessary.

Do container homes need special insulation?

Yes. Closed‑cell spray foam is commonly used because it controls both heat transfer and condensation.

Are container homes prone to overheating?

Without insulation and ventilation, yes. Steel absorbs and transfers heat quickly, especially in sunny climates.

How do I avoid container house layout mistakes?

Start with accurate floor planning and visualize circulation paths before construction begins.

Can design software help fix container house design mistakes?

Yes. Visualizing layouts in 3D makes it easier to detect circulation problems, lighting issues, and furniture conflicts.

References

1. International Code Council – Modular Construction Guidelines
2. U.S. Department of Energy – Building Science and Moisture Control
3. American Institute of Architects – Small Space Planning Principles
