Common Site Plan Mistakes and How to Fix Them: A practical troubleshooting guide to identify errors, avoid permit rejections, and correct inaccurate site plan drawings.

Direct Answer

Common site plan mistakes usually involve missing elements, incorrect scale, unclear property boundaries, or incomplete measurements. These errors often lead to permit rejection or requests for revisions. The fastest way to fix them is to validate boundaries, confirm scale accuracy, and ensure all required structures and setbacks are clearly labeled.

Quick Takeaways

1. Most rejected site plans fail because key elements like setbacks, utilities, or access points are missing.
2. Incorrect drawing scale is one of the most frequent technical errors in site plan submissions.
3. Property line mistakes can invalidate an otherwise well‑drawn site plan.
4. A structured checklist before submission dramatically reduces permit delays.
5. Digital planning tools make it easier to verify measurements and layout accuracy.

Introduction

After working on residential and commercial layouts for more than a decade, I've reviewed hundreds of drawings where small technical issues caused major delays. Many of these problems fall into the category of common site plan mistakes—errors that are easy to miss during drafting but obvious to permit reviewers.

The frustrating part is that most rejected plans aren't fundamentally wrong. They're simply incomplete, incorrectly scaled, or missing required details. I've seen clients lose weeks waiting for approvals just because a driveway dimension or setback line wasn't labeled.

If you're preparing a layout for permits, development proposals, or construction planning, accuracy matters more than aesthetics. A clean drawing that clearly communicates boundaries, structures, and measurements is what regulators care about most. Tools designed for property layouts—like this simple way to generate accurate property layout drawings online—can help reduce many of the technical errors that show up in manual drafts.

In this guide, I'll walk through the most common issues I see in rejected plans, explain why they happen, and show practical ways to fix them before submission.

save pin

Why Site Plans Get Rejected or Marked Incorrect

Key Insight: Most rejected site plans fail because reviewers cannot clearly verify dimensions, boundaries, or required zoning elements.

Permit reviewers look for clarity and compliance, not artistic drawings. When a plan lacks clear labels, scale references, or structural placement, reviewers simply cannot confirm whether it follows zoning rules.

In real projects, the most common rejection reasons include:

1. Missing setback distances
2. Unlabeled property lines
3. Incorrect or missing scale indicators
4. No indication of existing vs proposed structures
5. Unclear driveway or access layout

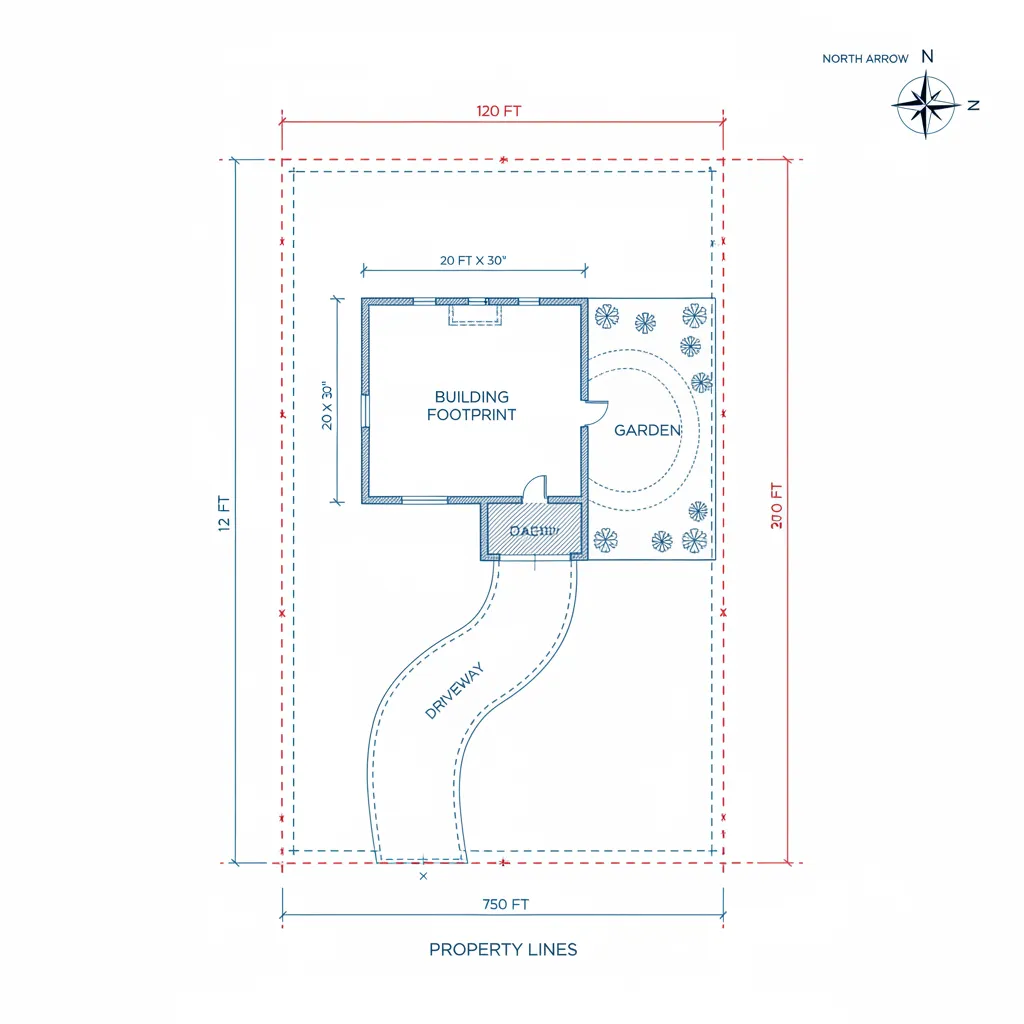

Municipal planning departments across the U.S. commonly require site plans to show property boundaries, building footprints, access routes, utilities, and orientation markers like a north arrow. If any of these are missing, reviewers typically request revisions.

According to planning guidance from multiple U.S. municipal permit offices, incomplete drawings are one of the top causes of permit delays.

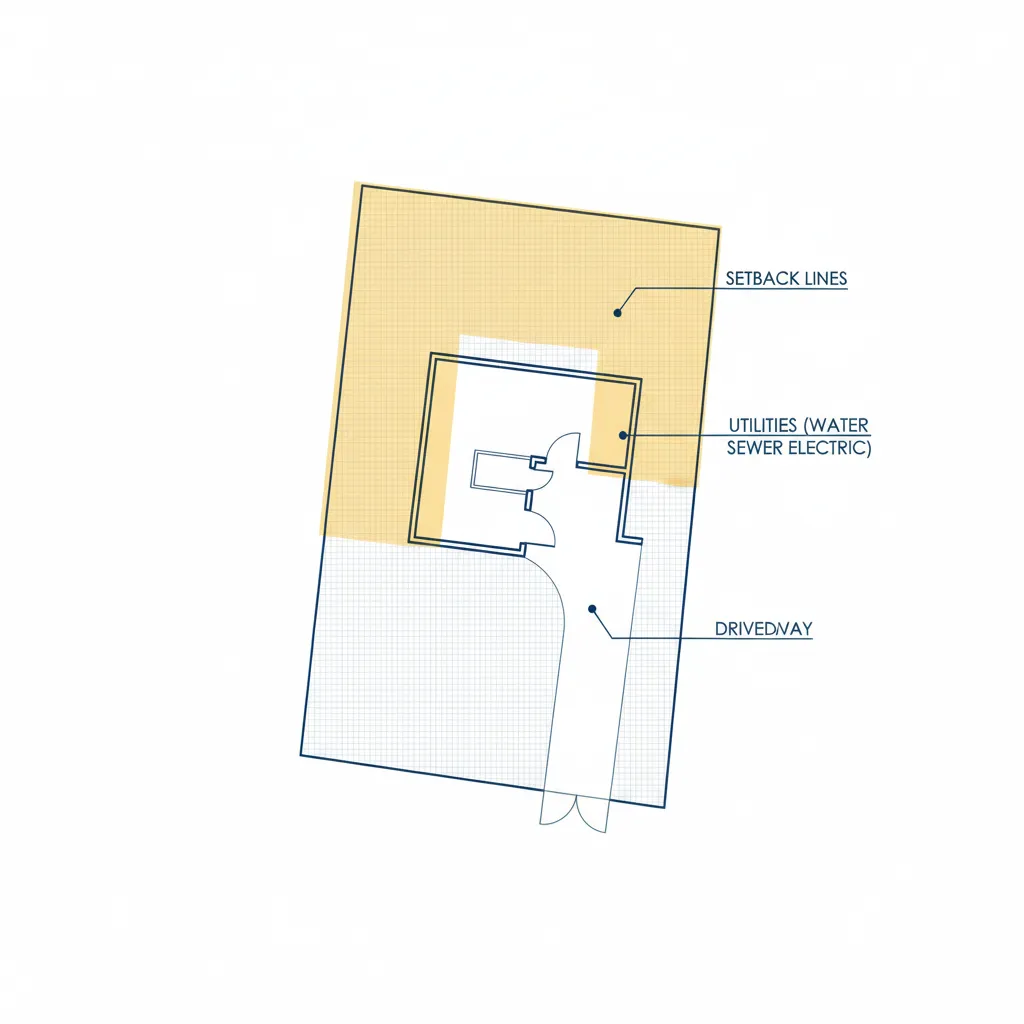

Missing Elements That Cause Site Plan Problems

Key Insight: A site plan can be visually accurate but still fail approval if it omits required zoning or infrastructure information.

This is one of the hidden mistakes many guides don't mention: the drawing may look complete, but regulators require specific informational layers.

Commonly missing elements include:

1. Setback distances from property lines
2. Utility connections (water, sewer, electrical)
3. Driveways and parking layout
4. North arrow and scale legend
5. Existing structures that remain on the property
6. Lot dimensions and boundary lengths

In my experience reviewing residential permit drawings, missing utilities are particularly common. Designers often focus on the building footprint but forget that infrastructure placement affects approval.

If you're working digitally, layout tools that allow layered visualization—like platforms used for visualizing property layout and building placement in 3D—can help ensure these details aren't overlooked.

save pin

Incorrect Scale and Measurement Issues

Key Insight: Incorrect scale makes a site plan unreliable, even if every element appears visually correct.

Scale errors are extremely common in manually drafted drawings. A plan may look proportional, but if measurements don't match the stated scale, reviewers cannot trust the layout.

Typical scale problems include:

1. Using inconsistent measurement units
2. Drawing elements without referencing a scale ratio
3. Scaling objects visually instead of numerically
4. Copying layouts from satellite images without accurate measurements

The safest approach is to build the plan using real measurements from property surveys or GIS data. When I review professional submissions, the plans that pass quickly almost always originate from measurement‑driven drafting rather than visual estimation.

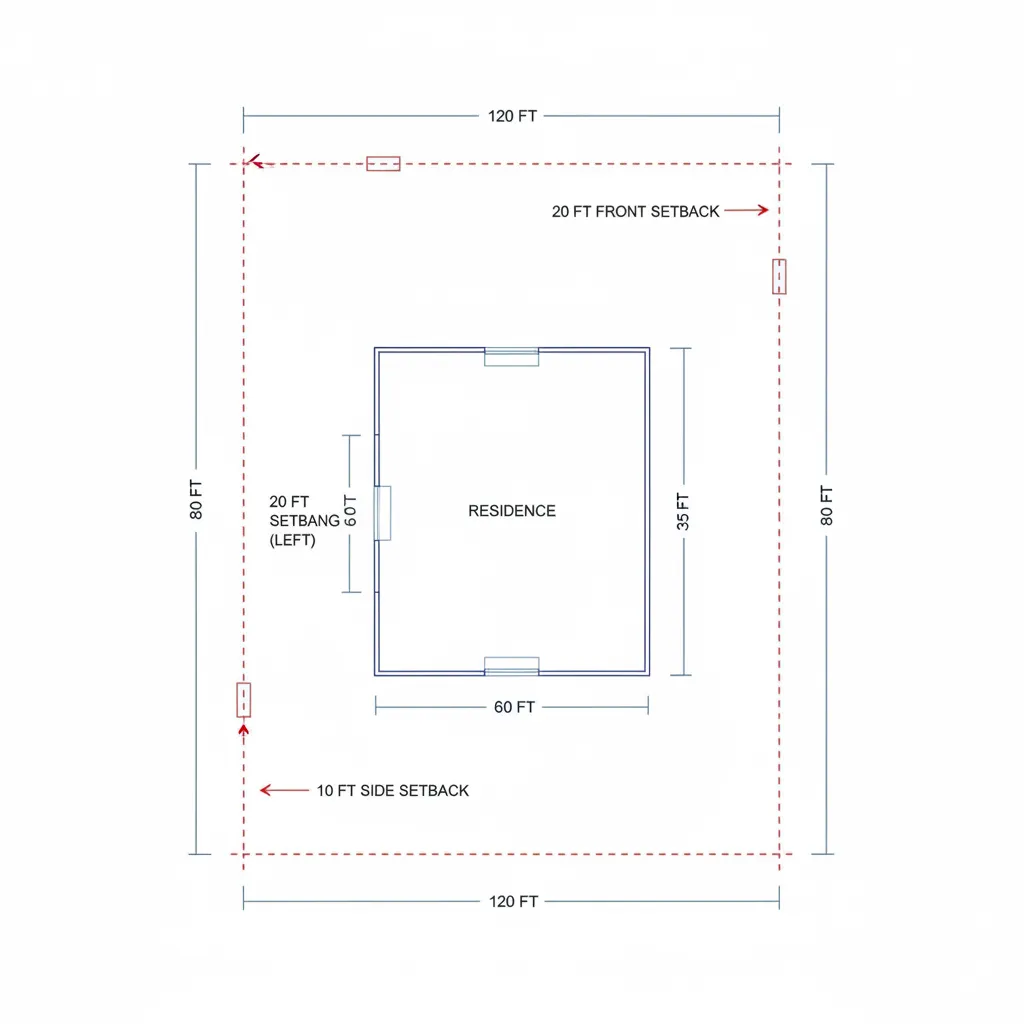

Boundary and Property Line Mistakes

Key Insight: Boundary errors can invalidate an entire site plan because zoning compliance depends on precise property limits.

One of the most serious mistakes is drawing boundaries based on assumptions rather than survey documents.

Common boundary problems include:

1. Property lines not matching official surveys
2. Missing easements or right‑of‑way zones
3. Incorrect lot dimensions
4. Structures drawn partially outside the property boundary

In several residential remodel projects I've reviewed, homeowners used satellite imagery to estimate lot edges. The result looked reasonable—but the house footprint extended two feet into the setback zone, triggering permit rejection.

The safest workflow is always:

1. Start with the official property survey
2. Confirm boundary coordinates
3. Overlay proposed structures afterward

save pin

Answer Box

The fastest way to fix common site plan mistakes is to verify scale, confirm property boundaries using a survey, and ensure all required elements—setbacks, utilities, access routes, and labels—are clearly shown.

How to Fix an Incomplete Site Plan

Key Insight: Fixing a site plan is usually about adding missing data layers rather than redrawing the entire layout.

When troubleshooting a rejected plan, I recommend a structured correction process.

Step‑by‑step correction process:

1. Review the rejection comments from the permitting authority
2. Verify property boundaries against the official survey
3. Add missing zoning elements such as setbacks and easements
4. Confirm scale and measurement accuracy
5. Label all structures, utilities, and access points

If you're rebuilding the layout digitally, tools designed for quickly generating accurate property layouts with automated planning assistancecan dramatically reduce drafting time while keeping measurements consistent.

save pin

Checklist to Validate Your Site Plan Before Submission

Key Insight: A simple validation checklist prevents most permit delays.

Before submitting your site plan, confirm the following items are clearly visible:

1. Property boundaries with exact dimensions
2. Building footprint and distances from lot lines
3. Driveways, access routes, and parking areas
4. Utility locations and connections
5. North arrow and drawing scale
6. Existing vs proposed structures
7. Easements or setback zones

In professional design studios, this checklist review step is standard practice. Skipping it is one of the biggest hidden causes of site plan errors.

Final Summary

1. Most site plan errors come from missing information rather than incorrect drawings.
2. Accurate scale and verified boundaries are critical for permit approval.
3. Setbacks, utilities, and access routes must always be labeled.
4. Using a structured checklist prevents common site plan mistakes.
5. Digital planning tools reduce measurement and layout errors.

FAQ

What are the most common site plan mistakes?

Missing setbacks, incorrect scale, unclear property boundaries, and unlabeled utilities are among the most common site plan mistakes.

Why was my site plan rejected?

Most rejections occur because required elements like boundaries, measurements, or access points are missing or unclear.

How do I fix a rejected site plan?

Review the reviewer comments, verify boundaries using a survey, correct scale errors, and add all missing zoning elements.

Do site plans need to be drawn to scale?

Yes. Accurate scale ensures reviewers can verify setbacks, structure placement, and zoning compliance.

Can I create a site plan without hiring a designer?

Yes, many homeowners use digital layout tools, especially for simple residential permit drawings.

What information must a site plan include for permits?

Typical requirements include property boundaries, building footprint, setbacks, utilities, driveways, and orientation markers.

How accurate does a site plan need to be?

A site plan must match official property measurements and show precise distances between structures and lot lines.

What is the fastest way to avoid site plan errors?

Follow a submission checklist and confirm measurements against the property survey before drafting.
