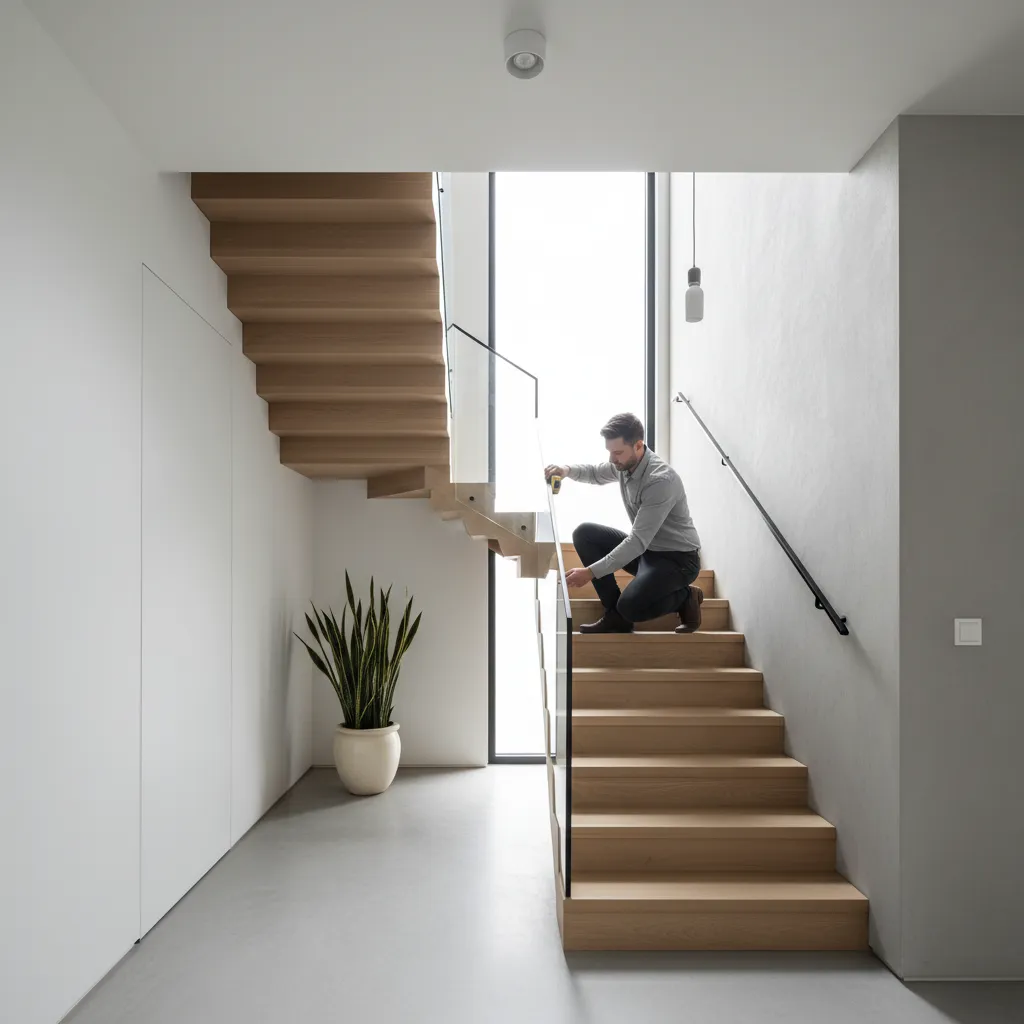

Common Staircase Flooring Measurement Mistakes and How to Fix Them: A practical troubleshooting guide to correct staircase flooring calculations and avoid costly material waste

Direct Answer

Most staircase flooring measurement mistakes happen because people only measure stair treads and forget critical surfaces such as risers, stair noses, and landings. Small counting or width errors quickly multiply across the entire staircase. The fix is simple: measure tread depth, riser height, stair width, and landing areas separately, then calculate the full surface area step by step.

Quick Takeaways

1. Ignoring risers is the most common reason staircase square footage is underestimated.
2. Miscounted treads or landings can throw off total flooring material by 10–25%.
3. Curved staircases require width measurements at multiple points.
4. Always calculate tread area and riser area separately before adding totals.
5. A visual floor layout often catches measurement mistakes early.

Introduction

In more than a decade of residential design projects, staircase flooring measurements are one of the most frequent sources of miscalculation. Homeowners often think the math is simple—measure a step, multiply by the number of stairs, and order flooring. In reality, that shortcut creates some of the most common stair flooring measurement mistakes I see on renovation sites.

One client project in San Diego stands out. The contractor ordered flooring based only on tread dimensions. When installation started, they realized every riser also needed material, which pushed the total requirement up by nearly 18%. That meant another order, a delay, and mismatched dye lots.

This is why I often recommend sketching the staircase first or mapping it digitally. Even a simple visual layout—like the ones you can build with a simple visual layout that maps each stair surface clearly—helps reveal surfaces people forget to measure.

In this guide, I’ll walk through the most common calculation errors I’ve seen across hundreds of residential projects, explain why they happen, and show how to fix them before they turn into expensive material waste.

save pin

Why Staircase Flooring Measurements Often Go Wrong

Key Insight: Stair measurements fail when people treat stairs like a flat floor instead of a multi-surface structure.

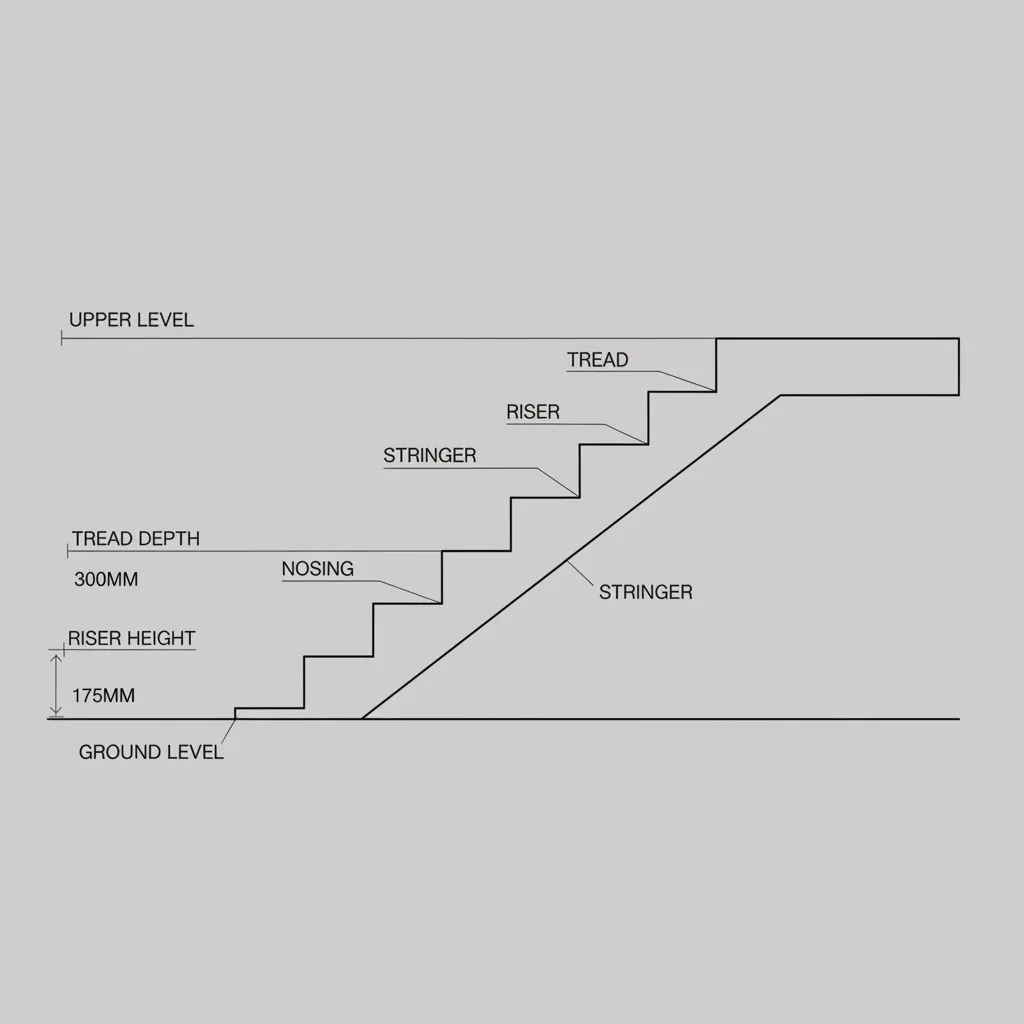

Unlike standard rooms, stairs include multiple planes: horizontal treads, vertical risers, side edges, and sometimes landings. When one of those elements is skipped, the square footage estimate quickly becomes inaccurate.

Typical calculation mistakes I see during design reviews include:

1. Measuring only tread depth and width
2. Ignoring riser surfaces
3. Forgetting landings between flights
4. Using inconsistent measurements for stair width
5. Rounding step counts incorrectly

Industry guidelines from organizations like the National Association of Home Builders emphasize that stair components must be measured individually because tread depth and riser height vary between stair designs.

In practice, I always break stair measurements into four categories:

1. Tread surface area
2. Riser surface area
3. Landing platforms
4. Edge overhang or stair nosing coverage

This separation alone eliminates most staircase calculation errors.

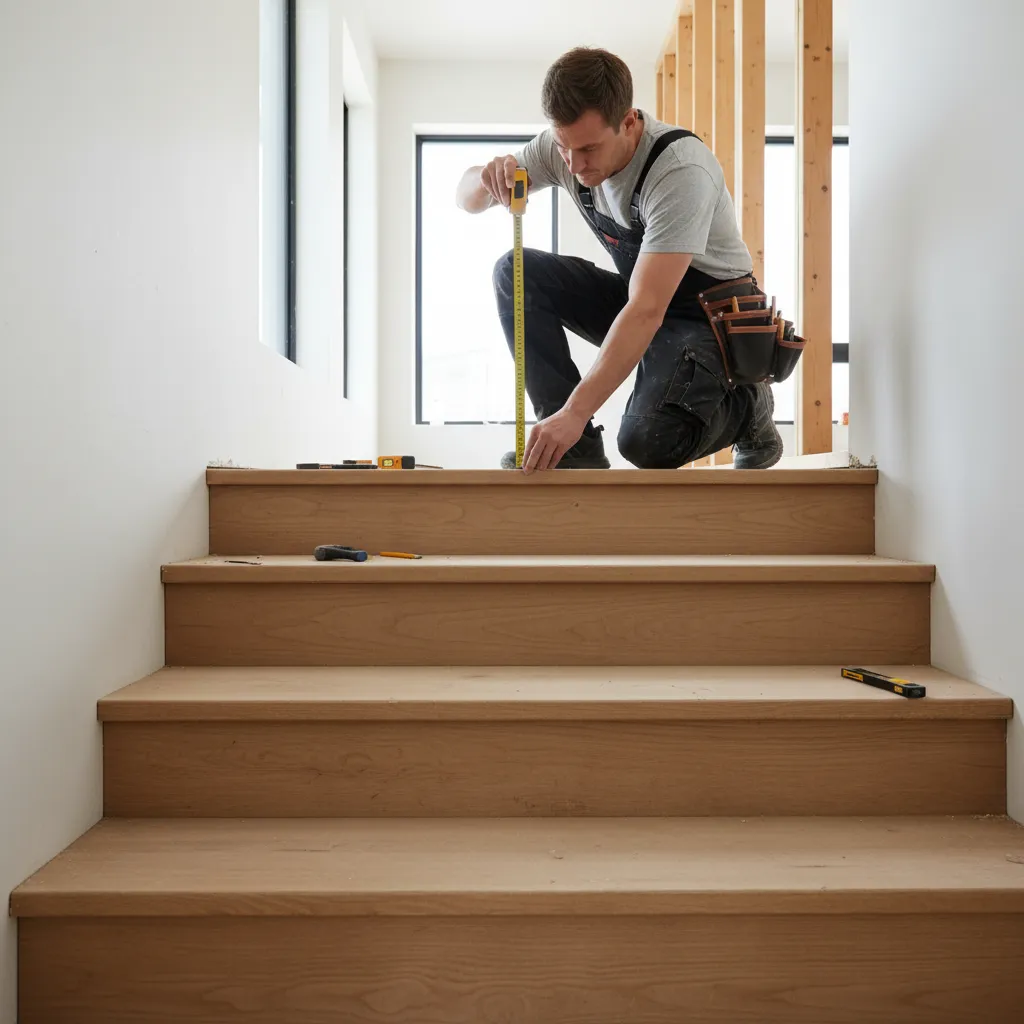

Forgetting to Include Risers in Flooring Area

Key Insight: Riser surfaces can account for 35–50% of the total flooring area on a staircase.

Many DIY installers measure only the horizontal step surface. But when flooring wraps vertically up each riser, that area must also be included in the estimate.

Here is a simple example from a recent project:

1. Tread depth: 10 inches
2. Riser height: 7 inches
3. Stair width: 36 inches
4. Total stairs: 14

If you calculate only treads:

1. 10 × 36 inches per step
2. Total area: about 35 sq ft

When risers are included:

1. 7 × 36 inches per step
2. Additional area: about 24 sq ft

The final requirement becomes nearly 60 sq ft instead of 35 sq ft.

This single oversight is the biggest driver behind incorrect staircase flooring estimates.

save pin

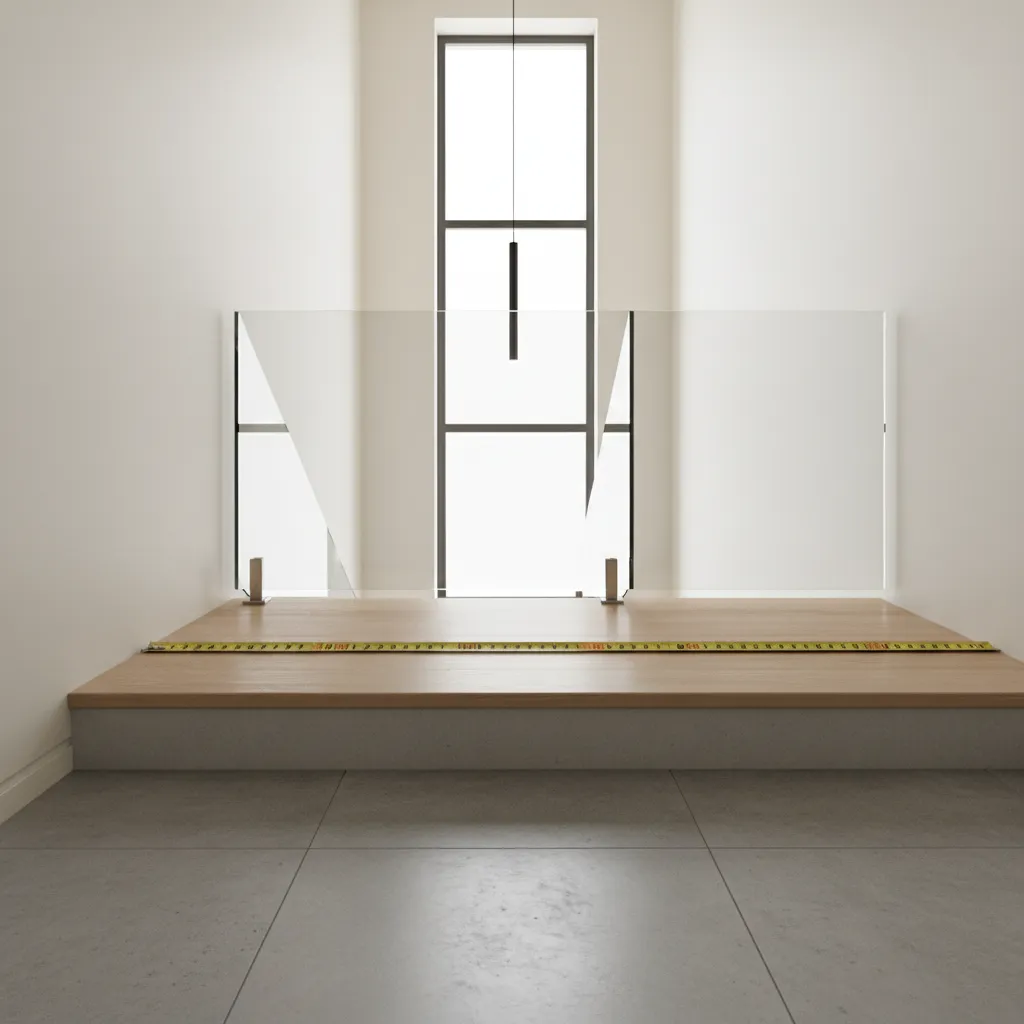

Miscounting Stair Treads and Landings

Key Insight: A single missed landing or stair tread can skew flooring calculations by double-digit percentages.

Counting stairs seems obvious, but field conditions often complicate things. Split-level homes, L-shaped staircases, and intermediate platforms introduce extra surfaces that many people forget.

Typical counting errors include:

1. Ignoring top landing platforms
2. Counting risers but not treads correctly
3. Missing transition steps near hallways
4. Skipping small intermediate landings

One trick I use is visual stair mapping. If you want a clearer view of how stairs connect spatially, try experimenting with a 3D layout view that reveals every tread and landing. Seeing the structure often reveals surfaces you forgot to measure.

save pin

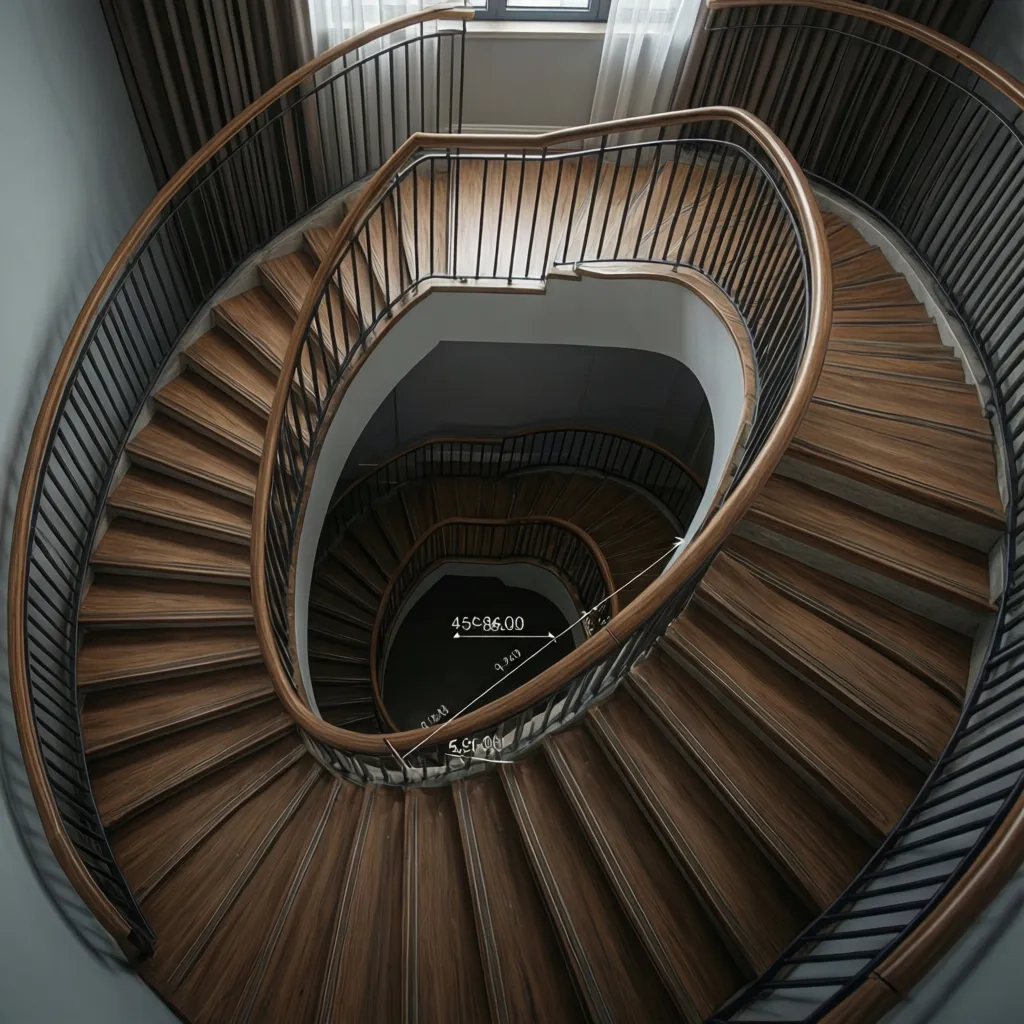

Incorrect Width Measurements on Curved or Angled Stairs

Key Insight: Curved or angled staircases require multiple width measurements because the step width changes across the tread.

Straight staircases are simple. But curved, spiral, or angled stairs introduce uneven tread widths.

Common measurement mistakes include:

1. Measuring width only at the outer edge
2. Ignoring the narrow inner edge of curved stairs
3. Using one width measurement for all steps

The professional approach is measuring three points per tread:

1. Inner edge width
2. Center walking line width
3. Outer edge width

The center walking line measurement typically produces the most accurate flooring estimate.

Architectural measurement standards often use this method for curved stair calculations.

save pin

How to Recalculate Staircase Square Footage Correctly

Key Insight: The most reliable method is calculating each surface type separately and combining them into a total area.

Here is the step-by-step process I recommend for fixing an incorrect staircase flooring estimate.

1. Measure tread depth and stair width.
2. Multiply for one tread surface area.
3. Multiply by total number of treads.
4. Measure riser height and width.
5. Multiply for total riser area.
6. Add landing surface areas.
7. Add 10–15% extra for waste and cutting.

Many designers now visualize this before ordering materials. A quick layout created with a visual planning workflow that simulates stair dimensions often exposes miscalculations immediately.

Answer Box

The fastest way to fix staircase flooring measurement mistakes is separating tread area, riser area, and landing surfaces before calculating totals. Counting only stair steps almost always underestimates the real flooring requirement.

Quick Checklist for Accurate Stair Flooring Measurements

Key Insight: A simple measurement checklist prevents most stair flooring calculation errors.

1. Count every tread individually.
2. Measure riser height for each step.
3. Include all landings and platforms.
4. Verify stair width at multiple points.
5. Add waste allowance for cuts and defects.

In professional projects, we double-check measurements twice—once during planning and again before ordering materials. That small habit prevents delays that can stall entire renovation timelines.

Final Summary

1. Most staircase flooring errors come from ignoring risers.
2. Incorrect stair counts frequently cause material shortages.
3. Curved stairs require multi-point width measurements.
4. Separate tread, riser, and landing calculations for accuracy.
5. A visual layout helps detect measurement gaps early.

FAQ

Why is my staircase square footage wrong?

Most miscalculations happen when risers or landings are not included in the estimate. Staircases have multiple surfaces that must be measured individually.

Do I need to measure stair risers for flooring?

Yes. If flooring material covers the vertical part of the step, risers must be included in your staircase flooring measurement.

How much extra flooring should I order for stairs?

Typically add 10–15% extra material. Stair installations involve more cutting and waste than flat floors.

What is the standard stair tread depth?

Most residential stairs use treads between 10 and 11 inches deep, but always measure your own staircase before calculating flooring.

Are curved stairs harder to measure?

Yes. Curved staircases require measuring width at multiple points because the tread width changes across the step.

What tools help avoid stair flooring measurement mistakes?

Visual planning tools, stair diagrams, and digital layout software help identify missing surfaces in your estimate.

Can stair flooring measurement mistakes cause material waste?

Yes. Incorrect staircase flooring calculations often lead to overordering or running out of materials mid‑installation.

What is the easiest way to calculate stair flooring area?

Measure tread area, riser area, and landing area separately, then combine them into the final staircase flooring measurement.

References

1. National Association of Home Builders – Residential Stair Guidelines
2. Architectural Graphic Standards – Stair Design Measurements
3. International Residential Code (IRC) Stair Dimension Standards
