Common Structural Problems with Adjacent Walls and How to Fix Them: Diagnose cracks, moisture, and movement issues in walls built next to neighboring structures—and learn practical repair solutions used by professionals.

Direct Answer

Adjacent walls often develop structural problems because two buildings move differently over time. When foundations settle, moisture accumulates between structures, or temperature changes cause expansion, stress concentrates in the shared or closely spaced wall area. Proper inspection, drainage management, movement joints, and structural reinforcement usually resolve the issue.

Quick Takeaways

1. Most adjacent wall cracks are caused by differential settlement between two buildings.
2. Moisture trapped between close structures accelerates material deterioration.
3. Thermal expansion becomes more severe where walls lack movement joints.
4. Early inspection prevents small cracks from becoming structural failures.
5. Reinforcement, sealing, and drainage improvements are common repair solutions.

Introduction

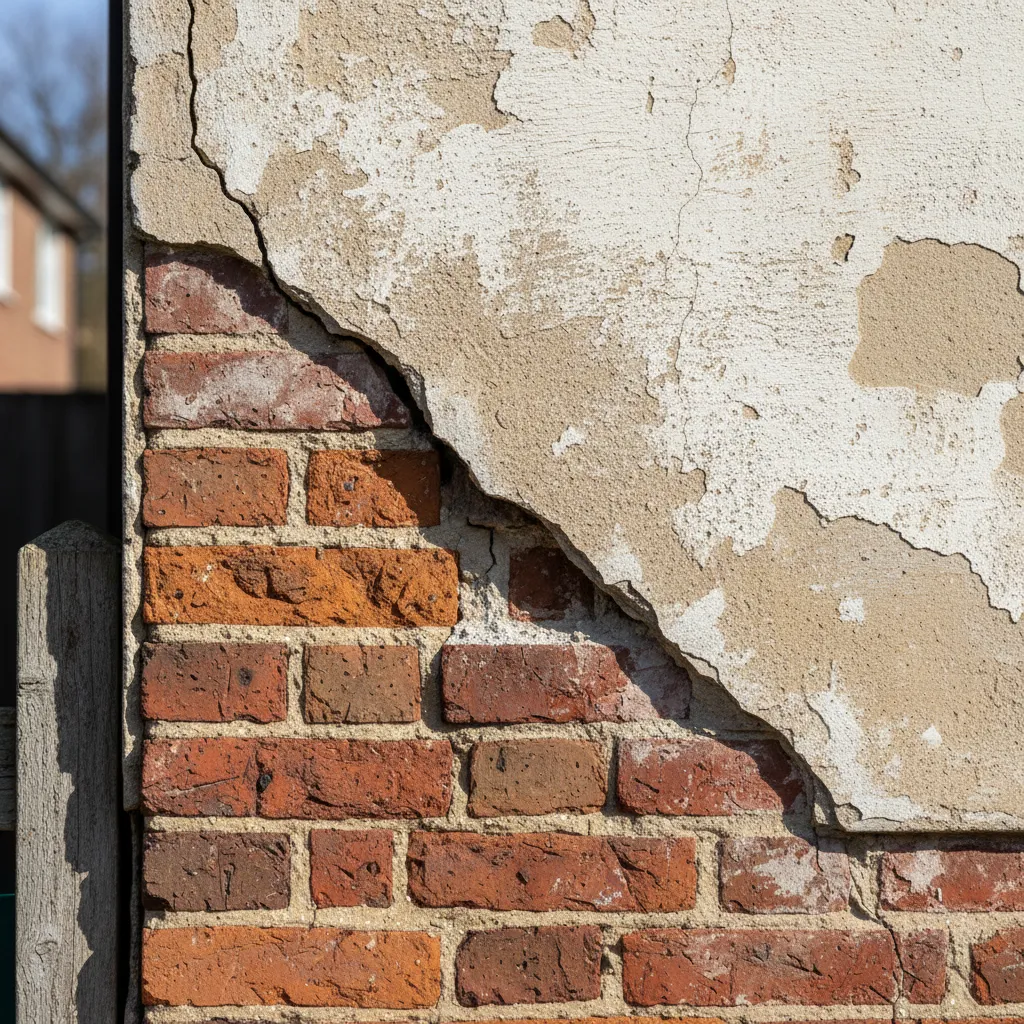

In dense neighborhoods and urban housing projects, adjacent wall construction is extremely common. Over the past decade working on residential renovations and structural redesigns, I’ve seen a surprising number of failures appear exactly where two buildings sit close together. Homeowners usually notice hairline cracks, damp patches, or small gaps forming along boundary walls.

The tricky part is that these problems rarely come from just one cause. Settlement, trapped moisture, and temperature-driven movement often combine to create stress in the same spot. I’ve reviewed many floor layouts while diagnosing these issues, and planning wall relationships early—like when using tools that help visualize wall placement and structural spacing in a 3D floor layout—can prevent many of them before construction even begins.

This guide breaks down the most common adjacent wall structural problems, how professionals diagnose them, and what repair strategies actually work.

save pin

Why Adjacent Walls Develop Structural Problems

Key Insight: Structural issues occur because two buildings rarely move or age at the same rate.

Even when walls appear aligned, each structure sits on its own foundation system. Over time, soil conditions, building loads, and moisture exposure cause slight movement. When two walls are close together, these movements translate into stress at the interface.

Common underlying causes include:

1. Differential foundation settlement
2. Poor drainage between structures
3. Lack of expansion or movement joints
4. Improper load distribution
5. Thermal expansion differences

According to structural guidance published by the International Association of Certified Home Inspectors (InterNACHI), differential settlement is one of the most frequent causes of wall cracking near property boundaries.

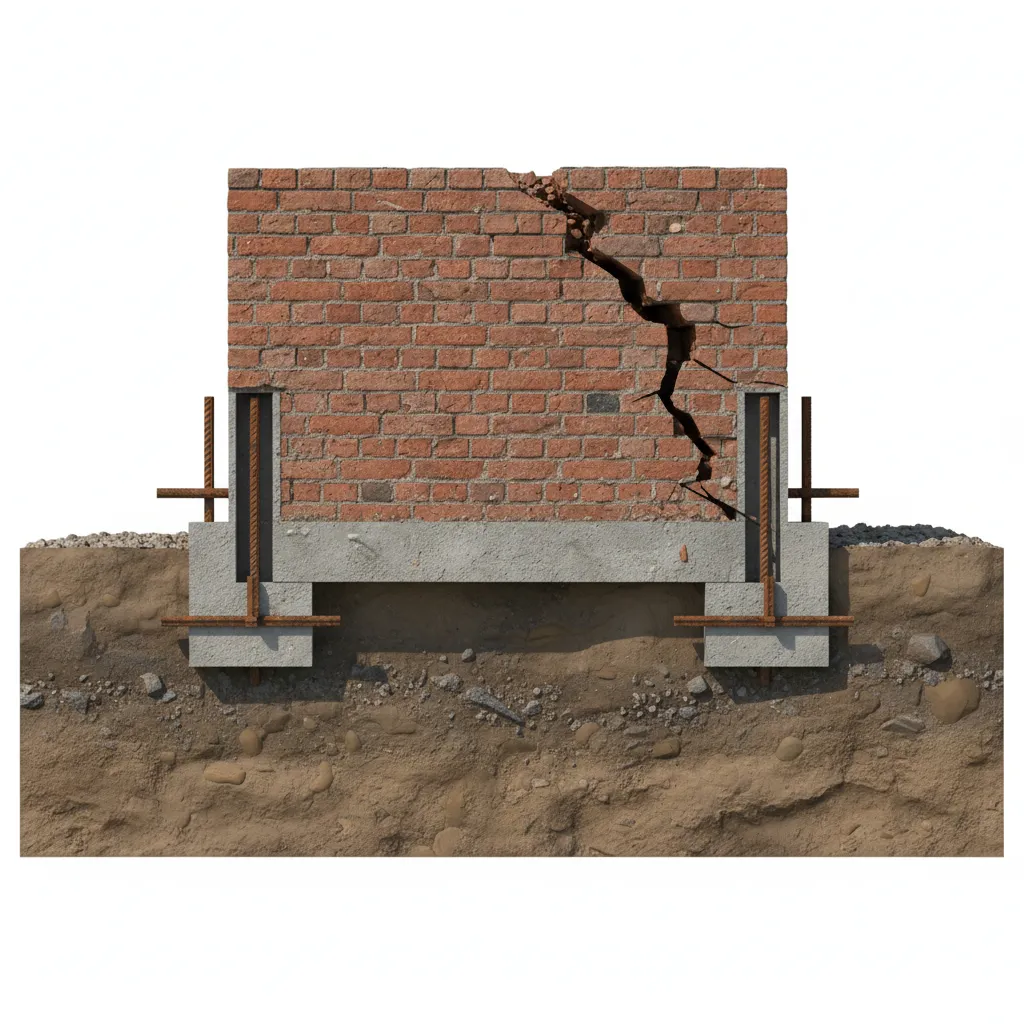

Cracks and Settlement Near Neighboring Structures

Key Insight: Cracks near adjacent walls usually indicate foundation movement rather than simple surface damage.

In renovation projects, I often see diagonal cracks forming near the top corners of boundary walls. These cracks typically signal uneven foundation settlement rather than cosmetic plaster failure.

Typical crack patterns include:

1. Diagonal cracks starting at window or door corners
2. Vertical cracks along property-line walls
3. Stepped cracks in masonry joints

Repair approaches depend on severity:

1. Hairline cracks: flexible filler or epoxy injection
2. Moderate cracks: stitching with steel reinforcement bars
3. Major settlement: underpinning or foundation stabilization

save pin

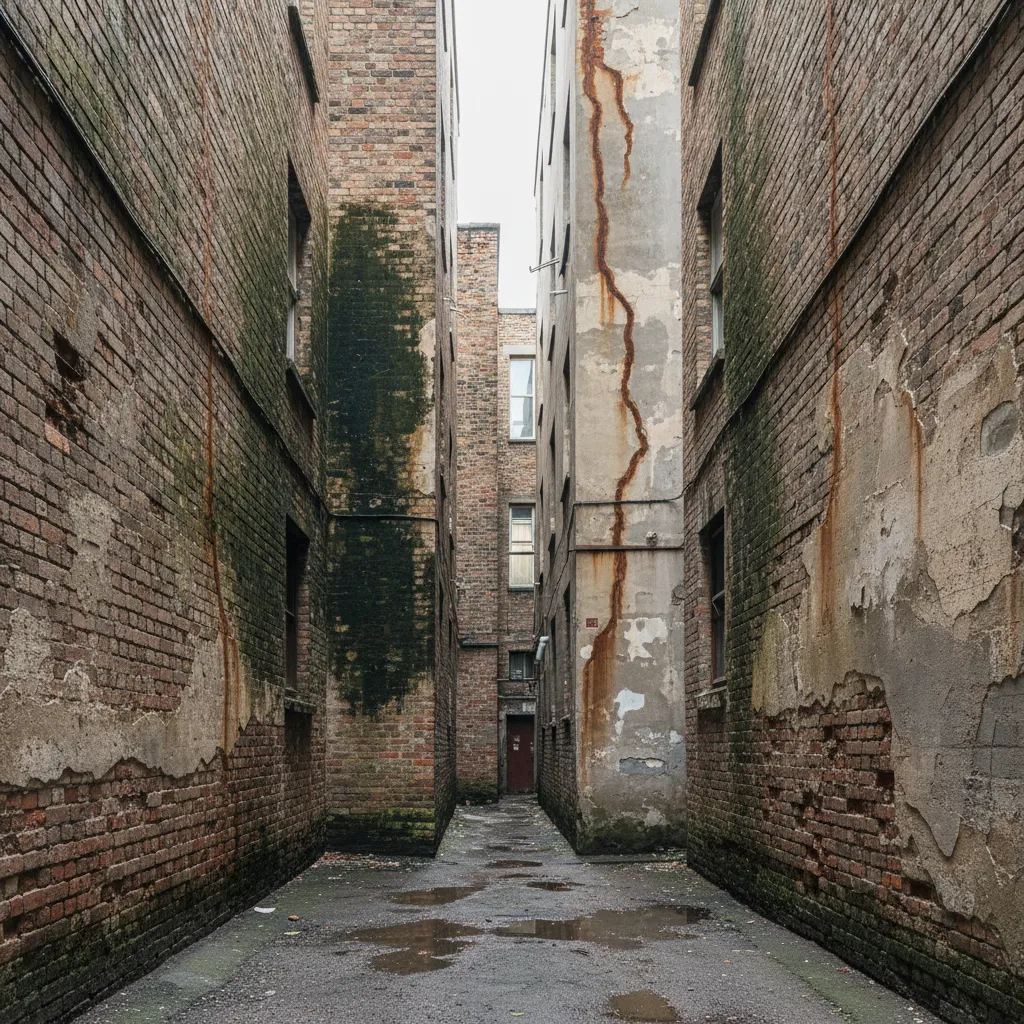

Moisture Penetration Between Close Walls

Key Insight: Moisture problems often develop because narrow gaps between buildings trap water and block airflow.

One issue many guides overlook is the "micro-climate" that forms between closely spaced walls. Rainwater, condensation, and poor drainage can keep this area constantly damp.

Common moisture symptoms include:

1. Efflorescence on masonry
2. Peeling paint or plaster
3. Mold growth in interior corners
4. Deteriorating mortar joints

In design planning, tools that allow designers to map room layouts and wall relationships during early design help identify tight wall spacing that may trap moisture.

Effective solutions include:

1. Installing vertical drainage channels
2. Adding waterproof membrane layers
3. Improving roof runoff management
4. Creating ventilation gaps where possible

save pin

Thermal Expansion and Structural Movement Issues

Key Insight: Temperature-driven expansion can push adjacent walls against each other when movement joints are missing.

Materials like brick, concrete, and steel expand when heated and contract when cooled. In tightly spaced buildings, these small movements accumulate and create structural pressure.

Warning signs include:

1. Seasonal cracking patterns
2. Walls bulging slightly toward neighboring structures
3. Doors or windows becoming misaligned

Engineering solutions typically involve:

1. Expansion joints between wall segments
2. Flexible sealant systems
3. Structural slip connections

Answer Box

Most adjacent wall damage comes from three combined factors: differential settlement, trapped moisture, and thermal movement. The most reliable fixes involve drainage improvement, structural crack repair, and adding movement joints where buildings interact.

Inspection Methods for Adjacent Wall Damage

Key Insight: Proper inspection requires examining both the visible wall damage and the surrounding structural context.

In professional inspections, the goal is to determine whether cracks are structural or cosmetic.

A typical inspection checklist includes:

1. Measuring crack width and direction
2. Checking foundation elevation differences
3. Inspecting drainage conditions
4. Examining roof runoff and gutter placement
5. Monitoring crack growth over time

Documentation and spatial analysis are easier when homeowners can generate a simple floor plan to understand structural wall positionsbefore consulting engineers or contractors.

save pin

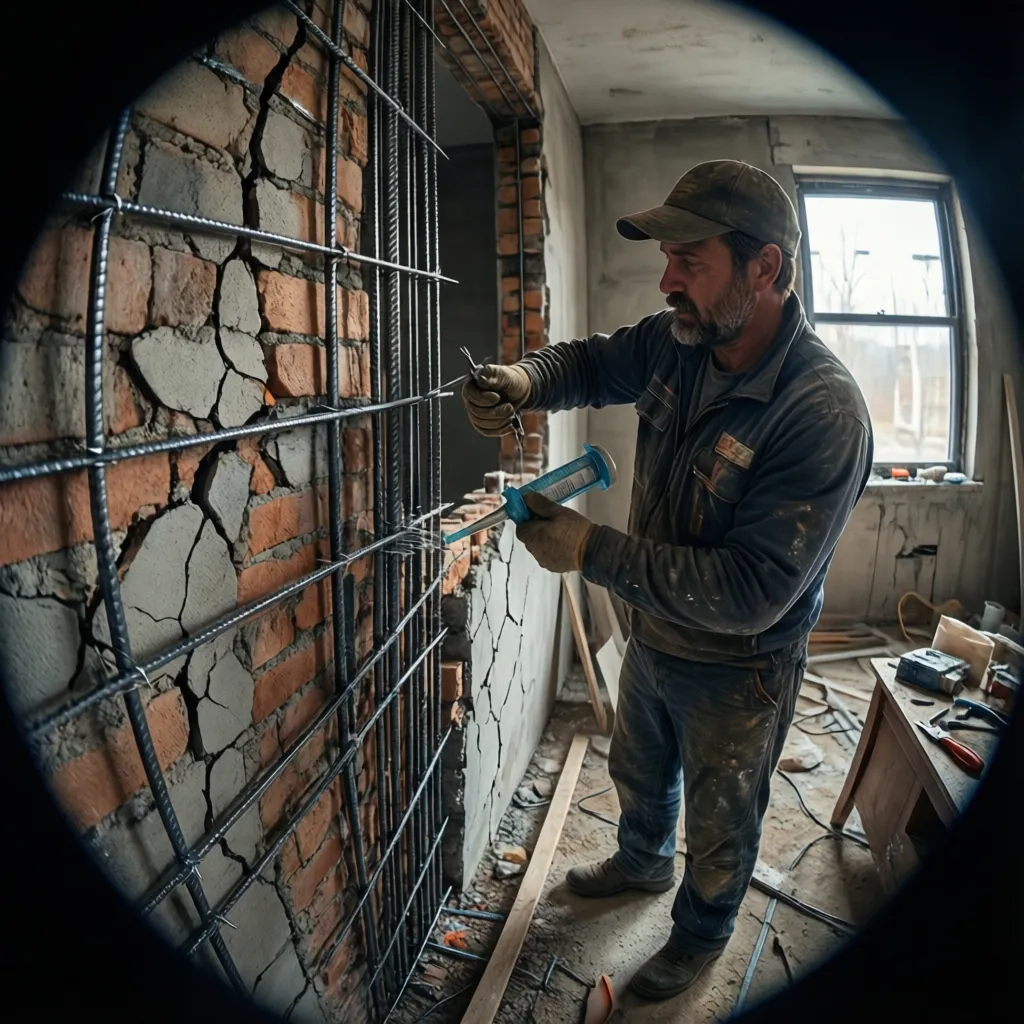

Repair and Reinforcement Techniques

Key Insight: Long-term repairs must address the root cause—not just patch the visible crack.

In practice, the most successful repairs combine structural reinforcement with environmental fixes like drainage or waterproofing.

Common repair strategies include:

1. Epoxy injection for structural crack bonding
2. Helical bar crack stitching for masonry walls
3. Carbon fiber reinforcement strips
4. Waterproof coatings and flashing
5. Foundation underpinning in severe settlement cases

Structural engineers typically recommend monitoring repaired cracks for several months to confirm that movement has stopped.

Final Summary

1. Adjacent wall problems usually stem from settlement, moisture, or thermal movement.
2. Crack patterns often reveal the underlying structural cause.
3. Moisture trapped between buildings accelerates wall deterioration.
4. Proper inspection is essential before choosing a repair method.
5. Permanent repairs address both structural movement and environmental conditions.

FAQ

What causes adjacent wall structural cracks?

Most adjacent wall structural cracks occur due to differential settlement, moisture damage, or thermal expansion between neighboring structures.

Are cracks in boundary walls dangerous?

Small hairline cracks are often cosmetic, but widening or diagonal cracks may indicate foundation movement and should be inspected by a professional.

How do you repair an adjacent wall crack?

Minor cracks can be filled with sealant or epoxy, while structural cracks often require reinforcement like steel stitching bars.

Can moisture problems in adjacent walls damage foundations?

Yes. Persistent moisture can weaken soil bearing capacity and accelerate structural settlement.

How do you prevent water buildup between buildings?

Install drainage channels, waterproof membranes, and ensure roof runoff is directed away from wall gaps.

Do adjacent wall movement problems worsen over time?

Yes. Without repair, structural stress can increase and expand cracks.

When should I call a structural engineer?

If cracks exceed 3 mm, continue growing, or appear with wall bulging or door misalignment.

Can thermal expansion cause wall damage?

Yes. Without expansion joints, seasonal temperature changes can create pressure between neighboring structures.
