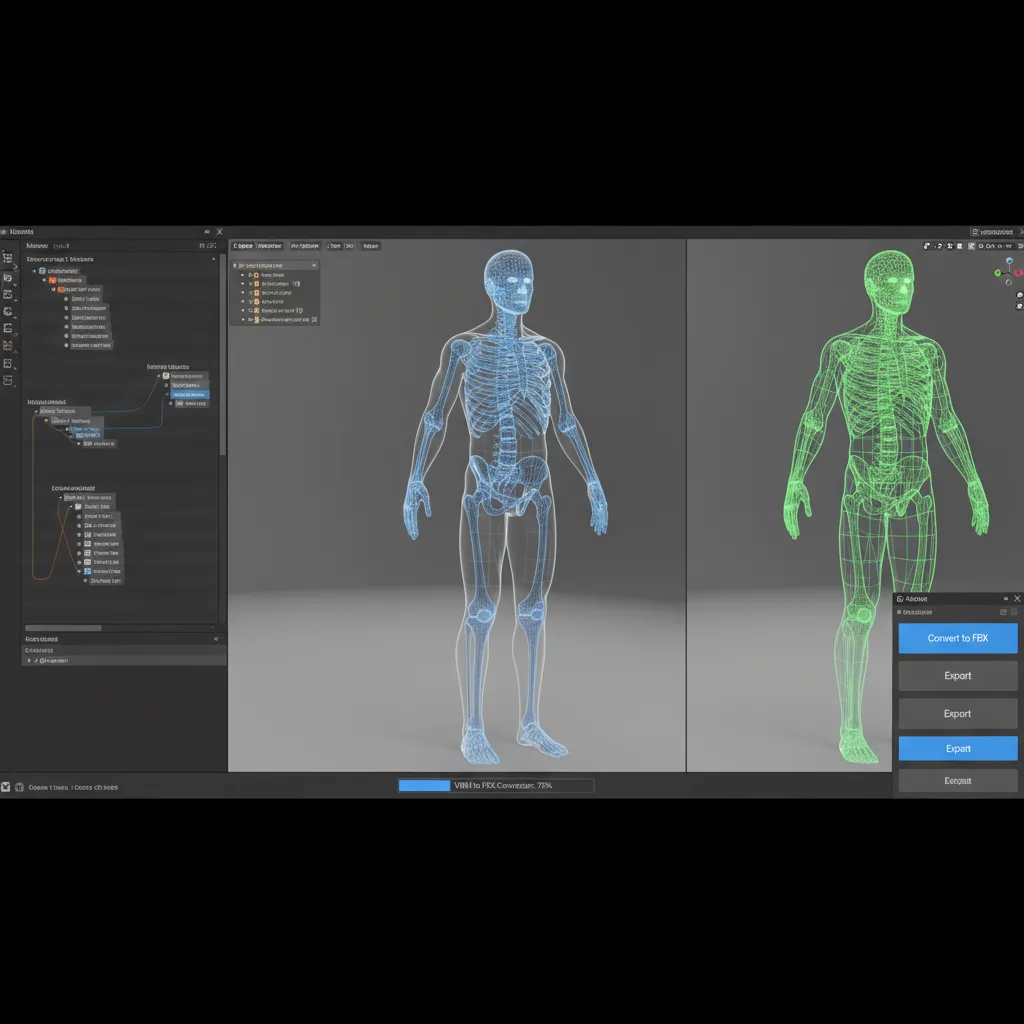

Common VRM to FBX Conversion Errors and How to Fix Them: A practical troubleshooting guide to repair textures, rigs, scale, and import errors after converting VRM avatars to FBX.

Direct Answer

VRM to FBX conversion errors usually happen because the two formats handle rigs, materials, and coordinate systems differently. Missing textures, twisted armatures, or scale issues can typically be fixed by correcting export settings, re-linking materials, and rebuilding the avatar rig inside Blender or Unity.

If you systematically verify textures, armatures, blendshapes, and scene scale before exporting the FBX, most VRM conversion problems can be resolved in minutes instead of hours.

Quick Takeaways

1. Most VRM to FBX conversion problems come from rig structure differences between VRM humanoid rigs and standard FBX skeletons.
2. Missing textures usually occur because VRM materials are not automatically embedded during FBX export.
3. Twisted armatures often result from incorrect bone orientation during export.
4. Scale issues typically come from Blender’s unit settings or Unity import scale factors.
5. Always test the FBX model in a clean scene before using it in production.

Introduction

VRM to FBX conversion sounds straightforward until you actually try it with a real avatar. Over the years I’ve worked with multiple 3D asset pipelines, and one pattern shows up again and again: converting VRM avatars into FBX models almost always introduces a few unexpected issues.

The most common problems include missing textures, broken rigs, twisted bones, incorrect scale, or strange import errors inside Blender or Unity. These problems aren’t random. They usually happen because VRM was designed specifically for humanoid avatars, while FBX is a more general 3D interchange format.

If you’re new to 3D workflows, it helps to understand how model structure, geometry, and rendering pipelines interact. A useful starting point is studying how complete scenes and geometry are built in a visual workflow that constructs accurate 3D layouts and spatial models. The same structural principles apply when debugging avatar files.

In this guide I’ll walk through the most common VRM to FBX conversion problems I see in real projects—and the fastest ways to fix them.

save pin

Why VRM to FBX Conversions Sometimes Break

Key Insight: VRM and FBX store avatar data differently, so direct conversion often causes mismatched rig structures and materials.

VRM is built on top of glTF and optimized for humanoid avatars. It includes standardized bone mappings, spring bones for hair and clothing, and built-in facial expressions. FBX, on the other hand, is a flexible format used across animation, game engines, and CAD pipelines.

When converting between the two, three types of mismatches often appear:

1. Humanoid bone mapping differences
2. Material system incompatibilities
3. Coordinate system or unit scale changes

Typical failure points during conversion:

1. Spring bones become static bones
2. MToon shaders fail to translate into FBX materials
3. Blendshape names change or disappear
4. Armature orientation rotates incorrectly

According to Unity avatar documentation, VRM humanoid rigs often require manual retargeting after export because FBX does not preserve VRM humanoid metadata.

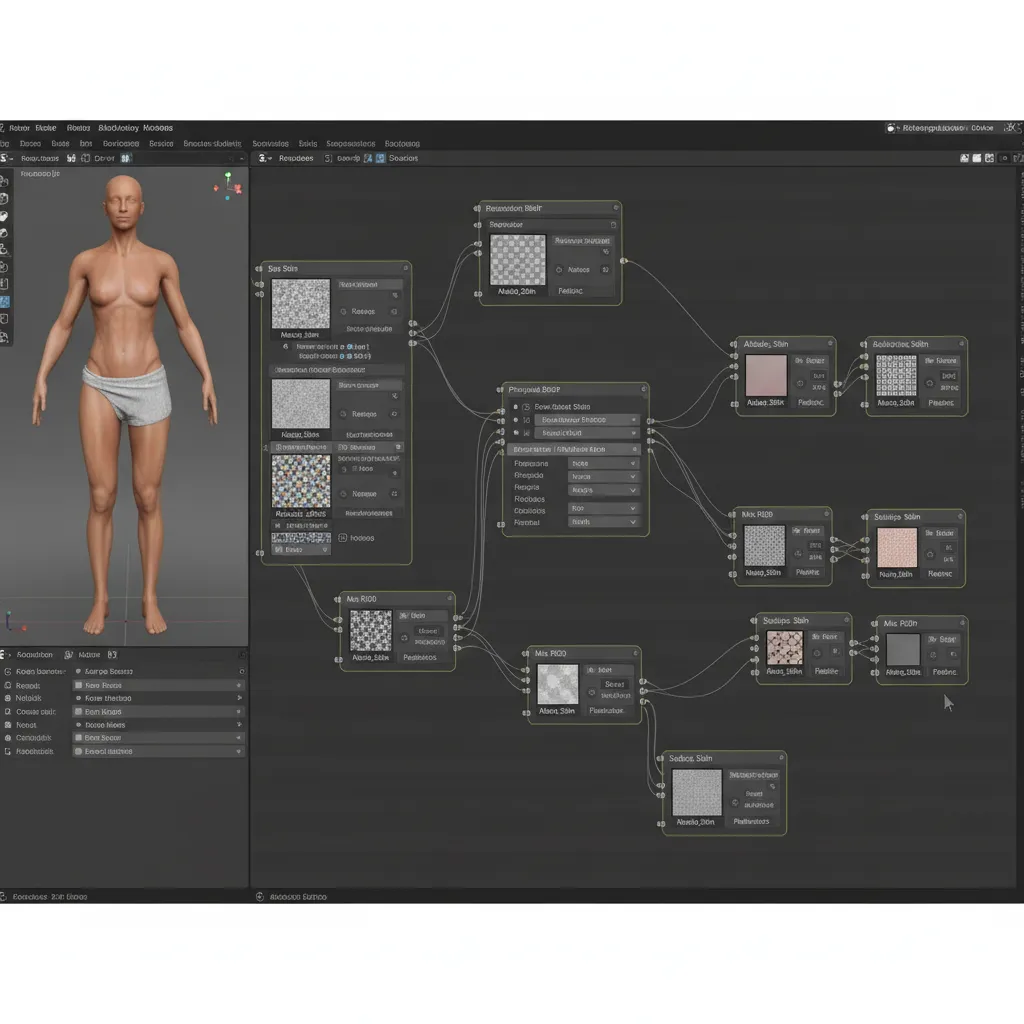

Fixing Missing Textures After Conversion

Key Insight: Missing textures usually happen because VRM materials reference external textures that aren’t embedded during FBX export.

This is probably the most common VRM conversion problem. After importing the FBX, the model appears gray or partially textured.

Typical causes include:

1. Textures stored in VRM metadata but not exported
2. Unsupported shaders such as MToon
3. Broken texture file paths

How to fix missing textures:

1. Open the VRM in Blender with a VRM plugin.
2. Convert MToon materials to standard PBR materials.
3. Check the shader nodes and confirm texture images are loaded.
4. Enable texture embedding during FBX export.
5. Reassign textures manually if needed.

One overlooked issue: many creators forget that VRM materials rely on specialized shaders. Those shaders simply don’t exist in FBX pipelines, so conversion always requires rebuilding the material setup.

save pin

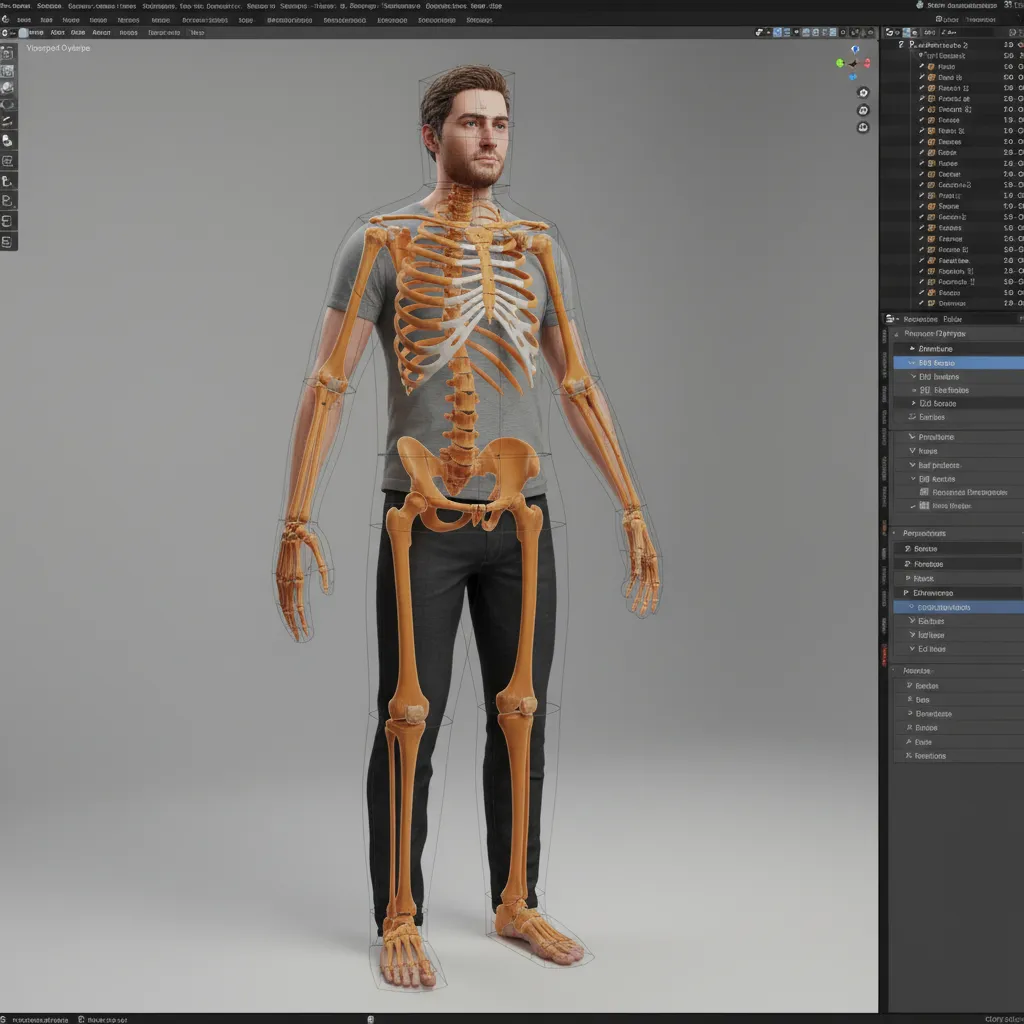

Repairing Broken or Twisted Armatures

Key Insight: Twisted rigs usually occur because bone orientation changes when exporting VRM skeletons into FBX format.

When the FBX loads, you might see arms twisted backward, legs bent incorrectly, or the entire avatar deformed.

Common causes:

1. Incorrect bone roll angles
2. Humanoid rig remapping issues
3. Different coordinate systems between Blender and the target engine

Repair process:

1. Open the armature in Blender.
2. Switch to Edit Mode.
3. Recalculate bone roll values.
4. Apply armature transforms.
5. Re-export the FBX with correct axis settings.

In production pipelines I often recommend rebuilding the humanoid rig mapping instead of trying to repair dozens of twisted bones individually.

save pin

Blendshape and Facial Expression Issues

Key Insight: VRM facial expressions rely on standardized blendshape groups that FBX exports may rename or flatten.

VRM avatars typically include expression presets such as:

1. Joy
2. Angry
3. Sorrow
4. Blink
5. LookLeft / LookRight

During FBX export these groups may break into separate shape keys.

Fix strategy:

1. Rename blendshapes to match engine requirements.
2. Check shape key order.
3. Export with "Apply Modifiers" disabled.
4. Verify morph target import settings.

Many creators miss a subtle issue: some engines ignore blendshapes unless they’re explicitly enabled during FBX import.

Understanding how models behave in full 3D scenes can help catch these problems earlier. A good example is examining how objects interact inside a structured 3D environment used to organize geometry and spatial relationships.

Resolving Scale and Orientation Problems

Key Insight: Incorrect avatar size or rotation usually results from mismatched unit systems between Blender, FBX export settings, and the target engine.

Typical symptoms include:

1. Avatar appears extremely tiny
2. Model rotates 90° or 180°
3. Animations behave incorrectly

Best practice export settings:

1. Scale: 1.0
2. Forward Axis: -Z Forward
3. Up Axis: Y Up
4. Apply Transform: Enabled

Unity developers often encounter a scale factor of 0.01 when importing FBX files exported from Blender. Resetting the model scale and applying transforms before export typically fixes this issue.

save pin

Debugging Import Errors in Blender or Unity

Key Insight: Import errors often reveal structural problems in the model rather than simple conversion mistakes.

Typical error messages include:

1. Missing bone references
2. Invalid mesh data
3. Unsupported material nodes

Systematic debugging workflow:

1. Import the FBX into a clean scene.
2. Check console error messages.
3. Validate mesh topology.
4. Inspect armature hierarchy.
5. Re-export with minimal settings.

One trick I rely on in production pipelines is exporting intermediate FBX versions and testing them separately. This isolates exactly where the conversion pipeline breaks.

Answer Box

The fastest way to fix VRM to FBX conversion problems is to verify four elements: textures, armature orientation, blendshapes, and scene scale. Most conversion failures come from mismatches between VRM humanoid metadata and FBX rig structures.

Testing the Final FBX Model

Key Insight: A proper testing workflow catches most avatar issues before the model reaches production.

Final validation checklist:

1. Load FBX in Blender
2. Test animations
3. Verify facial expressions
4. Confirm material assignments
5. Check scale against a reference object

Before exporting to your final pipeline, it can also help to visualize the model within a fully rendered environment similar to how designers preview interiors in a complete photorealistic 3D scene rendering workflow. Seeing the model in context often reveals lighting, scale, or geometry problems quickly.

Final Summary

1. Most VRM to FBX conversion errors come from rig and material mismatches.
2. Missing textures are usually caused by unsupported VRM shaders.
3. Twisted armatures require recalculating bone orientation.
4. Scale problems stem from unit system differences.
5. Testing the FBX in a clean scene prevents downstream pipeline issues.

FAQ

Why are my textures missing after VRM to FBX conversion?

VRM materials often rely on shaders like MToon that are not supported in FBX. You must convert them to standard materials before exporting.

How do I fix a broken rig after VRM to FBX?

Open the armature in Blender, recalculate bone roll values, apply transforms, and re-export the FBX with correct axis settings.

Why does my avatar appear tiny in Unity?

Unity sometimes imports FBX files with a 0.01 scale factor. Reset transforms in Blender and apply scale before exporting.

What causes VRM conversion armature issues?

VRM humanoid metadata does not translate perfectly into FBX skeletons, which can cause bone hierarchy or orientation problems.

Can Blender convert VRM to FBX directly?

Yes, but you usually need a VRM plugin and manual adjustments for materials, armatures, and shape keys.

Why are facial expressions missing in the FBX model?

Blendshape groups may be renamed or flattened during export. Check morph target settings in the engine.

What are common VRM to FBX conversion problems?

Typical issues include missing textures, broken rigs, blendshape errors, and incorrect model scale.

How can I test a VRM to FBX conversion before importing to a game engine?

Import the FBX into a clean Blender scene, test animations, inspect materials, and verify the armature structure.
