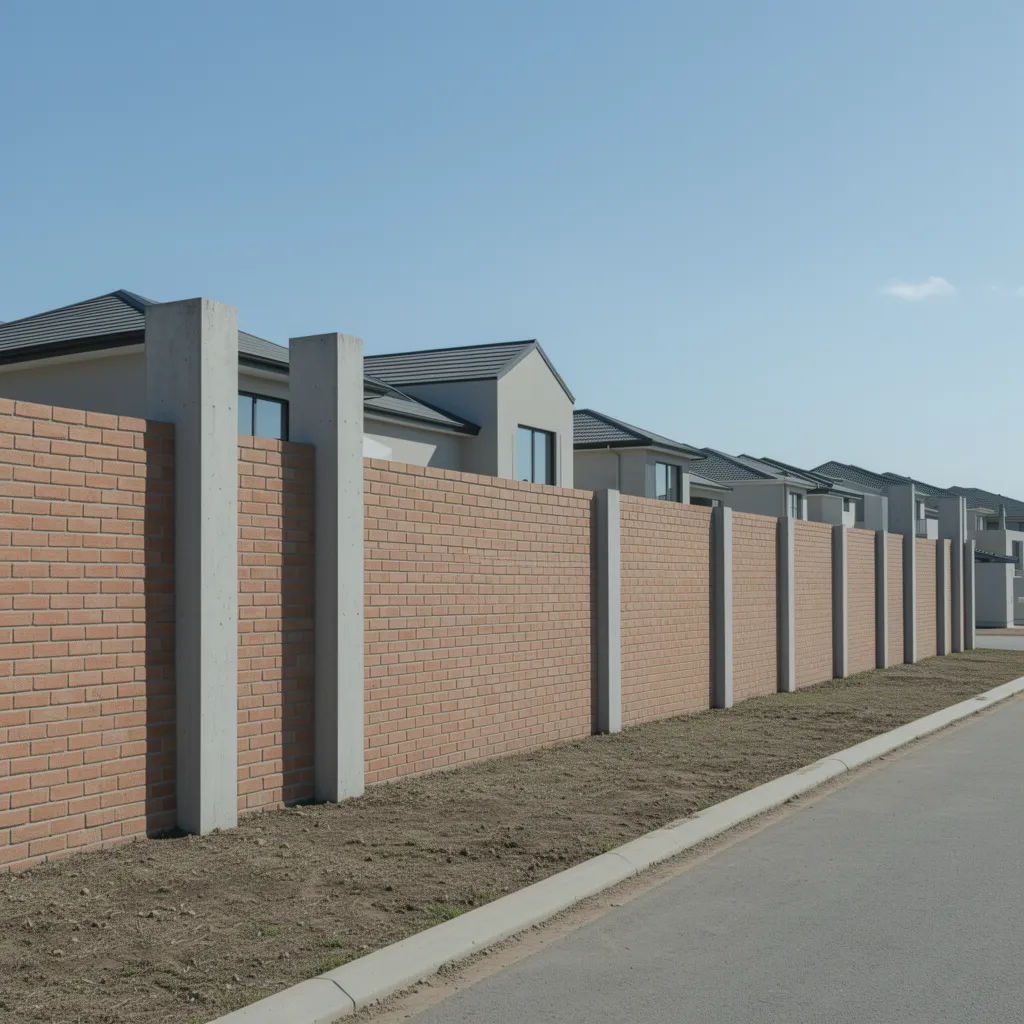

Compound Wall Construction Standards Used by Builders: Understand the structural rules professional builders follow to build safe, durable residential boundary walls

Direct Answer

Professional compound wall construction standards focus on three essentials: a stable foundation, adequate wall thickness, and reinforced structural support. Builders typically follow engineering guidelines that balance durability, safety, drainage management, and local building regulations to ensure long‑term stability.

Most modern residential boundary walls are designed with reinforced masonry or concrete systems that can withstand soil pressure, weather exposure, and property security requirements.

Quick Takeaways

1. Most residential compound walls are built between 5 and 8 feet high.
2. A proper concrete foundation prevents cracking and leaning over time.
3. Reinforcement bars significantly improve wall durability and safety.
4. Drainage control is essential to avoid moisture damage.
5. Local building codes often regulate maximum wall height.

Introduction

Compound wall construction standards are something most homeowners only think about after problems appear—cracks, leaning sections, or water damage along the base. After working on residential design projects for more than a decade, I’ve noticed the same pattern: people focus heavily on the wall’s appearance but rarely understand the engineering behind it.

In reality, the difference between a boundary wall that lasts 40 years and one that fails in five usually comes down to construction fundamentals. Professional builders follow clear guidelines for foundation depth, wall thickness, reinforcement placement, and drainage planning.

If you're planning a new boundary wall or redesigning your home's exterior perimeter, it helps to first understand how layouts interact with outdoor space planning. Many homeowners start by reviewing interactive examples that show how property layouts and boundary walls align with house planningbefore deciding on the final structure.

In this guide, I’ll walk through the real construction standards builders use—including a few hidden issues that most design articles never mention.

save pin

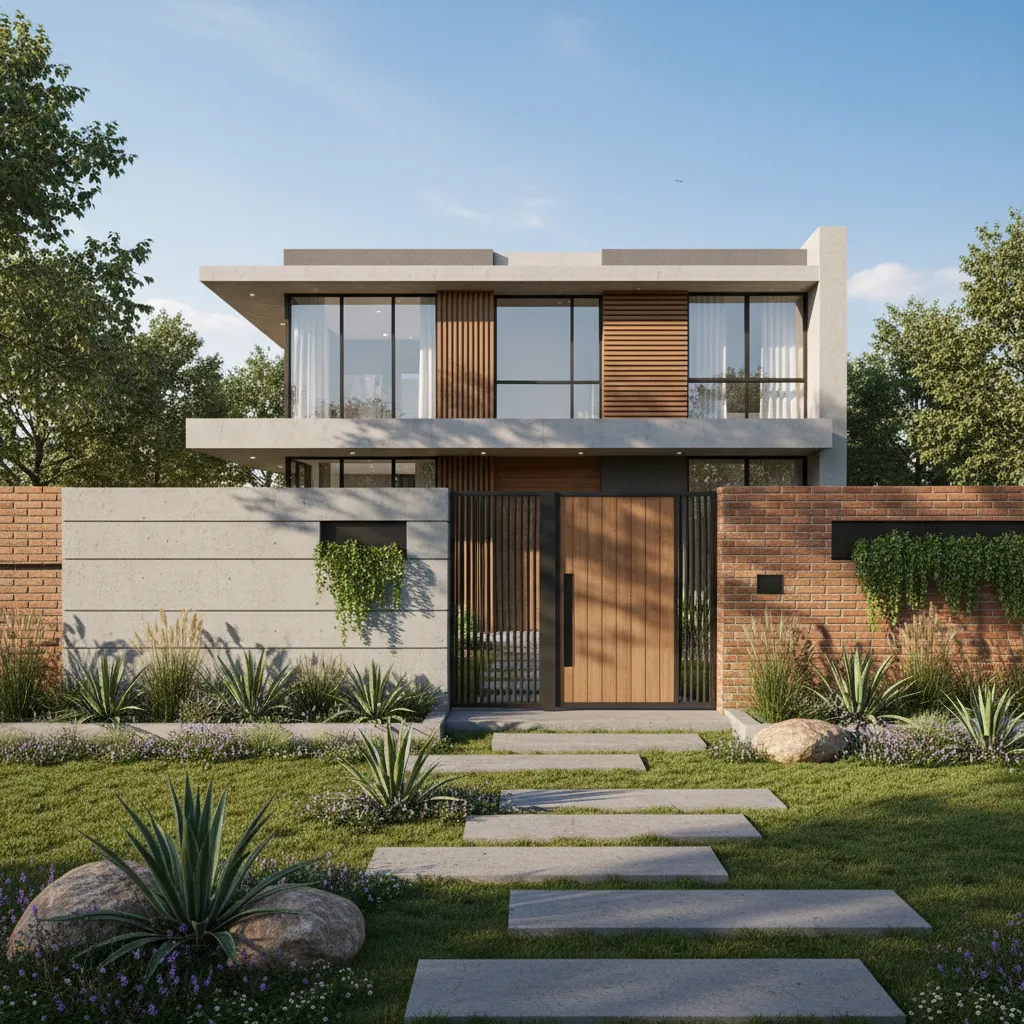

Role of Compound Walls in Residential Architecture

Key Insight: A compound wall is both a structural boundary and a critical part of a home's architectural identity.

In professional residential planning, compound walls serve several functions beyond security. They shape the visual perimeter of the property, define privacy levels, and help control environmental factors such as noise, wind, and dust.

During design planning, builders usually evaluate three architectural roles:

1. Security boundary – Prevents unauthorized entry and protects property.
2. Visual framing – Creates the first architectural impression of the house.
3. Environmental buffer – Blocks road dust, noise, and direct street exposure.

According to the American Society of Civil Engineers, properly designed perimeter structures improve site security and reduce external environmental impact in residential zones.

The biggest mistake homeowners make is treating the wall as an afterthought rather than a structural element integrated with landscape and entry design.

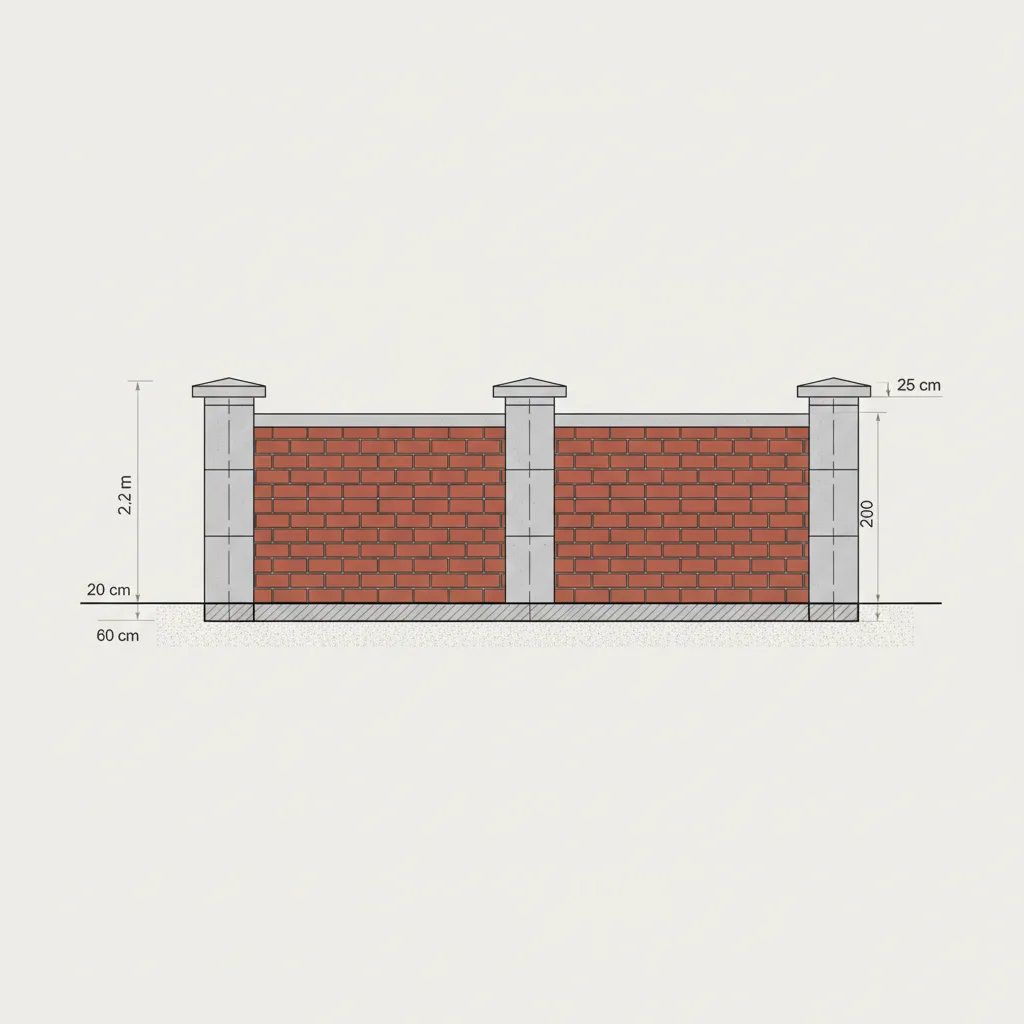

Standard Height and Thickness Guidelines for Boundary Walls

Key Insight: Correct wall height and thickness prevent structural instability and future cracking.

Builders typically follow height-to-thickness ratios to maintain structural integrity. The exact dimensions vary depending on materials, soil conditions, and local building regulations.

Typical residential standards include:

1. 5–6 ft wall height for standard residential privacy
2. 7–8 ft height for enhanced security
3. 4.5–9 inch masonry thickness depending on reinforcement

Common builder guidelines:

1. Up to 6 ft wall → 4.5 inch brick wall with pillars
2. 6–8 ft wall → 9 inch reinforced masonry
3. Above 8 ft → structural engineer design required

Many municipalities also regulate maximum wall heights along street-facing boundaries for visibility and safety.

save pin

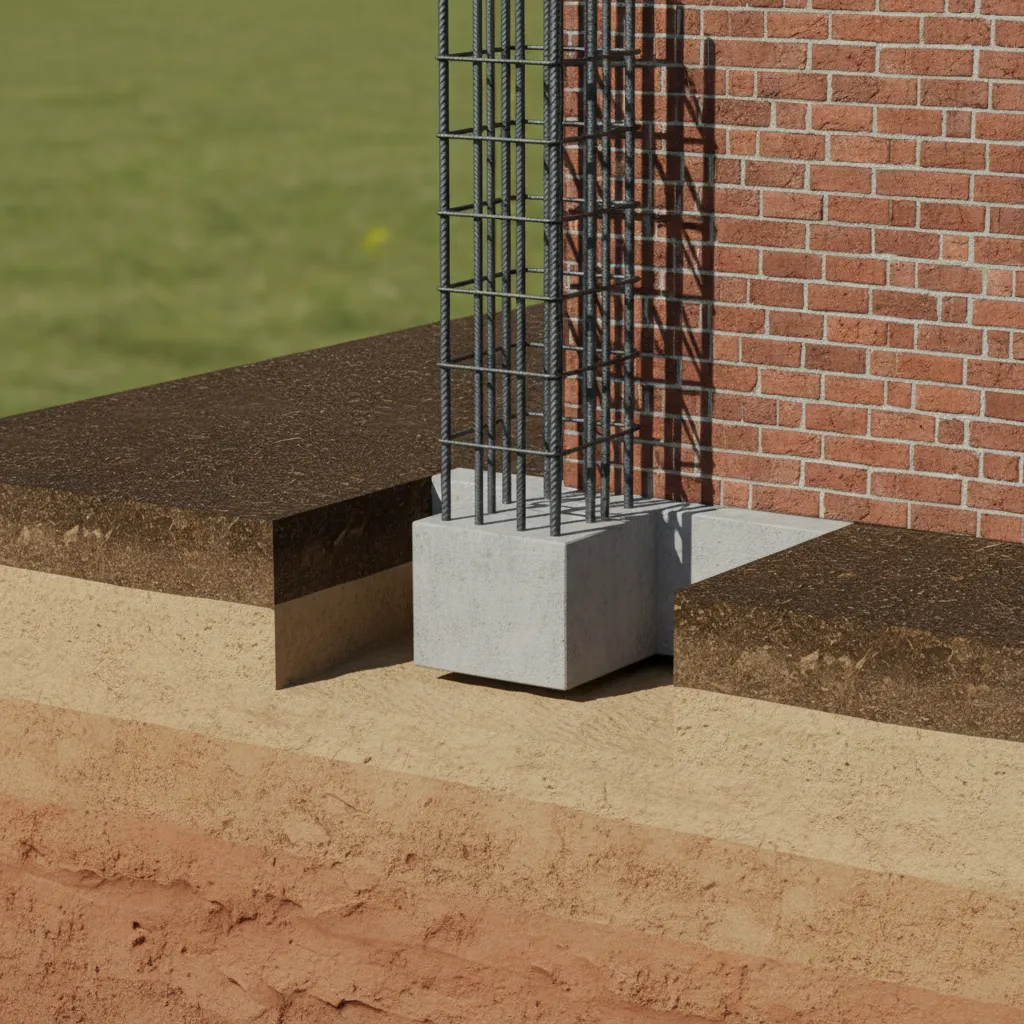

Foundation Requirements for Durable Compound Walls

Key Insight: The most important structural component of any compound wall is the foundation, not the wall itself.

In many failed boundary walls I’ve inspected, the problem wasn't weak materials—it was shallow foundations.

Professional builders normally follow these foundation guidelines:

1. Foundation depth: 1.5–3 feet depending on soil conditions
2. Concrete base width wider than wall thickness
3. Compacted soil base before concrete pouring
4. Reinforced footing for taller walls

Typical compound wall foundation layers:

1. Compacted soil base
2. Gravel or crushed stone layer
3. Reinforced concrete footing
4. Masonry wall above footing

Homeowners often underestimate soil movement. Expansive soils, especially clay, can slowly push walls outward if foundations are inadequate.

Reinforcement and Structural Stability Practices

Key Insight: Reinforced columns and horizontal beams prevent compound walls from bending or collapsing.

Modern builders rarely construct long boundary walls without structural reinforcement.

Common reinforcement practices include:

1. Vertical reinforced concrete columns every 8–12 feet
2. Horizontal tie beams connecting columns
3. Steel rebar embedded inside pillars
4. Reinforced coping beam at the top

These reinforcements distribute structural loads across the wall and prevent long-term cracking.

If you’re planning a boundary wall as part of a full site design, many architects start by modeling the layout with tools that help visualize property boundaries and outdoor circulationbefore determining pillar spacing.

save pin

Drainage and Weather Protection in Boundary Wall Construction

Key Insight: Moisture control is one of the most overlooked compound wall construction standards.

Water accumulation around a boundary wall foundation can gradually weaken mortar joints and concrete structures.

Builders typically include:

1. Drainage slope away from the wall
2. Weep holes in long masonry walls
3. Waterproof plaster coatings
4. Concrete coping to prevent rainwater penetration

Without proper drainage, even reinforced walls may develop cracks within a few years.

Answer Box

The durability of a compound wall depends primarily on foundation depth, reinforcement spacing, and moisture protection. Builders prioritize these structural elements long before finishing materials or decorative design.

Materials Commonly Used by Professional Builders

Key Insight: The choice of material determines both structural performance and long-term maintenance costs.

Professional builders usually select materials based on climate, budget, and security requirements.

Common compound wall materials include:

1. Brick masonry with reinforced columns
2. Solid concrete block walls
3. Precast concrete panels
4. Stone masonry for premium homes
5. Metal or aluminum fencing on masonry base

Brick and concrete remain the most widely used materials due to their structural reliability and moderate cost.

Compliance With Local Building Regulations

Key Insight: Local building codes often determine the maximum height, visibility requirements, and safety standards for compound walls.

Before construction begins, builders usually review municipal regulations that control boundary structures.

Typical regulatory considerations:

1. Maximum permitted wall height
2. Street-facing visibility rules
3. Required setbacks from property lines
4. Structural safety requirements

Ignoring these rules can result in costly reconstruction orders or fines.

Many homeowners first explore visual layout possibilities using realistic home exterior visualization examples to see how boundary walls integrate with house design before finalizing construction drawings.

Final Summary

1. Proper foundations are the most critical factor in compound wall durability.
2. Reinforced columns prevent structural cracking and leaning.
3. Drainage planning protects walls from moisture damage.
4. Wall height and thickness must follow structural ratios.
5. Local building codes regulate safe boundary wall construction.

FAQ

What is the standard compound wall height for houses?

Most residential compound walls range from 5 to 8 feet high depending on security needs and local building regulations.

How deep should a compound wall foundation be?

Typical foundations are 1.5 to 3 feet deep, but soil conditions and wall height can require deeper reinforced footings.

Do compound walls need reinforcement?

Yes. Reinforced columns and tie beams are common compound wall construction standards for long-term stability.

Which material is best for compound wall construction?

Brick masonry with reinforced concrete columns is widely used due to durability, affordability, and structural strength.

How far apart should compound wall pillars be?

Pillars are typically spaced 8 to 12 feet apart to maintain structural strength and prevent wall bending.

Do boundary walls require drainage systems?

Yes. Proper drainage prevents water buildup near foundations and reduces cracking risk.

Are building permits required for compound walls?

Many municipalities require permits or compliance checks depending on height and location.

What causes compound wall cracks?

Common causes include shallow foundations, poor drainage, soil movement, and lack of reinforcement.
