Concrete Slab Thickness Comparison for 2000 Square Feet: How 4‑inch, 5‑inch, and 6‑inch slabs change concrete volume, structural strength, and project cost for a 2000 sq ft slab.

Direct Answer

For a 2000 square foot slab, thickness directly determines how many cubic yards of concrete you need. A 4‑inch slab requires about 24.7 cubic yards, a 5‑inch slab about 30.9 cubic yards, and a 6‑inch slab about 37 cubic yards. Thicker slabs increase structural strength but also raise material cost and curing time.

Quick Takeaways

1. A 2000 sq ft slab needs about 25 cubic yards at 4 inches thick.
2. Increasing thickness by one inch adds roughly 6 cubic yards of concrete.
3. Most residential floors use 4–5 inch slabs unless heavy loads are expected.
4. Thicker slabs reduce cracking risk but increase cost significantly.
5. Accurate slab planning prevents ordering errors and wasted concrete.

Introduction

One of the most common planning mistakes I see on residential projects is underestimating how much slab thickness changes the concrete order. When you're planning a concrete slab thickness for 2000 square feet, even a single inch difference can add several cubic yards of concrete to the truck order.

After working on dozens of residential foundations, garages, and workshop slabs, I've noticed that homeowners usually focus on square footage but overlook thickness. Contractors don't make that mistake because thickness directly impacts structure, durability, and budget.

If you're still calculating your base slab volume, start with this guide explaining how to estimate concrete quantity accurately for large floor plans. Once you know the base area, thickness becomes the key variable.

In this article, we'll compare 4‑inch, 5‑inch, and 6‑inch slab options for a 2000 sq ft area, including concrete yard requirements, structural differences, and the real cost impact that most online calculators ignore.

save pin

Why Slab Thickness Changes Concrete Volume

Key Insight: Concrete volume increases linearly with slab thickness, but most people underestimate how quickly the cubic yard requirement grows.

Concrete is calculated in cubic yards, while slab dimensions are usually measured in square feet and inches. The conversion is where many estimation mistakes happen.

The formula professionals use:

1. Volume (cubic feet) = Area × Thickness
2. 1 cubic yard = 27 cubic feet

Example for a 2000 sq ft slab:

1. 4 inches = 0.333 ft thickness
2. 2000 × 0.333 = 666 cubic feet
3. 666 ÷ 27 = 24.7 cubic yards

Every additional inch adds about 166 cubic feet of concrete, which equals roughly 6.1 cubic yards.

From a contractor's perspective, that means a single design decision can require another full concrete truck delivery.

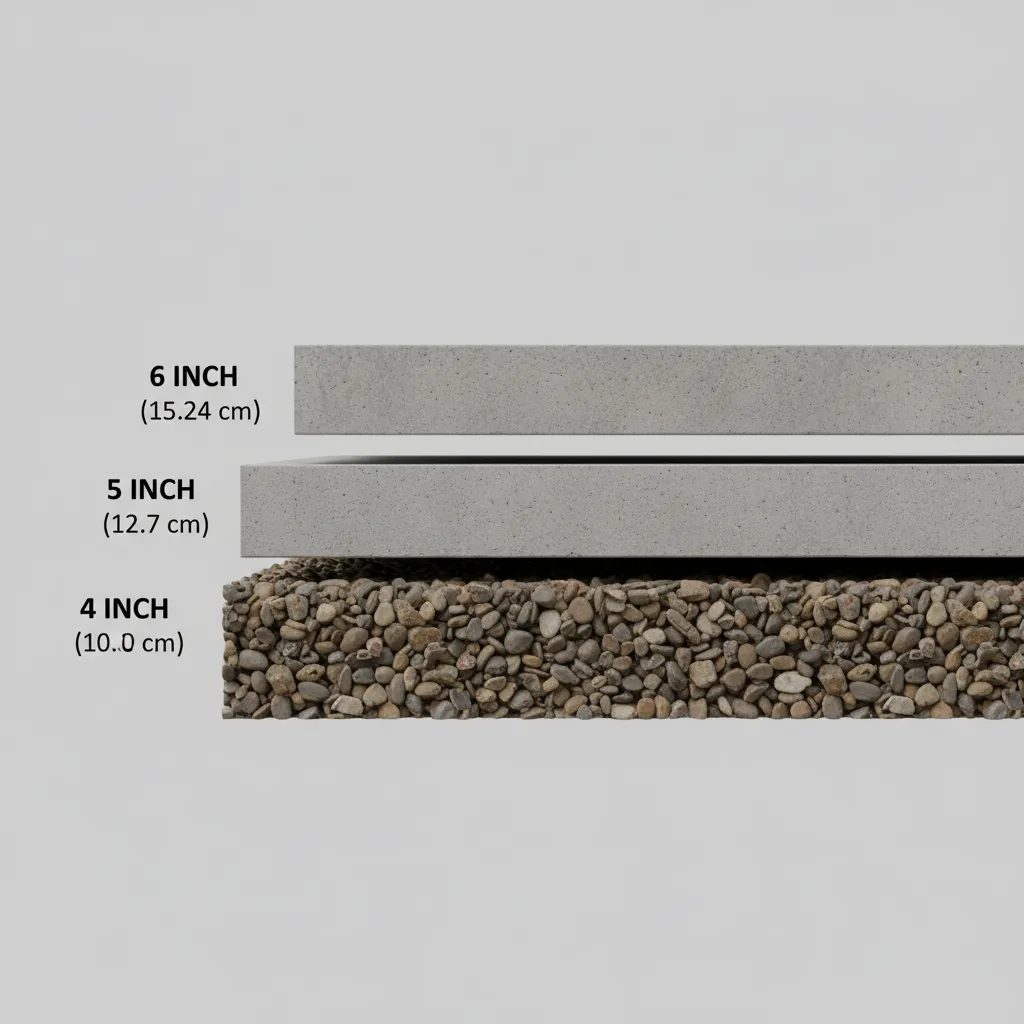

4 Inch vs 5 Inch vs 6 Inch Slabs for 2000 Square Feet

Key Insight: The difference between a 4‑inch and 6‑inch slab for 2000 sq ft is over 12 cubic yards of concrete.

Here’s how the three most common residential slab thicknesses compare:

1. 4 inch slab – Standard for patios, sidewalks, and light residential floors
2. 5 inch slab – Often used for garages or workshops
3. 6 inch slab – Used where heavier loads or equipment are expected

Contractors typically upgrade from 4" to 5" when the slab will support vehicles, heavy storage racks, or structural loads.

save pin

Concrete Yard Requirements by Thickness

Key Insight: For a 2000 sq ft slab, each extra inch adds about six cubic yards of concrete.

1. 4 inch slab: ~24.7 cubic yards
2. 5 inch slab: ~30.9 cubic yards
3. 6 inch slab: ~37.0 cubic yards

However, experienced contractors rarely order the exact calculated amount. A buffer of 5–10% is common to account for:

1. Ground unevenness
2. Formwork adjustments
3. Small grade changes
4. Spillage during pouring

Another often‑ignored factor is layout complexity. Large open rectangles are easier to pour accurately than irregular layouts. When planning slab layouts, visualizing the footprint with a 3D floor planning layout before concrete work beginscan prevent volume miscalculations.

save pin

Structural Strength and Load Differences

Key Insight: Thickness doesn't just add material—it dramatically increases load capacity and crack resistance.

Based on typical residential engineering guidelines:

1. 4 inch slabs: pedestrian loads, patios, garden structures
2. 5 inch slabs: residential garages and light vehicle traffic
3. 6 inch slabs: trucks, workshops, equipment loads

The hidden mistake many homeowners make is assuming thicker concrete automatically prevents cracks. In reality, reinforcement, base preparation, and expansion joints matter just as much.

In several garage projects I've inspected, poorly compacted gravel caused more cracking than slab thickness ever did.

Cost Differences Between Thickness Options

Key Insight: Increasing slab thickness from 4 inches to 6 inches can raise material cost by 40–50%.

Assuming an average concrete cost of $140–$170 per cubic yard in many U.S. regions:

1. 4 inch slab: ~25 yards → $3,500–$4,200
2. 5 inch slab: ~31 yards → $4,300–$5,200
3. 6 inch slab: ~37 yards → $5,200–$6,300

This is only the concrete material cost. Thicker slabs may also require:

1. More reinforcement
2. Deeper excavation
3. Longer finishing time

Those secondary costs often add another 10–20% to the project budget.

save pin

Choosing the Right Thickness for Your Project

Key Insight: The correct slab thickness depends more on load type than slab size.

For most residential projects, the decision looks like this:

1. Patio or outdoor space: 4 inches
2. Residential garage: 5 inches
3. Workshop or heavy equipment: 6 inches

But one overlooked factor is future use. I've seen homeowners pour 4‑inch slabs for storage buildings that later become workshops or gyms.

If you anticipate heavier equipment later, upgrading thickness during the initial pour is far cheaper than reinforcing the slab afterward.

When mapping large slab areas, many builders first visualize circulation and equipment zones using a room layout planning workflow for large open spaces before finalizing slab thickness.

Answer Box

For a 2000 square foot slab, thickness determines concrete volume: about 25 cubic yards for 4 inches, 31 cubic yards for 5 inches, and 37 cubic yards for 6 inches. Each extra inch adds roughly six cubic yards of concrete.

Final Summary

1. A 4‑inch 2000 sq ft slab needs about 25 cubic yards of concrete.
2. A 5‑inch slab requires roughly 31 cubic yards.
3. A 6‑inch slab requires about 37 cubic yards.
4. Each additional inch adds about six cubic yards.
5. Load requirements matter more than slab size when choosing thickness.

FAQ

How many yards of concrete are needed for a 2000 sq ft slab?

It depends on thickness. A 4‑inch slab needs about 24.7 cubic yards, while a 6‑inch slab requires roughly 37 cubic yards.

Is a 4 inch slab strong enough for a house?

Most residential foundations use thicker slabs or reinforced systems. A 4‑inch slab is more common for patios or sidewalks.

What is the best slab thickness for a residential garage?

A 5‑inch slab is usually recommended because it handles vehicle weight better and reduces cracking risk.

How much extra concrete should I order?

Contractors typically add 5–10% to the calculated volume to account for uneven ground and small pour losses.

Does thicker concrete prevent cracks?

Not always. Proper reinforcement, base preparation, and control joints are equally important.

What is the standard concrete slab thickness for homes?

The standard residential concrete slab thickness is typically 4–5 inches depending on structural requirements.

How much more concrete does a 6 inch slab use compared to 4 inch?

For 2000 sq ft, a 6‑inch slab uses about 12 additional cubic yards of concrete.

Can I pour different slab thicknesses in one project?

Yes. Many projects use thicker sections in load‑bearing areas like garages or equipment zones.
