Direct Answer

The difference between a constant hot vs switched hot wire is simple: a constant hot wire always carries power, while a switched hot wire only carries power when the switch is turned on. Understanding which wire is which is essential before modifying a light switch, adding a smart switch, or tapping power from a switch box.

Quick Takeaways

1. A constant hot wire carries electricity continuously, even when the switch is off.
2. A switched hot wire only becomes energized when the switch is turned on.
3. Misidentifying these wires is one of the most common DIY wiring mistakes.
4. Many modern smart switches require constant power inside the switch box.
5. Wire color alone is not always reliable for identification.

Introduction

In more than a decade working with residential design projects, I’ve learned that lighting plans often collide with a practical problem homeowners rarely expect: what power actually exists inside a switch box.

Understanding constant hot vs switched hot wire connections becomes critical when installing smart switches, adding outlets, or powering devices like motion sensors. Many people assume every switch box contains constant power. In reality, many only contain switched power going to the light.

This confusion leads to blown breakers, non‑functional smart switches, or worse—unsafe wiring. When we coordinate lighting layouts with electricians during renovation projects, identifying these wires early prevents expensive rewiring later.

If you're planning electrical changes alongside layout planning, it also helps to visualize room wiring routes during the design stage. Tools that let you map out room layouts while planning electrical placementsmake it easier to anticipate where switches and fixtures will connect.

In this guide, I'll walk through how constant and switched power actually works in lighting circuits, how to recognize them inside a switch box, and when you specifically need constant power.

save pin

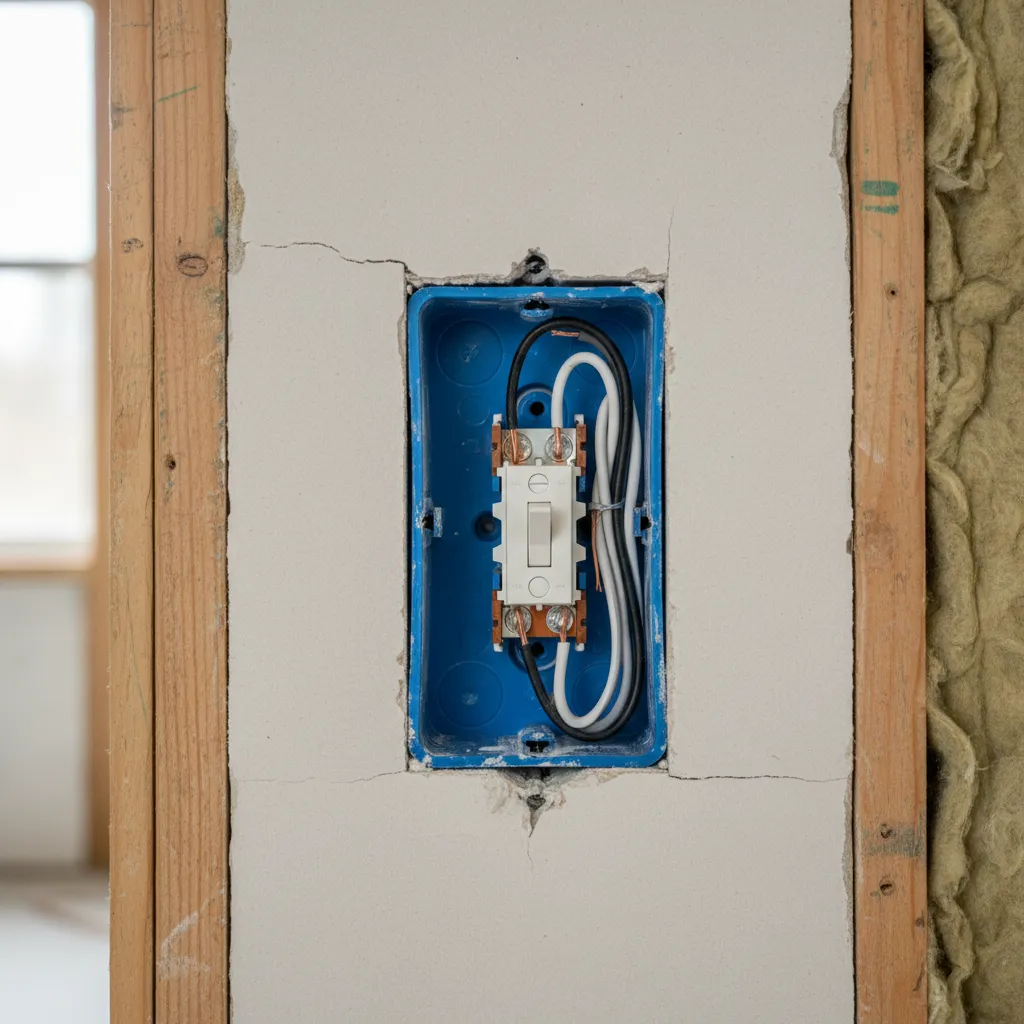

What Is a Constant Hot Wire

Key Insight: A constant hot wire is a line conductor that carries electricity at all times, regardless of the switch position.

In standard residential wiring, the constant hot wire delivers power directly from the breaker panel into the electrical box. This wire is what feeds the switch.

Electricians usually refer to this as the line wire. When the switch closes, it sends that power through the switched wire to the fixture.

Common characteristics of constant hot wires:

1. Always energized when the breaker is on
2. Typically connected to the common terminal on a switch
3. Feeds the switch rather than the light fixture
4. Often bundled with other always‑hot wires in the box

Important reality from field experience: wire color cannot always be trusted. While black frequently indicates a hot wire, renovations and older homes often reuse colors inconsistently.

The only reliable way to identify constant power is using:

1. Non‑contact voltage tester
2. Multimeter
3. Circuit tracing

According to guidance from the National Electrical Code (NEC), verification with a tester is considered standard practice before modifying any conductor.

What Is a Switched Hot Wire

Key Insight: A switched hot wire only carries power after a switch closes the circuit.

This wire runs from the switch to the light fixture. When the switch is off, the wire is electrically dead. When the switch turns on, the wire becomes energized and powers the light.

Typical properties of switched hot wires:

1. Connected to the output terminal of the switch
2. Runs directly to the lighting fixture
3. Only energized when the switch is ON
4. Sometimes marked with electrical tape to indicate switched use

One hidden issue homeowners encounter is assuming the switched wire can power other devices. It cannot provide continuous power for devices like:

1. Smart switches
2. Wi‑Fi relays
3. Smart lighting controllers

Those devices require a constant hot connection.

save pin

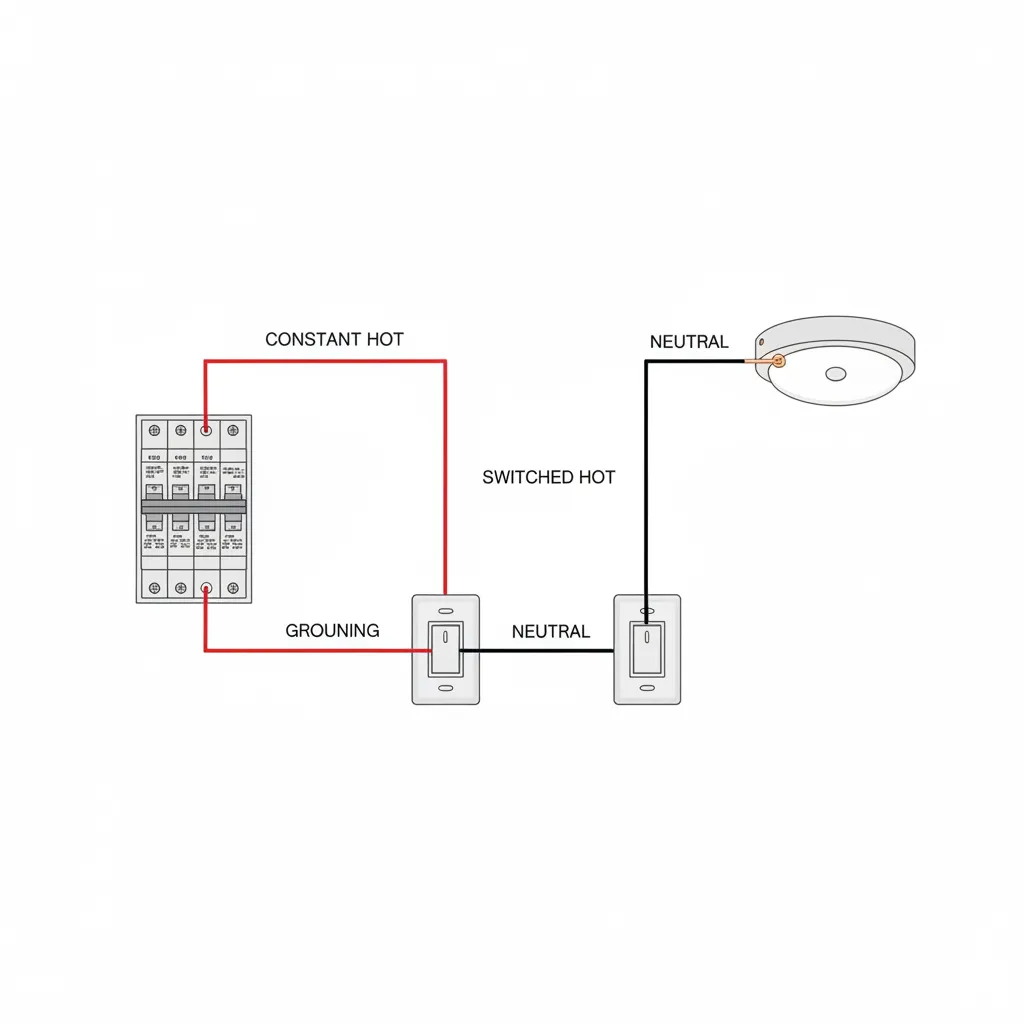

How Standard Light Switch Circuits Are Wired

Key Insight: Most lighting circuits follow a simple loop: power enters the switch, then exits through the switched hot to the light fixture.

However, there are actually several wiring patterns commonly found in homes.

Typical switch loop configuration:

1. Power enters the electrical box
2. Constant hot connects to the switch
3. Switch sends power through switched hot
4. Switched hot powers the light fixture
5. Neutral completes the circuit at the fixture

But older homes sometimes use a fixture‑first configuration, where power goes to the light first and only the switched leg runs to the switch box.

That configuration is exactly why some switch boxes do not contain constant power.

When planning lighting placement across rooms, visualizing fixture locations alongside wiring paths can help avoid these limitations. Many designers use tools that let them visualize lighting and switch placement inside a room layoutbefore construction begins.

save pin

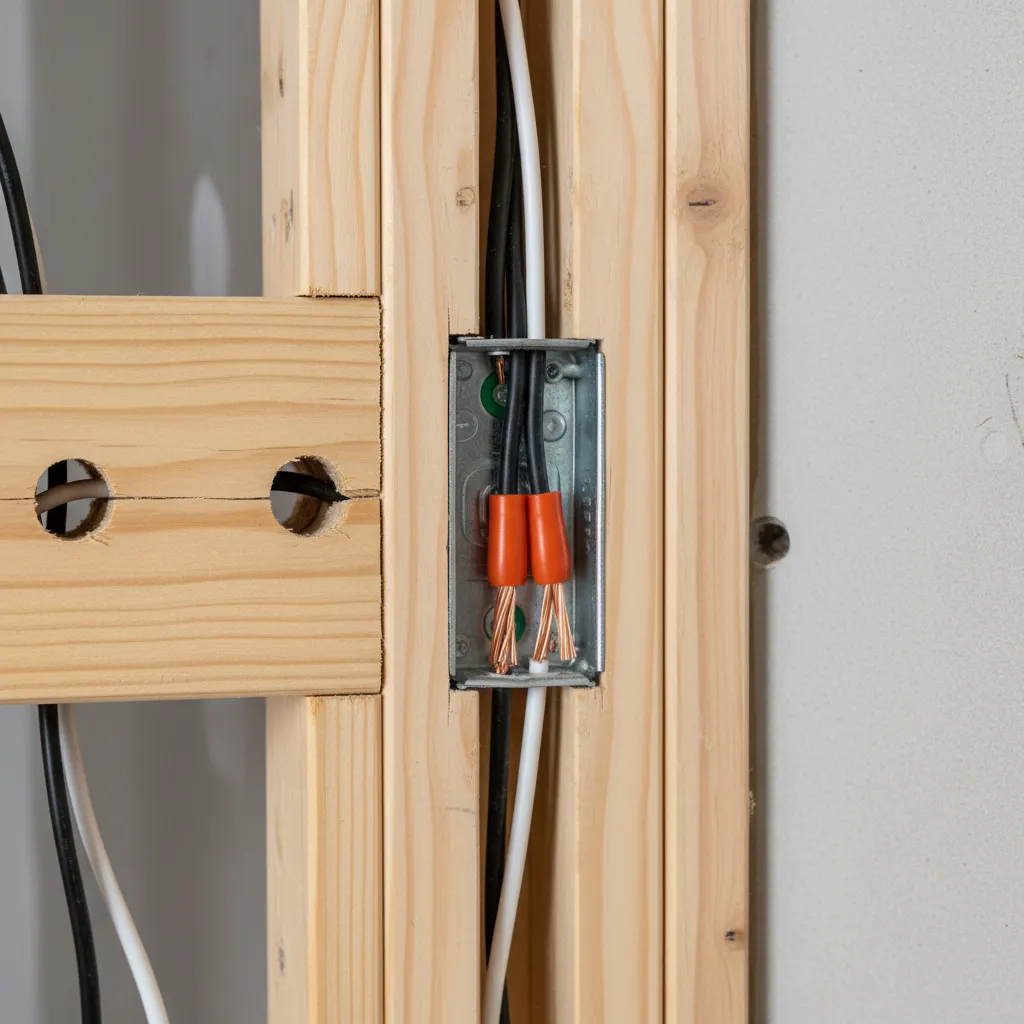

Visual Differences in Switch Box Wiring

Key Insight: The number and grouping of wires inside the box often reveals whether constant power is present.

While testing is always required, there are visual clues electricians look for first.

Common visual indicators:

1. Bundle of black wires tied together — often indicates constant hot distribution
2. Single wire connected to switch — often a switched leg
3. White wire taped black — sometimes used as switched hot in older loops
4. Multiple cables entering box — higher chance of constant power availability

A box with only one cable entering often means the switch is simply interrupting the light fixture circuit.

This is one of the most overlooked details in DIY electrical work.

When You Need Constant Power Instead of Switched Power

Key Insight: Many modern electrical devices require constant power inside the switch box.

This requirement has become more common as homes add smart technology.

Devices that require constant hot wiring:

1. Smart light switches
2. Motion‑sensor switches
3. Smart relays and controllers
4. Integrated lighting automation systems

If the switch box only contains a switched hot wire, several solutions are possible:

1. Run a new line from the fixture
2. Pull new cable from the breaker circuit
3. Use a smart relay installed at the light fixture

Planning electrical access during early design stages avoids many of these retrofitting issues. For example, when homeowners generate a floor plan that maps lighting and switch locations, electricians can anticipate where constant power must be available.

save pin

Common Wiring Configurations in Modern Homes

Key Insight: Newer electrical codes increasingly require neutral wires in switch boxes, which changes how circuits are wired.

Modern homes typically use one of three switch configurations.

1. Power‑at‑switch configuration

1. Constant hot present
2. Neutral often present
3. Ideal for smart switches

2. Fixture‑first wiring

1. Power enters the light fixture
2. Switch receives only switched leg
3. Common in older homes

3. Smart‑ready wiring (modern code)

1. Constant hot present
2. Neutral included
3. Multiple conductors for automation

According to updates in the National Electrical Code (NEC), neutral wires are now required in many switch boxes specifically to support modern control devices.

Answer Box

A constant hot wire carries continuous electrical power from the breaker panel, while a switched hot wire only becomes energized when the switch is on. Correctly identifying these wires ensures safe installation of switches, smart controls, and lighting modifications.

Final Summary

1. Constant hot wires provide continuous power from the electrical panel.
2. Switched hot wires only energize when the switch is turned on.
3. Many switch boxes in older homes lack constant power.
4. Smart switches usually require constant hot and neutral wires.
5. Testing wires is safer than relying on color assumptions.

FAQ

1. What is the main difference between constant hot vs switched hot wire?

A constant hot wire always carries electricity, while a switched hot wire only becomes energized when the switch is turned on.

2. How can I identify a switched hot wire?

Use a voltage tester. A switched hot wire only shows voltage when the switch is in the ON position.

3. Is the black wire always constant hot?

No. Black often indicates hot wiring, but renovations and older wiring can reuse colors differently.

4. Can I power a smart switch from a switched hot wire?

No. Most smart switches require constant power and often a neutral wire to operate correctly.

5. Why does my switch box not have constant power?

Older homes often use fixture‑first wiring where power goes to the light before reaching the switch.

6. What tools help identify constant hot wires?

A non‑contact voltage tester or multimeter is the safest way to verify energized wires.

7. What does line vs load mean in switch wiring?

The line is the constant hot supply from the panel, while the load is the switched wire going to the light.

8. Is constant power in a switch box required by modern code?

Modern electrical codes often require neutrals in switch boxes, making constant power more common in new construction.
