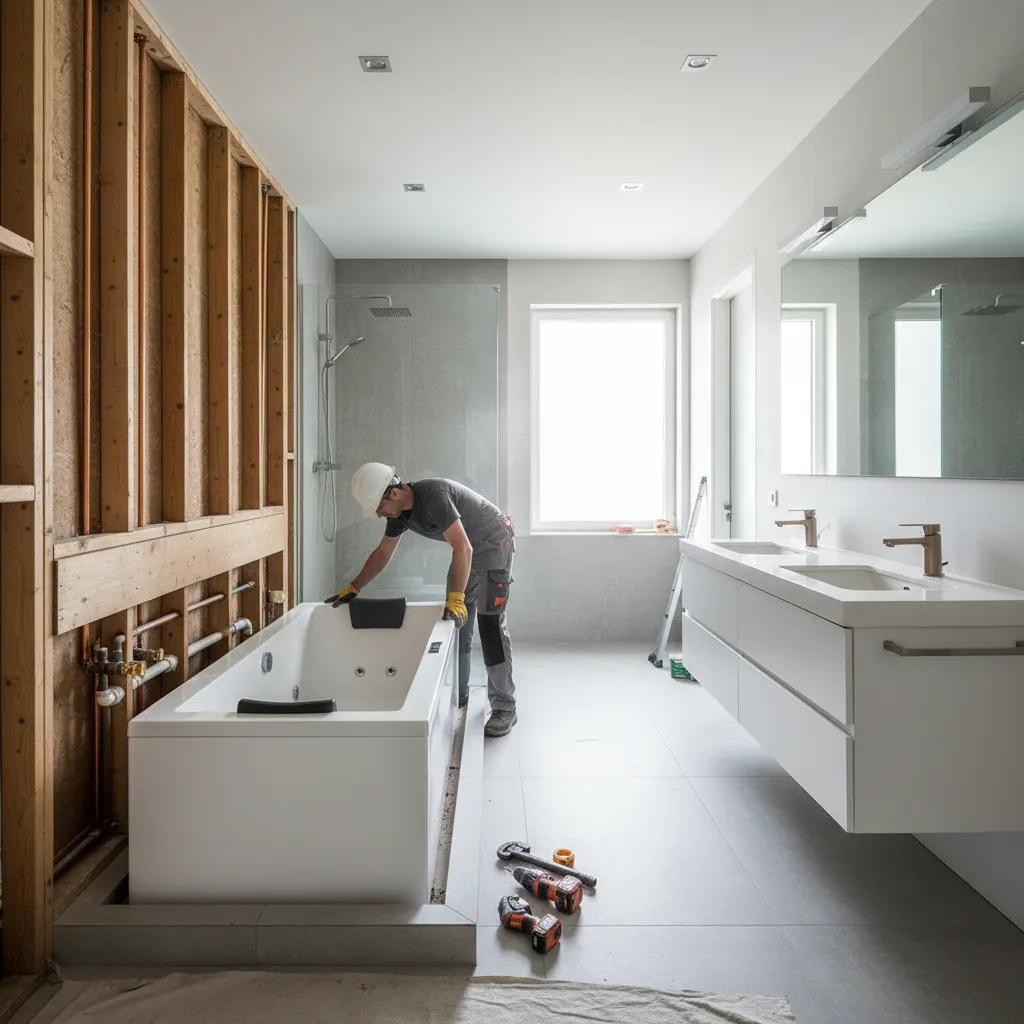

Contractor Standards for Jacuzzi Tub Installation in Bathroom Renovations: Professional building codes, structural requirements, and inspection practices contractors follow when installing Jacuzzi and whirlpool bathtubs.

Direct Answer

Professional Jacuzzi tub installation follows strict contractor standards covering structural framing, dedicated electrical circuits, reinforced plumbing layouts, and comprehensive waterproofing. Licensed installers typically follow local building codes, manufacturer requirements, and inspection checklists to ensure the whirlpool system operates safely and prevents leaks or structural stress during a bathroom renovation.

Quick Takeaways

1. Jacuzzi tubs require stronger floor framing than standard bathtubs due to water weight and pump components.
2. Most building codes require a dedicated GFCI electrical circuit for whirlpool pump systems.
3. Professional installers plan service access panels for maintenance and pump repair.
4. Proper waterproofing behind and under the tub prevents long‑term structural damage.
5. Contractors use inspection checklists before closing walls or finishing tile work.

Introduction

Installing a Jacuzzi tub looks simple in renovation photos, but behind the tile and panels there’s a surprising amount of technical work. After working on bathroom remodel projects for more than a decade, I’ve seen firsthand that most problems with whirlpool tubs don’t come from the tub itself — they come from installation shortcuts.

A standard bathtub might weigh 70–100 pounds. A filled Jacuzzi tub with pumps, framing, and water can exceed 1,000 pounds. That difference changes everything: framing, electrical load, plumbing layout, and waterproofing strategy.

Homeowners often focus on the aesthetic side of renovation first. They plan tile, lighting, and finishes. But professional contractors start somewhere else: structure and systems. That’s also why many designers now begin their planning using tools that help visualize technical layout decisions before construction starts, such as platforms that allow homeowners to experiment with realistic bathroom layout planning before a remodel begins.

In this guide, I’ll walk through the contractor‑level standards professionals follow when installing Jacuzzi or whirlpool tubs — including building codes, framing rules, electrical safety requirements, plumbing best practices, and inspection steps most homeowners never see.

save pin

Industry Requirements for Installing Whirlpool and Jacuzzi Bathtubs

Key Insight: Jacuzzi tubs are classified as mechanical plumbing fixtures, meaning installation must follow plumbing, electrical, and structural building codes simultaneously.

Unlike standard soaking tubs, whirlpool systems include pumps, motors, air injectors, and sometimes heaters. That moves the installation into a different regulatory category in most U.S. building codes.

Contractors typically reference three standards:

1. International Residential Code (IRC)
2. National Electrical Code (NEC)
3. Manufacturer installation specifications

One mistake I still see in some remodels is installers treating Jacuzzi tubs like drop‑in bathtubs. That leads to missing electrical access, undersized framing, or inaccessible pump systems.

Professional installation standards typically require:

1. Accessible service panel for pump maintenance
2. Dedicated electrical circuit
3. Structural framing designed for full load weight
4. Moisture‑resistant backing materials
5. Waterproofing membranes behind tile surfaces

Manufacturers such as Kohler, American Standard, and Jacuzzi themselves explicitly require access panels. Ignoring this requirement can void warranties and complicate future repairs.

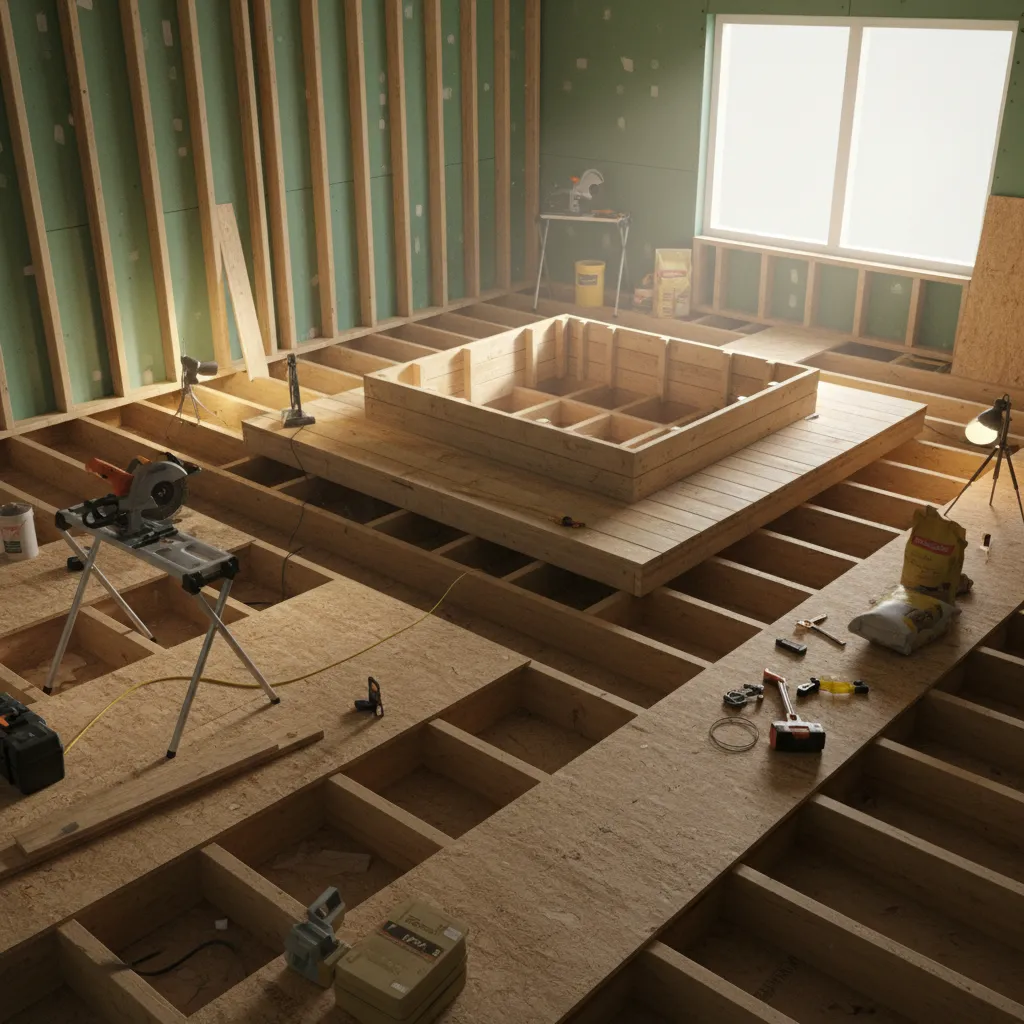

Structural Framing Standards for Large Bathtubs

Key Insight: Structural reinforcement is one of the most overlooked parts of Jacuzzi installation, even though the combined load can exceed 1,200 pounds.

Many homeowners assume their bathroom floor framing is strong enough. In reality, contractors often reinforce framing before installing a whirlpool tub.

Typical load calculations include:

1. Tub weight
2. Water capacity
3. Two occupants
4. Pump and mechanical components

A large corner whirlpool tub can hold 80–100 gallons of water. Water alone weighs about 8.34 pounds per gallon, meaning the load increases quickly.

Professional framing standards may include:

1. Double floor joists under the tub area
2. Additional blocking between joists
3. Load‑bearing platform framing
4. Mortar bed support under the tub base

In several projects I worked on in Los Angeles, inspectors required reinforced joist spans before approving installation. Skipping this step can cause long‑term floor sagging or cracked tile around the tub.

save pin

Electrical Codes for Jacuzzi Pump and Heater Systems

Key Insight: Whirlpool tubs require dedicated electrical protection because the pump operates near water and high moisture environments.

Electrical safety is one of the most tightly regulated parts of Jacuzzi installation.

According to the National Electrical Code (NEC), most whirlpool bathtubs require:

1. Dedicated 120V or 240V circuit
2. Ground‑fault circuit interrupter (GFCI) protection
3. Accessible electrical disconnect
4. Proper equipment grounding

Contractors also plan pump placement carefully to allow maintenance without removing finished walls or tile.

A common hidden mistake is installing electrical components too close to plumbing lines. Experienced contractors separate these systems whenever possible to reduce moisture exposure.

During renovation planning, visualizing pump placement and surrounding cabinetry early can prevent layout conflicts. Many designers now create detailed previews that allow homeowners to visualize how spa‑style bathroom features will look in a finished renovation before construction begins.

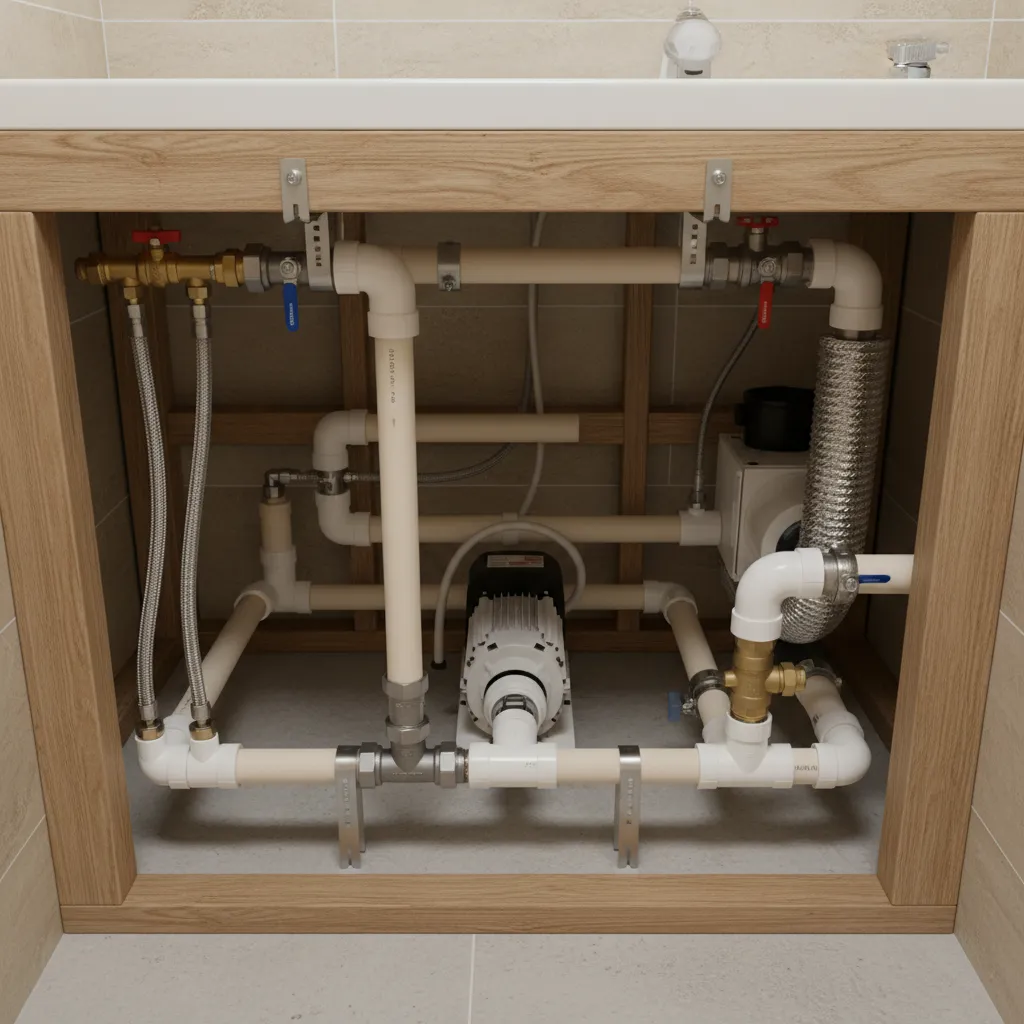

Professional Plumbing Layout for Whirlpool Tubs

Key Insight: Proper plumbing layout focuses on serviceability and pressure balance, not just connecting pipes.

Jacuzzi tubs place higher demand on water supply and drainage systems than standard bathtubs.

Contractors typically consider:

1. Water fill speed
2. Drain capacity
3. Air intake for whirlpool pumps
4. Access to shutoff valves

Professional plumbing layouts often include:

1. ¾‑inch supply lines to increase fill speed
2. Dedicated shutoff valves near the tub
3. Flexible connections for vibration isolation
4. Accessible trap areas for maintenance

One detail that separates professional installations from DIY work is vibration management. Pumps create small vibrations that can transmit through rigid plumbing. Flexible connectors help reduce noise and pipe stress.

save pin

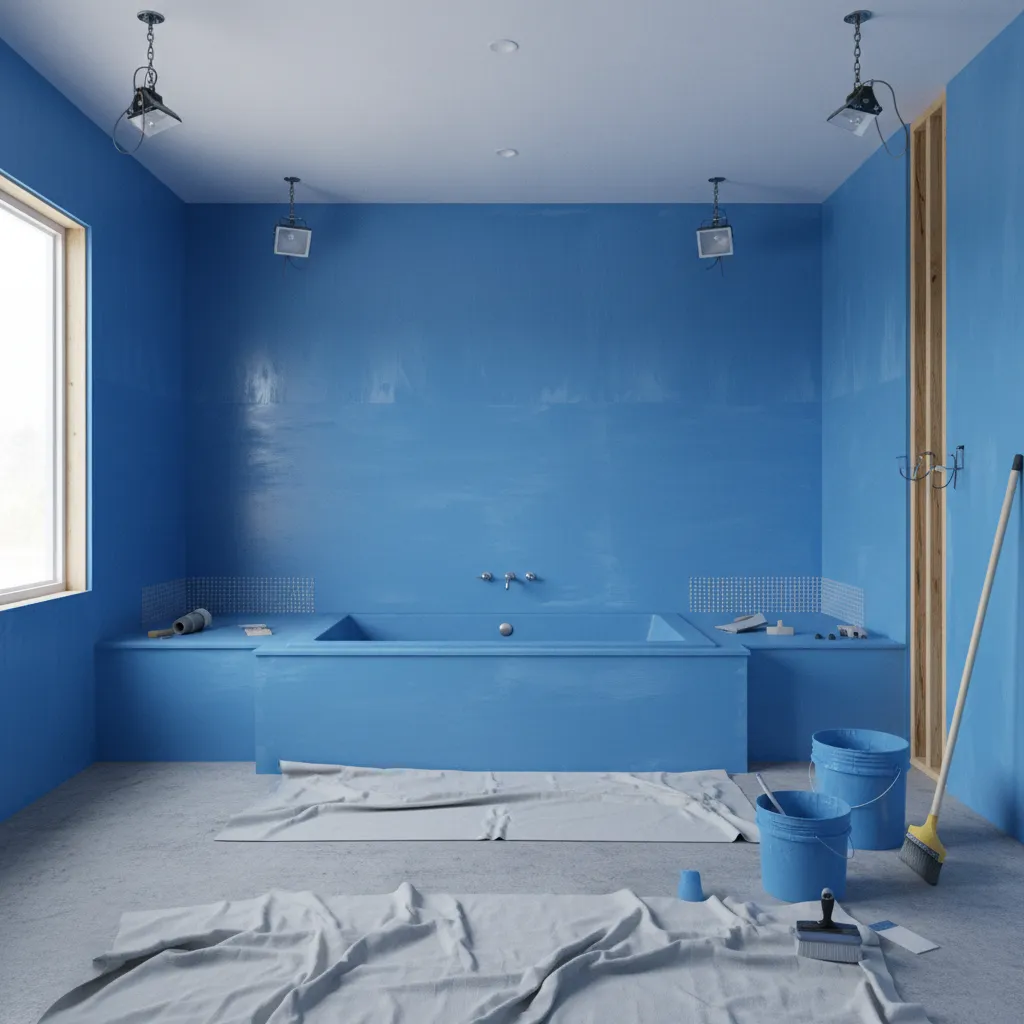

Waterproofing Standards in Bathroom Remodel Projects

Key Insight: Waterproofing failures are the most expensive hidden problem in Jacuzzi tub remodels.

Whirlpool tubs introduce splash zones, condensation, and increased humidity levels around the installation area. Contractors therefore treat the surrounding structure almost like a shower enclosure.

Professional waterproofing typically includes:

1. Cement backer board instead of drywall
2. Liquid waterproofing membrane
3. Sealed seams and corners
4. Waterproof tub deck surfaces
5. Proper slope toward the tub interior

The most expensive repair I’ve seen from a poorly waterproofed Jacuzzi installation involved rotted subfloor framing beneath the tub platform. The leak was invisible for years until tile cracked.

Proper planning during layout design can reveal potential waterproofing issues early. Some homeowners map out cabinetry, walls, and tub decks first using tools that allow them to test multiple bathroom layout configurations before construction begins.

Inspection Checklists Used by Professional Installers

Key Insight: Professional contractors rely on structured inspection checklists before finishing surfaces are installed.

Before closing walls or installing tile, experienced installers perform a multi‑stage inspection.

A typical professional checklist includes:

Structural Inspection

1. Joist reinforcement verified
2. Platform frame level
3. Tub base supported evenly

Electrical Inspection

1. GFCI circuit tested
2. Pump wiring secured
3. Disconnect accessible

Plumbing Inspection

1. Supply connections leak‑tested
2. Drain slope verified
3. Overflow system tested

Operational Test

1. Tub filled and drained
2. Pump operated under load
3. Jets and air system tested

Only after these tests pass do contractors proceed with tile work or cabinetry installation.

save pin

Answer Box

Professional Jacuzzi tub installation requires coordinated structural framing, GFCI‑protected electrical circuits, reinforced plumbing layouts, and full waterproofing systems. Contractors follow building codes and inspection checklists to ensure safety, long‑term durability, and service access for pumps and plumbing.

Final Summary

1. Jacuzzi tubs require stronger structural framing than standard bathtubs.
2. Dedicated GFCI electrical circuits are typically required by code.
3. Professional plumbing layouts prioritize maintenance access.
4. Waterproofing mistakes cause many long‑term remodeling failures.
5. Contractors rely on structured inspection checklists before finishing work.

FAQ

Do Jacuzzi tubs require special electrical wiring?

Yes. Most installations require a dedicated GFCI‑protected circuit according to National Electrical Code guidelines.

What building codes apply to Jacuzzi tub installation?

Jacuzzi tub installation building codes usually involve the International Residential Code (IRC) and National Electrical Code (NEC).

How much weight does a whirlpool tub add to a bathroom floor?

A filled whirlpool tub can exceed 1,000 pounds depending on size and water capacity.

Do Jacuzzi tubs need access panels?

Yes. Contractors install access panels so pumps, motors, and plumbing components can be serviced.

Can a standard bathroom floor support a whirlpool tub?

Sometimes, but contractors often reinforce joists or add structural blocking to support the load.

What is the biggest installation mistake contractors see?

Poor waterproofing and missing service access panels are two of the most common professional installation problems.

How long does professional Jacuzzi tub installation take?

Most installations take 2–4 days depending on structural reinforcement and plumbing complexity.

Do contractors test Jacuzzi tubs before finishing the bathroom?

Yes. Installers usually fill and run the whirlpool system before closing walls or installing tile.
