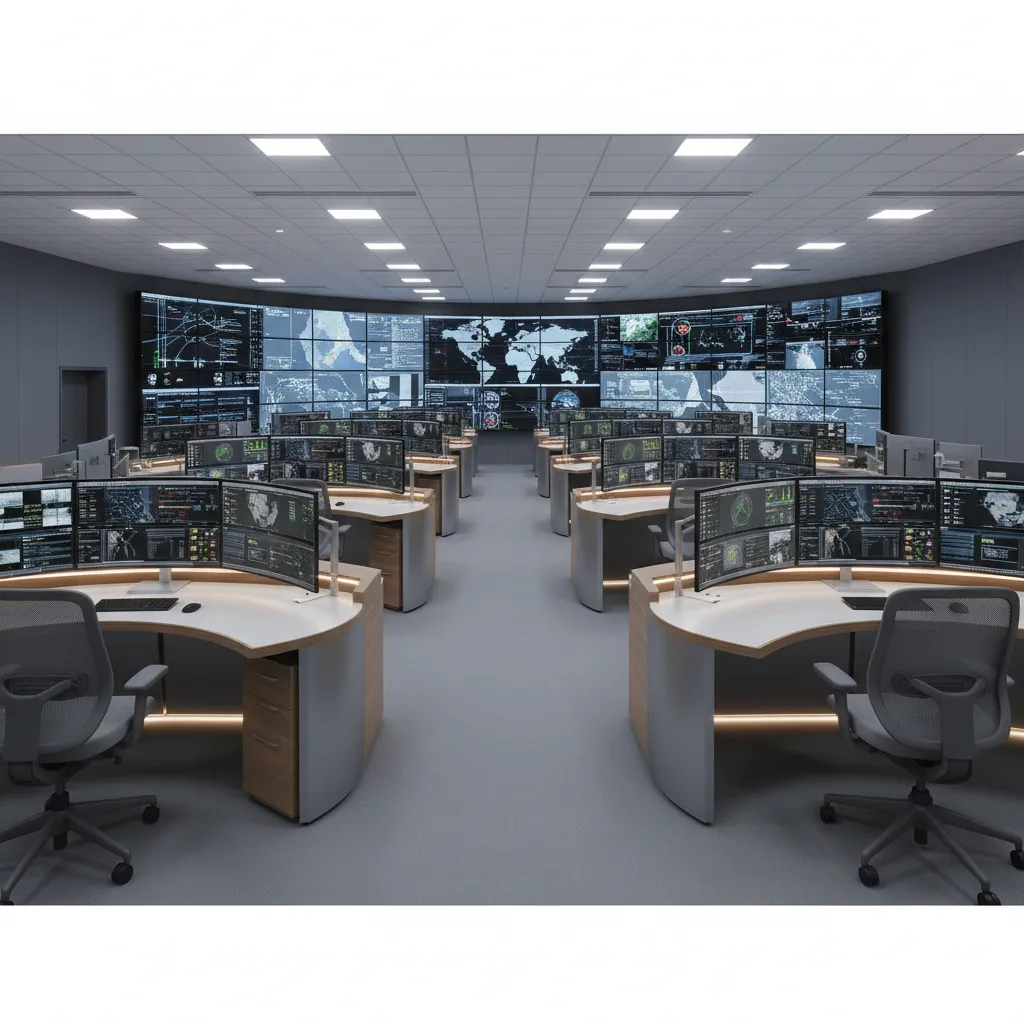

Control Room Layout Risk Factors and Operational Safety Considerations: Understand how control room layout decisions influence safety, operator performance, and risk management in modern dispatch environments.

Direct Answer

Poor control room layout directly increases operational risk by limiting visibility, slowing response time, creating ergonomic strain, and blocking emergency movement. A well‑designed dispatch room reduces these hazards through clear sightlines, ergonomic workstations, reliable equipment zones, and unobstructed emergency access.

Quick Takeaways

1. Control room layout affects response speed, monitoring accuracy, and operator fatigue.
2. Poor visibility zones are one of the most common causes of monitoring failure.
3. Improper workstation ergonomics significantly increase operator fatigue during long shifts.
4. Emergency pathways must remain clear and predictable during high‑stress incidents.
5. Technology clusters and cable congestion often become hidden operational failure points.

Introduction

In more than a decade working on mission‑critical control environments, I've learned that most operational failures don't come from equipment—they come from layout decisions made early in the design phase. Control room layout risk factors often hide in plain sight: blocked monitor angles, cramped workstations, or equipment placed in the wrong zone.

Many organizations focus heavily on technology upgrades while overlooking how physical space influences operator performance. But when dispatchers must monitor dozens of data feeds, communicate with field teams, and react instantly to emergencies, the layout of the room becomes part of the operational system itself.

Before any construction begins, I strongly recommend teams visualize a safer dispatch workstation arrangement before construction. Simulating layout options early prevents expensive redesigns and reveals risks that are easy to miss on paper.

In this guide, I'll break down the most common control room layout safety risks I see in real projects—and how design decisions can either amplify or eliminate those hazards.

save pin

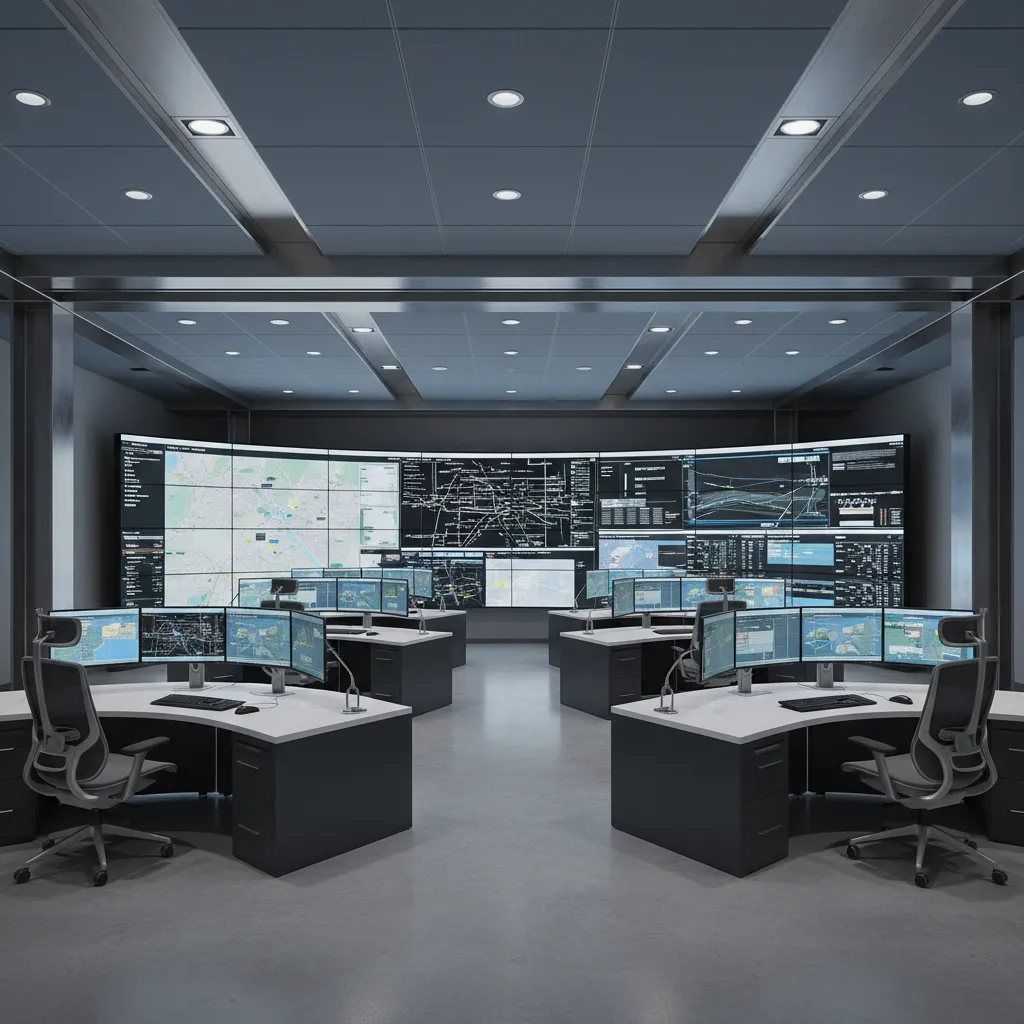

Why Dispatch Room Layout Impacts Operational Safety

Key Insight: Control rooms function as operational command centers, meaning spatial design directly affects situational awareness and decision speed.

Unlike traditional offices, dispatch environments operate under continuous monitoring conditions. Operators must observe multiple screens, coordinate with teams, and respond to real‑time events without delay. When layout design interrupts this workflow—even slightly—response times increase.

Three design elements consistently determine safety performance:

1. Sightline alignment: Operators must clearly view shared video walls or status boards.
2. Communication proximity: Teams that collaborate frequently should sit within direct voice range.
3. Movement efficiency: Supervisors must access workstations quickly without obstructed paths.

The International Organization for Standardization (ISO 11064), a global standard for control room design, emphasizes that layout planning should support operator cognition and workflow—not just equipment placement.

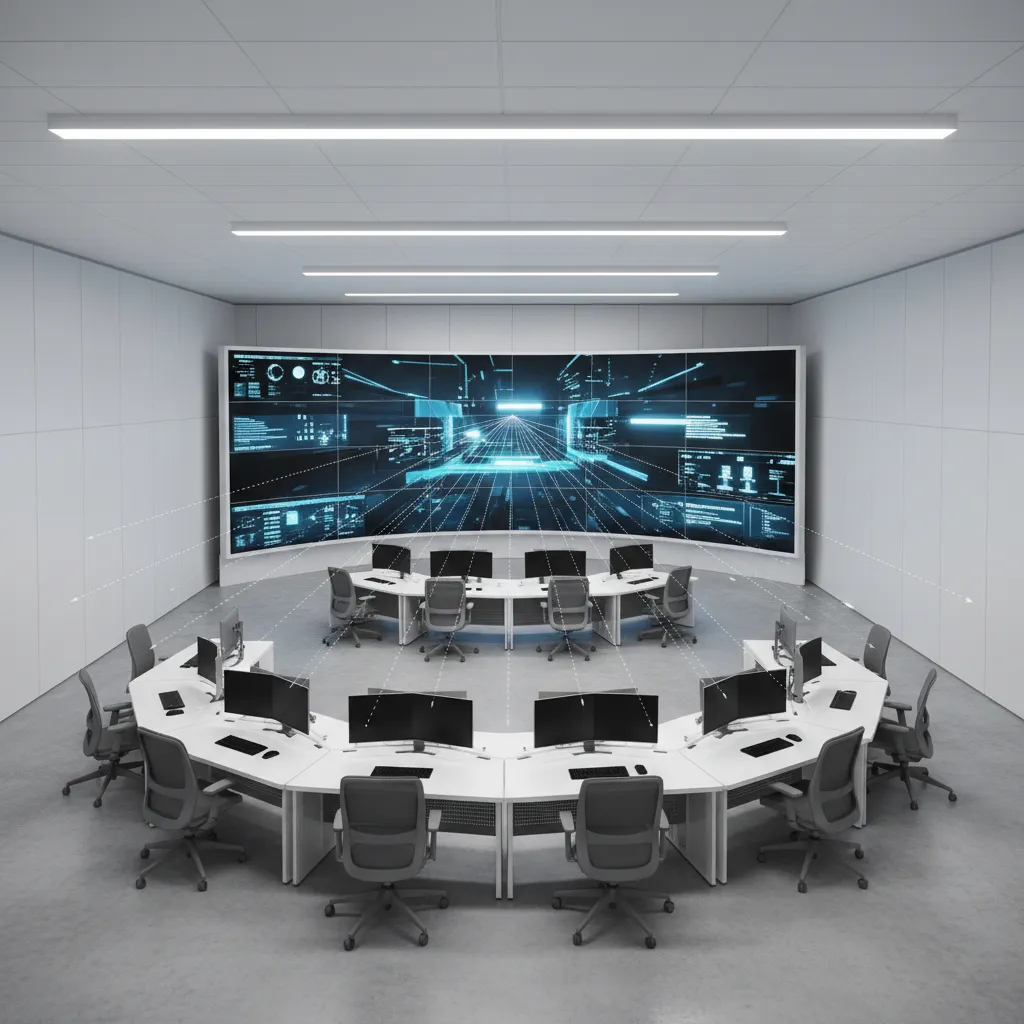

Visibility Risks and Monitoring Failures

Key Insight: Poor sightline planning is one of the most underestimated control room visibility safety issues.

I've audited several dispatch centers where operators had partial views of shared displays. In emergency operations, that small limitation creates a dangerous delay—people rely on verbal updates instead of visual confirmation.

Typical visibility problems include:

1. Monitors positioned at extreme viewing angles
2. Columns or equipment racks blocking video walls
3. Glare from overhead lighting
4. Operators seated too far from shared displays

A simple rule I use in design reviews: no operator should need to rotate more than 35 degrees to view critical information.

When planning these sightlines, teams often benefit from tools that allow them to simulate control room sightlines in a 3D dispatch layout modelbefore construction.

save pin

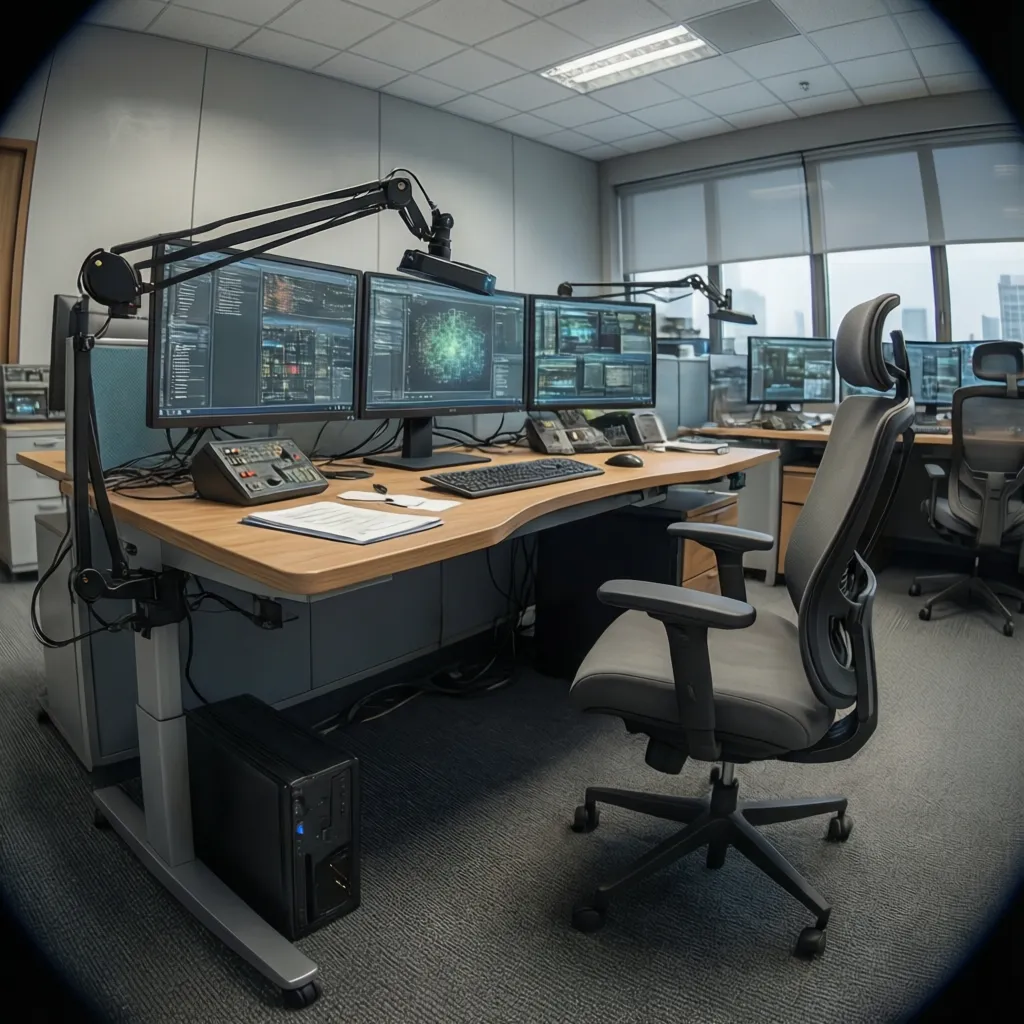

Operator Fatigue and Ergonomic Hazards

Key Insight: Ergonomic mistakes in control rooms compound over long shifts and become serious safety risks.

Dispatch operators frequently work 10–12 hour shifts. Small ergonomic issues—screen height, keyboard reach, or chair positioning—turn into fatigue, reduced attention, and slower reaction time.

Common control room ergonomic hazards include:

1. Fixed-height desks that don't accommodate different operators
2. Improper monitor stacking that strains the neck
3. Insufficient legroom due to cable trays or equipment racks
4. Poor lighting contrast between screens and surrounding surfaces

The Human Factors and Ergonomics Society consistently emphasizes that adjustable workstations dramatically improve operator alertness during extended monitoring tasks.

save pin

Emergency Access and Evacuation Path Design

Key Insight: In emergency scenarios, blocked movement paths can delay critical response or evacuation.

During layout planning, teams often prioritize workstation density over movement clearance. This becomes a major operational risk.

Essential emergency movement guidelines include:

1. Main aisles should remain at least 1.2 meters wide
2. Operators must exit without passing through equipment clusters
3. Supervisors should access every station within seconds
4. No cables or equipment should cross evacuation routes

Fire safety standards in many countries require clearly marked and unobstructed egress paths in mission‑critical facilities. Yet during redesign projects, I frequently find layouts that violate these basic principles.

Technology Failure Points in Poor Layouts

Key Insight: Equipment clustering and cable congestion create hidden reliability risks.

Control rooms rely on dense technology ecosystems: servers, consoles, network equipment, display walls, and communication systems. When layout design doesn't separate these systems logically, small failures cascade quickly.

High‑risk layout mistakes include:

1. Overloaded power zones behind operator desks
2. Cable routing that blocks maintenance access
3. Cooling airflow restricted by console placement
4. Backup systems located in the same physical cluster

According to data center infrastructure guidelines from the Uptime Institute, physical separation of redundant systems significantly improves operational resilience.

Answer Box

The most dangerous control room layout risks come from poor visibility, ergonomic strain, blocked emergency pathways, and poorly organized equipment zones. Addressing these issues early in the design phase dramatically improves dispatch reliability and operator performance.

Risk Mitigation Strategies for Dispatch Centers

Key Insight: The safest dispatch centers treat layout planning as part of operational risk management.

Over the years, I've found that effective control room layouts follow a few consistent principles.

1. Visibility-first design: Critical displays visible from every active workstation.
2. Zoned equipment planning: Separate operator space from technical infrastructure.
3. Ergonomic workstation systems: Adjustable desks, flexible monitor arms.
4. Clear operational pathways: Dedicated supervisor movement routes.
5. Future expansion capacity: Spare space for new consoles or systems.

Many organizations also use digital layout simulations to test dispatch center workstation configurations for safety and workflow before finalizing architectural drawings.

Final Summary

1. Control room layout directly affects operational safety and response speed.
2. Poor sightlines are a leading cause of monitoring failures.
3. Ergonomic workstation design reduces fatigue during long shifts.
4. Emergency movement paths must remain clear and predictable.
5. Strategic zoning of equipment improves reliability and maintenance access.

FAQ

What are the biggest dispatch room layout safety risks?

The most common risks include poor visibility of shared displays, cramped operator stations, blocked emergency paths, and poorly organized equipment clusters.

Why does control room layout affect safety?

Operators rely on constant monitoring and rapid response. If layout design limits visibility or slows movement, operational decisions become delayed.

What causes control room ergonomic hazards?

Fixed desks, improper monitor height, poor lighting, and limited legroom often lead to fatigue and reduced attention during long shifts.

How wide should control room aisles be?

Most safety guidelines recommend at least 1.2 meters for primary pathways to allow safe movement and emergency access.

How can organizations reduce dispatch room layout safety risks?

Early layout simulation, ergonomic workstation design, clear equipment zoning, and proper emergency route planning help reduce dispatch room layout safety risks.

What is the role of visibility in control room safety?

Clear sightlines allow operators to monitor critical systems instantly. Visibility failures are a major contributor to control room monitoring errors.

Do control rooms require specialized workstation design?

Yes. Safe dispatch room workstation design includes adjustable consoles, flexible monitor arms, and proper lighting conditions.

How can layout planning improve dispatch center risk management layout?

Strategic workstation placement, equipment separation, and ergonomic design all contribute to a safer dispatch center risk management layout.

References

ISO 11064 Ergonomic Design of Control Centres

Human Factors and Ergonomics Society Control Room Guidelines

Uptime Institute Infrastructure Resilience Standards
