Convert Floor Plan Image to 3D: From 2D Image to Real 3D Layout Step by Step

Have you ever wondered how to convert a floor plan image to 3D? This The Fast Answer

If you want to convert a floor plan image into a 3D model, the process is simple:

1. Upload your 2D floor plan image
2. Adjust dimensions and scale
3. Add walls, doors, and furniture
4. Switch to 3D view

Most modern tools can automatically generate a 3D model from your image and let you edit it in real time

The easiest way to do this today is using an online floor planner that supports image-to-3D conversion.

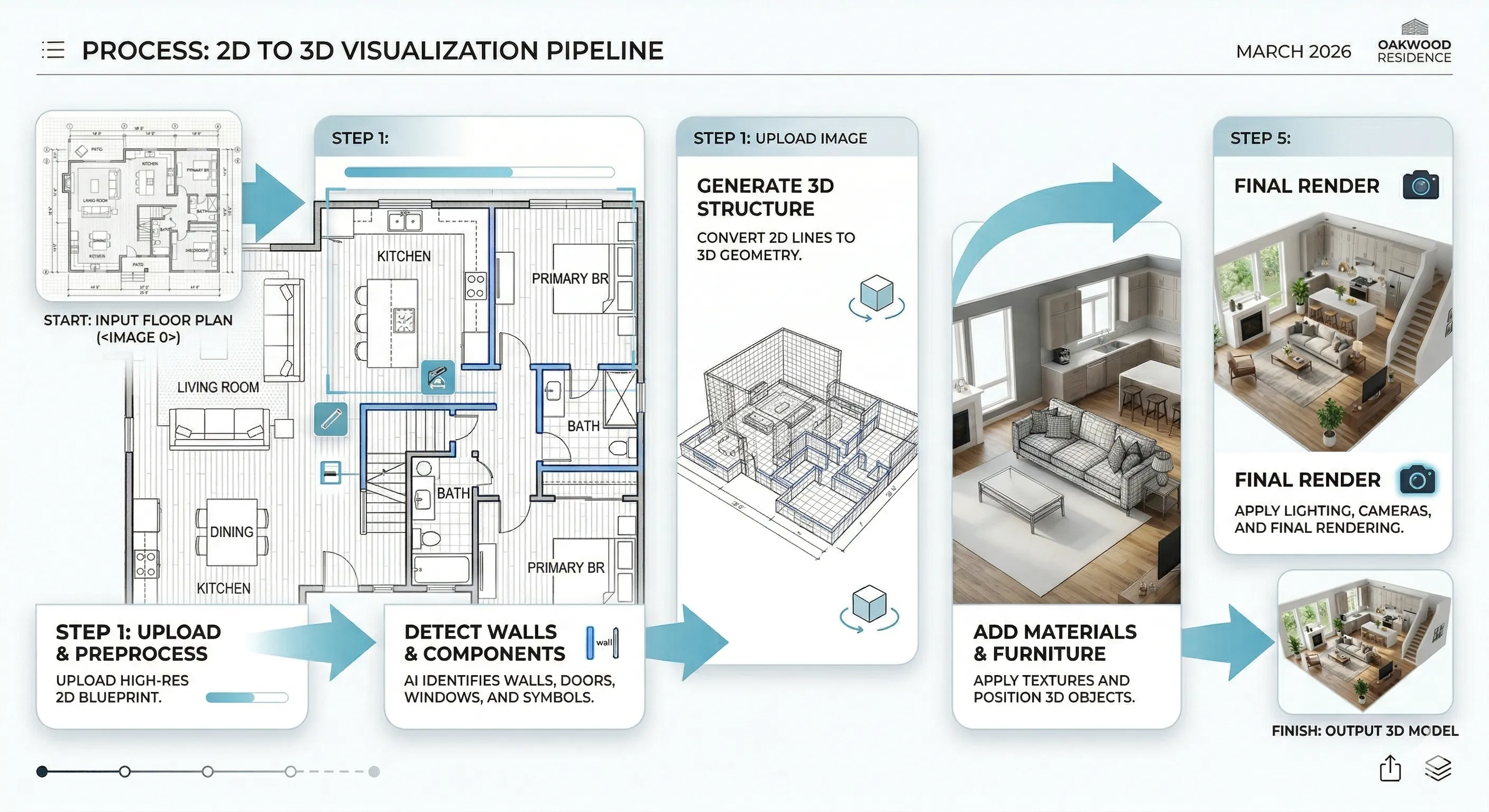

What “Convert Floor Plan Image to 3D” Actually Means

A 2D floor plan is just a flat layout showing walls and rooms.

When you upload it into a tool:

1. The system reads walls and structure
2. Converts it into a spatial model
3. Lets you walk through it in 3D

This transformation allows you to:

1. Understand real space proportions
2. Test furniture placement
3. Visualize the final result before building

save pin

Step-by-Step: Convert Floor Plan Image to 3D

Step 1 — Prepare Your Floor Plan Image

Make sure your file is:

1. JPG / PNG / PDF
2. Clear and high resolution
3. Properly aligned

Clean images improve recognition accuracy significantly

Step 2 — Upload to a Floor Planner

Use an online floor planner and upload your file.

Most tools support:

1. Drag & drop upload
2. Auto wall detection
3. Instant conversion

Some platforms can automatically turn your image into a 3D layout after upload

Step 3 — Adjust Scale and Structure

After upload:

1. Set wall thickness
2. Adjust room dimensions
3. Fix alignment

This step ensures your model matches real-world proportions.

A structured floor planner helps you refine accuracy before moving to 3D.

Step 4 — Add Doors, Windows, and Layout Details

Now define the structure:

1. Doors
2. Windows
3. Openings

Then test layout using a room planner to ensure proper spacing.

Step 5 — Switch to 3D View

Once your layout is ready:

1. Click 3D view
2. Walk through the space
3. Check proportions and flow

Most tools allow instant switching from 2D to 3D visualization

Step 6 — Customize Interior Design

Now refine your model:

1. Add furniture
2. Apply materials
3. Adjust lighting

This is where a full home design software becomes important for realism.

Why Converting Floor Plans to 3D Matters in 2026

Better Spatial Understanding

2D drawings don’t show depth.

3D models reveal real scale and proportions.

Faster Decision Making

You can test layouts instantly without rebuilding.

Higher Design Accuracy

Modern tools reduce manual errors by interpreting layouts automatically.

Common Mistakes to Avoid

Low-Quality Images

Blurry or messy floor plans reduce accuracy.

Skipping Scale Adjustment

Even good tools need manual calibration.

Designing Before Structuring

Always build layout first, then decorate.

2026 Insight: AI Is Changing Floor Plan Conversion

Today, tools can:

1. Automatically detect walls
2. Convert images to editable layouts
3. Generate 3D scenes instantly

Some platforms even allow:

1. Multi-floor imports
2. AI-assisted layout correction
3. Real-time rendering

This means:

Converting a floor plan image to 3D is no longer a technical task—it’s a standard workflow.

Try It Yourself

If you want to convert your own floor plan image:

Start with an online floor planner to:

1. Upload your image
2. Convert it into a 3D layout
3. Edit and visualize instantly

Then refine each room using a room planner and finalize with a home design softwareFAQ

How can I convert a floor plan image into a 3D model?

Upload the floor plan image to a floor planning tool that supports image-to-3D conversion, adjust the scale and dimensions, define walls and openings, and then switch to 3D view to generate and edit the model.

What file types are best for uploading a floor plan image?

Most floor planning tools support JPG, PNG, and PDF files, and it is best to use a clear, high‑resolution image that is properly aligned for accurate recognition.

Do I need to manually draw walls when converting a floor plan image to 3D?

Many modern tools offer automatic wall detection, but you may still need to adjust wall thickness, room dimensions, and alignment to ensure accurate proportions.

Why is converting a 2D floor plan into 3D useful?

A 3D model helps you understand spatial proportions, test furniture placement, visualize the final design, and make faster layout decisions before construction or renovation.

What are common mistakes when converting floor plan images to 3D?

Using low-quality images, skipping scale adjustments, and decorating before properly defining the layout structure can reduce accuracy and lead to unrealistic designs.
