Direct Answer

Creating 3D models from floor plans in Rhino usually starts by importing a CAD or image floor plan, scaling it accurately, tracing walls and openings with curves, and extruding those curves into walls and architectural elements. Rhino’s precision modeling tools make it easy to convert a 2D drawing into a clean, editable 3D model for visualization, layout testing, or rendering.

Quick Takeaways

1. Start with a properly scaled floor plan before modeling anything.
2. Trace walls as clean closed curves before extruding them.
3. Separate walls, doors, and furniture into layers early.
4. Extrusion and Boolean tools handle most architectural geometry.
5. Clean geometry improves rendering and export to other tools.

Introduction

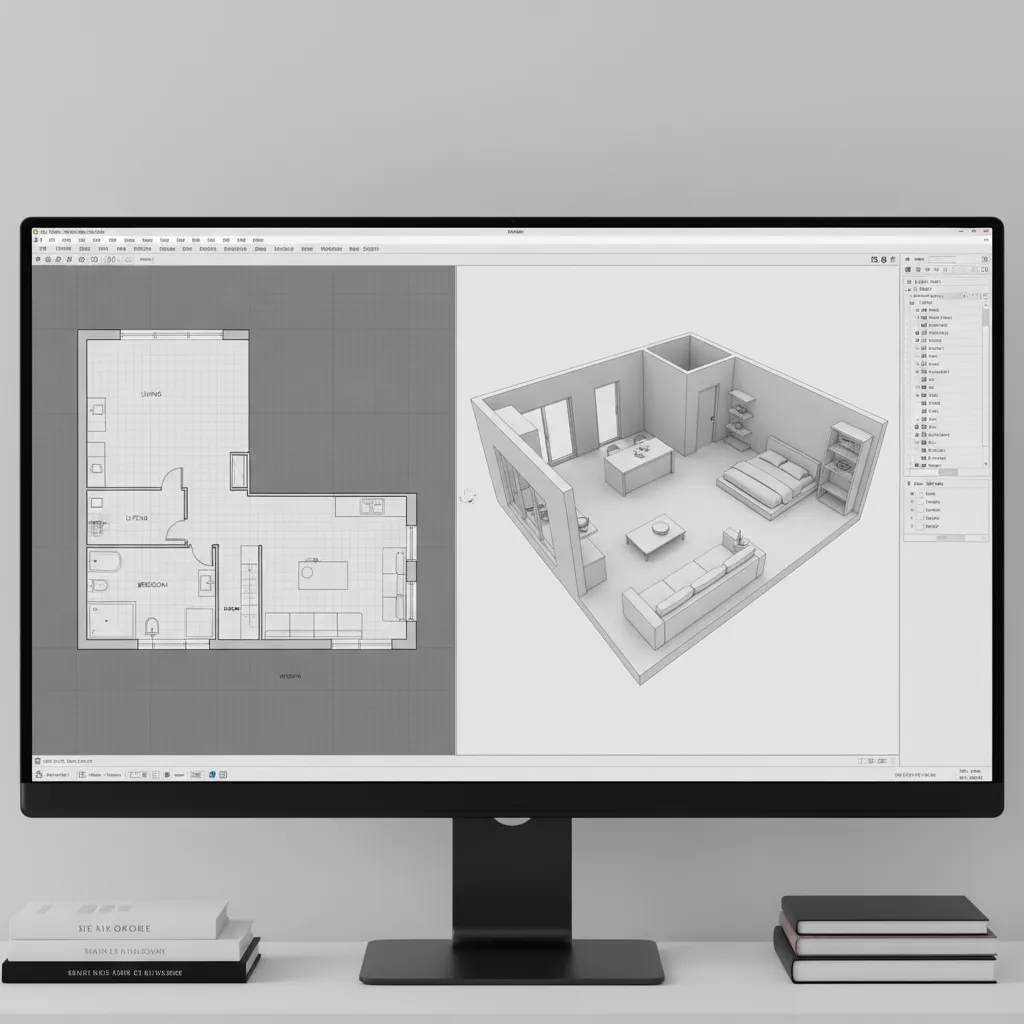

Over the past decade working on residential interiors, I’ve rebuilt hundreds of spaces in Rhino starting from nothing more than a flat floor plan. Designers often assume the hardest part is rendering or materials. In reality, the real challenge is translating a 2D drawing into a clean 3D model without messy geometry.

When creating 3D models from floor plans in Rhino, the difference between a usable model and a frustrating one usually comes down to workflow. If the foundation is wrong—incorrect scale, messy curves, overlapping walls—everything that follows becomes painful.

The process I’m going to walk through is the same one I use when turning architectural plans into client-ready models for layout testing, lighting studies, and concept visualization.

save pin

Why Rhino Works So Well for Floor Plan Modeling

Key Insight: Rhino excels at converting floor plans into 3D because it combines CAD-level precision with flexible surface and solid modeling tools.

Unlike many design tools that lock you into rigid architectural workflows, Rhino lets you build geometry exactly how you want. That flexibility is why many interior designers and architects still rely on it during early concept modeling.

In my own studio workflow, Rhino sits between CAD drafting and final visualization tools like Enscape or V-Ray.

Key advantages when modeling from floor plans:

1. Precise snapping and measurement tools
2. Simple curve tracing for walls and openings
3. Fast extrusion into architectural volumes
4. Clean export to rendering or BIM tools
5. Excellent layer management

According to McNeel, Rhino is widely used in architecture and industrial design precisely because it handles both technical drawings and complex geometry without requiring a BIM structure.

How Do You Import a Floor Plan Into Rhino?

Key Insight: The first step is importing the floor plan and scaling it accurately before drawing any geometry.

Floor plans typically come in two formats:

1. DWG / DXF CAD drawings
2. Scanned images or PDFs

Workflow I recommend:

1. Use File → Import to load the floor plan.
2. If it is an image, place it using the Picture command.
3. Use a known dimension (door width, wall length) to scale the drawing.
4. Lock the floor plan layer to avoid accidental edits.

A surprisingly common mistake I see from junior designers is skipping the scale check. Even a 2–3% scale error will break furniture layouts later.

save pin

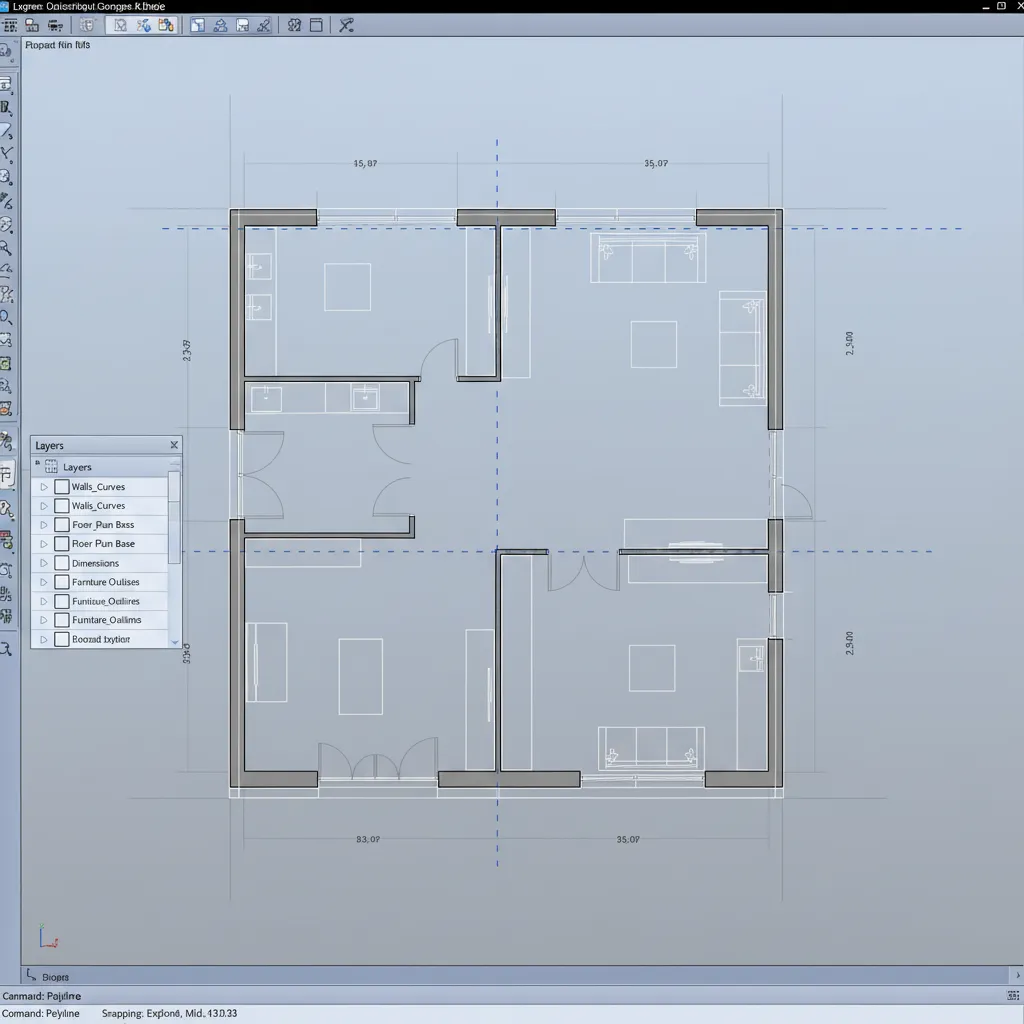

What Is the Best Way to Trace Walls in Rhino?

Key Insight: Always trace walls using clean closed curves before creating any 3D geometry.

Instead of immediately extruding lines, start by creating accurate wall outlines.

Recommended tracing workflow:

1. Use the Polyline or Line tool to follow the floor plan.
2. Create both inner and outer wall boundaries.
3. Use Offset to maintain consistent wall thickness.
4. Join curves into closed loops.

This step might feel slow, but it prevents one of the biggest hidden problems in Rhino architectural modeling: broken curves that later produce failed extrusions or rendering artifacts.

In my experience, spending 10 extra minutes cleaning curves can save an hour of troubleshooting later.

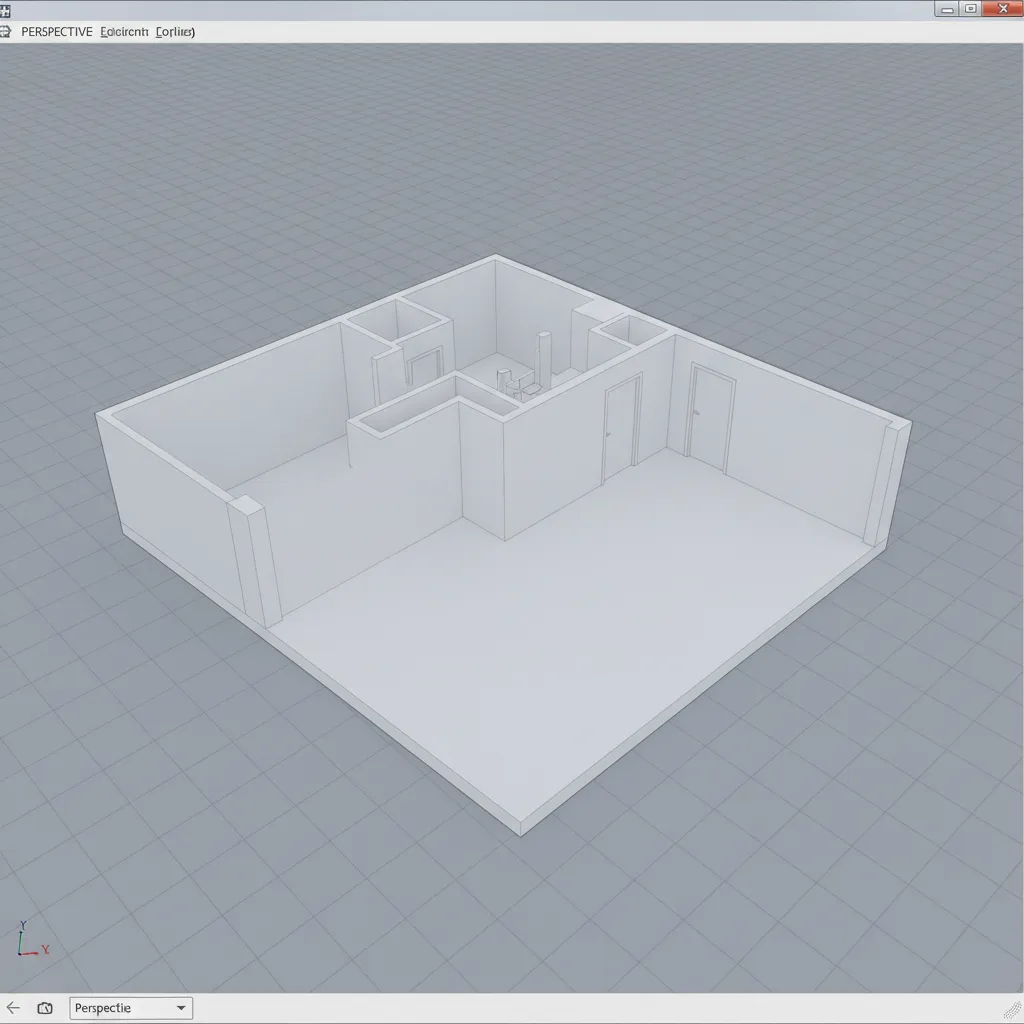

How Do You Turn a Floor Plan Into 3D Walls?

Key Insight: Once curves are clean and closed, the Extrude Curve command quickly transforms the floor plan into architectural volumes.

Typical wall modeling process:

1. Select wall outline curves.
2. Run ExtrudeCrv.
3. Set wall height (usually 2600–3000 mm in residential interiors).
4. Enable Solid = Yes.

After extrusion, you can add architectural features:

1. Boolean Difference for windows
2. Boolean Union for structural elements
3. Separate layers for doors and glazing

save pin

Common Mistakes When Converting Floor Plans to Rhino Models

Key Insight: Most modeling problems come from messy curves, incorrect layers, or over-modeling too early.

Here are mistakes I repeatedly see in design studios:

1. Unscaled imported drawings
2. Open curves that fail during extrusion
3. Overly detailed modeling at the concept stage
4. Everything placed on a single layer

A cleaner structure usually looks like this:

1. Walls
2. Doors
3. Windows
4. Furniture
5. Reference drawings

This structure makes exporting models to rendering engines or visualization tools significantly easier.

Answer Box

The fastest way to create a Rhino 3D model from a floor plan is to import and scale the drawing, trace clean wall curves, and extrude them into solids. Clean geometry and organized layers dramatically improve editing, rendering, and collaboration.

Should You Model Furniture When Building the Initial Rhino Model?

Key Insight: Furniture should be simplified during early modeling to keep the file lightweight and flexible.

In early-stage design models, I usually represent furniture using simplified blocks rather than detailed assets.

Benefits of simplified furniture:

1. Faster viewport performance
2. Easier layout adjustments
3. Cleaner exports to rendering engines
4. Better focus on spatial planning

Once the layout is approved, detailed models can be swapped in for visualization or marketing renders.

Final Summary

1. Accurate scaling is the foundation of any Rhino model.
2. Clean curves prevent most modeling problems.
3. Extrusion converts 2D plans into architectural volumes quickly.
4. Layer organization keeps large models manageable.
5. Simplified furniture improves workflow and performance.

FAQ

Can Rhino import floor plans directly from AutoCAD?

Yes. Rhino supports DWG and DXF files, allowing you to import AutoCAD floor plans directly while preserving layers and geometry.

What is the fastest way to create walls from a floor plan in Rhino?

Trace wall outlines with closed curves and use the ExtrudeCrv command to generate 3D walls.

Do I need plugins to create 3D models from floor plans in Rhino?

No. Rhino’s native tools are sufficient for most architectural modeling tasks.

Can Rhino convert image floor plans into 3D models?

Yes, but the image must be traced manually using Rhino’s curve tools.

What wall height should I use when extruding walls?

Typical residential interiors use 2600–3000 mm wall heights.

Is Rhino good for interior design modeling?

Yes. Many designers use Rhino to build spatial models before rendering or documentation.

Can Rhino models be exported to rendering software?

Yes. Rhino integrates well with V-Ray, Enscape, Twinmotion, and other visualization tools.

How accurate are Rhino models built from floor plans?

If the floor plan is scaled correctly, Rhino models can be extremely precise and suitable for layout planning and visualization.
